Product series MODUS BON LED
Pendant luminaire BON 3000-4300lm, LED 830, 700/800/900/1050mA

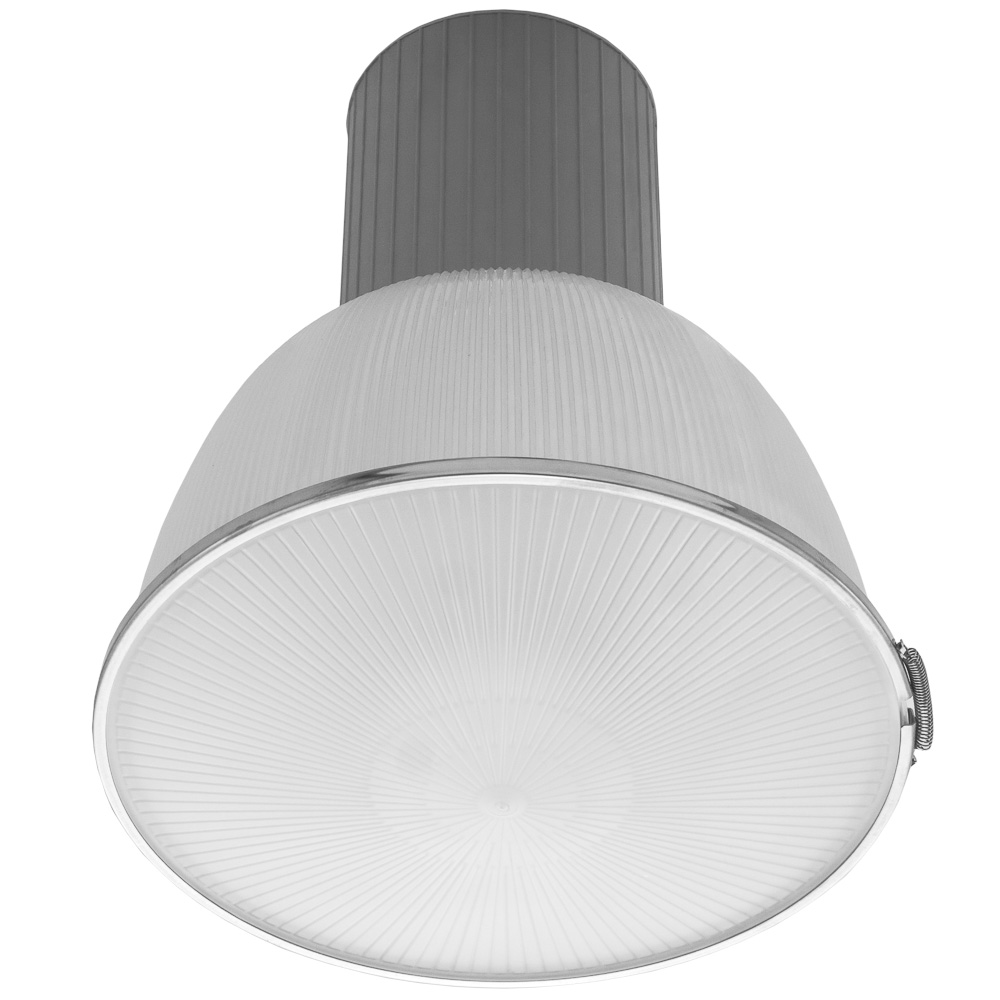

Pendant LED luminaire
Code: BONLED3V1/1050NDMULTI
EAN: 8596099124410
This product contains a light source with energy efficiency class D, D
Luminaire properties
| Product category: | Pendant luminaire | Effective luminous flux (lm): | 4300 | System power (W): | 38 | Luminaire efficacy (lm/W): | 113 |
| Rated lifetime L80/B50 (h): | 80000 | Degree of protection (IP): | IP20 | Color housing: | Aluminium | Material housing: | Aluminium | Light source included: | Yes |
| Suspension supplied with the product: | No | Made in Czech republic: | Yes |
Light source
| Light source type: | LED | Color temperature (K): | 3000 | Color rendering index CRI: | 80-89 | Replaceability: | Replaceable light source by professional, replaceable ballast |
| Light source type: | 1990120183004 | Energy efficiency class: | D |
| Light source type: | 1990120183005 | Energy efficiency class: | D |
Optical system
| Optical system: | PCS | Light outlet: | Direct/indirect | Light sharing: | Symmetric | Material cover: | Plastic, structured |
Dimensions
| Diameter (mm): | 330 | Height/depth (mm): | 330 | Weight (kg): | 3,3 |
Electrical values
| Protection class: | I | Connection type: | Pinching contact | Voltage type: | AC | Type of control gear: | LED operating device current-controlled |
| Nominal voltage (V): | 220...240 | Control gear included: | Yes | Type of wiring: | Ending | No dim function: | Yes |
LDT files >
LoadingFilters
Effective luminous flux (lm)
System power (W)
Product name
Effective luminous flux (lm)
System power (W)
Color temperature (K)
BONLED2V1/1050ND/9003
Effective luminous flux (lm): 4300
System power (W): 38
Color temperature (K): 2700
BONLED3V1/1050DALI
Effective luminous flux (lm): 4300
System power (W): 38
Color temperature (K): 3000
BONLED3V1/1050ND
Effective luminous flux (lm): 4300
System power (W): 38
Color temperature (K): 3000
BONLED3V1/1050ND/9005
Effective luminous flux (lm): 4300
System power (W): 38
Color temperature (K): 3000
BONLED3V1/1050NDMULTI
Effective luminous flux (lm): 4300
System power (W): 38
Color temperature (K): 3000
BONLED3V1/350ND
Effective luminous flux (lm): 1550
System power (W): 12
Color temperature (K): 3000
BONLED3V1/925ND
Effective luminous flux (lm): 4100
System power (W): 33
Color temperature (K): 3000
BONLED3V1/F1050ND/9003
Effective luminous flux (lm): 4300
System power (W): 38
Color temperature (K): 3000
BONLED4V1/1050DALI
Effective luminous flux (lm): 4300
System power (W): 38
Color temperature (K): 4000
BONLED4V1/1050DALI/9005
Effective luminous flux (lm): 4300
System power (W): 38
Color temperature (K): 4000
BONLED4V1/1050DALIT
Effective luminous flux (lm): 4300
System power (W): 38
Color temperature (K): 4000
BONLED4V1/1050ND
Effective luminous flux (lm): 4300
System power (W): 38
Color temperature (K): 4000
BONLED4V1/1050ND/9005
Effective luminous flux (lm): 4300
System power (W): 38
Color temperature (K): 4000
BONLED4V1/1050ND/9016
Effective luminous flux (lm): 4300
System power (W): 38
Color temperature (K): 4000
BONLED4V1/925ND
Effective luminous flux (lm): 4100
System power (W): 33
Color temperature (K): 4000
