Product series

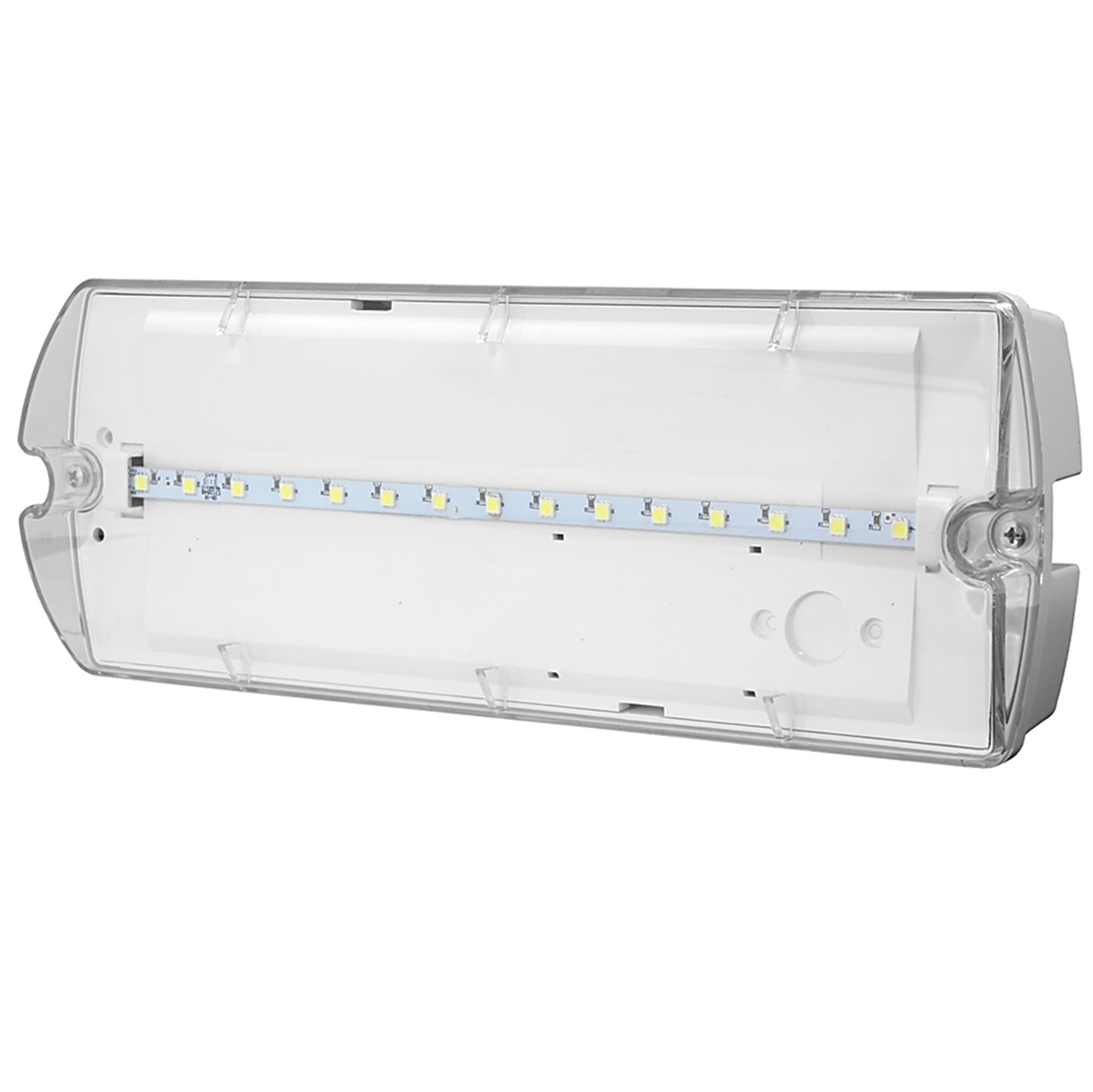

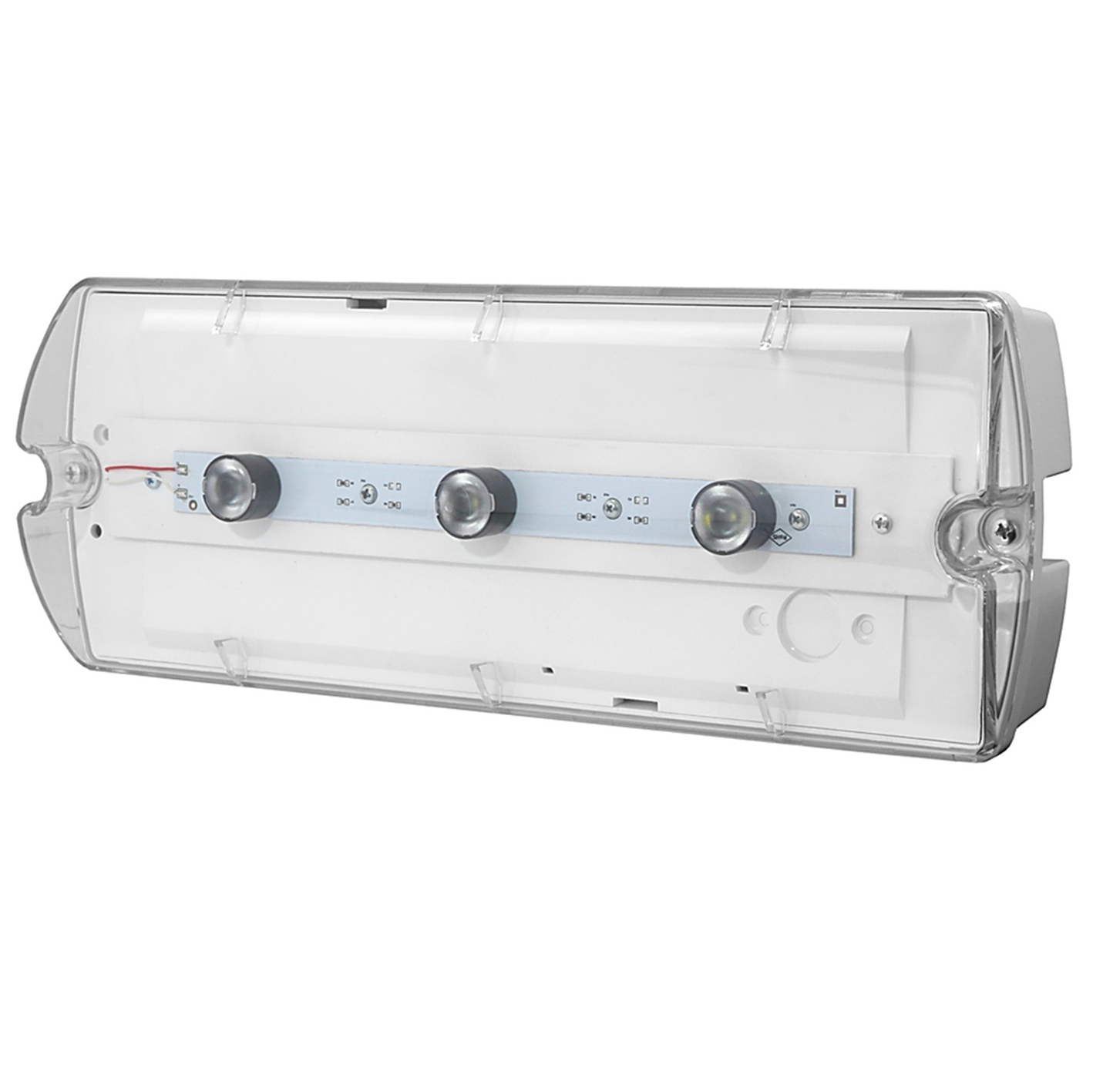

HELIOS LED
Standard price from:
On request
MATERIALS:
White polycarbonate body
Transparent or opal polycarbonate cover
MOUNTING:
Surface (wall, ceiling)
POWER SUPPLY:
Self contained – 220÷240VAC/50÷60Hz
Central battery – 220÷240VAC/50÷60Hz; 176 – 275VDC
Central battery FZLV – 24VDC
LIGHT SOURCE:
1W LED
CHARGING:
White polycarbonate body
Transparent or opal polycarbonate cover
MOUNTING:
Surface (wall, ceiling)
POWER SUPPLY:
Self contained – 220÷240VAC/50÷60Hz
Central battery – 220÷240VAC/50÷60Hz; 176 – 275VDC
Central battery FZLV – 24VDC
LIGHT SOURCE:
1W LED
CHARGING:
BASIC: max. 24h
STANDARD: max. 24h
PREMIUM: max. 12h; energy-saving electronic charger
AUTONOMY AND BATTERIES:
PREMIUM: max. 12h; energy-saving electronic charger
AUTONOMY AND BATTERIES:
BASIC: 1h or 3h, Ni-Cd 3,6V batteries
STANDARD: 1h or 3h, Ni-Cd 3,6V batteries
PREMIUM: 1h or 3h, LiFePO4 6,4V batteries
INSULATION CLASS:
II or III
IP RATING:
IP42 or IP65
AMBIENT TEMPERATURE:
ta: 0°C ÷ 40°C
ta: -25°C ÷ 40°C – together with heater for low temperatures
OPTIONS:
SE – non maintained
SA – maintained
PT – manual test button
AT – autotest
RU – Rubic UNA central monitoring
FZLV – central battery FZLV 24VDC
CB – central battery
ADDITIONAL INFORMATION:
LED indicator signalizes mains power supply and battery charging
Deep discharge protection
Optional adaptation of the fixture for low temperatures up to -25°C
Protection against mechanical impacts – IK08
III class of insulation of FZLV version
STANDARD: 1h or 3h, Ni-Cd 3,6V batteries
PREMIUM: 1h or 3h, LiFePO4 6,4V batteries
INSULATION CLASS:
II or III
IP RATING:
IP42 or IP65
AMBIENT TEMPERATURE:
ta: 0°C ÷ 40°C
ta: -25°C ÷ 40°C – together with heater for low temperatures
OPTIONS:
SE – non maintained
SA – maintained
PT – manual test button
AT – autotest
RU – Rubic UNA central monitoring
FZLV – central battery FZLV 24VDC
CB – central battery
ADDITIONAL INFORMATION:
LED indicator signalizes mains power supply and battery charging
Deep discharge protection
Optional adaptation of the fixture for low temperatures up to -25°C
Protection against mechanical impacts – IK08
III class of insulation of FZLV version
