Production



Examples of material in luminaire MODUS PL/EU:

Body and cover: Belgium

Inner metal sheet: Germany

Painting powder: Norway, Italy

Wires: Czech Republic

Terminal boxes and connectors: Germany, Italy

LED: Germany, Korea, Malajsia

Driver: Austria, Serbia, Bulgaria, Italy, Spain

Paper box: Czech Republic



We always keep on stock these non-china luminaires:

Recessed office luminaires:

ES4000A4BC80/44/600/ND/EU - MODUS ES4000, LED 840, recessed,  square A, modul 600, 4x4 black optics 80, driver, China free

IBP4000A4KO600ND/EU - MODUS IBP4000, IP54, recessed into raster - modul 600, square A, opal cover, LED 840, NONSELV,  non-dimmable driver, China free

Surface office luminaires:

LLL4000RM2KVM4ND/EU - MODUS LLL4000, 2x LED ,  1210mm,  MAT alu louvre , surface, LED 840, NONSELV 350mA, spec, China free

KX4000M4KO/ND/EU - MODUS KX 4000,1210mm, LED 840,  opal cover, surface, not dimable, 700mA, central terminal, China free

ESO4000RMKN4ND/EU - MODUS ESO4000, 2x LED ,  1200mm, nanoprizmatic cover, surface, LED 840, NONSELV 350mA, China free

Industrial luminaires:

PL5000M2W4ND/EU - MODUS PL 5000, wide body 1275mm, LED 840 , body PE, opal PC cover, IP65,  driver 1400mA, China free

PL7000L2W4ND/EU - MODUS PL 7000, wide body 1575mm, LED 840 , body PE, opal PC cover, IP65,  driver 1200mA, China free

Street lighting:

OXC3000PC4W/NDV60/EU - MODUS OXC, 3000lm, 4000K, PC cover, wide beam, nondimmable, flange for bracket diam. 60, China free

LVX3000NO4V1/NDV60/EU - MODUS LVX, MidPower LED, 3000lm, 4000K, low opal cover, nondimmable, straight flange diam. 60, China free





As a producer we have for example these technologies:

Laser cutting machines


We use fast lasers from Switzerland to prepare sheets. The main advantages include speed, accuracy and low burden on the environment (ecology). We currently have 3 laser centers, these machines are complemented by on Finn-power machine (older technology).

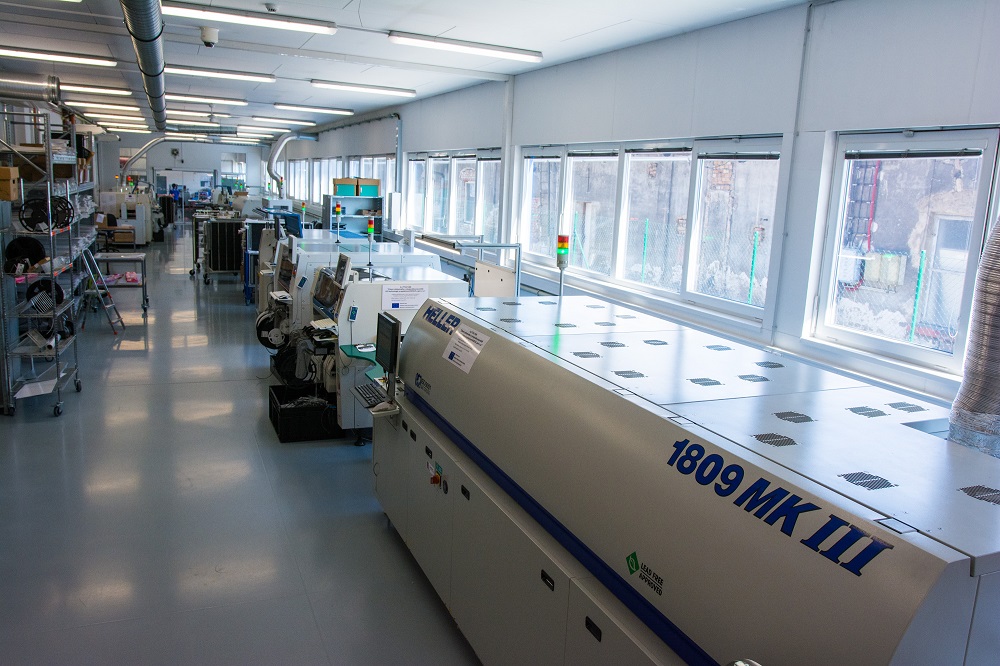

Automatic LED assembly lines


We manufacture our own LED modules for use in our luminaires. This gives us a free hand for development (flexibility) and we have control over the quality and execution of the chips. We use chips from OSRAM and SAMSUNG for mounting. We currently have three assembly machines from SAMSUNG.

Automatic bending machines


The sheet metal bodies of the luminaires take shape on three SALVAGNINI bending centers. The advantage of this technology is speed and it is guaranteed that the body of each luminaire is the same per millimeter.

Wirring robots


We use two automatic bending machines from BJB for large-scale production orders. Each luminaire from the wire machine is tested for functionality after wiring.

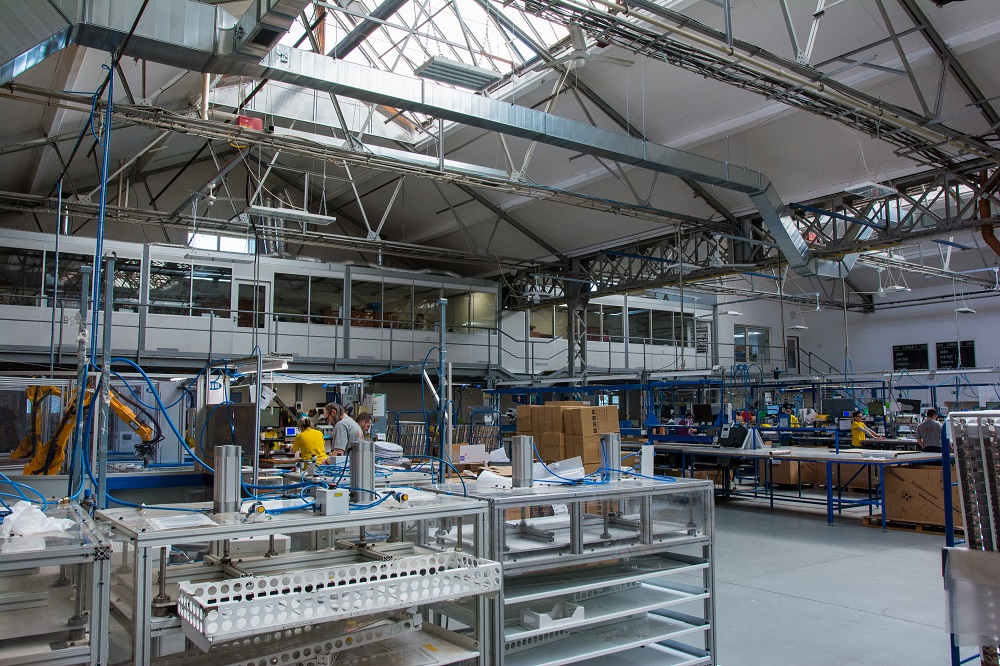

Line production


For medium range production orders, classic line production is used (one worker = one production operation). We currently have 9 lines for the final assembly of the luminaire. Each luminaire is tested for functionality at the last position of the line.

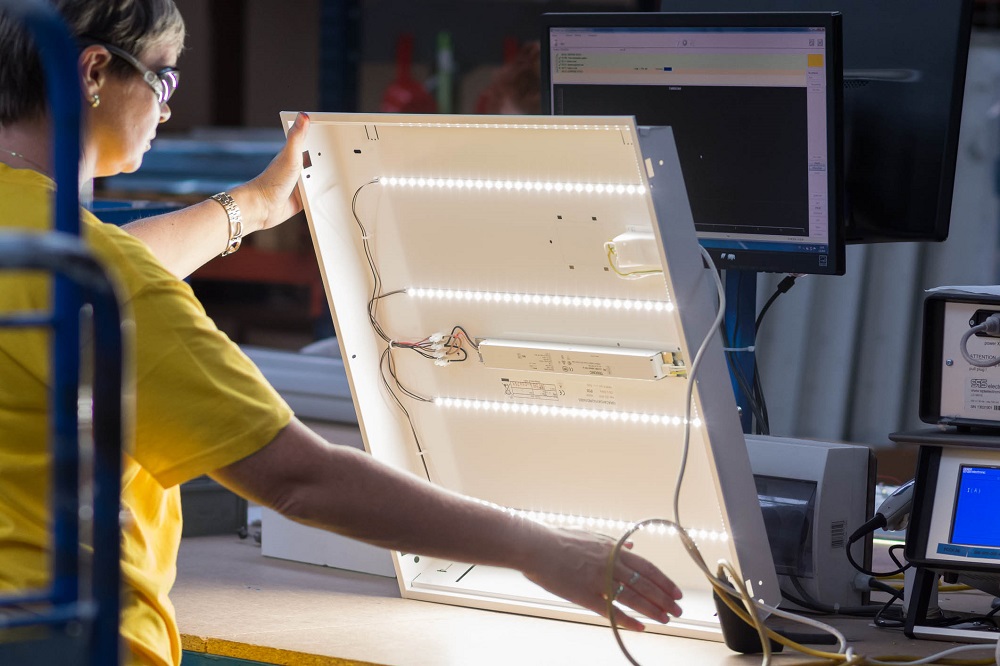

Table mounting


For smaller-scale orders or the production of luminaires that are more complex to be wired (for example, with an emergency module), table assembly is used = one worker completes the luminaire from start to finish. Each luminaire is tested for functionality.

Automatic painting line


The luminaires are painted on a fully automatic line - this is a white or gray final modification of the luminaire. If an atypical paint of luminaire is required, we use painting in a manual paint shop.

Production of optical system for LED panels


As one of the few luminaire manufacturers in Europe, we produce LED panels completely in our production plant. To do this, it is necessary to produce a special optical system that takes care of the homogeneity of the LED panel.

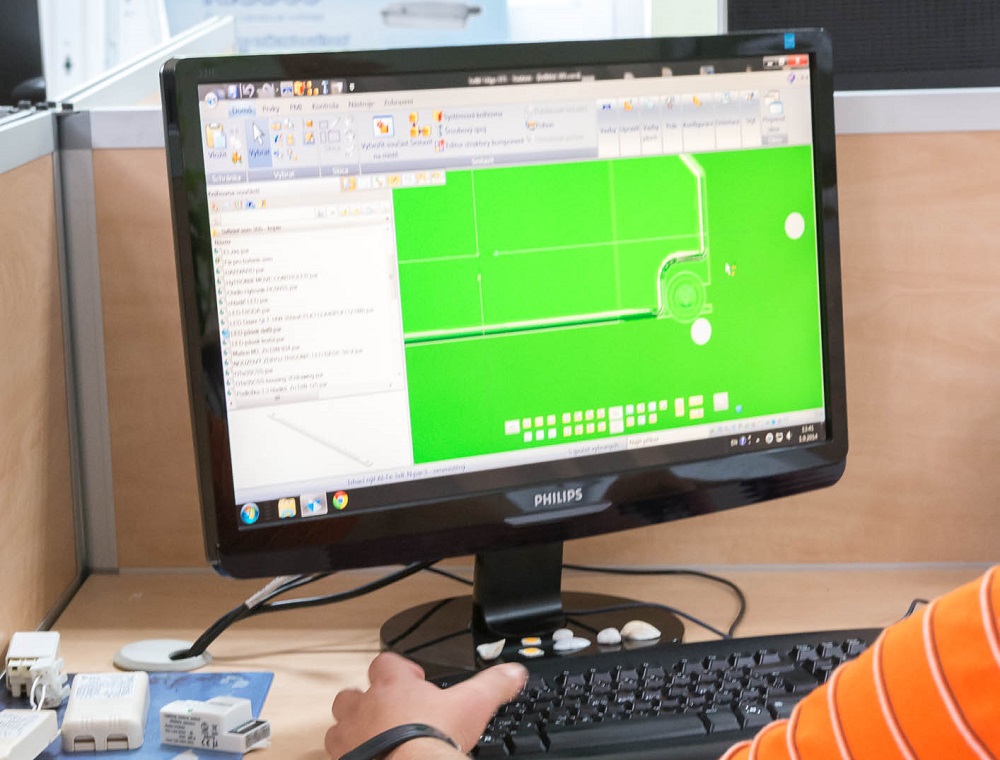

Development of luminaires



The development of LED luminaires is advancing rapidly, as a modern company we are aware of this and we are bringing new types of luminaires to the market. In addition to the development of "catalog" luminaires, we also develop luminaires specially designed for the project (eg.: atypical luminaire size, atypical installation method ...).

 Together with finest technology and perfect skilled staff we ready supply to market more than 25.000 pcs/week.



Important for is a quality product, in fact of these we have own testing facility:

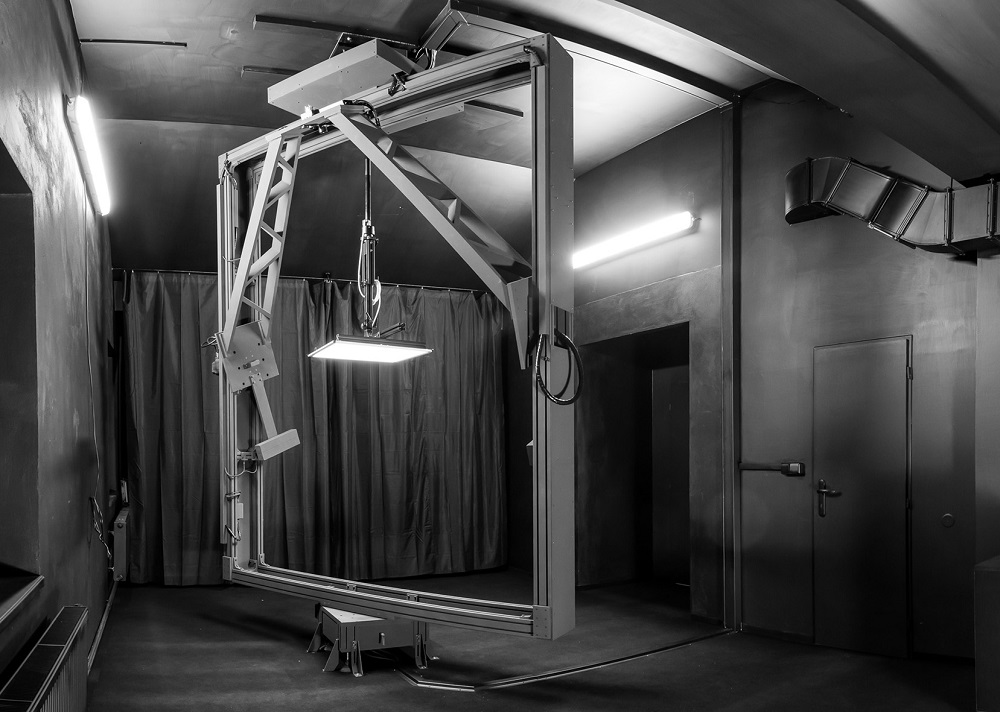

Ligting measurement laboratory (lm output, light temperature, lighting curves - LDT files)




IP protection testing area (dust, water)
