Product series New
MODUS ALIN
Industrial aluminium lumininaire IP65
Standard price from:
On request

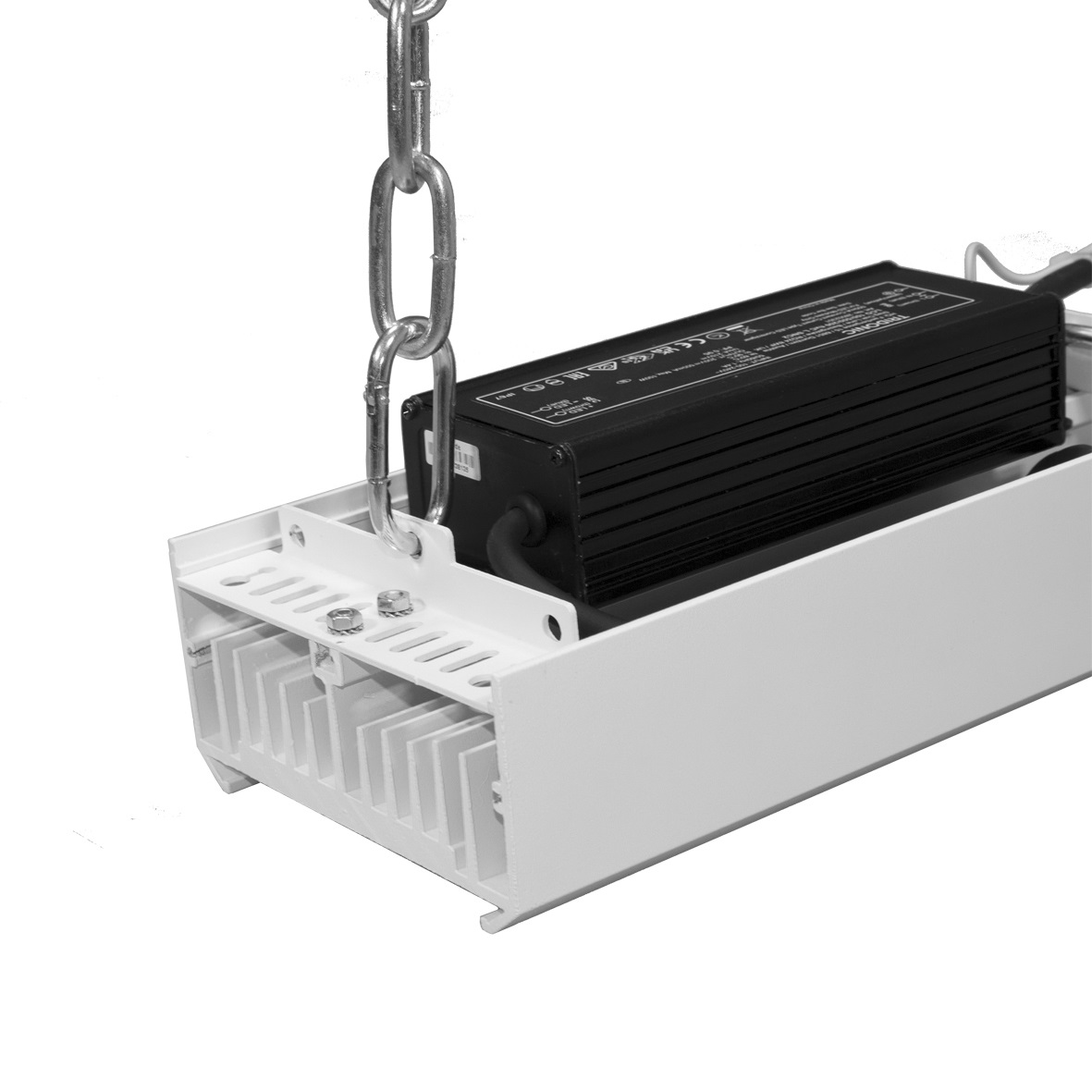

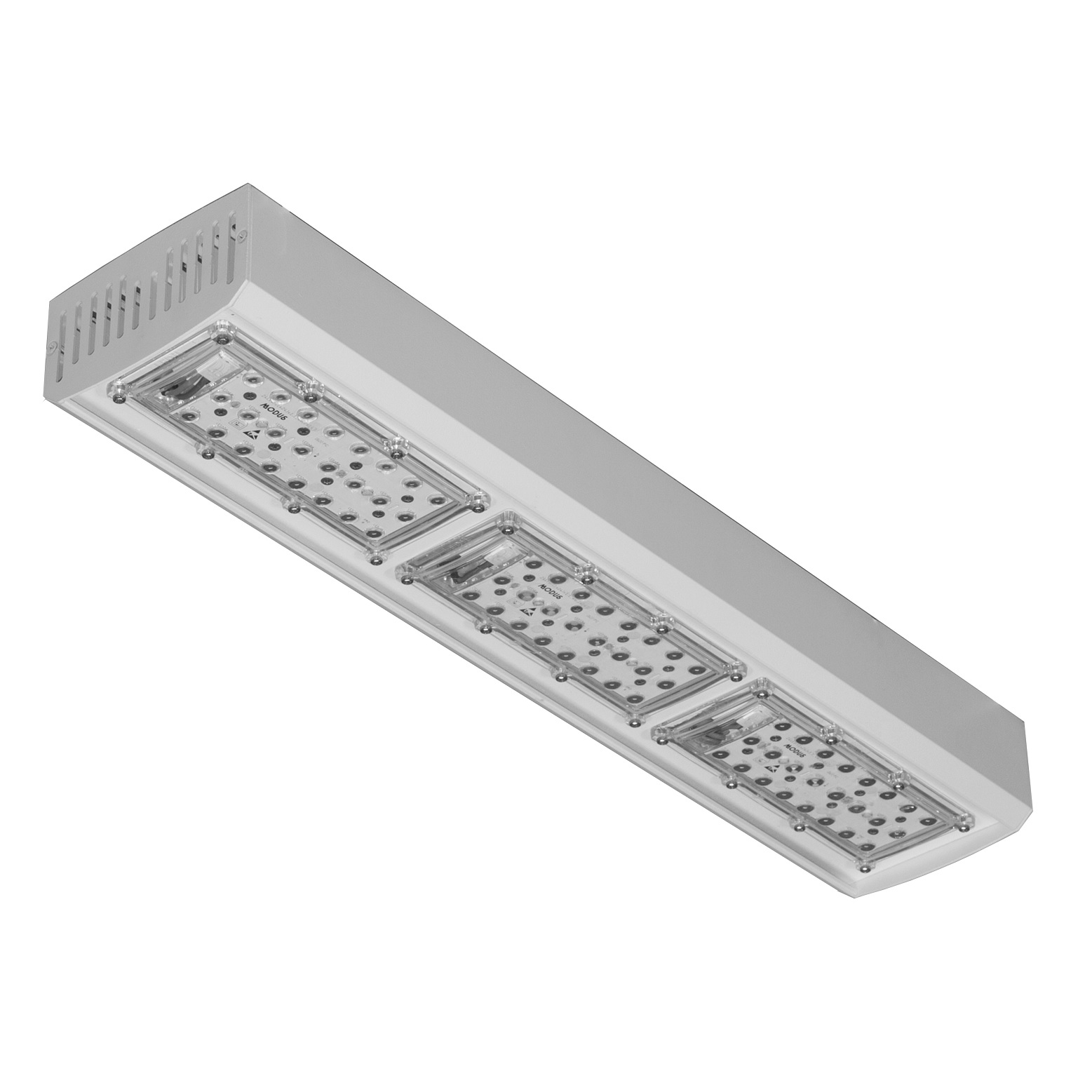

Pendant luminaire with clear lentil optic and IP65 protection.

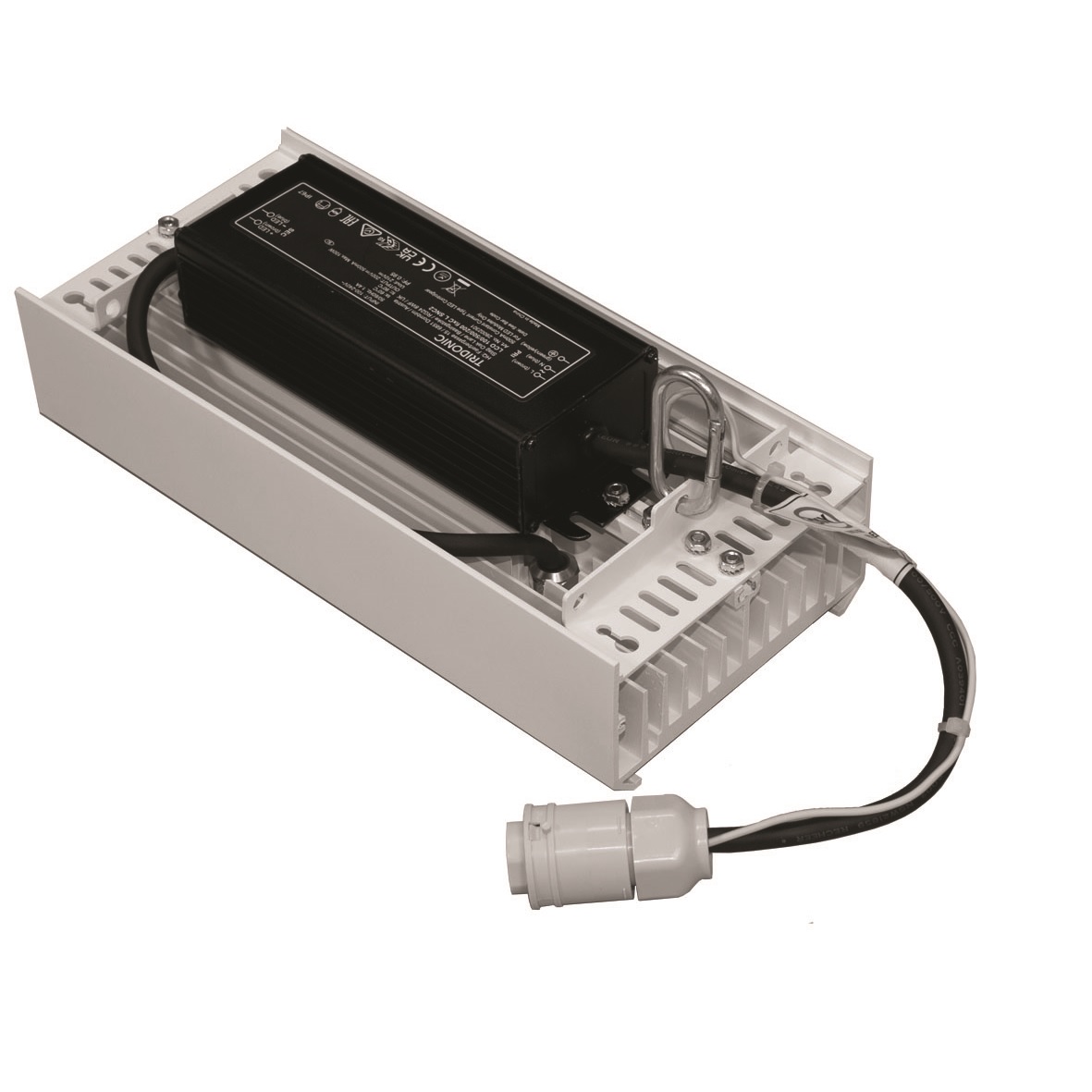

Body of fitting is made from aluminium profile for ideal temperature conditions.

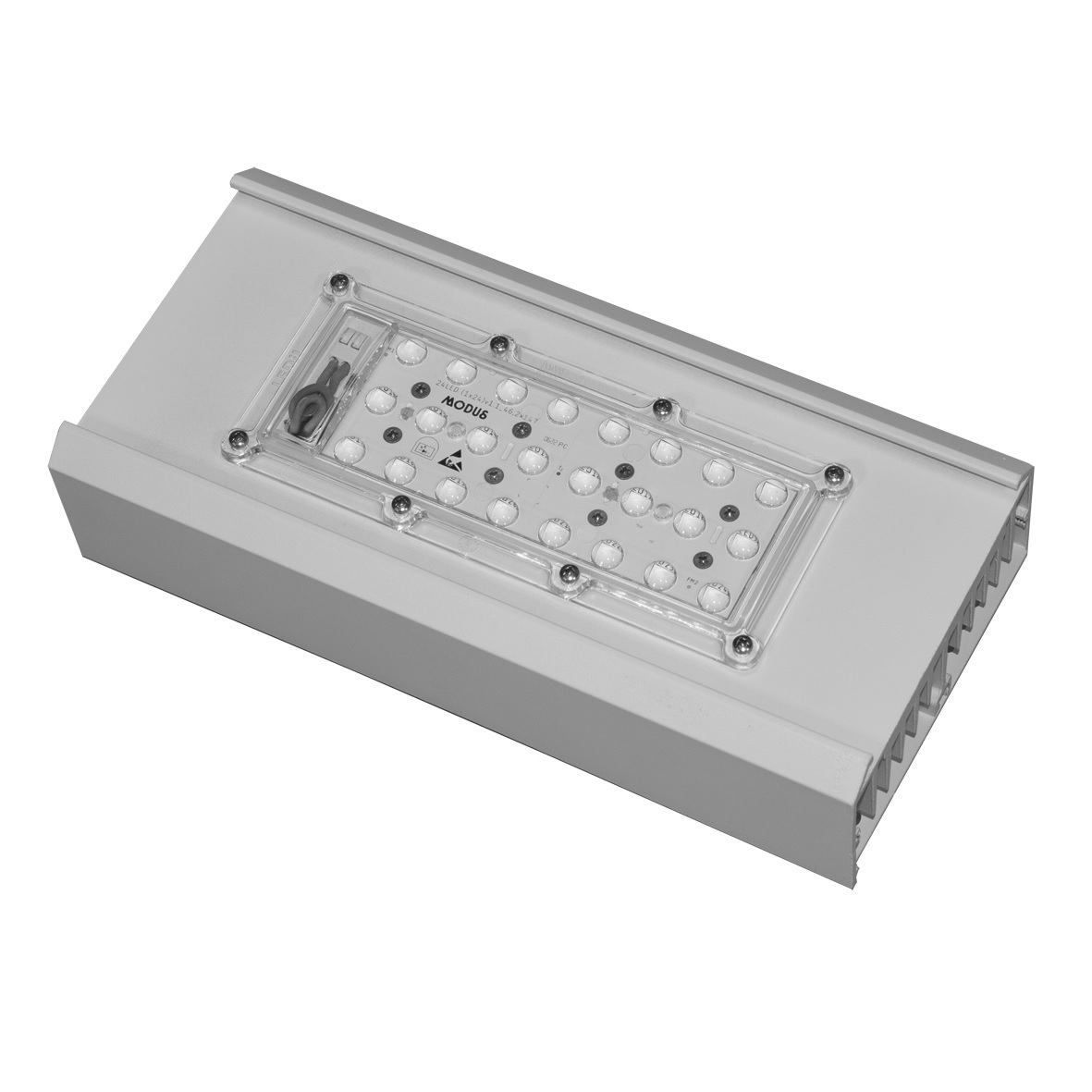

Optical part is made from PC lentil optic for high effectivity and ideal lighting characteristic.
There are two possible optical systems:
W - wide lighting characteristic
N - narrow lighting characteristic
Due PC material of optic the luminaire is resitant to impact.
| Mounting method: | Suspended | Protection class: | I | Type of control gear: | LED operating device current-controlled | Color rendering index CRI: | 80-89 | Light source type: | LED | Light outlet: | Direct | Light sharing: | Symmetric | Nominal voltage (V): | 220...240 | Degree of protection (IP): | IP65 |
| Color temperature (K): | 4000, 6500, 3000, 5700 | Rated lifetime L80/B50 (h): | 80000 | Rated ambient temperature (°C): | -10...+45 | Dimming DALI: | Yes | Made in Czech republic: | Yes | Photobiological safety EN 62 471: | RG 0 | MacAdam binning: | SDCM 3 |
LoadingFilters
Effective luminous flux (lm)
System power (W)
Product name
Effective luminous flux (lm)
System power (W)
Color temperature (K)
Optical system
Length (mm)
ALIN100S4N1B/ND
Effective luminous flux (lm): 10100
System power (W): 75
Color temperature (K): 4000
Optical system: W
Length (mm): 263
ALIN100S4W1B/DALI/HT60
Effective luminous flux (lm): 10100
System power (W): 75
Color temperature (K): 4000
Optical system: W
Length (mm): 263
ALIN100S4W1B/ND
Effective luminous flux (lm): 10100
System power (W): 75
Color temperature (K): 4000
Optical system: W
Length (mm): 263
ALIN100S4W1B/ND/HT60
Effective luminous flux (lm): 10100
System power (W): 75
Color temperature (K): 4000
Optical system: W
Length (mm): 263
ALIN150M4W2B/ND
Effective luminous flux (lm): 15800
System power (W): 109
Color temperature (K): 4000
Optical system: W
Length (mm): 469
ALIN200M4N2B/ND
Effective luminous flux (lm): 20800
System power (W): 145
Color temperature (K): 4000
Optical system: W
Length (mm): 469
ALIN200M4W2B/DALI
Effective luminous flux (lm): 20200
System power (W): 145
Color temperature (K): 4000
Optical system: W
Length (mm): 469
ALIN200M4W2B/DALI/HT60
Effective luminous flux (lm): 20200
System power (W): 145
Color temperature (K): 4000
Optical system: W
Length (mm): 653
ALIN200M4W2B/ND
Effective luminous flux (lm): 21500
System power (W): 155
Color temperature (K): 4000
Optical system: W
Length (mm): 469
ALIN200M4W2B/ND/HT60
Effective luminous flux (lm): 21500
System power (W): 155
Color temperature (K): 4000
Optical system: W
Length (mm): 653
ALIN300L4N3B/ND
Effective luminous flux (lm): 30600
System power (W): 224
ALIN300L4W3B/DALI
Effective luminous flux (lm): 31800
System power (W): 224
Color temperature (K): 4000
Optical system: W
Length (mm): 638
ALIN300L4W3B/DALI/HT55
Effective luminous flux (lm): 31800
System power (W): 224
Color temperature (K): 4000
Optical system: W
Length (mm): 853
ALIN300L4W3B/ND
Effective luminous flux (lm): 31800
System power (W): 224
Color temperature (K): 4000
Optical system: W
Length (mm): 638
ALIN300L4W3B/ND/HT55
Effective luminous flux (lm): 31800
System power (W): 224
Color temperature (K): 4000
Optical system: W
Length (mm): 852
ALIN400L4N4B/ND
Effective luminous flux (lm): 41300
System power (W): 310
Color temperature (K): 4000
Optical system: W
Length (mm): 925
ALIN400L4W4B/DALI/HT55
Effective luminous flux (lm): 43000
System power (W): 310
Color temperature (K): 4000
Optical system: W
Length (mm): 1153
ALIN400L4W4B/ND
Effective luminous flux (lm): 43000
System power (W): 310
Color temperature (K): 4000
Optical system: W
Length (mm): 925
ALIN400L4W4B/ND/HT55
Effective luminous flux (lm): 43000
System power (W): 310
Color temperature (K): 4000
Optical system: W
Length (mm): 1153
