Product series New
MODUS ALT

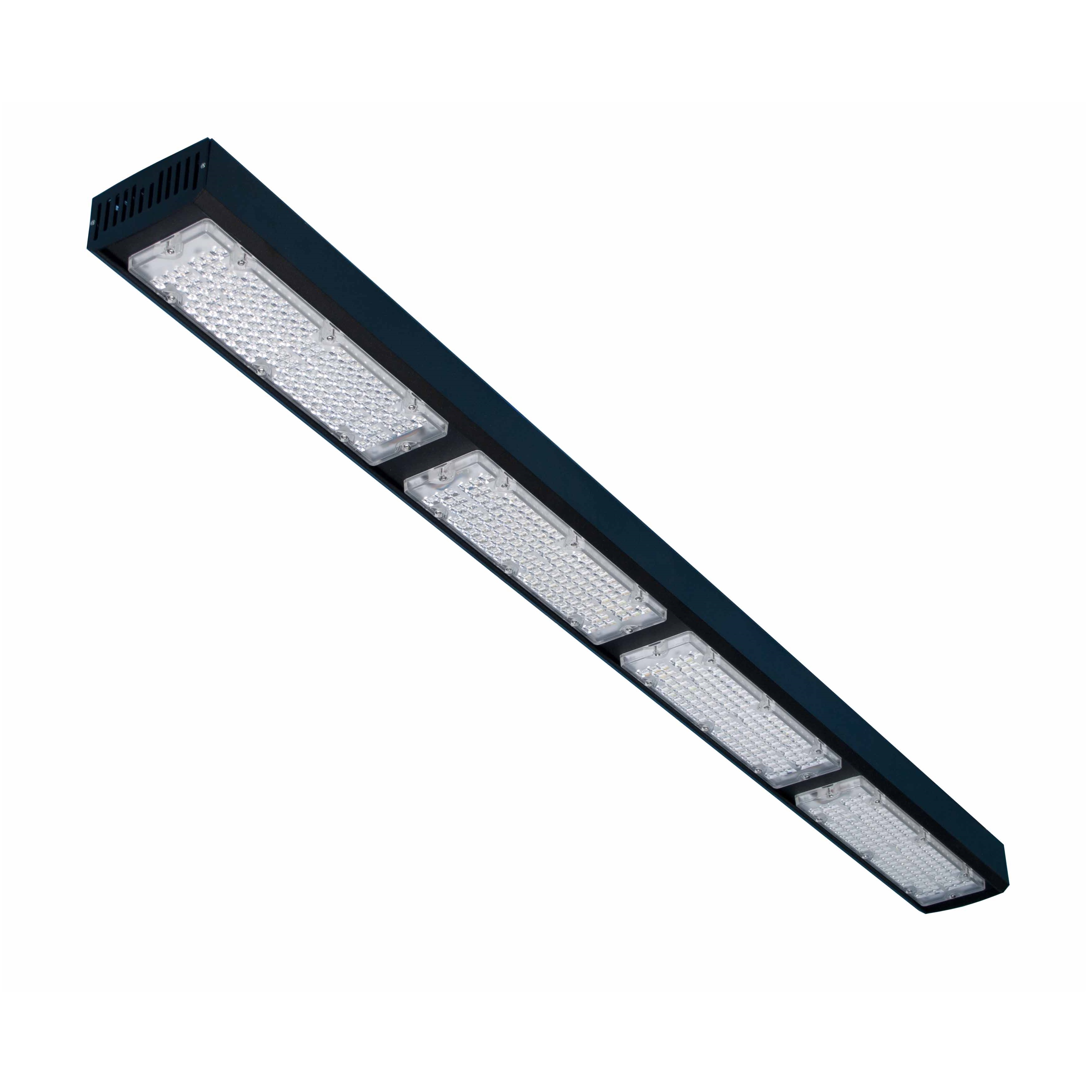

Industrial luminaire for heavy duty areas
Standard price from:
On request
Luminaire is made from massive alu profile, thanks to that is possible to use luminaire in ambient temperature Ta = 60 Celsius degrees.
In luminaire are used industrial LED chips (= high chemical resistance and high effectivity, up to 180 lmW)

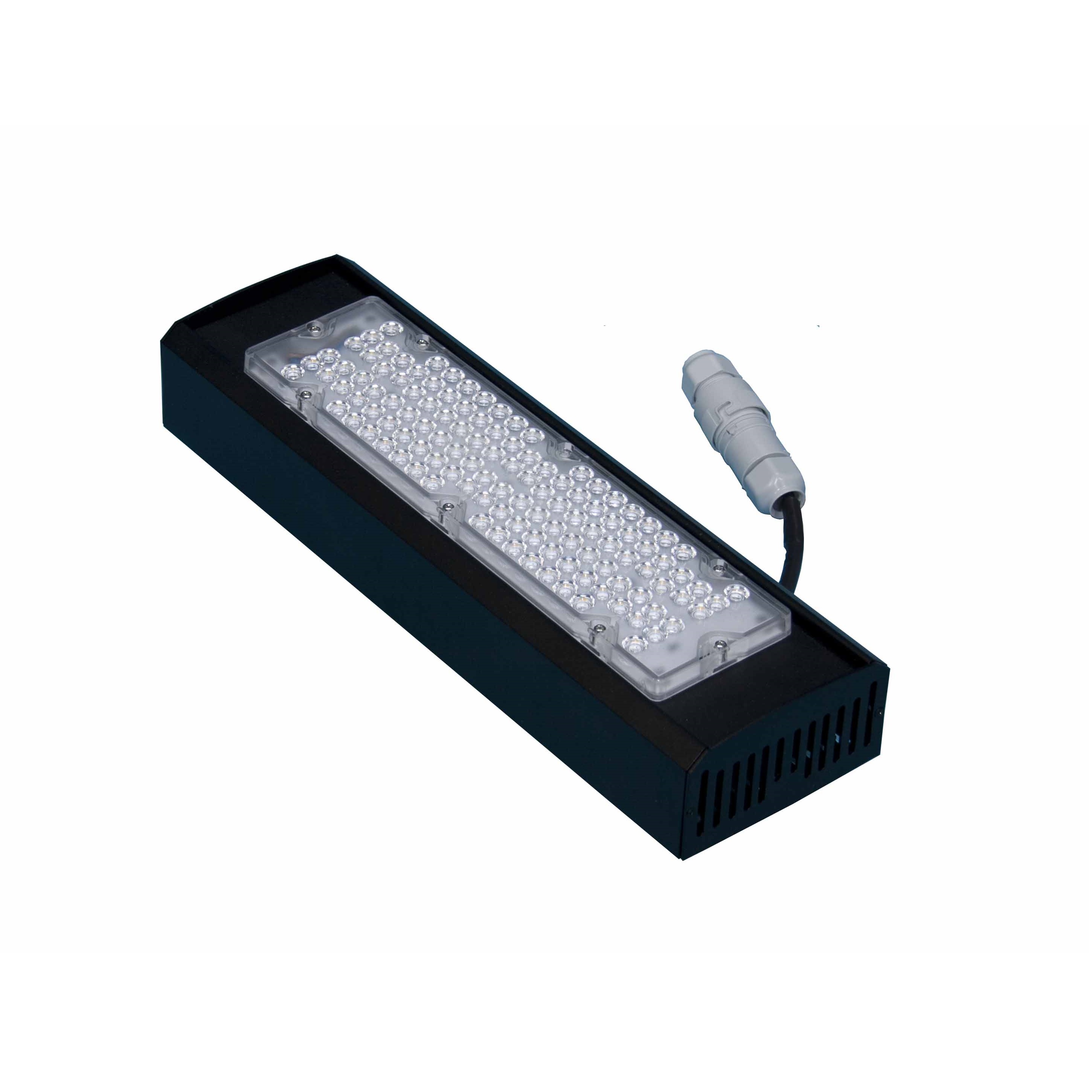

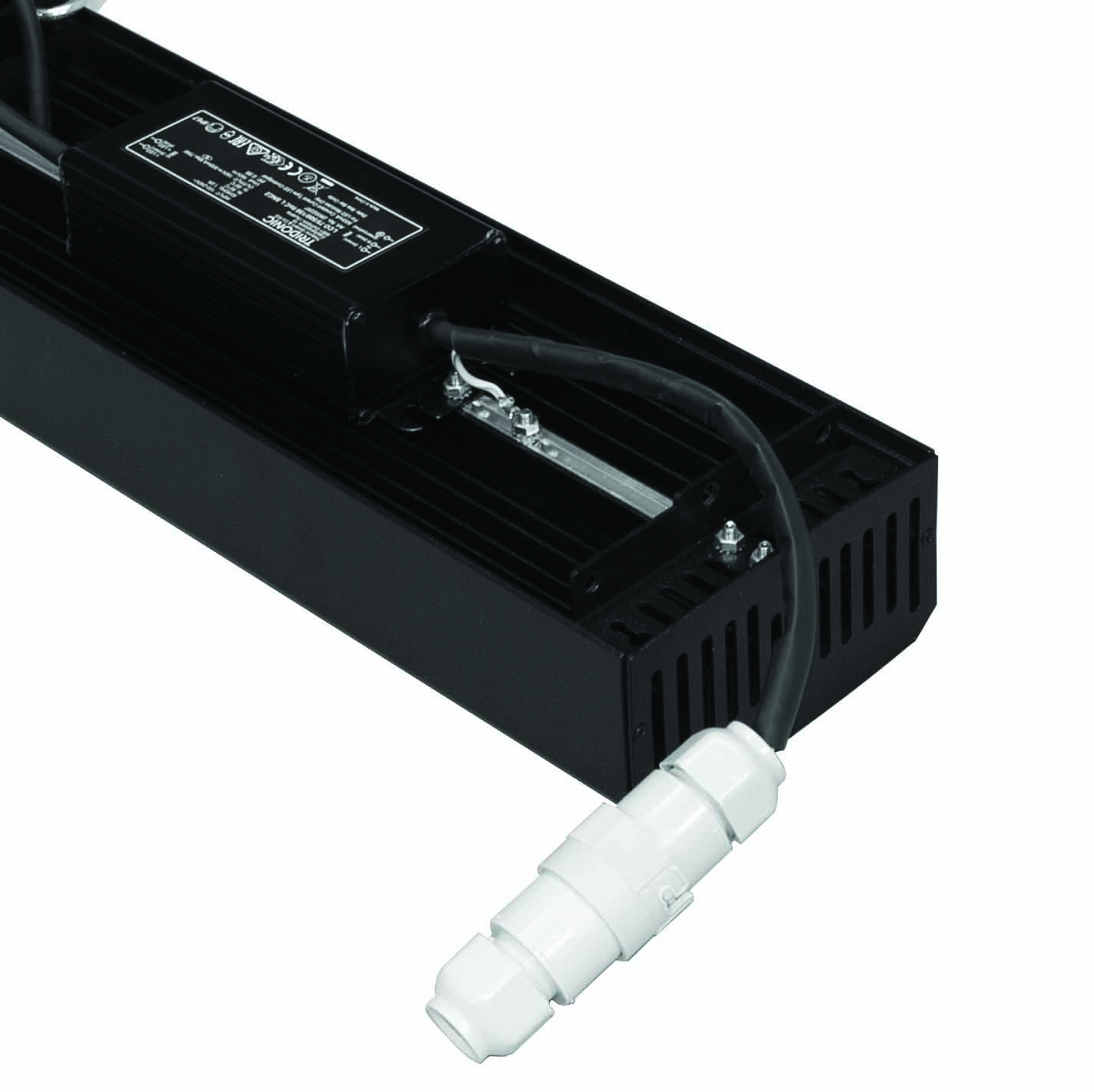

IP65 protection with IP65 connector for quick installation. Optical part is made from PC material - high mechanical resistance.

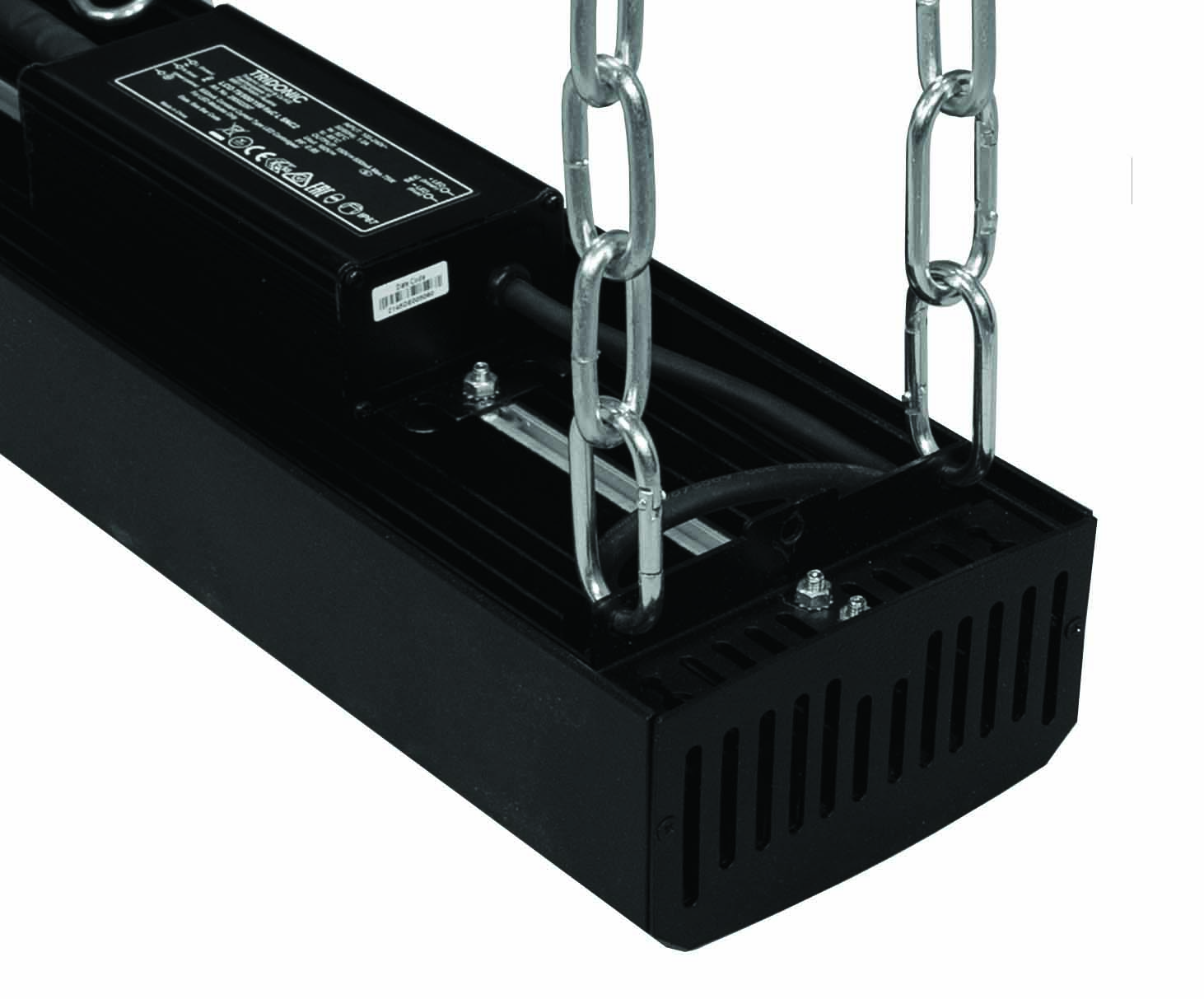

Installation as pendant.
| Body material: | Aluminium die-cast | Mounting method: | Pendant | Protection class: | I | Type of control gear: | LED operating device current-controlled | Color rendering index CRI: | 80-89 | Light source type: | LED | Light outlet: | Direct | Light sharing: | Symmetric | Nominal voltage (V): | 220...240 | Degree of protection (IP): | IP65 |
| Color temperature (K): | 4000, 6500, 3000, 5700 | Rated lifetime L80/B50 (h): | 80000 | Rated ambient temperature (°C): | -25...+60 | Dimming DALI: | Yes | Product category: | High bay luminaire | Made in Czech republic: | Yes | Replaceability: | Replaceable light source by professional, replaceable ballast Replaceable light source by professional, replaceable ballast | Photobiological safety EN 62 471: | RG 0 | MacAdam binning: | SDCM 3 |
LoadingFilters
Effective luminous flux (lm)
System power (W)
Product name
Effective luminous flux (lm)
System power (W)
Color temperature (K)
Optical system
Length (mm)
ALT080S1/4W90C/DALI
Effective luminous flux (lm): 7700
System power (W): 46
Color temperature (K): 4000
Optical system: W
Length (mm): 400
ALT080S1/4W90C/ND
Effective luminous flux (lm): 7700
System power (W): 46
Color temperature (K): 4000
Optical system: W
Length (mm): 400
ALT150XM2/4W90C/DALI
Effective luminous flux (lm): 15500
System power (W): 88
Color temperature (K): 4000
Optical system: W
Length (mm): 750
ALT150XM2/4W90C/ND
Effective luminous flux (lm): 15500
System power (W): 88
Color temperature (K): 4000
Optical system: W
Length (mm): 750
ALT250M3/4N60C/DALI
Effective luminous flux (lm): 21300
System power (W): 125
Color temperature (K): 4000
Optical system: W
Length (mm): 1090
ALT250M3/4N60C/ND
Effective luminous flux (lm): 21300
System power (W): 125
Color temperature (K): 4000
Optical system: W
Length (mm): 1090
ALT250M3/4W90C/DALI
Effective luminous flux (lm): 22200
System power (W): 125
Color temperature (K): 4000
Optical system: W
Length (mm): 1090
ALT250M3/4W90C/ND
Effective luminous flux (lm): 22200
System power (W): 125
Color temperature (K): 4000
Optical system: W
Length (mm): 1090
ALT350L4/4W90C/DALI
Effective luminous flux (lm): 32800
System power (W): 182
Color temperature (K): 4000
Optical system: W
Length (mm): 1450
ALT350L4/4W90C/ND
Effective luminous flux (lm): 32800
System power (W): 182
Color temperature (K): 4000
Optical system: W
Length (mm): 1450
ALT350L4/5W90B/DALI
Effective luminous flux (lm): 32800
System power (W): 182
Color temperature (K): 5700
Optical system: W
Length (mm): 1450
ALT350L4/6W90B/DALI
Effective luminous flux (lm): 32800
System power (W): 182
Color temperature (K): 6500
Optical system: W
Length (mm): 1450
