MODUS AREL DI

LED direct/indirect luminaires

MODUS AREL RM2 KV
MODUS AREL RM2 KVMODUS AREL RM2 KV
MODUS AREL RL2 KVMMODUS AREL RL2 KVM
MODUS AREL RL2 KVMODUS AREL RL2 KV
závěesné DI.PNG
třída ochrany I.PNG
220-240 v.png
11 L80_80000_h.jpg
en 62 471.png

Standard price from:

On request
Distribution network
Contacts

Pendant louvre luminaire with direct/indirect lighting. Direct part is cover with opal cover and double parabolic louvre. Indirect part on back side of lumianire is covered with opal opal.

Luminaire has standartly two drivers - possible to control direct and indirect part individually.

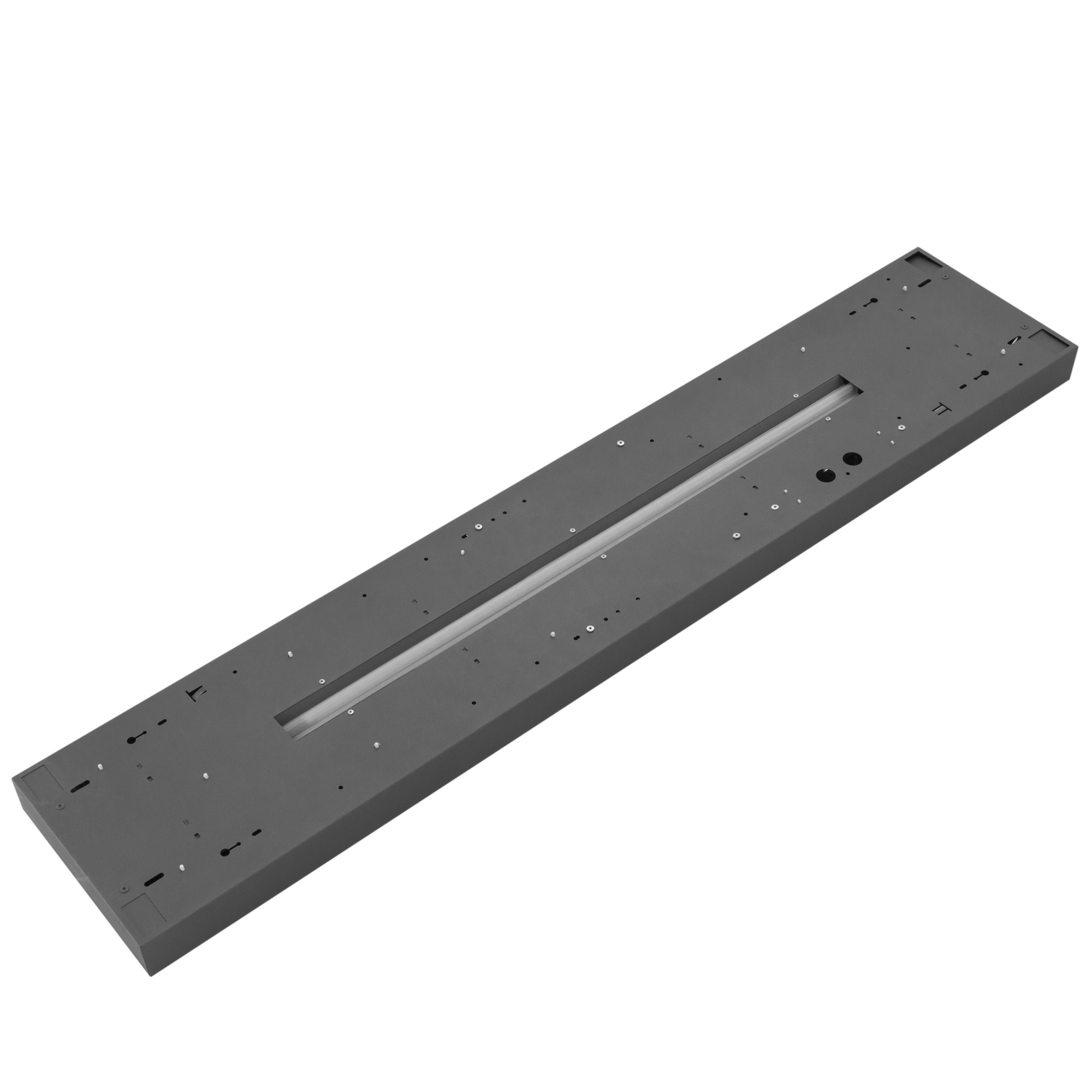

Body:

Grey painted (RAL 9007) metal sheet, on request also possible in white (RAL9003).

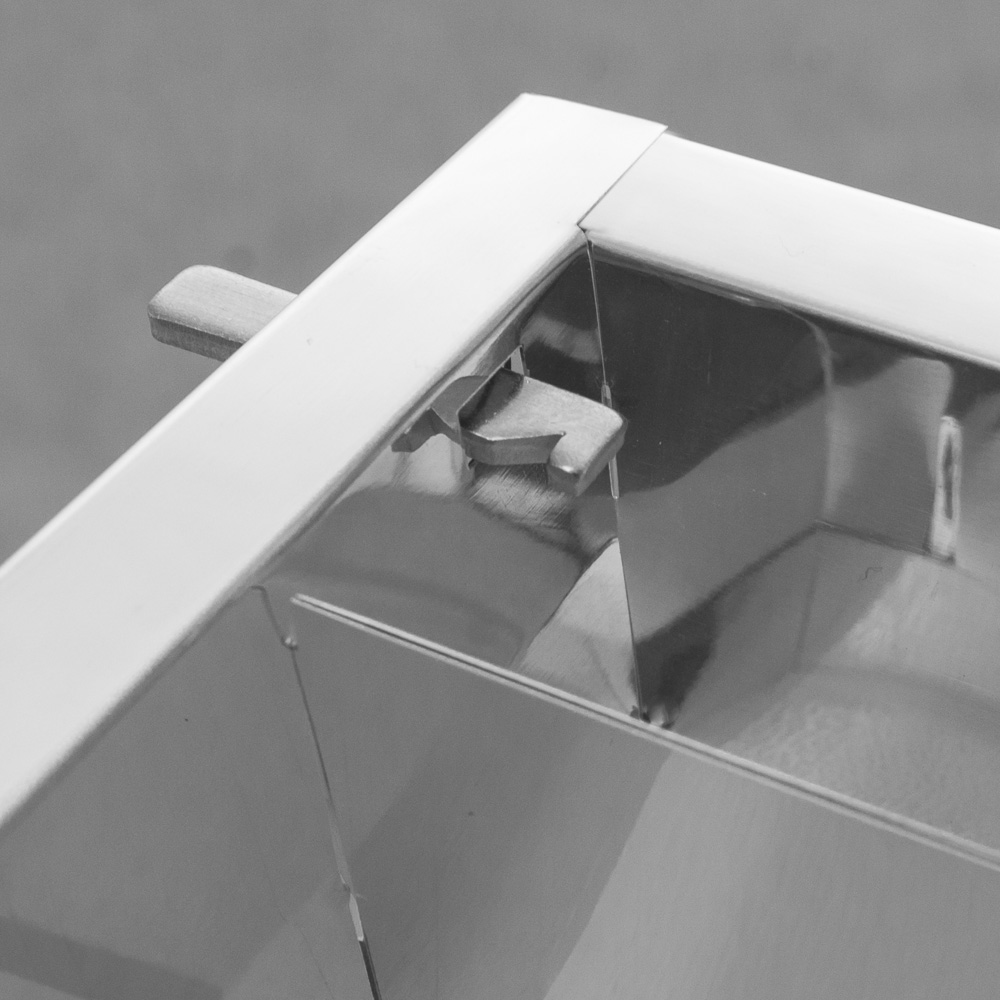

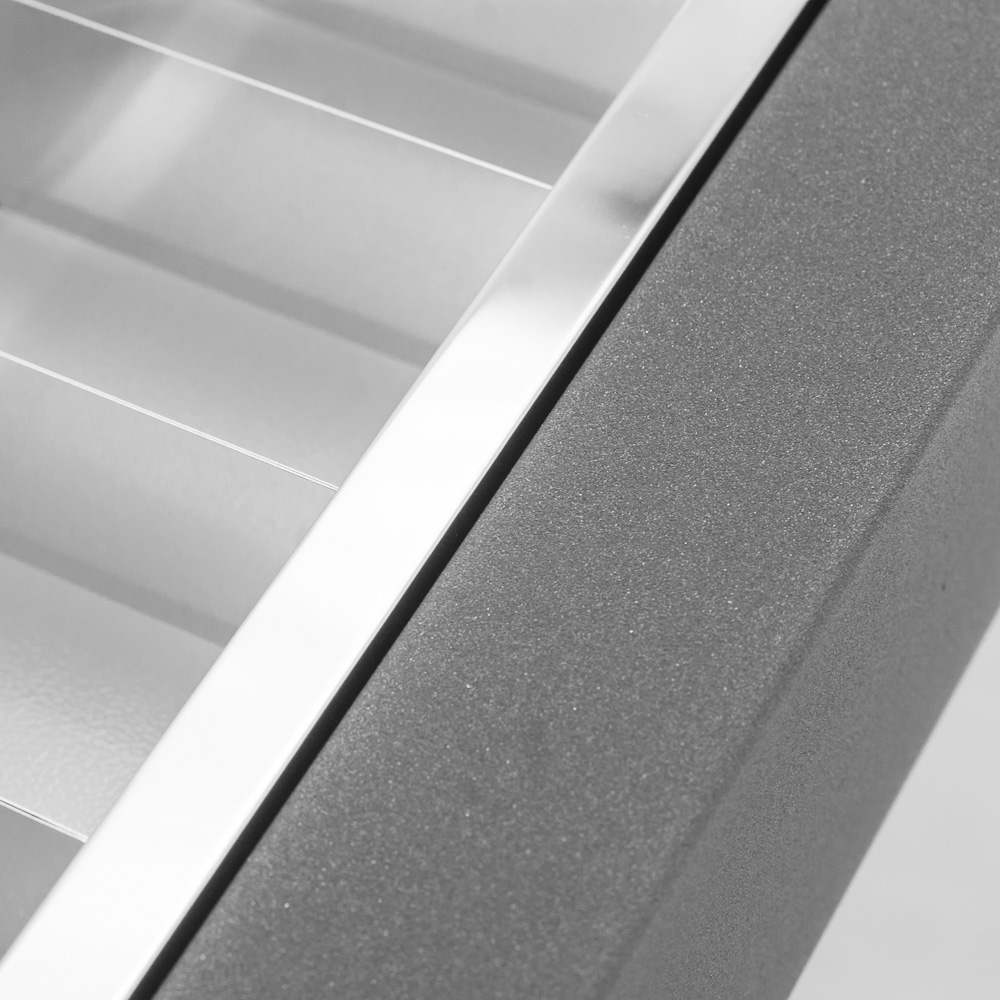

LOR both matt and highly polished louvres are equal

Due a used double optics system - there is reached UGR<19. (opal cover + louvre)



LED:

Mid Power LED

CRI 80 (CRI 90 on request)

3...warm white 3000K

4...cold white 4000K



Wiring:

LED driver (constant current)

ND – not dimmable (standard)

DALI – digital dimmable DALI

DIM - analogue dimmable 1-10V

Luminaire can be supplied with wireless Bluetooth control - more information here.



Application:

Pendant fittings with 2-circuits wiring (direct and indirect lightdistribution), each circuit can be switched separatelly.

These LED fittings are recomended for offices, for lighting areas with high requirements for light and glare control. UGR<19

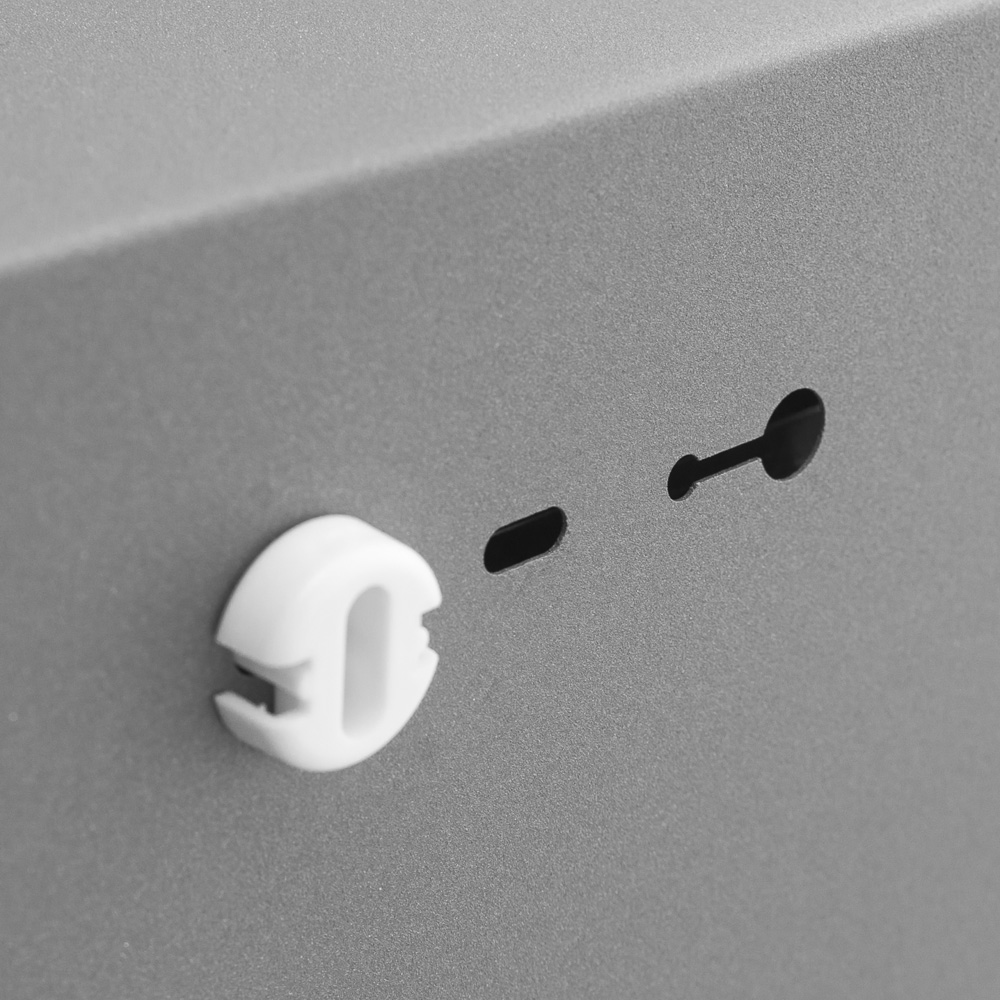

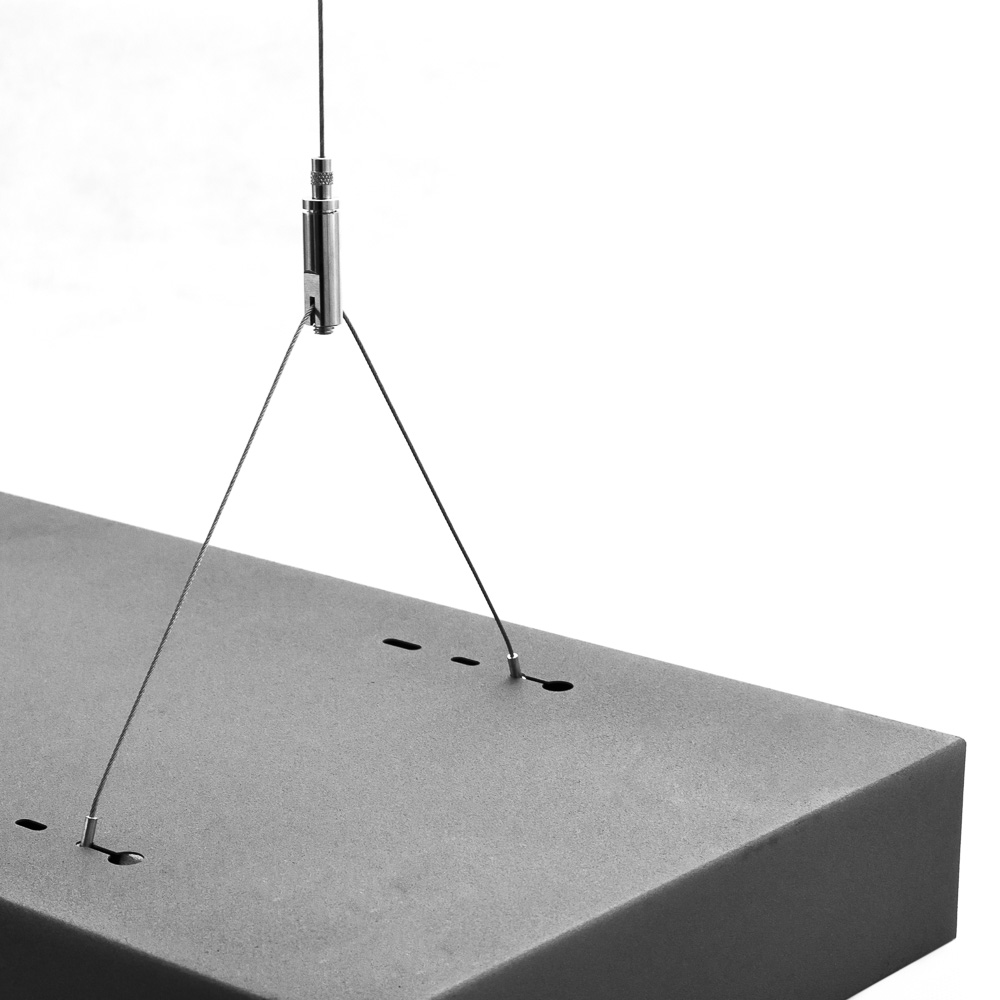

Suspension set ZHX11 included.

Size version:L
1500 mm
M
1200 mm
Body material:White painted steel, Grey painted (RAL 9007) metal sheet
Mounting method:Pendant DIProtection class:I
With movement sensor:No, YesType of control gear:LED operating device current-controlled
Color rendering index CRI:80-89, 90-100Light source type:LED
Color temperature controllable (K):YesLight outlet:Direct/indirect
Nominal voltage (V):220...240Degree of protection (IP):IP20
Fit for monitor workplace:YesColor temperature (K):4000, 6500, 3000, 2700, 5700, 2700...6500
Rated lifetime L80/B50 (h):80000Dimming 1-10 V:Yes

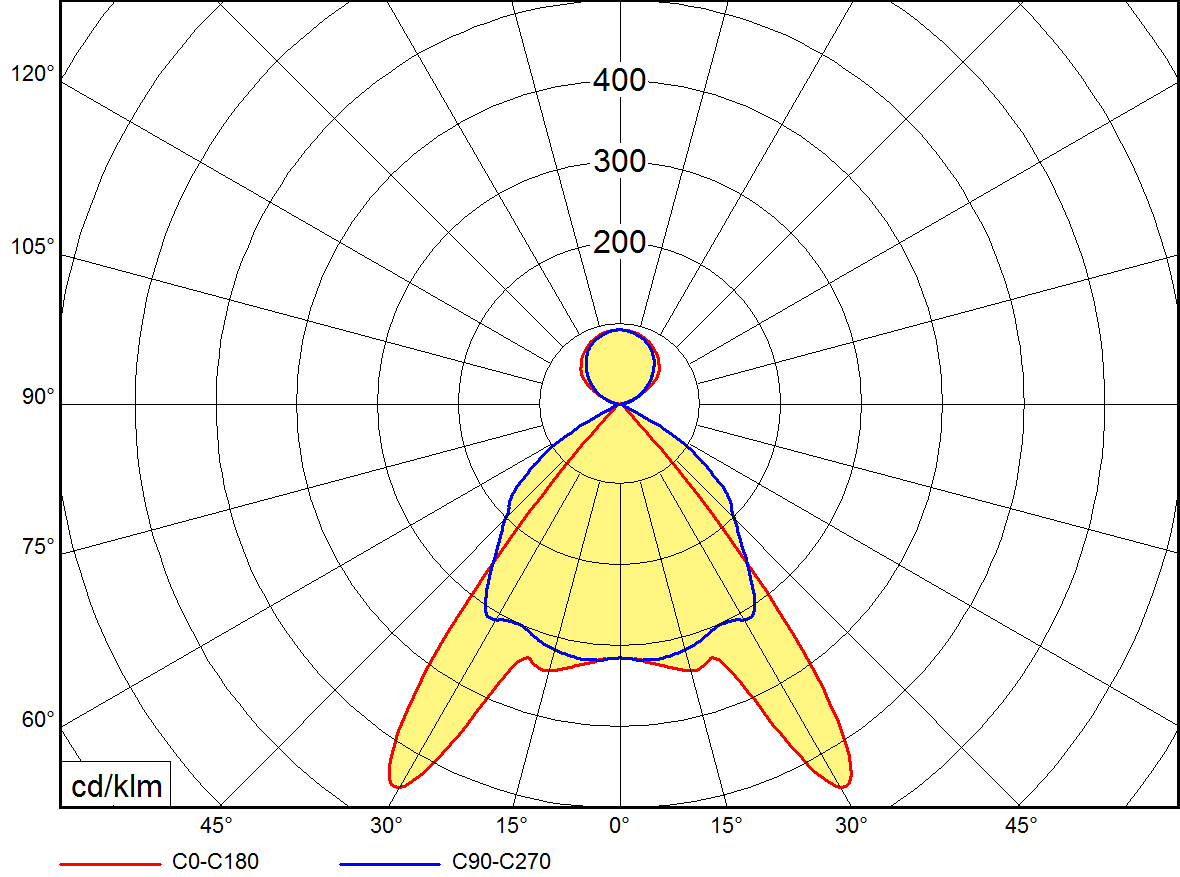

Dimming DALI:YesOptical system:KV/DI
Louvre ALDP + indirect light output

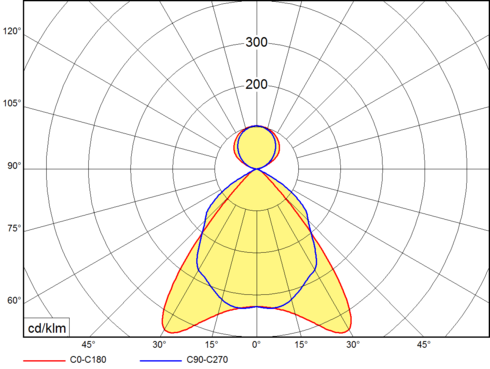

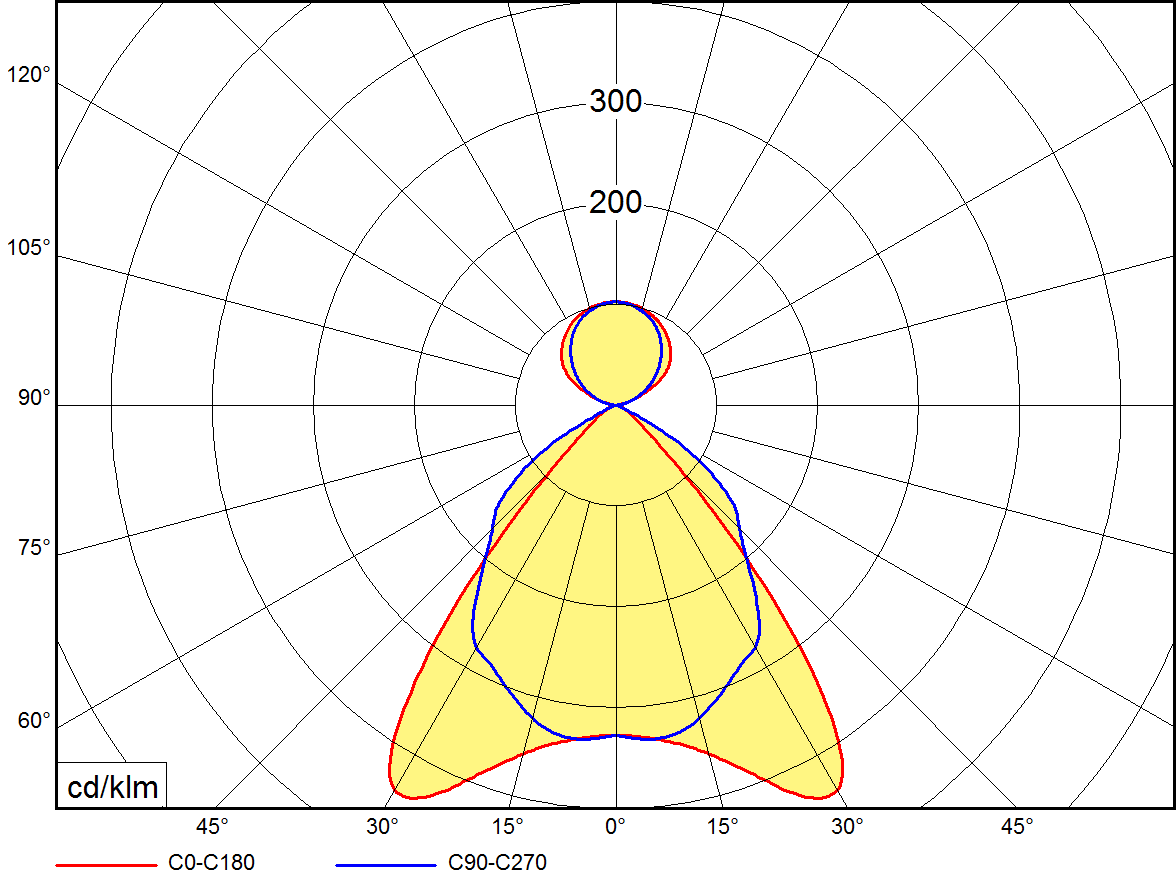

KVM/DI
Louvre MATDP + indirect light output
Made in Czech republic:YesReplaceability:Removeable light source, replaceable ballast
Removeable light source, replaceable ballast
Photobiological safety EN 62 471:RG 0MacAdam binning:SDCM 3
Show more...
LoadingLoading

Filters

Effective luminous flux (lm)

3400
9300

System power (W)

32
79
Product name
AREL2000RM2KVM4ND/DI/9016
Effective luminous flux (lm): 3400
System power (W): 32
Color temperature (K): 4000
Optical system: KVM/DI
Length (mm): 1245
AREL3000RM2KV3DALI/DI/9016
Effective luminous flux (lm): 4600
System power (W): 40
Color temperature (K): 3000
Optical system: KV/DI
Length (mm): 1245
AREL3000RM2KV3ND/DI
Effective luminous flux (lm): 4600
System power (W): 40
Color temperature (K): 3000
Optical system: KV/DI
Length (mm): 1245
AREL3000RM2KV3ND/DI/9016
Effective luminous flux (lm): 4600
System power (W): 40
Color temperature (K): 3000
Optical system: KV/DI
Length (mm): 1245
AREL3000RM2KV4DALI/DI
Effective luminous flux (lm): 4600
System power (W): 40
Color temperature (K): 4000
Optical system: KV/DI
Length (mm): 1245
AREL3000RM2KV4DALI/DI/9016
Effective luminous flux (lm): 4600
System power (W): 40
Color temperature (K): 4000
Optical system: KVM/DI
Length (mm): 1245
AREL3000RM2KV4DALIT/DI
Effective luminous flux (lm): 4600
System power (W): 40
Color temperature (K): 4000
Optical system: KV/DI
Length (mm): 1245
AREL3000RM2KV4ND/DI
Effective luminous flux (lm): 4600
System power (W): 40
AREL3000RM2KV4ND/DI/9016
Effective luminous flux (lm): 4600
System power (W): 40
Color temperature (K): 4000
Optical system: KV/DI
Length (mm): 1245
AREL3000RM2KVM3ND/DI/9003
Effective luminous flux (lm): 4500
System power (W): 40
Color temperature (K): 3000
Optical system: KVM/DI
Length (mm): 1245
AREL3000RM2KVM3ND/DI/9006
Effective luminous flux (lm): 4500
System power (W): 40
Color temperature (K): 4000
Optical system: KVM/DI
Length (mm): 1245
AREL3000RM2KVM3ND/DI/9016
Effective luminous flux (lm): 4500
System power (W): 40
Color temperature (K): 3000
Optical system: KVM/DI
Length (mm): 1245
AREL3000RM2KVM3ND/DI/SRS
Effective luminous flux (lm): 4500
System power (W): 40
Color temperature (K): 3000
Optical system: KVM/DI
Length (mm): 1245
AREL3000RM2KVM4DALI/DI/90
Effective luminous flux (lm): 4500
System power (W): 40
Color temperature (K): 4000
Optical system: KVM/DI
Length (mm): 1245
AREL3000RM2KVM4ND/DI
Effective luminous flux (lm): 4500
System power (W): 40
Color temperature (K): 4000
Optical system: KVM/DI
Length (mm): 1245
AREL3000RM2KVM4ND/DI/9016
Effective luminous flux (lm): 4500
System power (W): 40
Color temperature (K): 4000
Optical system: KVM/DI
Length (mm): 1245
AREL4000RM2KV3DALI/DI
Effective luminous flux (lm): 5800
System power (W): 54
Color temperature (K): 3000
Optical system: KV/DI
Length (mm): 1245
AREL4000RM2KV3DALI/DI/9003
Effective luminous flux (lm): 5900
System power (W): 53
Color temperature (K): 3000
Optical system: KV/DI
Length (mm): 1245
AREL4000RM2KV3DALI/DI/9016
Effective luminous flux (lm): 5900
System power (W): 53
Color temperature (K): 3000
Optical system: KV/DI
Length (mm): 1245
AREL4000RM2KV3DIM/DI
Effective luminous flux (lm): 5800
System power (W): 53
Color temperature (K): 3000
Optical system: KV/DI
Length (mm): 1245
AREL4000RM2KV3ND/DI
Effective luminous flux (lm): 5800
System power (W): 53
Color temperature (K): 3000
Optical system: KV/DI
Length (mm): 1245
AREL4000RM2KV3ND/DI/7016
Effective luminous flux (lm): 5900
System power (W): 53
Color temperature (K): 3000
Optical system: KV/DI
Length (mm): 1245
AREL4000RM2KV3ND/DI/9003
Effective luminous flux (lm): 5900
System power (W): 53
Color temperature (K): 3000
Optical system: KV/DI
Length (mm): 1245
AREL4000RM2KV3ND/DI/9006
Effective luminous flux (lm): 5900
System power (W): 53
Color temperature (K): 3000
Optical system: KVM/DI
Length (mm): 1245
AREL4000RM2KV4DALI/DI
Effective luminous flux (lm): 5800
System power (W): 56
Color temperature (K): 4000
Optical system: KV/DI
Length (mm): 1245
AREL4000RM2KV4DALI/DI/9003
Effective luminous flux (lm): 5900
System power (W): 53
Color temperature (K): 4000
Optical system: KV/DI
Length (mm): 1245
AREL4000RM2KV4DALINZ/DI/9003
Effective luminous flux (lm): 5900
System power (W): 53
Color temperature (K): 4000
Optical system: KV/DI
Length (mm): 1245
AREL4000RM2KV4ND/DI
Effective luminous flux (lm): 5800
System power (W): 53
Color temperature (K): 4000
Optical system: KV/DI
Length (mm): 1245
AREL4000RM2KV4ND/DI/90
Effective luminous flux (lm): 5000
System power (W): 53
Color temperature (K): 4000
Optical system: KV/DI
Length (mm): 1245
AREL4000RM2KV4ND/DI/90/9003
Effective luminous flux (lm): 5000
System power (W): 53
Color temperature (K): 4000
Optical system: KV/DI
Length (mm): 1245
AREL4000RM2KV4ND/DI/9003
Effective luminous flux (lm): 5900
System power (W): 53
Color temperature (K): 4000
Optical system: KV/DI
Length (mm): 1245
AREL4000RM2KV4ND/DI/9006
Effective luminous flux (lm): 5900
System power (W): 53
Color temperature (K): 4000
Optical system: KV/DI
Length (mm): 1245
AREL4000RM2KV4ND/DI/S31
Effective luminous flux (lm): 5900
System power (W): 53
Color temperature (K): 4000
Optical system: KV/DI
Length (mm): 1245
AREL4000RM2KV4NDMULTI/DI/9016
Effective luminous flux (lm): 6000
System power (W): 55
Color temperature (K): 4000
Optical system: KV/DI
Length (mm): 1245
AREL4000RM2KV4NDNZ3/DI/9016
Effective luminous flux (lm): 5900
System power (W): 53
Color temperature (K): 4000
Optical system: KV/DI
Length (mm): 1245
AREL4000RM2KV5ND/DI
Effective luminous flux (lm): 5800
System power (W): 56
Color temperature (K): 5700
Optical system: KV/DI
Length (mm): 1245
AREL4000RM2KVM3DALI/DI
Effective luminous flux (lm): 5800
System power (W): 56
Color temperature (K): 3000
Optical system: KVM/DI
Length (mm): 1245
AREL4000RM2KVM3DALIDI90
Effective luminous flux (lm): 5600
System power (W): 56
Color temperature (K): 3000
Optical system: KVM/DI
Length (mm): 1245
AREL4000RM2KVM3ND/DI
Effective luminous flux (lm): 5800
System power (W): 56
Color temperature (K): 3000
Optical system: KVM/DI
Length (mm): 1245
AREL4000RM2KVM3ND/DI/9003
Effective luminous flux (lm): 5800
System power (W): 53
Color temperature (K): 3000
Optical system: KVM/DI
Length (mm): 1245
AREL4000RM2KVM3ND/DI/9006
Effective luminous flux (lm): 5800
System power (W): 53
Color temperature (K): 3000
Optical system: KVM/DI
Length (mm): 1245
AREL4000RM2KVM4AA2/DI/90/9003
Effective luminous flux (lm): 5600
System power (W): 53
Color temperature (K): 4000
Optical system: KVM/DI
Length (mm): 1245
AREL4000RM2KVM4DALI/DI
Effective luminous flux (lm): 5800
System power (W): 56
Color temperature (K): 4000
Optical system: KVM/DI
Length (mm): 1245
AREL4000RM2KVM4DALI/DI/9003
Effective luminous flux (lm): 5800
System power (W): 53
Color temperature (K): 4000
Optical system: KVM/DI
Length (mm): 1245
AREL4000RM2KVM4DALI/DI/9016
Effective luminous flux (lm): 5800
System power (W): 53
Color temperature (K): 4000
Optical system: KVM/DI
Length (mm): 1245
AREL4000RM2KVM4ND/DI
Effective luminous flux (lm): 5800
System power (W): 56
Color temperature (K): 4000
Optical system: KVM/DI
Length (mm): 1245
AREL4000RM2KVM4ND/DI/9003
Effective luminous flux (lm): 5800
System power (W): 53
Color temperature (K): 4000
Optical system: KVM/DI
Length (mm): 1245
AREL4000RM2KVM4ND/DI/9005
Effective luminous flux (lm): 5800
System power (W): 53
Color temperature (K): 4000
Optical system: KVM/DI
Length (mm): 1245
AREL4000RM2KVM4ND/DI/9016
Effective luminous flux (lm): 5800
System power (W): 53
Color temperature (K): 4000
Optical system: KVM/DI
Length (mm): 1245
AREL5000RL2KV4ND/DI
Effective luminous flux (lm): 7100
System power (W): 62
Color temperature (K): 4000
Optical system: KV/DI
Length (mm): 1545
AREL5000RL2KVM3DALI/DI
Effective luminous flux (lm): 6800
System power (W): 62
Color temperature (K): 3000
Optical system: KVM/DI
Length (mm): 1545
AREL5000RL2KVM3ND/DI
Effective luminous flux (lm): 6800
System power (W): 62
Color temperature (K): 3000
Optical system: KVM/DI
Length (mm): 1545
AREL5000RL2KVM4ND/DI
Effective luminous flux (lm): 6800
System power (W): 62
Color temperature (K): 4000
Optical system: KVM/DI
Length (mm): 1545
AREL6000RL2KV3DALI/DI
Effective luminous flux (lm): 8800
System power (W): 79
Color temperature (K): 3000
Optical system: KV/DI
Length (mm): 1545
AREL6000RL2KV3DALI/DI/9003
Effective luminous flux (lm): 8800
System power (W): 79
Color temperature (K): 3000
Optical system: KV/DI
Length (mm): 1545
AREL6000RL2KV3DALI/DI/9003/R
Effective luminous flux (lm): 8800
System power (W): 79
Color temperature (K): 3000
Optical system: KV/DI
Length (mm): 1545
AREL6000RL2KV3DALI/DI/9016
Effective luminous flux (lm): 8800
System power (W): 79
Color temperature (K): 3000
Optical system: KV/DI
Length (mm): 1545
AREL6000RL2KV3DIM/DI
Effective luminous flux (lm): 8800
System power (W): 79
Color temperature (K): 3000
Optical system: KV/DI
Length (mm): 1545
AREL6000RL2KV3DIM/DI/9003
Effective luminous flux (lm): 8800
System power (W): 79
Color temperature (K): 3000
Optical system: KV/DI
Length (mm): 1545
AREL6000RL2KV3ND/DI
Effective luminous flux (lm): 8800
System power (W): 79
Color temperature (K): 3000
Optical system: KV/DI
Length (mm): 1545
AREL6000RL2KV3ND/DI/9003
Effective luminous flux (lm): 8800
System power (W): 79
Color temperature (K): 3000
Optical system: KV/DI
Length (mm): 1545
AREL6000RL2KV3ND/DI/9016
Effective luminous flux (lm): 8800
System power (W): 79
Color temperature (K): 3000
Optical system: KV/DI
Length (mm): 1545
AREL6000RL2KV4DALI/DI
Effective luminous flux (lm): 8800
System power (W): 79
Color temperature (K): 4000
Optical system: KV/DI
Length (mm): 1545
AREL6000RL2KV4DALI/DI/9016
Effective luminous flux (lm): 8800
System power (W): 79
Color temperature (K): 4000
Optical system: KV/DI
Length (mm): 1545
AREL6000RL2KV4DIM/DI
Effective luminous flux (lm): 8800
System power (W): 79
Color temperature (K): 4000
Optical system: KV/DI
Length (mm): 1545
AREL6000RL2KV4ND/DI
Effective luminous flux (lm): 8800
System power (W): 79
Color temperature (K): 4000
Optical system: KV/DI
Length (mm): 1545
AREL6000RL2KV4ND/DI/90
Effective luminous flux (lm): 8000
System power (W): 79
Color temperature (K): 4000
Optical system: KV/DI
Length (mm): 1545
AREL6000RL2KV4ND/DI/90/9003
Effective luminous flux (lm): 8000
System power (W): 79
Color temperature (K): 4000
Optical system: KV/DI
Length (mm): 1545
AREL6000RL2KV4ND/DI/9003
Effective luminous flux (lm): 8800
System power (W): 79
Color temperature (K): 4000
Optical system: KV/DI
Length (mm): 1545
AREL6000RL2KV4ND/DI/9016
Effective luminous flux (lm): 8800
System power (W): 79
Color temperature (K): 4000
Optical system: KV/DI
Length (mm): 1545
AREL6000RL2KV4NDMULTI/DI/9016
Effective luminous flux (lm): 9300
System power (W): 77
Color temperature (K): 4000
Optical system: KV/DI
Length (mm): 1545
AREL6000RL2KV4NDNZ/DI
Effective luminous flux (lm): 8800
System power (W): 79
Color temperature (K): 4000
Optical system: KV/DI
Length (mm): 1545
AREL6000RL2KV4NDNZ/DI/9016
Effective luminous flux (lm): 8800
System power (W): 79
Color temperature (K): 4000
Optical system: KV/DI
Length (mm): 1545
AREL6000RL2KV4NDNZ3/DI/9016
Effective luminous flux (lm): 8800
System power (W): 79
Color temperature (K): 4000
Optical system: KV/DI
Length (mm): 1545
AREL6000RL2KV5ND/DI
Effective luminous flux (lm): 8800
System power (W): 79
Color temperature (K): 5700
Optical system: KV/DI
Length (mm): 1545
AREL6000RL2KV5ND/DI/9016
Effective luminous flux (lm): 8800
System power (W): 79
Color temperature (K): 5700
Optical system: KV/DI
Length (mm): 1545
AREL6000RL2KVM3DALIT/DI/9003
Effective luminous flux (lm): 8500
System power (W): 79
Color temperature (K): 3000
Optical system: KVM/DI
Length (mm): 1545
AREL6000RL2KVM3ND/DI
Effective luminous flux (lm): 8500
System power (W): 79
Color temperature (K): 3000
Optical system: KVM/DI
Length (mm): 1545
AREL6000RL2KVM3ND/DI/9003
Effective luminous flux (lm): 8500
System power (W): 79
Color temperature (K): 3000
Optical system: KVM/DI
Length (mm): 1545
AREL6000RL2KVM3ND/DI/9005
Effective luminous flux (lm): 8500
System power (W): 79
Color temperature (K): 3000
Optical system: KVM/DI
Length (mm): 1545
AREL6000RL2KVM4DALI/DI
Effective luminous flux (lm): 8500
System power (W): 79
Color temperature (K): 4000
Optical system: KVM/DI
Length (mm): 1545
AREL6000RL2KVM4DALI/DI/9003
Effective luminous flux (lm): 8500
System power (W): 79
Color temperature (K): 4000
Optical system: KVM/DI
Length (mm): 1545
AREL6000RL2KVM4DIM/DI/9003
Effective luminous flux (lm): 8500
System power (W): 79
Color temperature (K): 4000
Optical system: KVM/DI
Length (mm): 1545
AREL6000RL2KVM4ND/DI
Effective luminous flux (lm): 8500
System power (W): 79
Color temperature (K): 4000
Optical system: KVM/DI
Length (mm): 1545
AREL6000RL2KVM4ND/DI/9003
Effective luminous flux (lm): 8500
System power (W): 79
Color temperature (K): 4000
Optical system: KVM/DI
Length (mm): 1545
AREL6000RL2KVM4ND/DI/9016
Effective luminous flux (lm): 8500
System power (W): 79
Color temperature (K): 4000
Optical system: KVM/DI
Length (mm): 1545
AREL6000RL2KVM4ND/DI/SRS/9003
Effective luminous flux (lm): 8500
System power (W): 79
Color temperature (K): 4000
Optical system: KVM/DI
Length (mm): 1545
AREL6000RL2KVM4ND/DI/SRS/9016
Effective luminous flux (lm): 8500
System power (W): 79
Color temperature (K): 4000
Optical system: KVM/DI
Length (mm): 1545
Show all versions

Projekty realizované se svítidly MODUS:


Autosalon Rolls-Royce (Australia)

MODUS TEL

Detail reference

Office building of HAGER company

MODUS SPMI + MODUS QP

Detail reference

Commercial centrum

MODUS Q SKY

Detail reference

Tennis play-ground Bratislava (SK)

MODUS MEGAL

Detail reference
Zobrazit další reference
 Back to product list

We are here to help

We'll advise you all, we have outstanding support.
Lighting calculations

Lighting calculations

Do you need to calculate the lighting?

LDT files

LDT files

Do you need LDT data for your project?

Product support

Product support

Do not know what kind of lighting is best for you?

Connection diagrams

Connection diagrams

Do not you know how to conect luminaires properly?

Contact
