Product series

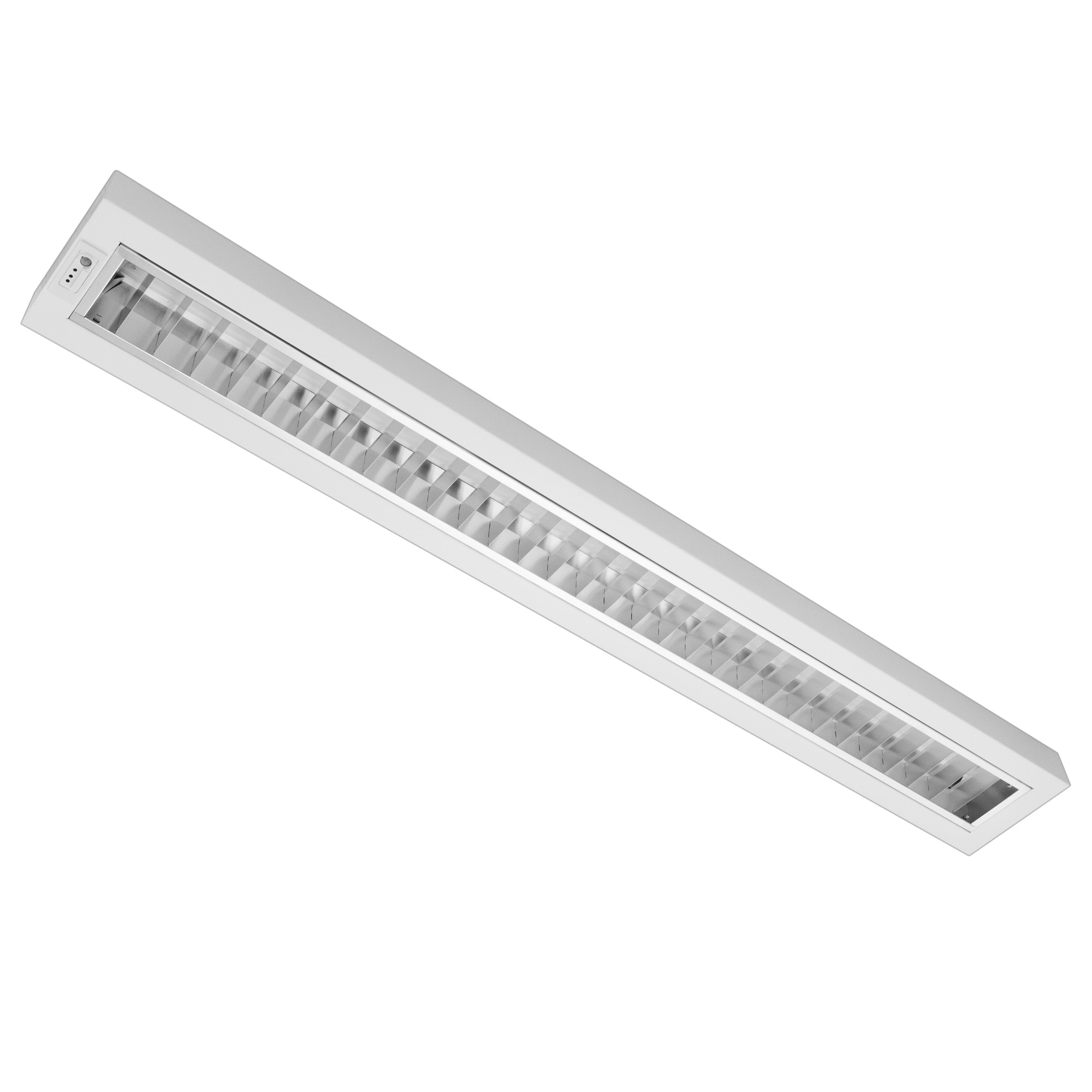

MODUS AREL MOWI
Intelligent louvre luminaire
Standard price from:
On request

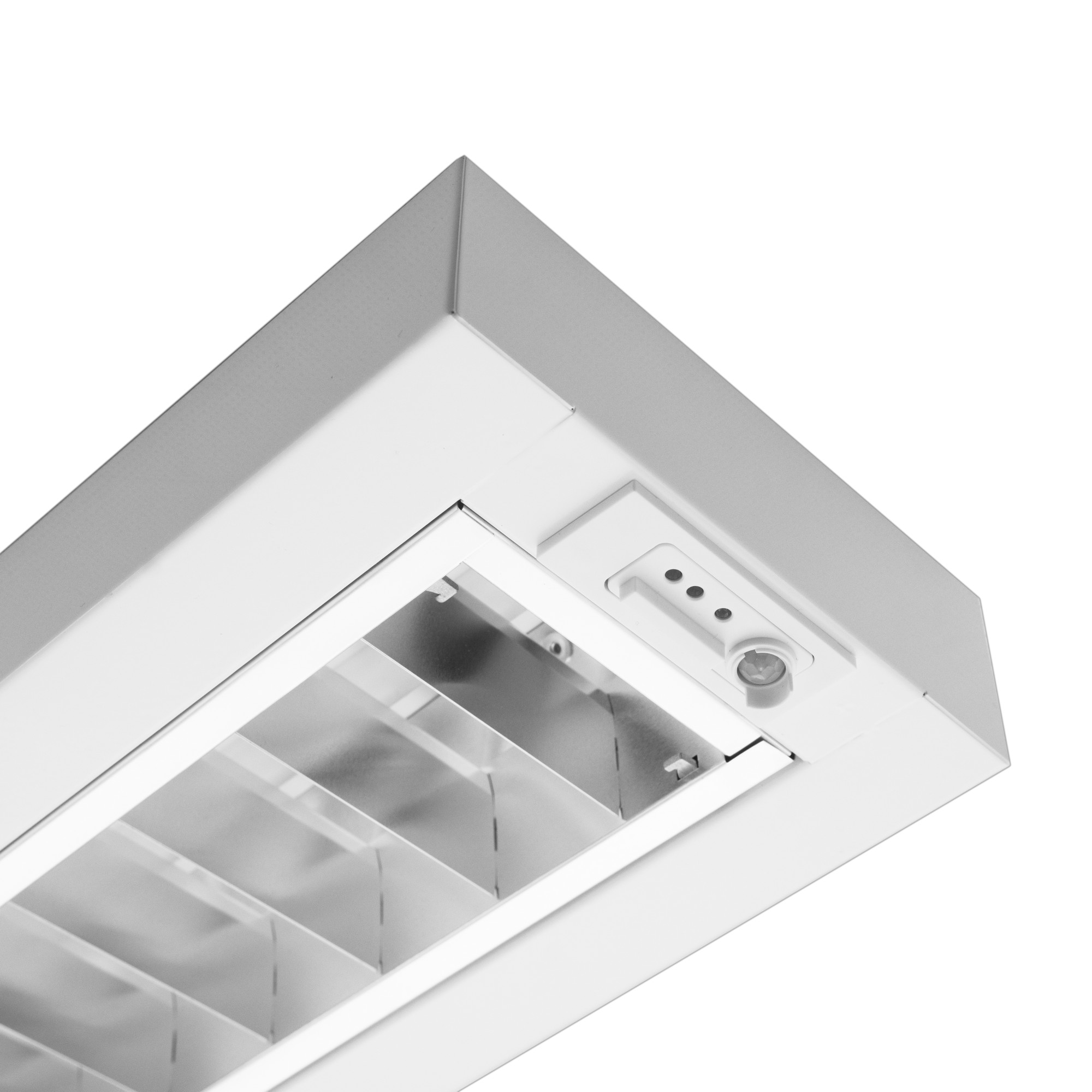

Luminaire with smart system - "MODUS MOWI"
This system include different possible smart methods:
- sensor located inside luminaire
- luminaire communicates to each other to select the right lumen level based on actual situation
- setup by IR communication via mobile phone
- fully automatic solution - luminaires are self-learning
- wireless solution
- wireless comunication by mobile phone application
- possible to setup scenes, timming, groups...
| Size version: | L 1500 mm M 1200 mm | Body material: | White painted steel, Grey painted (RAL 9007) metal sheet | Mounting method: | Surface mounting, Suspended | Protection class: | I | With movement sensor: | Yes | Color rendering index CRI: | 80-89 | Light source type: | LED | Color temperature controllable (K): | No, Yes | Light sharing: | Symmetric | Nominal voltage (V): | 220...240 | Degree of protection (IP): | IP20 |
| Fit for monitor workplace: | Yes | Color temperature (K): | 4000, 6500, 3000, 2700, 5700, 2700...6500 | Rated lifetime L80/B50 (h): | 80000 | Dimming DALI: | Yes | Optical system: | KV louvre ALDP KVM louvre matt DP | Made in Czech republic: | Yes | Replaceability: | Removeable light source, replaceable ballast Removeable light source, replaceable ballast | Photobiological safety EN 62 471: | RG 0 | MacAdam binning: | SDCM 3 |
LoadingFilters
Effective luminous flux (lm)
System power (W)
Product name
Effective luminous flux (lm)
System power (W)
Color temperature (K)
Optical system
Length (mm)
AREL2000RM1KVM3SRS/9016
Effective luminous flux (lm): 2250
System power (W): 19
Color temperature (K): 3000
Optical system: KVM
Length (mm): 1245
AREL2000RM1KVM4SRS/9016
Effective luminous flux (lm): 2250
System power (W): 19
Color temperature (K): 4000
Optical system: KVM
Length (mm): 1245
AREL3000RL1KVM3SRS/9016
Effective luminous flux (lm): 3300
System power (W): 30
Color temperature (K): 3000
Optical system: KVM
Length (mm): 1545
AREL3000RL1KVM4SRS/9016
Effective luminous flux (lm): 3300
System power (W): 30
Color temperature (K): 4000
Optical system: KVM
Length (mm): 1545
AREL3000RM2KVM3SRS/9016
Effective luminous flux (lm): 3200
System power (W): 26
Color temperature (K): 3000
Optical system: KVM
Length (mm): 1245
AREL3000RM2KVM4SRS/9016
Effective luminous flux (lm): 3200
System power (W): 26
Color temperature (K): 4000
Optical system: KVM
Length (mm): 1245
AREL4000RM2KV4SRS/9016
Effective luminous flux (lm): 4500
System power (W): 37
Color temperature (K): 4000
Optical system: KV
Length (mm): 1245
AREL4000RM2KVM3SRS/9016
Effective luminous flux (lm): 4400
System power (W): 37
Color temperature (K): 3000
Optical system: KVM
Length (mm): 1245
AREL4000RM2KVM4SRS
Effective luminous flux (lm): 4400
System power (W): 37
Color temperature (K): 4000
Optical system: KVM
Length (mm): 1245
AREL4000RM2KVM4SRS/9016
Effective luminous flux (lm): 4400
System power (W): 37
Color temperature (K): 4000
Optical system: KVM
Length (mm): 1245
AREL4000RM2KVMMIX/9016/BTC
Effective luminous flux (lm): 4450
System power (W): 42
Color temperature (K): 2700...6500
Optical system: KVM
Length (mm): 1245
AREL4000RM2KVMMIX/BTC
Effective luminous flux (lm): 4450
System power (W): 42
Color temperature (K): 2700...6500
Optical system: KVM
Length (mm): 1245
AREL5000RL2KVM3SRS/9016
Effective luminous flux (lm): 5100
System power (W): 41
Color temperature (K): 3000
Optical system: KVM
Length (mm): 1545
AREL6000RL2KVM3SRS/9016
Effective luminous flux (lm): 6800
System power (W): 58
Color temperature (K): 3000
Optical system: KVM
Length (mm): 1545
AREL6000RL2KVM4SRS/9003
Effective luminous flux (lm): 6800
System power (W): 58
Product page - PDF
Assembly instruction
ARELKV.PNGLuminaire with smart system - "MODUS MOWI"
This system include different possible smart methods:
- sensor located inside luminaire
- luminaire communicates to each other to select the right lumen level based on actual situation
- setup by IR communication via mobile phone
- fully automatic solution - luminaires are self-learning
- wireless solution
- wireless comunication by mobile phone application
- possible to setup scenes, timming, groups...
