MODUS AREL X

Pendant/surface louvre fitting with narrow body

MODUS AREL X
třída ochrany I.PNG
220-240 v.png
11 L80_80000_h.jpg
en 62 471.png

Standard price from:

On request
Distribution network
Contacts

Body:

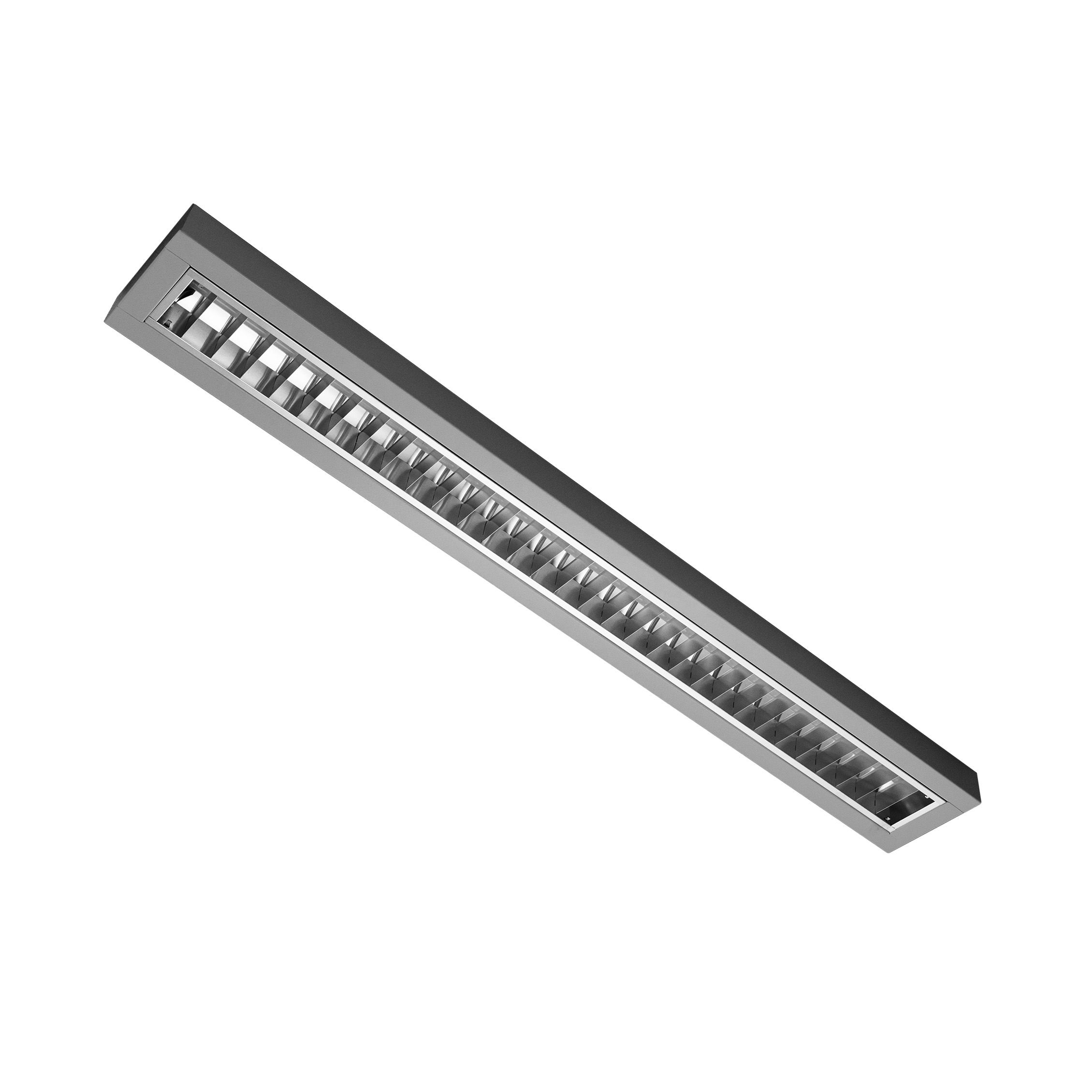

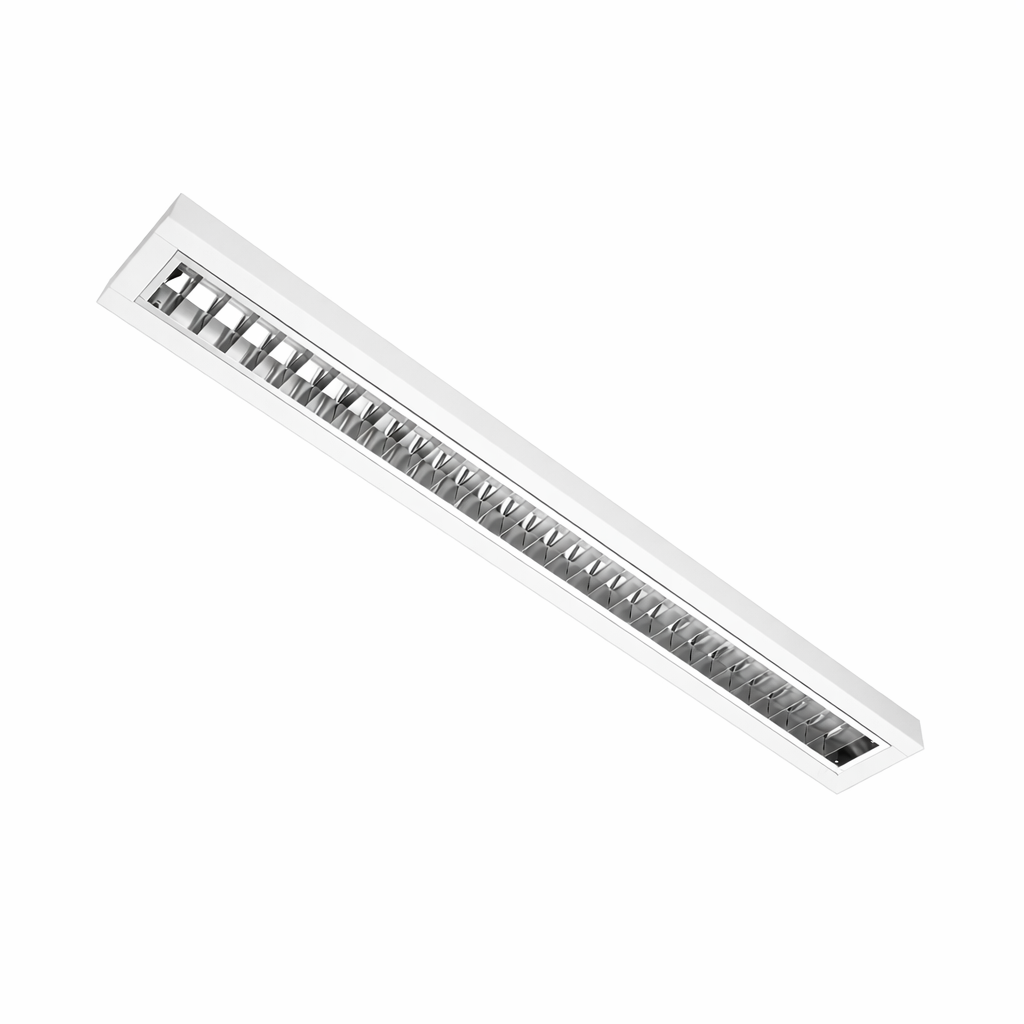

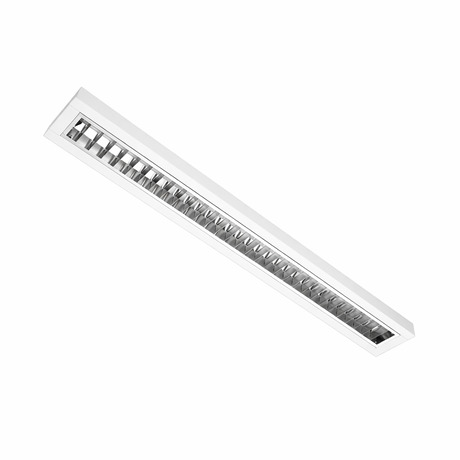

Grey painted (RAL 9007) metal sheet, on request also possible in white (RAL9016), grey (RAL9006) or black (RAL9005).



Optical system:

KV - double parabolic louvre category C2 of highly polished aluminium, with opal cover of LED modules

KVM - double parabolic louvre category C2 of mat aluminium, with opal cover of LED modules.



LOR both matt and highly polished louvres are equal

Due a used double optics system - there is reached UGR<19.



LED:

Mid Power LED

CRI 80 (CRI 90 on request)

3...warm white 3000K

4...cold white 4000K



Wiring:

LED driver (constant current)

ND – not dimmable (standard)

DALI – digital dimmable DALI

DIM - analogue dimmable 1-10V

BT or BTC - Casambi control

AA - Helvar ActiveAhead smart system

SRN - Philips SR smart system

Luminaire can be supplied with wireless control - more information here.



Find out more about human centric lighting and tunable white in our MODUS TUNABLE LIGHT catalogue.



Application:

Surface or pendant installation

These LED fittings are recomended for offices, for lighting areas with high requirements for light and glare control. UGR<19



Accessories:

ZH/UNI2 - suspension set



Other version:

AREL - standard body

AREL D/I - for direct / indirect illumination

AREL AS - asymetrical reflector

AREL MOWI - smart system MOWI

Body material:Grey painted (RAL 9007) metal sheetMounting method:Surface mounting, Suspended
Protection class:IWith movement sensor:No, Yes
Type of control gear:LED operating device current-controlledColor rendering index CRI:80-89, 90-100
Light source type:LEDColor temperature controllable (K):Yes
Light outlet:Direct, Direct/indirectLight sharing:Symmetric
Nominal voltage (V):220...240
Degree of protection (IP):IP20
Color temperature (K):4000, 6500, 3000, 2700, 5700, 2700...6500Rated lifetime L80/B50 (h):80000
Dimming 1-10 V:YesDimming DALI:Yes
Optical system:KV
louvre ALDP
KVM
louvre matt DP
KV/DI
Louvre ALDP + indirect light output
KVM/DI
Louvre MATDP + indirect light output
Made in Czech republic:Yes
Replaceability:Removeable light source, replaceable ballast
Removeable light source, replaceable ballast
Photobiological safety EN 62 471:RG 0
MacAdam binning:SDCM 3
Show more...
LoadingLoading

Filters

Effective luminous flux (lm)

3800
7200

System power (W)

33
65
Product name
AREL4000XM1KV4ND/DI
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 4000
Light outlet: Direct
Length (mm): 1245
Color housing: Grey
AREL4000XM1KVM4AA2CLO/DI/S246
Effective luminous flux (lm): 3800
System power (W): 33
Color temperature (K): 4000
Light outlet: Direct/indirect
Length (mm): 1245
Color housing: White
AREL4000XM1KVM4AA2CLO/DI/S292
Effective luminous flux (lm): 3800
System power (W): 33
Color temperature (K): 4000
Light outlet: Direct/indirect
Length (mm): 1245
Color housing: White
AREL4000XM1KVM4ND
Effective luminous flux (lm): 3800
System power (W): 34
Color temperature (K): 4000
Light outlet: Direct
Length (mm): 1245
Color housing: Grey
AREL4000XM1KVM4ND/9003
Effective luminous flux (lm): 3800
System power (W): 34
Color temperature (K): 4000
Light outlet: Direct
Length (mm): 1245
Color housing: White
AREL4000XM1KVM4ND/9016
Effective luminous flux (lm): 3800
System power (W): 34
Color temperature (K): 4000
Light outlet: Direct
Length (mm): 1245
Color housing: White
AREL4000XM1KVM4ND/DI
Effective luminous flux (lm): 3800
System power (W): 33
Color temperature (K): 4000
Light outlet: Direct/indirect
Length (mm): 1245
Color housing: Grey
AREL4500XM1KVM4ND/DI
Effective luminous flux (lm): 5100
System power (W): 44
Color temperature (K): 4000
Light outlet: Direct
Length (mm): 1245
Color housing: Grey
AREL5000XL1KVM3ND/DI
Effective luminous flux (lm): 5300
System power (W): 42
AREL5000XL1KVM3ND/R1/9003
Effective luminous flux (lm): 4800
System power (W): 42
Color temperature (K): 3000
Light outlet: Direct
Length (mm): 1545
Color housing: White
AREL5000XL1KVM4AA2CLO/DI/S246
Effective luminous flux (lm): 4800
System power (W): 42
Color temperature (K): 4000
Light outlet: Direct/indirect
Length (mm): 1545
Color housing: White
AREL5000XL1KVM4AA2CLO/DI/S292
Effective luminous flux (lm): 4800
System power (W): 42
Color temperature (K): 4000
Light outlet: Direct/indirect
Length (mm): 1545
Color housing: White
AREL5000XL1KVM4DALI
Effective luminous flux (lm): 4800
System power (W): 42
Color temperature (K): 4000
Light outlet: Direct
Length (mm): 1545
Color housing: Grey
AREL5000XL1KVM4ND
Effective luminous flux (lm): 4800
System power (W): 42
Color temperature (K): 4000
Light outlet: Direct
Length (mm): 1545
Color housing: Grey
AREL5000XL1KVM4ND/9005
Effective luminous flux (lm): 4800
System power (W): 42
Color temperature (K): 4000
Light outlet: Direct
Length (mm): 1545
Color housing: Black
AREL5000XL1KVM4ND/DI
Effective luminous flux (lm): 5300
System power (W): 42
Color temperature (K): 4000
Light outlet: Direct
Length (mm): 1500
Color housing: Grey
AREL5000XL1KVM4ND/R1/9003
Effective luminous flux (lm): 4800
System power (W): 42
Color temperature (K): 4000
Light outlet: Direct
Length (mm): 1545
Color housing: White
AREL5000XM1KV4ND
Effective luminous flux (lm): 5000
System power (W): 45
Color temperature (K): 4000
Light outlet: Direct
Length (mm): 1245
Color housing: Grey
AREL5000XM1KVM4ND
Effective luminous flux (lm): 5000
System power (W): 45
Color temperature (K): 4000
Light outlet: Direct
Length (mm): 1245
Color housing: Grey
AREL5000XM1KVM4ND/DI
Effective luminous flux (lm): 6400
System power (W): 55
Color temperature (K): 4000
Light outlet: Direct/indirect
Length (mm): 1245
Color housing: Grey
AREL7000XL1KVM4ND
Effective luminous flux (lm): 6600
System power (W): 57
Color temperature (K): 4000
Light outlet: Direct
Length (mm): 1545
Color housing: Grey
AREL7000XL1KVM4ND/9016
Effective luminous flux (lm): 6600
System power (W): 57
Color temperature (K): 4000
Light outlet: Direct
Length (mm): 1545
Color housing: White
AREL7000XM1KV4ND
Effective luminous flux (lm): 6800
System power (W): 65
Color temperature (K): 4000
Light outlet: Direct
Length (mm): 1245
Color housing: Grey
AREL7000XM1KVM3ND
Effective luminous flux (lm): 6800
System power (W): 65
Color temperature (K): 3000
Light outlet: Direct
Length (mm): 1245
Color housing: Grey
AREL7000XM1KVM4DALI/9006
Effective luminous flux (lm): 6800
System power (W): 65
Color temperature (K): 4000
Light outlet: Direct
Length (mm): 1245
Color housing: Silver
AREL7000XM1KVM4ND
Effective luminous flux (lm): 6800
System power (W): 65
Color temperature (K): 4000
Light outlet: Direct
Length (mm): 1245
Color housing: Grey
AREL7000XM1KVM4ND/DI
Effective luminous flux (lm): 7200
System power (W): 62
Color temperature (K): 4000
Light outlet: Direct/indirect
Length (mm): 1245
Color housing: Grey
