Product series

MODUS ART

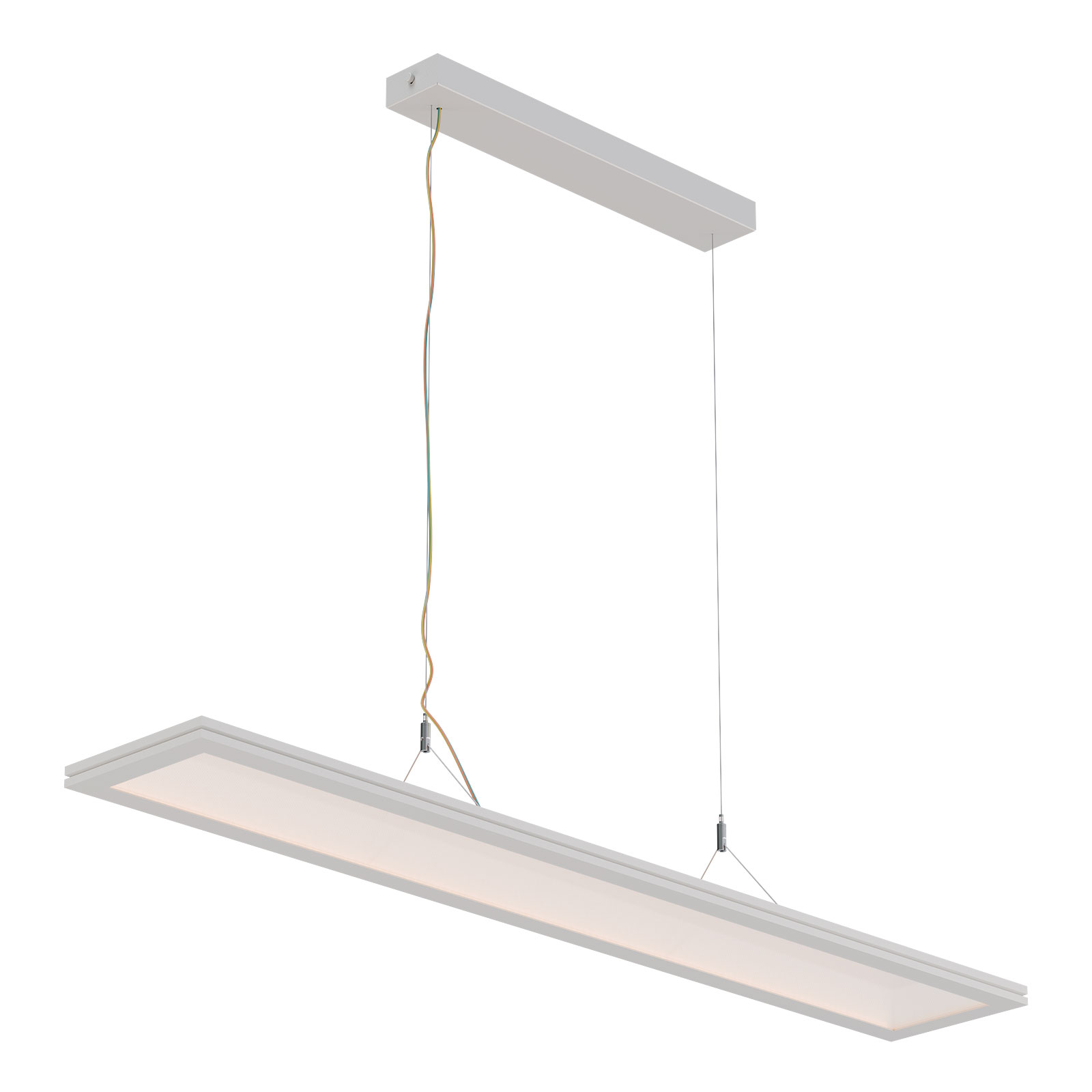

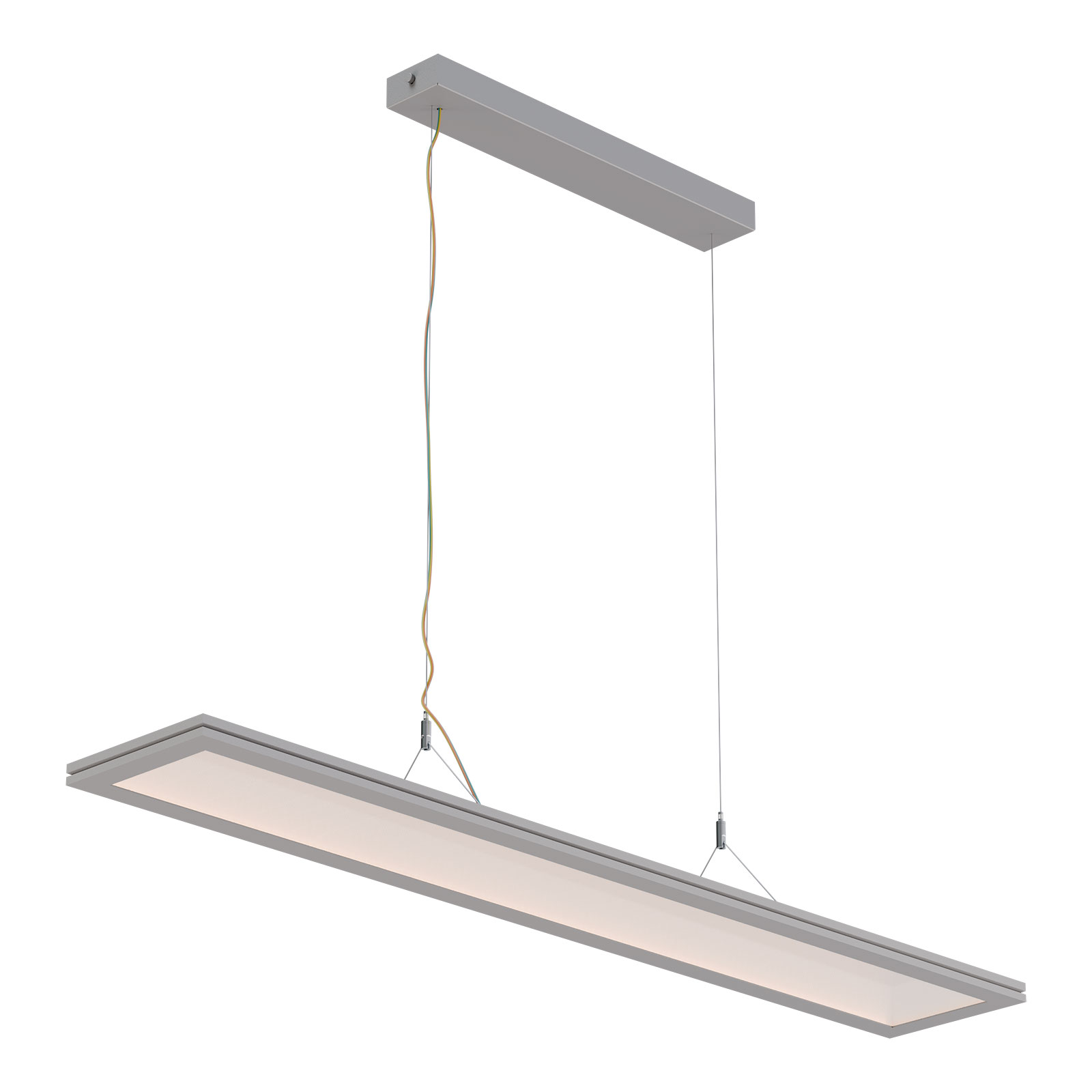

Pendant direct/indirect luminaire with aluminium frame

závěesné DI.PNG
třída ochrany I.PNG
220-240 v.png
11 L80_80000_h.jpg
en 62 471.png

Standard price from:

On request
Distribution network
Contacts

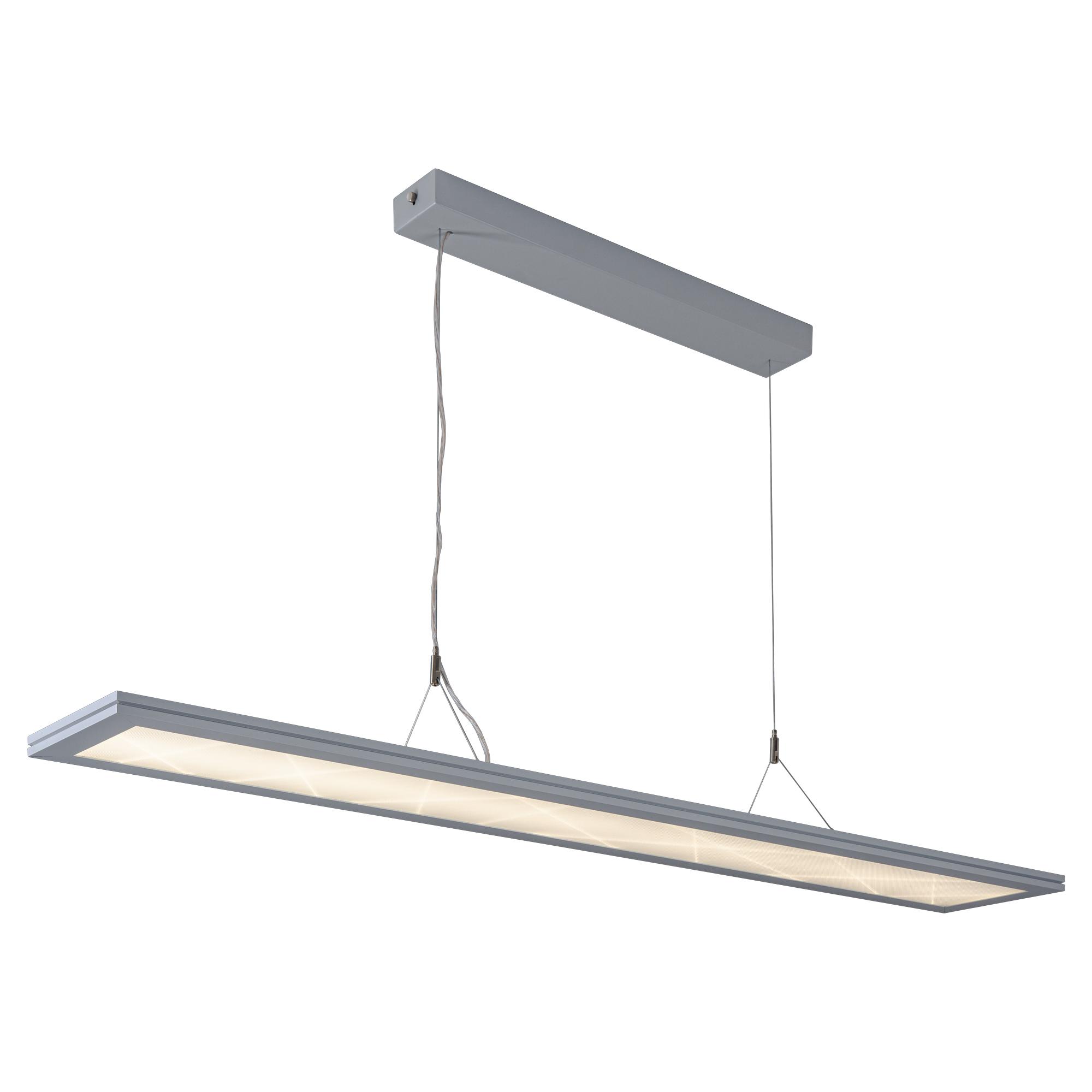

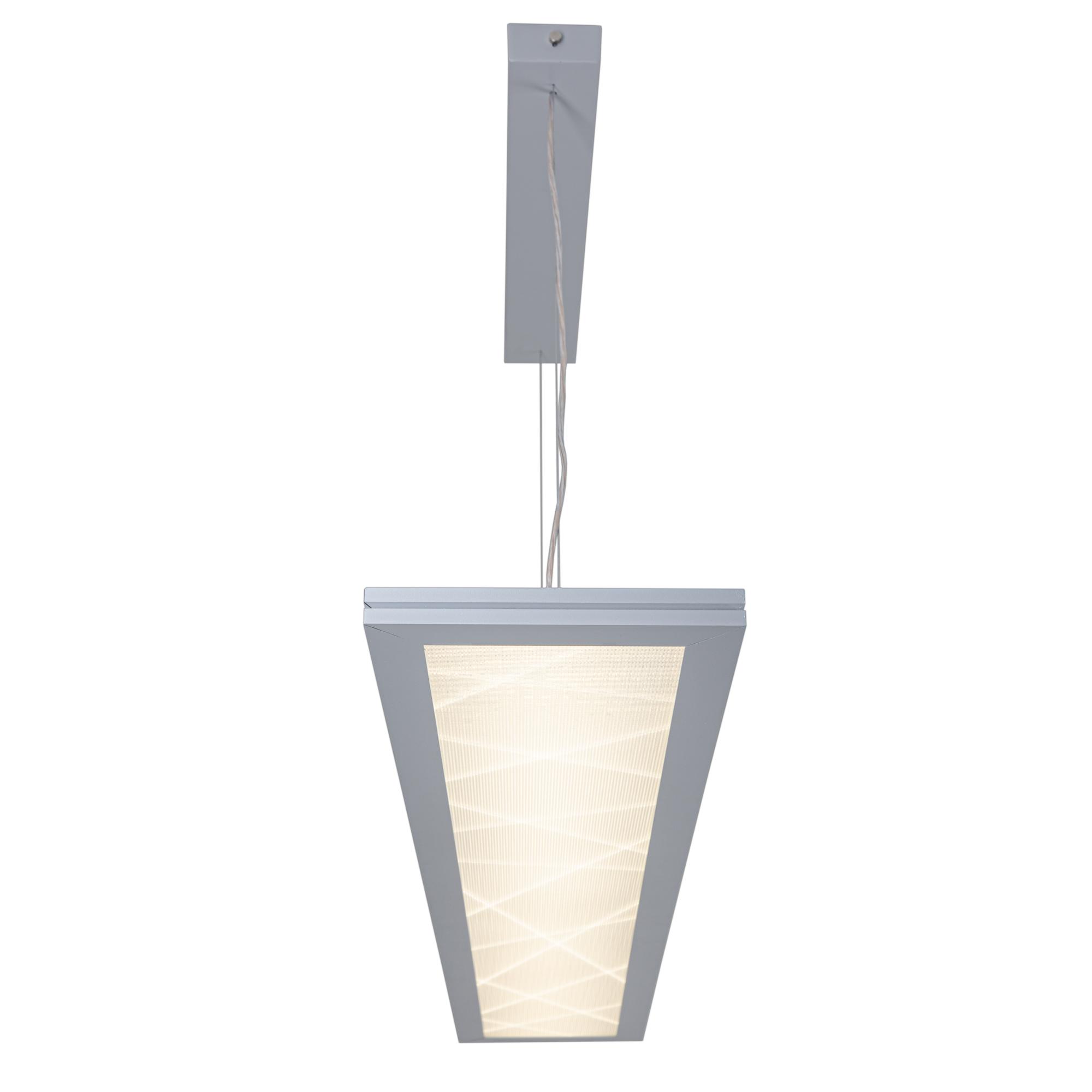

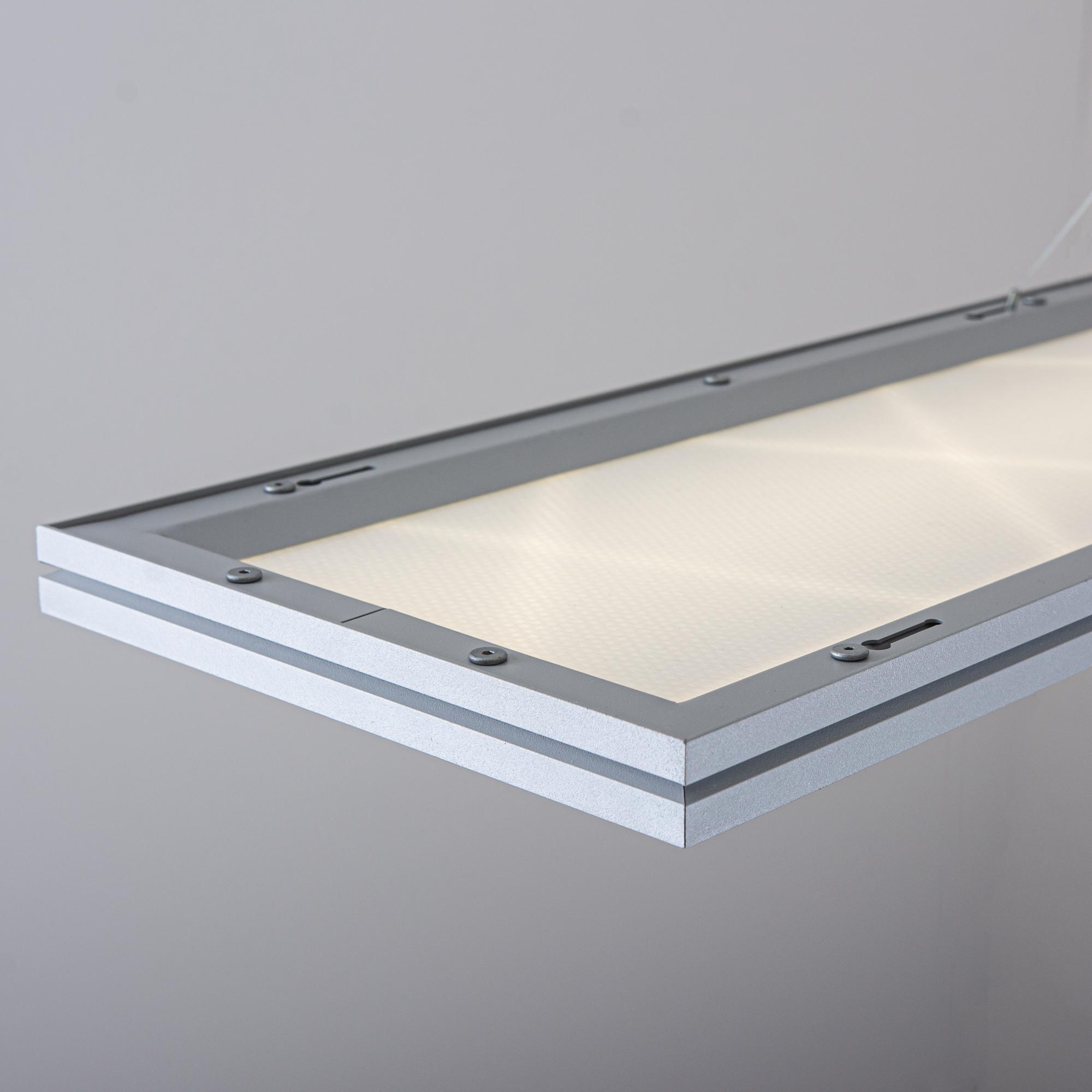

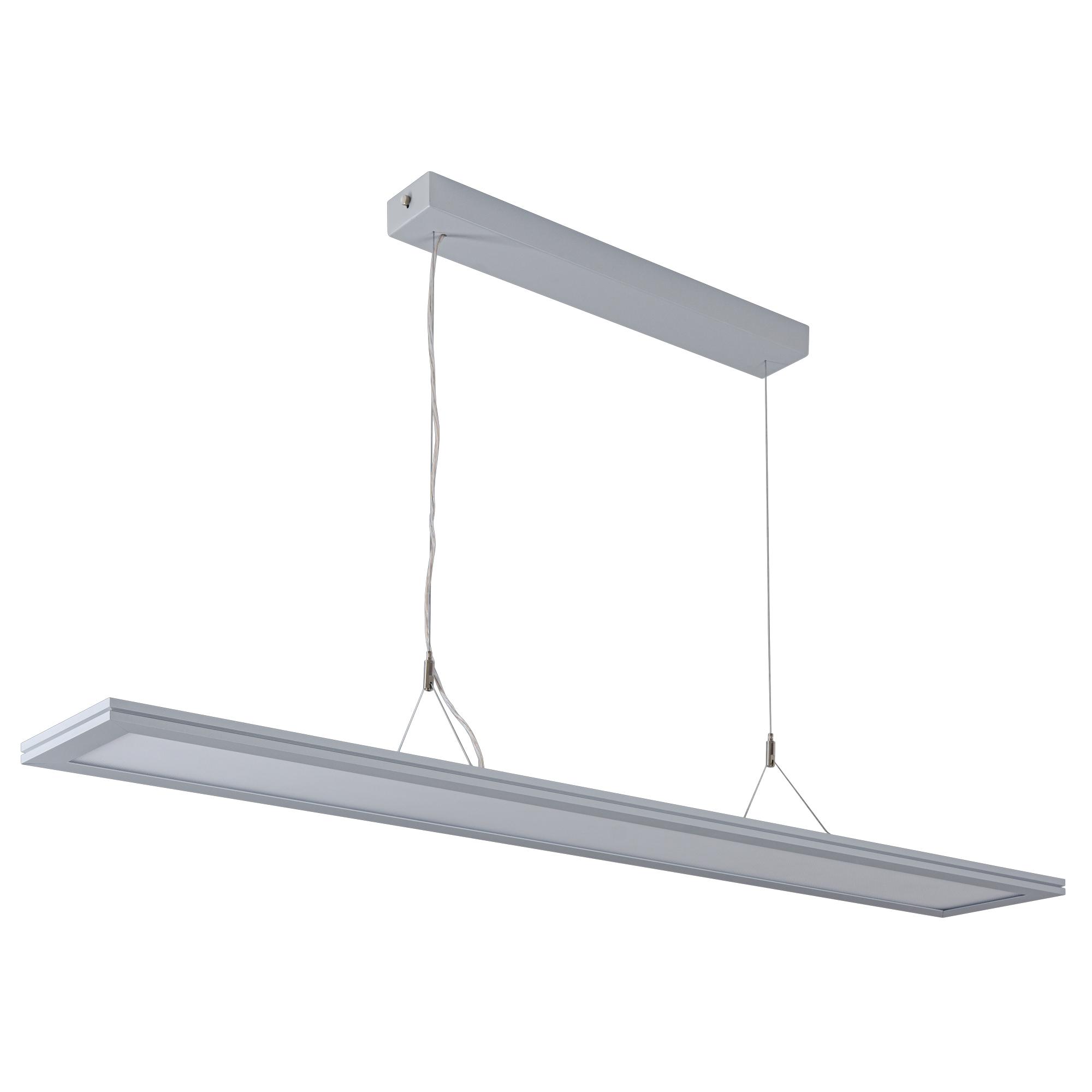

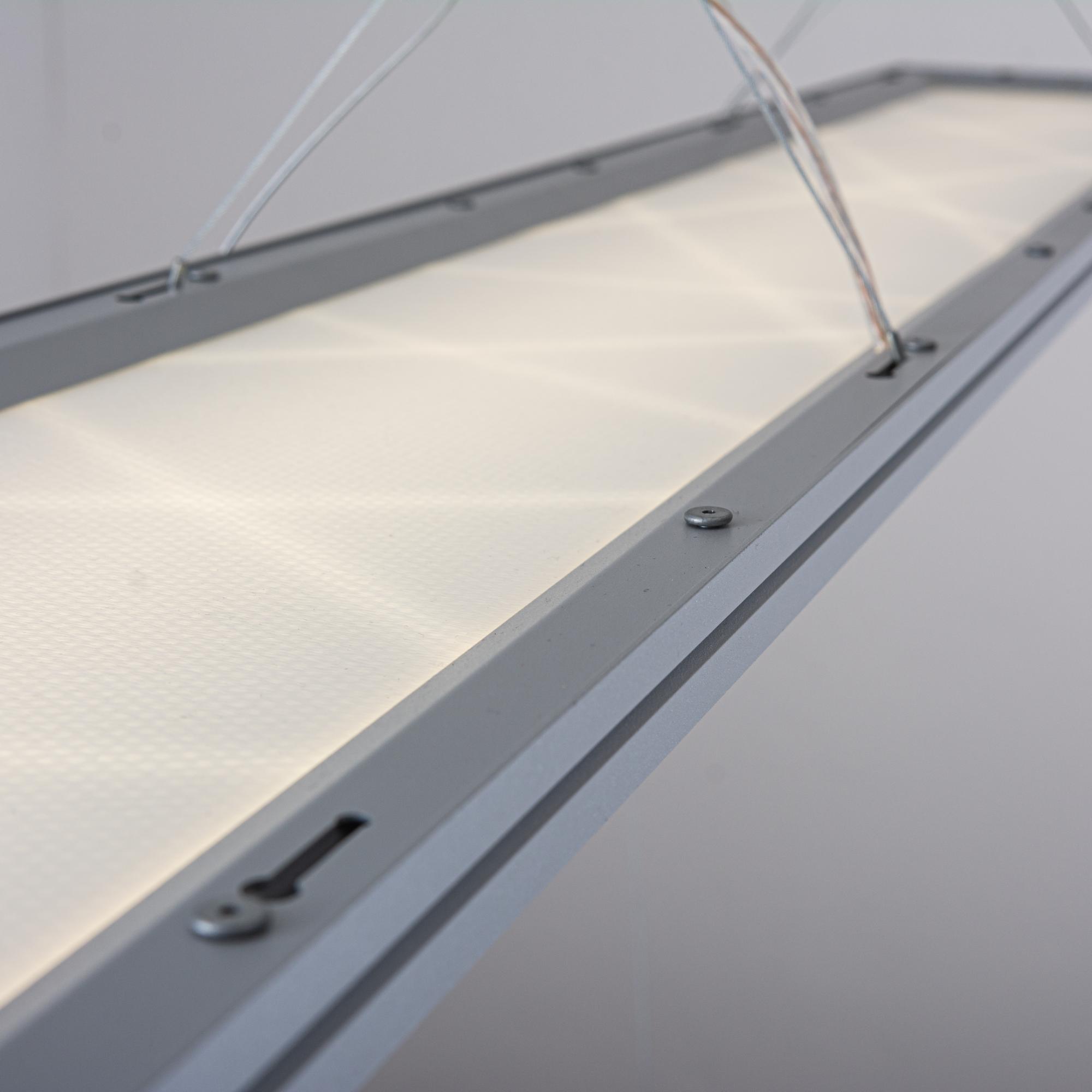

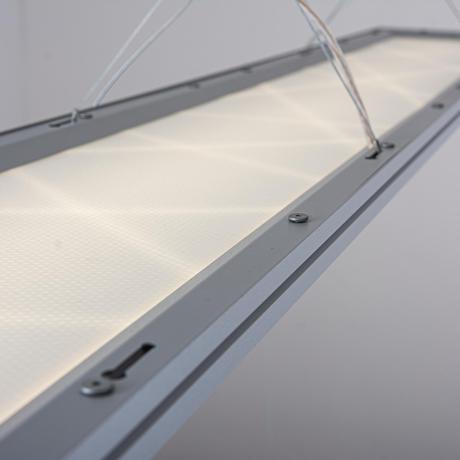

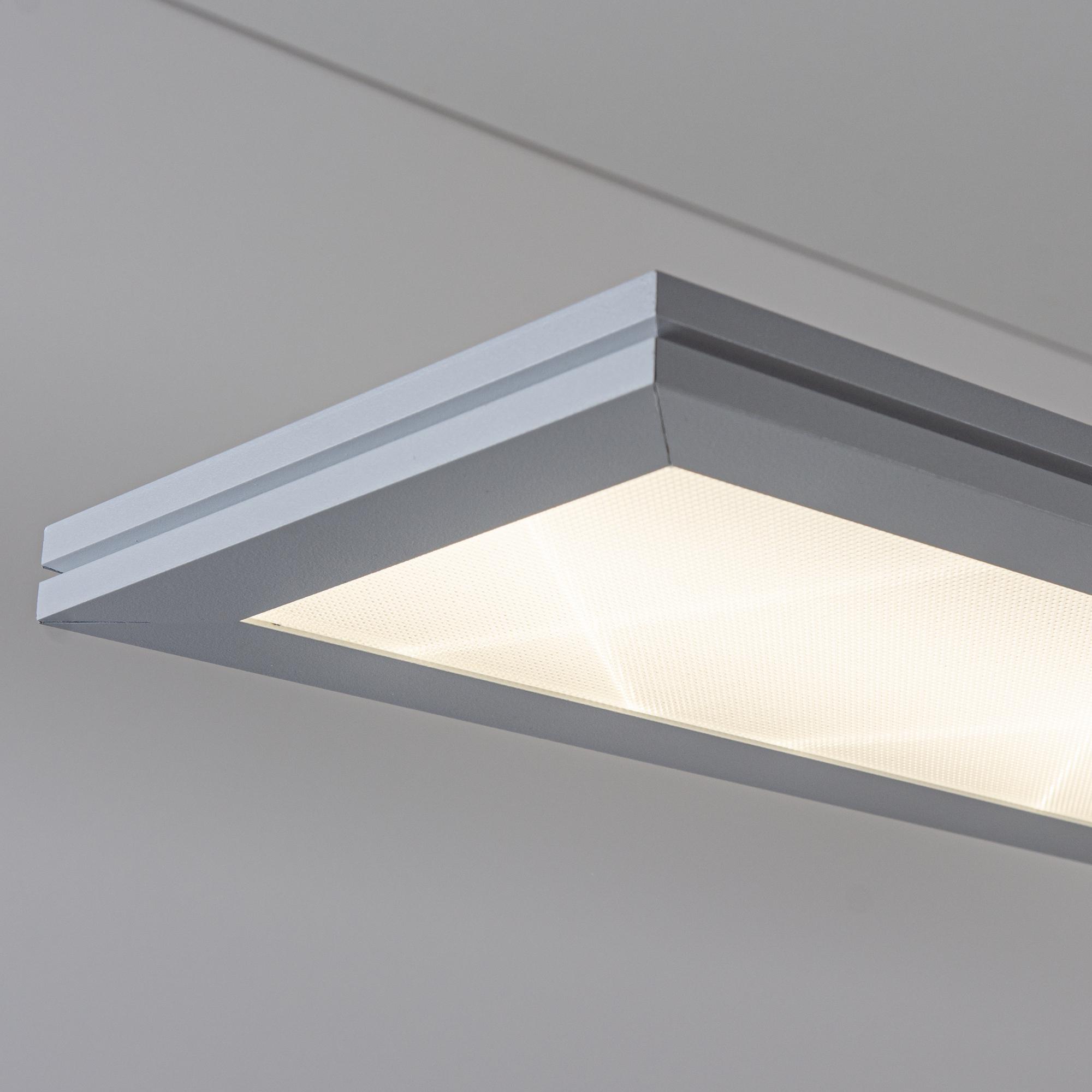

The luminaire represents a modern concept of lighting. The tiny aluminum body (frame) is combined with different types of optics (opal, nanoprisma or clear cover). In the inner plate of the optical system of the luminaire, a variety of motives can be engraved by the laser = the interesting look of luminaire)

The luminaire is always designed for direct / indirect lighting. It is also possible to choose (in the case of a dimmable version) if the direct and indirect component will be controlled together or the direct and indirect components will be controlled individually.

Luminaire can be also done with bluetooth control or with sensor integrated to the luminaire.

Find out more about human centric lighting and tunable white in our MODUS TUNABLE LIGHT catalogue.

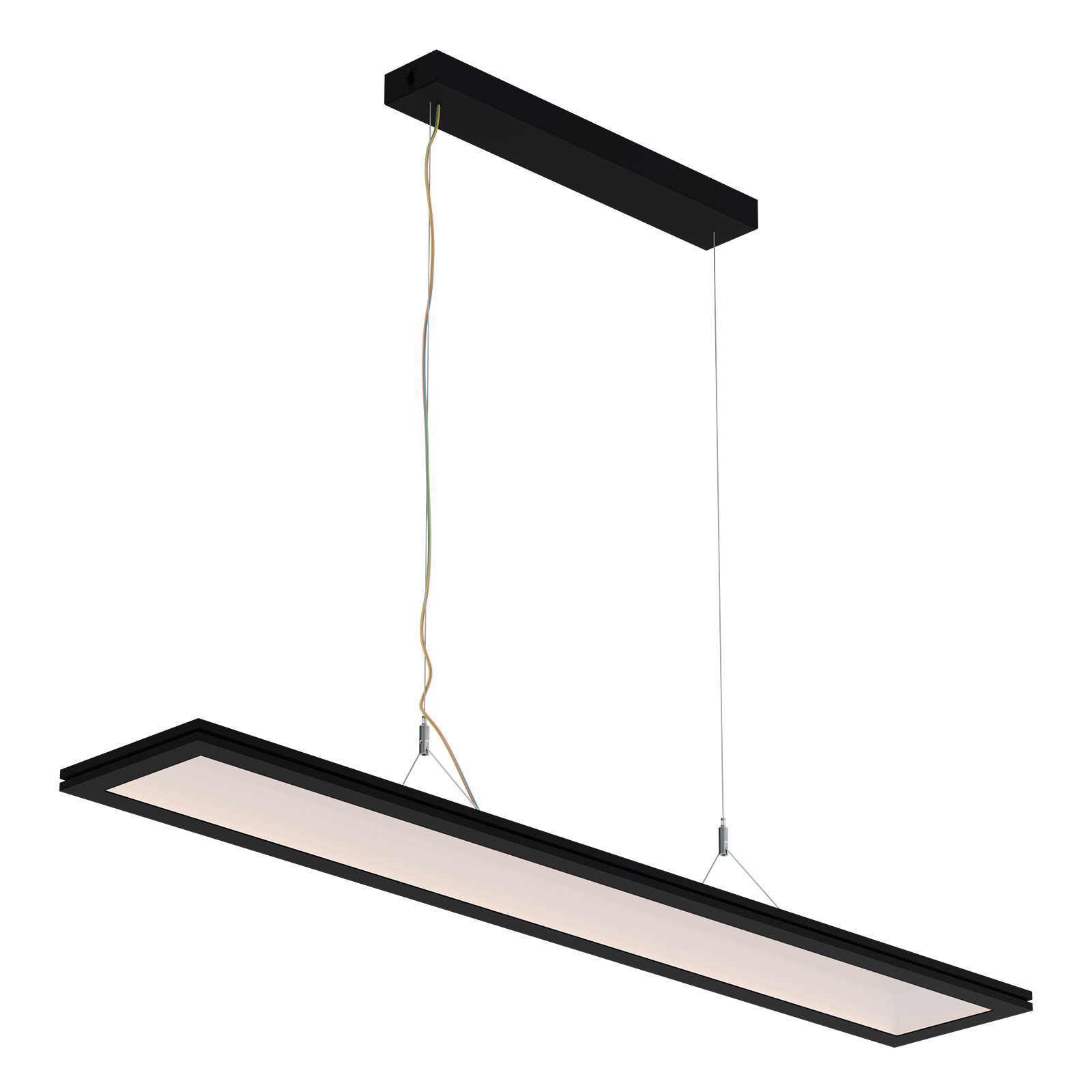

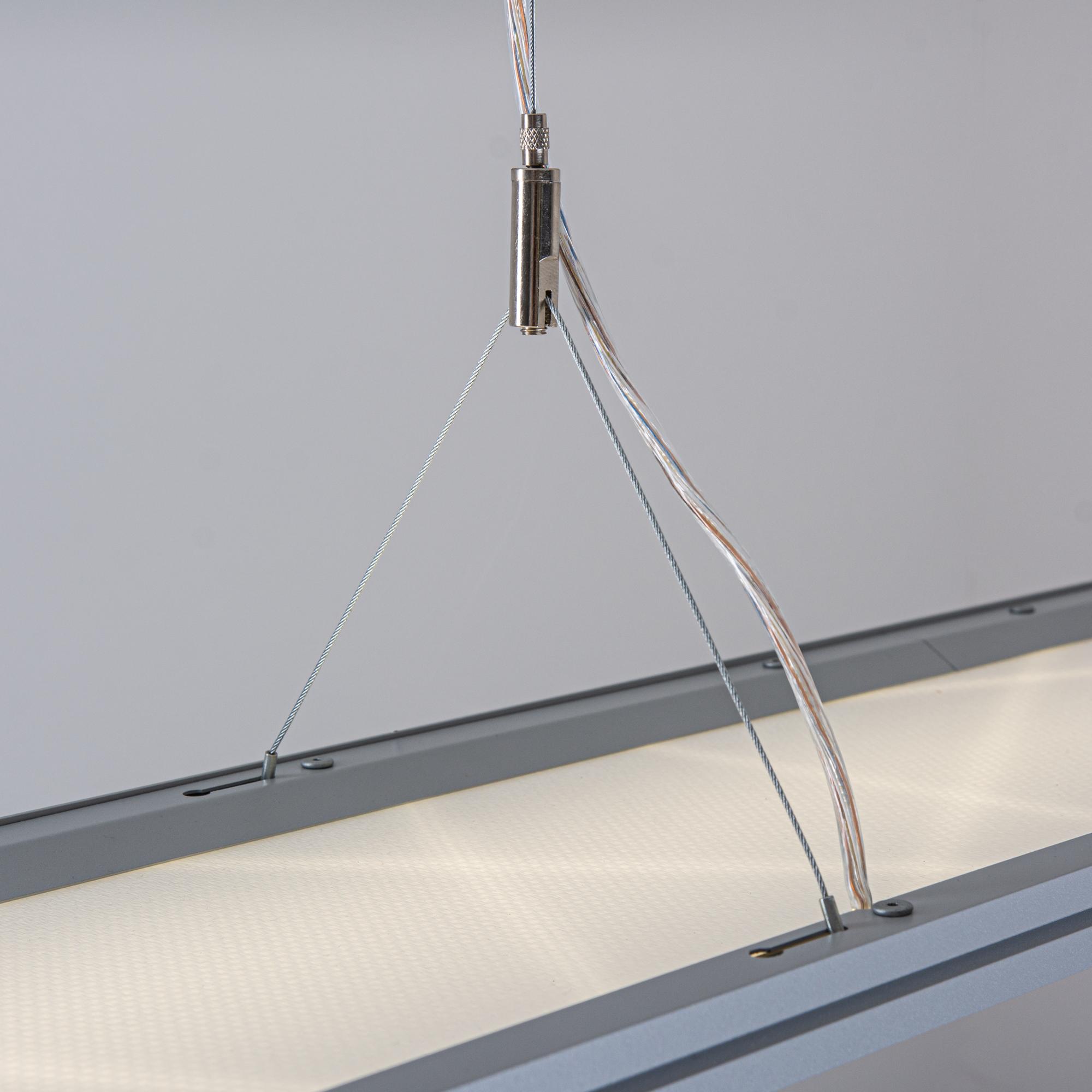

Part of the luminaire is a hanging set.

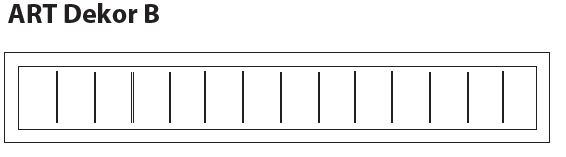

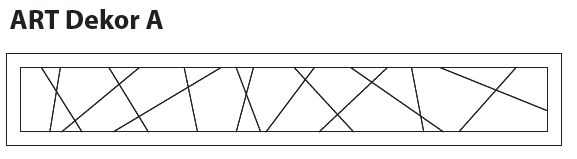

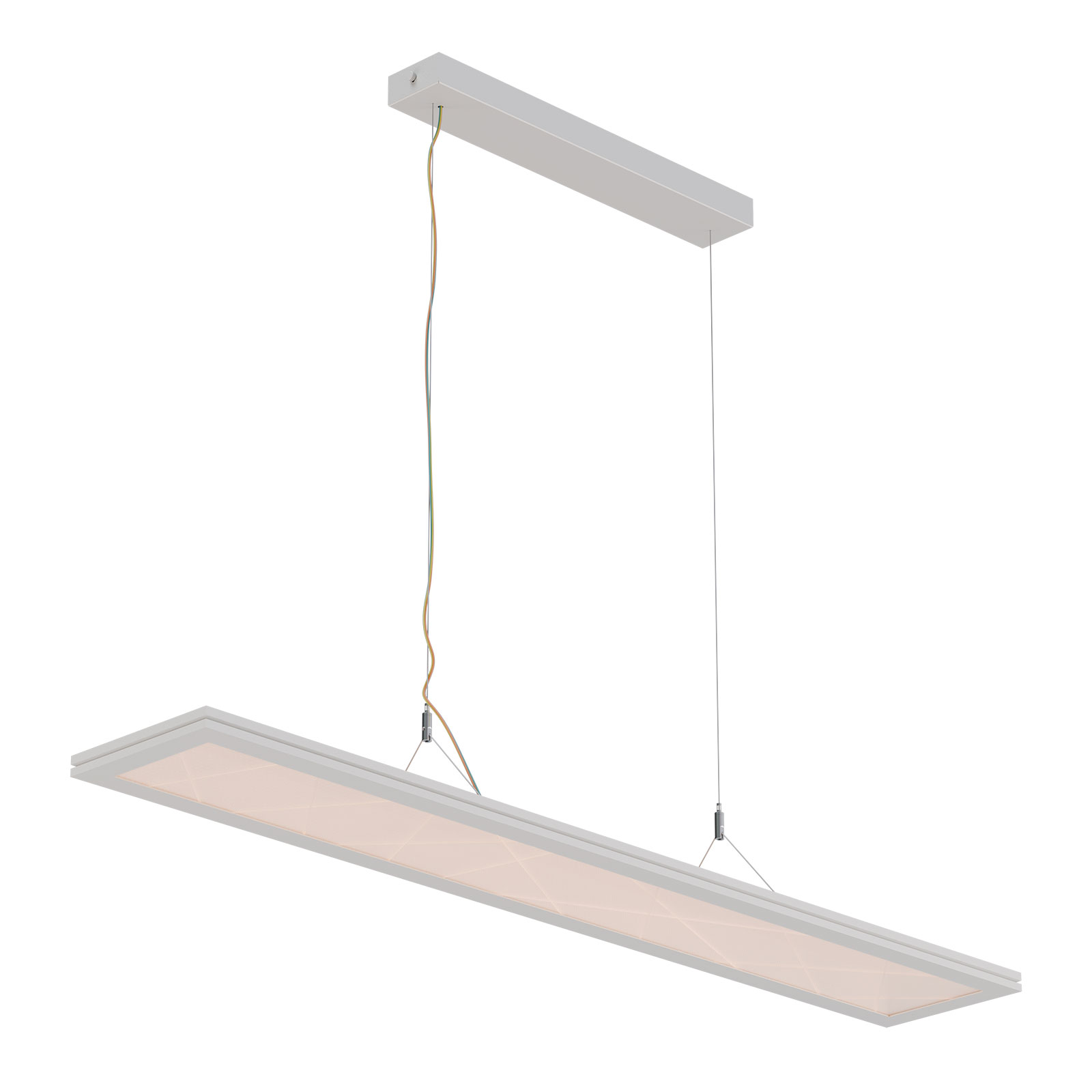

Luminaire can be produced with different decors, these decors are made by laser to internal translucent desk (this desk is after covered with opal or nanoprisma cover). Also your own motives are possible. Here you can see a examples:



Size version:M
1200 mm
Body material:Painted aluminium frame
Mounting method:Pendant DIProtection class:I
With movement sensor:No, YesColor rendering index CRI:80-89
Light source type:LEDColor temperature controllable (K):No, Yes
Light outlet:Direct/indirectNominal voltage (V):220...240
Degree of protection (IP):IP20
Color temperature (K):4000, 6500, 3000, 2700, 5700, 2700...6500
Rated lifetime L80/B50 (h):80000Dimming 1-10 V:Yes
Dimming DALI:YesProduct category:Pendant luminaire
Optical system:KO D/I
Opal cover for direct/indirect lighting
KN D/I

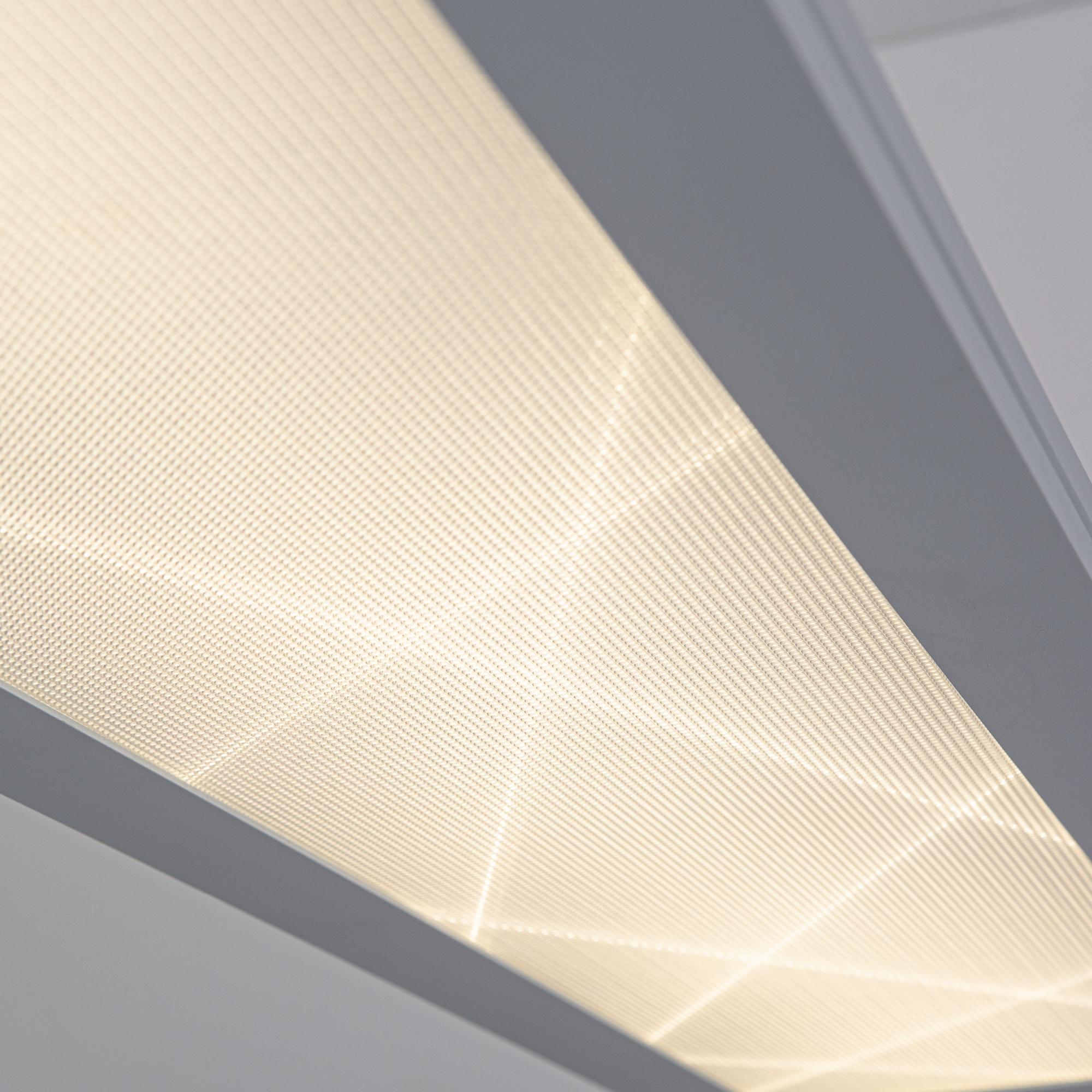

Nanoprismatic cover for direct/indirect lighting
Made in Czech republic:Yes
Replaceability:Removeable light source, replaceable ballast
Removeable light source, replaceable ballast
Photobiological safety EN 62 471:RG 0
MacAdam binning:SDCM 3
Show more...
LoadingLoading

Filters

Effective luminous flux (lm)

3800
7400

System power (W)

40
75
Product name
ART5000DI15M2BPOB/DALI
Effective luminous flux (lm): 5300
System power (W): 45
Color temperature (K): 2700
Length (mm): 1210
Color housing: Black
ART5000DI15M3BPNA/DALI
Effective luminous flux (lm): 5300
System power (W): 45
Color temperature (K): 3000
Length (mm): 1210
Color housing: Black
ART5000DI15M3GPNA/DALI
Effective luminous flux (lm): 5300
System power (W): 45
Color temperature (K): 3000
Length (mm): 1210
Color housing: Grey
ART5000DI15M3GPNA/ND
Effective luminous flux (lm): 5300
System power (W): 45
Color temperature (K): 3000
Length (mm): 1210
Color housing: Grey
ART5000DI15M4GPNA/DALI
Effective luminous flux (lm): 5300
System power (W): 45
Color temperature (K): 4000
Length (mm): 1210
Color housing: Grey
ART5000DI15M4GPNA/ND
Effective luminous flux (lm): 5300
System power (W): 45
Color temperature (K): 4000
Length (mm): 1210
Color housing: Grey
ART5000DI15M4GPNB/ND
Effective luminous flux (lm): 5300
System power (W): 45
Color temperature (K): 4000
Length (mm): 1210
Color housing: Grey
ART5000DI18M3GPN/ND
Effective luminous flux (lm): 5300
System power (W): 45
Color temperature (K): 3000
Length (mm): 1210
Color housing: Grey
ART5000DI18M3GPNA/DALI
Effective luminous flux (lm): 5300
System power (W): 45
Color temperature (K): 3000
Length (mm): 1210
Color housing: Grey
ART5000DI18M3GPNA/ND
Effective luminous flux (lm): 5300
System power (W): 45
Color temperature (K): 3000
Length (mm): 1210
Color housing: Grey
ART5000DI18M3WPN/SRS
Effective luminous flux (lm): 5300
System power (W): 45
Color temperature (K): 3000
Length (mm): 1210
Color housing: White
ART5000DI18M3WPNA/BTC
Effective luminous flux (lm): 5300
System power (W): 45
Color temperature (K): 3000
Length (mm): 1210
Color housing: White
ART5000DI18M3WPNA/DALI
Effective luminous flux (lm): 5300
System power (W): 45
Color temperature (K): 3000
Length (mm): 1210
Color housing: White
ART5000DI18M3WPNA/ND
Effective luminous flux (lm): 5300
System power (W): 45
Color temperature (K): 3000
Length (mm): 1210
Color housing: White
ART5000DI18M4GPN/DALI
Effective luminous flux (lm): 5300
System power (W): 45
Color temperature (K): 4000
Length (mm): 1210
Color housing: Grey
ART5000DI18M4GPNA/DALI
Effective luminous flux (lm): 5300
System power (W): 45
Color temperature (K): 4000
Length (mm): 1210
Color housing: Grey
ART5000DI18M4GPNA/ND
Effective luminous flux (lm): 5300
System power (W): 45
Color temperature (K): 4000
Length (mm): 1210
Color housing: Grey
ART5000DI18M4GPNA/SRS
Effective luminous flux (lm): 5300
System power (W): 45
Color temperature (K): 4000
Length (mm): 1210
Color housing: Grey
ART5000DI18M4GPNB/ND
Effective luminous flux (lm): 5300
System power (W): 45
Color temperature (K): 4000
Length (mm): 1210
Color housing: Grey
ART5000DI18M4WPN/DALI
Effective luminous flux (lm): 5300
System power (W): 45
Color temperature (K): 4000
Length (mm): 1210
Color housing: White
ART5000DI18M4WPNA/DALI
Effective luminous flux (lm): 5300
System power (W): 45
Color temperature (K): 4000
Length (mm): 1210
Color housing: White
ART5000DI18M4WPNA/ND
Effective luminous flux (lm): 5300
System power (W): 45
Color temperature (K): 4000
Length (mm): 1210
Color housing: White
ART5000DI18M4WPNA/SRS
Effective luminous flux (lm): 5300
System power (W): 45
Color temperature (K): 4000
Length (mm): 1210
Color housing: White
ART5000DI18M4WPND/ND
Effective luminous flux (lm): 5300
System power (W): 45
Color temperature (K): 4000
Length (mm): 1210
Color housing: White
ART5000DI18M5GPNA/DALI
Effective luminous flux (lm): 5300
System power (W): 45
Color temperature (K): 5700
Length (mm): 1210
Color housing: Grey
ART5000DI18MMIXWBPNA/BTC
Effective luminous flux (lm): 5200
System power (W): 67
Color temperature (K): 2700...6500
Length (mm): 1210
Color housing: Black
ART5000DI18MMIXWGPNA/BTC
Effective luminous flux (lm): 5200
System power (W): 67
Color temperature (K): 2700...6500
Length (mm): 1210
Color housing: Grey
ART5000DI1M4BPNA/DALI
Effective luminous flux (lm): 5300
System power (W): 45
Color temperature (K): 4000
Length (mm): 1210
Color housing: Black
ART5000DI1M4GPNA/ND
Effective luminous flux (lm): 5300
System power (W): 45
Color temperature (K): 4000
Length (mm): 1210
Color housing: Grey
ART5000DI2M3GPN/BTC
Effective luminous flux (lm): 4800
System power (W): 50
Color temperature (K): 3000
Length (mm): 1210
Color housing: Grey
ART5000DI2M3GPNA/DALI
Effective luminous flux (lm): 4800
System power (W): 50
Color temperature (K): 3000
Length (mm): 1210
Color housing: Grey
ART5000DI2M3RGB/WPN/BTC
Effective luminous flux (lm): 3800
System power (W): 40
Color temperature (K): 3000
Length (mm): 1210
Color housing: White
ART5000DI2M4GPNA/BTC
Effective luminous flux (lm): 4800
System power (W): 50
Color temperature (K): 4000
Length (mm): 1210
Color housing: Grey
ART5000DI2M4GPNA/DALI
Effective luminous flux (lm): 4800
System power (W): 50
Color temperature (K): 4000
Length (mm): 1210
Color housing: Grey
ART5000DI2M4WPN/DALI/9016
Effective luminous flux (lm): 4800
System power (W): 50
Color temperature (K): 4000
Length (mm): 1210
Color housing: White
ART5000M3GPNA/ND
Effective luminous flux (lm): 5000
System power (W): 45
Color temperature (K): 3000
Length (mm): 1210
Color housing: Grey
ART5000M3WPN/ND
Effective luminous flux (lm): 5000
System power (W): 45
Color temperature (K): 3000
Length (mm): 1210
Color housing: Grey
ART5000M4GPNA/DALI
Effective luminous flux (lm): 5000
System power (W): 45
Color temperature (K): 4000
Length (mm): 1210
Color housing: Grey
ART5000M4GPNA/ND
Effective luminous flux (lm): 5000
System power (W): 45
Color temperature (K): 4000
Length (mm): 1210
Color housing: Grey
ART5000M4WPNA/ND
Effective luminous flux (lm): 5000
System power (W): 45
Color temperature (K): 4000
Length (mm): 1210
Color housing: White
ART7000DI15M3BPNA/DALI
Effective luminous flux (lm): 7400
System power (W): 75
Color temperature (K): 3000
Length (mm): 1210
Color housing: Black
ART7000DI15M3GPNA/DALI
Effective luminous flux (lm): 7400
System power (W): 75
Color temperature (K): 3000
Length (mm): 1210
Color housing: Grey
ART7000DI15M3GPNA/ND
Effective luminous flux (lm): 7400
System power (W): 75
Color temperature (K): 3000
Length (mm): 1210
Color housing: Grey
ART7000DI15M4BPNB/ND
Effective luminous flux (lm): 7400
System power (W): 75
Color temperature (K): 4000
Length (mm): 1210
Color housing: Black
ART7000DI15M4GPNA/DALI
Effective luminous flux (lm): 7400
System power (W): 75
Color temperature (K): 4000
Length (mm): 1210
Color housing: Grey
ART7000DI15M4GPNA/DALI/90
Effective luminous flux (lm): 6200
System power (W): 75
Color temperature (K): 4000
Length (mm): 1210
Color housing: Grey
ART7000DI15M4GPNA/ND
Effective luminous flux (lm): 7400
System power (W): 75
Color temperature (K): 4000
Length (mm): 1210
Color housing: Grey
ART7000DI15M4GPNB/ND
Effective luminous flux (lm): 7400
System power (W): 75
Color temperature (K): 4000
Length (mm): 1210
Color housing: Grey
ART7000DI15S4WPN/ND
Effective luminous flux (lm): 5200
System power (W): 50
Color temperature (K): 4000
Length (mm): 620
Color housing: White
ART7000DI18M3BPNA/ND
Effective luminous flux (lm): 7400
System power (W): 75
Color temperature (K): 3000
Length (mm): 1210
Color housing: Black
ART7000DI18M3GPN/ND
Effective luminous flux (lm): 7400
System power (W): 75
Color temperature (K): 3000
Length (mm): 1210
Color housing: Grey
ART7000DI18M4GPNA/BTC
Effective luminous flux (lm): 7400
System power (W): 75
Color temperature (K): 4000
Length (mm): 1210
Color housing: Grey
ART7000DI18M4GPNA/DALI
Effective luminous flux (lm): 7400
System power (W): 75
Color temperature (K): 4000
Length (mm): 1210
Color housing: Grey
ART7000DI18M4GPNA/ND
Effective luminous flux (lm): 7400
System power (W): 75
Color temperature (K): 4000
Length (mm): 1210
Color housing: Grey
ART7000DI18M4WPNA/ND
Effective luminous flux (lm): 7400
System power (W): 75
Color temperature (K): 4000
Length (mm): 1210
Color housing: White
ART7000DI2M3GPNA/DALI
Effective luminous flux (lm): 7200
System power (W): 75
Color temperature (K): 3000
Length (mm): 1210
Color housing: Grey
ART7000DI2M4GPNA/BTC
Effective luminous flux (lm): 7200
System power (W): 75
Color temperature (K): 4000
Length (mm): 1210
Color housing: Grey
Show all versions
ART 5000D15.pngART 5000D15.png

Svítidlo je možno vybavit bezdrátovým ovládáním pomocí mobilního telefonu či bezdrátových stmívačů nebo svítidlo vybavit sensorem.

Zjistěte více o svítidlech s nastavitelnou teplotou chromatičnosti (tunable white) a human centric lighting v našem MODUS TUNABLE WHITE letáku.

Projekty realizované se svítidly MODUS:


Autosalon Rolls-Royce (Australia)

MODUS TEL

Detail reference

Office building of HAGER company

MODUS SPMI + MODUS QP

Detail reference

Commercial centrum

MODUS Q SKY

Detail reference

Tennis play-ground Bratislava (SK)

MODUS MEGAL

Detail reference
Zobrazit další reference
 Back to product list

We are here to help

We'll advise you all, we have outstanding support.
Lighting calculations

Lighting calculations

Do you need to calculate the lighting?

LDT files

LDT files

Do you need LDT data for your project?

Product support

Product support

Do not know what kind of lighting is best for you?

Connection diagrams

Connection diagrams

Do not you know how to conect luminaires properly?

Contact
