Product series
MODUS ASTA

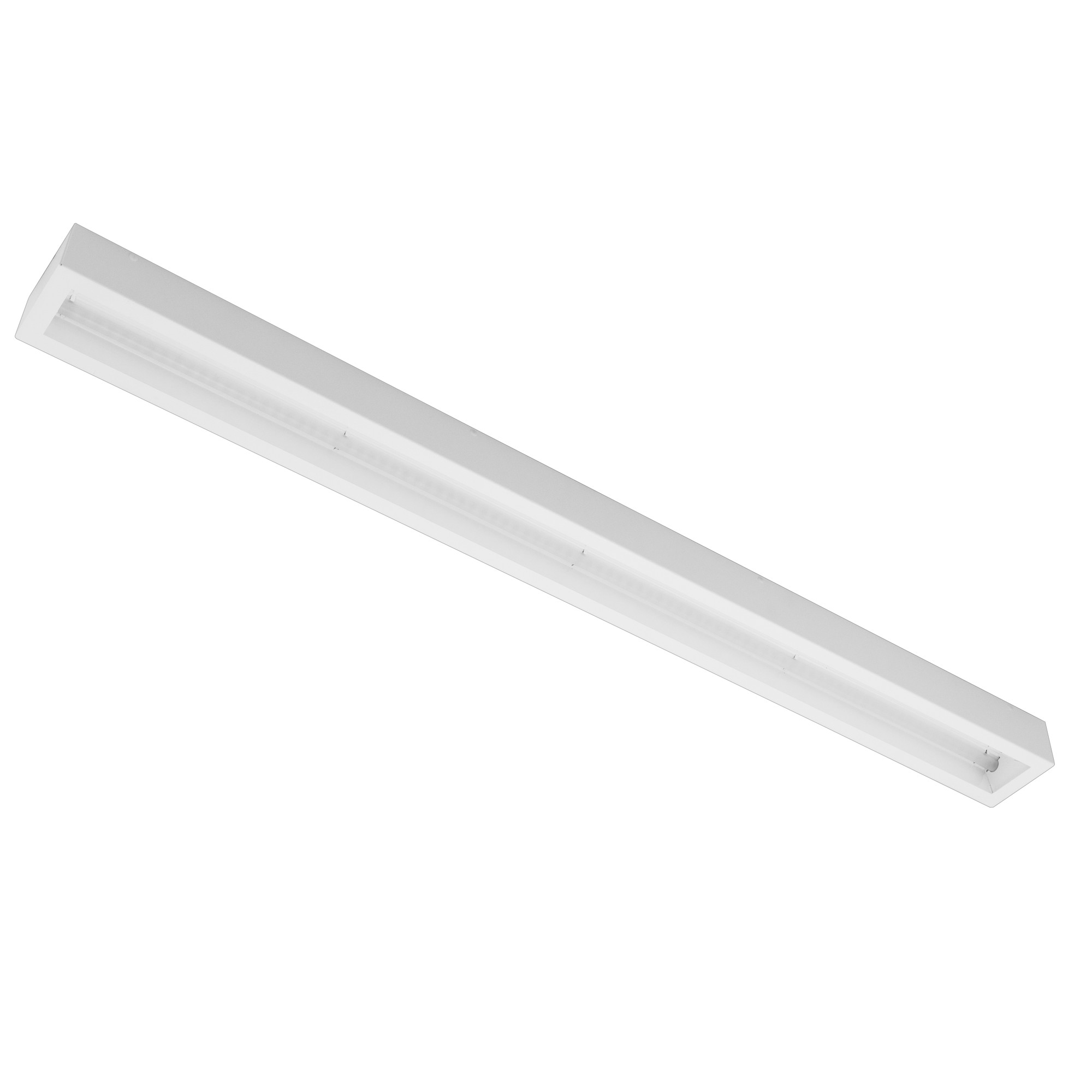

Luminaire with asymetrical reflector
Standard price from:
On request
Luminaire with asymetric reflektor - ideal for illuminating of black boards in school classes.
Installation is possible like surface / pendant (with pending set ZH/UNI2 - not included in box) or like recessed to ceiling with visible structure (T-Bar ceiling).
For tips and standards for school classes, gyms and facilities take a look on our Luminaires for School magazine.
Body:
White painted metal sheet
Optic:

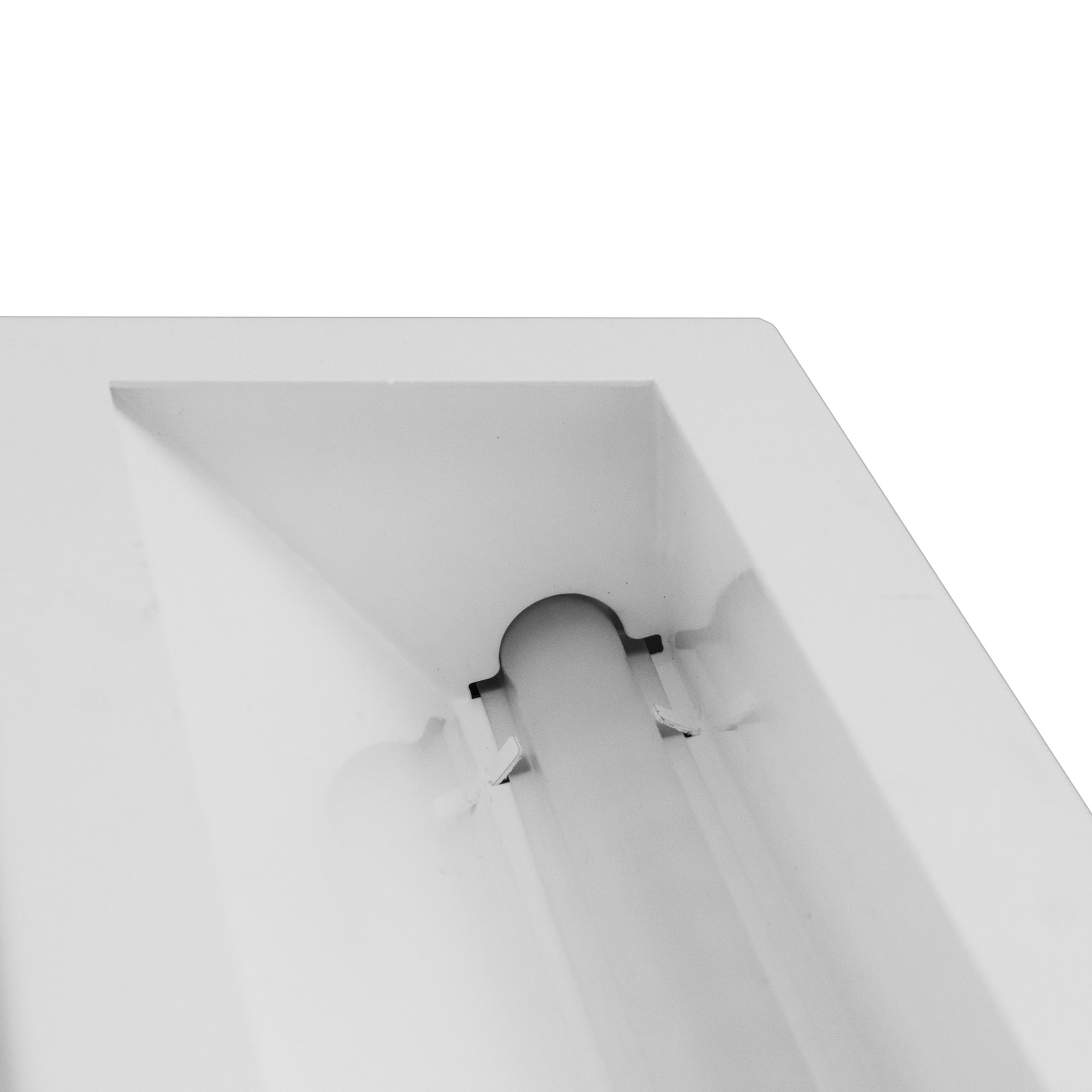

AS - white painted asymetric reflector
LED:
Mid Power LED
CRI80 (CRI90 on request)
3... warm white 3000K
4... cold white 4000K
Wirring:
ND - non dimmable driver
DALI - dimmable DALI driver
Luminaire can be supplied with wireless Bluetooth control - more information here.
Application:
- surface, recessed or pendant installation (ASTAP), for pendant installation ZHX11 /pending set/ needs to be ordered
Accessories:
Pending set ZH/UNI2
| Size version: | L 1500 mm M 1200 mm S 600 mm | Body material: | White painted steel | Mounting method: | Surface mounting asymmetric, Pendant asymmetric, Built-in asymmetric | Protection class: | I | Color rendering index CRI: | 80-89, 90-100 | Light source type: | LED | Light outlet: | Direct | Light sharing: | Asymmetric | Nominal voltage (V): | 220...240 | Degree of protection (IP): | IP20 |
| Color temperature (K): | 4000, 6500, 3000, 2700, 5700 | Rated lifetime L80/B50 (h): | 80000 | Dimming 1-10 V: | Yes | Dimming DALI: | Yes | Optical system: | AS Asymetric reflector | Made in Czech republic: | Yes | Replaceability: | Replaceable light source by professional, replaceable ballast Replaceable light source by professional, replaceable ballast | Photobiological safety EN 62 471: | RG 0 | MacAdam binning: | SDCM 3 |
LoadingFilters
Effective luminous flux (lm)
System power (W)
Product name
Effective luminous flux (lm)
System power (W)
Color temperature (K)
Length (mm)
ASTAP2000M4/ND
Effective luminous flux (lm): 1900
System power (W): 16
Color temperature (K): 4000
Length (mm): 1195
ASTAP2000S3/DALI
Effective luminous flux (lm): 2000
System power (W): 16
Color temperature (K): 3000
Length (mm): 595
ASTAP2000S3/ND
Effective luminous flux (lm): 2000
System power (W): 16
Color temperature (K): 3000
Length (mm): 595
ASTAP2000S4/DALI
Effective luminous flux (lm): 2000
System power (W): 16
Color temperature (K): 4000
Length (mm): 595
ASTAP2000S4/ND
Effective luminous flux (lm): 2000
System power (W): 16
Color temperature (K): 4000
Length (mm): 595
ASTAP3000L3/DALIBTC/CLO
Effective luminous flux (lm): 2500
System power (W): 19
Color temperature (K): 3000
Length (mm): 1486
ASTAP3000L3/ND
Effective luminous flux (lm): 3400
System power (W): 23
Color temperature (K): 3000
Length (mm): 1486
ASTAP3000L4/DALI
Effective luminous flux (lm): 3400
System power (W): 23
Color temperature (K): 4000
Length (mm): 1486
ASTAP3000L4/ND
Effective luminous flux (lm): 3400
System power (W): 23
Color temperature (K): 4000
Length (mm): 1486
ASTAP3000M3/DALI/90
Effective luminous flux (lm): 2750
System power (W): 25
Color temperature (K): 3000
Length (mm): 1195
ASTAP3000M3/ND
Effective luminous flux (lm): 3200
System power (W): 25
Color temperature (K): 3000
Length (mm): 1195
ASTAP3000M3/ND/90
Effective luminous flux (lm): 2750
System power (W): 25
Color temperature (K): 3000
Length (mm): 1195
ASTAP3000M4/DALI
Effective luminous flux (lm): 3200
System power (W): 25
Color temperature (K): 4000
Length (mm): 1195
ASTAP3000M4/ND
Effective luminous flux (lm): 3200
System power (W): 25
Color temperature (K): 4000
Length (mm): 1195
ASTAP3500M3/ND
Effective luminous flux (lm): 4100
System power (W): 32
Color temperature (K): 3000
Length (mm): 1195
ASTAP3500M4/ND
Effective luminous flux (lm): 4100
System power (W): 32
Color temperature (K): 4000
Length (mm): 1195
ASTAP4000M3/DALI
Effective luminous flux (lm): 4800
System power (W): 38
Color temperature (K): 3000
Length (mm): 1195
ASTAP4000M3/ND
Effective luminous flux (lm): 4800
System power (W): 38
Color temperature (K): 3000
Length (mm): 1195
ASTAP4000M4/DALI
Effective luminous flux (lm): 4800
System power (W): 38
Color temperature (K): 4000
Length (mm): 1195
ASTAP4000M4/ND
Effective luminous flux (lm): 4800
System power (W): 38
Color temperature (K): 4000
Length (mm): 1195
ASTAP4000M4/ND/90
Effective luminous flux (lm): 4100
System power (W): 38
Color temperature (K): 4000
Length (mm): 1195
ASTAP4000M4/ND/F
Effective luminous flux (lm): 4800
System power (W): 38
Color temperature (K): 4000
Length (mm): 1195
ASTAP4000M6/ND
Effective luminous flux (lm): 4800
System power (W): 38
Color temperature (K): 6500
Length (mm): 1195
ASTAP4000M6/ND/90
Effective luminous flux (lm): 4100
System power (W): 38
Color temperature (K): 6500
Length (mm): 1195
ASTAP6000L3/DALI
Effective luminous flux (lm): 6500
System power (W): 47
Color temperature (K): 3000
Length (mm): 1486
ASTAP6000L3/ND
Effective luminous flux (lm): 6500
System power (W): 47
Color temperature (K): 3000
Length (mm): 1486
ASTAP6000L4/DALI
Effective luminous flux (lm): 6500
System power (W): 47
Color temperature (K): 4000
Length (mm): 1486
ASTAP6000L4/DALI/9016
Effective luminous flux (lm): 6500
System power (W): 47
Color temperature (K): 4000
Length (mm): 1486
ASTAP6000L4/ND
Effective luminous flux (lm): 6500
System power (W): 47
Color temperature (K): 4000
Length (mm): 1486
