Product series
MODUS BALOP

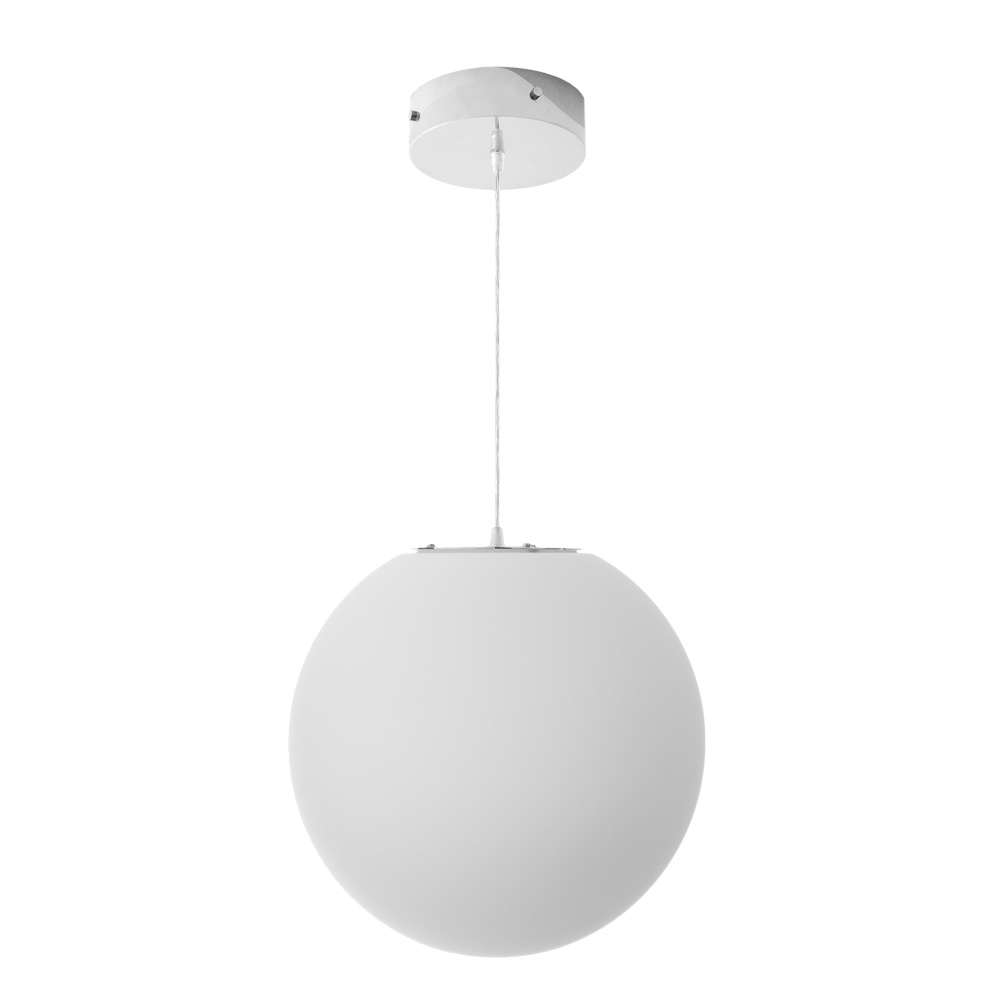

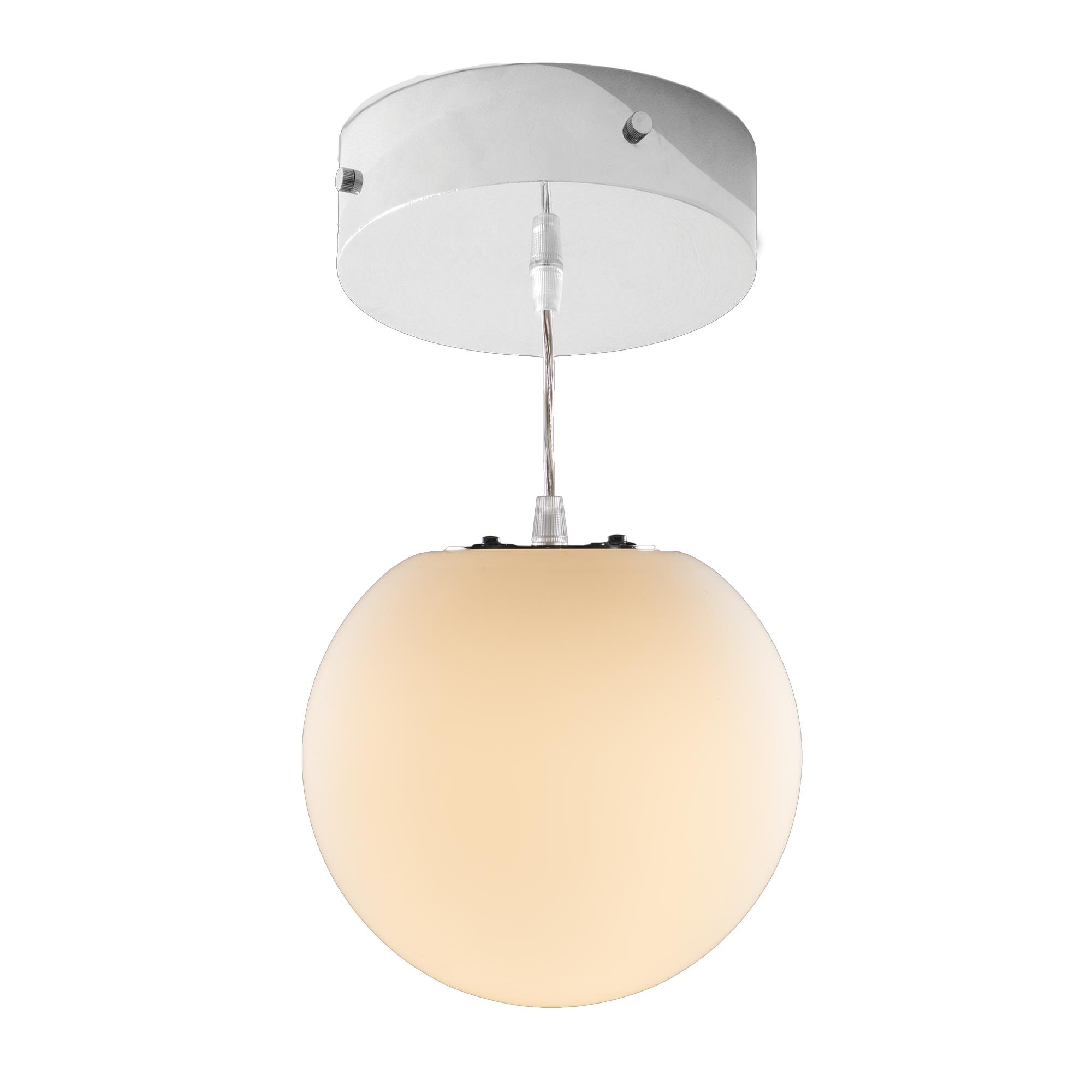

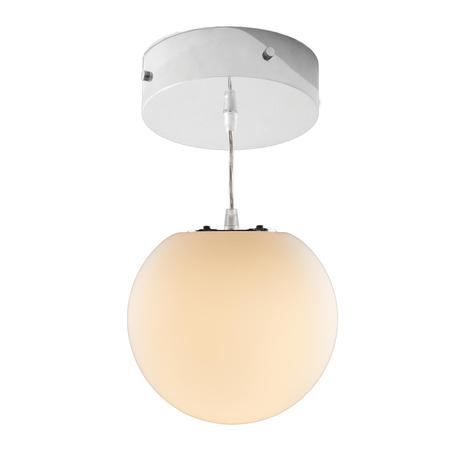

Pendant LED glass luminaire
BALOP400
Standard price from:
On request
Combination of Bohemia glass and modern LED technology
Body:
Chrome plated metal sheet
Optic:
TRIPLEX opal glass
LED:
Mid Power LED
3...warm white 3000K
4...cold white 4000K
Wiring:
LED driver (constant current)
ND – not dimmable (standard)
DALI – digital dimmable DALI
Luminaire can be supplied with wireless Bluetooth control - more information here.
Suspension:
L - Self-supporting transparent 2m cable
Find out more about human centric lighting and tunable white in our MODUS TUNABLE LIGHT catalogue.
| Body material: | Chromed ceiling base | Mounting method: | Závěsné BAL | Protection class: | I | Type of control gear: | LED operating device current-controlled | Color rendering index CRI: | 80-89 | Light source type: | LED | Color temperature controllable (K): | Yes | Nominal voltage (V): | 220...240 | Degree of protection (IP): | IP20 | Color temperature (K): | 4000, 6500, 3000, 2700, 5700, 2700...6500 |
| Rated lifetime L80/B50 (h): | 80000 | Dimming DALI: | Yes | Optical system: | TRIPLEX opal glass cover | Made in Czech republic: | Yes | Without Chinese components: | Ano | Replaceability: | Replaceable light source by professional, replaceable ballast Replaceable light source by professional, replaceable ballast | Photobiological safety EN 62 471: | RG 0 | MacAdam binning: | SDCM 3 |
LoadingFilters
Effective luminous flux (lm)
System power (W)
Product name
Effective luminous flux (lm)
System power (W)
Color temperature (K)
Diameter (mm)
BALOP200L3V1/600DALI
Effective luminous flux (lm): 2000
System power (W): 20
Color temperature (K): 3000
Diameter (mm): 200
BALOP200L3V1/600DALI/90
Effective luminous flux (lm): 1750
System power (W): 20
Color temperature (K): 3000
Diameter (mm): 400
BALOP200L3V1/600DALI/9005/S189
Effective luminous flux (lm): 2000
System power (W): 20
Color temperature (K): 3000
Diameter (mm): 200
BALOP200L3V1/600ND
Effective luminous flux (lm): 2000
System power (W): 20
Color temperature (K): 3000
Diameter (mm): 200
BALOP200L4V1/600DALI
Effective luminous flux (lm): 2000
System power (W): 20
Color temperature (K): 4000
Diameter (mm): 200
BALOP200L4V1/600DALIT
Effective luminous flux (lm): 2000
System power (W): 20
Color temperature (K): 4000
Diameter (mm): 200
BALOP200L4V1/600ND
Effective luminous flux (lm): 2000
System power (W): 20
Color temperature (K): 4000
Diameter (mm): 200
BALOP200L4V1/600ND/EU
Effective luminous flux (lm): 2000
System power (W): 20
Color temperature (K): 4000
Diameter (mm): 200
BALOP400L/E27
System power (W): 40
Diameter (mm): 400
BALOP400L3V1/1050DALI
Effective luminous flux (lm): 4100
System power (W): 40
Color temperature (K): 3000
Diameter (mm): 400
BALOP400L3V1/1050DALI/90
Effective luminous flux (lm): 3500
System power (W): 40
Color temperature (K): 3000
Diameter (mm): 400
BALOP400L3V1/1050DALI/COR
Effective luminous flux (lm): 4100
System power (W): 40
Color temperature (K): 3000
Diameter (mm): 400
BALOP400L3V1/1050ND
Effective luminous flux (lm): 4100
System power (W): 40
Color temperature (K): 3000
Diameter (mm): 400
BALOP400L3V1/1050ND/B
Effective luminous flux (lm): 4100
System power (W): 40
Color temperature (K): 3000
Diameter (mm): 400
BALOP400L3V1/500ND
Effective luminous flux (lm): 2200
System power (W): 20
Color temperature (K): 3000
Diameter (mm): 400
BALOP400L3V1/700ND
Effective luminous flux (lm): 2900
System power (W): 27
Color temperature (K): 3000
Diameter (mm): 400
BALOP400L4V1/1050DALI
Effective luminous flux (lm): 4100
System power (W): 40
Color temperature (K): 4000
Diameter (mm): 400
BALOP400L4V1/1050ND
Effective luminous flux (lm): 4100
System power (W): 40
Color temperature (K): 4000
Diameter (mm): 400
BALOP400L4V1/500ND
Effective luminous flux (lm): 2200
System power (W): 20
Color temperature (K): 4000
Diameter (mm): 400
BALOP400L4V1/700ND
Effective luminous flux (lm): 2900
System power (W): 27
Color temperature (K): 4000
Diameter (mm): 400
BALOP400LMIXWV1/900
System power (W): 32
Color temperature (K): 2700...6500
Diameter (mm): 400
BALOP400LMIXWV1/900BTC
System power (W): 32
Color temperature (K): 2700...6500
Diameter (mm): 400
BALOP400LMIXYV2/750BT
System power (W): 37
Color temperature (K): 1800...6500
Diameter (mm): 400
