Product series New
MODUS BC

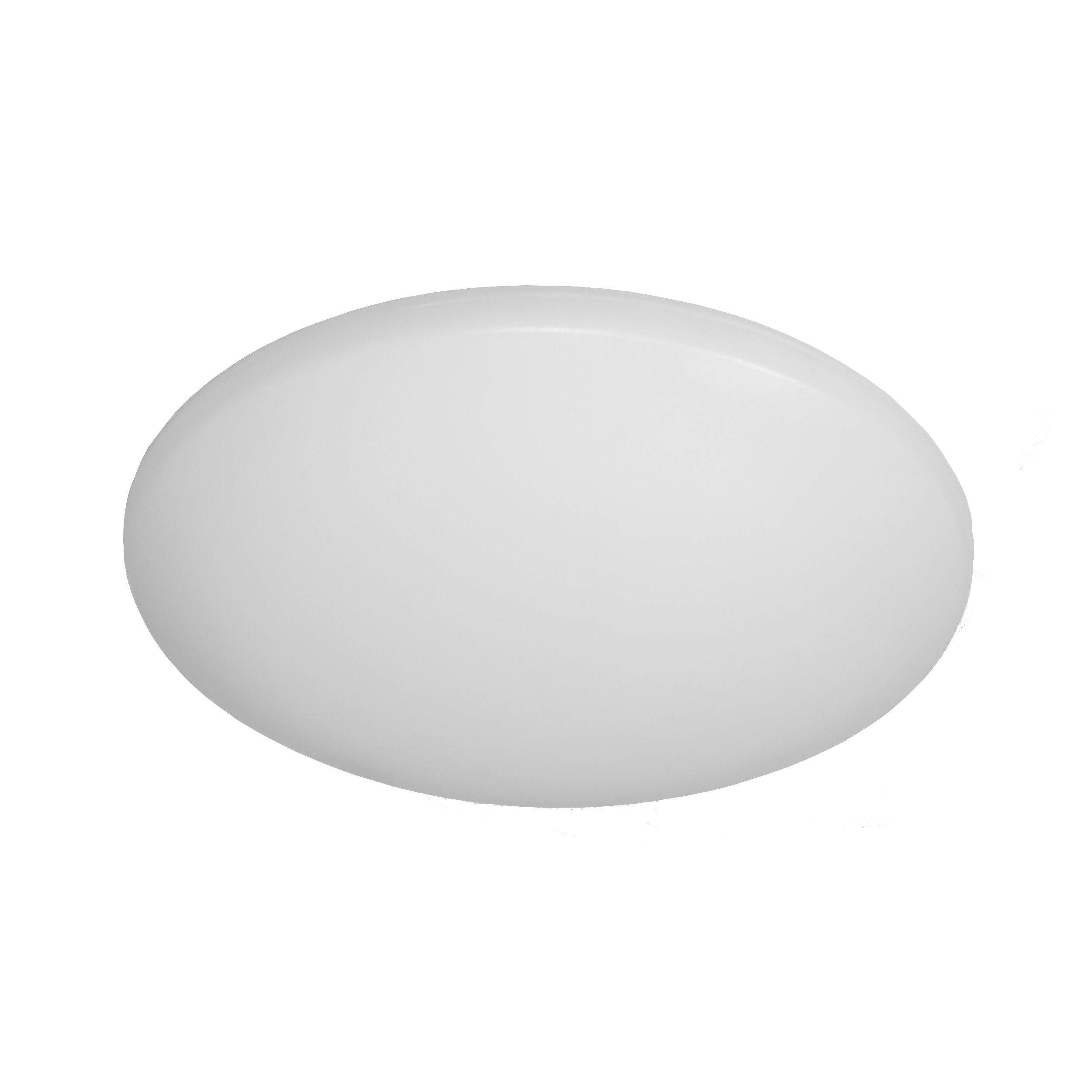

Surface round LED fitting - IP65
Standard price from:
On request

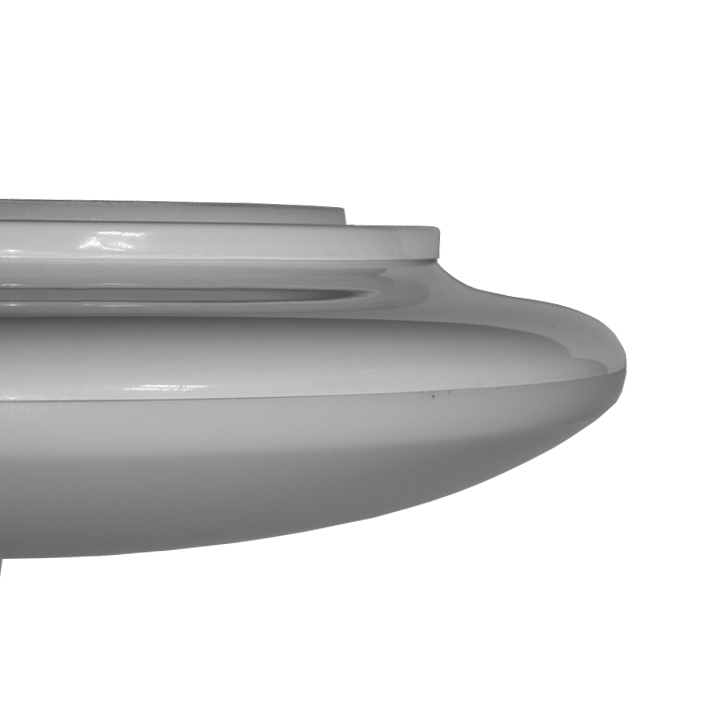

All-plastic surface round LED fitting in IP65. Luminaire body made of polycarbonate with cover made of PMMA material.
The luminaire is manufactured in three outputs, the body size is the same for all outputs.
Electrical quipment: non-dimmable version as standard, it is also possible to make a version for dimming the DALI signal, bud also as a variant for dimming using bluetooth wireless communication. Possibility to make luminaire with a sensor.
| Body material: | PC body | Mounting method: | Ceiling surface mounting, Wall surface mounted | Protection class: | I | With movement sensor: | No, Yes | Color rendering index CRI: | 80-89 | Light source type: | LED | Light outlet: | Direct | Light sharing: | Symmetric | Nominal voltage (V): | 220...240 | Degree of protection (IP): | IP65 |
| Color temperature (K): | 4000, 6500, 3000, 2700, 5700 | Rated lifetime L70/B50 (h): | 30000 | Dimming DALI: | Yes | Optical system: | KO opal cover | Made in Czech republic: | Yes | Replaceability: | Removeable light source , without ballast Removeable light source , without ballast | Photobiological safety EN 62 471: | RG 0 | MacAdam binning: | SDCM 3 |
LoadingFilters
Effective luminous flux (lm)
Product name
Effective luminous flux (lm)
Color temperature (K)
Degree of protection (IP)
BC1000KO3/ND/65
Effective luminous flux (lm): 1000
Color temperature (K): 3000
Degree of protection (IP): IP65
BC1000KO4/ND/65
Effective luminous flux (lm): 1000
Color temperature (K): 4000
Degree of protection (IP): IP65
BC1500KO3/DALI/65
Effective luminous flux (lm): 1500
Color temperature (K): 3000
Degree of protection (IP): IP65
BC1500KO3/ND/65
Effective luminous flux (lm): 1500
Color temperature (K): 3000
Degree of protection (IP): IP65
BC1500KO3DALI
BC1500KO3ND
BC1500KO4/ND/65
Effective luminous flux (lm): 1500
Color temperature (K): 4000
Degree of protection (IP): IP65
BC2000KO3/ND/65
Effective luminous flux (lm): 2200
Color temperature (K): 3000
Degree of protection (IP): IP65
BC2000KO3ND
BC2000KO4/ND/65
Effective luminous flux (lm): 2200
Color temperature (K): 4000
Degree of protection (IP): IP65
BC2000KO5/ND/65
Effective luminous flux (lm): 2200
Color temperature (K): 5700
Degree of protection (IP): IP65
BC3000KO3/ND/65
Effective luminous flux (lm): 3000
Color temperature (K): 3000
Degree of protection (IP): IP65
BC3000KO4/ND/65
Effective luminous flux (lm): 3000
Color temperature (K): 4000
Degree of protection (IP): IP65
