MODUS CR

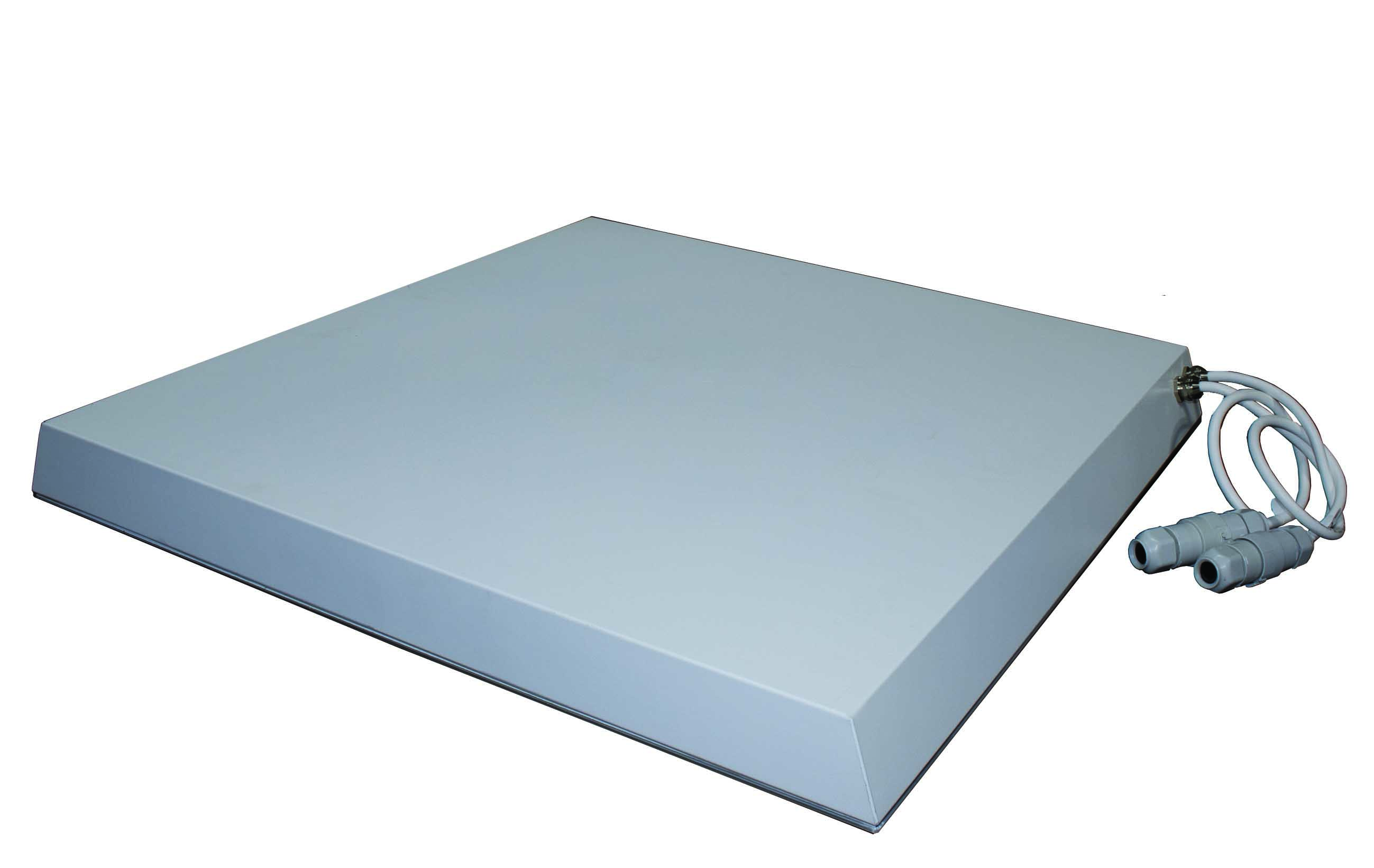

Recessed luminiare for clear rooms

třída ochrany I.PNG
220-240 v.png
11 L80_80000_h.jpg
en 62 471.png

Standard price from:

On request
Distribution network
Contacts

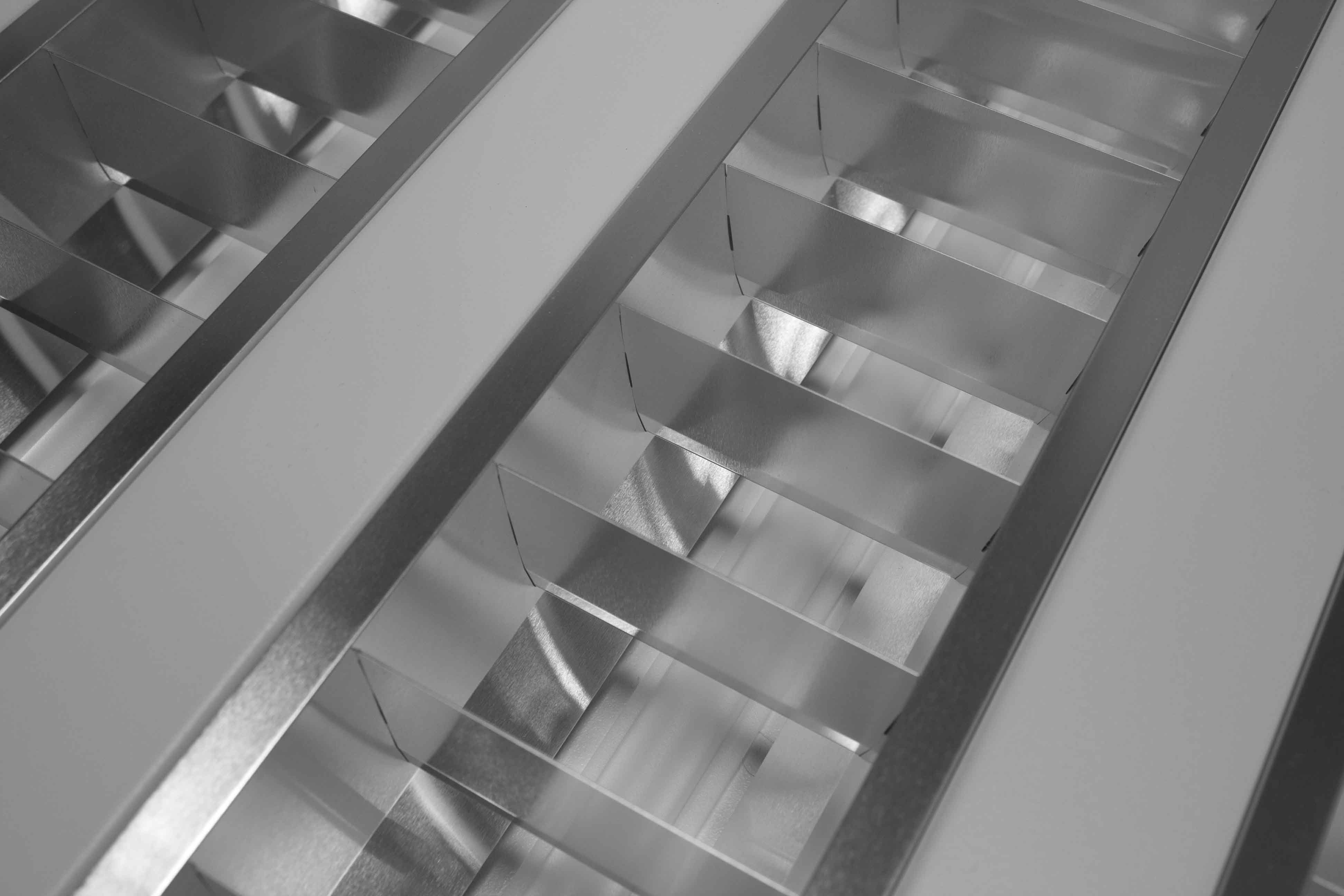

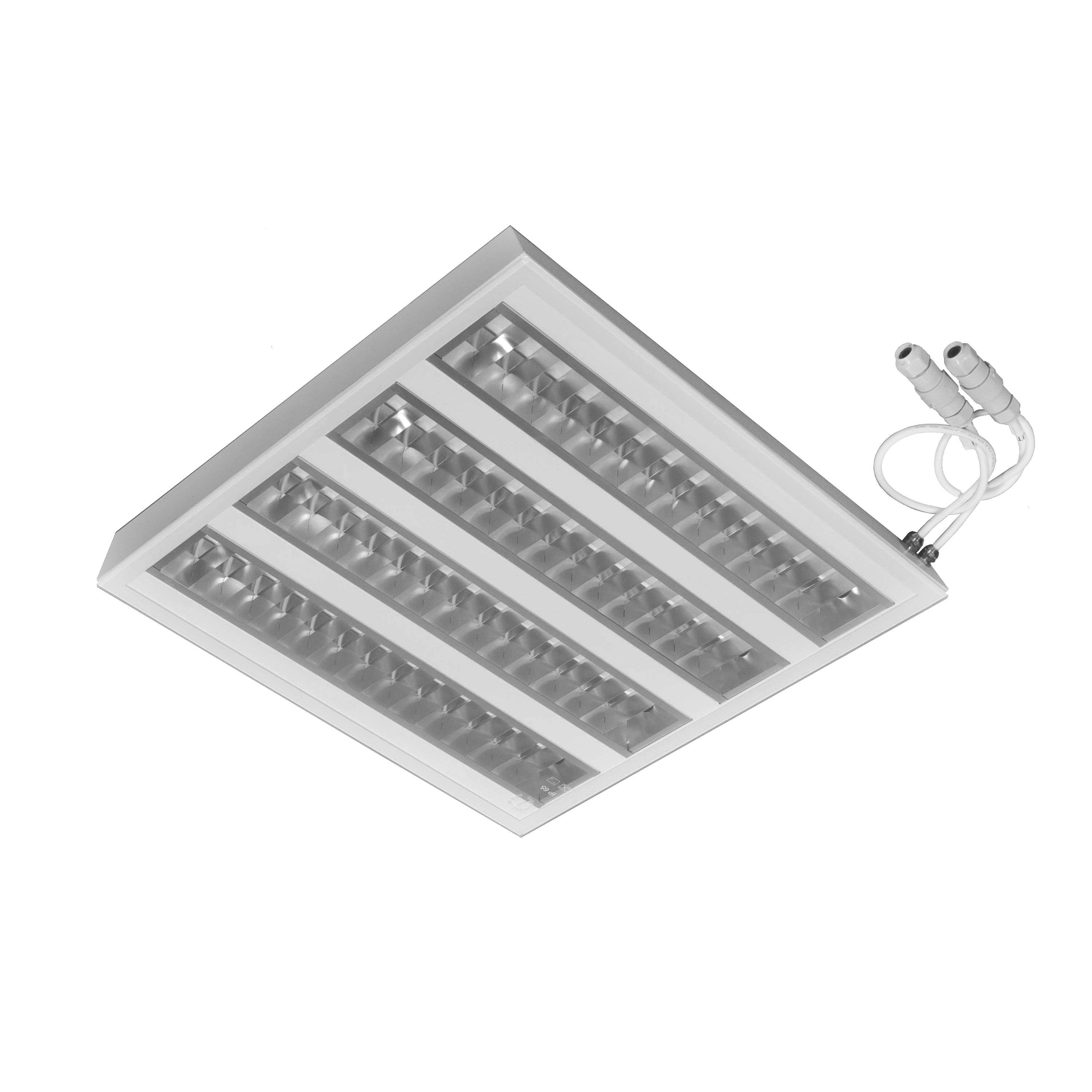

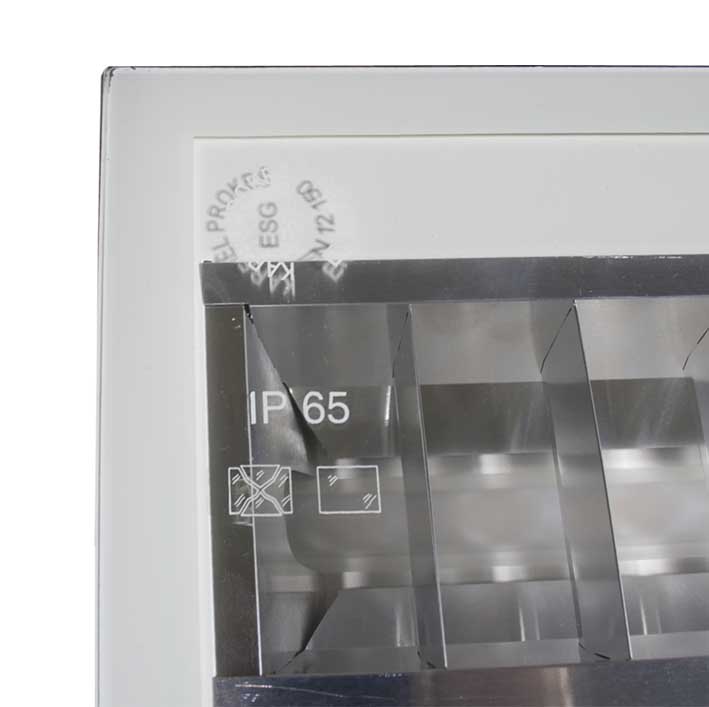

Recessed luminaire for clean rooms - optical system is combination of: glass (for cleaning by chemical cleaners) and double parabolic louvre (UGR19)

Luminaires are standartly made with complete anti-bacterial treatment. Glass is protected by nanolayer with Ag. The body of luminaire is painted by white powder with Ag. On request the version with non anti-bacterial treatment is possible.

Luminiare is made according the norm ISO 14644 for clear rooms. - certification on run.

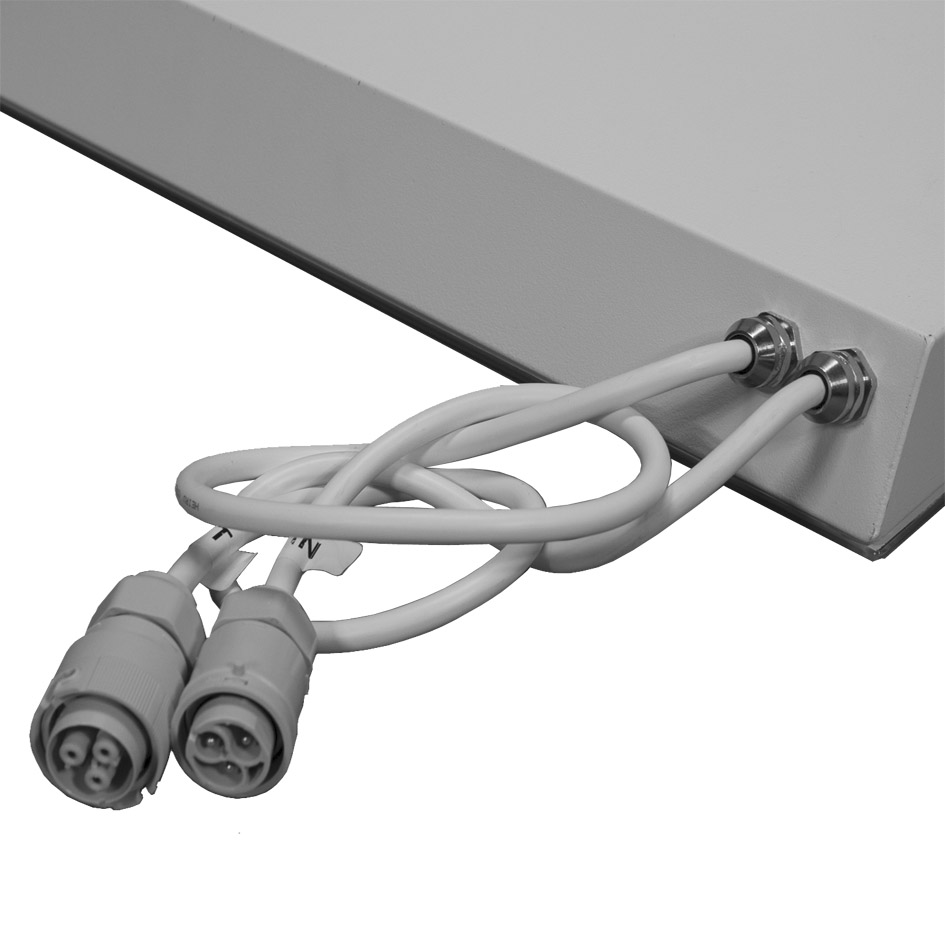

Electrical supply is mady with 2 IP65 connectors (no need to open the luminaire and allows throughtwirring installation).

Sizes: 60x60, 120x30 and 120x60cm.



Size version:A
600x600 mm or 625x625 mm
C
1200x300 mm
D
1200x600 mm
Body material:White painted steel
Mounting method:Built-inProtection class:I
With movement sensor:NoType of control gear:LED operating device current-controlled
Color rendering index CRI:80-89, 90-100Light source type:LED
Color temperature controllable (K):YesLight outlet:Direct
Light sharing:SymmetricNominal voltage (V):220...240
Degree of protection (IP):IP65Fit for monitor workplace:Yes
Color temperature (K):4000, 6500, 3000, 2700, 5700, 2700...6500Rated lifetime L80/B50 (h):80000
Dimming DALI:YesOptical system:KVM
louvre matt DP
Made in Czech republic:YesReplaceability:Removeable light source, removeable ballast
Removeable light source, removeable ballast
Photobiological safety EN 62 471:RG 0MacAdam binning:SDCM 3
Show more...
LoadingLoading

Filters

Effective luminous flux (lm)

4300
11000

System power (W)

100
48
Product name
CR10000D4KVM4C600ND
Effective luminous flux (lm): 11000
System power (W): 100
Color temperature (K): 4000
Length (mm): 1245
Raster (mm): 600
CR5000A4KVM4C600DALI
Effective luminous flux (lm): 5000
System power (W): 43
Color temperature (K): 4000
Length (mm): 596
Raster (mm): 600
CR5000A4KVM4C600DALI/90
Effective luminous flux (lm): 4300
System power (W): 43
Color temperature (K): 4000
Length (mm): 596
Raster (mm): 600
CR5000A4KVM4C600ND
Effective luminous flux (lm): 5000
System power (W): 43
Color temperature (K): 4000
Length (mm): 596
Raster (mm): 600
CR5000A4KVM4C600ND/90
Effective luminous flux (lm): 4300
System power (W): 43
Color temperature (K): 4000
Length (mm): 596
Raster (mm): 600
CR5000A4KVM4C625DALI
Effective luminous flux (lm): 4300
System power (W): 43
Color temperature (K): 4000
Length (mm): 622
Raster (mm): 625
CR5000A4KVM4C625DALI/90
Effective luminous flux (lm): 4300
System power (W): 43
Color temperature (K): 4000
Length (mm): 622
Raster (mm): 625
CR5000A4KVM4C625ND
Effective luminous flux (lm): 5000
System power (W): 43
Color temperature (K): 4000
Length (mm): 622
Raster (mm): 600
CR5000A4KVM4D600ND
Effective luminous flux (lm): 5000
System power (W): 43
Color temperature (K): 4000
Length (mm): 596
Raster (mm): 600
CR5000A5KVM4C600ND
Effective luminous flux (lm): 5000
System power (W): 43
Color temperature (K): 4000
Length (mm): 596
Raster (mm): 600
CR5000C4KVM4C600ND
Effective luminous flux (lm): 5000
System power (W): 48
Color temperature (K): 4000
Length (mm): 1245
Raster (mm): 600
