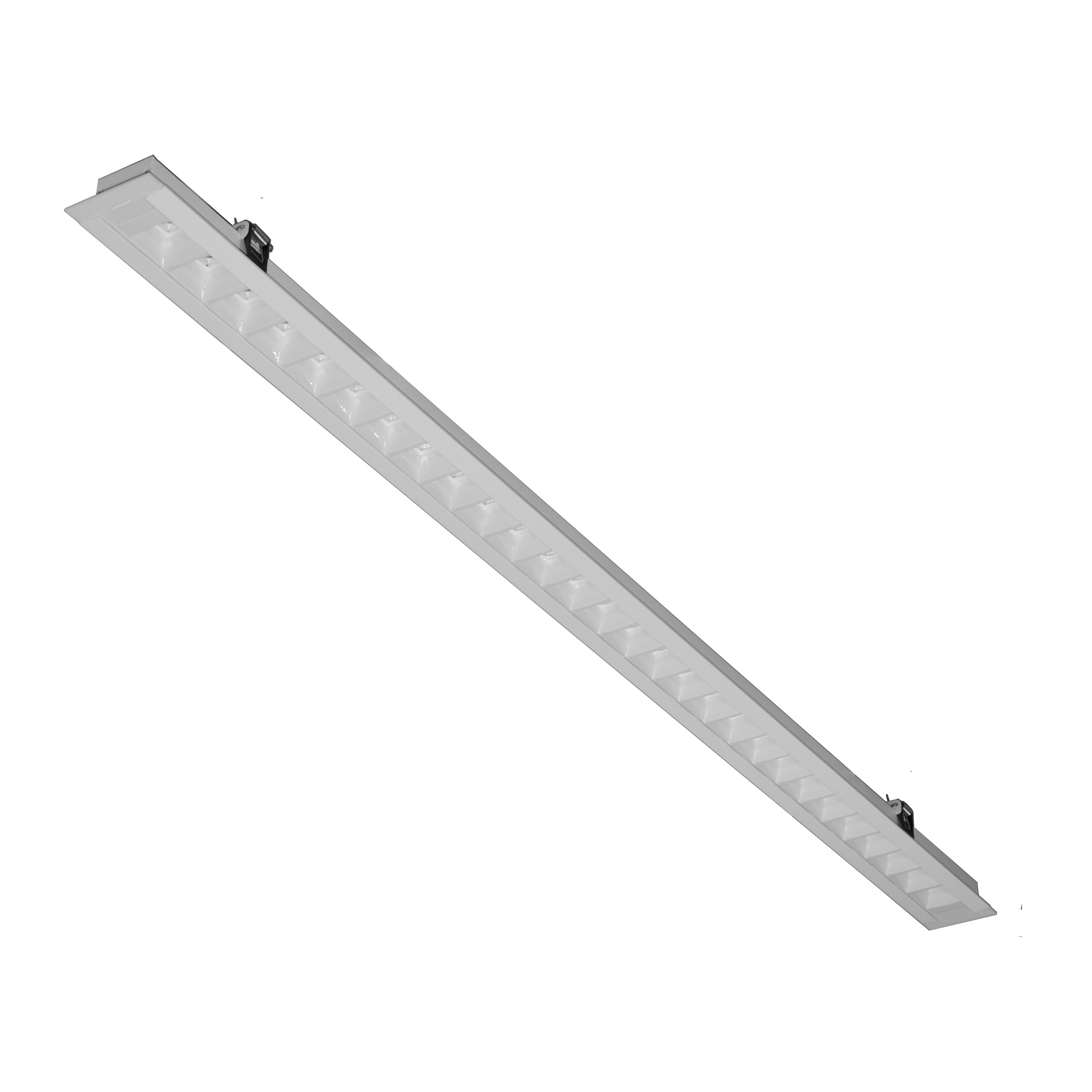

MODUS DONL
Subtile recessed luminaire with alu body and darklight
Standard price from:
On request
Luminaire is ideal for illumination of representative places. Thanks to aluminium profile the body shall be narrow.
Optical part is made from two parts:
- clear lentil optic, for effectivity and lighting distribution in 800
- dark light optic, for low glare (UGR), this louvre can be made in white or black finishing
Luminaire is designed for recessed installation into gypsum ceilings.
| Mounting method: | Built-in | Protection class: | I | Type of control gear: | LED operating device current-controlled | Color rendering index CRI: | 80-89 | Light source type: | LED | Anti-glare limiting UGR: | 16 | Color temperature controllable (K): | Yes | Light outlet: | Direct | Light sharing: | Symmetric | Nominal voltage (V): | 220...240 | Degree of protection (IP): | IP20 |
| Fit for monitor workplace: | Yes | Color temperature (K): | 4000, 6500, 3000, 2700, 5700 | Rated lifetime L80/B50 (h): | 80000 | Dimming DALI: | Yes | Optical system: | PC polycarbonate cover B50 White reflector with lenses 50° C50 Black reflector with lenses 50° C80 Black reflector with lenses 80° B80 White reflector with lenses 80° | Made in Czech republic: | Yes | Replaceability: | Replaceable light source by professional, replaceable ballast Replaceable light source by professional, replaceable ballast | Photobiological safety EN 62 471: | RG 0 | MacAdam binning: | SDCM 3 |
LoadingFilters
Effective luminous flux (lm)
System power (W)
Product name
Effective luminous flux (lm)
System power (W)
Color temperature (K)
Optical system
Length (mm)
DONL1500S3CC80/ND
Effective luminous flux (lm): 1300
Color temperature (K): 3000
Optical system: C80
Length (mm): 596
DONL1500S4BB80/ND
Effective luminous flux (lm): 1400
Color temperature (K): 4000
Optical system: B80
Length (mm): 596
DONL2500M4BB50/ND
Effective luminous flux (lm): 2300
System power (W): 16
Color temperature (K): 4000
Optical system: B50
Length (mm): 1196
DONL2500M4BB80/ND
Effective luminous flux (lm): 2300
System power (W): 16
Color temperature (K): 4000
Optical system: B80
Length (mm): 1196
DONL3500M4BB80/M/DALI
Effective luminous flux (lm): 3400
System power (W): 24
Color temperature (K): 4000
Optical system: B80
Length (mm): 1196
DONL3500M4BB80/M/ND
Effective luminous flux (lm): 3400
System power (W): 24
Color temperature (K): 4000
Optical system: B80
Length (mm): 1196
DONL3500M4BB80/ND
Effective luminous flux (lm): 3400
System power (W): 24
Color temperature (K): 4000
Optical system: B80
Length (mm): 1196
DONL3500M4CC80/DALI
Effective luminous flux (lm): 3100
System power (W): 24
Color temperature (K): 4000
Optical system: C80
Length (mm): 1196
DONL4000M4BB80/DALI
Effective luminous flux (lm): 4000
System power (W): 28
Color temperature (K): 4000
Optical system: B80
Length (mm): 1196
DONL4000M4BB80/ND
Effective luminous flux (lm): 4000
System power (W): 28
Color temperature (K): 4000
Optical system: B80
Length (mm): 1196
DONL4000M4BC80/ND
Effective luminous flux (lm): 4000
System power (W): 28
Color temperature (K): 4000
Optical system: C80
Length (mm): 1196
