Product series MODUS EB

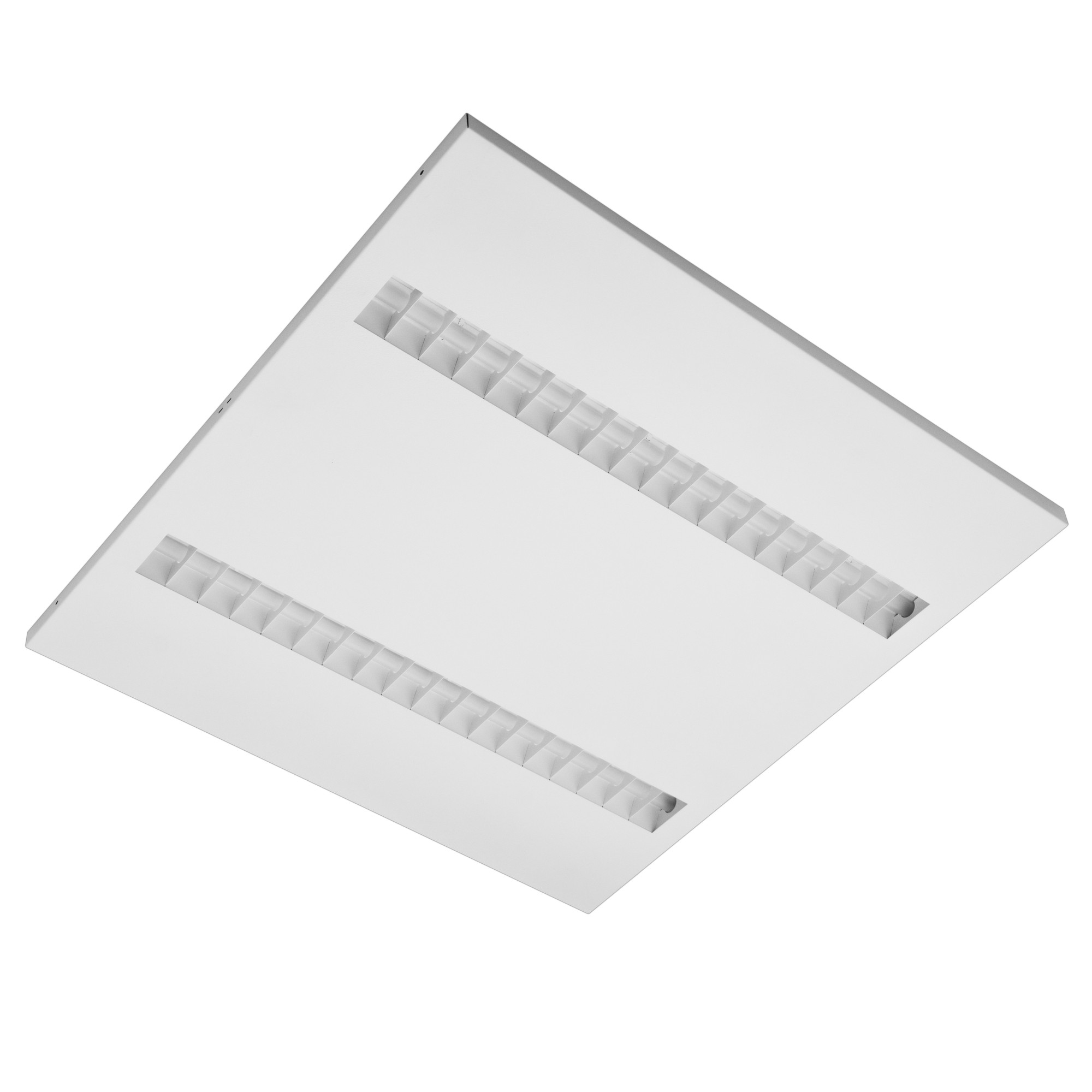

MODUS EB4000, recessed, square A, modul 600, 2x white louvre, LED 840, RAL9005
Recessed luminaire with white louvre
Code: EB4000A4BS2/2/600/ND/9005
EAN: 8596099051204
This product contains a light source with energy efficiency class D
Luminaire properties
| Product category: | Ceiling / wall luminaires | Effective luminous flux (lm): | 3800 | System power (W): | 26 | Luminaire efficacy (lm/W): | 146 |
| Rated lifetime L80/B50 (h): | 80000 | Degree of protection (IP): | IP20 | Color housing: | Black | Material housing: | Steel | Light source included: | Yes |
| Suitable for built-in mounting: | Yes | Made in Czech republic: | Yes |
Light source
| Light source type: | LED | Color temperature (K): | 4000 | Color rendering index CRI: | 80-89 | Replaceability: | Replaceable light source by professional, replaceable ballast |
| Light source type: | 1990910184005 | Energy efficiency class: | D |
Optical system
| Optical system: | C | Light outlet: | Direct | Light sharing: | Symmetric | Material cover: | Plastic, opal |
Dimensions
| Length (mm): | 596 | Width (mm): | 596 | Height/depth (mm): | 30 | Built-in height/depth (mm): | 30 |
| Raster (mm): | 600 | Weight (kg): | 2,2 |
Electrical values
| Protection class: | I | Connection type: | Pinching contact | Voltage type: | AC | Type of control gear: | LED operating device current-controlled |
| Nominal voltage (V): | 220...240 | Control gear included: | Yes | No dim function: | Yes |
LDT files >
LoadingFilters
Effective luminous flux (lm)
System power (W)
Product name
Effective luminous flux (lm)
System power (W)
Length (mm)
Raster (mm)
EB3000A3BS2/2/600/ND
Effective luminous flux (lm): 2800
System power (W): 19
Length (mm): 596
Raster (mm): 600
EB3000A4BS2/2/600/DALI
Effective luminous flux (lm): 2800
System power (W): 19
Length (mm): 596
Raster (mm): 600
EB3000A4BS2/2/600/ND
Effective luminous flux (lm): 2800
System power (W): 19
Length (mm): 596
Raster (mm): 600
EB3000A4BS2/2/625/ND
Effective luminous flux (lm): 2800
System power (W): 19
Length (mm): 622
Raster (mm): 625
EB4000A3BS2/2/600/DALI
Effective luminous flux (lm): 3800
System power (W): 26
Length (mm): 596
Raster (mm): 600
EB4000A3BS2/2/600/ND
Effective luminous flux (lm): 3800
System power (W): 26
Length (mm): 596
Raster (mm): 600
EB4000A3BS2/2/600/NDOK/SDK
Effective luminous flux (lm): 3800
System power (W): 28
Length (mm): 596
Raster (mm): 600
EB4000A4BS2/2/600/DALI
Effective luminous flux (lm): 3800
System power (W): 26
Length (mm): 596
Raster (mm): 600
EB4000A4BS2/2/600/ND
Effective luminous flux (lm): 3800
System power (W): 26
Length (mm): 596
Raster (mm): 600
EB4000A4BS2/2/600/ND/9005
Effective luminous flux (lm): 3800
System power (W): 26
Length (mm): 596
Raster (mm): 600
EB4000A4BS2/2/600/ND/PIR
Effective luminous flux (lm): 3800
System power (W): 26
Length (mm): 596
Raster (mm): 600
EB4000A4BS2/2/625/ND
Effective luminous flux (lm): 3800
System power (W): 26
Length (mm): 622
Raster (mm): 625
EB6000A3BS2/2/600/DALI
Effective luminous flux (lm): 5500
System power (W): 42
Length (mm): 596
Raster (mm): 600
EB6000A4BS2/2/600/DALI
Effective luminous flux (lm): 5500
System power (W): 42
Length (mm): 596
Raster (mm): 600
EB6000A4BS2/2/600/ND
Effective luminous flux (lm): 5500
System power (W): 42
Length (mm): 596
Raster (mm): 600
EB6000A4BS2/2/625/ND
Effective luminous flux (lm): 5500
System power (W): 42
Length (mm): 622
Raster (mm): 625
EB6000A4BS2/3/600/DALI
Effective luminous flux (lm): 5800
System power (W): 42
Length (mm): 596
Raster (mm): 600
EB6000A4BS2/3/600/ND
Effective luminous flux (lm): 5800
System power (W): 42
Length (mm): 596
Raster (mm): 600
EB6000A4BS2/3/625/DALI
Effective luminous flux (lm): 5800
System power (W): 42
Length (mm): 622
Raster (mm): 625
EB6000A4BS2/3/625/ND
Effective luminous flux (lm): 5800
System power (W): 42
Length (mm): 622
Raster (mm): 625
