MODUS ED

Recessed luminaires with individual optic

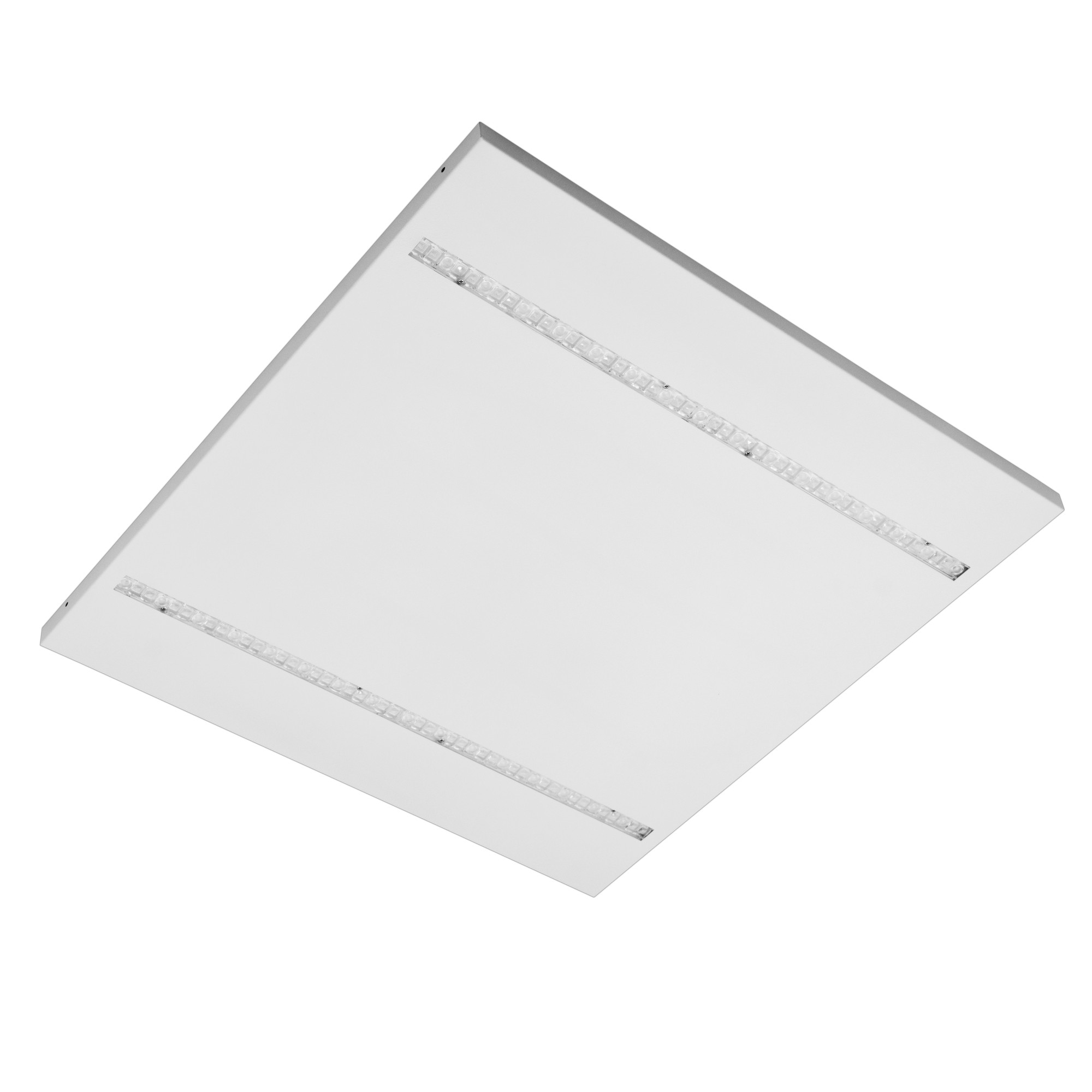

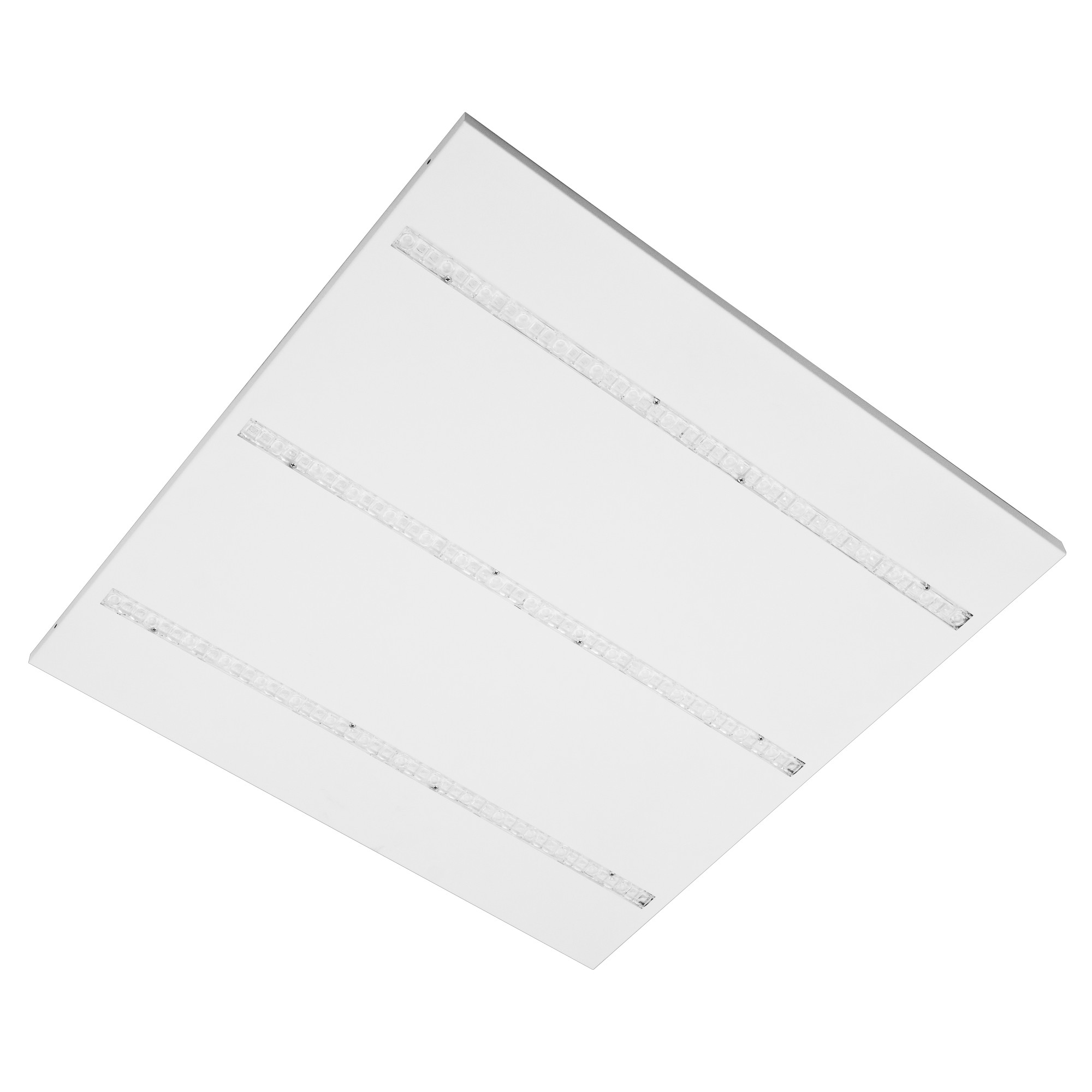

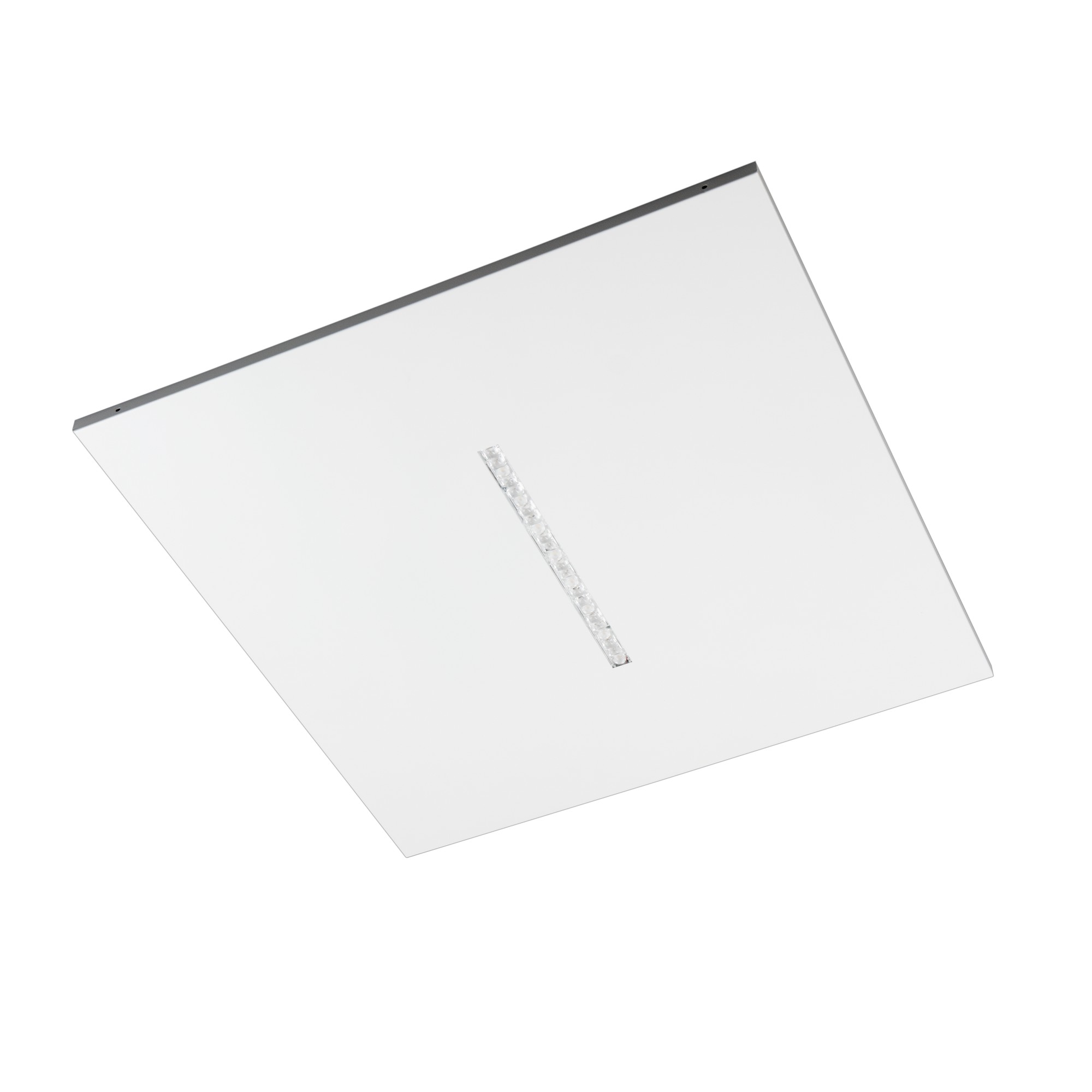

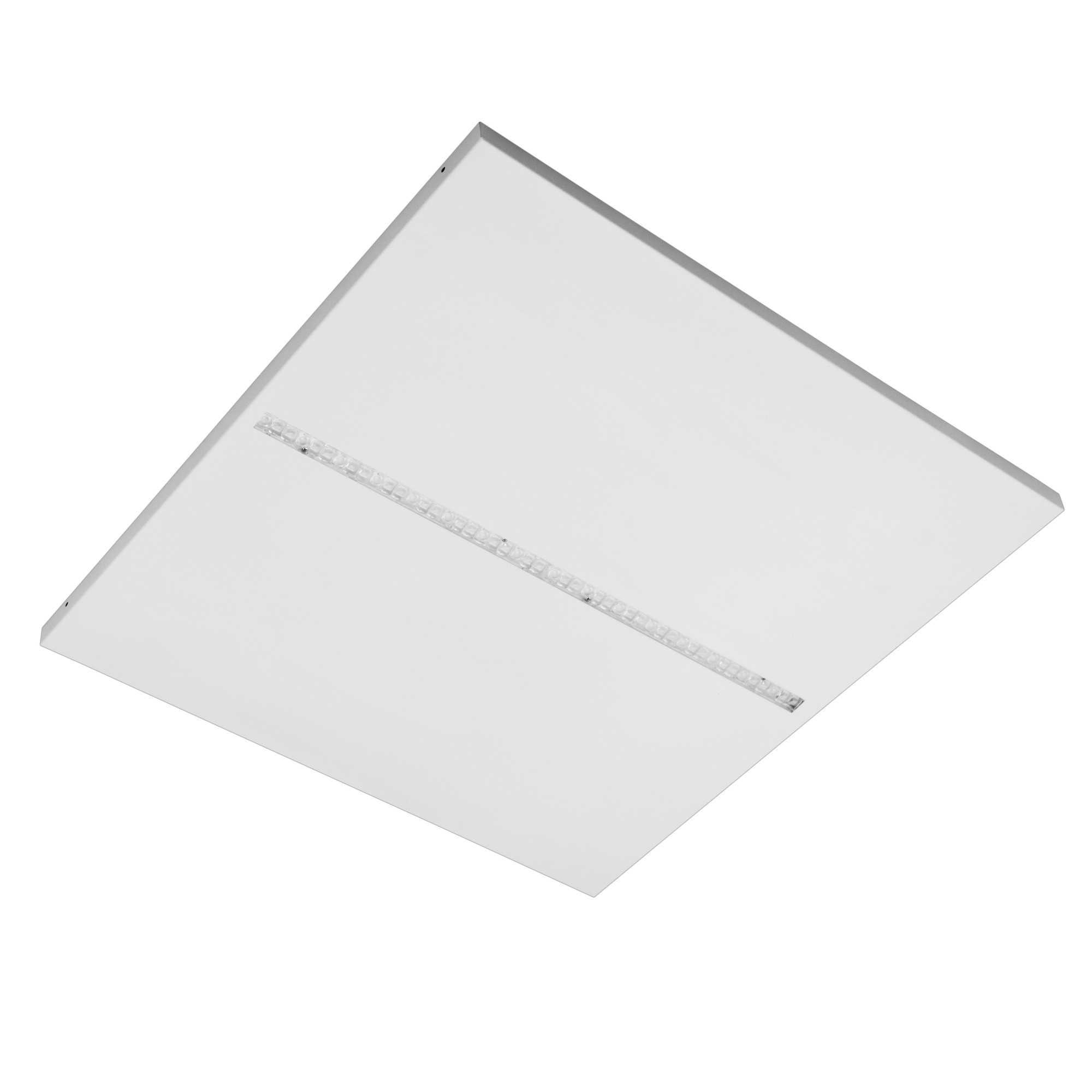

MODUS ED
220-240 v.png
11 L80_80000_h.jpg
en 62 471.png

Standard price from:

On request
Distribution network
Contacts

Brand new concept of recessed luminaires - alternative to LED panels.

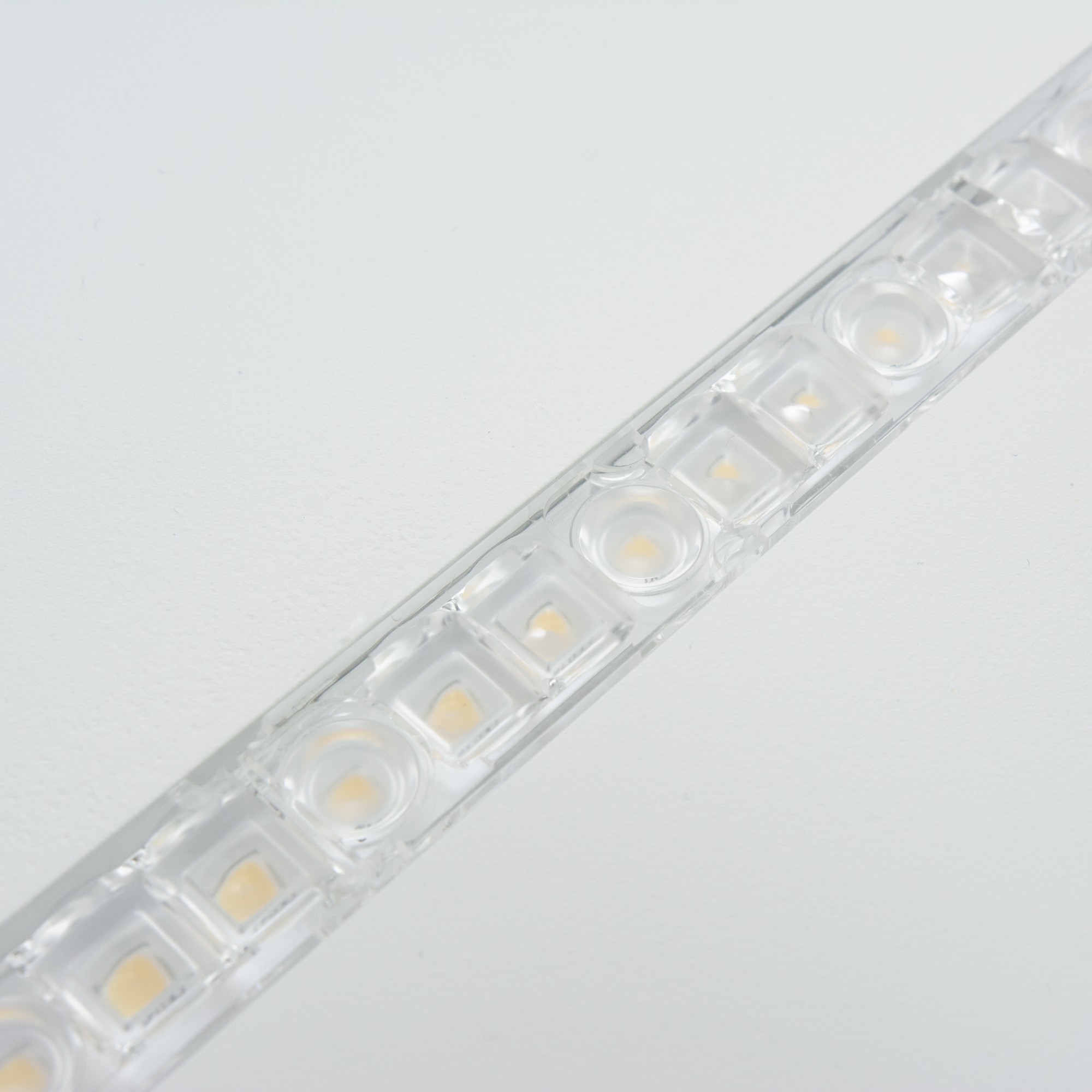

Main part is PMMA plastic optical system, which take care about perfect lighting distribution: low UGR and high effectivity (

Show more...
Size version:A
600x600 mm or 625x625 mm
Body material:White painted steel
Mounting method:Built-in, Surface mountingProtection class:II
With movement sensor:YesColor rendering index CRI:80-89, 90-100
Light source type:LEDColor temperature controllable (K):Yes
Nominal voltage (V):220...240Degree of protection (IP):IP20
Fit for monitor workplace:Yes
Color temperature (K):4000, 6500, 3000, 2700, 5700, 2700...6500
Rated lifetime L80/B50 (h):80000Dimming 1-10 V:Yes
Dimming DALI:YesOptical system:Z60

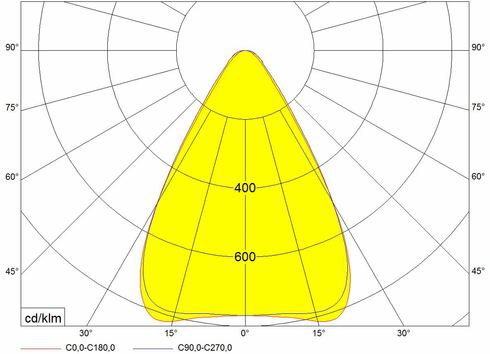

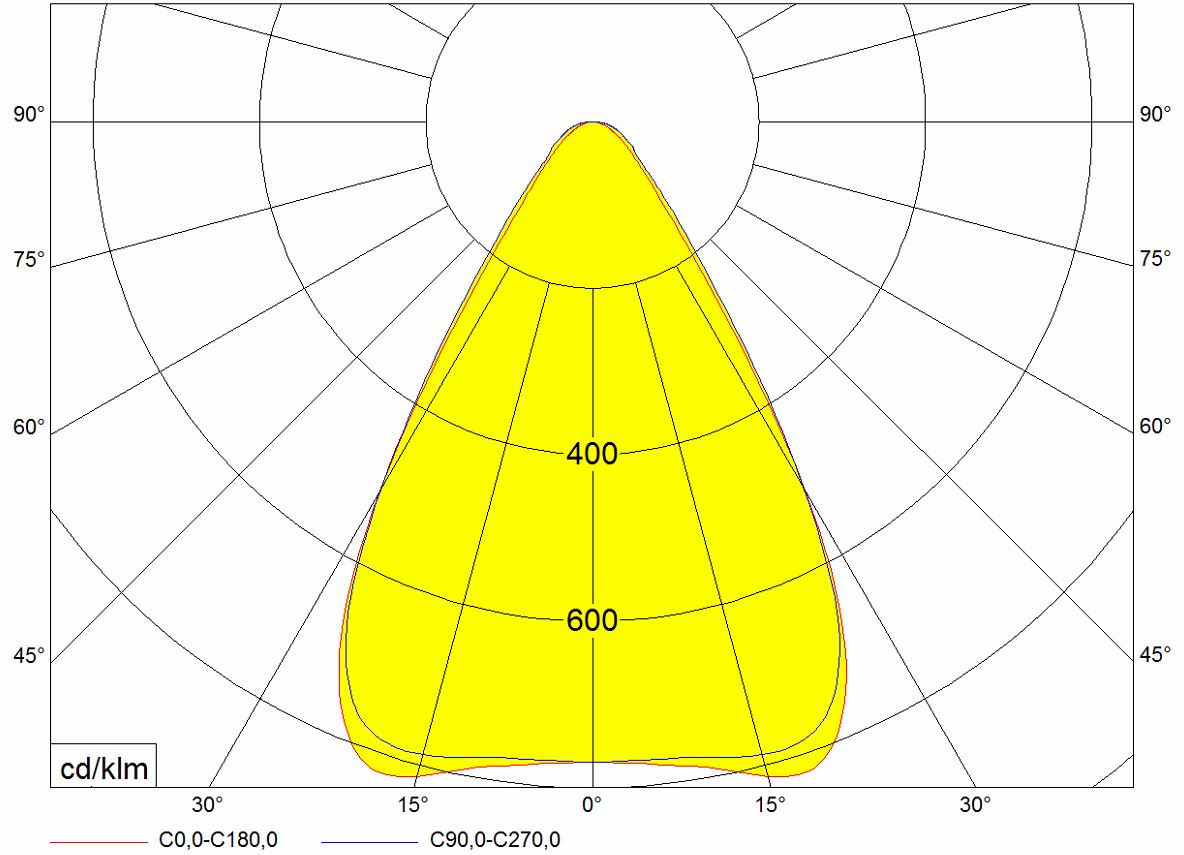

Narrow beam optic 60°
Z90

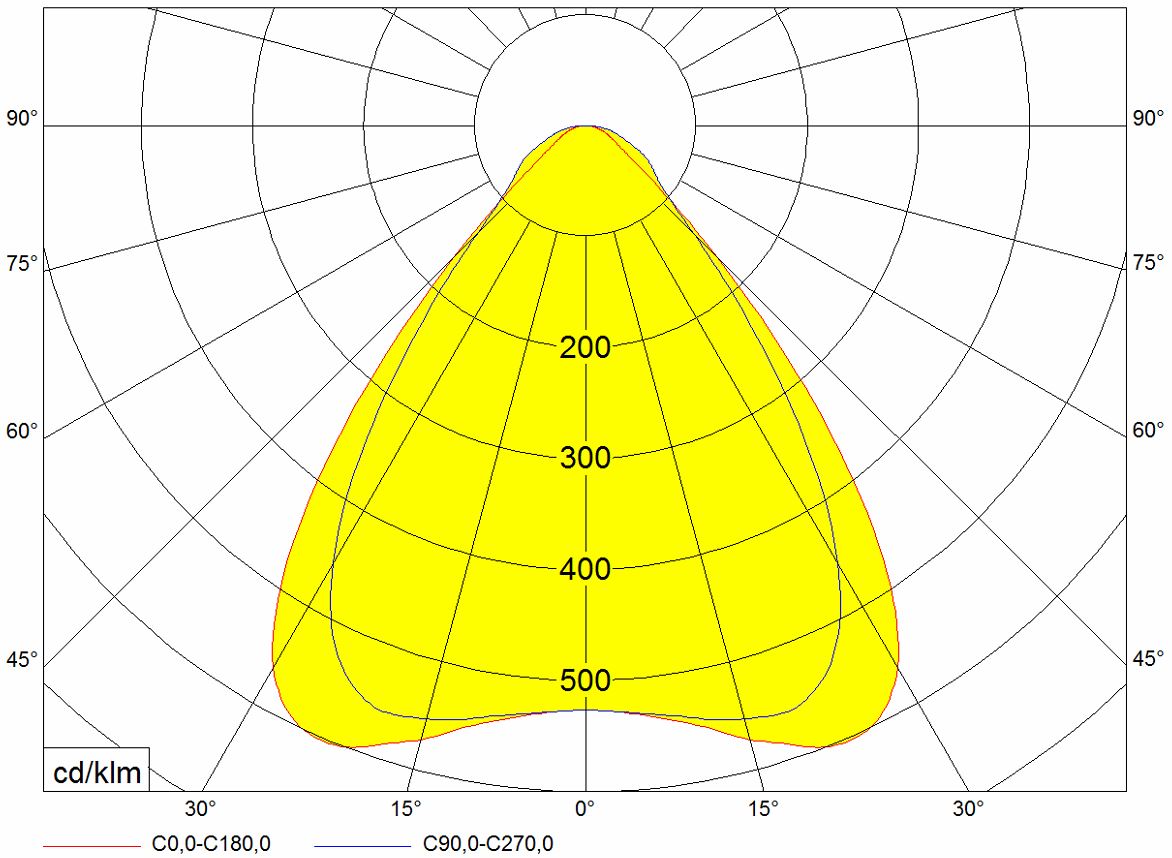

Wide beam optic 90°
Z25

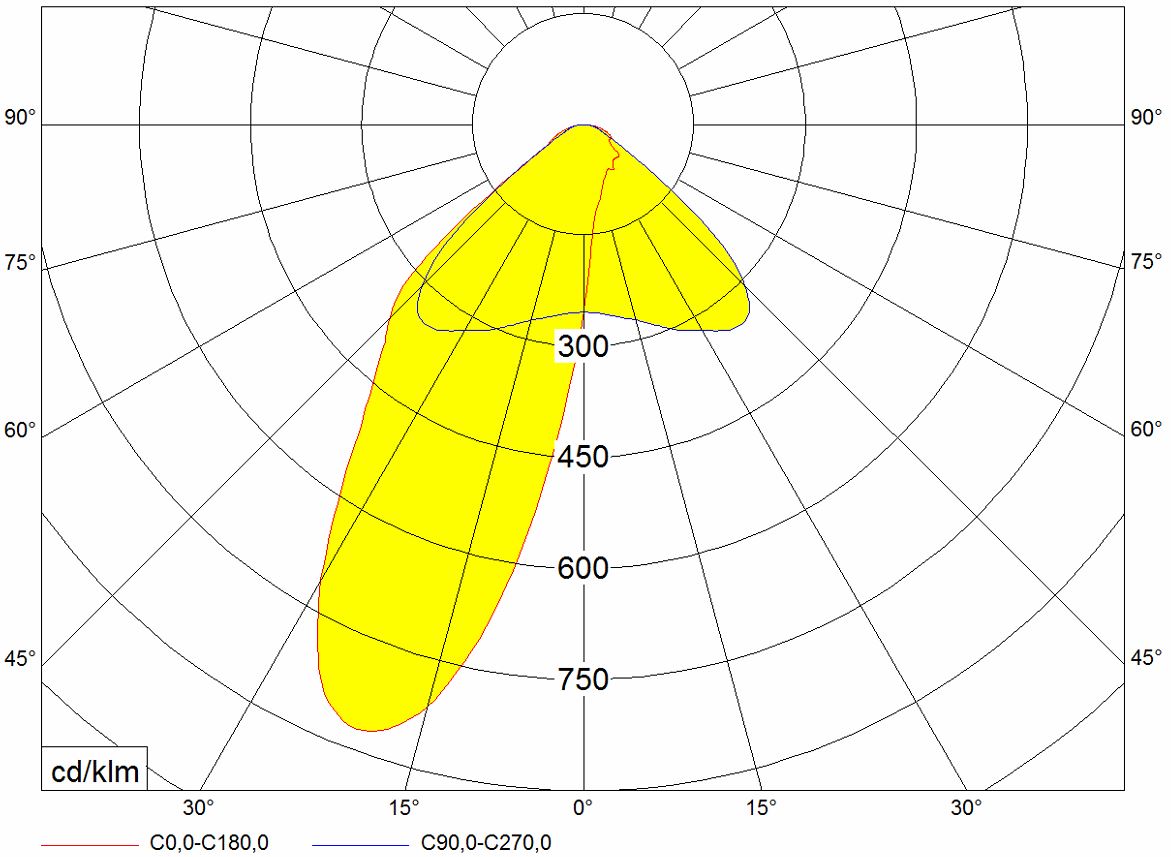

Asymmetric optic 25°

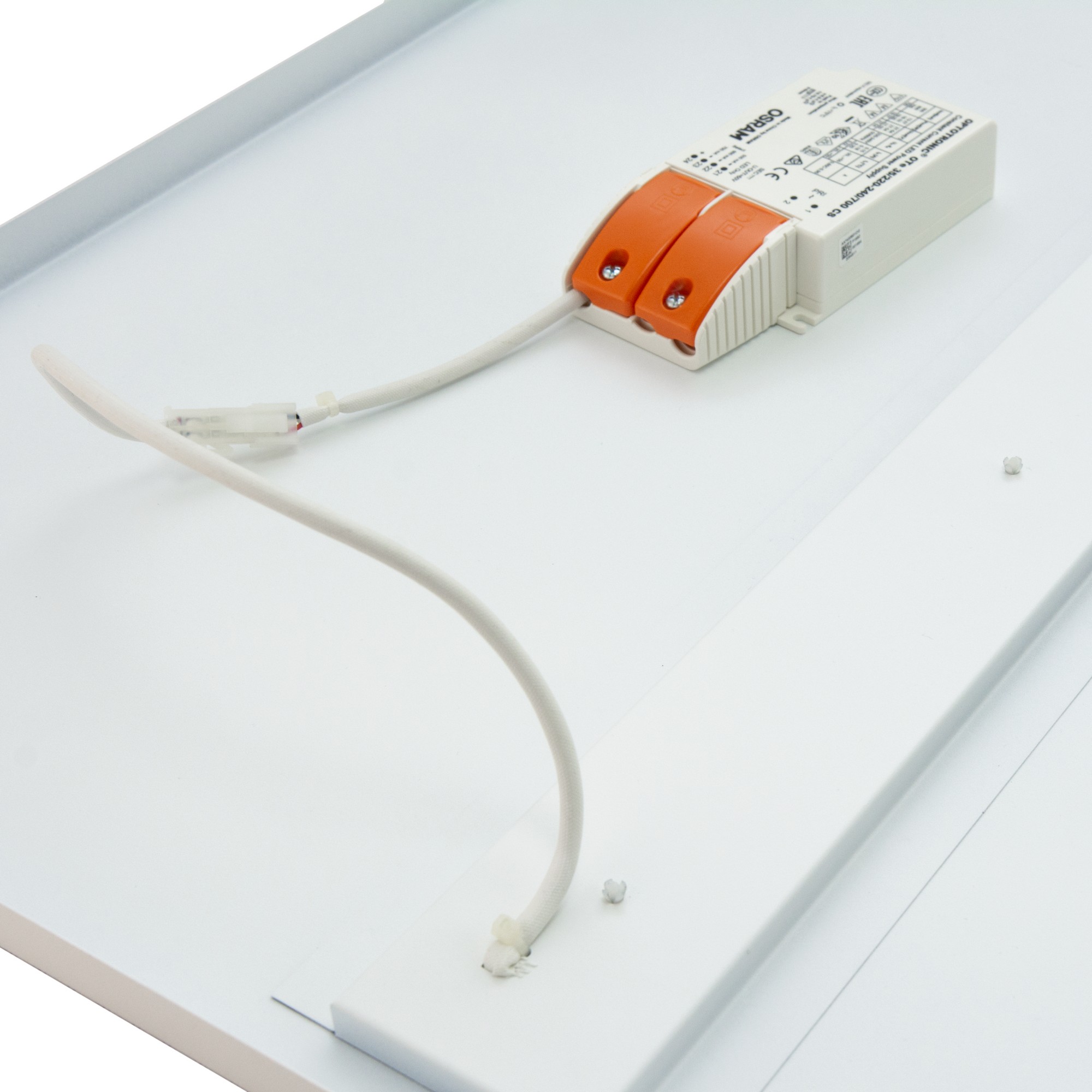

Made in Czech republic:YesReplaceability:Replaceable light source by professional, replaceable ballast
Replaceable light source by professional, replaceable ballast
Photobiological safety EN 62 471:RG 0MacAdam binning:SDCM 3
Show more...
LoadingLoading

Filters

Effective luminous flux (lm)

1000
5800

System power (W)

7
38
Product name
ED1000A3Z60/05/625/ND
Effective luminous flux (lm): 1000
System power (W): 7
Color temperature (K): 3000
Optical system: Z60
Length (mm): 622
Raster (mm): 625
ED1000A4Z60/05/600/DALI
Effective luminous flux (lm): 1000
System power (W): 7
Color temperature (K): 4000
Optical system: Z60
Length (mm): 596
Raster (mm): 600
ED1000A4Z60/05/600/ND
Effective luminous flux (lm): 1000
System power (W): 7
Color temperature (K): 4000
Optical system: Z60
Length (mm): 596
Raster (mm): 600
ED1000A4Z60/05/625/ND
Effective luminous flux (lm): 1000
System power (W): 7
Color temperature (K): 4000
Optical system: Z60
Length (mm): 622
Raster (mm): 625
ED1000A4Z90/05/600/ND
Effective luminous flux (lm): 1000
System power (W): 7
Color temperature (K): 4000
Optical system: Z90
Length (mm): 596
Raster (mm): 600
ED2000A3Z60/1/600/ND
Effective luminous flux (lm): 2000
System power (W): 14
Color temperature (K): 3000
Optical system: Z60
Length (mm): 596
Raster (mm): 600
ED2000A3Z60/1/625/ND
Effective luminous flux (lm): 2000
System power (W): 14
Color temperature (K): 3000
Optical system: Z60
Length (mm): 622
Raster (mm): 625
ED2000A3Z90/1/600/DALI
Effective luminous flux (lm): 2000
System power (W): 14
Color temperature (K): 3000
Optical system: Z90
Length (mm): 596
Raster (mm): 600
ED2000A4Z25AS/1/600/ND
Effective luminous flux (lm): 2000
System power (W): 14
Color temperature (K): 4000
Optical system: Z25
Length (mm): 596
Raster (mm): 600
ED2000A4Z60/1/600/ND
Effective luminous flux (lm): 2000
System power (W): 14
Color temperature (K): 4000
Optical system: Z60
Length (mm): 596
Raster (mm): 600
ED2000A4Z60/1/600/ND/90
Effective luminous flux (lm): 1700
System power (W): 14
Color temperature (K): 4000
Optical system: Z60
Length (mm): 596
Raster (mm): 600
ED2000A4Z60/1/625/ND
Effective luminous flux (lm): 2000
System power (W): 14
Color temperature (K): 4000
Optical system: Z60
Length (mm): 622
Raster (mm): 625
ED2000A4Z90/1/600/ND
Effective luminous flux (lm): 2000
System power (W): 14
Color temperature (K): 4000
Optical system: Z90
Length (mm): 596
Raster (mm): 600
ED2000A4Z90/3/600/ND
Effective luminous flux (lm): 2000
System power (W): 14
Color temperature (K): 4000
Optical system: Z90
Length (mm): 596
Raster (mm): 600
ED2000B4Z25AS/1/600/ND
Effective luminous flux (lm): 2000
System power (W): 14
Color temperature (K): 4000
Optical system: Z25
Length (mm): 596
Raster (mm): 600
ED3000A3Z60/1/600/ND/90
Effective luminous flux (lm): 2300
System power (W): 19
Color temperature (K): 3000
Optical system: Z60
Length (mm): 596
Raster (mm): 600
ED3000A3Z60/1/625/ND
Effective luminous flux (lm): 2700
System power (W): 19
Color temperature (K): 3000
Optical system: Z60
Length (mm): 622
Raster (mm): 625
ED3000A3Z60/2/600/DALI
Effective luminous flux (lm): 2700
System power (W): 18
Color temperature (K): 3000
Optical system: Z60
Length (mm): 596
Raster (mm): 600
ED3000A3Z60/2/600/ND
Effective luminous flux (lm): 2700
System power (W): 18
Color temperature (K): 3000
Optical system: Z60
Length (mm): 596
Raster (mm): 600
ED3000A3Z60/3/600/ND
Effective luminous flux (lm): 2700
System power (W): 18
Color temperature (K): 3000
Optical system: Z60
Length (mm): 596
Raster (mm): 600
ED3000A3Z90/1/600/DALI
Effective luminous flux (lm): 2700
System power (W): 19
Color temperature (K): 3000
Optical system: Z90
Length (mm): 596
Raster (mm): 600
ED3000A3Z90/1/600/ND
Effective luminous flux (lm): 2700
System power (W): 19
Color temperature (K): 3000
Optical system: Z90
Length (mm): 596
Raster (mm): 600
ED3000A3Z90/2/600/ND
Effective luminous flux (lm): 2700
System power (W): 18
Color temperature (K): 3000
Optical system: Z90
Length (mm): 596
Raster (mm): 600
ED3000A4Z25AS/1/625/ND
Effective luminous flux (lm): 2700
System power (W): 19
Color temperature (K): 4000
Optical system: Z25
Length (mm): 622
Raster (mm): 625
ED3000A4Z60/1/600/ND
Effective luminous flux (lm): 2700
System power (W): 19
Color temperature (K): 4000
Optical system: Z60
Length (mm): 596
Raster (mm): 600
ED3000A4Z60/1/600/ND/90
Effective luminous flux (lm): 2300
System power (W): 19
Color temperature (K): 4000
Optical system: Z60
Length (mm): 596
Raster (mm): 600
ED3000A4Z60/1/625/ND
Effective luminous flux (lm): 2700
System power (W): 19
Color temperature (K): 4000
Optical system: Z60
Length (mm): 622
Raster (mm): 625
ED3000A4Z60/2/600/ND
Effective luminous flux (lm): 2700
System power (W): 18
Color temperature (K): 4000
Optical system: Z60
Length (mm): 596
Raster (mm): 600
ED3000A4Z60/2/625/DALI
Effective luminous flux (lm): 2700
System power (W): 18
Color temperature (K): 4000
Optical system: Z60
Length (mm): 622
Raster (mm): 625
ED3000A4Z60/2/625/ND
Effective luminous flux (lm): 2700
System power (W): 18
Color temperature (K): 4000
Optical system: Z60
Length (mm): 622
Raster (mm): 625
ED3000A4Z60/3/600/ND
Effective luminous flux (lm): 2900
System power (W): 18
Color temperature (K): 4000
Optical system: Z60
Length (mm): 596
Raster (mm): 600
ED3000A4Z90/1/600/DALI
Effective luminous flux (lm): 2700
System power (W): 19
ED3000A4Z90/1/600/ND
Effective luminous flux (lm): 2700
System power (W): 19
Color temperature (K): 4000
Optical system: Z90
Length (mm): 596
Raster (mm): 600
ED3000A4Z90/2/600/DALI
Effective luminous flux (lm): 2700
System power (W): 18
Color temperature (K): 4000
Optical system: Z90
Length (mm): 596
Raster (mm): 600
ED3000A4Z90/2/600/DALI/F5W
Effective luminous flux (lm): 2700
System power (W): 18
Color temperature (K): 4000
Optical system: Z90
Length (mm): 596
Raster (mm): 600
ED3000A4Z90/2/600/ND
Effective luminous flux (lm): 2700
System power (W): 18
Color temperature (K): 4000
Optical system: Z90
Length (mm): 596
Raster (mm): 600
ED4000A3Z60/2/600/DALI
Effective luminous flux (lm): 3800
System power (W): 26
Color temperature (K): 3000
Optical system: Z60
Length (mm): 596
Raster (mm): 600
ED4000A3Z60/2/600/ND
Effective luminous flux (lm): 3800
System power (W): 26
Color temperature (K): 3000
Optical system: Z60
Length (mm): 596
Raster (mm): 600
ED4000A3Z60/2/600/ND/90
Effective luminous flux (lm): 3200
System power (W): 26
Color temperature (K): 3000
Optical system: Z60
Length (mm): 596
Raster (mm): 600
ED4000A3Z60/2/600/ND/PIR/90
Effective luminous flux (lm): 3250
System power (W): 26
Color temperature (K): 3000
Optical system: Z60
Length (mm): 596
Raster (mm): 600
ED4000A3Z60/2/625/ND
Effective luminous flux (lm): 3800
System power (W): 26
Color temperature (K): 3000
Optical system: Z60
Length (mm): 622
Raster (mm): 625
ED4000A3Z60/3/600/ND
Effective luminous flux (lm): 4000
System power (W): 25
Color temperature (K): 3000
Optical system: Z60
Length (mm): 596
Raster (mm): 600
ED4000A3Z60/3/625/DALI
Effective luminous flux (lm): 4000
System power (W): 25
Color temperature (K): 3000
Optical system: Z60
Length (mm): 622
Raster (mm): 625
ED4000A3Z60/3/625/ND
Effective luminous flux (lm): 4000
System power (W): 25
Color temperature (K): 3000
Optical system: Z60
Length (mm): 622
Raster (mm): 625
ED4000A3Z90/2/600/DALI
Effective luminous flux (lm): 3800
System power (W): 26
Color temperature (K): 3000
Optical system: Z90
Length (mm): 596
Raster (mm): 600
ED4000A3Z90/2/600/DALI/F5W
Effective luminous flux (lm): 3800
System power (W): 26
Color temperature (K): 3000
Optical system: Z90
Length (mm): 596
Raster (mm): 600
ED4000A3Z90/2/600/DALI/F5W9005
Effective luminous flux (lm): 3800
System power (W): 26
Color temperature (K): 3000
Optical system: Z90
Length (mm): 596
Raster (mm): 600
ED4000A3Z90/2/600/ND
Effective luminous flux (lm): 3800
System power (W): 26
Color temperature (K): 3000
Optical system: Z90
Length (mm): 596
Raster (mm): 600
ED4000A3Z90/2/625/ND
Effective luminous flux (lm): 3800
System power (W): 26
Color temperature (K): 3000
Optical system: Z90
Length (mm): 622
Raster (mm): 625
ED4000A3Z90/3/600/ND
Effective luminous flux (lm): 4000
System power (W): 25
Color temperature (K): 3000
Optical system: Z90
Length (mm): 596
Raster (mm): 600
ED4000A3Z90/3/625/ND
Effective luminous flux (lm): 4000
System power (W): 25
Color temperature (K): 3000
Optical system: Z90
Length (mm): 622
Raster (mm): 625
ED4000A4Z25AS/2/625/ND
Effective luminous flux (lm): 3800
System power (W): 26
Color temperature (K): 4000
Optical system: Z25
Length (mm): 622
Raster (mm): 625
ED4000A4Z60/2/600/DALI
Effective luminous flux (lm): 3800
System power (W): 26
Color temperature (K): 4000
Optical system: Z60
Length (mm): 596
Raster (mm): 600
ED4000A4Z60/2/600/DALI/90
Effective luminous flux (lm): 3200
System power (W): 26
Color temperature (K): 4000
Optical system: Z60
Length (mm): 596
Raster (mm): 600
ED4000A4Z60/2/600/ND
Effective luminous flux (lm): 3800
System power (W): 26
Color temperature (K): 4000
Optical system: Z60
Length (mm): 596
Raster (mm): 600
ED4000A4Z60/2/600/ND/90
Effective luminous flux (lm): 3200
System power (W): 26
Color temperature (K): 4000
Optical system: Z60
Length (mm): 596
Raster (mm): 600
ED4000A4Z60/2/625/DALI
Effective luminous flux (lm): 3800
System power (W): 26
Color temperature (K): 4000
Optical system: Z60
Length (mm): 622
Raster (mm): 625
ED4000A4Z60/2/625/ND
Effective luminous flux (lm): 3800
System power (W): 26
Color temperature (K): 4000
Optical system: Z60
Length (mm): 622
Raster (mm): 625
ED4000A4Z60/3/600/DALI
Effective luminous flux (lm): 4000
System power (W): 25
Color temperature (K): 4000
Optical system: Z60
Length (mm): 596
Raster (mm): 600
ED4000A4Z60/3/600/ND
Effective luminous flux (lm): 4000
System power (W): 25
Color temperature (K): 4000
Optical system: Z60
Length (mm): 596
Raster (mm): 600
ED4000A4Z60/3/600/ND/90
Effective luminous flux (lm): 3500
System power (W): 25
Color temperature (K): 4000
Optical system: Z60
Length (mm): 596
Raster (mm): 600
ED4000A4Z60/3/600/ND/9005
Effective luminous flux (lm): 4000
System power (W): 25
Color temperature (K): 4000
Optical system: Z60
Length (mm): 596
Raster (mm): 600
ED4000A4Z60/3/625/DALI
Effective luminous flux (lm): 4000
System power (W): 25
Color temperature (K): 4000
Optical system: Z60
Length (mm): 622
Raster (mm): 625
ED4000A4Z60/3/625/ND
Effective luminous flux (lm): 4000
System power (W): 25
Color temperature (K): 4000
Optical system: Z60
Length (mm): 622
Raster (mm): 625
ED4000A4Z60/3/625/NDOK
Effective luminous flux (lm): 4000
System power (W): 29
Color temperature (K): 4000
Optical system: Z60
Length (mm): 622
Raster (mm): 625
ED4000A4Z90/2/600/DALI
Effective luminous flux (lm): 3800
System power (W): 26
Color temperature (K): 4000
Optical system: Z90
Length (mm): 596
Raster (mm): 600
ED4000A4Z90/2/600/ND
Effective luminous flux (lm): 3800
System power (W): 26
Color temperature (K): 4000
Optical system: Z90
Length (mm): 596
Raster (mm): 600
ED4000A4Z90/2/600/ND/7016
Effective luminous flux (lm): 3800
System power (W): 26
Color temperature (K): 4000
Optical system: Z90
Length (mm): 596
Raster (mm): 600
ED4000A4Z90/2/600/ND/FW/9005
Effective luminous flux (lm): 3800
System power (W): 26
Color temperature (K): 4000
Optical system: Z90
Length (mm): 596
Raster (mm): 600
ED4000A4Z90/2/600/ND/PIR
Effective luminous flux (lm): 3800
System power (W): 26
Color temperature (K): 4000
Optical system: Z90
Length (mm): 596
Raster (mm): 600
ED4000A4Z90/2/625/DALI
Effective luminous flux (lm): 3800
System power (W): 26
Color temperature (K): 4000
Optical system: Z90
Length (mm): 622
Raster (mm): 625
ED4000A4Z90/2/625/ND
Effective luminous flux (lm): 3800
System power (W): 26
Color temperature (K): 4000
Optical system: Z90
Length (mm): 622
Raster (mm): 625
ED4000A4Z90/3/600/DALI
Effective luminous flux (lm): 4000
System power (W): 25
Color temperature (K): 4000
Optical system: Z90
Length (mm): 596
Raster (mm): 600
ED4000A4Z90/3/600/ND
Effective luminous flux (lm): 4000
System power (W): 25
Color temperature (K): 4000
Optical system: Z90
Length (mm): 596
Raster (mm): 600
ED4000A4Z90/3/600CI/ND/9010
Effective luminous flux (lm): 4000
System power (W): 25
Color temperature (K): 4000
Optical system: Z90
Length (mm): 596
Raster (mm): 600
ED4000A4Z90/3/625/DALI
Effective luminous flux (lm): 4000
System power (W): 25
Color temperature (K): 4000
Optical system: Z90
Length (mm): 622
Raster (mm): 625
ED4000A4Z90/3/625/ND
Effective luminous flux (lm): 4000
System power (W): 25
Color temperature (K): 4000
Optical system: Z90
Length (mm): 622
Raster (mm): 625
ED4000A5Z90/2/600/ND
Effective luminous flux (lm): 3800
System power (W): 26
Color temperature (K): 5700
Optical system: Z90
Length (mm): 596
Raster (mm): 600
ED4000C4Z25AS/1/625/ND
Effective luminous flux (lm): 3800
System power (W): 26
Color temperature (K): 4000
Optical system: Z25
Length (mm): 1245
Raster (mm): 625
ED4000CX4Z25AS/1/SDK/ND
Effective luminous flux (lm): 3850
System power (W): 25
Color temperature (K): 4000
Optical system: Z25
Length (mm): 1195
ED5000A3Z90/3/600/ND
Effective luminous flux (lm): 4800
System power (W): 30
Color temperature (K): 3000
Optical system: Z90
Length (mm): 596
Raster (mm): 600
ED6000A3Z60/3/625/ND
Effective luminous flux (lm): 5800
System power (W): 38
Color temperature (K): 3000
Optical system: Z60
Length (mm): 622
Raster (mm): 625
ED6000A3Z90/3/600/DALI
Effective luminous flux (lm): 5800
System power (W): 38
Color temperature (K): 3000
Optical system: Z90
Length (mm): 596
Raster (mm): 600
ED6000A3Z90/3/600/ND
Effective luminous flux (lm): 5800
System power (W): 38
Color temperature (K): 3000
Optical system: Z90
Length (mm): 596
Raster (mm): 600
ED6000A4Z60/3/600/BT/9005
Effective luminous flux (lm): 5800
System power (W): 38
Color temperature (K): 4000
Optical system: Z60
Length (mm): 596
Raster (mm): 600
ED6000A4Z60/3/600/DALI
Effective luminous flux (lm): 5800
System power (W): 38
Color temperature (K): 4000
Optical system: Z60
Length (mm): 596
Raster (mm): 600
ED6000A4Z60/3/600/ND
Effective luminous flux (lm): 5800
System power (W): 38
Color temperature (K): 4000
Optical system: Z60
Length (mm): 596
Raster (mm): 600
ED6000A4Z60/3/600/ND/90
Effective luminous flux (lm): 5000
System power (W): 38
Color temperature (K): 4000
Optical system: Z60
Length (mm): 596
Raster (mm): 600
ED6000A4Z60/3/600/ND/9005
Effective luminous flux (lm): 5800
System power (W): 38
Color temperature (K): 4000
Optical system: Z60
Length (mm): 596
Raster (mm): 600
ED6000A4Z60/3/625/DALI
Effective luminous flux (lm): 5800
System power (W): 38
Color temperature (K): 4000
Optical system: Z60
Length (mm): 622
Raster (mm): 625
ED6000A4Z60/3/625/ND
Effective luminous flux (lm): 5800
System power (W): 38
Color temperature (K): 4000
Optical system: Z60
Length (mm): 596
Raster (mm): 625
ED6000A4Z90/3/600/AA
Effective luminous flux (lm): 5800
System power (W): 38
Color temperature (K): 4000
Optical system: Z90
Length (mm): 596
Raster (mm): 600
ED6000A4Z90/3/600/AA/9005
Effective luminous flux (lm): 5800
System power (W): 38
Color temperature (K): 4000
Optical system: Z90
Length (mm): 596
Raster (mm): 600
ED6000A4Z90/3/600/DALI
Effective luminous flux (lm): 5800
System power (W): 38
Color temperature (K): 4000
Optical system: Z90
Length (mm): 596
Raster (mm): 600
ED6000A4Z90/3/600/ND
Effective luminous flux (lm): 5800
System power (W): 38
Color temperature (K): 4000
Optical system: Z90
Length (mm): 596
Raster (mm): 600
ED6000A4Z90/3/625/DALI
Effective luminous flux (lm): 5800
System power (W): 38
Color temperature (K): 4000
Optical system: Z90
Length (mm): 622
Raster (mm): 625
ED6000A4Z90/3/625/ND
Effective luminous flux (lm): 5800
System power (W): 38
Color temperature (K): 4000
Optical system: Z90
Length (mm): 622
Raster (mm): 625
ED6000A5Z60/3/625/ND/90
Effective luminous flux (lm): 4900
System power (W): 38
Color temperature (K): 5700
Optical system: Z60
Length (mm): 622
Raster (mm): 625
ED6000A5Z90/3/600/BT/90
Effective luminous flux (lm): 4900
System power (W): 38
Color temperature (K): 5700
Optical system: Z90
Length (mm): 596
Raster (mm): 600
ED6000A5Z90/3/625/ND
Effective luminous flux (lm): 5800
System power (W): 38
Color temperature (K): 5700
Optical system: Z90
Length (mm): 622
Raster (mm): 625
ED6000A5Z90/3/625/NDMULTI
Effective luminous flux (lm): 5800
System power (W): 38
Color temperature (K): 5700
Optical system: Z90
Length (mm): 622
Raster (mm): 625
Show all versions

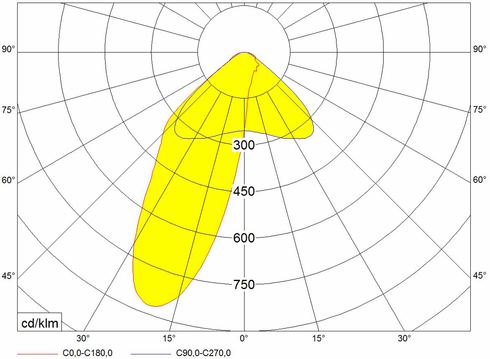

12_3 ED_AS.JPG12_3 ED_AS.JPG
12_1 ED_Z60.JPG12_1 ED_Z60.JPG
12_2 ED_Z90.JPG12_2 ED_Z90.JPG

Luminaire can be made with smart system - "MODUS MOWI"

This system include two different possible smart methods:

Philips SR

  • sensor located inside luminaire
  • luminaire communicates to each other to select the right lumen level based on actual situation
  • setup by IR communication via mobile phone



Casambi

  • wireless comunication by mobile phone application
  • possible to setup scenes, timming, groups...




Open Space Office, Norway

MODUS ED

Detail reference
Zobrazit další reference
UQRAM

UQRAM

Aluminium frame for surface installation of LED panels

QVESTRAM

QVESTRAM

Aluminium frame for recessed installation

 Back to product list

We are here to help

We'll advise you all, we have outstanding support.
Lighting calculations

Lighting calculations

Do you need to calculate the lighting?

LDT files

LDT files

Do you need LDT data for your project?

Product support

Product support

Do not know what kind of lighting is best for you?

Connection diagrams

Connection diagrams

Do not you know how to conect luminaires properly?

Contact
