Product series New

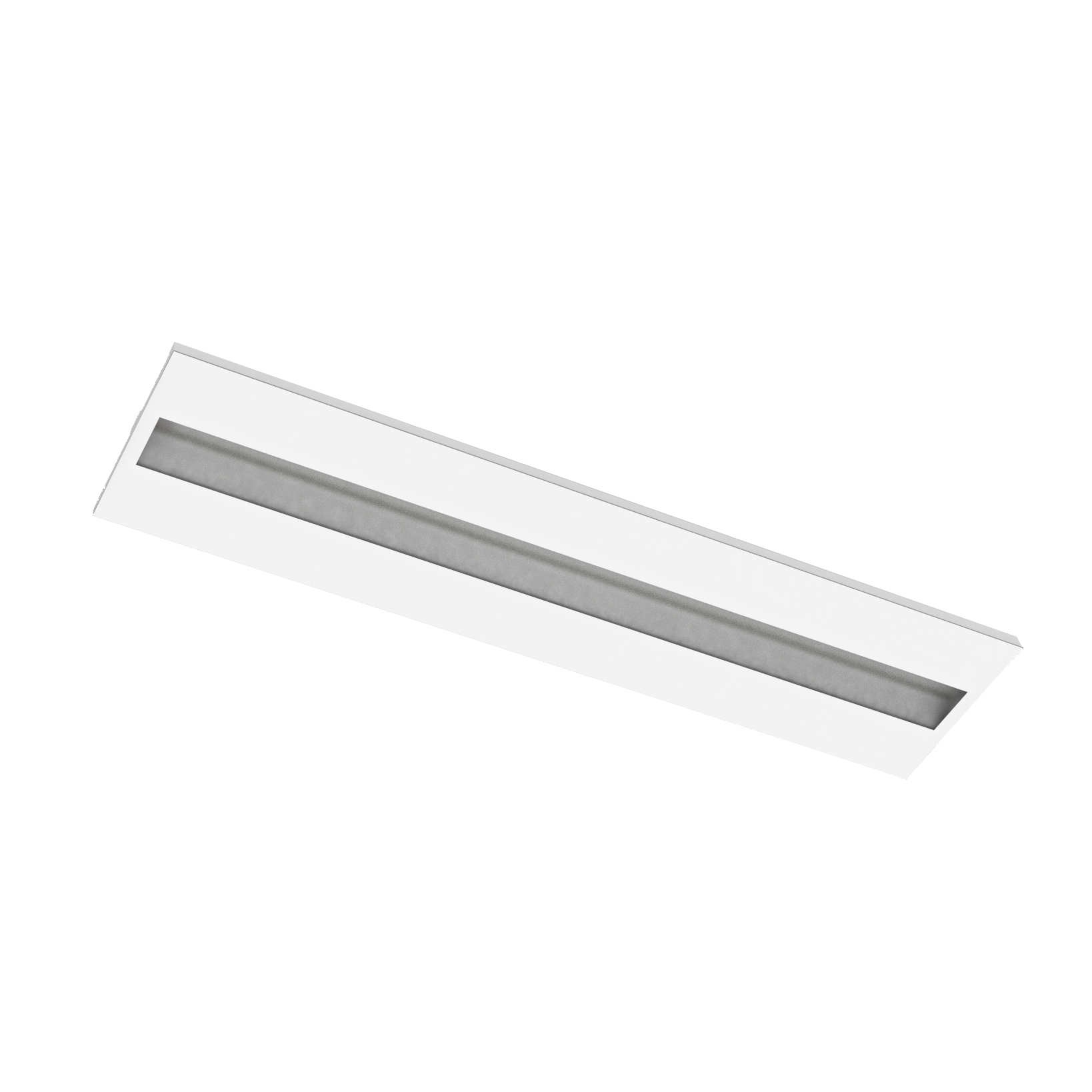

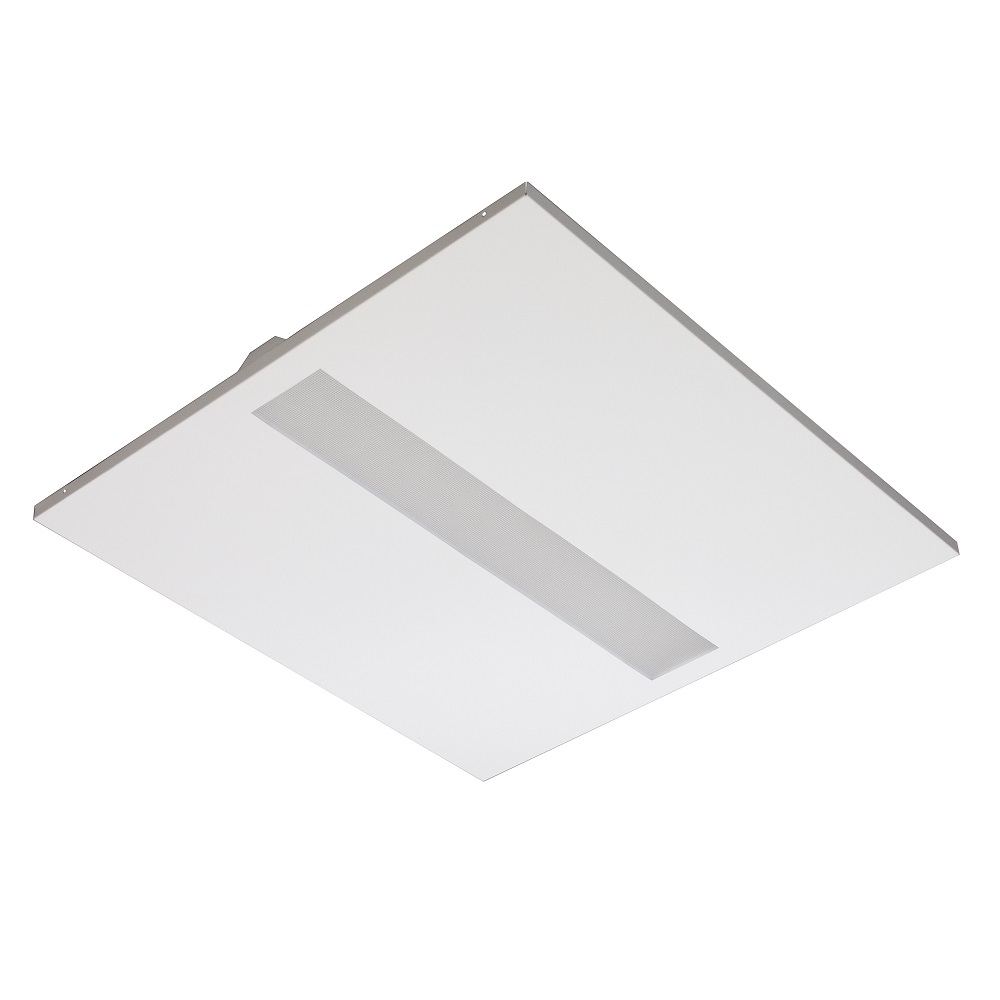

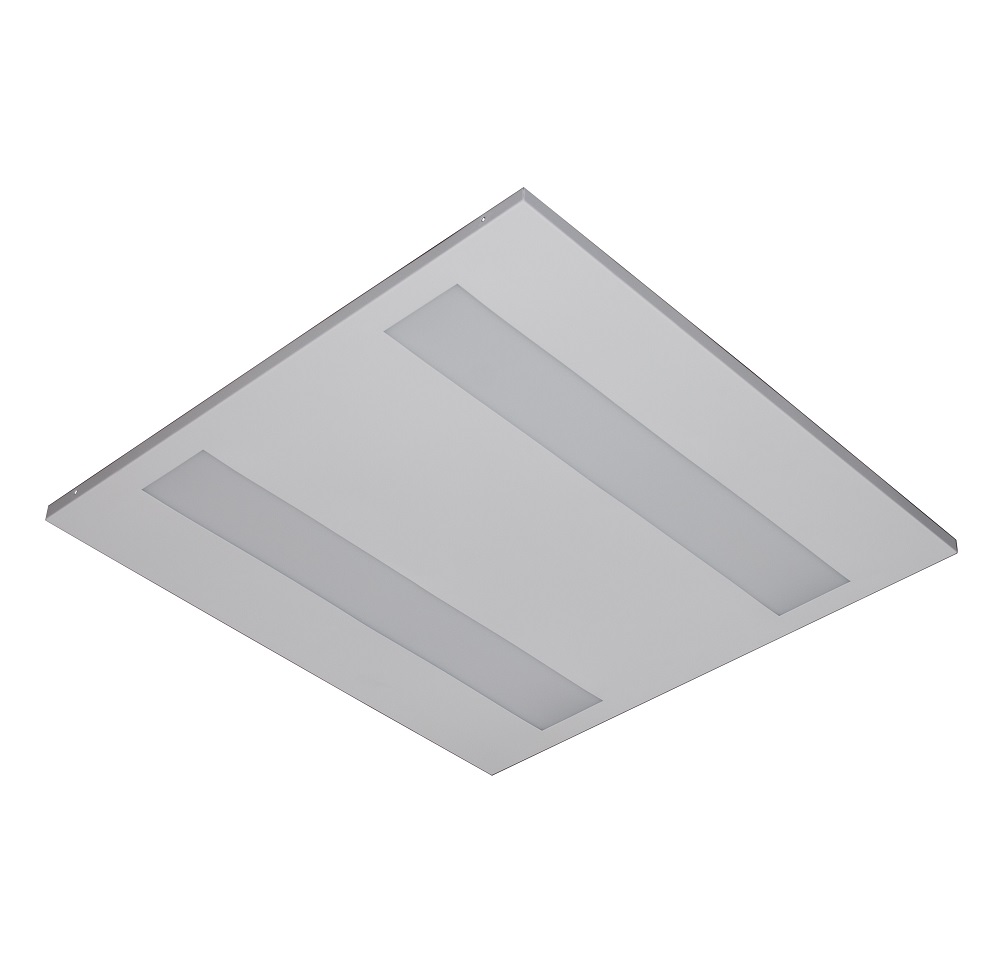

MODUS EK
Recessed luminaire with cover
Standard price from:
On request
Luminaire for recessed installation.
Optical system can be opal or nanoprisma (UGR lumitation)
| Size version: | A 600x600 mm or 625x625 mm C 1200x300 mm | Body material: | White painted steel | Mounting method: | Built-in | Protection class: | II | With movement sensor: | Yes | Type of control gear: | LED operating device current-controlled | Color rendering index CRI: | 80-89, 90-100 | Light source type: | LED | Light outlet: | Direct | Light sharing: | Symmetric | Nominal voltage (V): | 220...240 | Degree of protection (IP): | IP40 |
| Color temperature (K): | 4000, 3000, 2700, 5700 | Rated lifetime L80/B50 (h): | 80000 | Dimming 1-10 V: | Yes | Dimming DALI: | Yes | Product category: | Recessed mounted ceiling- and wall luminaire | Optical system: | KO opal cover KN nanoprizmatic cover | Made in Czech republic: | Yes | Replaceability: | Replaceable light source by professional, replaceable ballast Replaceable light source by professional, replaceable ballast | Photobiological safety EN 62 471: | RG 0 | MacAdam binning: | SDCM 3 |
LoadingFilters
Effective luminous flux (lm)
System power (W)
Product name
Effective luminous flux (lm)
System power (W)
Color temperature (K)
Optical system
Raster (mm)
EK2000A4KN600/1/ND
Effective luminous flux (lm): 1950
System power (W): 15
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
EK2000A4KN625/1/ND
Effective luminous flux (lm): 1950
System power (W): 15
Color temperature (K): 4000
Optical system: KN
Raster (mm): 625
EK3000A3KN600/1/ND
Effective luminous flux (lm): 2650
System power (W): 20
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
EK3000A3KN625/1/ND
Effective luminous flux (lm): 2650
System power (W): 20
Color temperature (K): 4000
Optical system: KN
Raster (mm): 625
EK3000A3KO600/1/ND
Effective luminous flux (lm): 2500
System power (W): 20
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
EK3000A3KO625/1/ND
Effective luminous flux (lm): 2500
System power (W): 20
Color temperature (K): 4000
Optical system: KO
Raster (mm): 625
EK3000A4KN600/1/ND
Effective luminous flux (lm): 2650
System power (W): 20
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
EK3000A4KN600/2/ND
Effective luminous flux (lm): 2800
System power (W): 19
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
EK3000A4KN600/2/ND/90
Effective luminous flux (lm): 2400
System power (W): 19
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
EK3000A4KN625/1/ND
Effective luminous flux (lm): 2650
System power (W): 20
Color temperature (K): 4000
Optical system: KN
Raster (mm): 625
EK3000A4KO600/1/ND
Effective luminous flux (lm): 2500
System power (W): 20
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
EK3000A4KO600/2/ND
Effective luminous flux (lm): 2650
System power (W): 19
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
EK3000A4KO600/3/NDOK
Effective luminous flux (lm): 3200
System power (W): 24
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
EK3000A4KO625/1/ND
Effective luminous flux (lm): 2500
System power (W): 20
Color temperature (K): 4000
Optical system: KO
Raster (mm): 625
EK3000C4KN600/1/ND
Effective luminous flux (lm): 3200
System power (W): 24
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
EK3500A4KN600/2/ND
Effective luminous flux (lm): 3600
System power (W): 26
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
EK4000A3KN600/2/ND
Effective luminous flux (lm): 4100
System power (W): 30
Color temperature (K): 3000
Optical system: KN
Raster (mm): 600
EK4000A3KO600/2/ND
Effective luminous flux (lm): 4100
System power (W): 30
Color temperature (K): 3000
Optical system: KO
Raster (mm): 600
EK4000A4KN600/2/DALI
Effective luminous flux (lm): 4100
System power (W): 30
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
EK4000A4KN600/2/DALI/90
Effective luminous flux (lm): 4100
System power (W): 30
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
EK4000A4KN600/2/DALI/9005
Effective luminous flux (lm): 4100
System power (W): 30
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
EK4000A4KN600/2/ND
Effective luminous flux (lm): 4100
System power (W): 30
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
EK4000A4KN600/2/ND/90
Effective luminous flux (lm): 3500
System power (W): 30
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
EK4000A4KN600/2/ND/9005
Effective luminous flux (lm): 4100
System power (W): 30
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
EK4000A4KN600/2/NDMULTI/SDK
Effective luminous flux (lm): 4500
System power (W): 33
EK4000A4KN625/2/ND
Effective luminous flux (lm): 4100
System power (W): 30
Color temperature (K): 4000
Optical system: KN
Raster (mm): 625
EK4000A4KO600/2/ND
Effective luminous flux (lm): 4100
System power (W): 30
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
EK4000C3KN600/1/ND
Effective luminous flux (lm): 4200
System power (W): 33
Color temperature (K): 3000
Optical system: KN
Raster (mm): 600
EK4000C4KN600/1/DALI
Effective luminous flux (lm): 4200
System power (W): 33
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
EK4000C4KN600/1/ND
Effective luminous flux (lm): 4200
System power (W): 33
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
EK4000C4KO600/1/ND
Effective luminous flux (lm): 3800
System power (W): 33
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
EK6000A4KN600/3/ND
Effective luminous flux (lm): 5700
System power (W): 44
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
EK6000A4KO600/3/ND
Effective luminous flux (lm): 5700
System power (W): 44
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
Product page - PDF
CE declaration
Assembly instruction
LDT files

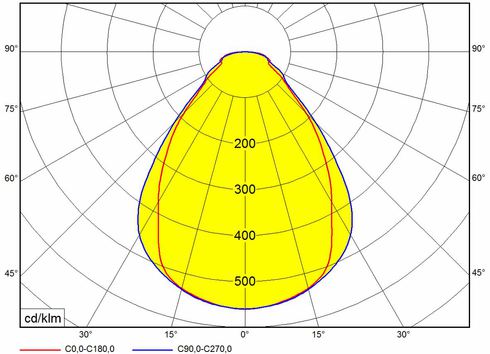

EK_EPK_KN.JPGProjekty realizované se svítidly MODUS:
