MODUS EPK

Přisazené svítidlo s krytem

MODUS EPK
MODUS G2 SSMODUS G2 SS
220-240 v.png
11 L80_80000_h.jpg
en 62 471.png

Standard price from:

On request
Distribution network
Contacts

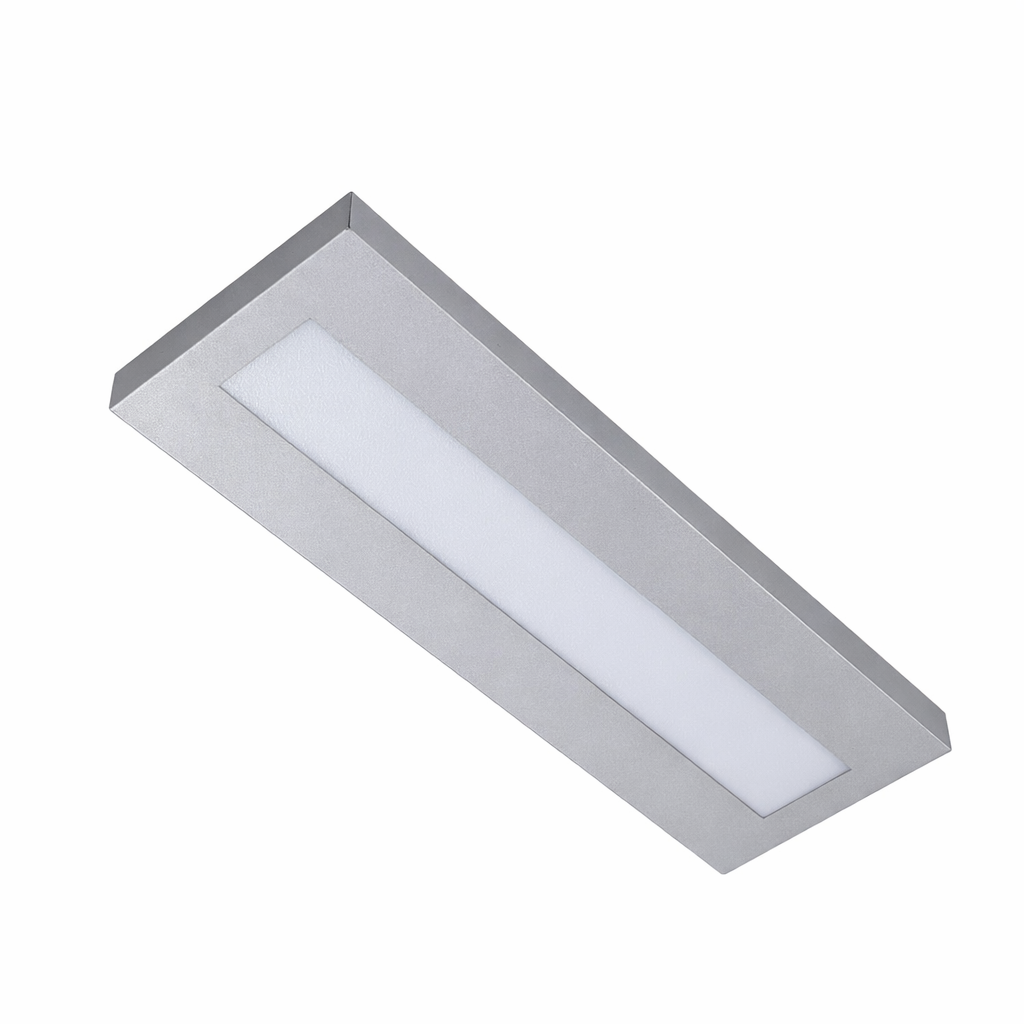

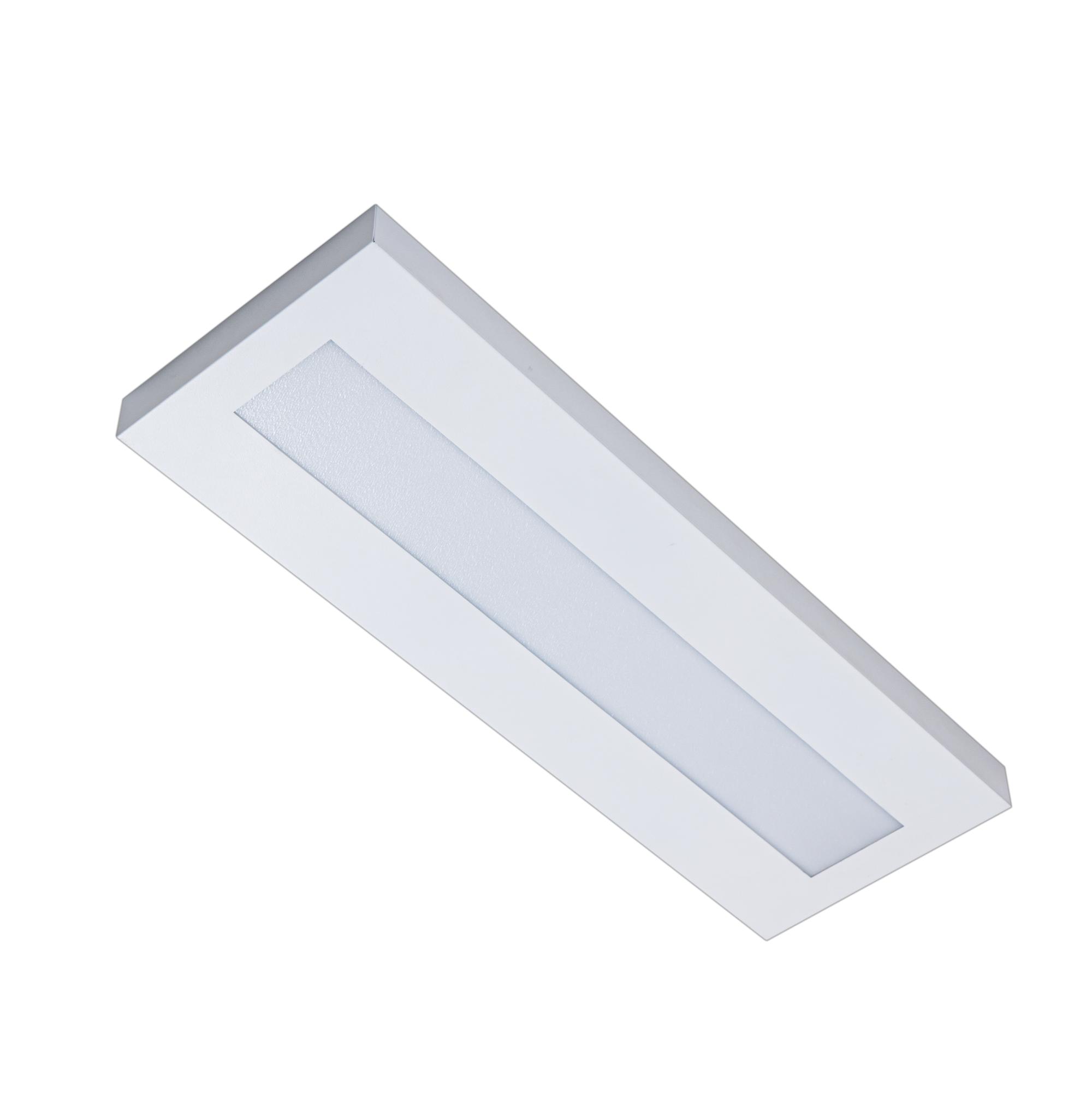

Luminaire with opal or nanoprisma cover.

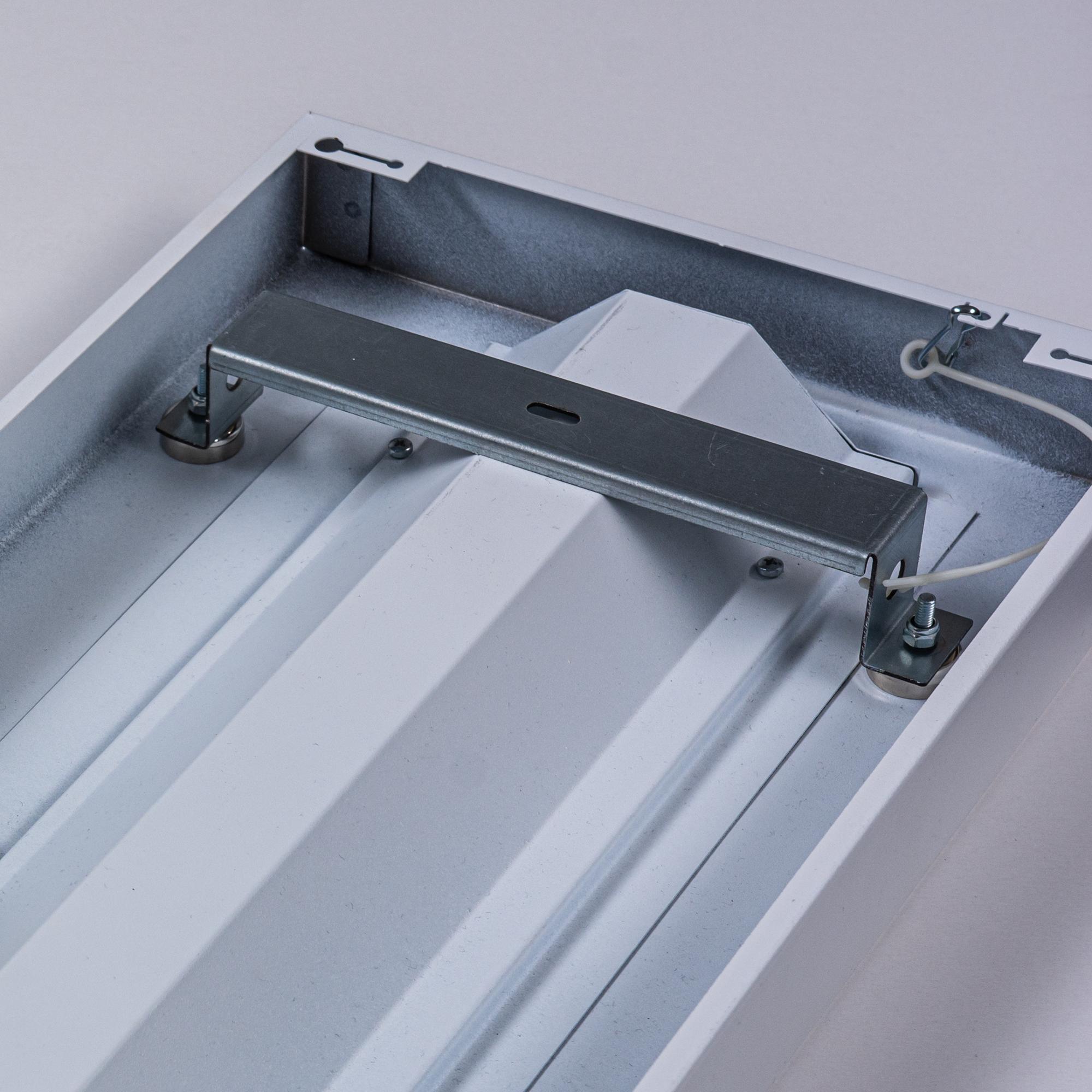

Main benefit of this luminaire is easy "one-man" installation via magnetic holders.

There is also possibility to install luminaire like pendant via pending set ZH/UNI2 (2 wires) or ZH/UNI4 (4 wires).

Size version:L
1500 mm
M
1200 mm
S
600 mm
Body material:White painted steel
Mounting method:Surface mounting, SuspendedProtection class:II

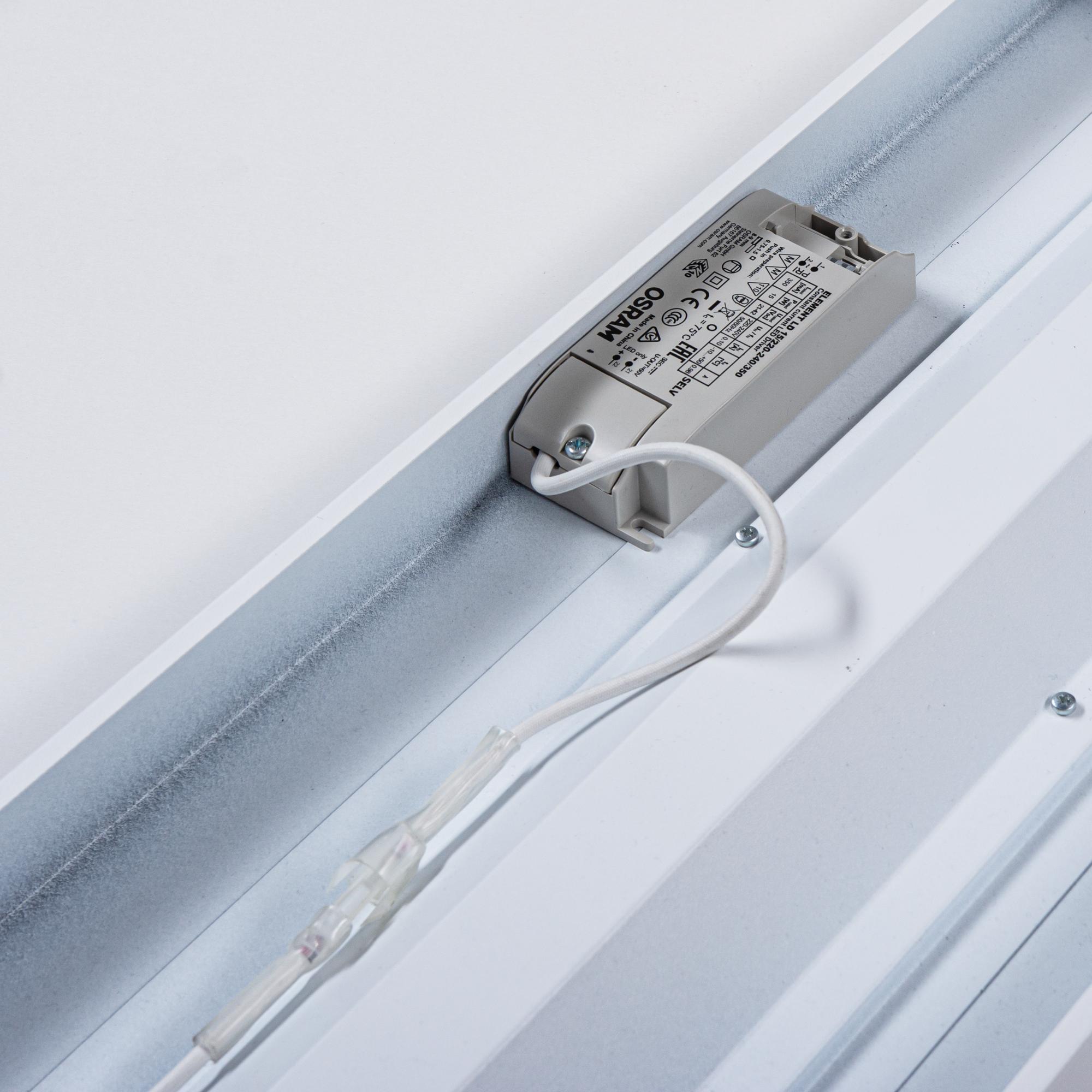

With movement sensor:YesType of control gear:LED operating device current-controlled
Color rendering index CRI:80-89, 90-100Light source type:LED
Color temperature controllable (K):YesLight outlet:Direct
Nominal voltage (V):220...240Degree of protection (IP):IP40
Color temperature (K):4000, 6500, 3000, 2700, 5700, 2700...6500Rated lifetime L80/B50 (h):80000
Dimming 1-10 V:YesDimming DALI:Yes
Dimming Touch and Dim:YesProduct category:Surface mounted ceiling- and wall luminaire
Optical system:KO

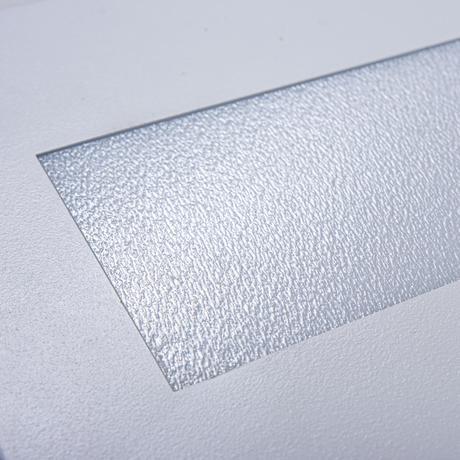

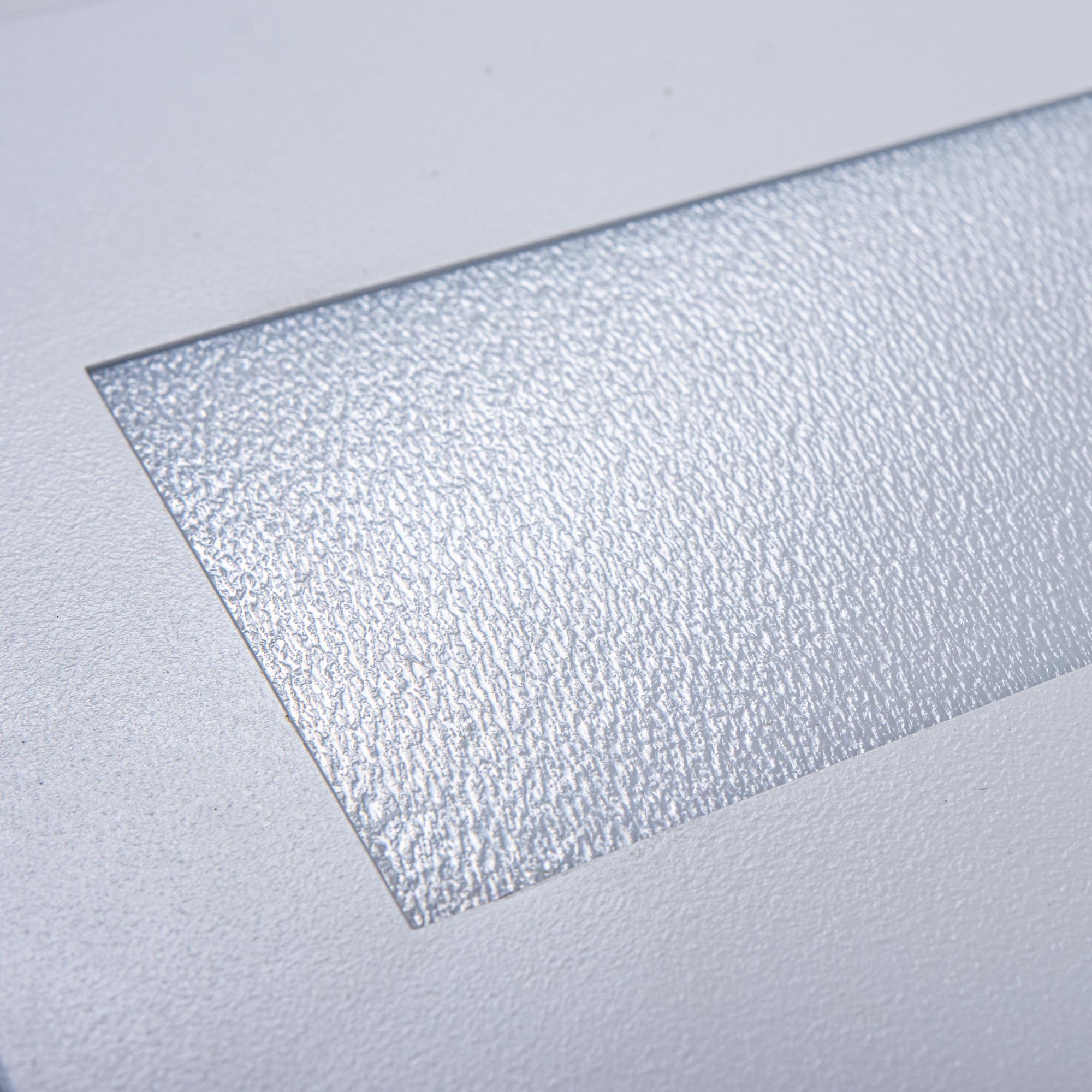

opal cover
KN
nanoprizmatic cover
Made in Czech republic:Yes
Replaceability:Replaceable light source by professional, replaceable ballast
Replaceable light source by professional, replaceable ballast
Photobiological safety EN 62 471:RG 0
MacAdam binning:SDCM 3
Show more...
LoadingLoading

Filters

Effective luminous flux (lm)

1850
6000

System power (W)

15
55
Product name
EPK2000RS3KN/1/ND
Effective luminous flux (lm): 1950
System power (W): 15
Color temperature (K): 3000
Optical system: KN
EPK2000RS3KO/1/ND
Effective luminous flux (lm): 1850
System power (W): 15
Color temperature (K): 3000
Optical system: KO
EPK2000RS4KN/1/DALI
Effective luminous flux (lm): 1950
System power (W): 15
Color temperature (K): 4000
Optical system: KN
EPK2000RS4KN/1/ND
Effective luminous flux (lm): 1950
System power (W): 15
Color temperature (K): 4000
Optical system: KN
EPK2000RS4KO/1/ND
Effective luminous flux (lm): 1850
System power (W): 15
Color temperature (K): 4000
Optical system: KO
EPK2000RS6KO/1/ND
Effective luminous flux (lm): 1850
System power (W): 15
Color temperature (K): 6500
Optical system: KO
EPK2000SS3KN/1/ND
Effective luminous flux (lm): 1950
System power (W): 15
Color temperature (K): 3000
Optical system: KN
EPK2000SS3KN/1/NDNZ
Effective luminous flux (lm): 1950
System power (W): 15
Color temperature (K): 3000
Optical system: KN
EPK2000SS4KO/1/ND
Effective luminous flux (lm): 1850
System power (W): 15
Color temperature (K): 4000
Optical system: KO
EPK3000RM3KO/1/ND
Effective luminous flux (lm): 3100
System power (W): 24
Color temperature (K): 3000
Optical system: KO
EPK3000RM3KO/1/NDNZ
Effective luminous flux (lm): 3100
System power (W): 24
Color temperature (K): 3000
Optical system: KO
EPK3000RM4KN/1/ND
Effective luminous flux (lm): 3100
System power (W): 24
Color temperature (K): 4000
Optical system: KN
EPK3000RM4KO/1/ND
Effective luminous flux (lm): 3100
System power (W): 24
Color temperature (K): 4000
Optical system: KO
EPK3000SS3KO/2/ND
Effective luminous flux (lm): 2650
System power (W): 19
Color temperature (K): 3000
Optical system: KO
EPK3000SS4KN/1/ND
Effective luminous flux (lm): 2650
System power (W): 20
Color temperature (K): 4000
Optical system: KN
EPK3000SS4KN/2/DALI
Effective luminous flux (lm): 2650
System power (W): 19
Color temperature (K): 4000
Optical system: KN
EPK3000SS4KN/2/ND
Effective luminous flux (lm): 2650
System power (W): 19
Color temperature (K): 4000
Optical system: KN
EPK3000SS4KO/2/DALI
Effective luminous flux (lm): 2650
System power (W): 19
Color temperature (K): 4000
Optical system: KO
EPK3000SS4KO/2/DALINZ
Effective luminous flux (lm): 2650
System power (W): 19
Color temperature (K): 4000
Optical system: KO
EPK3000SS4KO/2/ND
Effective luminous flux (lm): 2650
System power (W): 19
Color temperature (K): 4000
Optical system: KO
EPK3000SS4KO/2/NDNZ
Effective luminous flux (lm): 2650
System power (W): 19
Color temperature (K): 4000
Optical system: KO
EPK4000RL3KO/1/ND
Effective luminous flux (lm): 4200
System power (W): 34
Color temperature (K): 3000
Optical system: KO
EPK4000RL3KO/1/ND/90
Effective luminous flux (lm): 3600
System power (W): 34
Color temperature (K): 3000
Optical system: KO
EPK4000RL4KN/1/DALI
Effective luminous flux (lm): 4400
System power (W): 34
Color temperature (K): 4000
Optical system: KN
EPK4000RL4KN/1/ND
Effective luminous flux (lm): 4400
System power (W): 34
Color temperature (K): 4000
Optical system: KN
EPK4000RL4KO/1/ND
Effective luminous flux (lm): 4200
System power (W): 34
Color temperature (K): 4000
Optical system: KO
EPK4000RL6KO/1/ND
Effective luminous flux (lm): 4200
System power (W): 34
Color temperature (K): 6500
Optical system: KO
EPK4000RM3KN/1/DALI
Effective luminous flux (lm): 4200
System power (W): 33
Color temperature (K): 3000
Optical system: KN
EPK4000RM3KN/1/ND
Effective luminous flux (lm): 4200
System power (W): 33
Color temperature (K): 3000
Optical system: KN
EPK4000RM3KO/1/DALI
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 3000
Optical system: KO
EPK4000RM3KO/1/ND
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 3000
Optical system: KO
EPK4000RM3KO/1/NDNZ
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 3000
Optical system: KO
EPK4000RM4KN/1/DALI
Effective luminous flux (lm): 4200
System power (W): 33
Color temperature (K): 4000
Optical system: KN
EPK4000RM4KN/1/ND
Effective luminous flux (lm): 4200
System power (W): 33
Color temperature (K): 4000
Optical system: KN
EPK4000RM4KN/1/NDNZ
Effective luminous flux (lm): 4200
System power (W): 33
Color temperature (K): 4000
Optical system: KN
EPK4000RM4KO/1/DALI
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 4000
Optical system: KO
EPK4000RM4KO/1/ND
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 4000
Optical system: KO
EPK4000RM4KO/1/NDNZ
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 4000
Optical system: KO
EPK4000SS3KN/2/DALI
Effective luminous flux (lm): 4100
System power (W): 30
Color temperature (K): 3000
Optical system: KN
EPK4000SS3KN/2/ND
Effective luminous flux (lm): 4100
System power (W): 30
Color temperature (K): 3000
Optical system: KN
EPK4000SS3KO/2/ND
Effective luminous flux (lm): 4000
System power (W): 30
Color temperature (K): 3000
Optical system: KO
EPK4000SS4KN/2/ND
Effective luminous flux (lm): 4100
System power (W): 30
Color temperature (K): 4000
Optical system: KN
EPK4000SS4KN/2/NDNZ
Effective luminous flux (lm): 4000
System power (W): 30
Color temperature (K): 4000
Optical system: KN
EPK4000SS4KO/2/ND
Effective luminous flux (lm): 4000
System power (W): 30
Color temperature (K): 4000
Optical system: KO
EPK4000SS4KO/2/ND/PIR
Effective luminous flux (lm): 4000
System power (W): 30
Color temperature (K): 4000
Optical system: KO
EPK4000SS4KO/2/NDNZ
Effective luminous flux (lm): 4000
System power (W): 30
Color temperature (K): 4000
Optical system: KO
EPK5000SS4KN/2/NDMULTI
Effective luminous flux (lm): 5150
System power (W): 39
Color temperature (K): 4000
Optical system: KO
EPK5000SS4KO/2/NDMULTI
Effective luminous flux (lm): 5000
System power (W): 39
Color temperature (K): 4000
Optical system: KO
EPK6000RL3KN/1/ND
Effective luminous flux (lm): 5800
System power (W): 46
Color temperature (K): 3000
Optical system: KN
EPK6000RL3KO/1/DALI
Effective luminous flux (lm): 5500
System power (W): 46
Color temperature (K): 3000
Optical system: KO
EPK6000RL3KO/1/ND
Effective luminous flux (lm): 5500
System power (W): 46
Color temperature (K): 3000
Optical system: KO
EPK6000RL4KN/1/DALI
Effective luminous flux (lm): 5800
System power (W): 46
Color temperature (K): 4000
Optical system: KO
EPK6000RL4KN/1/ND
Effective luminous flux (lm): 5800
System power (W): 46
Color temperature (K): 4000
Optical system: KN
EPK6000RL4KO/1/DALI
Effective luminous flux (lm): 5500
System power (W): 46
Color temperature (K): 4000
Optical system: KO
EPK6000RL4KO/1/ND
Effective luminous flux (lm): 5500
System power (W): 46
Color temperature (K): 4000
Optical system: KO
EPK6000RL6KO/1/ND
Effective luminous flux (lm): 5500
System power (W): 46
Color temperature (K): 6500
Optical system: KO
EPK6000RM3KN/1/ND
Effective luminous flux (lm): 5800
System power (W): 51
Color temperature (K): 3000
Optical system: KN
EPK6000RM3KN/1/ND/90
Effective luminous flux (lm): 5800
System power (W): 51
Color temperature (K): 3000
Optical system: KN
EPK6000RM3KO/1/ND
Effective luminous flux (lm): 5600
System power (W): 51
Color temperature (K): 3000
Optical system: KO
EPK6000RM3KO/1/NDMULTI
Effective luminous flux (lm): 5600
System power (W): 51
Color temperature (K): 3000
Optical system: KO
EPK6000RM3KO/1/NDNZ
Effective luminous flux (lm): 5600
System power (W): 51
Color temperature (K): 3000
Optical system: KO
EPK6000RM4KN/1/DALI
Effective luminous flux (lm): 5800
System power (W): 51
Color temperature (K): 4000
Optical system: KN
EPK6000RM4KN/1/ND
Effective luminous flux (lm): 5800
System power (W): 51
Color temperature (K): 4000
Optical system: KN
EPK6000RM4KN/1/NDNZ
Effective luminous flux (lm): 5800
System power (W): 51
Color temperature (K): 4000
Optical system: KN
EPK6000RM4KO/1/ND
Effective luminous flux (lm): 5600
System power (W): 51
Color temperature (K): 4000
Optical system: KO
EPK6000RM4KO/1/NDMULTI
Effective luminous flux (lm): 5600
System power (W): 51
Color temperature (K): 4000
Optical system: KO
EPK6000SS4KN/2/DALI
Effective luminous flux (lm): 6000
System power (W): 55
Color temperature (K): 4000
Optical system: KO
EPK6000SS4KN/2/ND
Effective luminous flux (lm): 6000
System power (W): 55
Color temperature (K): 4000
Optical system: KN
EPK6000SS4KN/2/ND/90
Effective luminous flux (lm): 5100
System power (W): 55
Color temperature (K): 4000
Optical system: KN
EPK6000SS4KN/2/NDNZ
Effective luminous flux (lm): 6000
System power (W): 55
Color temperature (K): 4000
Optical system: KN
Show all versions

Projekty realizované se svítidly MODUS:


Autosalon Rolls-Royce (Australia)

MODUS TEL

Detail reference

Office building of HAGER company

MODUS SPMI + MODUS QP

Detail reference

Commercial centrum

MODUS Q SKY

Detail reference

Tennis play-ground Bratislava (SK)

MODUS MEGAL

Detail reference
Zobrazit další reference
Pendant mounting of luminaires

Pendant mounting of luminaires

Wire suspensions sets

 Back to product list

We are here to help

We'll advise you all, we have outstanding support.
Lighting calculations

Lighting calculations

Do you need to calculate the lighting?

LDT files

LDT files

Do you need LDT data for your project?

Product support

Product support

Do not know what kind of lighting is best for you?

Connection diagrams

Connection diagrams

Do not you know how to conect luminaires properly?

Contact
