Product series
MODUS EPS

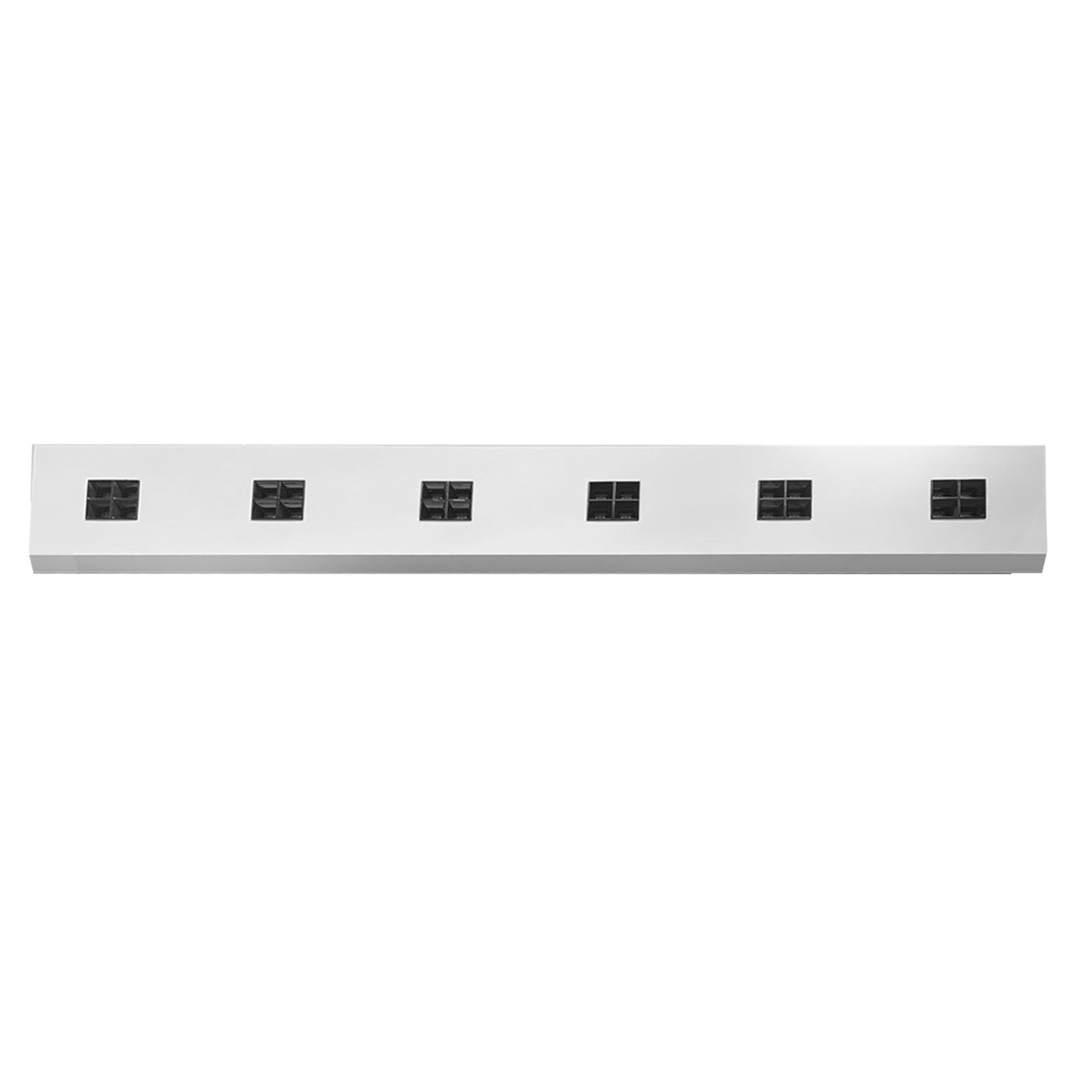

Surface luminaire with dark optic
Standard price from:
On request
Surface luminaire with new style of optic = dark light = high effectivity and low UGR.

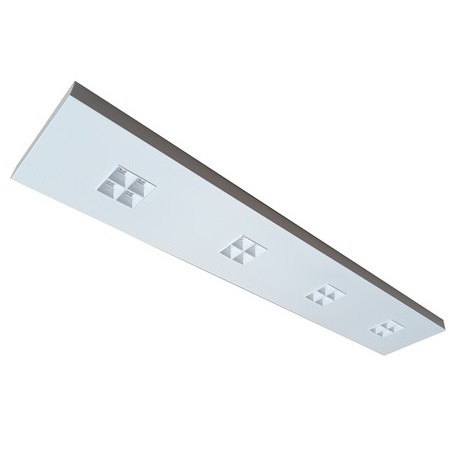

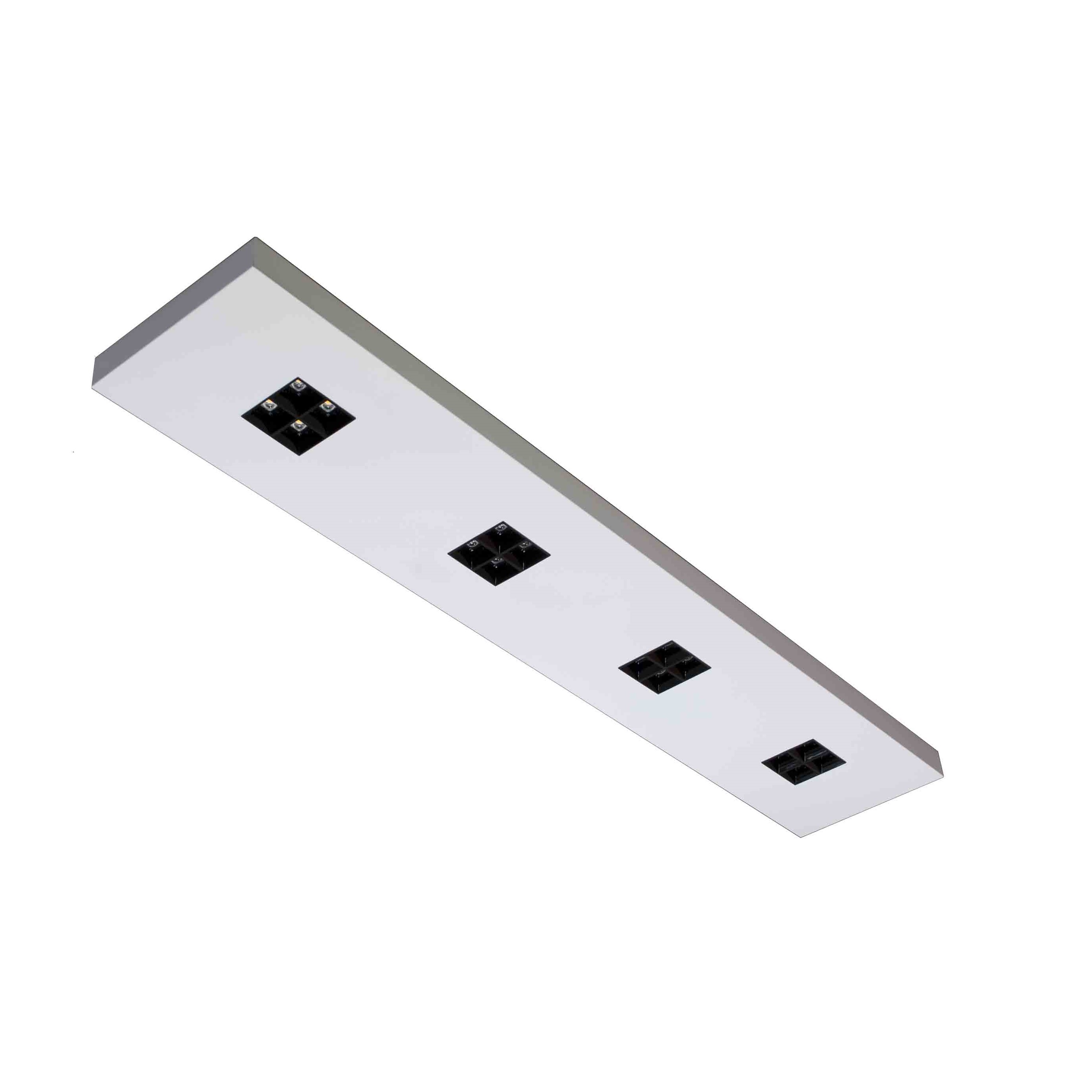

Optical system can be made from white or black optic.

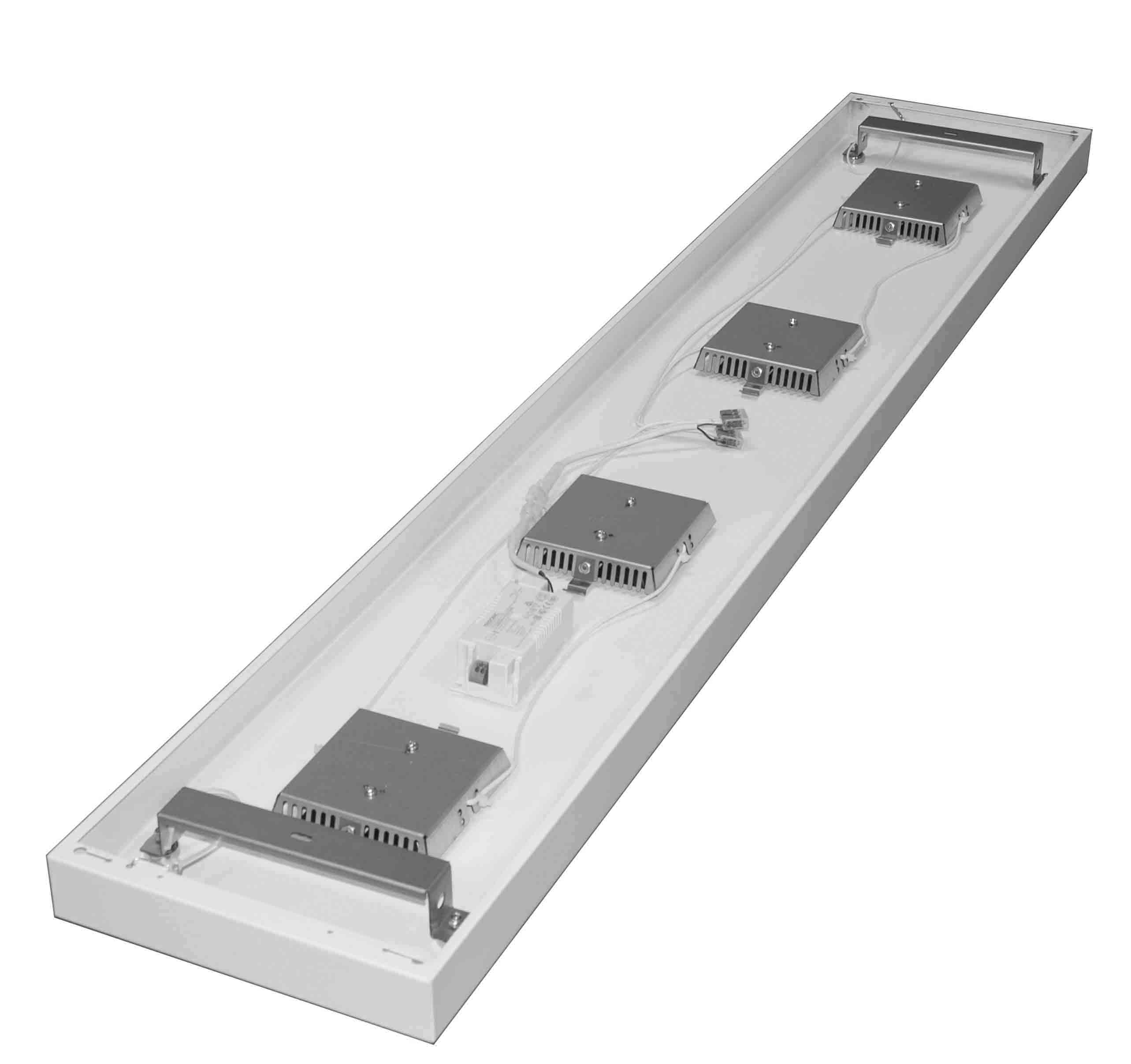

Easy installation via magnetic holders = one man installation.
Getting bored of today LED panels? Try something new with innovative optical systems MODUS LED "Panels".
| Size version: | L 1500 mm M 1200 mm S 600 mm | Body material: | White painted steel | Mounting method: | Surface mounting, Suspended | Protection class: | II | With movement sensor: | Yes | Color rendering index CRI: | 80-89, 90-100 | Light source type: | LED | Anti-glare limiting UGR: | 16 | Color temperature controllable (K): | Yes | Light outlet: | Direct | Light sharing: | Symmetric | Nominal voltage (V): | 220...240 | Degree of protection (IP): | IP20 |
| Color temperature (K): | 4000, 6500, 3000, 2700, 5700, 2700...6500 | Rated lifetime L80/B50 (h): | 80000 | Dimming 1-10 V: | Yes | Dimming DALI: | Yes | Product category: | Surface mounted ceiling- and wall luminaire | Optical system: | B50 White reflector with lenses 50° C50 Black reflector with lenses 50° C80 Black reflector with lenses 80° B80 White reflector with lenses 80° | Made in Czech republic: | Yes | Without Chinese components: | Ano | Replaceability: | Replaceable light source by professional, replaceable ballast Replaceable light source by professional, replaceable ballast | Photobiological safety EN 62 471: | RG 0 | MacAdam binning: | SDCM 3 |
LoadingFilters
Effective luminous flux (lm)
System power (W)
Product name
Effective luminous flux (lm)
System power (W)
Color temperature (K)
Optical system
Length (mm)
EPS1500S20S4CC80/14/ND
Effective luminous flux (lm): 1450
System power (W): 14
Color temperature (K): 4000
Optical system: C80
Length (mm): 200
EPS3000RM4BB50/44/ND
Effective luminous flux (lm): 2750
System power (W): 18
Color temperature (K): 4000
Optical system: B50
Length (mm): 1230
EPS3000RM4BB80/1/DALI
Effective luminous flux (lm): 2900
System power (W): 23
Color temperature (K): 4000
Optical system: B80
Length (mm): 1230
EPS3000RM4BB80/1/ND
Effective luminous flux (lm): 2900
System power (W): 23
Color temperature (K): 4000
Optical system: B80
Length (mm): 1230
EPS3000RM4BC50/44/ND/EU
Effective luminous flux (lm): 2400
System power (W): 18
Color temperature (K): 4000
Optical system: C50
Length (mm): 1230
EPS3000SS3CB80/44/ND
Effective luminous flux (lm): 2750
System power (W): 18
Color temperature (K): 3000
Optical system: B80
Length (mm): 595
EPS3000SS4BB80/44/ND
Effective luminous flux (lm): 2750
System power (W): 18
Color temperature (K): 4000
Optical system: B80
Length (mm): 595
EPS3000SS4BC80/44/ND
Effective luminous flux (lm): 2400
System power (W): 18
Color temperature (K): 4000
Optical system: C80
Length (mm): 595
EPS3000SS4CC80/44/BT
Effective luminous flux (lm): 2400
System power (W): 18
Color temperature (K): 4000
Optical system: C80
Length (mm): 595
EPS4000RM3BB50/44/ND
Effective luminous flux (lm): 3900
System power (W): 27
Color temperature (K): 3000
Optical system: B50
Length (mm): 1230
EPS4000RM3BB80/1/DALI
Effective luminous flux (lm): 4400
System power (W): 28
Color temperature (K): 3000
Optical system: B80
Length (mm): 1230
EPS4000RM3BB80/1/ND
Effective luminous flux (lm): 4400
System power (W): 28
Color temperature (K): 3000
Optical system: B80
Length (mm): 1230
EPS4000RM3BB80/44/ND
Effective luminous flux (lm): 3900
System power (W): 27
Color temperature (K): 3000
Optical system: B80
Length (mm): 1230
EPS4000RM3BC80/1/DALI
Effective luminous flux (lm): 4000
System power (W): 28
Color temperature (K): 3000
Optical system: C80
Length (mm): 1230
EPS4000RM3BC80/44/ND
Effective luminous flux (lm): 3500
System power (W): 27
Color temperature (K): 3000
Optical system: C80
Length (mm): 1230
EPS4000RM3CC80/44/DALI
Effective luminous flux (lm): 3500
System power (W): 27
Color temperature (K): 3000
Optical system: C80
Length (mm): 1230
EPS4000RM3CC80/44/ND
Effective luminous flux (lm): 3500
System power (W): 27
Color temperature (K): 3000
Optical system: C80
Length (mm): 1230
EPS4000RM4BB50/44/DALI
Effective luminous flux (lm): 3900
System power (W): 27
Color temperature (K): 4000
Optical system: B50
Length (mm): 1230
EPS4000RM4BB50/44/ND
Effective luminous flux (lm): 3900
System power (W): 27
Color temperature (K): 4000
Optical system: B50
Length (mm): 1230
EPS4000RM4BB80/1/DALI
Effective luminous flux (lm): 4400
System power (W): 28
Color temperature (K): 4000
Optical system: B80
Length (mm): 1230
EPS4000RM4BB80/1/ND
Effective luminous flux (lm): 4400
System power (W): 28
Color temperature (K): 4000
Optical system: B80
Length (mm): 1230
EPS4000RM4BB80/44/ND
Effective luminous flux (lm): 3900
System power (W): 27
Color temperature (K): 4000
Optical system: B80
Length (mm): 1230
EPS4000RM4BC50/44/DALI/90
Effective luminous flux (lm): 3000
System power (W): 27
Color temperature (K): 4000
Optical system: C50
Length (mm): 1230
EPS4000RM4BC80/1/ND
Effective luminous flux (lm): 4000
System power (W): 28
Color temperature (K): 4000
Optical system: C80
Length (mm): 1230
EPS4000RM4BC80/44/BT
Effective luminous flux (lm): 3500
System power (W): 27
Color temperature (K): 4000
Optical system: C80
Length (mm): 1230
EPS4000RM4BC80/44/DALI
Effective luminous flux (lm): 3500
System power (W): 27
Color temperature (K): 4000
Optical system: C80
Length (mm): 1230
EPS4000RM4BC80/44/ND
Effective luminous flux (lm): 3500
System power (W): 27
Color temperature (K): 4000
Optical system: C80
Length (mm): 1230
EPS4000RM4BC80/44/ND/EU
Effective luminous flux (lm): 3500
System power (W): 27
Color temperature (K): 4000
Optical system: C80
Length (mm): 1230
EPS4000RM4CC80/44/BT
Effective luminous flux (lm): 3500
System power (W): 27
Color temperature (K): 4000
Optical system: C80
Length (mm): 1230
EPS4000RM4CC80/44/DALI
Effective luminous flux (lm): 3500
System power (W): 27
Color temperature (K): 4000
Optical system: C80
Length (mm): 1230
EPS4000RM4CC80/44/ND
Effective luminous flux (lm): 3500
System power (W): 27
Color temperature (K): 4000
Optical system: C80
Length (mm): 1230
EPS4000RM4CC80/44/ND/90
Effective luminous flux (lm): 3000
System power (W): 27
Color temperature (K): 4000
Optical system: C80
Length (mm): 1230
EPS4000SS3BB80/44/DALI
Effective luminous flux (lm): 3900
System power (W): 27
Color temperature (K): 3000
Optical system: B80
Length (mm): 595
EPS4000SS3BC80/2/DALI
Effective luminous flux (lm): 4000
System power (W): 28
Color temperature (K): 3000
Optical system: C80
Length (mm): 595
EPS4000SS3BC80/44/DALI
Effective luminous flux (lm): 3500
System power (W): 27
Color temperature (K): 3000
Optical system: C80
Length (mm): 595
EPS4000SS3BC80/44/ND
Effective luminous flux (lm): 3500
System power (W): 27
Color temperature (K): 4000
Optical system: C80
Length (mm): 595
EPS4000SS3CB80/44/DALI
Effective luminous flux (lm): 3900
System power (W): 27
Color temperature (K): 3000
Optical system: B80
Length (mm): 595
EPS4000SS3CC80/44/ND
Effective luminous flux (lm): 3500
System power (W): 27
Color temperature (K): 3000
Optical system: C80
Length (mm): 595
EPS4000SS4BB80/2/DALI
Effective luminous flux (lm): 4400
System power (W): 28
Color temperature (K): 4000
Optical system: B80
Length (mm): 595
EPS4000SS4BB80/2/ND
Effective luminous flux (lm): 4400
System power (W): 28
Color temperature (K): 4000
Optical system: B80
Length (mm): 595
EPS4000SS4BB80/44/ND
Effective luminous flux (lm): 3900
System power (W): 27
Color temperature (K): 4000
Optical system: B80
Length (mm): 595
EPS4000SS4BC80/2/DALI
Effective luminous flux (lm): 4000
System power (W): 28
Color temperature (K): 4000
Optical system: C80
Length (mm): 595
EPS4000SS4BC80/2/ND
Effective luminous flux (lm): 4000
System power (W): 28
Color temperature (K): 4000
Optical system: C80
Length (mm): 595
EPS4000SS4BC80/44/DALI
Effective luminous flux (lm): 3500
System power (W): 27
Color temperature (K): 4000
Optical system: C80
Length (mm): 595
EPS4000SS4BC80/44/ND
Effective luminous flux (lm): 3500
System power (W): 27
Color temperature (K): 4000
Optical system: C80
Length (mm): 595
EPS4000SS4CC80/2/ND
Effective luminous flux (lm): 4000
System power (W): 28
Color temperature (K): 4000
Optical system: C80
Length (mm): 595
EPS4000SS4CC80/44/ND
Effective luminous flux (lm): 3500
System power (W): 27
Color temperature (K): 4000
Optical system: C80
Length (mm): 595
EPS4000SS4CC80/44/ND/90
Effective luminous flux (lm): 3000
System power (W): 27
Color temperature (K): 4000
Optical system: C80
Length (mm): 595
EPS5000RM4BB80/44/DALI/44V
Effective luminous flux (lm): 5400
System power (W): 39
Color temperature (K): 4000
Optical system: B80
Length (mm): 1230
EPS5000RM4BC80/44/DALI
Effective luminous flux (lm): 4400
System power (W): 37
Color temperature (K): 4000
Optical system: C80
Length (mm): 1230
EPS6000RL3BB80/64/ND
Effective luminous flux (lm): 6400
System power (W): 44
Color temperature (K): 3000
Optical system: B80
Length (mm): 1535
EPS6000RL3BC80/64/DALI
Effective luminous flux (lm): 5800
System power (W): 44
Color temperature (K): 3000
Optical system: C80
Length (mm): 1535
EPS6000RL3BC80/64/ND
Effective luminous flux (lm): 5800
System power (W): 44
Color temperature (K): 3000
Optical system: C80
Length (mm): 1535
EPS6000RL3CC80/64/DALI
Effective luminous flux (lm): 5800
System power (W): 44
Color temperature (K): 3000
Optical system: C80
Length (mm): 1535
EPS6000RL3CC80/64/ND
Effective luminous flux (lm): 5800
System power (W): 44
Color temperature (K): 3000
Optical system: C80
Length (mm): 1535
EPS6000RL4BB80/1/ND
Effective luminous flux (lm): 6100
System power (W): 42
Color temperature (K): 4000
Optical system: B80
Length (mm): 1535
EPS6000RL4BC50/64/ND
Effective luminous flux (lm): 5800
System power (W): 44
Color temperature (K): 4000
Optical system: C50
Length (mm): 1535
EPS6000RL4BC80/64/DALI
Effective luminous flux (lm): 5800
System power (W): 44
Color temperature (K): 4000
Optical system: C80
Length (mm): 1535
EPS6000RL4BC80/64/ND
Effective luminous flux (lm): 5800
System power (W): 44
Color temperature (K): 4000
Optical system: C80
Length (mm): 1535
EPS6000RL4CC80/64/DALI
Effective luminous flux (lm): 5800
System power (W): 44
Color temperature (K): 4000
Optical system: C80
Length (mm): 1535
EPS6000RL4CC80/64/ND
Effective luminous flux (lm): 5800
System power (W): 44
Color temperature (K): 4000
Optical system: C80
Length (mm): 1535
EPS6000RL4CC80/64/NDNZ
Effective luminous flux (lm): 5800
System power (W): 44
Color temperature (K): 4000
Optical system: C80
Length (mm): 1535
EPS6000RL5BB50/64/ND/90
Effective luminous flux (lm): 5500
System power (W): 46
Color temperature (K): 5700
Optical system: B50
Length (mm): 1535
EPS6000RM4BB80/1/ND/90
Effective luminous flux (lm): 5500
System power (W): 42
Color temperature (K): 4000
Optical system: B80
Length (mm): 1230
EPS6000RM4BC80/1/ND
Effective luminous flux (lm): 5500
System power (W): 42
Color temperature (K): 4000
Optical system: C80
Length (mm): 1230
EPS8000RL4BB50/64/ND
Effective luminous flux (lm): 8400
System power (W): 62
Color temperature (K): 4000
Optical system: B50
Length (mm): 1535
Product page - PDF
CE declaration
Assembly instruction
LDT files
Pendant mounting of luminaires
Wire suspensions sets
We are here to help
We'll advise you all, we have outstanding support.
Lighting calculations
Do you need to calculate the lighting?
LDT files
Do you need LDT data for your project?
Product support
Do not know what kind of lighting is best for you?
Connection diagrams
Do not you know how to conect luminaires properly?
