Product series

MODUS ES

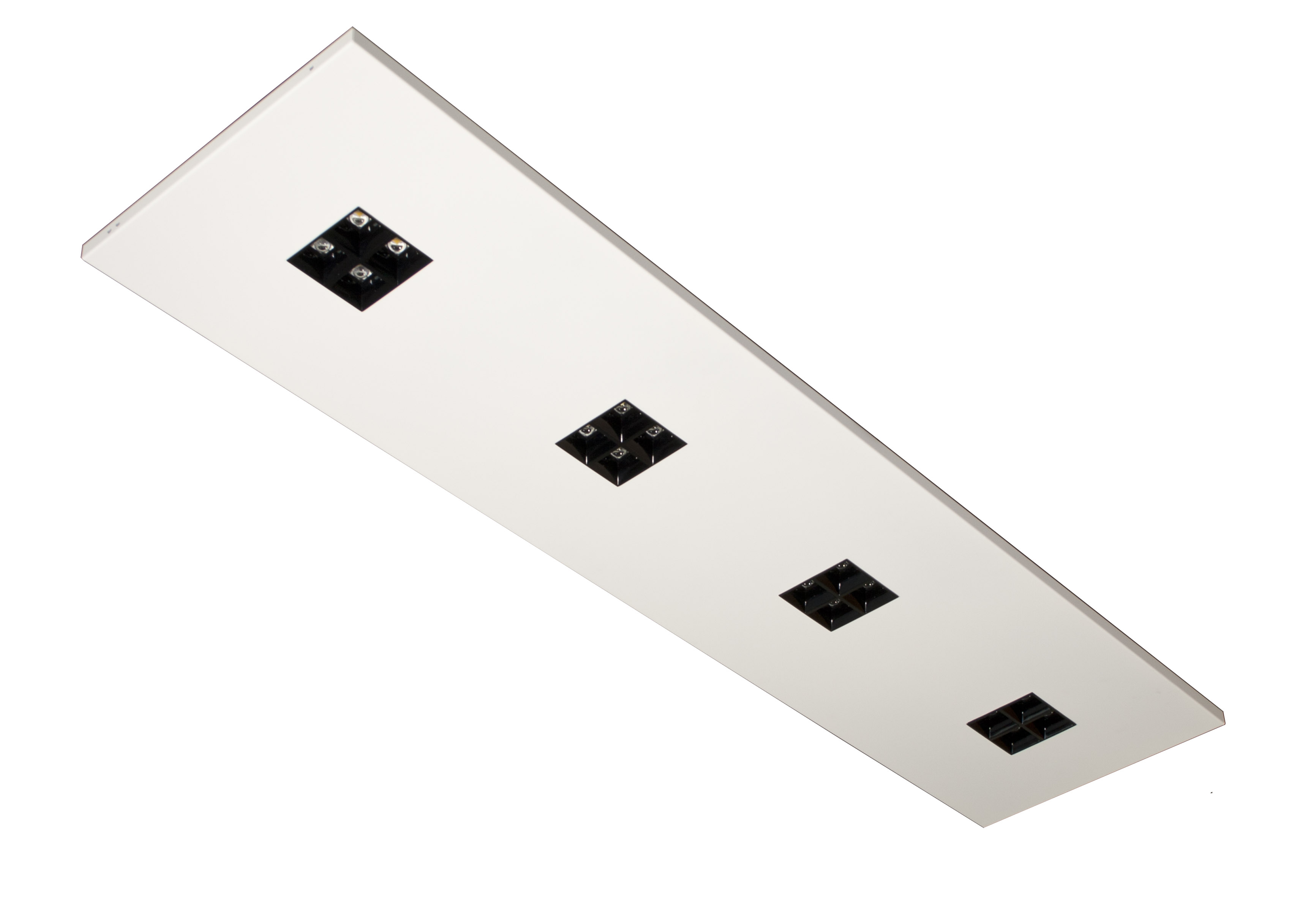

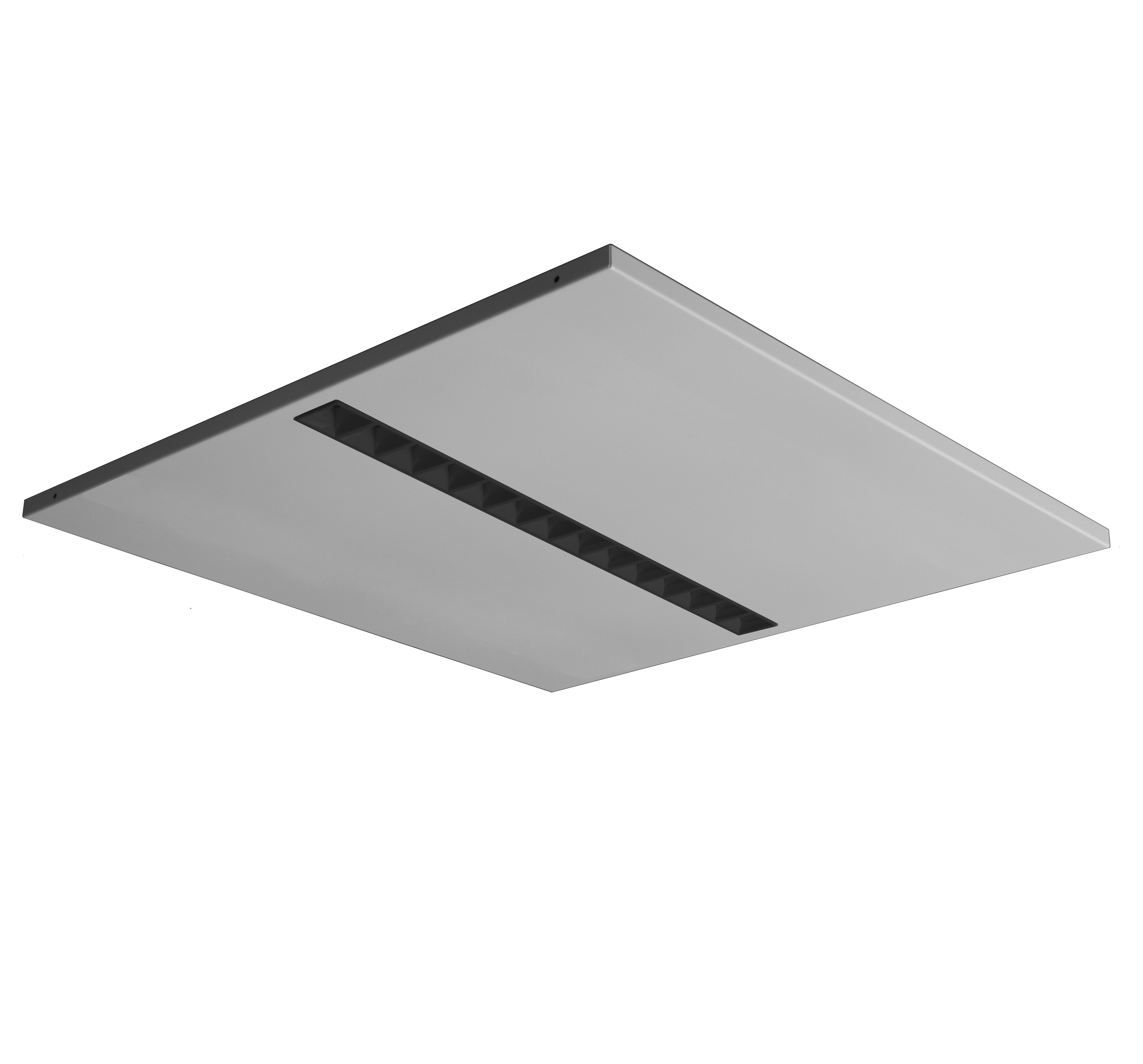

Reccessed luminaire with "dark optic"

220-240 v.png
11 L80_80000_h.jpg
en 62 471.png

Standard price from:

On request

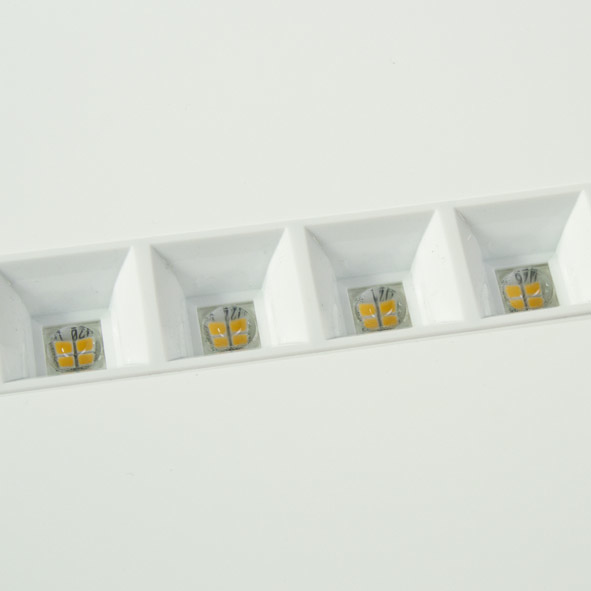

Reccessed luminaire with double optic system - primary optic is made by clear lens, secondary optic is mady with plastic louvre - white or black painting. This concept lead to low glare /UGR/ and high effectivity.

Another benefit is interesting design (for this is ideal select luminaire with white body and black plastic louvre).

Getting bored of today LED panels? Try something new with innovative optical systems MODUS LED "Panels".

Luminaire is offered in two sizes:

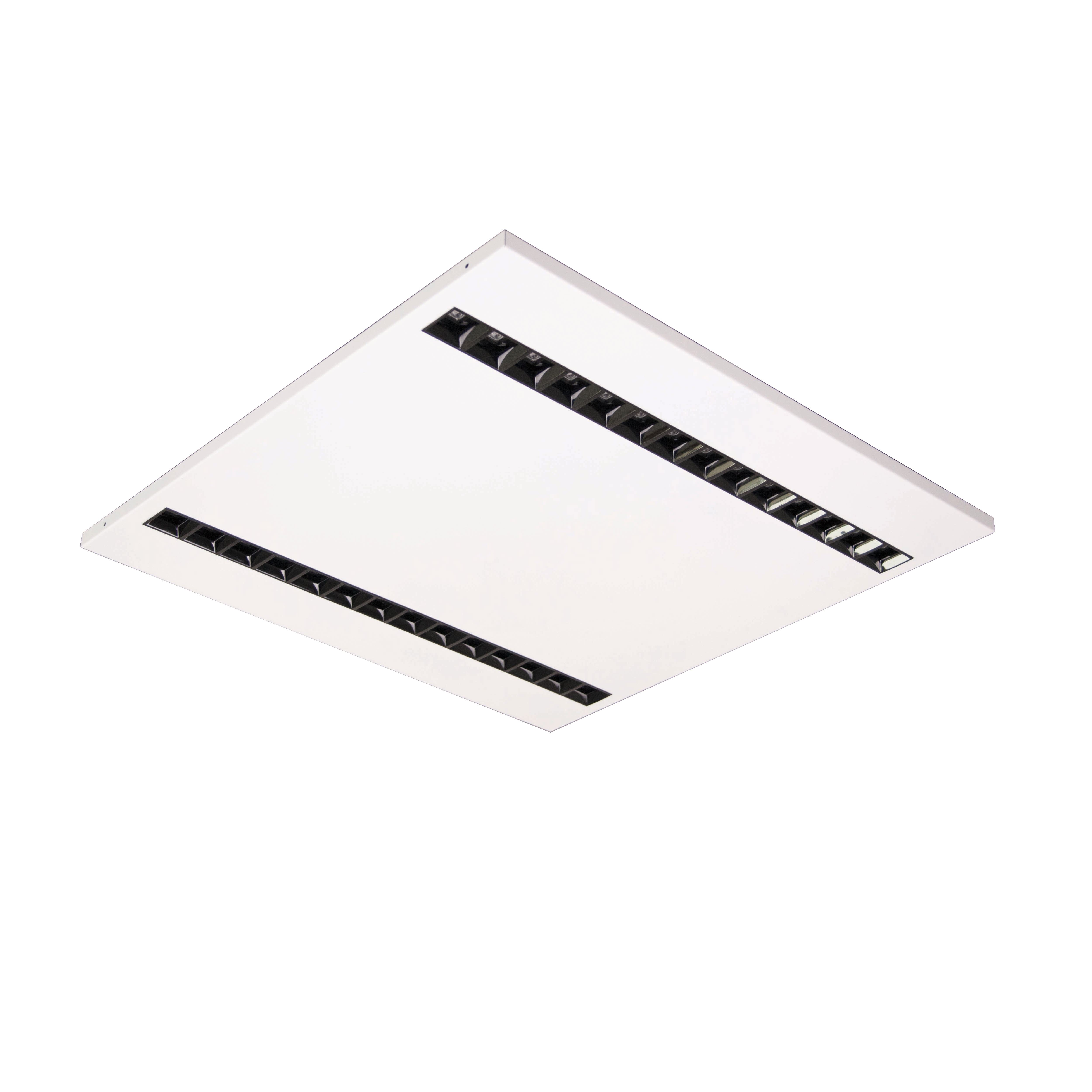

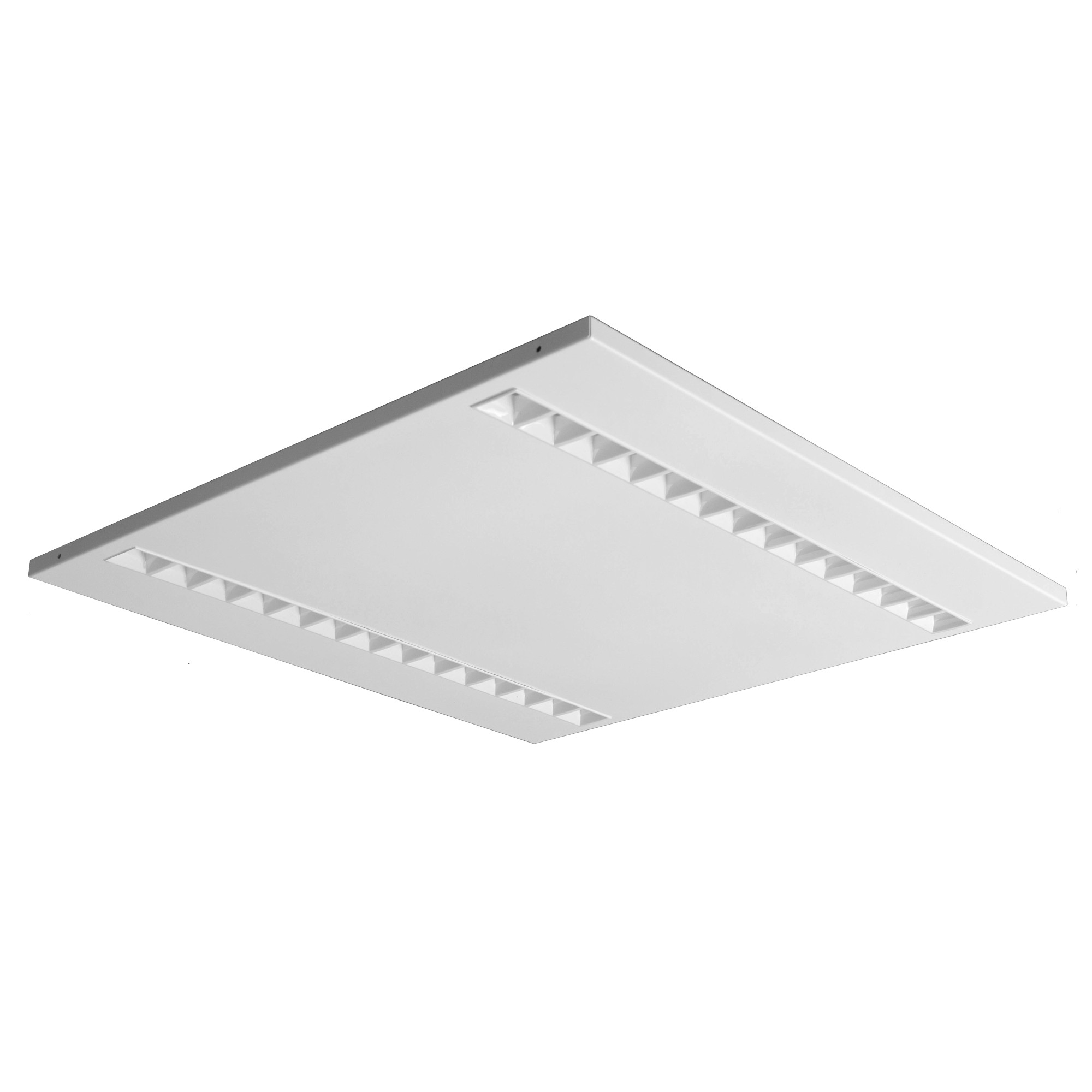

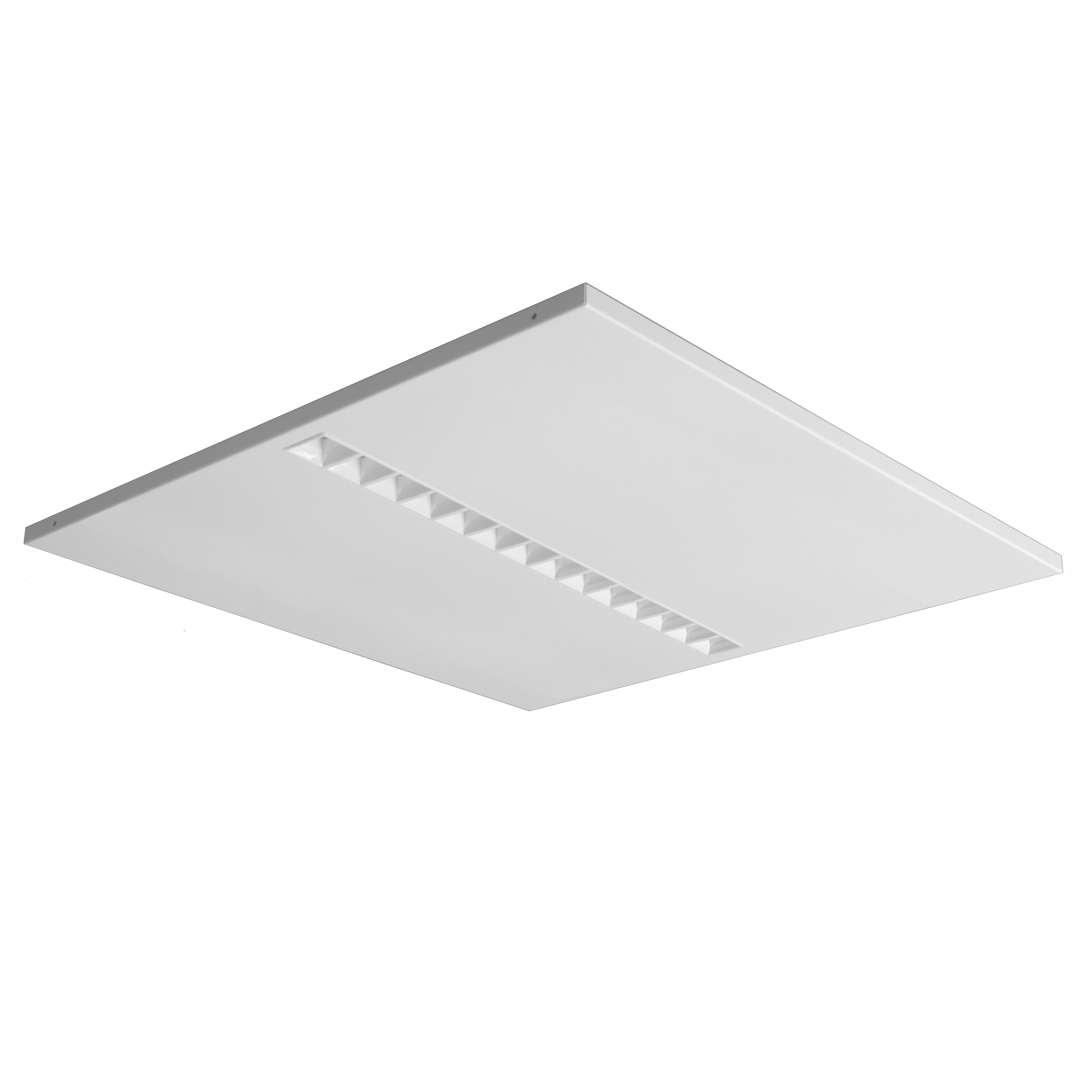

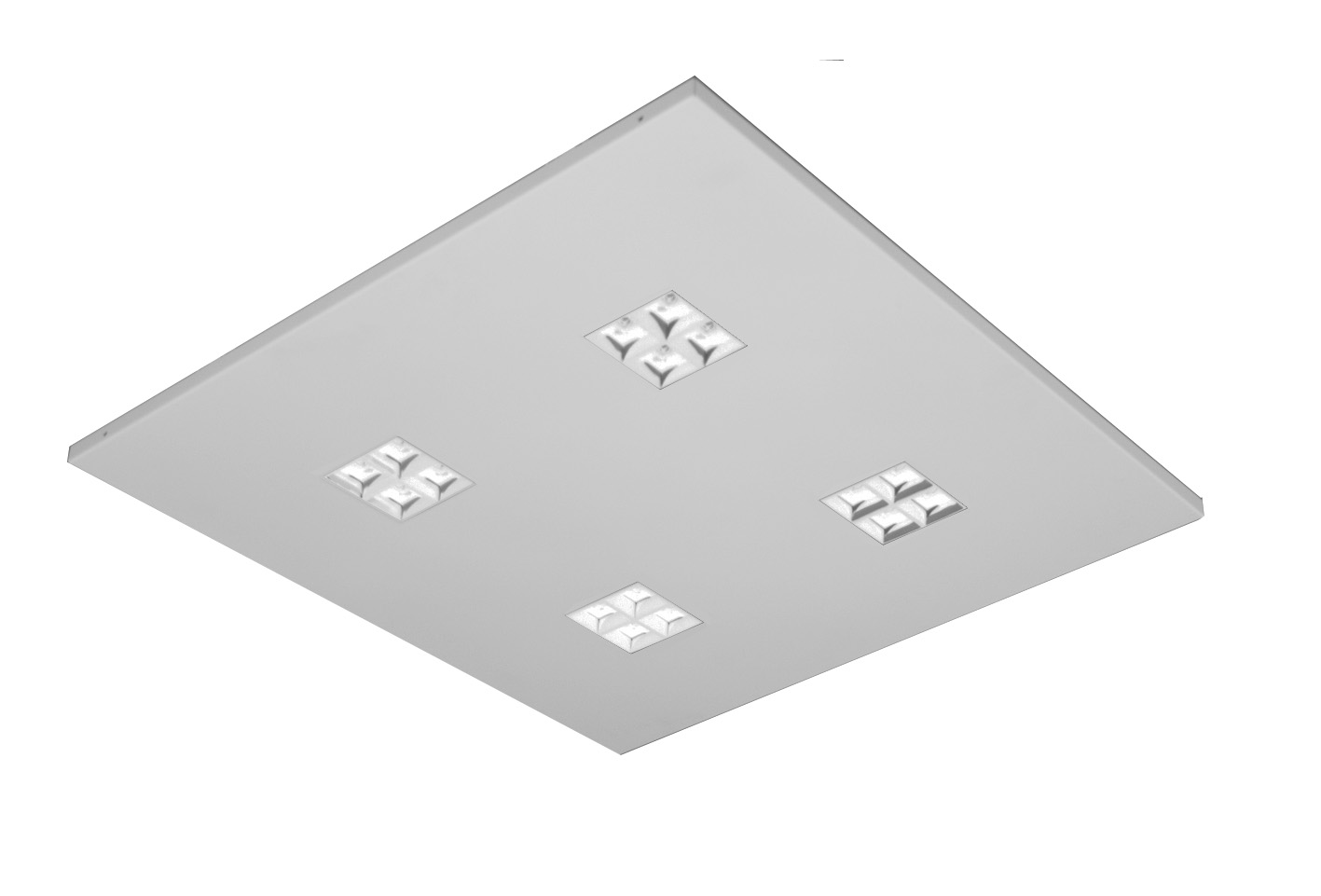

size A - square 596x596 mm

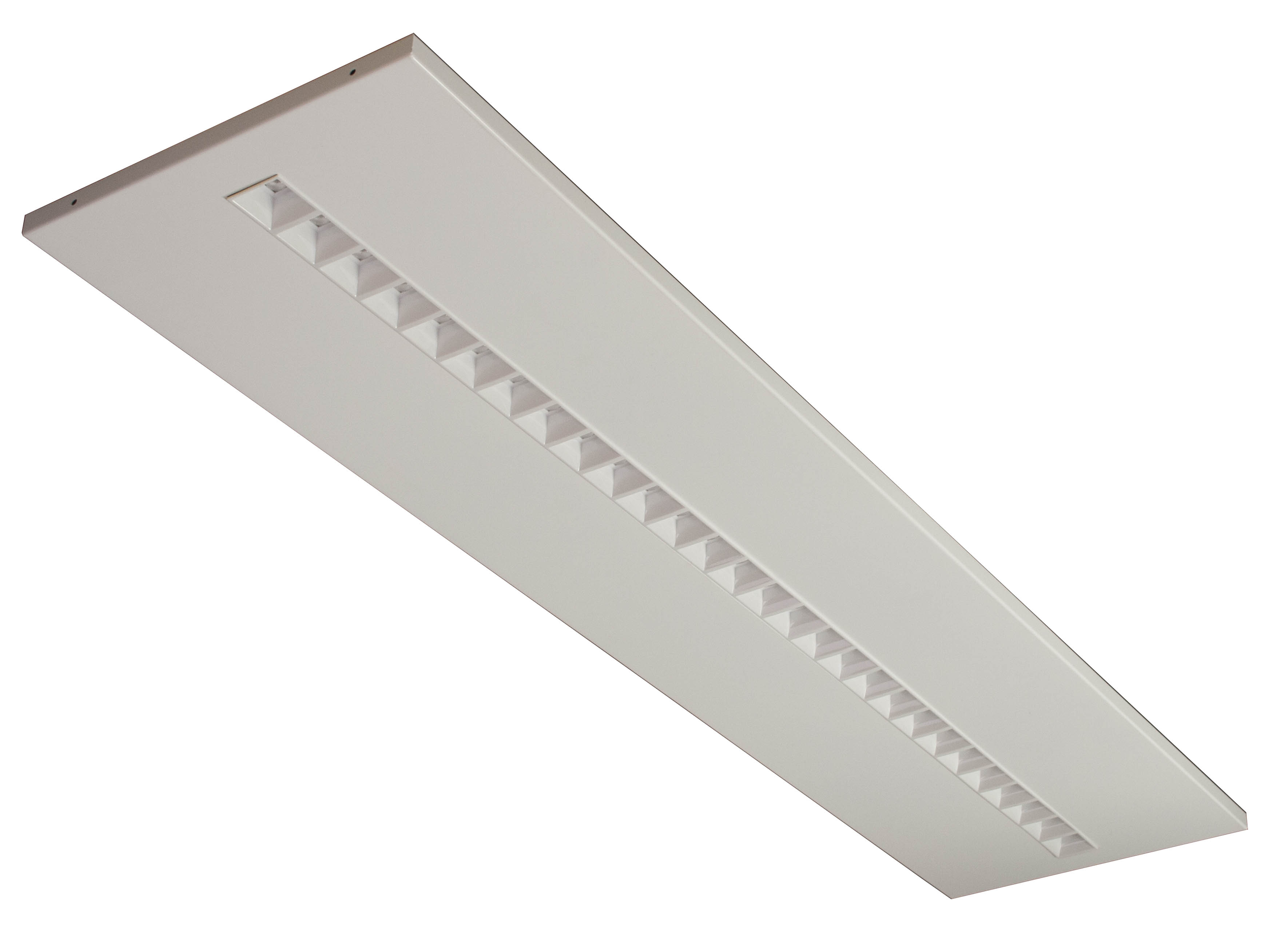

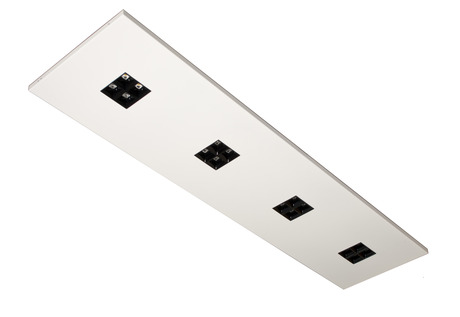

size B - rectangle 1196x296 mm.

Both versions are offered in different wattages.



Size version:A
600x600 mm or 625x625 mm
C
1200x300 mm
Body material:White painted steel

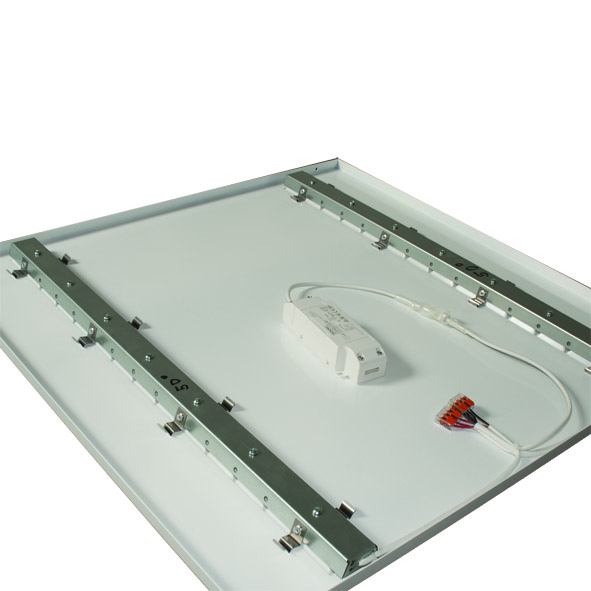

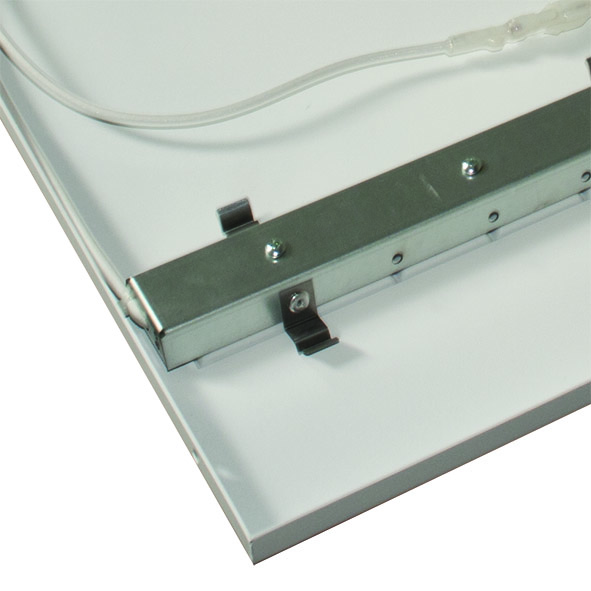

Mounting method:Built-in, Surface mountingProtection class:II
With movement sensor:YesType of control gear:ND
non-dimm
DALI
DALI dimm
BT
wireless bluetooth control
Color rendering index CRI:80-89, 90-100Light source type:LED
Anti-glare limiting UGR:16Color temperature controllable (K):Yes
Light outlet:DirectNominal voltage (V):220...240
Degree of protection (IP):IP20
Fit for monitor workplace:Yes
Color temperature (K):4000, 6500, 3000, 2700, 5700, 2700...6500Rated lifetime L80/B50 (h):80000
Dimming 1-10 V:YesDimming DALI:Yes
Product category:Recessed mounted ceiling- and wall luminaireOptical system:B50
White reflector with lenses 50°
C50

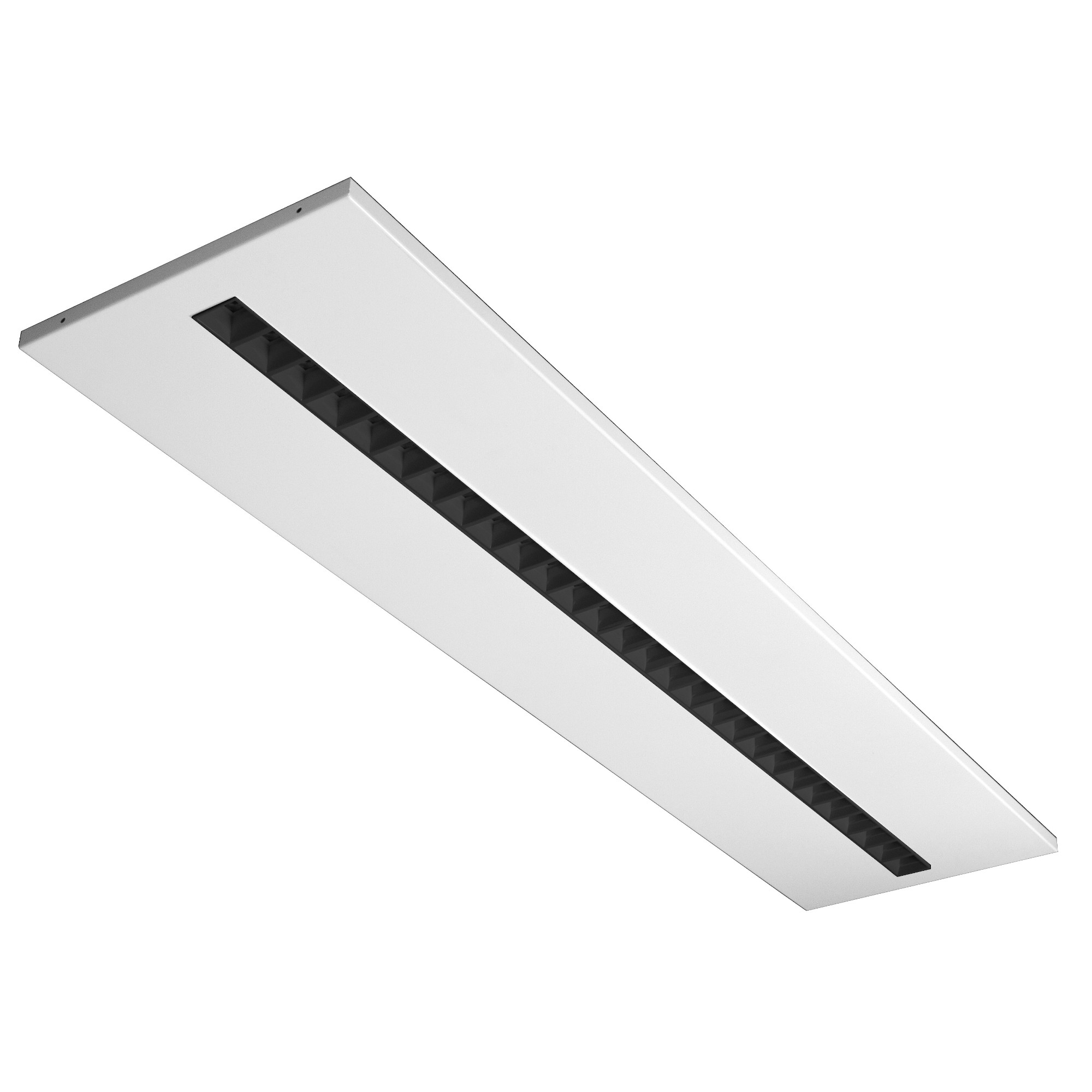

Black reflector with lenses 50°
C80
Black reflector with lenses 80°

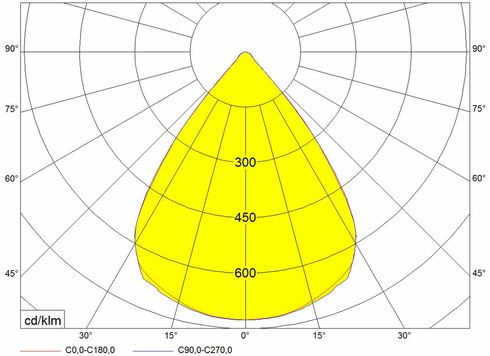

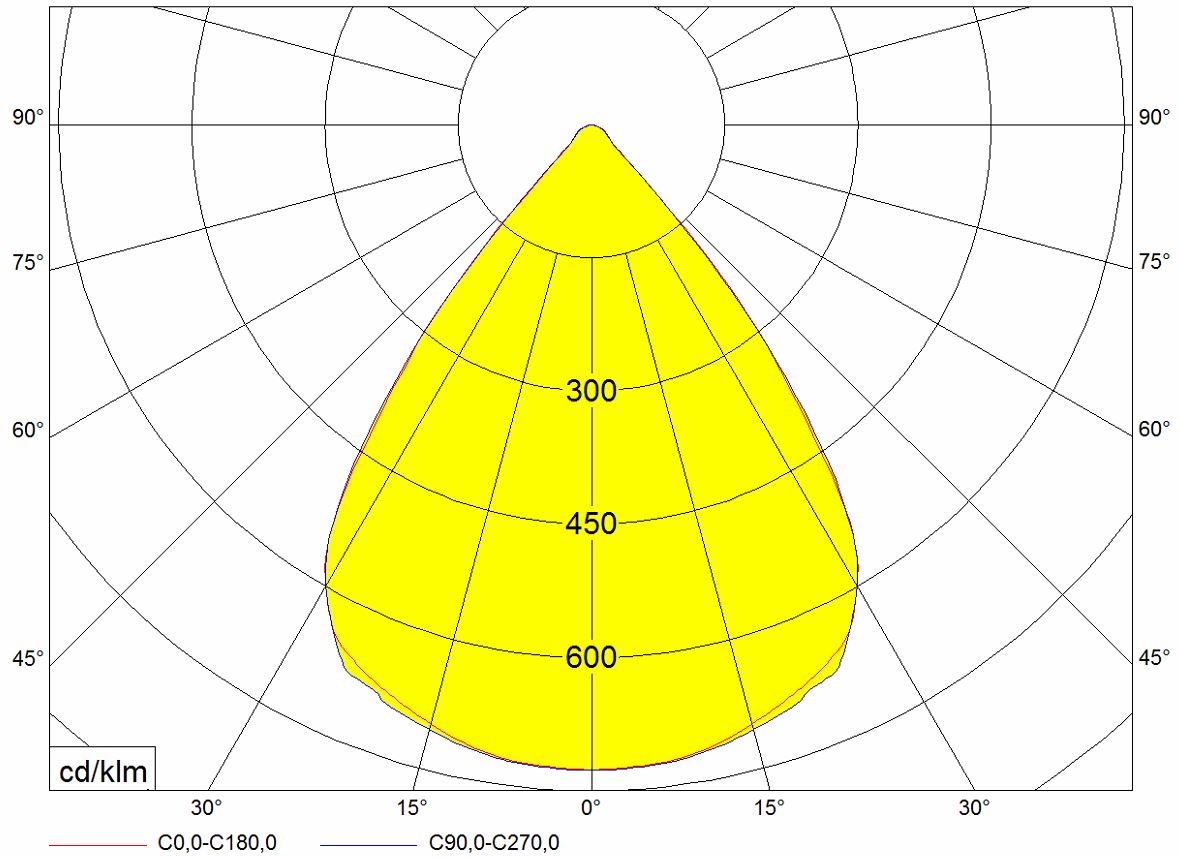

B80
White reflector with lenses 80°
Made in Czech republic:Yes Without Chinese components:Ano
Replaceability:Replaceable light source by professional, replaceable ballast
Replaceable light source by professional, replaceable ballast
Photobiological safety EN 62 471:RG 0
MacAdam binning:SDCM 3
Show more...
LoadingLoading

Filters

Effective luminous flux (lm)

1250
6100

System power (W)

16
42
Product name
ES1500A3BB80/1/600/DALI
Effective luminous flux (lm): 1400
Optical system: B80
Length (mm): 596
Raster (mm): 600
ES1500A4BB80/1/600/ND
Effective luminous flux (lm): 1400
Optical system: B80
Length (mm): 596
Raster (mm): 600
ES1500A4BB80/2/600/ND
Effective luminous flux (lm): 1400
Optical system: B80
Length (mm): 596
Raster (mm): 600
ES1500A4BC50/1/600/ND
Effective luminous flux (lm): 1250
Optical system: C50
Length (mm): 596
Raster (mm): 600
ES1500A4BC80/1/600/ND
Effective luminous flux (lm): 1250
Optical system: C80
Length (mm): 596
Raster (mm): 600
ES2000B4BB80/1/600/ND
Effective luminous flux (lm): 1950
System power (W): 16
Optical system: B80
Length (mm): 596
Raster (mm): 600
ES3000A3BB80/2/600/DALI
Effective luminous flux (lm): 2900
System power (W): 23
Optical system: B80
Length (mm): 596
Raster (mm): 600
ES3000A3BB80/2/600/ND
Effective luminous flux (lm): 2900
System power (W): 23
Optical system: B80
Length (mm): 596
Raster (mm): 600
ES3000A3BB80/2/600/ND/FS
Effective luminous flux (lm): 2900
System power (W): 23
Optical system: B80
Length (mm): 596
Raster (mm): 600
ES3000A3BB80/44/625/DALI
Effective luminous flux (lm): 2750
System power (W): 18
Optical system: B80
Length (mm): 622
Raster (mm): 625
ES3000A3BC50/44/625/ND
Effective luminous flux (lm): 2400
System power (W): 18
Optical system: C50
Length (mm): 622
Raster (mm): 625
ES3000A3BC80/1/600/DALI
Effective luminous flux (lm): 2700
System power (W): 23
Optical system: C80
Length (mm): 596
Raster (mm): 600
ES3000A3BC80/1/600/ND
Effective luminous flux (lm): 2700
System power (W): 23
Optical system: C80
Length (mm): 596
Raster (mm): 600
ES3000A3BC80/2/600/ND
Effective luminous flux (lm): 2600
System power (W): 23
Optical system: C80
Length (mm): 596
Raster (mm): 600
ES3000A3BC80/44/600/ND
Effective luminous flux (lm): 2400
System power (W): 18
Optical system: C80
Length (mm): 596
Raster (mm): 600
ES3000A3CC50/1/600/DALI
Effective luminous flux (lm): 2700
System power (W): 23
Optical system: C50
Length (mm): 596
Raster (mm): 600
ES3000A3CC80/1/600/DALI
Effective luminous flux (lm): 2700
System power (W): 23
Optical system: C80
Length (mm): 596
Raster (mm): 600
ES3000A3CC80/2/600/DALI
Effective luminous flux (lm): 2600
System power (W): 23
Optical system: C80
Length (mm): 596
Raster (mm): 600
ES3000A3CC80/2/600/ND
Effective luminous flux (lm): 2600
System power (W): 23
Optical system: C80
Length (mm): 596
Raster (mm): 600
ES3000A4BB50/2/600/DALI
Effective luminous flux (lm): 2900
System power (W): 23
Optical system: B50
Length (mm): 596
Raster (mm): 600
ES3000A4BB50/2/600/ND/90
Effective luminous flux (lm): 2500
System power (W): 23
Optical system: B50
Length (mm): 596
Raster (mm): 600
ES3000A4BB80/1/600/ND
Effective luminous flux (lm): 3000
System power (W): 22
Optical system: B80
Length (mm): 596
Raster (mm): 600
ES3000A4BB80/2/600/DALI
Effective luminous flux (lm): 2900
System power (W): 23
Optical system: B80
Length (mm): 596
Raster (mm): 600
ES3000A4BB80/2/600/ND
Effective luminous flux (lm): 2900
System power (W): 23
Optical system: B80
Length (mm): 596
Raster (mm): 600
ES3000A4BB80/2/625/ND
Effective luminous flux (lm): 2900
System power (W): 23
Optical system: B80
Length (mm): 622
Raster (mm): 625
ES3000A4BB80/44/600/DALI
Effective luminous flux (lm): 2750
System power (W): 18
Optical system: B80
Length (mm): 596
Raster (mm): 600
ES3000A4BB80/44/600/ND
Effective luminous flux (lm): 2750
System power (W): 18
Optical system: B80
Length (mm): 596
Raster (mm): 600
ES3000A4BB80/44/600/ND/PIR
Effective luminous flux (lm): 2750
System power (W): 18
Optical system: B80
Length (mm): 596
Raster (mm): 600
ES3000A4BC50/2/600/DALI
Effective luminous flux (lm): 2900
System power (W): 23
Optical system: C50
Length (mm): 596
Raster (mm): 600
ES3000A4BC80/1/600/BT
Effective luminous flux (lm): 2700
System power (W): 23
Optical system: C80
Length (mm): 596
Raster (mm): 600
MODUS SMART: Bluetooth
ES3000A4BC80/2/600/ND
Effective luminous flux (lm): 2600
System power (W): 23
Optical system: C80
Length (mm): 596
Raster (mm): 600
ES3000A4BC80/44/600/DALI
Effective luminous flux (lm): 2400
System power (W): 18
Optical system: C80
Length (mm): 596
Raster (mm): 600
ES3000A4BC80/44/600/ND
Effective luminous flux (lm): 2400
System power (W): 18
Optical system: C80
Length (mm): 596
Raster (mm): 600
ES3000A4CC80/1/600/ND
Effective luminous flux (lm): 2700
System power (W): 23
Optical system: C80
Length (mm): 596
Raster (mm): 600
ES3000A4CC80/2/600/DALI
Effective luminous flux (lm): 2600
System power (W): 23
Optical system: C80
Length (mm): 596
Raster (mm): 600
ES3000A4CC80/2/600/ND
Effective luminous flux (lm): 2600
System power (W): 23
Optical system: C80
Length (mm): 596
Raster (mm): 600
ES3000A5BB80/2/600/ND
Effective luminous flux (lm): 2900
System power (W): 23
Optical system: B80
Length (mm): 596
Raster (mm): 600
ES3000B4BB80/1/600/ND
Effective luminous flux (lm): 3000
System power (W): 22
Optical system: B80
Length (mm): 596
Raster (mm): 600
ES3000C4BB50/1/600/ND
Effective luminous flux (lm): 2900
System power (W): 23
Optical system: B50
Length (mm): 1196
Raster (mm): 600
ES3000C4BB80/1/600/ND
Effective luminous flux (lm): 2900
System power (W): 23
Optical system: B80
Length (mm): 1196
Raster (mm): 600
ES4000A3BB80/2/600/DALI
Effective luminous flux (lm): 4400
System power (W): 28
Optical system: B80
Length (mm): 596
Raster (mm): 600
ES4000A3BB80/2/600/ND
Effective luminous flux (lm): 4400
System power (W): 28
Optical system: B80
Length (mm): 596
Raster (mm): 600
ES4000A3BB80/2/625/DALI
Effective luminous flux (lm): 4400
System power (W): 28
Optical system: B80
Length (mm): 622
Raster (mm): 625
ES4000A3BB80/2/625/ND
Effective luminous flux (lm): 4400
System power (W): 28
Optical system: B80
Length (mm): 622
Raster (mm): 625
ES4000A3BB80/44/600/DALI
Effective luminous flux (lm): 3900
System power (W): 27
Optical system: B80
Length (mm): 596
Raster (mm): 600
ES4000A3BB80/44/600/ND
Effective luminous flux (lm): 3900
System power (W): 27
Optical system: B80
Length (mm): 596
Raster (mm): 600
ES4000A3BC80/2/600/ND
Effective luminous flux (lm): 4000
System power (W): 28
Optical system: C80
Length (mm): 596
Raster (mm): 600
ES4000A3BC80/2/600/ND/S158
Effective luminous flux (lm): 4000
System power (W): 28
Optical system: C80
Length (mm): 596
Raster (mm): 600
ES4000A3BC80/44/600/ND
Effective luminous flux (lm): 3500
System power (W): 27
Optical system: C80
Length (mm): 596
Raster (mm): 600
ES4000A3CC50/2/600/ND
Effective luminous flux (lm): 4000
System power (W): 28
Optical system: C50
Length (mm): 596
Raster (mm): 600
ES4000A3CC50/44/600/DALI
Effective luminous flux (lm): 3500
System power (W): 27
Optical system: C50
Length (mm): 596
Raster (mm): 600
ES4000A3CC80/2/600/DALI
Effective luminous flux (lm): 4000
System power (W): 28
Optical system: C80
Length (mm): 596
Raster (mm): 600
ES4000A3CC80/2/600/ND
Effective luminous flux (lm): 4000
System power (W): 28
Optical system: C80
Length (mm): 596
Raster (mm): 600
ES4000A3CC80/2/625/ND
Effective luminous flux (lm): 4000
System power (W): 28
Optical system: C80
Length (mm): 622
Raster (mm): 625
ES4000A3CC80/44/600/ND
Effective luminous flux (lm): 3500
System power (W): 27
Optical system: C80
Length (mm): 596
Raster (mm): 625
ES4000A4BB50/2/600/ND/90
Effective luminous flux (lm): 3800
System power (W): 28
Optical system: B50
Length (mm): 596
Raster (mm): 600
ES4000A4BB50/2/625/DALI
Effective luminous flux (lm): 4400
System power (W): 28
Optical system: B50
Length (mm): 622
Raster (mm): 625
ES4000A4BB50/2/625/ND
Effective luminous flux (lm): 4400
System power (W): 28
Optical system: B50
Length (mm): 622
Raster (mm): 625
ES4000A4BB50/44/600/DALI
Effective luminous flux (lm): 3900
System power (W): 27
Optical system: B50
Length (mm): 596
Raster (mm): 600
ES4000A4BB50/44/600/ND
Effective luminous flux (lm): 3900
System power (W): 27
Optical system: B50
Length (mm): 596
Raster (mm): 600
ES4000A4BB50/44/625/ND
Effective luminous flux (lm): 3900
System power (W): 27
Optical system: B50
Length (mm): 622
Raster (mm): 625
ES4000A4BB80/2/600/DALI
Effective luminous flux (lm): 4400
System power (W): 28
Optical system: B80
Length (mm): 596
Raster (mm): 600
ES4000A4BB80/2/600/DALI/90
Effective luminous flux (lm): 3800
System power (W): 28
Optical system: B80
Length (mm): 596
Raster (mm): 600
ES4000A4BB80/2/600/ND
Effective luminous flux (lm): 4400
System power (W): 28
Optical system: B80
Length (mm): 596
Raster (mm): 600
ES4000A4BB80/2/600/ND/90
Effective luminous flux (lm): 3800
System power (W): 28
Optical system: B80
Length (mm): 596
Raster (mm): 600
ES4000A4BB80/2/600/ND/PIR
Effective luminous flux (lm): 4400
System power (W): 28
Optical system: B80
Length (mm): 596
Raster (mm): 600
ES4000A4BB80/2/600/ND/S201
Effective luminous flux (lm): 4400
System power (W): 28
Optical system: B80
Length (mm): 596
Raster (mm): 600
ES4000A4BB80/2/600/ND/SDK
Effective luminous flux (lm): 4400
System power (W): 28
Optical system: B80
Length (mm): 596
Raster (mm): 600
ES4000A4BB80/2/625/DALI
Effective luminous flux (lm): 4400
System power (W): 28
Optical system: B80
Length (mm): 622
Raster (mm): 625
ES4000A4BB80/2/625/ND
Effective luminous flux (lm): 4400
System power (W): 28
Optical system: B80
Length (mm): 622
Raster (mm): 625
ES4000A4BB80/2/625/ND/PIR
Effective luminous flux (lm): 4400
System power (W): 28
Optical system: B80
Length (mm): 622
Raster (mm): 625
ES4000A4BB80/44/450/DALI/SDK
Effective luminous flux (lm): 3900
System power (W): 27
Optical system: B80
Length (mm): 450
Raster (mm): 600
ES4000A4BB80/44/600/DALI
Effective luminous flux (lm): 3900
System power (W): 27
Optical system: B80
Length (mm): 596
Raster (mm): 600
ES4000A4BB80/44/600/ND
Effective luminous flux (lm): 3900
System power (W): 27
Optical system: B80
Length (mm): 596
Raster (mm): 600
ES4000A4BB80/44/600/ND/EU
Effective luminous flux (lm): 3900
System power (W): 27
Optical system: B80
Length (mm): 596
Raster (mm): 600
ES4000A4BB80/44/625/DALI
Effective luminous flux (lm): 3900
System power (W): 27
Optical system: B80
Length (mm): 622
Raster (mm): 625
ES4000A4BB80/44/625/ND
Effective luminous flux (lm): 3900
System power (W): 27
Optical system: B80
Length (mm): 622
Raster (mm): 625
ES4000A4BC50/2/600/DALI
Effective luminous flux (lm): 4000
System power (W): 28
Optical system: C50
Length (mm): 596
Raster (mm): 600
ES4000A4BC80/2/600/BT
Effective luminous flux (lm): 4000
System power (W): 28
Optical system: C80
Length (mm): 596
Raster (mm): 600
MODUS SMART: Bluetooth
ES4000A4BC80/2/600/DALI
Effective luminous flux (lm): 4000
System power (W): 28
Optical system: C80
Length (mm): 596
Raster (mm): 600
ES4000A4BC80/2/600/ND
Effective luminous flux (lm): 4000
System power (W): 28
Optical system: C80
Length (mm): 596
Raster (mm): 600
ES4000A4BC80/2/625/DALI
Effective luminous flux (lm): 4000
System power (W): 28
Optical system: C80
Length (mm): 622
Raster (mm): 625
ES4000A4BC80/2/625/ND
Effective luminous flux (lm): 4000
System power (W): 28
Optical system: C80
Length (mm): 622
Raster (mm): 625
ES4000A4BC80/44/600/DALI
Effective luminous flux (lm): 3500
System power (W): 27
Optical system: C80
Length (mm): 596
Raster (mm): 600
ES4000A4BC80/44/600/ND
Effective luminous flux (lm): 3500
System power (W): 27
Optical system: C80
Length (mm): 596
Raster (mm): 600
ES4000A4BC80/44/600/ND/EU
Effective luminous flux (lm): 3500
System power (W): 27
Optical system: C80
Length (mm): 596
Raster (mm): 600
ES4000A4BC80/44/625/DALI
Effective luminous flux (lm): 3500
System power (W): 27
Optical system: C80
Length (mm): 622
Raster (mm): 625
ES4000A4BC80/44/625/ND
Effective luminous flux (lm): 3500
System power (W): 27
Optical system: C80
Length (mm): 622
Raster (mm): 625
ES4000A4BCM80/2/600/ND
Effective luminous flux (lm): 3900
System power (W): 28
Length (mm): 596
Raster (mm): 600
ES4000A4CB80/44/600/DALI
Effective luminous flux (lm): 3900
System power (W): 27
Optical system: B80
Length (mm): 596
Raster (mm): 600
ES4000A4CC80/2/600/BT
Effective luminous flux (lm): 4000
System power (W): 28
Optical system: C80
Length (mm): 596
Raster (mm): 600
MODUS SMART: Bluetooth
ES4000A4CC80/2/600/ND
Effective luminous flux (lm): 4000
System power (W): 28
Optical system: C80
Length (mm): 596
Raster (mm): 600
ES4000A4CC80/2/600/ND/FS
Effective luminous flux (lm): 4000
System power (W): 28
Optical system: C80
Length (mm): 596
Raster (mm): 600
ES4000A4CC80/2/625/ND
Effective luminous flux (lm): 4000
System power (W): 28
Optical system: C80
Length (mm): 622
Raster (mm): 625
ES4000A4CC80/44/600/DALI/S158
Effective luminous flux (lm): 3500
System power (W): 27
Optical system: C80
Length (mm): 596
Raster (mm): 600
ES4000A4CC80/44/600/ND/EU
Effective luminous flux (lm): 3500
System power (W): 27
Optical system: C80
Length (mm): 596
Raster (mm): 600
ES4000A4CC80/44/625/DALI
Effective luminous flux (lm): 3500
System power (W): 27
Optical system: C80
Length (mm): 622
Raster (mm): 625
ES4000A4CC80/44/625/ND
Effective luminous flux (lm): 3500
System power (W): 27
Optical system: C80
Length (mm): 622
Raster (mm): 625
ES4000A6BB80/2/600/DALI/90
Effective luminous flux (lm): 3800
System power (W): 28
Optical system: B80
Length (mm): 596
Raster (mm): 600
ES4000AMIXBB80/2/600
Effective luminous flux (lm): 3600
System power (W): 28
Optical system: B80
Length (mm): 596
Raster (mm): 600
ES4000AMIXBC80/2/600
Effective luminous flux (lm): 3300
System power (W): 28
Optical system: C80
Length (mm): 596
Raster (mm): 600
ES4000C4BB80/1/600/ND
Effective luminous flux (lm): 4400
System power (W): 28
Optical system: B80
Length (mm): 1196
Raster (mm): 600
ES4000C4BB80/44/600/ND
Effective luminous flux (lm): 3900
System power (W): 27
Optical system: B80
Length (mm): 1196
Raster (mm): 600
ES4000C4BB80/44/625/ND
Effective luminous flux (lm): 3900
System power (W): 27
Optical system: B80
Length (mm): 1245
Raster (mm): 625
ES4000C4BC80/1/600/DALI
Effective luminous flux (lm): 4000
System power (W): 28
Optical system: C80
Length (mm): 596
Raster (mm): 600
ES4000C4BC80/1/600/ND
Effective luminous flux (lm): 4000
System power (W): 28
Optical system: C80
Length (mm): 1196
Raster (mm): 600
ES4000C4BC80/44/600/DALI
Effective luminous flux (lm): 3500
System power (W): 27
Optical system: C80
Length (mm): 1196
Raster (mm): 600
ES4000C4BC80/44/600/ND
Effective luminous flux (lm): 3500
System power (W): 27
Optical system: C80
Length (mm): 1196
Raster (mm): 600
ES4000C4BC80/44/625/ND
Effective luminous flux (lm): 3500
System power (W): 27
Optical system: C80
Length (mm): 1245
Raster (mm): 625
ES5000A4BC80/44/600/ND
Effective luminous flux (lm): 5100
System power (W): 33
Optical system: C80
Length (mm): 596
Raster (mm): 600
ES6000A2BC80/2/600/DALI
Effective luminous flux (lm): 5500
System power (W): 42
Optical system: C80
Length (mm): 596
Raster (mm): 600
ES6000A3BC80/2/600/DALI
Effective luminous flux (lm): 5500
System power (W): 42
Optical system: C80
Length (mm): 596
Raster (mm): 600
ES6000A3BC80/2/625/DALI
Effective luminous flux (lm): 5500
System power (W): 42
Optical system: C80
Length (mm): 622
Raster (mm): 625
ES6000A3CC80/2/600/DALI
Effective luminous flux (lm): 5500
System power (W): 42
Optical system: C80
Length (mm): 596
Raster (mm): 600
ES6000A4BB50/2/600/ND/90
Effective luminous flux (lm): 4700
System power (W): 42
Optical system: B50
Length (mm): 596
Raster (mm): 600
ES6000A4BB80/2/600/DALI/90
Effective luminous flux (lm): 4700
System power (W): 42
ES6000A4BB80/2/600/ND
Effective luminous flux (lm): 6100
System power (W): 42
Optical system: B80
Length (mm): 596
Raster (mm): 600
ES6000A4BB80/2/625/DALI
Effective luminous flux (lm): 6100
System power (W): 42
Optical system: B80
Length (mm): 622
Raster (mm): 625
ES6000A4BB80/2/625/ND
Effective luminous flux (lm): 5500
System power (W): 42
Optical system: B80
Length (mm): 622
Raster (mm): 625
ES6000A4BC50/2/600/DALI
Effective luminous flux (lm): 5500
System power (W): 42
Optical system: C50
Length (mm): 596
Raster (mm): 600
ES6000A4BC50/2/600/ND
Effective luminous flux (lm): 5500
System power (W): 42
Optical system: C50
Length (mm): 596
Raster (mm): 600
ES6000A4BC80/2/600/BT
Effective luminous flux (lm): 5500
System power (W): 42
Optical system: C80
Length (mm): 596
Raster (mm): 600
MODUS SMART: Bluetooth
ES6000A4BC80/2/600/DALI
Effective luminous flux (lm): 5500
System power (W): 42
Optical system: C80
Length (mm): 596
Raster (mm): 600
ES6000A4BC80/2/600/ND
Effective luminous flux (lm): 5500
System power (W): 42
Optical system: C80
Length (mm): 596
Raster (mm): 600
ES6000A4CC80/2/600/DALI
Effective luminous flux (lm): 5500
System power (W): 42
Optical system: C80
Length (mm): 596
Raster (mm): 600
ES6000A4CC80/2/625/DALI
Effective luminous flux (lm): 5500
System power (W): 42
Optical system: C80
Length (mm): 622
Raster (mm): 625
ES6000C4BB50/1/600/ND
Effective luminous flux (lm): 6100
System power (W): 42
Optical system: B50
Length (mm): 1196
Raster (mm): 600
ES6000C4BB80/1/600/DALI
Effective luminous flux (lm): 6100
System power (W): 42
Optical system: B80
Length (mm): 1196
Raster (mm): 600
ES6000C4BB80/1/600/ND
Effective luminous flux (lm): 6100
System power (W): 42
Optical system: B80
Length (mm): 1196
Raster (mm): 600
ES6000C4BB80/1/600/ND/90
Effective luminous flux (lm): 5200
System power (W): 42
Optical system: B80
Length (mm): 1196
Raster (mm): 600
ES6000C4CB80/1/600/BT
Effective luminous flux (lm): 6100
System power (W): 42
Optical system: B80
Length (mm): 1196
Raster (mm): 600
MODUS SMART: Bluetooth
UQRAM

UQRAM

Aluminium frame for surface installation of LED panels

We are here to help

We'll advise you all, we have outstanding support.
Lighting calculations

Lighting calculations

Do you need to calculate the lighting?

LDT files

LDT files

Do you need LDT data for your project?

Product support

Product support

Do not know what kind of lighting is best for you?

Connection diagrams

Connection diagrams

Do not you know how to conect luminaires properly?

Contact
