Product series
MODUS ESD

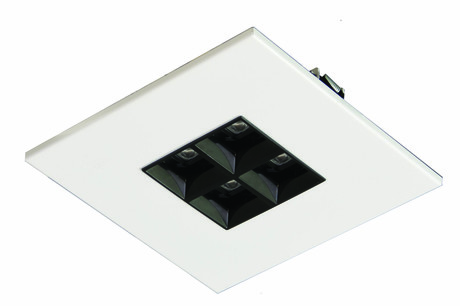

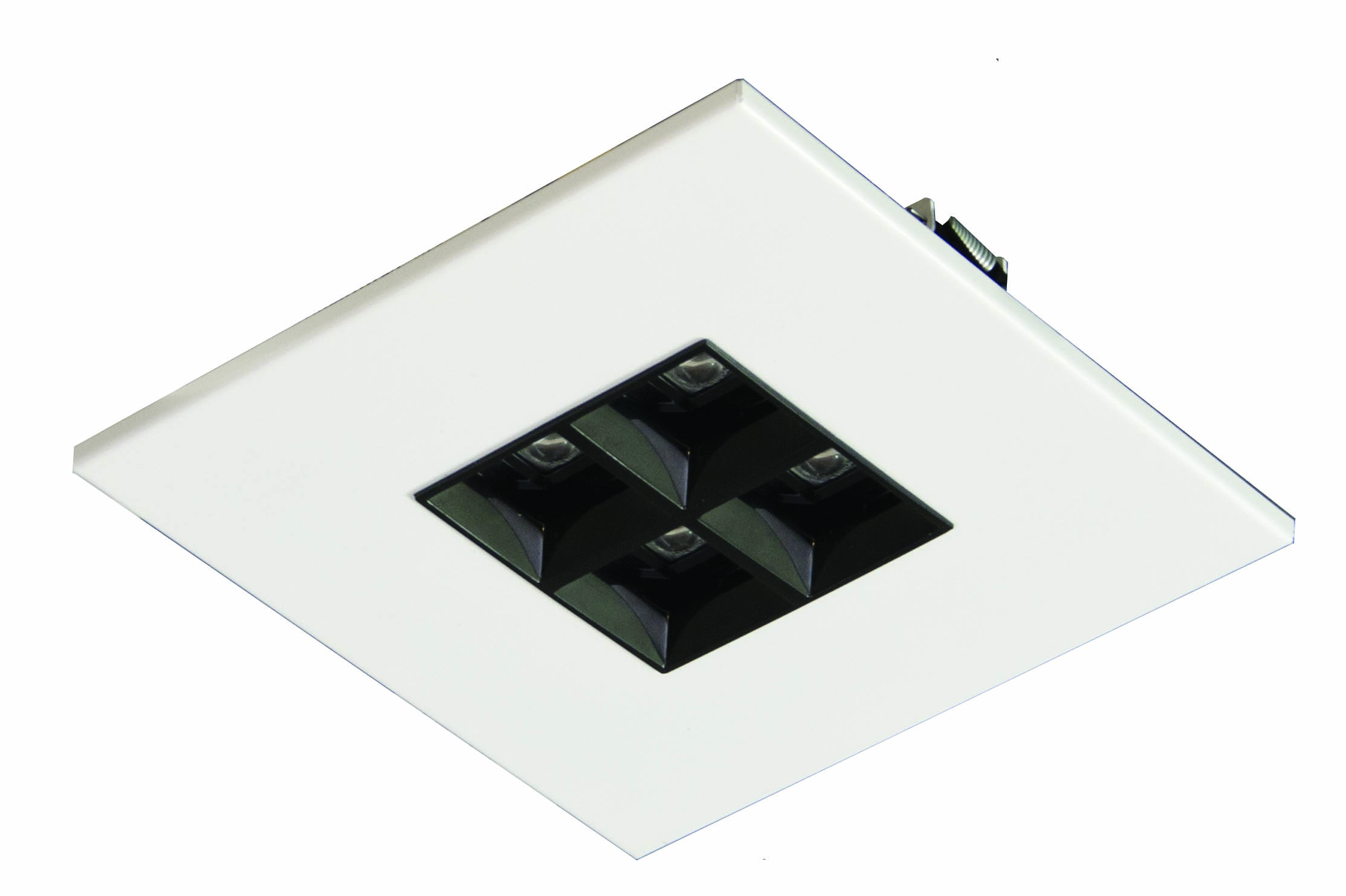

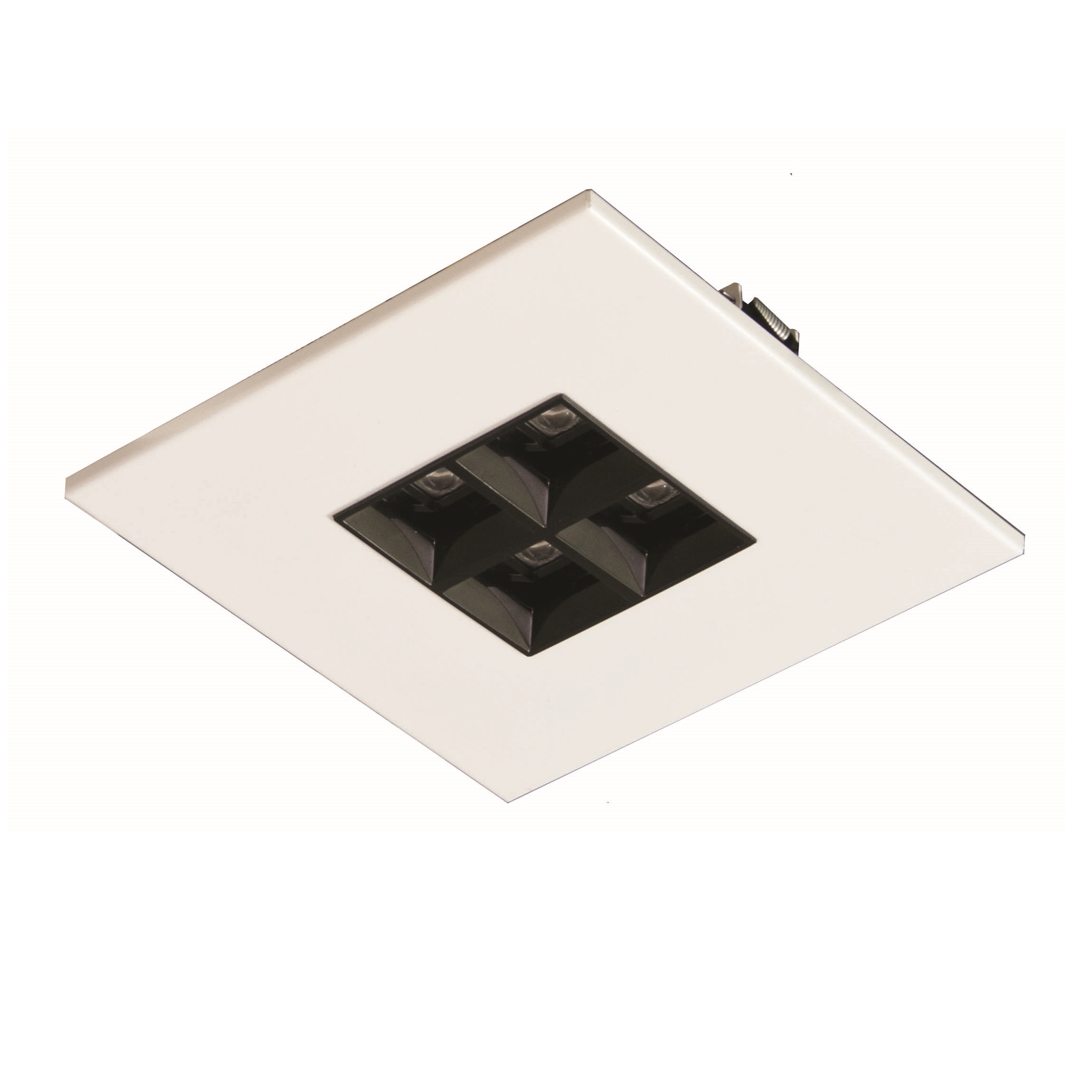

Downlight with "dark optic"
Standard price from:
On request
Reccessed luminaire with double optic system - primary optic is made by clear lens, secondary optic is mady with plastic louvre - white or black painting. This concept lead to low glare /UGR/ and high effectivity.
Another benefit is interesting design (for this is ideal select luminaire with white body and black plastic louvre).
| Body material: | White painted steel | Mounting method: | Built-in | Protection class: | II | Type of control gear: | ND non-dimm DALI DALI dimm | Color rendering index CRI: | 80-89 | Light source type: | LED | Light outlet: | Direct | Nominal voltage (V): | 220...240 | Degree of protection (IP): | IP20 | Color temperature (K): | 4000, 3000, 2700, 5700 |
| Rated lifetime L80/B50 (h): | 80000 | Dimming DALI: | Yes | Product category: | Recessed mounted ceiling- and wall luminaire | Optical system: | B50 White reflector with lenses 50° C50 Black reflector with lenses 50° | Made in Czech republic: | Yes | Replaceability: | Replaceable light source by professional, replaceable ballast Replaceable light source by professional, replaceable ballast | Photobiological safety EN 62 471: | RG 0 | MacAdam binning: | SDCM 3 |
LoadingFilters
Effective luminous flux (lm)
System power (W)
Product name
Effective luminous flux (lm)
System power (W)
Color temperature (K)
ESD1000S3BB50/ND
Effective luminous flux (lm): 1200
System power (W): 9
Color temperature (K): 3000
ESD1000S3BB80/DALI
Effective luminous flux (lm): 1200
System power (W): 9
Color temperature (K): 3000
ESD1000S3BB80/ND
Effective luminous flux (lm): 1200
System power (W): 9
Color temperature (K): 3000
ESD1000S3BC50/ND
Effective luminous flux (lm): 1100
System power (W): 9
Color temperature (K): 3000
ESD1000S3BC80/DALI
Effective luminous flux (lm): 1100
System power (W): 9
Color temperature (K): 3000
ESD1000S3BC80/ND
Effective luminous flux (lm): 1100
System power (W): 9
Color temperature (K): 3000
ESD1000S3CB80/ND
Effective luminous flux (lm): 1200
System power (W): 9
Color temperature (K): 4000
ESD1000S3CC80/ND/PIR
Effective luminous flux (lm): 1100
System power (W): 9
Color temperature (K): 3000
ESD1000S4BB50/ND
Effective luminous flux (lm): 1200
System power (W): 9
Color temperature (K): 4000
ESD1000S4BB80/ND
Effective luminous flux (lm): 1200
System power (W): 9
Color temperature (K): 4000
ESD1000S4BC50/ND
Effective luminous flux (lm): 1100
System power (W): 9
Color temperature (K): 4000
ESD1000S4BC80/DALI
Effective luminous flux (lm): 1100
System power (W): 9
Color temperature (K): 4000
ESD1000S4BC80/ND
Effective luminous flux (lm): 1100
System power (W): 9
Color temperature (K): 4000
ESD1000S4CB80/DALI
Effective luminous flux (lm): 1200
System power (W): 9
Color temperature (K): 4000
ESD1000S4CB80/ND
Effective luminous flux (lm): 1200
System power (W): 9
Color temperature (K): 4000
ESD1000S4CC80/DALI
Effective luminous flux (lm): 1100
System power (W): 9
Color temperature (K): 4000
ESD1000S4CC80/ND
Effective luminous flux (lm): 1100
System power (W): 9
Color temperature (K): 4000
ESD1000S4CC80/ND/PIR
Effective luminous flux (lm): 1100
System power (W): 9
Color temperature (K): 4000
ESD1500S3BB50/ND
Effective luminous flux (lm): 1600
System power (W): 14
Color temperature (K): 3000
ESD1500S3BB80/ND
Effective luminous flux (lm): 1600
System power (W): 14
Color temperature (K): 3000
ESD1500S3BC50/ND/FS
Effective luminous flux (lm): 1450
System power (W): 14
Color temperature (K): 3000
ESD1500S3BC80/DALI
Effective luminous flux (lm): 1450
System power (W): 14
Color temperature (K): 4000
ESD1500S3BC80/ND
Effective luminous flux (lm): 1450
System power (W): 14
Color temperature (K): 3000
ESD1500S3BCM50/ND
Effective luminous flux (lm): 1400
System power (W): 14
ESD1500S3CC80/DALI
Effective luminous flux (lm): 1450
System power (W): 14
Color temperature (K): 3000
ESD1500S3CC80/ND
Effective luminous flux (lm): 1450
System power (W): 14
Color temperature (K): 3000
ESD1500S4BB50/DALI
Effective luminous flux (lm): 1600
System power (W): 14
Color temperature (K): 4000
ESD1500S4BB50/ND
Effective luminous flux (lm): 1600
System power (W): 14
Color temperature (K): 4000
ESD1500S4BB50/NDMULTI
Effective luminous flux (lm): 1600
System power (W): 14
Color temperature (K): 4000
ESD1500S4BB80/BT
Effective luminous flux (lm): 1600
System power (W): 14
Color temperature (K): 4000
ESD1500S4BB80/DALI
Effective luminous flux (lm): 1600
System power (W): 14
Color temperature (K): 4000
ESD1500S4BB80/ND
Effective luminous flux (lm): 1600
System power (W): 14
Color temperature (K): 4000
ESD1500S4BB80/ND/S52
Effective luminous flux (lm): 1600
System power (W): 14
Color temperature (K): 4000
ESD1500S4BC50/ND
Effective luminous flux (lm): 1450
System power (W): 14
Color temperature (K): 4000
ESD1500S4BC80/DALI
Effective luminous flux (lm): 1450
System power (W): 14
Color temperature (K): 4000
ESD1500S4BC80/ND
Effective luminous flux (lm): 1450
System power (W): 14
Color temperature (K): 4000
ESD1500S4CB80/ND
Effective luminous flux (lm): 1600
System power (W): 14
Color temperature (K): 4000
ESD1500S4CC50/ND
Effective luminous flux (lm): 1450
System power (W): 14
Color temperature (K): 4000
Product page - PDF
CE declaration
LDT files

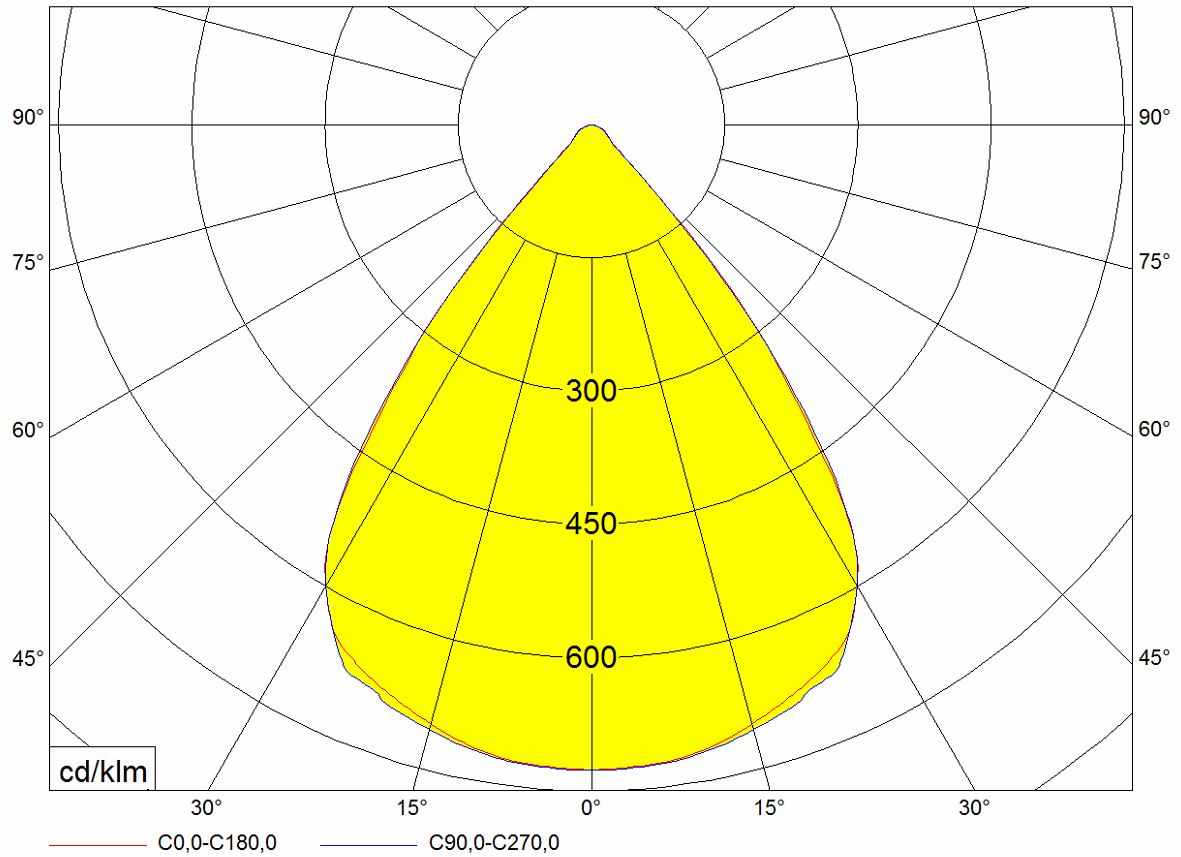

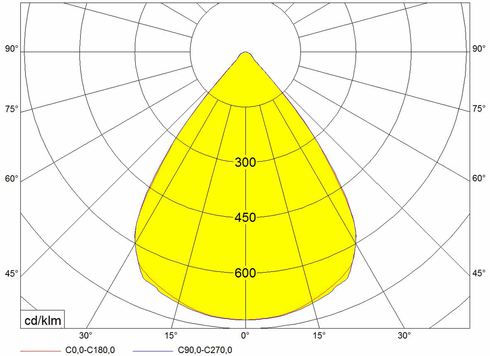

ESD_B80.JPGWe are here to help
