Product series

MODUS EVAL

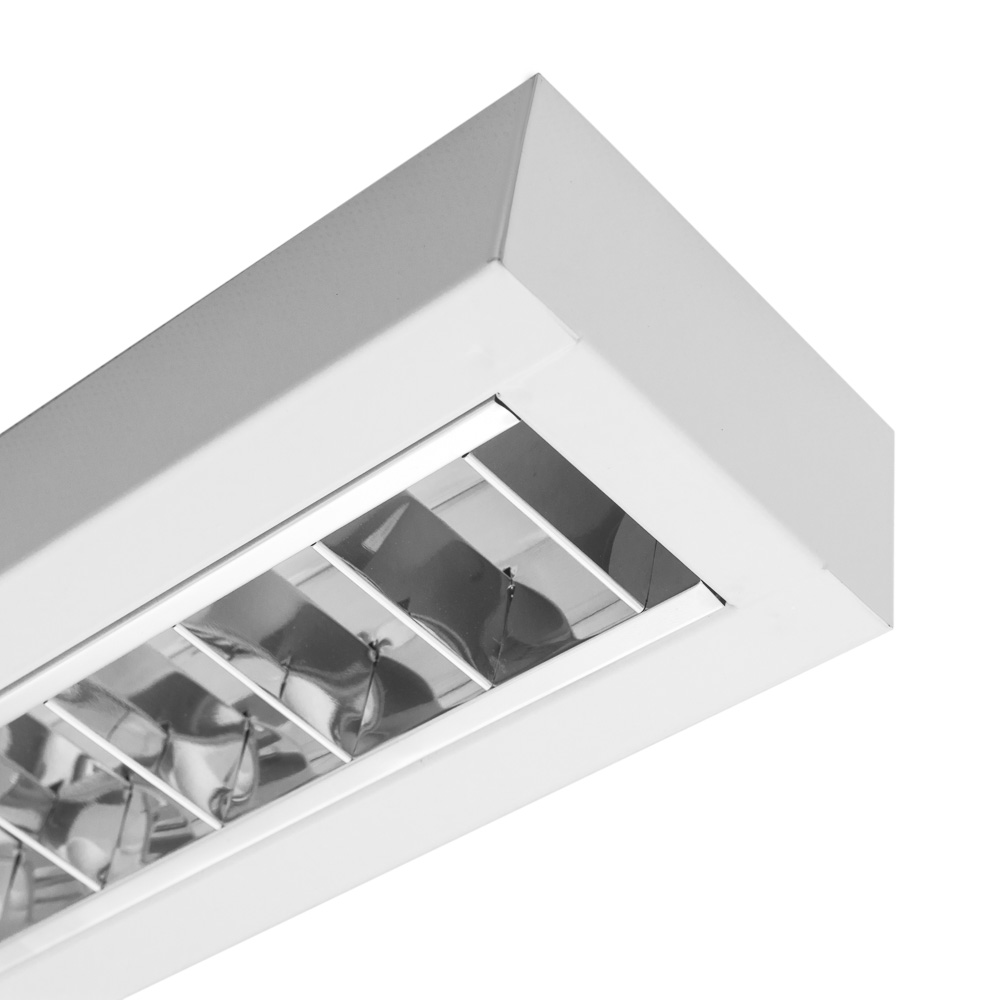

Linear LED fitting with louvre

MODUS EVAL 1M KV
MODUS EVAL 1L KVMODUS EVAL 1L KV
MODUS EVAL 1M KVMODUS EVAL 1M KV
11 L80_80000_h.jpg

Standard price from:

On request
Distribution network
Contacts

Body:

White painted (RAL 9003) metal sheet





LED:

Mid Power LED

CRI 80 (CRI 90 on request)

3...warm white 3000K

4...cold white 4000K

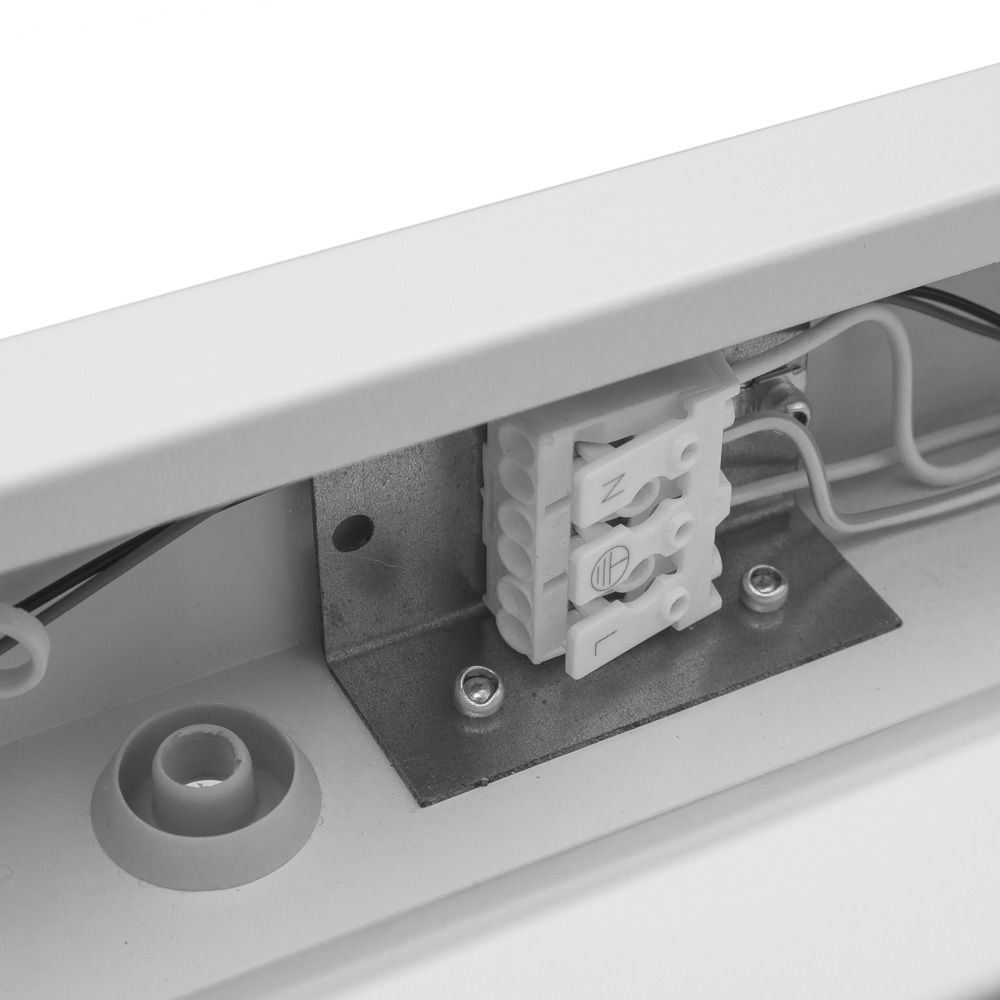

Wiring:

LED driver (constant current)

ND – not dimmable (standard)

DALI – digital dimmable DALI

DIM - analogue dimmable 1-10V

Luminaire can be supplied with wireless Bluetooth control - more information here.



Application:

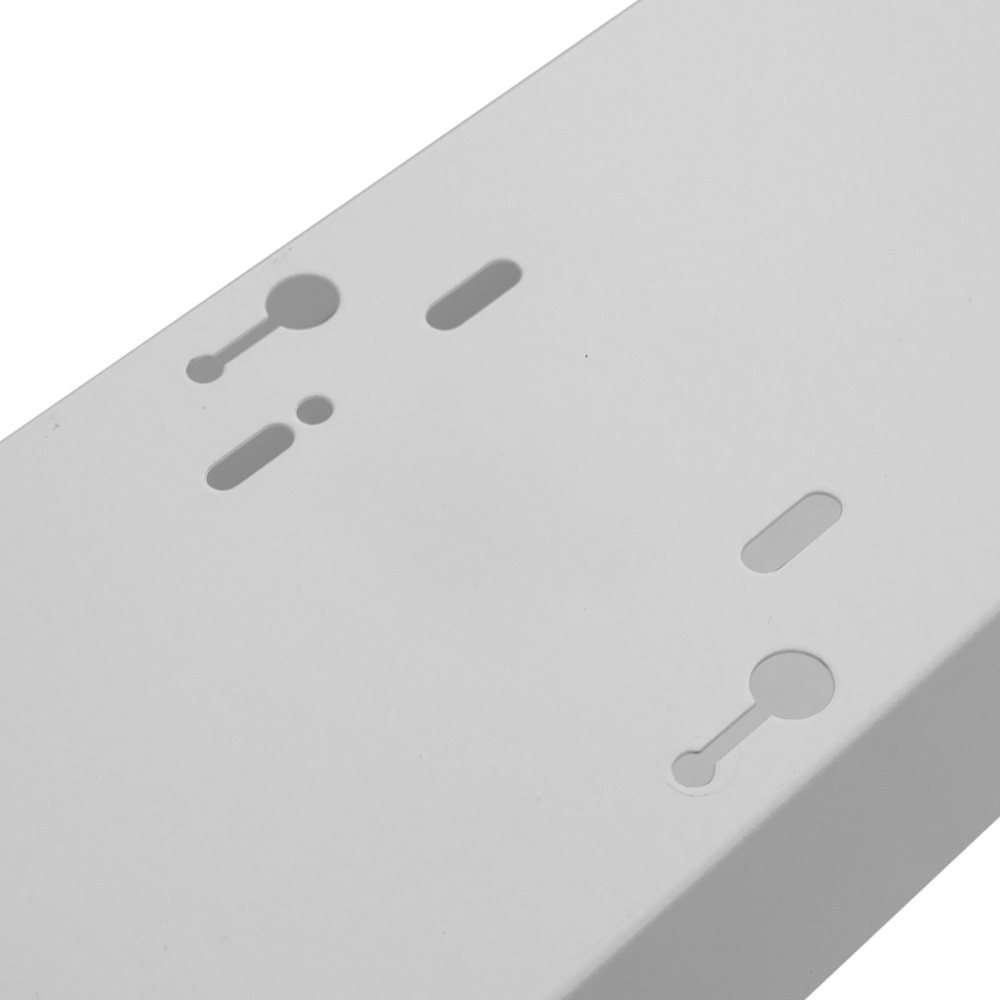

Surface or pendant installation



Accessories:

ZHX11 - suspension set (2m)

Size version:L
1500 mm
M
1200 mm
Body material:White painted steel
Mounting method:Surface mounting, SuspendedType of control gear:LED operating device current-controlled
Color rendering index CRI:80-89, 90-100Light source type:LED
Degree of protection (IP):IP20
Color temperature (K):4000, 3000
Rated lifetime L80/B50 (h):80000Dimming 1-10 V:Yes
Dimming DALI:YesOptical system:KV

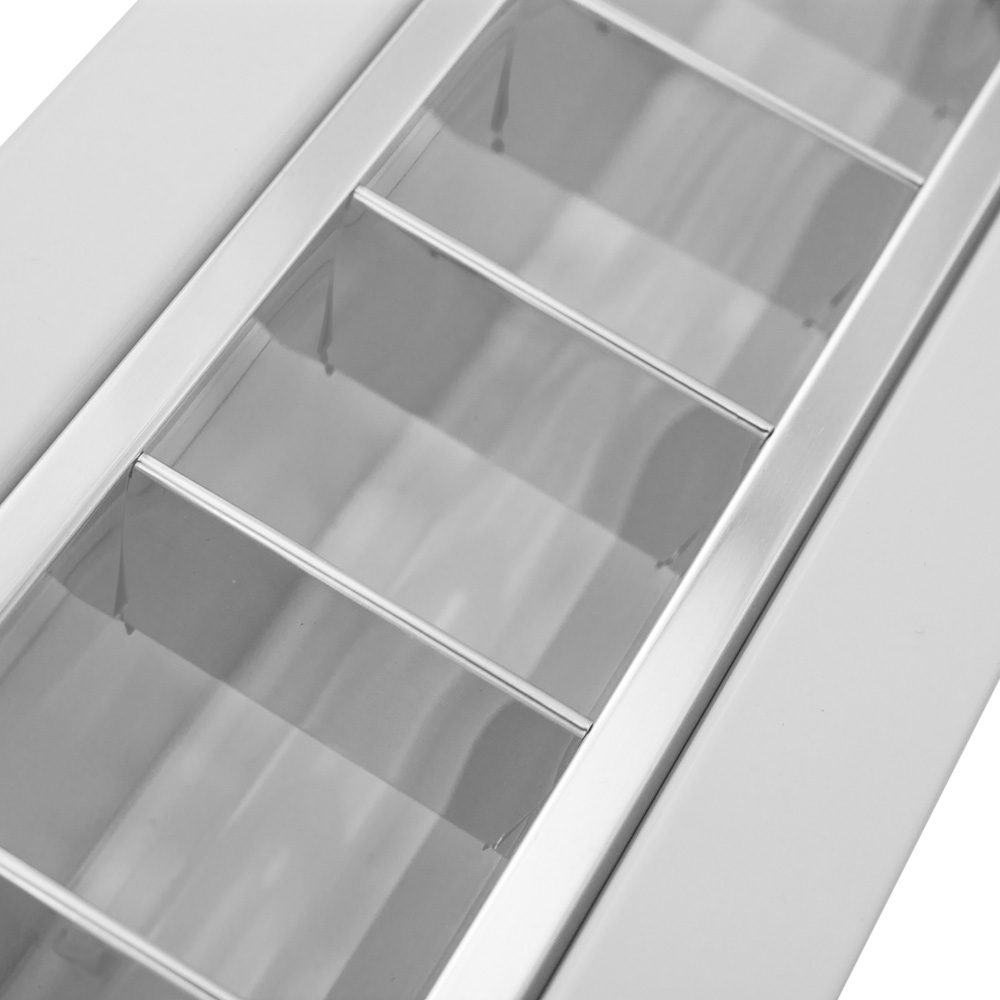

louvre ALDP
KVM
louvre matt DP
Show more...
LoadingLoading

Filters

Effective luminous flux (lm)

2800
4800

System power (W)

33
56
Product name
EVAL1LKV3V1/1050ND
Effective luminous flux (lm): 3500
System power (W): 39
Color temperature (K): 3000
Optical system: KV
Length (mm): 1522
EVAL1LKV3V1/1400DALI
Effective luminous flux (lm): 4200
System power (W): 48
Color temperature (K): 3000
Optical system: KV
Length (mm): 1522
EVAL1LKV3V1/1400ND
Effective luminous flux (lm): 4200
System power (W): 48
Color temperature (K): 3000
Optical system: KV
Length (mm): 1522
EVAL1LKV4V1/1050DALI
Effective luminous flux (lm): 3500
System power (W): 39
Color temperature (K): 4000
Optical system: KV
Length (mm): 1522
EVAL1LKV4V1/1050DALI/9005
Effective luminous flux (lm): 3500
System power (W): 39
Color temperature (K): 4000
Optical system: KV
Length (mm): 1522
EVAL1LKV4V1/1050ND
Effective luminous flux (lm): 3500
System power (W): 39
Color temperature (K): 4000
Optical system: KV
Length (mm): 1522
EVAL1LKV4V1/1050ND/9005
Effective luminous flux (lm): 3500
System power (W): 39
Color temperature (K): 4000
Optical system: KV
Length (mm): 1522
EVAL1LKV4V1/1400DALI
Effective luminous flux (lm): 4200
System power (W): 48
Color temperature (K): 4000
Optical system: KV
Length (mm): 1522
EVAL1LKV4V1/1400ND
Effective luminous flux (lm): 4200
System power (W): 48
Color temperature (K): 4000
Optical system: KV
Length (mm): 1522
EVAL1LKVM3V1/1050ND/9016
Effective luminous flux (lm): 3500
System power (W): 39
Color temperature (K): 3000
Optical system: KVM
Length (mm): 1522
EVAL1LKVM4V1/1050DALI
Effective luminous flux (lm): 3500
System power (W): 39
Color temperature (K): 4000
Optical system: KVM
Length (mm): 1522
EVAL1LKVM4V1/1050DALIT
Effective luminous flux (lm): 3500
System power (W): 39
Color temperature (K): 4000
Optical system: KVM
Length (mm): 1522
EVAL1LKVM4V1/1050ND
Effective luminous flux (lm): 3500
System power (W): 39
Color temperature (K): 4000
Optical system: KVM
Length (mm): 1522
EVAL1LKVM4V1/1400DALI
Effective luminous flux (lm): 4200
System power (W): 48
Color temperature (K): 4000
Optical system: KVM
Length (mm): 1522
EVAL1LKVM4V1/1400DALIT
Effective luminous flux (lm): 4200
System power (W): 48
Color temperature (K): 4000
Optical system: KVM
Length (mm): 1522
EVAL1LKVM4V1/1400ND
Effective luminous flux (lm): 4200
System power (W): 48
Color temperature (K): 4000
Optical system: KVM
Length (mm): 1522
EVAL1LKVM4V1/1400ND/9007
Effective luminous flux (lm): 4200
System power (W): 48
Color temperature (K): 4000
Optical system: KVM
Length (mm): 1522
EVAL1LKVM4V1/1650DALI
Effective luminous flux (lm): 4800
System power (W): 56
Color temperature (K): 4000
Optical system: KVM
Length (mm): 1522
EVAL1MKV3V1/1050DALI
Effective luminous flux (lm): 4100
System power (W): 51
Color temperature (K): 3000
Optical system: KV
Length (mm): 1223
EVAL1MKV3V1/1050DALI/9007
Effective luminous flux (lm): 4100
System power (W): 51
Color temperature (K): 3000
Optical system: KV
Length (mm): 1223
EVAL1MKV3V1/1050DALIT
Effective luminous flux (lm): 4100
System power (W): 51
Color temperature (K): 3000
Optical system: KV
Length (mm): 1223
EVAL1MKV3V1/1050ND
Effective luminous flux (lm): 4100
System power (W): 51
Color temperature (K): 3000
Optical system: KV
Length (mm): 1223
EVAL1MKV3V1/1050ND/9006
Effective luminous flux (lm): 4100
System power (W): 51
Color temperature (K): 3000
Optical system: KV
Length (mm): 1223
EVAL1MKV3V1/700DALI
Effective luminous flux (lm): 2800
System power (W): 33
Color temperature (K): 3000
Optical system: KV
Length (mm): 1223
EVAL1MKV3V1/700ND
Effective luminous flux (lm): 2800
System power (W): 33
Color temperature (K): 3000
Optical system: KV
Length (mm): 1223
EVAL1MKV3V1/700ND/9007
Effective luminous flux (lm): 2800
System power (W): 33
Color temperature (K): 3000
Optical system: KV
Length (mm): 1223
EVAL1MKV4V1/1050DALI
Effective luminous flux (lm): 4100
System power (W): 51
Color temperature (K): 4000
Optical system: KV
Length (mm): 1223
EVAL1MKV4V1/1050DALI/9005
Effective luminous flux (lm): 4100
System power (W): 51
Color temperature (K): 4000
Optical system: KV
Length (mm): 1223
EVAL1MKV4V1/1050ND
Effective luminous flux (lm): 4100
System power (W): 51
Color temperature (K): 4000
Optical system: KV
Length (mm): 1223
EVAL1MKV4V1/1050ND/9005
Effective luminous flux (lm): 4100
System power (W): 51
Color temperature (K): 4000
Optical system: KV
Length (mm): 1223
EVAL1MKV4V1/700DALI
Effective luminous flux (lm): 2800
System power (W): 33
Color temperature (K): 4000
Optical system: KV
Length (mm): 1223
EVAL1MKV4V1/700ND
Effective luminous flux (lm): 2800
System power (W): 33
Color temperature (K): 4000
Optical system: KV
Length (mm): 1223
EVAL1MKVM3V1/1050DALI
Effective luminous flux (lm): 4100
System power (W): 51
Color temperature (K): 3000
Optical system: KVM
Length (mm): 1223
EVAL1MKVM3V1/1050ND
Effective luminous flux (lm): 4100
System power (W): 51
Color temperature (K): 3000
Optical system: KVM
Length (mm): 1223
EVAL1MKVM3V1/700DALI
Effective luminous flux (lm): 2800
System power (W): 33
Color temperature (K): 3000
Optical system: KVM
Length (mm): 1223
EVAL1MKVM3V1/700ND
Effective luminous flux (lm): 2800
System power (W): 33
Color temperature (K): 3000
Optical system: KVM
Length (mm): 1223
EVAL1MKVM4V1/1050ND/9005
Effective luminous flux (lm): 4100
System power (W): 51
Color temperature (K): 4000
Optical system: KVM
Length (mm): 1223
EVAL1MKVM4V1/700DALI
Effective luminous flux (lm): 2800
System power (W): 33
Color temperature (K): 4000
Optical system: KVM
Length (mm): 1229
EVAL1MKVM4V1/700ND
Effective luminous flux (lm): 2800
System power (W): 33
Color temperature (K): 4000
Optical system: KVM
Length (mm): 1229
Show all versions
