MODUS FIT IP65

LED panel IP65

MODUS FIT IP65
FIT IP 65_2.jpg
FIT IP 6220 fin.jpg
FIT IP65 zada roh.jpg
třída ochrany I.PNG
220-240 v.png
11 L80_80000_h.jpg
en 62 471.png

Standard price from:

On request
Distribution network
Contacts

LED panel with high IP protection (=IP65)

Luminaire are produced in two variants of IP protection:

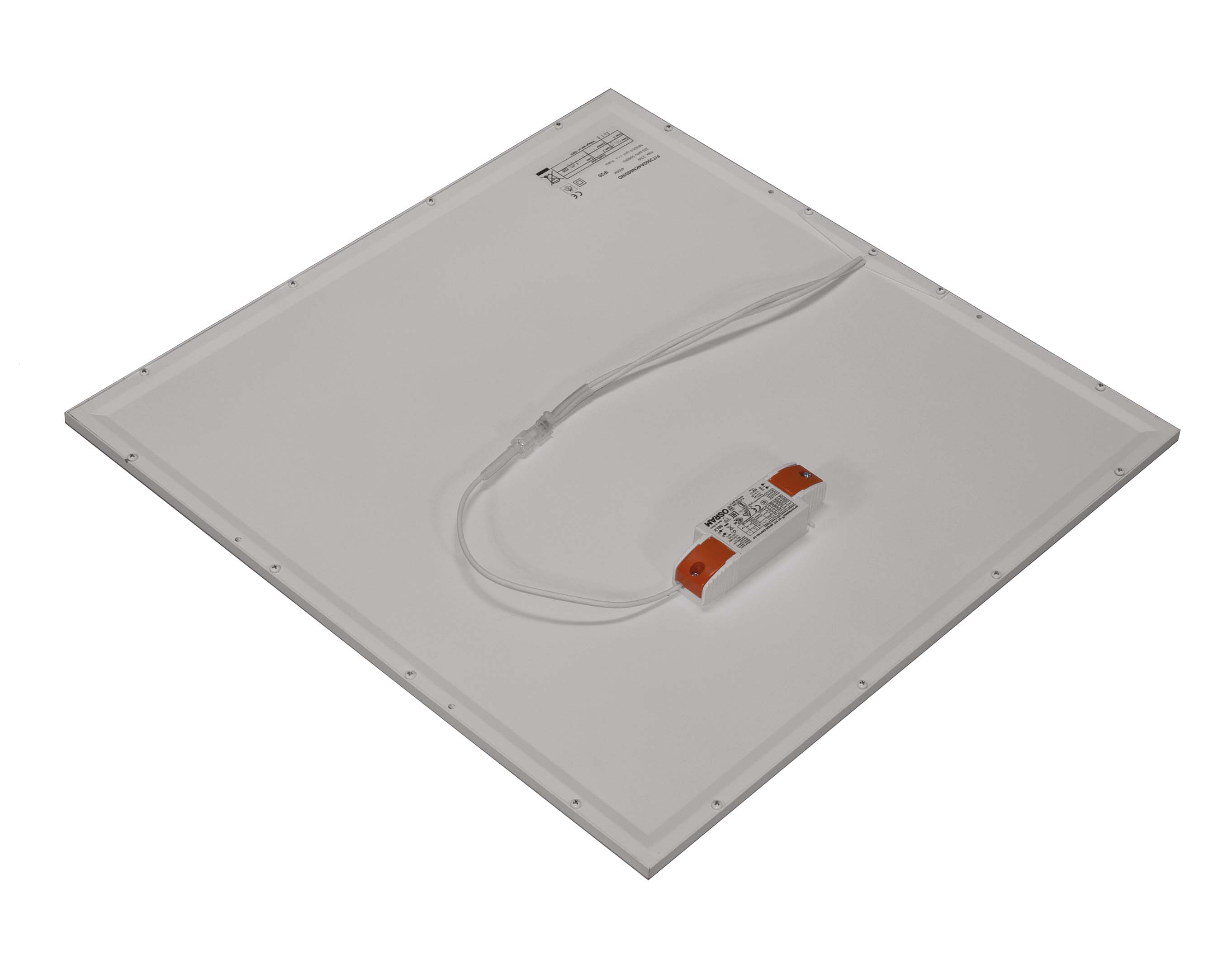

FIT....IP6520 - body of luminaire (from front side) in IP65, driver with IP20 protection

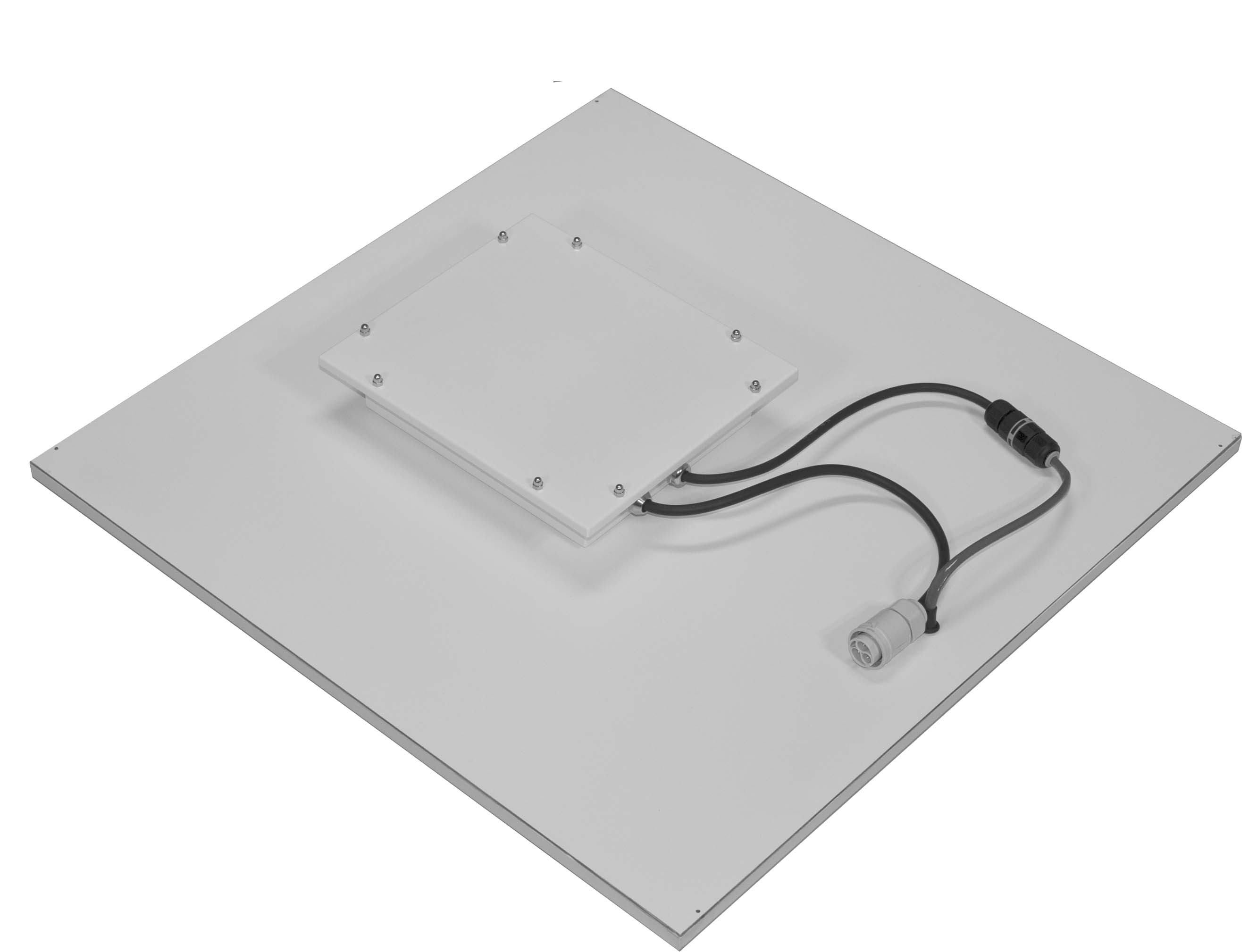

FIT....IP65 - body of luminaires (from front and back side) in IP65, driver with IP65 protection (complete IP65 luminaire)

Optical system can be opal (KO) or nanoprismatic (KN)



Size version:A
600x600 mm or 625x625 mm
B
600x300 mm
C
1200x300 mm
Body material:White painted aluminium frame
Mounting method:Built-in, Surface mountingProtection class:I, II
Type of control gear:ND
non-dimm
DALI
DALI dimm
BT
wireless bluetooth control
Color rendering index CRI:80-89, 90-100
Light source type:LEDColor temperature controllable (K):Yes
Nominal voltage (V):220...240Degree of protection (IP):IP65
Fit for monitor workplace:Yes
Color temperature (K):4000, 6500, 3000, 2700, 5700, 2700...6500
Rated lifetime L80/B50 (h):80000Dimming DALI:Yes
Product category:Recessed mounted ceiling- and wall luminaireOptical system:KO
opal cover

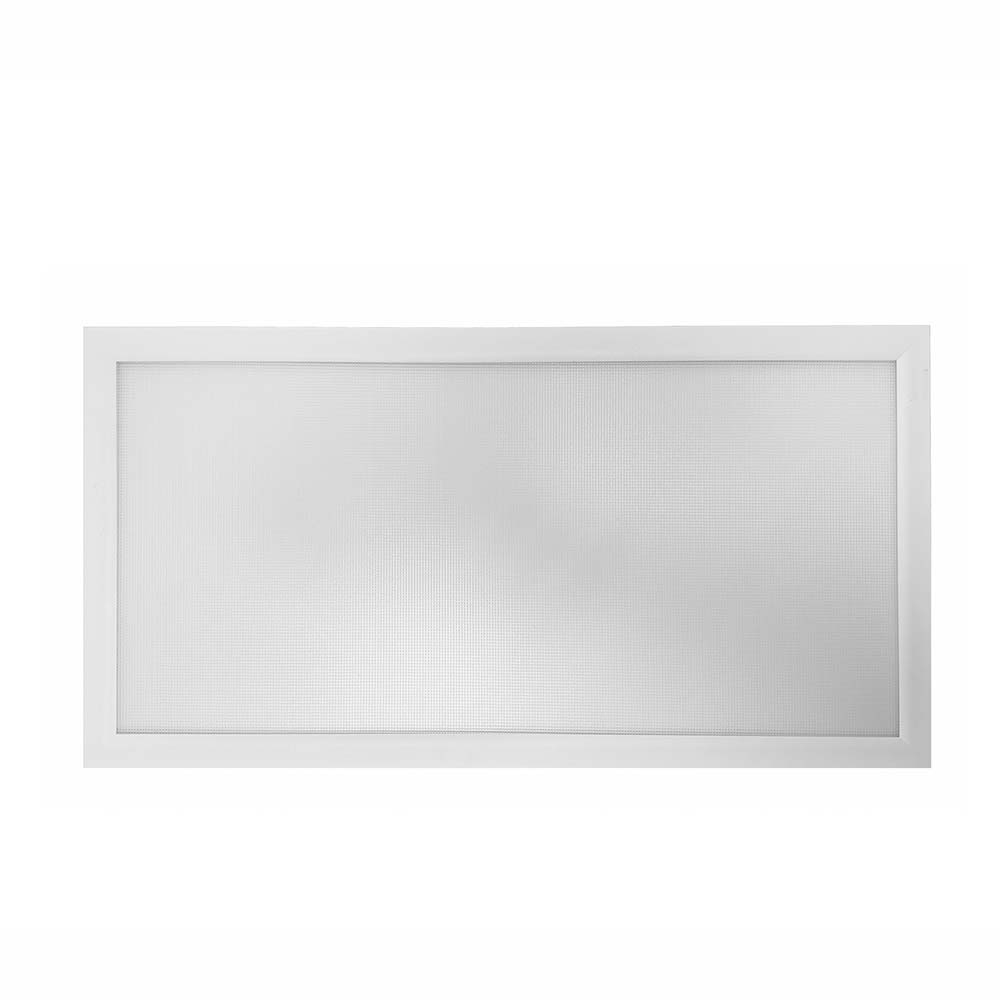

KN
nanoprizmatic cover
Made in Czech republic:Yes Without Chinese components:Ano
Replaceability:Removeable light source, replaceable ballast
Removeable light source, replaceable ballast
Photobiological safety EN 62 471:RG 0
MacAdam binning:SDCM 3
Show more...
LoadingLoading

Filters

Effective luminous flux (lm)

1800
6600
Product name
FIT2000B3KN600/ND/IP65
Effective luminous flux (lm): 1900
Color temperature (K): 3000
FIT2000B4KN600/ND/IP65
Effective luminous flux (lm): 1900
Color temperature (K): 4000
FIT2000B4KO600/ND/IP65
Effective luminous flux (lm): 1800
Color temperature (K): 4000
FIT3000A4KN600/ND/IP65
Effective luminous flux (lm): 2750
Color temperature (K): 4000
FIT3000A4KN600/ND/IP65/90
Effective luminous flux (lm): 2650
Color temperature (K): 4000
FIT3000A4KN600/ND/IP6520
Effective luminous flux (lm): 2750
Color temperature (K): 4000
FIT3000A4KN625/ND/IP65
Effective luminous flux (lm): 2750
Color temperature (K): 4000
FIT3000A4KO600/ND/IP65
Effective luminous flux (lm): 2700
Color temperature (K): 4000
FIT3000A4KO600/ND/IP6520
Effective luminous flux (lm): 2700
Color temperature (K): 4000
FIT3000C3KO600/DALI/IP65
Effective luminous flux (lm): 2700
Color temperature (K): 3000
FIT3000C3KO600/ND/IP65
Effective luminous flux (lm): 2700
Color temperature (K): 3000
FIT4000A2KN600/ND/IP65
Effective luminous flux (lm): 4200
Color temperature (K): 2700
FIT4000A2KN600/ND/IP6520
Effective luminous flux (lm): 4200
Color temperature (K): 2700
FIT4000A3KN600/ND/IP6520
Effective luminous flux (lm): 4200
Color temperature (K): 3000
FIT4000A3KN600/ND/IP6520/90
Effective luminous flux (lm): 3600
Color temperature (K): 3000
FIT4000A3KN625/ND/IP6520
Effective luminous flux (lm): 4200
Color temperature (K): 3000
FIT4000A3KO600/DALI/IP65
Effective luminous flux (lm): 4100
Color temperature (K): 3000
FIT4000A3KO600/DALI/IP6520
Effective luminous flux (lm): 4100
Color temperature (K): 3000
FIT4000A3KO600/ND/IP65
Effective luminous flux (lm): 4100
Color temperature (K): 3000
FIT4000A3KO600/ND/IP6520
Effective luminous flux (lm): 4100
Color temperature (K): 3000
FIT4000A3KO625/DALI/IP65
Effective luminous flux (lm): 4100
Color temperature (K): 3000
FIT4000A3KO625/ND/IP65
Effective luminous flux (lm): 4100
Color temperature (K): 3000
FIT4000A3KO625/ND/IP6520
Effective luminous flux (lm): 4100
Color temperature (K): 3000
FIT4000A3KO625/ND/IP6520/90
Effective luminous flux (lm): 4100
Color temperature (K): 3000
FIT4000A4KN600/DALI/IP65
Effective luminous flux (lm): 4200
Color temperature (K): 4000
FIT4000A4KN600/DALI/IP6520
Effective luminous flux (lm): 4200
Color temperature (K): 4000
FIT4000A4KN600/ND/IP65
Effective luminous flux (lm): 4200
Color temperature (K): 4000
FIT4000A4KN600/ND/IP65/90
Effective luminous flux (lm): 3600
Color temperature (K): 4000
FIT4000A4KN600/ND/IP6520
Effective luminous flux (lm): 4200
Color temperature (K): 4000
FIT4000A4KN625/ND/IP65
Effective luminous flux (lm): 4100
Color temperature (K): 4000
FIT4000A4KN625/ND/IP6520
Effective luminous flux (lm): 4200
Color temperature (K): 4000
FIT4000A4KN625/ND/IP6520/90
Effective luminous flux (lm): 3600
Color temperature (K): 4000
FIT4000A4KO600/DALI/IP65
Effective luminous flux (lm): 4100
Color temperature (K): 4000
FIT4000A4KO600/DALI/IP6520
Effective luminous flux (lm): 4100
Color temperature (K): 4000
FIT4000A4KO600/ND/IP65
Effective luminous flux (lm): 4100
Color temperature (K): 4000
FIT4000A4KO600/ND/IP6520
Effective luminous flux (lm): 4100
Color temperature (K): 4000
FIT4000A4KO625/ND/IP65
Effective luminous flux (lm): 4100
Color temperature (K): 4000
FIT4000A4KO625/ND/IP6520
Effective luminous flux (lm): 3500
Color temperature (K): 4000
FIT4000A4KO625/ND/IP6520/90
Effective luminous flux (lm): 3500
Color temperature (K): 4000
FIT4000A5KN600/ND/IP6520/90
Effective luminous flux (lm): 3600
Color temperature (K): 5700
FIT4000A6KO600/DALI/IP65
Effective luminous flux (lm): 4100
Color temperature (K): 6500
FIT4000A6KO600/ND/IP65
Effective luminous flux (lm): 4100
Color temperature (K): 6500
FIT4000A6KO600/ND/IP6520/90
Effective luminous flux (lm): 3500
Color temperature (K): 6500
FIT4000AMIXWKN600/90/IP6520
Effective luminous flux (lm): 3700
Color temperature (K): 2700...6500
FIT4000C3KN600/ND/IP6520
Effective luminous flux (lm): 4200
Color temperature (K): 3000
FIT4000C3KO600/DALI/IP6520
Effective luminous flux (lm): 3800
Color temperature (K): 3000
FIT4000C3KO600/ND/IP65
Effective luminous flux (lm): 3800
Color temperature (K): 3000
FIT4000C3KO600/ND/IP6520
Effective luminous flux (lm): 3800
Color temperature (K): 3000
FIT4000C4KN600/ND/IP6520
Effective luminous flux (lm): 4200
Color temperature (K): 4000
FIT4000C4KO600/DALI/IP6520
Effective luminous flux (lm): 3800
Color temperature (K): 4000
FIT4000C4KO600/ND/IP65
Effective luminous flux (lm): 3800
Color temperature (K): 4000
FIT4000C4KO600/ND/IP6520
Effective luminous flux (lm): 3800
Color temperature (K): 4000
FIT5000A3KN600/ND/IP65
Effective luminous flux (lm): 5300
Color temperature (K): 3000
FIT5000A3KN600/ND/IP6520
Effective luminous flux (lm): 5300
Color temperature (K): 3000
FIT5000A3KO600/DALI/IP65
Effective luminous flux (lm): 5500
Color temperature (K): 3000
FIT5000A3KO625/DALI/IP6520
Effective luminous flux (lm): 5100
Color temperature (K): 3000
FIT5000A4KN600/ND/IP65
Effective luminous flux (lm): 5300
Color temperature (K): 4000
FIT5000A4KN600/ND/IP65/90
Effective luminous flux (lm): 4900
Color temperature (K): 4000
FIT5000A4KN600/ND/IP6520
Effective luminous flux (lm): 5300
Color temperature (K): 4000
FIT5000A4KO600/ND/IP65
Effective luminous flux (lm): 5100
Color temperature (K): 4000
FIT5000A4KO625/ND/IP6520
Effective luminous flux (lm): 5100
Color temperature (K): 4000
FIT5000A5KO625/ND/IP65
Effective luminous flux (lm): 5100
Color temperature (K): 5700
FIT5000A5KO625/ND/IP6520
Effective luminous flux (lm): 5100
Color temperature (K): 5700
FIT5000C3KO600/ND/IP65
Effective luminous flux (lm): 5000
Color temperature (K): 3000
FIT5000C4KO600/ND/IP65
Effective luminous flux (lm): 5000
Color temperature (K): 4000
FIT5000C4KO625/ND/IP65
Effective luminous flux (lm): 5000
Color temperature (K): 4000
FIT6000A3KO600/ND/IP6520
Effective luminous flux (lm): 6100
Color temperature (K): 3000
FIT6000A4KN600/DALI/IP65/90
Effective luminous flux (lm): 5400
Color temperature (K): 4000
FIT6000A4KN600/DALI/IP6520/90
Effective luminous flux (lm): 5400
Color temperature (K): 4000
FIT6000A4KN600/ND/IP65
Effective luminous flux (lm): 6600
Color temperature (K): 4000
FIT6000A4KN600/ND/IP65/90
Effective luminous flux (lm): 5400
Color temperature (K): 4000
FIT6000A4KN600/ND/IP6520/90
Effective luminous flux (lm): 5400
Color temperature (K): 4000
FIT6000A4KO600/DALI/IP65
Effective luminous flux (lm): 6100
Color temperature (K): 4000
FIT6000A4KO600/ND/IP65
Effective luminous flux (lm): 6100
Color temperature (K): 4000
FIT6000A4KO600/ND/IP6520
Effective luminous flux (lm): 6100
Color temperature (K): 4000
FIT6000A5KO600/ND/IP65
Effective luminous flux (lm): 6100
Color temperature (K): 5700
FIT6000C3KO600/DALI/IP65
Effective luminous flux (lm): 5900
Color temperature (K): 3000
FIT6000C4KN600/ND/IP65
Effective luminous flux (lm): 6400
Color temperature (K): 4000
FIT6000C4KO600/ND/IP65
Effective luminous flux (lm): 5900
Color temperature (K): 4000
