MODUS FLY

Pendant LED luminaire for direct/indirect lighting

MODUS FLY
MODUS FLY_01.jpg
1 M10_nasten_celkove_osv.jpg
závěesné DI.PNG
220-240 v.png
11 L80_80000_h.jpg
en 62 471.png

Standard price from:

On request
Distribution network
Contacts

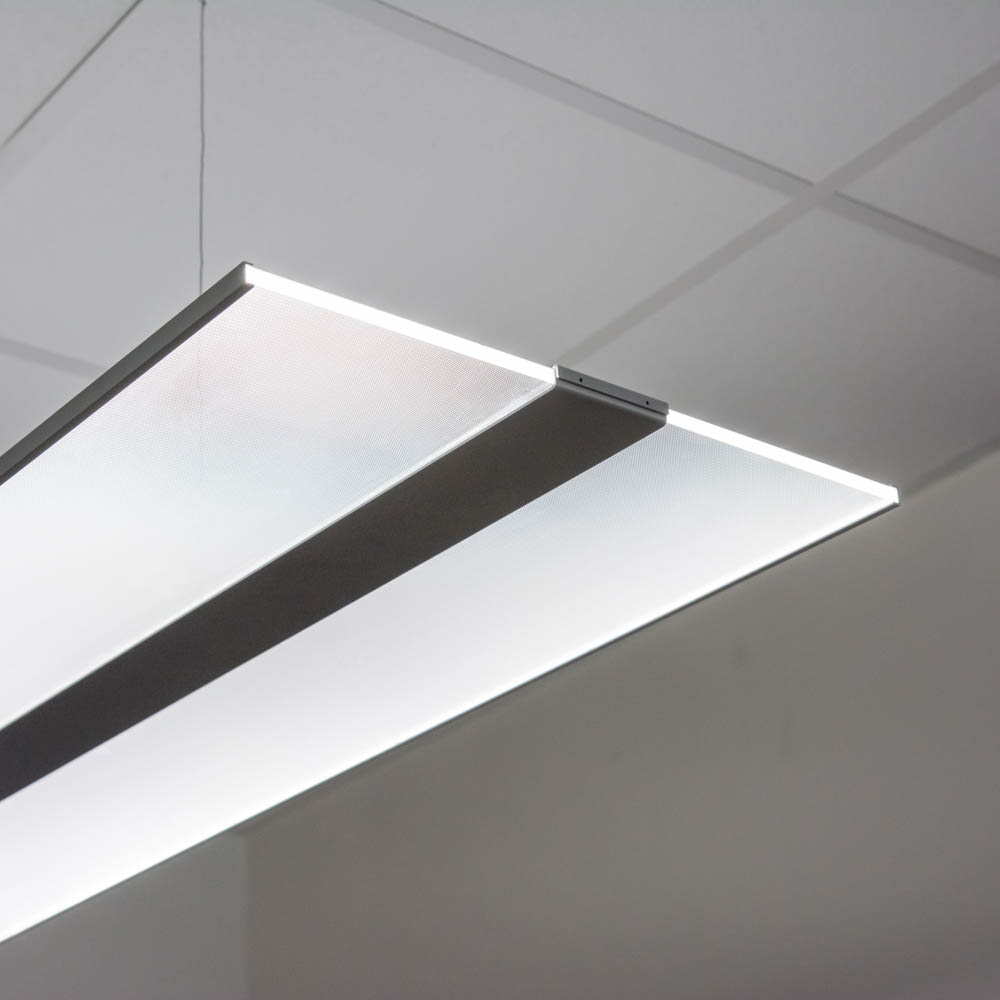

It exploits character of translucent plate and provides very nice and homogenity light with „flowing in the air“ effect.

Small version (MODUS FLYS) is possible for surface installation.

MODUS FLY is suitable not only for modern design-oriented interiers but finds its place in office, lobby, reception or boardroom as well. Body:
Metal gear box finisher in grey color (another colour on request)

In offer also Bluetooth control version.

Find out more about human centric lighting and tunable white in our MODUS TUNABLE LIGHT catalogue.

Optic:
Translucent acrylic layer

LED:
Mid Power LED
CRI80 (CRI90 on request)
3... warm white 3000K
4... cold white 4000K
5... daylight 5700K

Wirring:
ND - non dimmable driver
DALI - dimmable DALI driver
MOWI - MODUS smart system
MIXW - tunable white (DALI8 protocol)

Luminaire can be supplied with wireless Bluetooth control - more information here.

Versions:

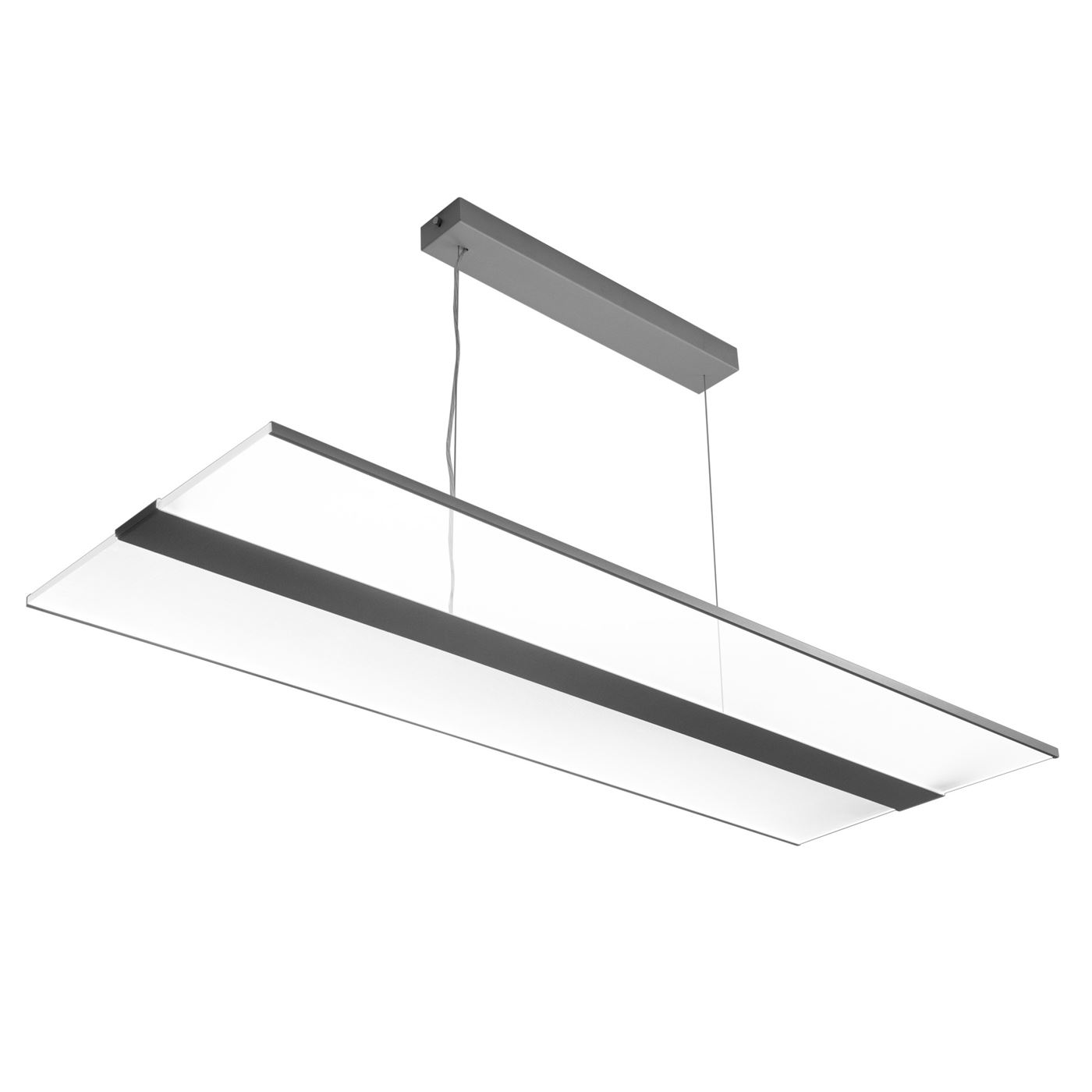

FLY...RM - rectangle 1227x435 mm

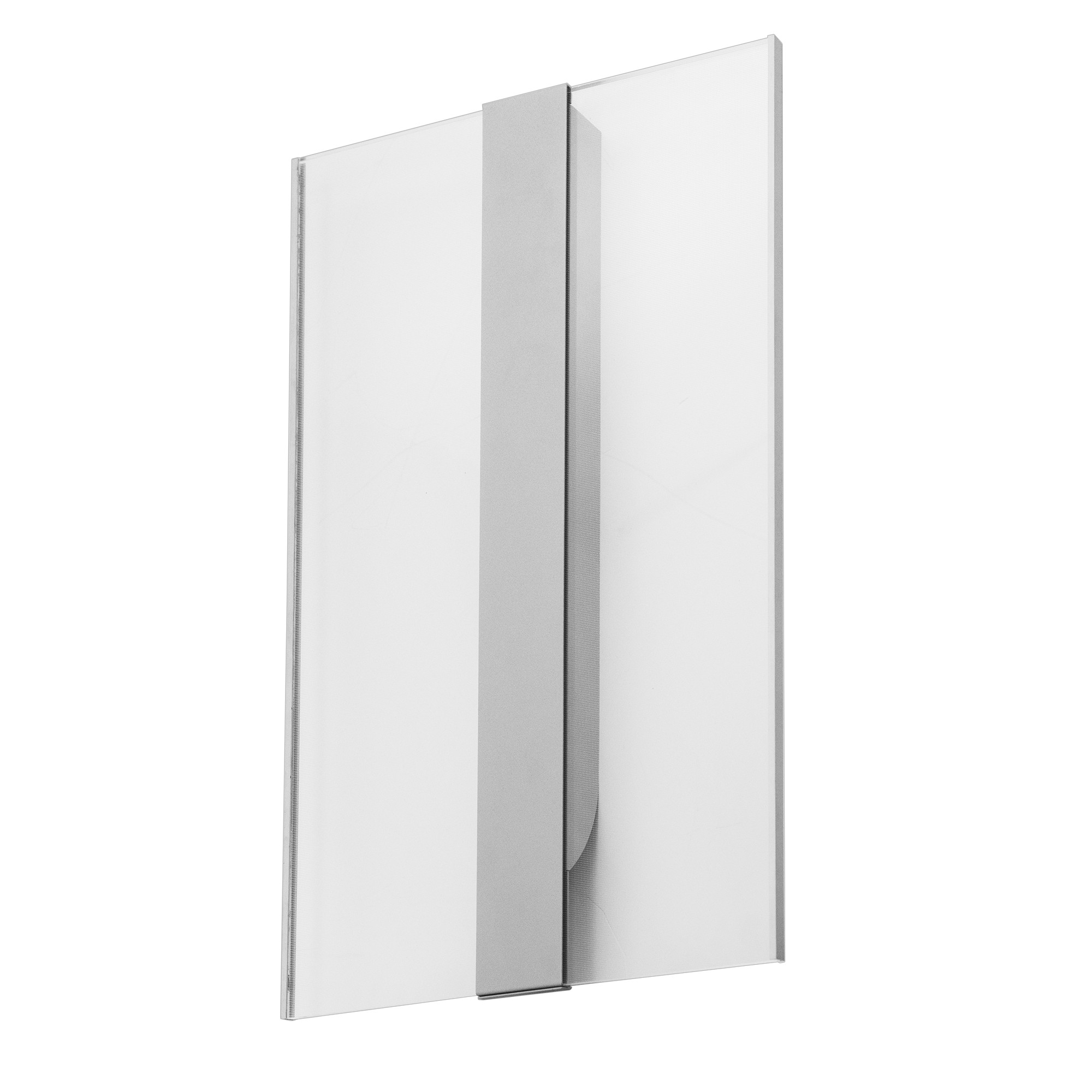

FLY...S  - surfaced version 638x435

Cord suspension and power cord is supplied with luminaire (FLY...RM)

Size version:M
1200 mm
S
600 mm
Body material:Painted steel, Translucent acrylic layer
Mounting method:Wall surface mounted, Surface mounting, Pendant DIProtection class:I
With movement sensor:YesType of control gear:LED operating device current-controlled
Color rendering index CRI:80-89, 90-100Light source type:LED
Color temperature controllable (K):YesLight outlet:Direct/indirect
Nominal voltage (V):220...240
Degree of protection (IP):IP20
Color temperature (K):4000, 3000, 2700, 5700, 2700...6500, 1800...6500Rated lifetime L80/B50 (h):80000
Dimming DALI:YesOptical system:FLY
Světlovodivá deska pro přímo/nepřímé vyzařování
Made in Czech republic:YesReplaceability:Removeable light source, replaceable ballast
Removeable light source, replaceable ballast
Photobiological safety EN 62 471:RG 0MacAdam binning:SDCM 3
Show more...
LoadingLoading

Filters

Effective luminous flux (lm)

2500
9000
Product name
FLY3000RS3GP/DALI
Effective luminous flux (lm): 2500
Color temperature (K): 3000
Length (mm): 638
FLY3000RS4GP/BT
Effective luminous flux (lm): 2500
Color temperature (K): 4000
Length (mm): 638
FLY3000RS4GP/DALI
Effective luminous flux (lm): 2500
Color temperature (K): 4000
Length (mm): 638
FLY3000RS4GP/ND
Effective luminous flux (lm): 2500
Color temperature (K): 4000
Length (mm): 638
FLY4000RM/MIXW/GP
Effective luminous flux (lm): 4200
Color temperature (K): 2700...6500
Length (mm): 1227
FLY4000RM/MIXW/WP
Effective luminous flux (lm): 4200
Color temperature (K): 2700...6500
Length (mm): 1227
FLY4000RM3BP/DALI
Effective luminous flux (lm): 4100
Color temperature (K): 3000
Length (mm): 1227
FLY4000RM3GP/DALI
Effective luminous flux (lm): 4100
Color temperature (K): 3000
Length (mm): 1227
FLY4000RM3GP/ND
Effective luminous flux (lm): 4100
Color temperature (K): 3000
Length (mm): 1227
FLY4000RM4BP/DALI
Effective luminous flux (lm): 4100
Color temperature (K): 4000
Length (mm): 1227
FLY4000RM4BP/ND
Effective luminous flux (lm): 4100
Color temperature (K): 4000
Length (mm): 1227
FLY4000RM4GP/BT
Effective luminous flux (lm): 4100
Color temperature (K): 4000
Length (mm): 1227
FLY4000RM4GP/DALI
Effective luminous flux (lm): 4100
Color temperature (K): 4000
Length (mm): 1227
FLY4000RM4GP/DALIT
Effective luminous flux (lm): 4100
Color temperature (K): 4000
Length (mm): 1227
FLY4000RM4GP/ND
Effective luminous flux (lm): 4100
Color temperature (K): 4000
Length (mm): 1227
FLY4000RM4WP/ND
Effective luminous flux (lm): 4100
Color temperature (K): 4000
Length (mm): 1227
FLY4000RM5GP/DALI
Effective luminous flux (lm): 4100
Color temperature (K): 5700
Length (mm): 1227
FLY5000RM4GP/DALI
Effective luminous flux (lm): 5500
Color temperature (K): 4000
Length (mm): 1227
FLY5000RM4GP/ND
Effective luminous flux (lm): 5500
Color temperature (K): 4000
Length (mm): 1227
FLY6000RM2GP/ND
Effective luminous flux (lm): 5800
Color temperature (K): 2700
Length (mm): 1227
FLY6000RM3BP/DALI
Effective luminous flux (lm): 5800
Color temperature (K): 3000
Length (mm): 1227
FLY6000RM3GP/DALI
Effective luminous flux (lm): 5800
Color temperature (K): 3000
Length (mm): 1227
FLY6000RM3GP/DALIT
Effective luminous flux (lm): 5800
Color temperature (K): 3000
Length (mm): 1227
FLY6000RM3GP/ND
Effective luminous flux (lm): 5800
Color temperature (K): 3000
Length (mm): 1227
FLY6000RM3WP/DALIT
Effective luminous flux (lm): 5800
Color temperature (K): 3000
Length (mm): 1227
FLY6000RM4BP/DALIT
Effective luminous flux (lm): 5800
Color temperature (K): 4000
Length (mm): 1227
FLY6000RM4BP/ND
Effective luminous flux (lm): 5800
Color temperature (K): 4000
Length (mm): 1227
FLY6000RM4GP/DALI
Effective luminous flux (lm): 5800
Color temperature (K): 4000
Length (mm): 1227
FLY6000RM4GP/DALIT
Effective luminous flux (lm): 5800
Color temperature (K): 4000
Length (mm): 1227
FLY6000RM4GP/DALIT/S13
Effective luminous flux (lm): 5800
Color temperature (K): 4000
Length (mm): 1227
FLY6000RM4GP/ND
Effective luminous flux (lm): 5800
Color temperature (K): 4000
Length (mm): 1227
FLY6000RM4GP/ND/90
Color temperature (K): 4000
Length (mm): 1227
FLY6000RM4WP/DALI
Effective luminous flux (lm): 5800
Color temperature (K): 4000
Length (mm): 1227
FLY6000RM4WP/ND
Effective luminous flux (lm): 5800
Color temperature (K): 4000
Length (mm): 1227
FLY6000RM5GP/DALI
Effective luminous flux (lm): 5800
Color temperature (K): 5700
Length (mm): 1227
FLY6000RM5GP/ND
Effective luminous flux (lm): 5800
Color temperature (K): 5700
Length (mm): 1227
FLY7000RM/MIXW/GP/BTC
Effective luminous flux (lm): 6500
Color temperature (K): 2700...6500
Length (mm): 1227
FLY7000RM3BP/DALI
Effective luminous flux (lm): 7700
Color temperature (K): 3000
Length (mm): 1227
FLY7000RM3GP/ND
Effective luminous flux (lm): 7700
Color temperature (K): 3000
Length (mm): 1227
FLY7000RM4BP/DALI/BTC
Effective luminous flux (lm): 7700
Color temperature (K): 4000
Length (mm): 1227
FLY7000RM4GP/DALI
Effective luminous flux (lm): 7700
Color temperature (K): 4000
Length (mm): 1227
FLY7000RM4GP/DALI/BTC
Effective luminous flux (lm): 7700
Color temperature (K): 4000
Length (mm): 1227
FLY7000RM4GP/ND
Effective luminous flux (lm): 7700
Color temperature (K): 4000
Length (mm): 1227
FLY7500RM4GP/DALI
Effective luminous flux (lm): 7100
Color temperature (K): 4000
Length (mm): 1227
FLY8000RM3BP/DALI
Effective luminous flux (lm): 7100
Color temperature (K): 3000
Length (mm): 1227
FLY8000RM3GP/DALI
Effective luminous flux (lm): 7100
Color temperature (K): 3000
Length (mm): 1227
FLY8000RM3GP/ND
Effective luminous flux (lm): 7100
Color temperature (K): 3000
Length (mm): 1227
FLY8000RM4BP/DALI
Effective luminous flux (lm): 7100
Color temperature (K): 4000
Length (mm): 1227
FLY8000RM4BP/ND
Effective luminous flux (lm): 7100
Color temperature (K): 4000
Length (mm): 1227
FLY8000RM4GP/DALI
Effective luminous flux (lm): 7100
Color temperature (K): 4000
Length (mm): 1227
FLY8000RM4GP/DALI/3/S10
Effective luminous flux (lm): 7100
Color temperature (K): 4000
Length (mm): 1227
FLY8000RM4GP/DALIT
Effective luminous flux (lm): 7100
Color temperature (K): 4000
Length (mm): 1227
FLY8000RM4GP/ND
Effective luminous flux (lm): 7100
Color temperature (K): 4000
Length (mm): 1227
FLY8000RM4WP/ND
Effective luminous flux (lm): 7100
Color temperature (K): 4000
Length (mm): 1227
FLY8000RM5GP/DALI
Effective luminous flux (lm): 7100
Color temperature (K): 5700
Length (mm): 1227
FLY8000RM5GP/ND
Effective luminous flux (lm): 7100
Color temperature (K): 5700
Length (mm): 1227
FLY8000RM5WP/DALI
Effective luminous flux (lm): 7100
Color temperature (K): 5700
Length (mm): 1227
FLY9000RM4GP/DALI
Effective luminous flux (lm): 9000
Color temperature (K): 4000
Length (mm): 1227
FLY9000RM4GP/ND
Effective luminous flux (lm): 9000
Color temperature (K): 4000
Length (mm): 1227
FLYS3000RS3BS/ND
Effective luminous flux (lm): 2500
Color temperature (K): 3000
Length (mm): 638
FLYS3000RS3GS/DALI
Effective luminous flux (lm): 2500
Color temperature (K): 3000
Length (mm): 638
FLYS3000RS3GS/ND
Effective luminous flux (lm): 2500
Color temperature (K): 3000
Length (mm): 638
FLYS3000RS3WS/ND
Effective luminous flux (lm): 2500
Color temperature (K): 3000
Length (mm): 638
FLYS3000RS4BS/ND
Effective luminous flux (lm): 2500
Color temperature (K): 4000
Length (mm): 638
FLYS3000RS4GS/DALIT
Effective luminous flux (lm): 2500
Color temperature (K): 4000
Length (mm): 638
FLYS3000RS4GS/ND
Effective luminous flux (lm): 2500
Color temperature (K): 4000
Length (mm): 638
FLYS4000RS4GS/ND
Effective luminous flux (lm): 3600
Color temperature (K): 4000
Length (mm): 638
Show all versions
