MODUS FLY BTC

Pendant luminaire with BT control

MODUS FLY BTC
1 M10_nasten_celkove_osv.jpg
závěesné DI.PNG
třída ochrany I.PNG
220-240 v.png
11 L80_80000_h.jpg
en 62 471.png

Standard price from:

On request

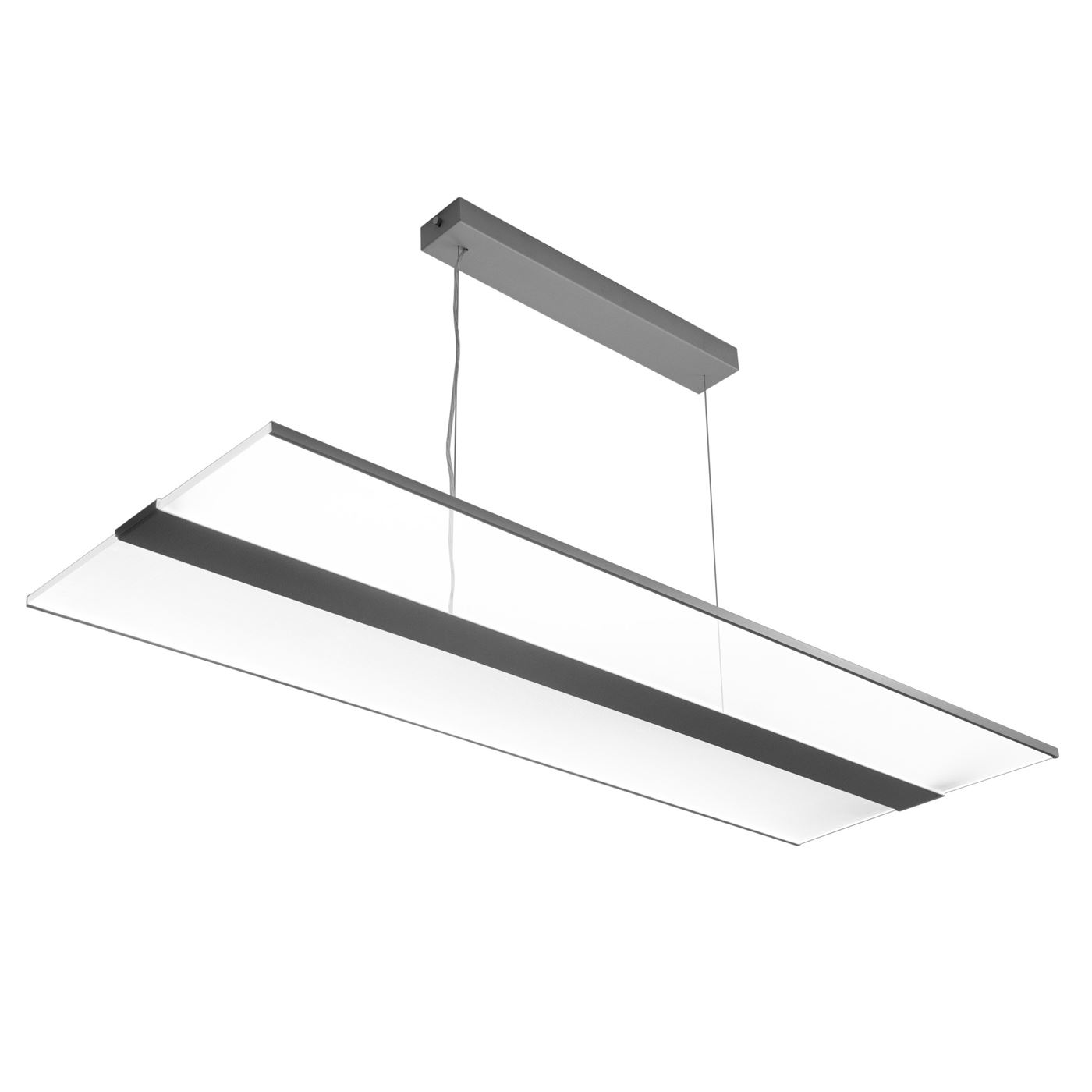

Elegant hanging luminaire (small version can be also surfaced - MODUS FLYS) with wireless dimming capability via Bluetooth.

The luminaire itself is designed with a direct / indirect light distribution (50/50 ratio). The pendant set length is max. 2 meters.

You can choose from several body colors (standard gray).

Control is possible with a mobile application or with a wireless button that is capable of running without a battery.

Mobile apps are available on Android and iPhone. Search for "Casambi". More information is also avaiable on internet page of developer.

With the application, the luminaire can be switched on / off, dimmed and, in the case of a chromaticity-modifier, can also change the color tone of the light. Even you can setup your own calendart and luminaire will automatically change Kelvins.

In addition, luminaires can be grouped, assigned a sensor.

Find out more about human centric lighting and tunable white in our MODUS TUNABLE LIGHT catalogue

Body material:Painted steel, Translucent acrylic layerMounting method:Wall surface mounted, Surface mounting, Pendant DI
Protection class:IWith movement sensor:Yes
Type of control gear:LED operating device current-controlledColor rendering index CRI:80-89, 90-100
Light source type:LEDColor temperature controllable (K):Yes
Light outlet:Direct/indirectNominal voltage (V):220...240
Degree of protection (IP):IP20Color temperature (K):4000, 6500, 3000, 2700, 5700, 2700...6500
Rated lifetime L80/B50 (h):80000Dimming DALI:Yes
Optical system:FLY
Světlovodivá deska pro přímo/nepřímé vyzařování
Made in Czech republic:Yes
Replaceability:Removeable light source, replaceable ballast
Removeable light source, replaceable ballast
Photobiological safety EN 62 471:RG 0
MacAdam binning:SDCM 3
Show more...
