Product series
MODUS FSQ

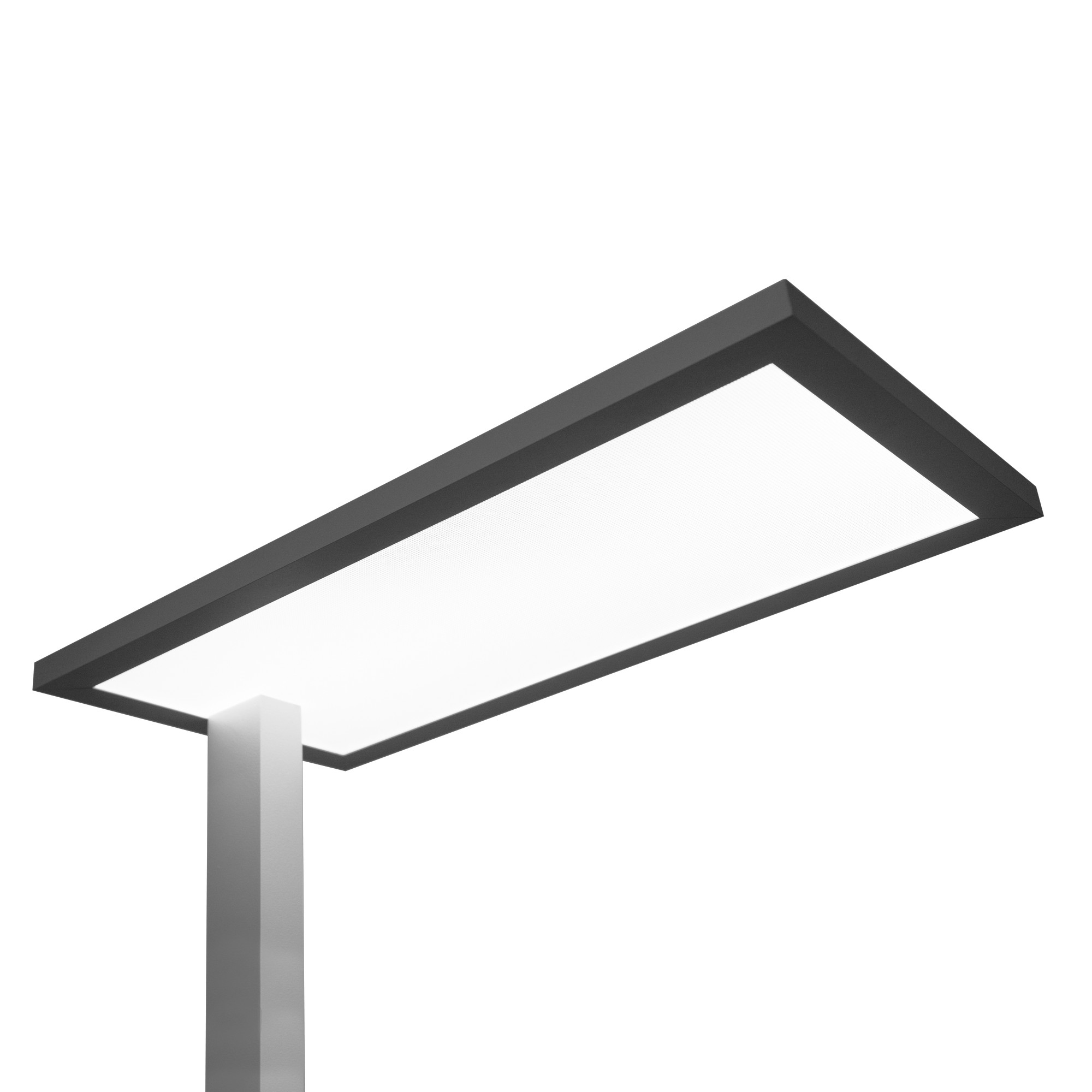

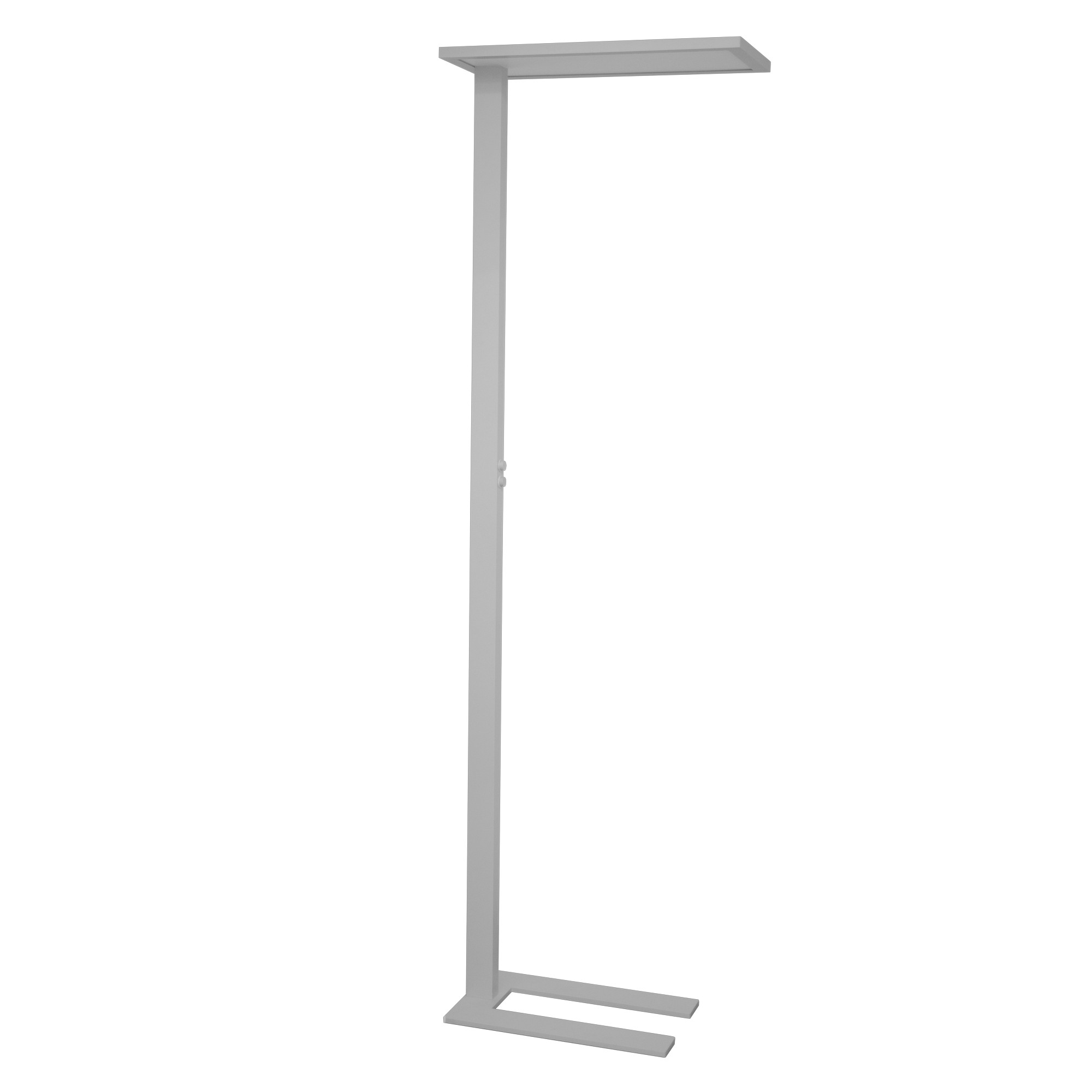

Leg-standing luminaire
Standard price from:
On request
Luminaire is mainly designed for illumination of workplace in open-office areas.

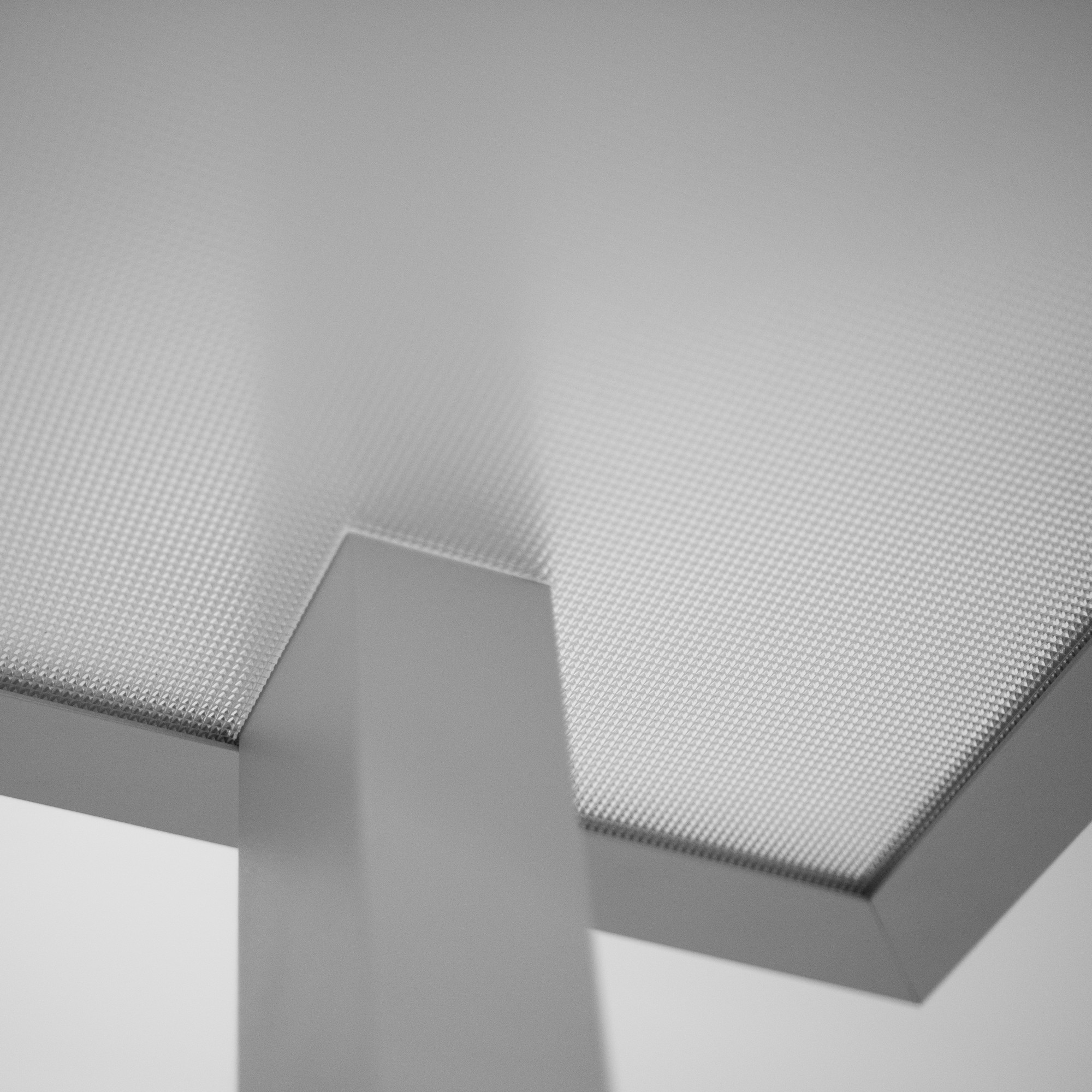

Optical part is made from two individual parts, there is possibility to control direct and indirect part individually. The direct optical part is made from nanoprisma cover - reduction of glare.

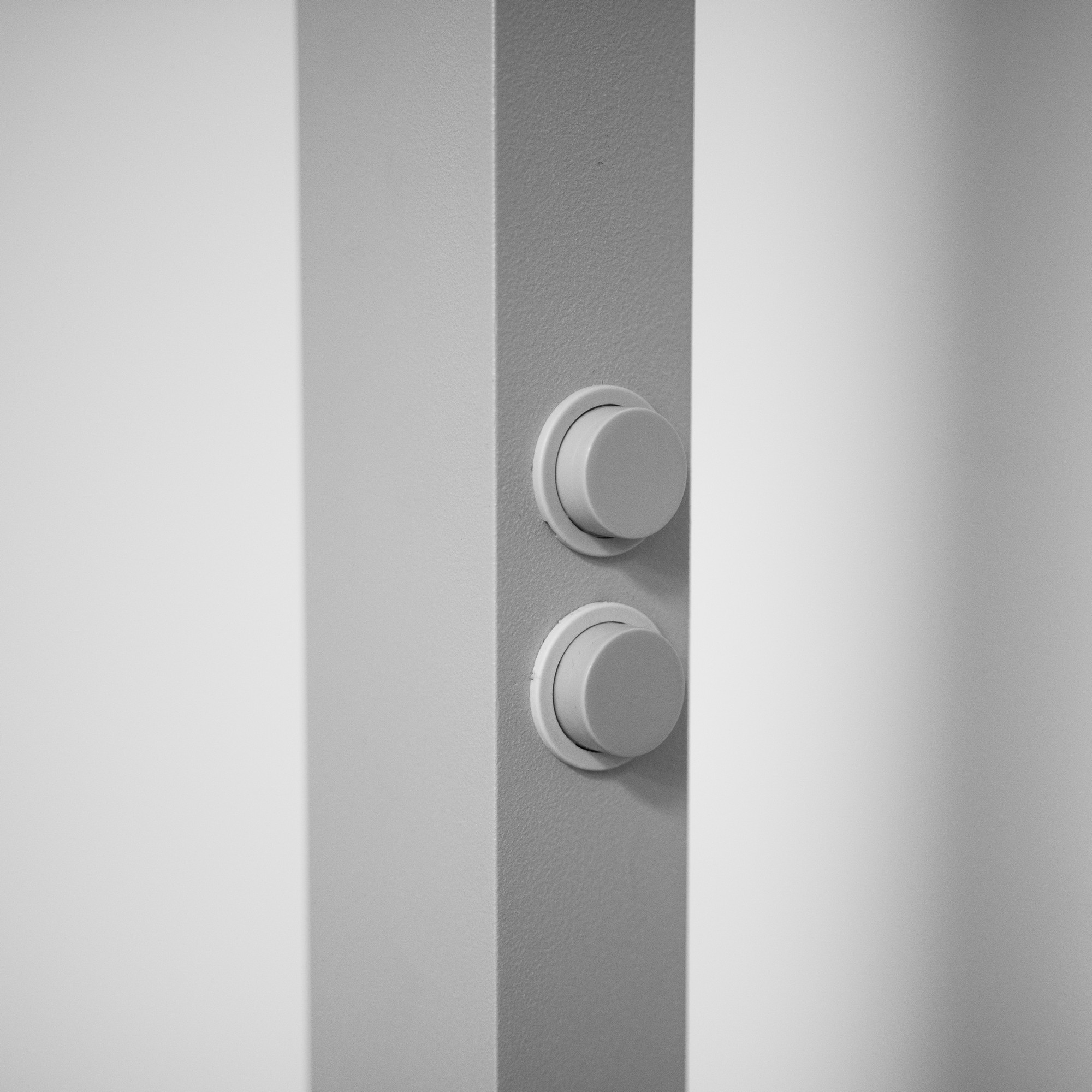

Switching on and dimmabling is control via pull-switch which are situated on luminaire leg.
Find out more about human centric lighting and tunable white in our MODUS TUNABLE LIGHT catalogue.
| Mounting method: | Free-standing | Protection class: | I | Type of control gear: | LED operating device current-controlled | Color rendering index CRI: | 80-89, 90-100 | Light source type: | LED | Color temperature controllable (K): | Yes | Light outlet: | Direct/indirect | Nominal voltage (V): | 220...240 | Degree of protection (IP): | IP20 | Color temperature (K): | 4000, 6500, 3000, 2700, 5700, 2700...6500 | Rated lifetime L80/B50 (h): | 80000 |
| Dimming DALI: | Yes | Dimming Touch and Dim: | Yes | Product category: | Floor luminaire | Optical system: | KN nanoprizmatic cover | Made in Czech republic: | Yes | Without Chinese components: | Ano | Replaceability: | Removeable light source, replaceable ballast Removeable light source, replaceable ballast | Photobiological safety EN 62 471: | RG 0 | MacAdam binning: | SDCM 3 |
LoadingFilters
Effective luminous flux (lm)
System power (W)
Product name
Effective luminous flux (lm)
System power (W)
Color temperature (K)
Height/depth (mm)
Dimming Touch and Dim
FSQ6000RS3KNDI/TD
Effective luminous flux (lm): 5800
System power (W): 52
Color temperature (K): 3000
Height/depth (mm): 2000
Dimming Touch and Dim: Yes
FSQ6000RS3KNDI/TD/9003
Effective luminous flux (lm): 5800
System power (W): 52
Color temperature (K): 3000
Height/depth (mm): 2000
Dimming Touch and Dim: Yes
FSQ6000RS3KNDI/TD/9005
Effective luminous flux (lm): 5800
System power (W): 52
Color temperature (K): 3000
Height/depth (mm): 2000
Dimming Touch and Dim: Yes
FSQ6000RS4KNDI/TD
Effective luminous flux (lm): 5800
System power (W): 52
Color temperature (K): 4000
Height/depth (mm): 2000
Dimming Touch and Dim: Yes
FSQ6000RS4KNDI/TD/7016
Effective luminous flux (lm): 5800
System power (W): 52
Color temperature (K): 4000
Height/depth (mm): 2000
Dimming Touch and Dim: Yes
FSQ6000RS4KNDI/TD/9003
Effective luminous flux (lm): 5800
System power (W): 52
Color temperature (K): 4000
Height/depth (mm): 2000
Dimming Touch and Dim: Yes
FSQ6000RS4KNDI/TD/9005
Effective luminous flux (lm): 5800
System power (W): 52
Color temperature (K): 4000
Height/depth (mm): 2000
Dimming Touch and Dim: Yes
FSQ6000RS4KNDI/TD/EU
Effective luminous flux (lm): 5800
System power (W): 52
Color temperature (K): 4000
Height/depth (mm): 2000
Dimming Touch and Dim: Yes
FSQ6000RS4KODI/TD
System power (W): 52
Color temperature (K): 4000
Height/depth (mm): 2000
Dimming Touch and Dim: Yes
FSQ6000RS5KNDI/TD
Effective luminous flux (lm): 5800
System power (W): 52
Color temperature (K): 5700
Height/depth (mm): 2000
Dimming Touch and Dim: Yes
FSQ6000RS6KNDI/TD
Effective luminous flux (lm): 5800
System power (W): 52
Color temperature (K): 6500
Height/depth (mm): 2000
Dimming Touch and Dim: Yes
FSQ8000RS3KNDI/TD
Effective luminous flux (lm): 8500
System power (W): 80
Color temperature (K): 3000
Height/depth (mm): 2000
Dimming Touch and Dim: Yes
FSQ8000RS3KNDI/TD/90/9005
Effective luminous flux (lm): 7300
System power (W): 80
Color temperature (K): 3000
Height/depth (mm): 2000
Dimming Touch and Dim: Yes
FSQ8000RS3KNDI/TD/9003
Effective luminous flux (lm): 8500
System power (W): 80
Color temperature (K): 3000
Height/depth (mm): 2000
Dimming Touch and Dim: Yes
FSQ8000RS3KNDI/TD/9005
Effective luminous flux (lm): 8500
System power (W): 80
Color temperature (K): 3000
Height/depth (mm): 2000
Dimming Touch and Dim: Yes
FSQ8000RS4KNDI/TD
Effective luminous flux (lm): 8500
System power (W): 80
Color temperature (K): 4000
Height/depth (mm): 2000
Dimming Touch and Dim: Yes
FSQ8000RS4KNDI/TD/9003
Effective luminous flux (lm): 8500
System power (W): 80
Color temperature (K): 4000
Height/depth (mm): 2000
Dimming Touch and Dim: Yes
