MODUS G

Surfaced fitting

MODUS G
MODUS G1 RMMODUS G1 RM
MODUS G2 SSMODUS G2 SS
třída ochrany I.PNG
220-240 v.png
11 L80_80000_h.jpg
en 62 471.png

Standard price from:

On request
Distribution network
Contacts

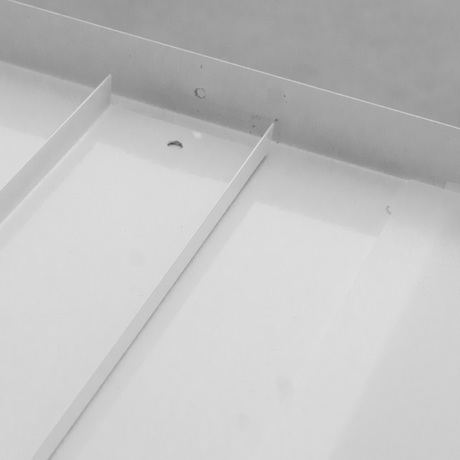

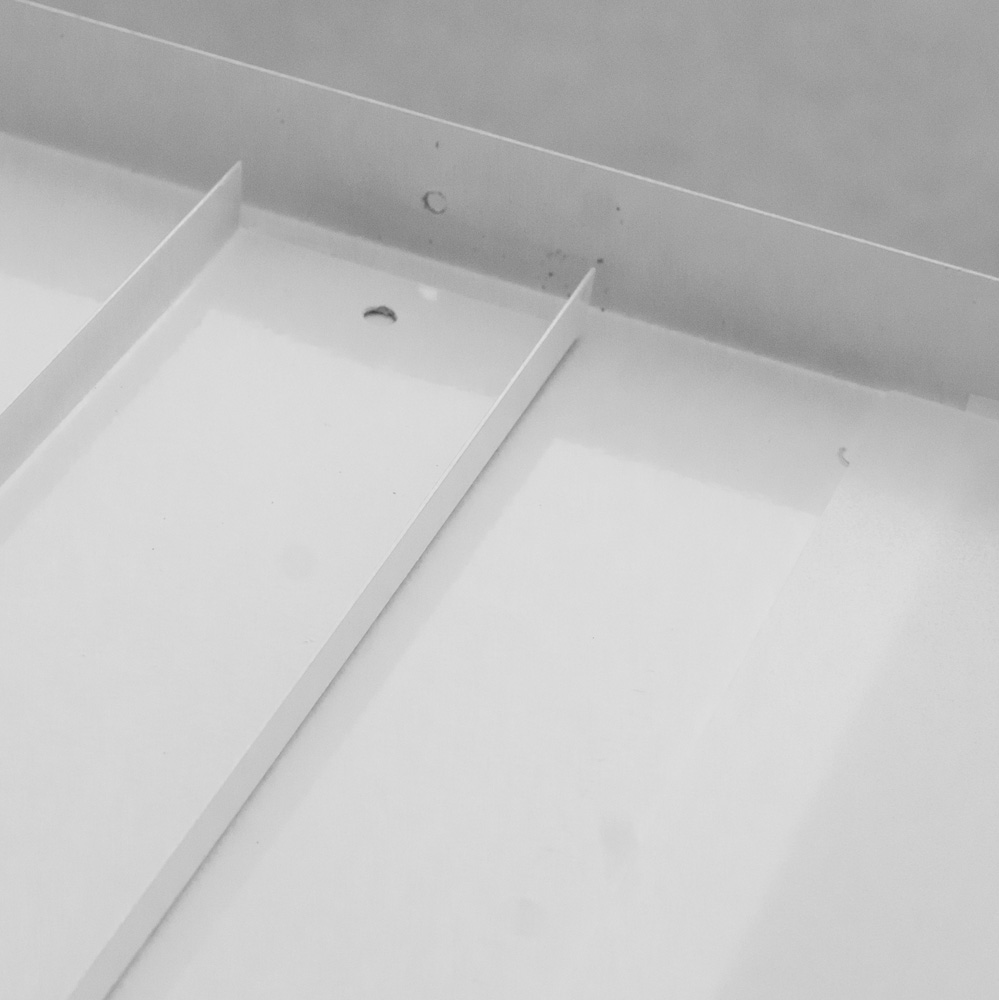

Body:

White painted (RAL 9003) metal sheet

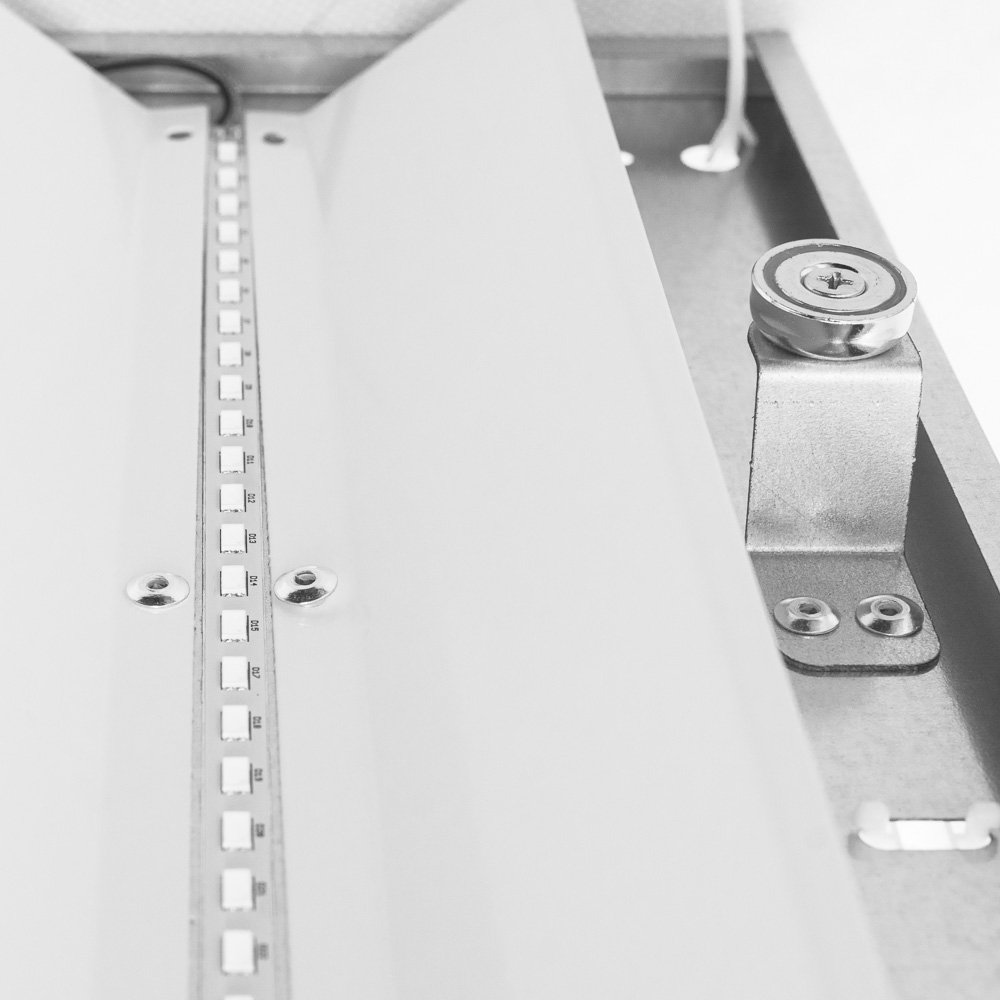

LED:

Mid Power LED

CRI 80 (CRI 90 on request)

3...warm white 3000K

4...cold white 4000K



Wiring:

LED driver (constant current)

ND – not dimmable (standard)

DALI – digital dimmable DALI

DIM - analogue dimmable 1-10V

Luminaire can be supplied with wireless Bluetooth control - more information here.



Application:

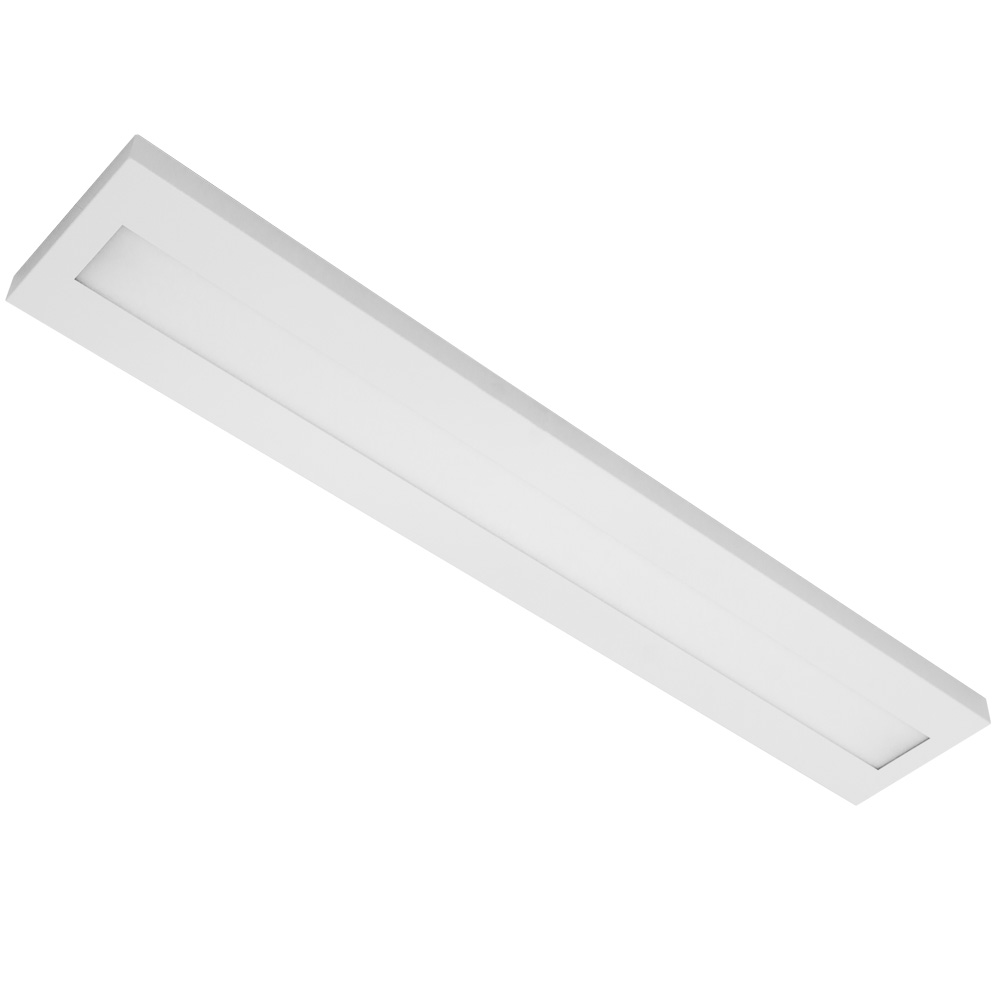

Flat surface lighting fitting.

Ideal for illumination of offices, corridors, ...



Versions:

SS - square

RM - rectangle, medium

RL - rectangle, large

Size version:L
1500 mm
M
1200 mm
S
600 mm
Body material:White painted steel
Mounting method:Surface mountingProtection class:I
Type of control gear:LED operating device current-controlledColor rendering index CRI:80-89, 90-100
Light source type:LEDNominal voltage (V):220...240
Degree of protection (IP):IP20Color temperature (K):4000, 6500, 3000, 2700, 5700
Rated lifetime L80/B50 (h):80000Dimming 1-10 V:Yes
Dimming DALI:YesOptical system:KO
opal cover

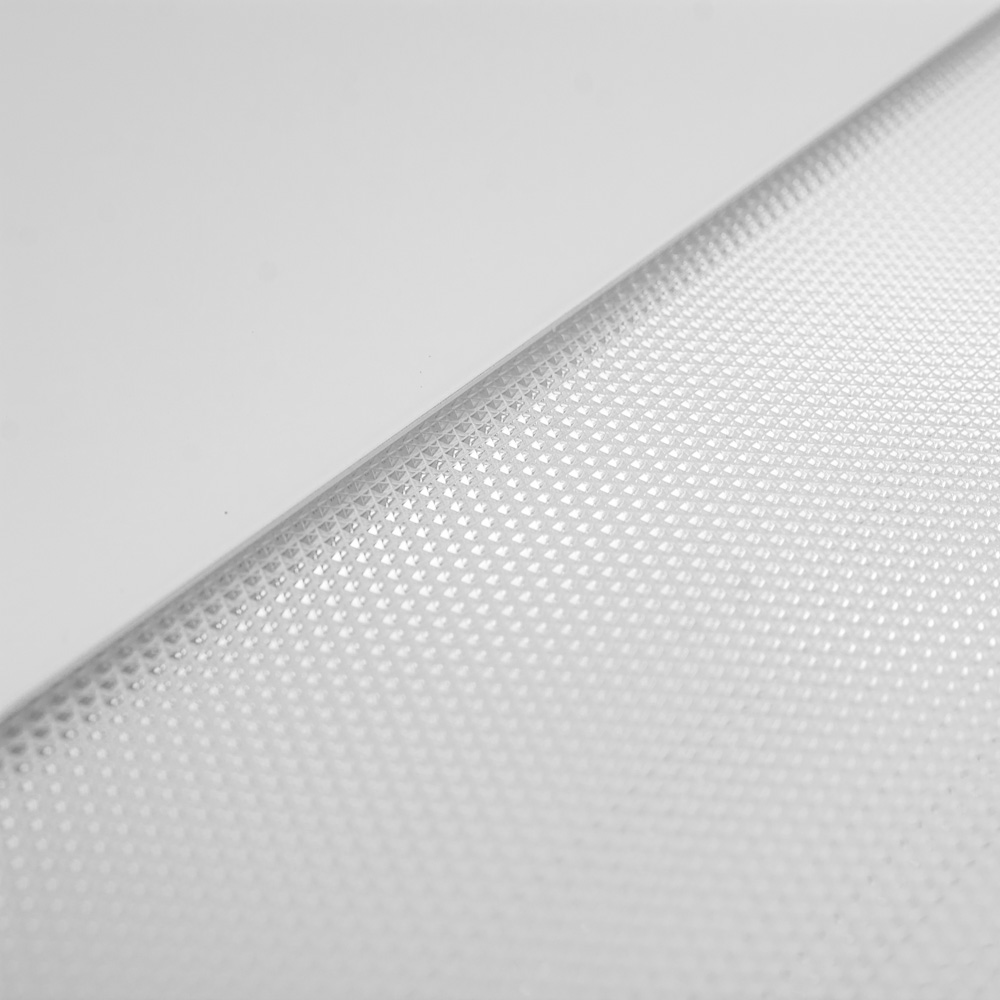

KN
nanoprizmatic cover
Made in Czech republic:Yes Without Chinese components:Ano
Replaceability:Replaceable light source by professional, replaceable ballast
Replaceable light source by professional, replaceable ballast
Photobiological safety EN 62 471:RG 0
MacAdam binning:SDCM 3
Show more...
LoadingLoading

Filters

Effective luminous flux (lm)

2700
11200

System power (W)

120
52
Product name
G1RLKN3V1/1050DALI
Effective luminous flux (lm): 4900
System power (W): 39
Color temperature (K): 3000
Optical system: KN
Length (mm): 1535
G1RLKN3V1/1050ND
Effective luminous flux (lm): 4900
System power (W): 39
Color temperature (K): 3000
Optical system: KN
Length (mm): 1535
G1RLKN3V1/1400DALI
Effective luminous flux (lm): 6000
System power (W): 48
Color temperature (K): 3000
Optical system: KN
Length (mm): 1535
G1RLKN3V1/1400ND
Effective luminous flux (lm): 6000
System power (W): 48
Color temperature (K): 3000
Optical system: KN
Length (mm): 1535
G1RLKN4V1/1050DALI
Effective luminous flux (lm): 4900
System power (W): 39
Color temperature (K): 4000
Optical system: KN
Length (mm): 1535
G1RLKN4V1/1050ND
Effective luminous flux (lm): 4900
System power (W): 39
Color temperature (K): 4000
Optical system: KN
Length (mm): 1535
G1RLKN4V1/1050ND/90
Effective luminous flux (lm): 4150
System power (W): 39
Color temperature (K): 4000
Optical system: KN
Length (mm): 1535
G1RLKN4V1/1400DALI
Effective luminous flux (lm): 6000
System power (W): 48
Color temperature (K): 4000
Optical system: KN
Length (mm): 1535
G1RLKN4V1/1400ND
Effective luminous flux (lm): 6000
System power (W): 48
Color temperature (K): 4000
Optical system: KN
Length (mm): 1535
G1RLKN4V1/1400ND/90
Effective luminous flux (lm): 5100
System power (W): 48
Color temperature (K): 4000
Optical system: KN
Length (mm): 1535
G1RLKN4V1/1400ND/EU
Effective luminous flux (lm): 6000
System power (W): 48
Color temperature (K): 4000
Optical system: KN
Length (mm): 1535
G1RLKN4V1NZ/1050ND
Effective luminous flux (lm): 4900
System power (W): 39
Color temperature (K): 4000
Optical system: KN
Length (mm): 1535
G1RLKN4V1NZ/1400ND
Effective luminous flux (lm): 6000
System power (W): 48
Color temperature (K): 4000
Optical system: KN
Length (mm): 1535
G1RLKN4V1NZ3/1050ND
Effective luminous flux (lm): 4900
System power (W): 39
Color temperature (K): 4000
Optical system: KN
Length (mm): 1535
G1RLKO3V1/1050DALI
Effective luminous flux (lm): 4650
System power (W): 39
Color temperature (K): 3000
Optical system: KO
Length (mm): 1535
G1RLKO3V1/1050DALIT
Effective luminous flux (lm): 4650
System power (W): 39
Color temperature (K): 3000
Optical system: KO
Length (mm): 1535
G1RLKO3V1/1050ND
Effective luminous flux (lm): 4650
System power (W): 39
Color temperature (K): 3000
Optical system: KO
Length (mm): 1535
G1RLKO3V1/1050SRN
Effective luminous flux (lm): 4650
System power (W): 39
Color temperature (K): 3000
Optical system: KO
Length (mm): 1535
G1RLKO3V1/1400DALI
Effective luminous flux (lm): 5700
System power (W): 48
Color temperature (K): 3000
Optical system: KO
Length (mm): 1535
G1RLKO3V1/1400ND
Effective luminous flux (lm): 5700
System power (W): 48
Color temperature (K): 3000
Optical system: KO
Length (mm): 1535
G1RLKO3V1/1400ND/EU
Effective luminous flux (lm): 5700
System power (W): 48
Color temperature (K): 3000
Optical system: KO
Length (mm): 1535
G1RLKO3V1NZ/1050DALI
Effective luminous flux (lm): 4650
System power (W): 39
Color temperature (K): 3000
Optical system: KO
Length (mm): 1535
G1RLKO4V1/1050DALI
Effective luminous flux (lm): 4650
System power (W): 39
Color temperature (K): 4000
Optical system: KO
Length (mm): 1535
G1RLKO4V1/1050ND
Effective luminous flux (lm): 4650
System power (W): 39
Color temperature (K): 4000
Optical system: KO
Length (mm): 1535
G1RLKO4V1/1050ND/90
Effective luminous flux (lm): 4150
System power (W): 39
Color temperature (K): 4000
Optical system: KO
Length (mm): 1535
G1RLKO4V1/1050ND/PIR
Effective luminous flux (lm): 4650
System power (W): 39
Color temperature (K): 4000
Optical system: KO
Length (mm): 1535
G1RLKO4V1/1400DALI
Effective luminous flux (lm): 5700
System power (W): 48
Color temperature (K): 4000
Optical system: KO
Length (mm): 1535
G1RLKO4V1/1400DALI/BTC
Effective luminous flux (lm): 5700
System power (W): 48
Color temperature (K): 4000
Optical system: KO
Length (mm): 1535
G1RLKO4V1/1400DALI/EU
Effective luminous flux (lm): 5700
System power (W): 48
Color temperature (K): 4000
Optical system: KO
Length (mm): 1535
G1RLKO4V1/1400DALIT
Effective luminous flux (lm): 5700
System power (W): 48
Color temperature (K): 4000
Optical system: KO
Length (mm): 1535
G1RLKO4V1/1400ND
Effective luminous flux (lm): 5700
System power (W): 48
Color temperature (K): 4000
Optical system: KO
Length (mm): 1535
G1RLKO4V1/1400ND/90
Effective luminous flux (lm): 4800
System power (W): 48
Color temperature (K): 4000
Optical system: KO
Length (mm): 1535
G1RLKO4V1/1400ND/9007
Effective luminous flux (lm): 5700
System power (W): 48
Color temperature (K): 4000
Optical system: KO
Length (mm): 1535
G1RLKO4V1/1400ND/EU
Effective luminous flux (lm): 5700
System power (W): 48
Color temperature (K): 4000
Optical system: KO
Length (mm): 1535
G1RLKO4V1NZ3/1050ND
Effective luminous flux (lm): 4650
System power (W): 39
Color temperature (K): 4000
Optical system: KO
Length (mm): 1535
G1RLKO5V1/1400DALI/EU
Effective luminous flux (lm): 5700
System power (W): 48
Color temperature (K): 5700
Optical system: KO
Length (mm): 1535
G1RLKO5V1/1400ND
Effective luminous flux (lm): 5700
System power (W): 48
Color temperature (K): 5700
Optical system: KO
Length (mm): 1535
G1RLKO5V1/1400ND/EU
Effective luminous flux (lm): 5700
System power (W): 48
Color temperature (K): 5700
Optical system: KO
Length (mm): 1535
G1RMKN3V1/1050ND
Effective luminous flux (lm): 6000
System power (W): 52
Color temperature (K): 3000
Optical system: KN
Length (mm): 1230
G1RMKN3V1/700DALI
Effective luminous flux (lm): 4200
System power (W): 33
Color temperature (K): 3000
Optical system: KN
Length (mm): 1230
G1RMKN3V1/700ND
Effective luminous flux (lm): 4200
System power (W): 33
Color temperature (K): 3000
Optical system: KN
Length (mm): 1230
G1RMKN3V1NZ/700ND
Effective luminous flux (lm): 4200
System power (W): 33
Color temperature (K): 3000
Optical system: KN
Length (mm): 1230
G1RMKN4V1/1050DALI
Effective luminous flux (lm): 6000
System power (W): 52
Color temperature (K): 4000
Optical system: KN
Length (mm): 1230
G1RMKN4V1/1050ND
Effective luminous flux (lm): 6000
System power (W): 52
Color temperature (K): 4000
Optical system: KN
Length (mm): 1230
G1RMKN4V1/1050ND/90
Effective luminous flux (lm): 5100
System power (W): 52
Color temperature (K): 4000
Optical system: KN
Length (mm): 1230
G1RMKN4V1/500ND
Effective luminous flux (lm): 2700
System power (W): 23
Color temperature (K): 4000
Optical system: KN
Length (mm): 1230
G1RMKN4V1/700DALI
Effective luminous flux (lm): 4200
System power (W): 33
Color temperature (K): 4000
Optical system: KN
Length (mm): 1230
G1RMKN4V1/700ND
Effective luminous flux (lm): 4200
System power (W): 33
Color temperature (K): 4000
Optical system: KN
Length (mm): 1230
G1RMKN4V1/700ND/90
Effective luminous flux (lm): 3600
System power (W): 33
Color temperature (K): 4000
Optical system: KN
Length (mm): 1230
G1RMKN4V1NZ/1050ND
Effective luminous flux (lm): 6000
System power (W): 52
Color temperature (K): 4000
Optical system: KN
Length (mm): 1230
G1RMKN4V1NZ/700ND
Effective luminous flux (lm): 4200
System power (W): 33
Color temperature (K): 4000
Optical system: KN
Length (mm): 1230
G1RMKN4V1NZ3/700ND
Effective luminous flux (lm): 4200
System power (W): 33
Color temperature (K): 4000
Optical system: KN
Length (mm): 1230
G1RMKO3V1/1050DALI
Effective luminous flux (lm): 5700
System power (W): 52
Color temperature (K): 3000
Optical system: KO
Length (mm): 1230
G1RMKO3V1/1050ND
Effective luminous flux (lm): 5700
System power (W): 52
Color temperature (K): 3000
Optical system: KO
Length (mm): 1230
G1RMKO3V1/700DALI
Effective luminous flux (lm): 3900
System power (W): 33
Color temperature (K): 3000
Optical system: KO
Length (mm): 1230
G1RMKO3V1/700ND
Effective luminous flux (lm): 3900
System power (W): 33
Color temperature (K): 3000
Optical system: KO
Length (mm): 1230
G1RMKO3V1/700SRS
Effective luminous flux (lm): 3900
System power (W): 33
Color temperature (K): 3000
Optical system: KO
Length (mm): 1230
G1RMKO3V1NZ/700ND
Effective luminous flux (lm): 3900
System power (W): 33
Color temperature (K): 3000
Optical system: KO
Length (mm): 1230
G1RMKO4V1/1050DALI
Effective luminous flux (lm): 5700
System power (W): 52
Color temperature (K): 4000
Optical system: KO
Length (mm): 1230
G1RMKO4V1/1050ND
Effective luminous flux (lm): 5700
System power (W): 52
Color temperature (K): 4000
Optical system: KO
Length (mm): 1230
G1RMKO4V1/1050ND/9007
Effective luminous flux (lm): 5700
System power (W): 52
Color temperature (K): 4000
Optical system: KO
Length (mm): 1230
G1RMKO4V1/700DALI
Effective luminous flux (lm): 3900
System power (W): 33
Color temperature (K): 4000
Optical system: KO
Length (mm): 1230
G1RMKO4V1/700ND
Effective luminous flux (lm): 3900
System power (W): 33
Color temperature (K): 4000
Optical system: KO
Length (mm): 1230
G1RMKO4V1NZ/1050ND
Effective luminous flux (lm): 5700
System power (W): 52
Color temperature (K): 4000
Optical system: KO
Length (mm): 1230
G1RMKO4V1NZ/700ND
Effective luminous flux (lm): 3900
System power (W): 33
Color temperature (K): 4000
Optical system: KO
Length (mm): 1230
G1RMKO4V1NZ3/1050ND
Effective luminous flux (lm): 5700
System power (W): 52
Color temperature (K): 4000
Optical system: KO
Length (mm): 1230
G1RMKO4V1NZ3/700ND
Effective luminous flux (lm): 3900
System power (W): 33
Color temperature (K): 4000
Optical system: KO
Length (mm): 1230
G1RMKO5V1/700DALI/90
Effective luminous flux (lm): 3350
System power (W): 33
Color temperature (K): 5700
Optical system: KO
Length (mm): 1230
G2RMKO4V2/2100ND
Effective luminous flux (lm): 11200
System power (W): 120
Color temperature (K): 4000
Optical system: KO
Length (mm): 1230
G2SSKN3V1/1050DALI
Effective luminous flux (lm): 5700
System power (W): 50
Color temperature (K): 3000
Optical system: KN
Length (mm): 650
G2SSKN3V1/1050ND
Effective luminous flux (lm): 5700
System power (W): 50
Color temperature (K): 3000
Optical system: KN
Length (mm): 650
G2SSKN3V1/700DALI
Effective luminous flux (lm): 4100
System power (W): 33
Color temperature (K): 3000
Optical system: KN
Length (mm): 650
G2SSKN3V1/700ND
Effective luminous flux (lm): 4100
System power (W): 33
Color temperature (K): 3000
Optical system: KN
Length (mm): 650
G2SSKN3V1/700SRS
Effective luminous flux (lm): 4100
System power (W): 33
Color temperature (K): 3000
Optical system: KN
Length (mm): 650
G2SSKN3V1NZ/1050ND
Effective luminous flux (lm): 5700
System power (W): 50
Color temperature (K): 3000
Optical system: KN
Length (mm): 650
G2SSKN4V1/1050ND
Effective luminous flux (lm): 5700
System power (W): 50
Color temperature (K): 4000
Optical system: KN
Length (mm): 650
G2SSKN4V1/700ND
Effective luminous flux (lm): 4100
System power (W): 33
Color temperature (K): 4000
Optical system: KN
Length (mm): 650
G2SSKN4V1NZ/700ND
Effective luminous flux (lm): 4100
System power (W): 33
Color temperature (K): 4000
Optical system: KN
Length (mm): 650
G2SSKO3V1/1050DALI
Effective luminous flux (lm): 5400
System power (W): 50
Color temperature (K): 3000
Optical system: KO
Length (mm): 650
G2SSKO3V1/1050ND
Effective luminous flux (lm): 5400
System power (W): 50
Color temperature (K): 3000
Optical system: KO
Length (mm): 650
G2SSKO3V1/700DALI
Effective luminous flux (lm): 3900
System power (W): 33
Color temperature (K): 3000
Optical system: KO
Length (mm): 650
G2SSKO3V1/700DALIT
Effective luminous flux (lm): 3900
System power (W): 33
Color temperature (K): 3000
Optical system: KO
Length (mm): 650
G2SSKO3V1/700ND
Effective luminous flux (lm): 3900
System power (W): 33
Color temperature (K): 3000
Optical system: KO
Length (mm): 650
G2SSKO3V1/700SRS
Effective luminous flux (lm): 3900
System power (W): 33
Color temperature (K): 3000
Optical system: KO
Length (mm): 650
G2SSKO3V1NZ/700ND
Effective luminous flux (lm): 3900
System power (W): 33
Color temperature (K): 3000
Optical system: KO
Length (mm): 650
G2SSKO4V1/1050DALI
Effective luminous flux (lm): 5400
System power (W): 50
Color temperature (K): 4000
Optical system: KO
Length (mm): 650
G2SSKO4V1/1050ND
Effective luminous flux (lm): 5400
System power (W): 50
Color temperature (K): 4000
Optical system: KO
Length (mm): 650
G2SSKO4V1/700DALI
Effective luminous flux (lm): 3900
System power (W): 33
Color temperature (K): 4000
Optical system: KO
Length (mm): 650
G2SSKO4V1/700ND
Effective luminous flux (lm): 3900
System power (W): 33
Color temperature (K): 4000
Optical system: KO
Length (mm): 650
G2SSKO4V1NZ/700ND
Effective luminous flux (lm): 3900
System power (W): 33
Color temperature (K): 4000
Optical system: KO
Length (mm): 650
Show all versions

Projekty realizované se svítidly MODUS:


Autosalon Rolls-Royce (Australia)

MODUS TEL

Detail reference

Office building of HAGER company

MODUS SPMI + MODUS QP

Detail reference

Commercial centrum

MODUS Q SKY

Detail reference

Tennis play-ground Bratislava (SK)

MODUS MEGAL

Detail reference
Zobrazit další reference
 Back to product list

We are here to help

We'll advise you all, we have outstanding support.
Lighting calculations

Lighting calculations

Do you need to calculate the lighting?

LDT files

LDT files

Do you need LDT data for your project?

Product support

Product support

Do not know what kind of lighting is best for you?

Connection diagrams

Connection diagrams

Do not you know how to conect luminaires properly?

Contact
