Product series New

MODUS GEO

Design luminaires with variety of shapes

třída ochrany I.PNG
220-240 v.png
11 L80_80000_h.jpg
en 62 471.png

Standard price from:

On request
Distribution network
Contacts

A completely new range of design luminaires. The body of the luminaire is made of solid aluminum - a luxurious look.

Thanks to our own technology for bending aluminum profiles, the luminaire can be supplied in various sizes and shapes.

The luminaire can be made in various colors. From classic white, through gray to, for example, dark brown.

INTO THE SHAPES with new and creative MODUS luminaires.

Find out more about human centric lighting and tunable white in our MODUS TUNABLE LIGHT catalogue.

The basic shape variants are:

TS - triangle 400mm

TM - triangle 600mm

SS - square 400mm

SM - square 600mm

RS - rectangle 400x600mm

RM - rectangle 600x900mm

P - ring 1200mm

OS - 700x200mm

OM - 1200x200mm

OL - 1700x200mm

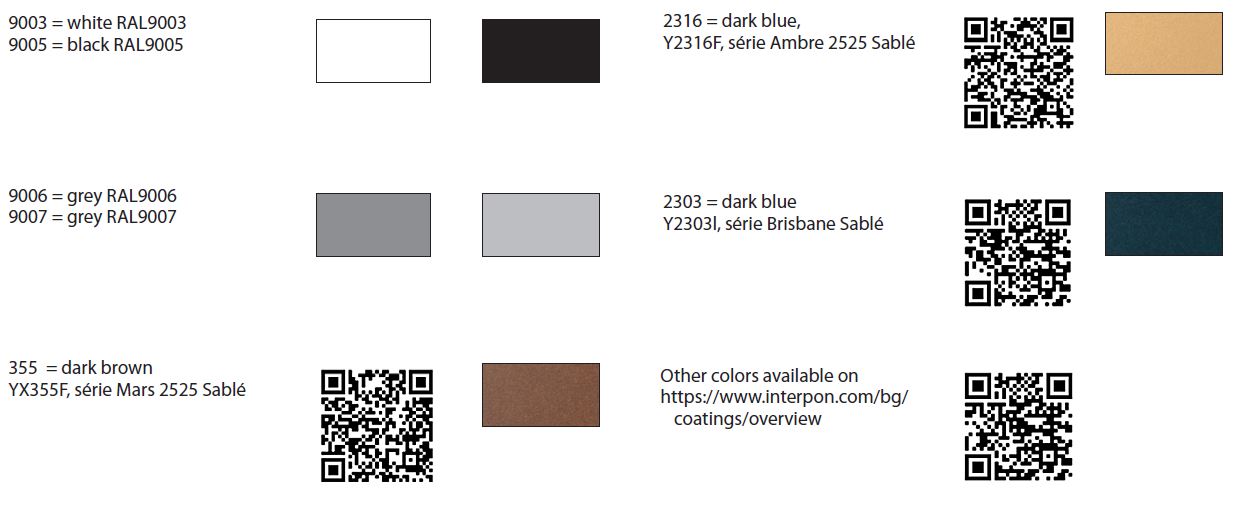

Basic colors:

Mounting method:Pendant, Surface mountingProtection class:I
Type of control gear:LED operating device current-controlledColor rendering index CRI:80-89
Light source type:LEDColor temperature controllable (K):Yes
Light outlet:DirectLight sharing:Symmetric
Nominal voltage (V):220...240Degree of protection (IP):IP20
Color temperature (K):4000, 6500, 3000, 2700, 5700, 2700...6500Rated lifetime L80/B50 (h):80000
Dimming DALI:YesOptical system:SO
SATIN opal cover
Made in Czech republic:YesReplaceability:Replaceable light source by professional, replaceable ballast
Replaceable light source by professional, replaceable ballast
Photobiological safety EN 62 471:RG 0MacAdam binning:SDCM 3
Show more...
LoadingLoading

Filters

Effective luminous flux (lm)

1800
13700

System power (W)

15
93
Product name
GEOOL5000SO4/9003/ND
Effective luminous flux (lm): 4600
System power (W): 35
Color temperature (K): 4000
Length (mm): 1700
Color housing: White
GEOOL5000SO4/9003/ND/90
Effective luminous flux (lm): 3950
System power (W): 35
Color temperature (K): 4000
Length (mm): 1700
Color housing: White
GEOOL5000SO4/9005/ND
Effective luminous flux (lm): 4600
System power (W): 35
Color temperature (K): 4000
Length (mm): 1700
Color housing: Black
GEOOL7000SO4/9003/ND
Effective luminous flux (lm): 6600
System power (W): 51
Color temperature (K): 4000
Length (mm): 1700
Color housing: White
GEOOL8000SO4/9003/ND
Effective luminous flux (lm): 8100
System power (W): 63
Color temperature (K): 4000
Length (mm): 1700
Color housing: White
GEOOL8000SO4Z/9007/ND
Color temperature (K): 4000
Length (mm): 1700
Color housing: Grey
GEOOM6000SO4Z/9007/ND
Effective luminous flux (lm): 6750
System power (W): 53
Color temperature (K): 4000
Length (mm): 1200
Color housing: Grey
GEOOS3000SO3/9006/ND
Effective luminous flux (lm): 2800
System power (W): 24
Color temperature (K): 3000
Length (mm): 700
Color housing: Silver
GEOOS3000SO4/9003/DALI
Effective luminous flux (lm): 2800
System power (W): 24
GEOOS3000SO4/9003/ND
Effective luminous flux (lm): 2800
System power (W): 24
Color temperature (K): 4000
Length (mm): 700
Color housing: White
GEOOS3000SO4/9003/ND/90
Effective luminous flux (lm): 2400
System power (W): 24
Color temperature (K): 4000
Length (mm): 700
Color housing: White
GEOOS3000SO4/9006/DALI
Effective luminous flux (lm): 2800
System power (W): 24
Color temperature (K): 4000
Length (mm): 700
Color housing: Silver
GEOOS3000SO4/9006/ND
Effective luminous flux (lm): 2800
System power (W): 24
Color temperature (K): 4000
Length (mm): 700
Color housing: Silver
GEOOS3000SOMIXW/355
Effective luminous flux (lm): 2800
System power (W): 24
Color temperature (K): 2700...6500
Length (mm): 700
Color housing: Brown
GEOPL12000SO4Z/355/DALI
Effective luminous flux (lm): 13700
System power (W): 110
Color temperature (K): 4000
Color housing: White
GEOPL12000SO4Z/9005/NDOK
Effective luminous flux (lm): 13700
System power (W): 110
Color temperature (K): 4000
Color housing: Black
GEOPL12000SO4Z/9007/NDOK
Effective luminous flux (lm): 13700
System power (W): 110
Color temperature (K): 4000
Color housing: Grey
GEOPL12000SO4ZM/9005/DALIT
Effective luminous flux (lm): 13700
System power (W): 110
Color temperature (K): 4000
Color housing: White
GEOPL12000SOMIXWZ/9003
Effective luminous flux (lm): 13700
System power (W): 110
Color temperature (K): 2700...6500
Color housing: White
GEOPL12000SOMIXWZ/9003/BTC
Effective luminous flux (lm): 13700
System power (W): 110
Color temperature (K): 2700...6500
Color housing: White
GEOPL12000SOMIXWZ/9005/BTC
Effective luminous flux (lm): 13700
System power (W): 110
Color temperature (K): 2700...6500
Color housing: Black
GEOPL12000SOMIXWZD/9003
Effective luminous flux (lm): 12000
System power (W): 93
Color temperature (K): 2700...6500
Color housing: White
GEOPL12000SOMIXWZM/9003
Effective luminous flux (lm): 13700
System power (W): 110
Color temperature (K): 2700...6500
Color housing: White
GEOPL12000SOMIXWZMD/9003
Effective luminous flux (lm): 12000
System power (W): 93
Color temperature (K): 2700...6500
Color housing: White
GEOPL8000SO3Z/9003/DALI
Effective luminous flux (lm): 9600
System power (W): 80
Color temperature (K): 3000
Color housing: White
GEOPL8000SO4Z/7016/NDOK
Effective luminous flux (lm): 9600
System power (W): 80
Color temperature (K): 4000
Color housing: Anthracite
GEOPL8000SO4Z/9003/DALI
Effective luminous flux (lm): 9600
System power (W): 80
Color temperature (K): 4000
Color housing: White
GEOPL8000SO4Z/9003/NDOK
Effective luminous flux (lm): 9600
System power (W): 80
Color temperature (K): 4000
Color housing: White
GEOPL8000SO4Z/9005/DALI
Effective luminous flux (lm): 9600
System power (W): 80
Color temperature (K): 4000
Color housing: Black
GEOPL8000SO4Z/9005/DALIBTC
Effective luminous flux (lm): 9600
System power (W): 80
Color temperature (K): 4000
Color housing: Black
GEOPL8000SO4Z/9005/NDOK
Effective luminous flux (lm): 9600
System power (W): 80
Color temperature (K): 4000
Color housing: Black
GEOPL8000SO4Z/9010/NDOK
Effective luminous flux (lm): 9600
System power (W): 80
Color temperature (K): 4000
Color housing: White
GEOPL8000SO4ZM/9003/DALI
Effective luminous flux (lm): 9600
System power (W): 80
Color temperature (K): 4000
Color housing: White
GEOPL8000SO4ZM/9003/NDOK
Effective luminous flux (lm): 9600
System power (W): 80
Color temperature (K): 4000
Color housing: White
GEOPL8000SO4ZM/9005/DALI
Effective luminous flux (lm): 9600
System power (W): 80
Color temperature (K): 4000
Color housing: White
GEORM6000SO3/9007/ND
Effective luminous flux (lm): 6300
System power (W): 45
Color temperature (K): 3000
Length (mm): 900
Color housing: Grey
GEORM8000SO4/9003/DALI
Effective luminous flux (lm): 8200
System power (W): 63
Color temperature (K): 4000
Length (mm): 900
Color housing: White
GEORM8000SO4/9003/ND
Effective luminous flux (lm): 8200
System power (W): 63
Color temperature (K): 4000
Length (mm): 900
Color housing: White
GEORM8000SO4Z/9003/DALI
Effective luminous flux (lm): 8200
System power (W): 63
Color temperature (K): 4000
Length (mm): 900
Color housing: White
GEORM8000SO4Z/9003/ND
Effective luminous flux (lm): 8200
System power (W): 63
Color temperature (K): 4000
Length (mm): 900
Color housing: White
GEORS3000SO3/355/DALI
Effective luminous flux (lm): 3100
System power (W): 23
Color temperature (K): 3000
Color housing: Brown
GEORS3000SO4/9003/ND
Effective luminous flux (lm): 3100
System power (W): 23
Color temperature (K): 4000
Color housing: White
GEORS3000SO4/9005/ND
Effective luminous flux (lm): 3100
System power (W): 23
Color temperature (K): 4000
Color housing: Black
GEORS4000SO3/9006/ND
Effective luminous flux (lm): 4000
System power (W): 32
Color temperature (K): 3000
Color housing: Silver
GEORS4000SO4/9003/ND
Effective luminous flux (lm): 4000
System power (W): 32
Color temperature (K): 4000
Color housing: White
GEORS4000SO4Z/9003/ND
Effective luminous flux (lm): 4000
System power (W): 32
Color temperature (K): 4000
Color housing: White
GEORS6000SOMIX/9003
Effective luminous flux (lm): 6200
System power (W): 54
Color temperature (K): 2700...6500
Length (mm): 900
Color housing: White
GEOSM3000SO4/9003/ND
Effective luminous flux (lm): 3100
System power (W): 22
Color temperature (K): 4000
Color housing: White
GEOSM3000SO4/9006/ND
Effective luminous flux (lm): 3100
System power (W): 22
Color temperature (K): 4000
Color housing: Silver
GEOSM4000SO3/9005/ND
Effective luminous flux (lm): 4100
System power (W): 29
Color temperature (K): 3000
Color housing: Black
GEOSM4000SO3/9007/ND
Effective luminous flux (lm): 4100
System power (W): 29
Color temperature (K): 3000
Color housing: Grey
GEOSM4000SO4/2316/ND
Effective luminous flux (lm): 4100
System power (W): 29
Color temperature (K): 4000
Color housing: Gold
GEOSM4000SO4/7016/ND
Effective luminous flux (lm): 4100
System power (W): 29
Color temperature (K): 4000
Color housing: White
GEOSM4000SO4/9003/ND
Effective luminous flux (lm): 4100
System power (W): 29
Color temperature (K): 4000
Color housing: White
GEOSM4000SO4/9005/ND
Effective luminous flux (lm): 4100
System power (W): 29
Color temperature (K): 4000
Color housing: Black
GEOSM5000SOMIX/9003
Effective luminous flux (lm): 4700
System power (W): 32
Color temperature (K): 2700...6500
Color housing: White
GEOSM6000SO3/9007/DALI
Effective luminous flux (lm): 6100
System power (W): 42
Color temperature (K): 3000
Color housing: Grey
GEOSM6000SO3/9007/ND
Effective luminous flux (lm): 6100
System power (W): 42
Color temperature (K): 3000
Color housing: Grey
GEOSM6000SO4/9003/ND
Effective luminous flux (lm): 6100
System power (W): 42
Color temperature (K): 4000
Color housing: White
GEOSM6000SO4/9005/DALI
Effective luminous flux (lm): 6100
System power (W): 42
Color temperature (K): 4000
Color housing: Black
GEOSM6000SO4/9005/ND
Effective luminous flux (lm): 6100
System power (W): 42
Color temperature (K): 4000
Color housing: Black
GEOSM6000SO4/9007/DALI
Effective luminous flux (lm): 6100
System power (W): 42
Color temperature (K): 4000
Color housing: Grey
GEOSS2000SO4/9003/ND
Effective luminous flux (lm): 2200
System power (W): 16
Color temperature (K): 4000
Length (mm): 400
Color housing: White
GEOSS3000SO3/9003/DALI
Effective luminous flux (lm): 3100
System power (W): 23
Color temperature (K): 3000
Length (mm): 400
Color housing: White
GEOSS3000SO4/7016/ND
Effective luminous flux (lm): 3100
System power (W): 23
Color temperature (K): 4000
Length (mm): 400
Color housing: Anthracite
GEOSS3000SO4/9003/DALI
Effective luminous flux (lm): 3100
System power (W): 23
Color temperature (K): 4000
Length (mm): 400
Color housing: White
GEOSS3000SO4/9003/ND
Effective luminous flux (lm): 3100
System power (W): 23
Color temperature (K): 4000
Length (mm): 400
Color housing: White
GEOSS3000SO4/9005/ND
Effective luminous flux (lm): 3100
System power (W): 23
Color temperature (K): 4000
Length (mm): 400
Color housing: Black
GEOSS3000SO4/9006/DALI
Effective luminous flux (lm): 3100
System power (W): 23
Color temperature (K): 4000
Length (mm): 400
Color housing: Silver
GEOSS3000SO4/9006/ND
Effective luminous flux (lm): 3100
System power (W): 23
Color temperature (K): 4000
Length (mm): 400
Color housing: Silver
GEOSS4000SO4/9003/ND
Effective luminous flux (lm): 4150
System power (W): 30
Color temperature (K): 4000
Length (mm): 400
Color housing: White
GEOSS4000SO5/9003/ND
Effective luminous flux (lm): 4150
System power (W): 30
Color temperature (K): 5700
Length (mm): 400
Color housing: White
GEOSS4000SOMIXW/9003
Effective luminous flux (lm): 4150
System power (W): 30
Color temperature (K): 2700...6500
Length (mm): 400
Color housing: White
GEOTM4000SO3/9007/DALI
Effective luminous flux (lm): 3800
System power (W): 28
Color temperature (K): 3000
Color housing: Grey
GEOTM4000SO4/9003/ND
Effective luminous flux (lm): 3800
System power (W): 28
Color temperature (K): 4000
Color housing: White
GEOTM4000SO4/9006/ND
Effective luminous flux (lm): 3800
System power (W): 28
Color temperature (K): 4000
Color housing: Silver
GEOTM4000SOMIX/9003
Effective luminous flux (lm): 3800
System power (W): 28
Color temperature (K): 2700...6500
Color housing: White
GEOTM4000SOMIX/9003/BTC
Effective luminous flux (lm): 3800
System power (W): 28
Color temperature (K): 2700...6500
Color housing: White
GEOTM5000SO4/9003/ND
Effective luminous flux (lm): 4900
System power (W): 37
Color temperature (K): 4000
Color housing: White
GEOTM6000SO4/9003/ND
Effective luminous flux (lm): 6400
System power (W): 48
Color temperature (K): 4000
Color housing: White
GEOTM6000SO4Z/9003/ND
Effective luminous flux (lm): 6400
System power (W): 48
Color temperature (K): 4000
Color housing: White
GEOTS1500SO3/9005/DALI
Effective luminous flux (lm): 1800
System power (W): 15
Color temperature (K): 3000
Length (mm): 400
Color housing: White
GEOTS1500SO4/9003/ND
Effective luminous flux (lm): 1800
System power (W): 15
Color temperature (K): 4000
Length (mm): 400
Color housing: White
GEOTS2000SO4/9003/ND
Effective luminous flux (lm): 2500
System power (W): 20
Color temperature (K): 4000
Length (mm): 400
Color housing: White
GEOTS3000KO4/9007/ND
Effective luminous flux (lm): 3500
System power (W): 31
Color temperature (K): 4000
Length (mm): 400
Color housing: Grey
GEOTS3000SO3/9003/DALI
Effective luminous flux (lm): 3500
System power (W): 31
Color temperature (K): 3000
Length (mm): 400
Color housing: White
GEOTS3000SO3/9003/ND
Effective luminous flux (lm): 3500
System power (W): 31
Color temperature (K): 3000
Length (mm): 400
Color housing: White
GEOTS3000SO4/9003/DALI
Effective luminous flux (lm): 3500
System power (W): 31
Color temperature (K): 4000
Length (mm): 400
Color housing: White
GEOTS3000SO4/9003/ND
Effective luminous flux (lm): 3500
System power (W): 31
Color temperature (K): 4000
Length (mm): 400
Color housing: White
GEOTS3000SO4/9005/DALI
Effective luminous flux (lm): 3500
System power (W): 31
Color temperature (K): 4000
Length (mm): 400
Color housing: Black
Show all versions

Projekty realizované se svítidly MODUS:


Autosalon Rolls-Royce (Australia)

MODUS TEL

Detail reference

Office building of HAGER company

MODUS SPMI + MODUS QP

Detail reference

Commercial centrum

MODUS Q SKY

Detail reference

Tennis play-ground Bratislava (SK)

MODUS MEGAL

Detail reference
Zobrazit další reference
 Back to product list

We are here to help

We'll advise you all, we have outstanding support.
Lighting calculations

Lighting calculations

Do you need to calculate the lighting?

LDT files

LDT files

Do you need LDT data for your project?

Product support

Product support

Do not know what kind of lighting is best for you?

Connection diagrams

Connection diagrams

Do not you know how to conect luminaires properly?

Contact
