Product series MODUS HB

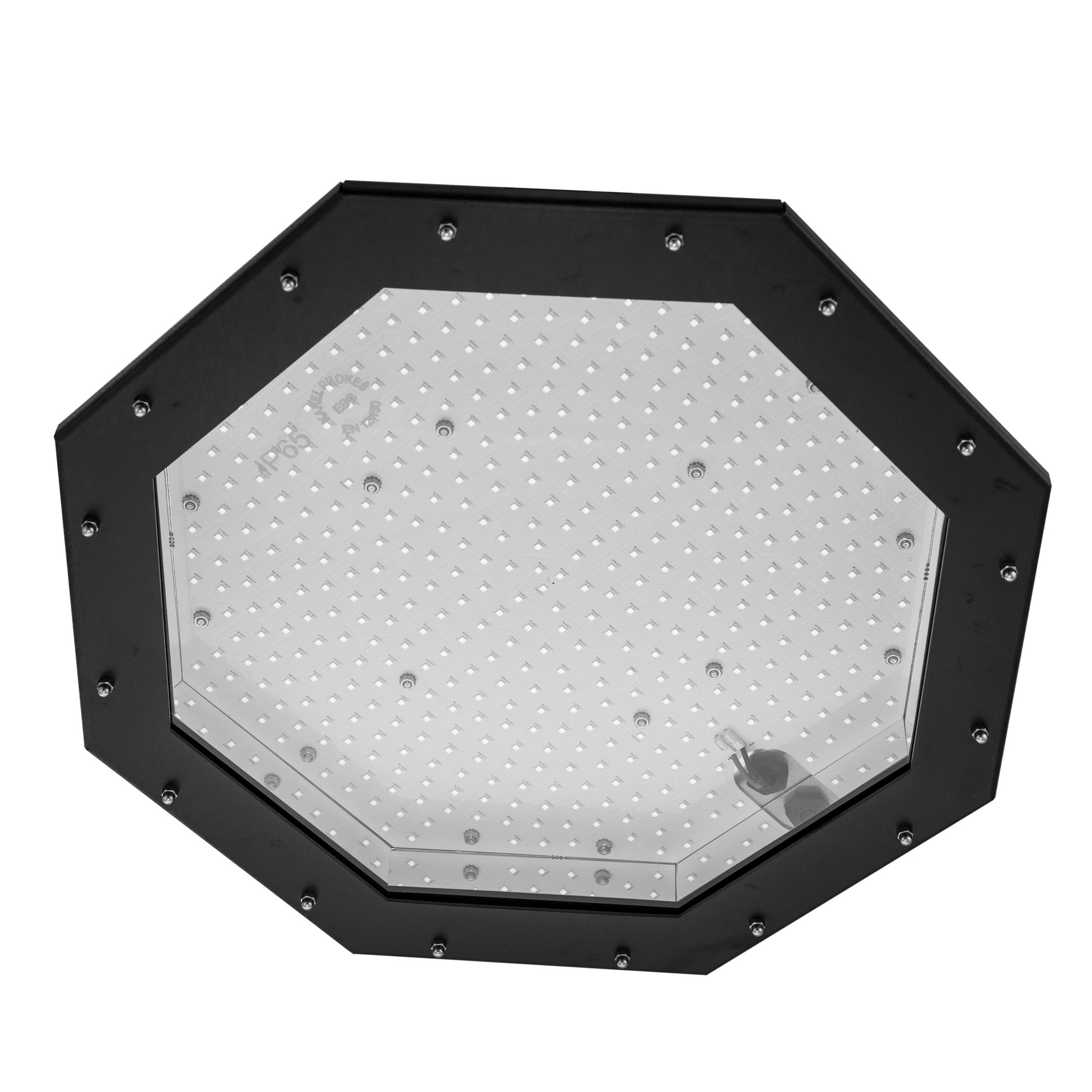

MODUS HBM250, clear glass cover, wide beam 110°, LED 830, white
Aluminium industrial IP65 luminaire
Code: HBM250W3KC/B/ND
EAN: 8596099136086
Luminaire properties
Product category: | High bay luminaire | Effective luminous flux (lm): | 26500 |
System power (W): | 162 | Luminaire efficacy (lm/W): | 164 |
Rated lifetime L80/B50 (h): | 80000 | Degree of protection (IP): | IP65 |
Mounting method: | Pendant | Color housing: | White |
Material housing: | Aluminium | ||
Light source included: | Yes | ||
Rated ambient temperature (°C): | -10...+45 | Made in Czech republic: | Yes |
Light source
Light source type: | LED | Color temperature (K): | 3000 |
Color rendering index CRI: | 80-89 | Replaceability: | Replaceable light source by professional, replaceable ballast |
Optical system
Optical system: | C | Reflector: | High-gloss |
Light sharing: | Symmetric | Material reflector: | Aluminium |
Dimensions
Outer diameter (mm): | 424 | Height/depth (mm): | 177 |
Weight (kg): | 4,3 |
Electrical values
Protection class: | I | Voltage type: | AC |
Type of control gear: | LED operating device current-controlled | Nominal voltage (V): | 220...240 |
Control gear included: | Yes | Type of wiring: | Ending |
No dim function: | Yes |
Indoor use only: | Yes |

Filters
Effective luminous flux (lm)
System power (W)
Product name
Effective luminous flux (lm)
System power (W)
Color temperature (K)
Optical system
Outer diameter (mm)
Rated ambient temperature (°C)
HBM250N3PCN/ND
Effective luminous flux (lm): 20000
System power (W): 162
Color temperature (K): 3000
Optical system: PCN
Outer diameter (mm): 424
Rated ambient temperature (°C): -10...+45
HBM250N4KN/ND
Effective luminous flux (lm): 24000
System power (W): 162
Color temperature (K): 4000
Optical system: KN
Outer diameter (mm): 424
Rated ambient temperature (°C): -10...+45
HBM250N4PCN/ND
Effective luminous flux (lm): 20000
System power (W): 162
Color temperature (K): 4000
Optical system: PCN
Outer diameter (mm): 424
Rated ambient temperature (°C): -10...+45
HBM250N4PCN/V1/DALI
Effective luminous flux (lm): 20000
System power (W): 162
Color temperature (K): 4000
Optical system: PCN
Outer diameter (mm): 424
Rated ambient temperature (°C): -10...+45
HBM250W3KC/B/ND
Effective luminous flux (lm): 26500
System power (W): 162
Color temperature (K): 3000
Optical system: C
Outer diameter (mm): 424
Rated ambient temperature (°C): -10...+45
HBM250W3KC/ND
Effective luminous flux (lm): 26500
System power (W): 162
Color temperature (K): 3000
Optical system: C
Outer diameter (mm): 424
Rated ambient temperature (°C): -10...+45
HBM250W3KC/V1/DALI
Effective luminous flux (lm): 26500
System power (W): 162
Color temperature (K): 3000
Optical system: C
Outer diameter (mm): 424
Rated ambient temperature (°C): -10...+45
HBM250W3PCO/B/ND
Effective luminous flux (lm): 21200
System power (W): 162
Color temperature (K): 3000
Optical system: PCO
Outer diameter (mm): 424
Rated ambient temperature (°C): -10...+45
HBM250W3PCO/ND
Effective luminous flux (lm): 21200
System power (W): 162
Color temperature (K): 3000
Optical system: PCO
Outer diameter (mm): 424
Rated ambient temperature (°C): -10...+45
HBM250W4KC/B/ND
Effective luminous flux (lm): 26500
System power (W): 162
Color temperature (K): 4000
Optical system: C
Outer diameter (mm): 424
Rated ambient temperature (°C): -10...+45
HBM250W4KC/ND
Effective luminous flux (lm): 26500
System power (W): 162
Color temperature (K): 4000
Optical system: C
Outer diameter (mm): 424
Rated ambient temperature (°C): -10...+45
HBM250W4KC/ND/HT55
Effective luminous flux (lm): 26500
System power (W): 162
Color temperature (K): 4000
Optical system: C
Outer diameter (mm): 424
Rated ambient temperature (°C): -30...+55
HBM250W4KC/V1/DALI
Effective luminous flux (lm): 26500
System power (W): 162
Color temperature (K): 4000
Optical system: C
Outer diameter (mm): 424
Rated ambient temperature (°C): -10...+45
HBM250W4KC/V1/DALI/HT55
Effective luminous flux (lm): 26500
System power (W): 162
Color temperature (K): 4000
Optical system: C
Outer diameter (mm): 424
Rated ambient temperature (°C): -30...+55
HBM250W4KC/V1/DALI/HT55/EU
Effective luminous flux (lm): 26500
System power (W): 162
Color temperature (K): 4000
Optical system: C
Outer diameter (mm): 424
Rated ambient temperature (°C): -30...+55
HBM250W4KC/V1/ND
Effective luminous flux (lm): 26500
System power (W): 163
Color temperature (K): 4000
Optical system: C
Outer diameter (mm): 424
Rated ambient temperature (°C): -10...+45
HBM250W4PC/ND
Effective luminous flux (lm): 26000
System power (W): 162
Color temperature (K): 4000
Optical system: PC
Outer diameter (mm): 424
Rated ambient temperature (°C): -10...+45
HBM250W4PC/ND/HT55
Effective luminous flux (lm): 26000
System power (W): 163
Color temperature (K): 4000
Optical system: PC
Outer diameter (mm): 424
Rated ambient temperature (°C): -30...+55
HBM250W4PC/V1/DALI
Effective luminous flux (lm): 26000
System power (W): 163
Color temperature (K): 4000
Optical system: PC
Outer diameter (mm): 424
Rated ambient temperature (°C): -10...+45
HBM250W4PC/V1/DALI/HT55
Effective luminous flux (lm): 26000
System power (W): 163
Color temperature (K): 4000
Optical system: PC
Outer diameter (mm): 424
Rated ambient temperature (°C): -10...+55
HBM250W4PCO/ND
Effective luminous flux (lm): 21200
System power (W): 162
Color temperature (K): 4000
Optical system: PC
Outer diameter (mm): 424
Rated ambient temperature (°C): -10...+45
HBM250W4PCO/V1/DALI/HT55
Effective luminous flux (lm): 21200
System power (W): 162
Color temperature (K): 4000
Optical system: PCO
Outer diameter (mm): 424
Rated ambient temperature (°C): -10...+55
HBM250W5KC/ND
Effective luminous flux (lm): 26500
System power (W): 162
Color temperature (K): 5700
Optical system: C
Outer diameter (mm): 424
Rated ambient temperature (°C): -10...+45
HBM250W5KC/ND/HT55
Effective luminous flux (lm): 26500
System power (W): 163
Color temperature (K): 5700
Optical system: C
Outer diameter (mm): 424
Rated ambient temperature (°C): -30...+55
HBM250W5KC/V1/DALI
Effective luminous flux (lm): 26500
System power (W): 162
Color temperature (K): 5700
Optical system: C
Outer diameter (mm): 424
Rated ambient temperature (°C): -10...+45
HBM250W5PC/ND
Effective luminous flux (lm): 26000
System power (W): 162
Color temperature (K): 5700
Optical system: PC
Outer diameter (mm): 424
Rated ambient temperature (°C): -10...+45
HBM250W5PC/ND/HT55
Effective luminous flux (lm): 26000
System power (W): 163
Color temperature (K): 5700
Optical system: PC
Outer diameter (mm): 424
Rated ambient temperature (°C): -30...+55
HBM250W5PC/V1/DALI
Effective luminous flux (lm): 26000
System power (W): 163
Color temperature (K): 5700
Optical system: PC
Outer diameter (mm): 424
Rated ambient temperature (°C): -10...+45
HBM250W5PCO/ND
Effective luminous flux (lm): 21200
System power (W): 162
Color temperature (K): 5700
Optical system: PCO
Outer diameter (mm): 424
Rated ambient temperature (°C): -10...+45
HBM250W6KC/ND
Effective luminous flux (lm): 26500
System power (W): 162
Color temperature (K): 6500
Optical system: C
Outer diameter (mm): 424
Rated ambient temperature (°C): -10...+45
HBM250W6KC/ND/HT55
Effective luminous flux (lm): 26500
System power (W): 162
Color temperature (K): 6500
Optical system: C
Outer diameter (mm): 424
Rated ambient temperature (°C): -10...+55
HBS120N3PCN/ND
System power (W): 82
Color temperature (K): 3000
Optical system: PCN
Outer diameter (mm): 310
Rated ambient temperature (°C): -10...+45
HBS120N4PCN/ND
System power (W): 82
Color temperature (K): 4000
Optical system: PCN
Outer diameter (mm): 310
Rated ambient temperature (°C): -10...+45
HBS120W3KC/ND
Effective luminous flux (lm): 12600
System power (W): 82
Color temperature (K): 3000
Optical system: C
Outer diameter (mm): 310
Rated ambient temperature (°C): -10...+45
HBS120W4KC/ND
Effective luminous flux (lm): 12600
System power (W): 82
Color temperature (K): 4000
Optical system: C
Outer diameter (mm): 310
Rated ambient temperature (°C): -10...+45
HBS120W4KC/ND/HT60
Effective luminous flux (lm): 12600
System power (W): 82
Color temperature (K): 4000
Optical system: C
Outer diameter (mm): 310
Rated ambient temperature (°C): -30...+60
HBS120W4KC/V1/DALI/HT60
Effective luminous flux (lm): 12600
System power (W): 82
Color temperature (K): 4000
Optical system: C
Outer diameter (mm): 310
Rated ambient temperature (°C): -30...+60
HBS120W4KC/V1/DALI/HT60/EU
Effective luminous flux (lm): 12600
System power (W): 82
Color temperature (K): 4000
Optical system: C
Outer diameter (mm): 310
Rated ambient temperature (°C): -30...+60
HBS120W4KC/V1/ND
Effective luminous flux (lm): 12300
System power (W): 82
Color temperature (K): 4000
Optical system: C
Outer diameter (mm): 310
Rated ambient temperature (°C): -10...+45
HBS120W4PC/ND
Effective luminous flux (lm): 12300
System power (W): 82
Color temperature (K): 4000
Optical system: PC
Outer diameter (mm): 310
Rated ambient temperature (°C): -10...+45
HBS120W4PC/V1/DALI
Effective luminous flux (lm): 12300
System power (W): 82
Color temperature (K): 4000
Optical system: PC
Outer diameter (mm): 310
Rated ambient temperature (°C): -10...+45
HBS120W4PC/V1/DALI/HT60
Effective luminous flux (lm): 12300
System power (W): 82
Color temperature (K): 4000
Optical system: PC
Outer diameter (mm): 310
Rated ambient temperature (°C): -30...+60
HBS120W4PCO/ND
Effective luminous flux (lm): 10000
System power (W): 82
Color temperature (K): 4000
Optical system: PCO
Outer diameter (mm): 310
Rated ambient temperature (°C): -10...+45
HBS120W4PCO/V1/DALI
Effective luminous flux (lm): 12300
System power (W): 82
Color temperature (K): 4000
Optical system: PCO
Outer diameter (mm): 310
Rated ambient temperature (°C): -10...+45
HBS120W5KC/ND
Effective luminous flux (lm): 12600
System power (W): 82
Color temperature (K): 5700
Optical system: C
Outer diameter (mm): 310
Rated ambient temperature (°C): -10...+45
HBS120W5KC/ND/HT60
Effective luminous flux (lm): 12600
System power (W): 82
Color temperature (K): 5700
Optical system: C
Outer diameter (mm): 310
Rated ambient temperature (°C): -30...+60
HBS120W5PC/ND
Effective luminous flux (lm): 12300
System power (W): 82
Color temperature (K): 5700
Optical system: PC
Outer diameter (mm): 310
Rated ambient temperature (°C): -10...+45
HBS120W5PCO/ND
Effective luminous flux (lm): 10000
System power (W): 82
Color temperature (K): 5700
Optical system: PCO
Outer diameter (mm): 310
Rated ambient temperature (°C): -10...+45
HBS120W6KC/ND
Effective luminous flux (lm): 12600
System power (W): 82
Color temperature (K): 6500
Optical system: C
Outer diameter (mm): 310
Rated ambient temperature (°C): -10...+45
HBS120W6KC/ND/HT60
Effective luminous flux (lm): 12600
System power (W): 82
Color temperature (K): 6500
Optical system: C
Outer diameter (mm): 310
Rated ambient temperature (°C): -30...+60
HBS120W6KC/V1/DALI
Effective luminous flux (lm): 12600
System power (W): 82
Color temperature (K): 6500
Optical system: C
Outer diameter (mm): 310
Rated ambient temperature (°C): -10...+45
HBS50W4KC/ND
Effective luminous flux (lm): 5000
System power (W): 38
Color temperature (K): 4000
Optical system: C
Outer diameter (mm): 310
Rated ambient temperature (°C): -10...+45
We are here to help
We'll advise you all, we have outstanding support.Lighting calculations
Do you need to calculate the lighting?
LDT files
Do you need LDT data for your project?
Product support
Do not know what kind of lighting is best for you?
Connection diagrams
Do not you know how to conect luminaires properly?
