Product series

MODUS HLP

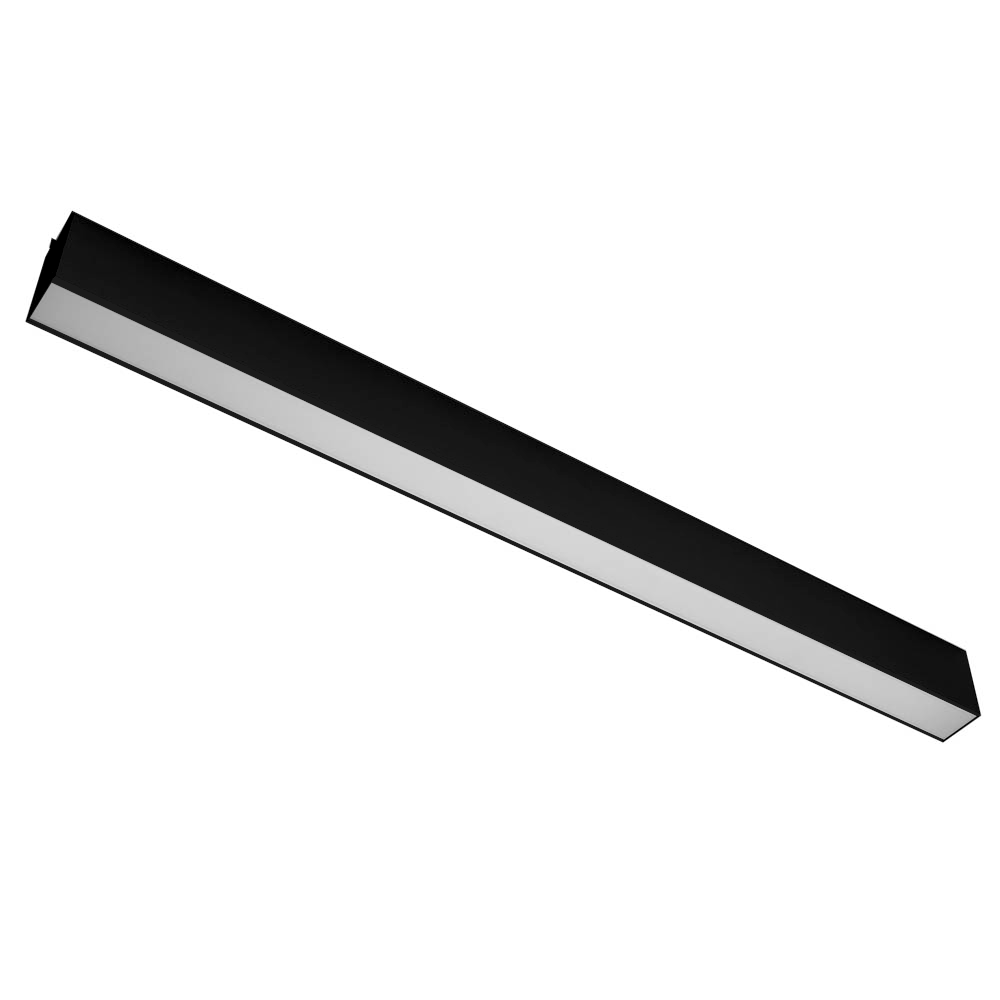

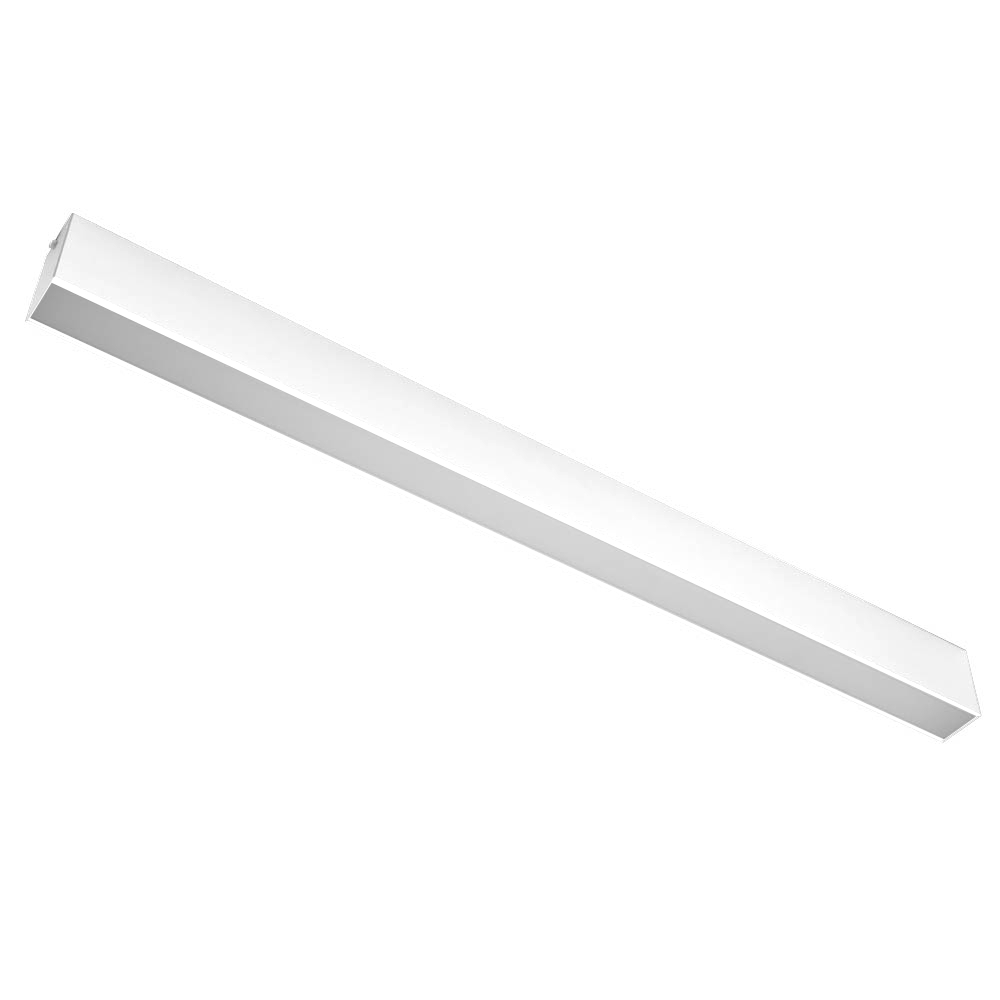

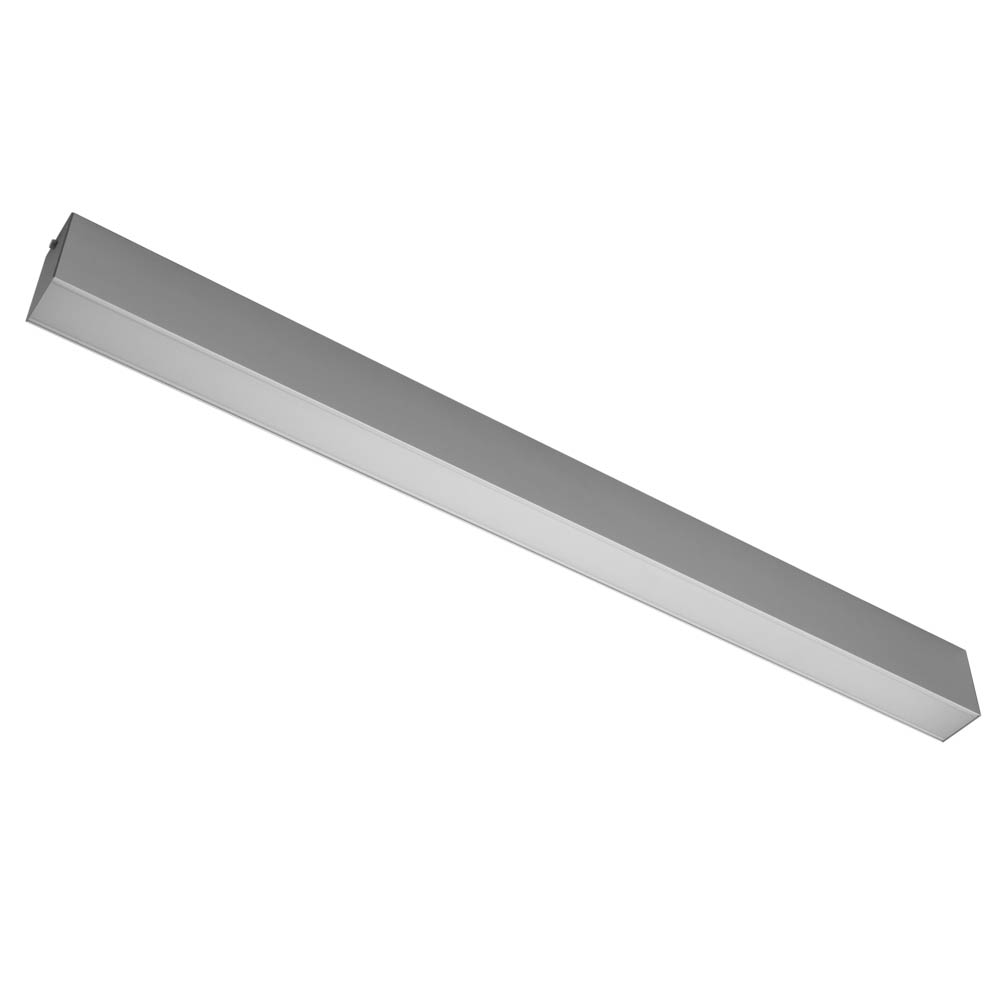

Surfaced aluminium luminaire with opal cover

MODUS HLP
220-240 v.png
11 L80_80000_h.jpg
en 62 471.png

Standard price from:

On request
Distribution network
Contacts

Body:

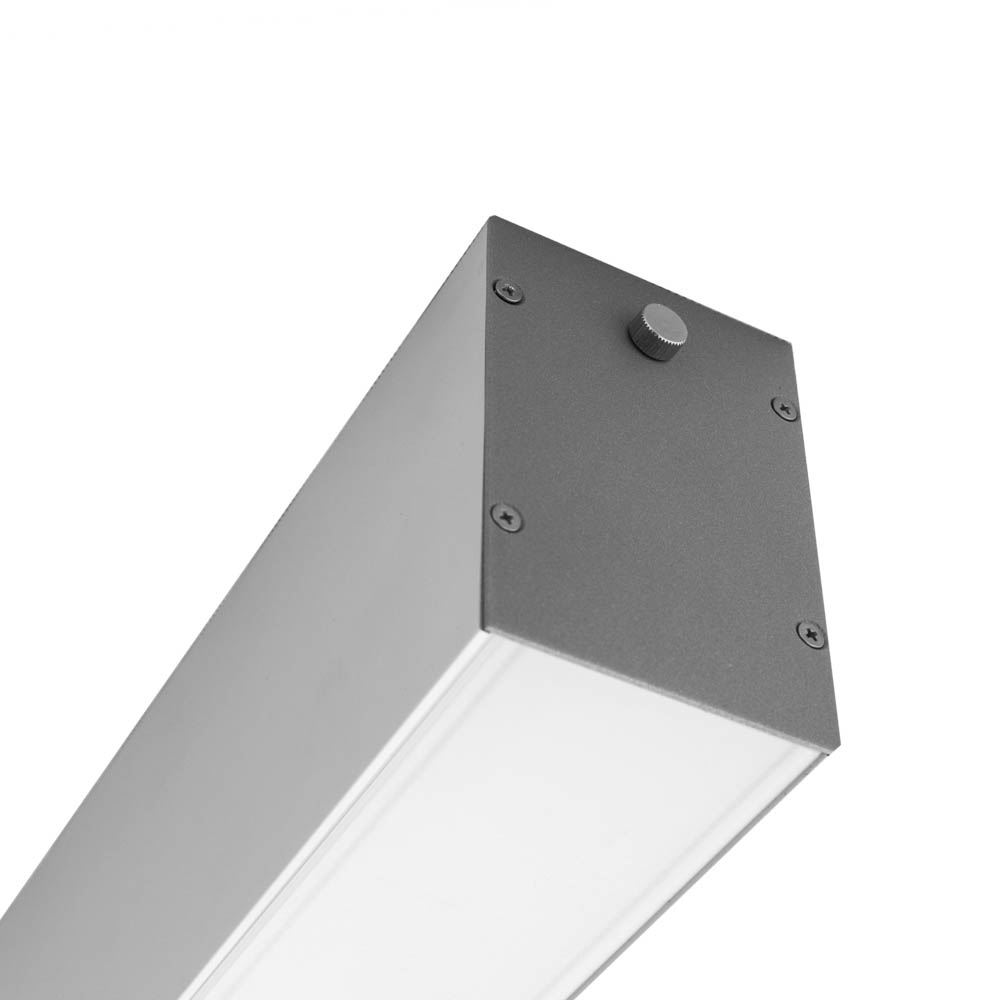

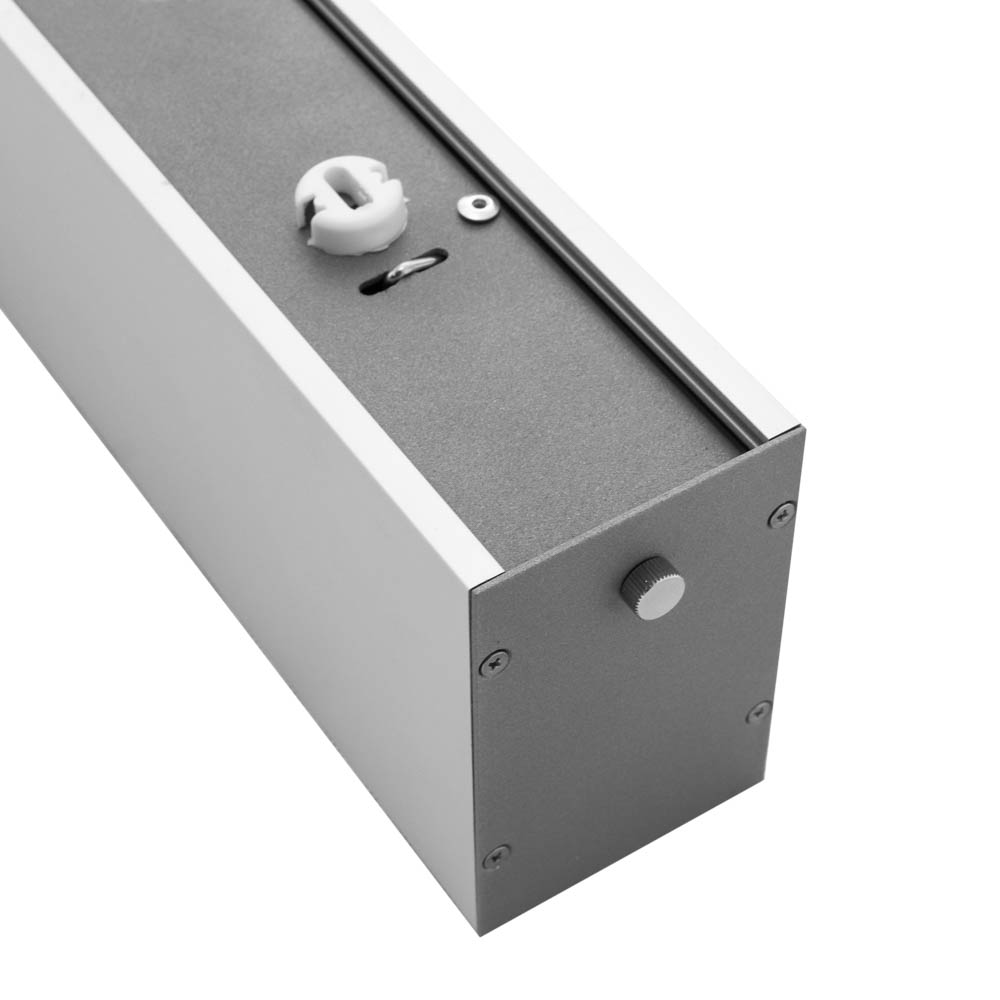

Eloxal aluminium profile, metal plate endcaps finished in RAL9006

Optical system:

Opal cover

LED:
Mid Power LED
CRI 80 (CRI 90 on request)
3...warm white 3000K
4...cold white 4000K

Wiring:
LED driver (constant current)
ND – not dimmable (standard)
DALI – digital dimmable DALI
DIM - analogue dimmable 1-10V DC

Application:
Intended to illumination of reprezentative work places or decorative lighting.

Single installation - luminaires cannot be connected into continuous lines.

Another variants:
HL - single pendant luminaire, direct
HL /DI - single pendant luminaire, direct/indirect
HL /R - direct pendant luminairefor installation to straight rows

Note:
Cord suspension set included in the fitting for HL and HL /R.
Fitting HL can be produced in modification enabling join them into straight row. In this case are luminaires delivered with connecting endcaps, with through wiring with connectors.
The row can be compilated by START, CONT and END fitting.

Size version:L
1500 mm
M
1200 mm
S
600 mm
Body material:Eloxal aluminium profile
Mounting method:Surface mountingProtection class:I
Type of control gear:LED operating device current-controlledColor rendering index CRI:80-89, 90-100
Light source type:LEDColor temperature controllable (K):Yes
Light outlet:DirectNominal voltage (V):220...240
Degree of protection (IP):IP20
Color temperature (K):4000, 6500, 3000, 2700, 5700, 2700...6500
Rated lifetime L80/B50 (h):80000Dimming 1-10 V:Yes
Dimming DALI:YesOptical system:KO
opal cover
KN
nanoprizmatic cover
Made in Czech republic:YesReplaceability:Replaceable light source by professional, replaceable ballast
Replaceable light source by professional, replaceable ballast
Photobiological safety EN 62 471:RG 0MacAdam binning:SDCM 3
Show more...
LoadingLoading

Filters

Effective luminous flux (lm)

2000
8200

System power (W)

16
65
Product name
HLP1LKO4V1/1400ND
HLP2000MKO3/C/ND
Effective luminous flux (lm): 2100
System power (W): 16
Color temperature (K): 3000
Length (mm): 1185
HLP2000MKO4/DALI
Effective luminous flux (lm): 2100
System power (W): 16
Color temperature (K): 4000
Length (mm): 1185
HLP2000MKO4/ND
Effective luminous flux (lm): 2100
System power (W): 16
Color temperature (K): 4000
Length (mm): 1185
HLP2000MKO4/ND/NZ
Effective luminous flux (lm): 2100
System power (W): 16
Color temperature (K): 4000
Length (mm): 1185
HLP2000SKO3/C/DALI
Effective luminous flux (lm): 2000
System power (W): 16
Color temperature (K): 3000
Length (mm): 592
HLP2000SKO3/C/ND
Effective luminous flux (lm): 2000
System power (W): 16
Color temperature (K): 3000
Length (mm): 592
HLP2000SKO3/DALI
Effective luminous flux (lm): 2000
System power (W): 16
Color temperature (K): 3000
Length (mm): 592
HLP2000SKO3/ND
Effective luminous flux (lm): 2000
System power (W): 16
Color temperature (K): 3000
Length (mm): 592
HLP2000SKO4/ND
Effective luminous flux (lm): 2000
System power (W): 16
Color temperature (K): 4000
Length (mm): 592
HLP3000LKN4/ND
Effective luminous flux (lm): 3300
System power (W): 23
Color temperature (K): 4000
Length (mm): 1485
HLP3000LKN4/ND/NZ
Effective luminous flux (lm): 3300
System power (W): 23
Color temperature (K): 4000
Length (mm): 1485
HLP3000LKO3/B/ND
Effective luminous flux (lm): 3300
System power (W): 23
Color temperature (K): 3000
Length (mm): 1485
HLP3000LKO3/ND
Effective luminous flux (lm): 3300
System power (W): 23
Color temperature (K): 3000
Length (mm): 1485
HLP3000LKO3/ND/NZ
Effective luminous flux (lm): 3300
System power (W): 23
Color temperature (K): 3000
Length (mm): 1485
HLP3000LKO4/B/ND
Effective luminous flux (lm): 3300
System power (W): 23
Color temperature (K): 4000
Length (mm): 1485
HLP3000LKO4/ND
Effective luminous flux (lm): 3300
System power (W): 23
Color temperature (K): 4000
Length (mm): 1485
HLP3000MKN4/C/DALI
Effective luminous flux (lm): 3100
System power (W): 23
Color temperature (K): 4000
Length (mm): 1185
HLP3000MKN4/ND
Effective luminous flux (lm): 3100
System power (W): 23
Color temperature (K): 4000
Length (mm): 1185
HLP3000MKO3/B/ND
Effective luminous flux (lm): 3100
System power (W): 23
Color temperature (K): 3000
Length (mm): 1185
HLP3000MKO3/C/DALI
Effective luminous flux (lm): 3100
System power (W): 23
Color temperature (K): 3000
Length (mm): 1185
HLP3000MKO3/C/ND
Effective luminous flux (lm): 3100
System power (W): 23
Color temperature (K): 3000
Length (mm): 1185
HLP3000MKO3/DALI
Effective luminous flux (lm): 3100
System power (W): 23
Color temperature (K): 3000
Length (mm): 1185
HLP3000MKO3/ND
Effective luminous flux (lm): 3100
System power (W): 23
Color temperature (K): 3000
Length (mm): 1185
HLP3000MKO4/B/DALI
Effective luminous flux (lm): 3100
System power (W): 23
Color temperature (K): 4000
Length (mm): 1185
HLP3000MKO4/B/ND
Effective luminous flux (lm): 3100
System power (W): 23
Color temperature (K): 4000
Length (mm): 1185
HLP3000MKO4/C/ND
Effective luminous flux (lm): 3100
System power (W): 23
Color temperature (K): 4000
Length (mm): 1185
HLP3000MKO4/ND
Effective luminous flux (lm): 3100
System power (W): 23
Color temperature (K): 4000
Length (mm): 1185
HLP3000SKN4/C/ND
Effective luminous flux (lm): 2800
System power (W): 24
Color temperature (K): 4000
Length (mm): 592
HLP3000SKO4/B/ND
Effective luminous flux (lm): 2800
System power (W): 24
Color temperature (K): 4000
Length (mm): 592
HLP3000SKO4/C/ND
Effective luminous flux (lm): 2800
System power (W): 24
Color temperature (K): 4000
Length (mm): 592
HLP3000SKO4/ND
Effective luminous flux (lm): 2800
System power (W): 24
Color temperature (K): 4000
Length (mm): 592
HLP4000LKN4/C/ND
Effective luminous flux (lm): 4500
System power (W): 33
Color temperature (K): 4000
Length (mm): 1485
HLP4000LKN4/ND
Effective luminous flux (lm): 4500
System power (W): 33
Color temperature (K): 4000
Length (mm): 1485
HLP4000LKO3/B/DALI
Effective luminous flux (lm): 4500
System power (W): 33
Color temperature (K): 3000
Length (mm): 1485
HLP4000LKO3/B/ND
Effective luminous flux (lm): 4500
System power (W): 33
Color temperature (K): 3000
Length (mm): 1485
HLP4000LKO3/C/ND
Effective luminous flux (lm): 4500
System power (W): 33
Color temperature (K): 3000
Length (mm): 1485
HLP4000LKO3/C/ND/NZ
Effective luminous flux (lm): 4500
System power (W): 33
Color temperature (K): 3000
Length (mm): 1485
HLP4000LKO3/ND
Effective luminous flux (lm): 4500
System power (W): 33
Color temperature (K): 3000
Length (mm): 1485
HLP4000LKO4/B/DALI
Effective luminous flux (lm): 4500
System power (W): 33
Color temperature (K): 4000
Length (mm): 1485
HLP4000LKO4/B/ND
Effective luminous flux (lm): 4500
System power (W): 33
Color temperature (K): 4000
Length (mm): 1485
HLP4000LKO4/C/DALI/90
Effective luminous flux (lm): 3850
System power (W): 33
Color temperature (K): 4000
Length (mm): 1485
HLP4000LKO4/C/ND
Effective luminous flux (lm): 4500
System power (W): 33
Color temperature (K): 4000
Length (mm): 1485
HLP4000LKO4/DALI
Effective luminous flux (lm): 4500
System power (W): 33
Color temperature (K): 4000
Length (mm): 1485
HLP4000LKO4/DIM
Effective luminous flux (lm): 4500
System power (W): 33
Color temperature (K): 4000
Length (mm): 1485
HLP4000LKO4/ND
Effective luminous flux (lm): 4500
System power (W): 33
Color temperature (K): 4000
Length (mm): 1485
HLP4000LKO4/ND/NZ
Effective luminous flux (lm): 4500
System power (W): 33
Color temperature (K): 4000
Length (mm): 1485
HLP4000MKN3/B/DALI
Effective luminous flux (lm): 4200
System power (W): 33
Color temperature (K): 3000
Length (mm): 1185
HLP4000MKN3/C/DALI/90
Effective luminous flux (lm): 3600
System power (W): 33
Color temperature (K): 3000
Length (mm): 1185
HLP4000MKN3/ND
Effective luminous flux (lm): 4200
System power (W): 33
Color temperature (K): 3000
Length (mm): 1185
HLP4000MKN4/B/ND
Effective luminous flux (lm): 4200
System power (W): 33
Color temperature (K): 4000
Length (mm): 1185
HLP4000MKN4/B/ND/NZ
Effective luminous flux (lm): 4200
System power (W): 33
Color temperature (K): 4000
Length (mm): 1185
HLP4000MKN4/C/ND
Effective luminous flux (lm): 4200
System power (W): 33
Color temperature (K): 4000
Length (mm): 1185
HLP4000MKN4/ND
Effective luminous flux (lm): 4200
System power (W): 33
Color temperature (K): 4000
Length (mm): 1185
HLP4000MKN4/ND/90
Effective luminous flux (lm): 3600
System power (W): 33
Color temperature (K): 4000
Length (mm): 1185
HLP4000MKO3/B/ND
Effective luminous flux (lm): 4200
System power (W): 33
Color temperature (K): 3000
Length (mm): 1185
HLP4000MKO3/B/ND/90
Effective luminous flux (lm): 3600
System power (W): 33
Color temperature (K): 3000
Length (mm): 1185
HLP4000MKO3/C/DALI
Effective luminous flux (lm): 4200
System power (W): 33
Color temperature (K): 4000
Length (mm): 1185
HLP4000MKO3/C/ND
Effective luminous flux (lm): 4200
System power (W): 33
Color temperature (K): 3000
Length (mm): 1185
HLP4000MKO3/DALIT
Effective luminous flux (lm): 4200
System power (W): 33
Color temperature (K): 3000
Length (mm): 1185
HLP4000MKO3/ND
Effective luminous flux (lm): 4200
System power (W): 33
Color temperature (K): 3000
Length (mm): 1185
HLP4000MKO3/ND/90
Effective luminous flux (lm): 3600
System power (W): 33
Color temperature (K): 3000
Length (mm): 1185
HLP4000MKO3/ND/NZ
Effective luminous flux (lm): 4200
System power (W): 33
Color temperature (K): 3000
Length (mm): 1185
HLP4000MKO4/7016/DALI
Effective luminous flux (lm): 4200
System power (W): 33
Color temperature (K): 4000
Length (mm): 1185
HLP4000MKO4/B/ND
Effective luminous flux (lm): 4200
System power (W): 33
Color temperature (K): 4000
Length (mm): 1185
HLP4000MKO4/C/ND
Effective luminous flux (lm): 4200
System power (W): 33
Color temperature (K): 4000
Length (mm): 1185
HLP4000MKO4/C/ND/NZ
Effective luminous flux (lm): 4500
System power (W): 33
Color temperature (K): 4000
Length (mm): 1185
HLP4000MKO4/DALI
Effective luminous flux (lm): 4200
System power (W): 33
Color temperature (K): 4000
Length (mm): 1185
HLP4000MKO4/ND
Effective luminous flux (lm): 4200
System power (W): 33
Color temperature (K): 4000
Length (mm): 1185
HLP4000MKO4/ND/90
Effective luminous flux (lm): 3600
System power (W): 33
Color temperature (K): 4000
Length (mm): 1185
HLP4000MKO4/ND/NZ
Effective luminous flux (lm): 4200
System power (W): 33
Color temperature (K): 4000
Length (mm): 1185
HLP5000LKN3/DALI
Effective luminous flux (lm): 5400
System power (W): 42
Color temperature (K): 3000
Length (mm): 1485
HLP5000LKN3/ND
Effective luminous flux (lm): 5400
System power (W): 42
Color temperature (K): 3000
Length (mm): 1485
HLP5000LKN4/C/ND
Effective luminous flux (lm): 5400
System power (W): 42
Color temperature (K): 4000
Length (mm): 1485
HLP5000LKN4/DALI
Effective luminous flux (lm): 5400
System power (W): 42
Color temperature (K): 4000
Length (mm): 1485
HLP5000LKN4/DALI/90
Effective luminous flux (lm): 4600
System power (W): 42
Color temperature (K): 4000
Length (mm): 1485
HLP5000LKN4/ND/90
Effective luminous flux (lm): 4600
System power (W): 42
Color temperature (K): 4000
Length (mm): 1485
HLP5000LKO3/B/ND
Effective luminous flux (lm): 5400
System power (W): 42
Color temperature (K): 3000
Length (mm): 1485
HLP5000LKO3/C/DALI
Effective luminous flux (lm): 5400
System power (W): 42
Color temperature (K): 3000
Length (mm): 1485
HLP5000LKO3/C/ND
Effective luminous flux (lm): 5400
System power (W): 42
Color temperature (K): 3000
Length (mm): 1485
HLP5000LKO3/ND
Effective luminous flux (lm): 5400
System power (W): 42
Color temperature (K): 3000
Length (mm): 1485
HLP5000LKO3/ND/NZ
Effective luminous flux (lm): 5400
System power (W): 42
Color temperature (K): 3000
Length (mm): 1485
HLP5000LKO4/B/ND
Effective luminous flux (lm): 5400
System power (W): 42
Color temperature (K): 4000
Length (mm): 1485
HLP5000LKO4/C/ND
Effective luminous flux (lm): 5400
System power (W): 42
Color temperature (K): 4000
Length (mm): 1485
HLP5000LKO4/ND
Effective luminous flux (lm): 5400
System power (W): 42
Color temperature (K): 4000
Length (mm): 1485
HLP5000LKO4/ND/NZ
Effective luminous flux (lm): 5400
System power (W): 42
Color temperature (K): 4000
Length (mm): 1485
HLP5000MKN4/ND
Effective luminous flux (lm): 5000
System power (W): 40
Color temperature (K): 4000
Length (mm): 1185
HLP5000MKN4/ND/NZ
Effective luminous flux (lm): 5000
System power (W): 40
Color temperature (K): 4000
Length (mm): 1185
HLP5000MKO3/C/DALI
Effective luminous flux (lm): 5000
System power (W): 40
Color temperature (K): 3000
Length (mm): 1185
HLP5000MKO3/C/ND
Effective luminous flux (lm): 5000
System power (W): 40
Color temperature (K): 3000
Length (mm): 1185
HLP5000MKO4/ND
Effective luminous flux (lm): 5000
System power (W): 40
Color temperature (K): 4000
Length (mm): 1185
HLP5000MKO4/ND/NZ
Effective luminous flux (lm): 5000
System power (W): 40
Color temperature (K): 4000
Length (mm): 1185
HLP5000MKO5/ND
Effective luminous flux (lm): 5000
System power (W): 40
Color temperature (K): 5700
Length (mm): 1185
HLP5000MMIXWKO/B/90
Effective luminous flux (lm): 4300
System power (W): 40
Color temperature (K): 2700...6500
Length (mm): 1185
HLP5000MMIXWKO/B/DALI/90/S224
Effective luminous flux (lm): 4300
System power (W): 40
Color temperature (K): 2700...6500
Length (mm): 1185
HLP5000MMIXWKO/C/90
Effective luminous flux (lm): 4300
System power (W): 40
Color temperature (K): 2700...6500
Length (mm): 1185
HLP6000MKO4/ND
Effective luminous flux (lm): 5900
System power (W): 48
Color temperature (K): 4000
Length (mm): 1185
HLP7000LKO3/ND
Effective luminous flux (lm): 7100
System power (W): 55
Color temperature (K): 3000
Length (mm): 1485
HLP7000LKO4/B/DALI/90
Effective luminous flux (lm): 6100
System power (W): 55
Color temperature (K): 4000
Length (mm): 1485
HLP7000LKO4/ND
Effective luminous flux (lm): 7100
System power (W): 55
Color temperature (K): 4000
Length (mm): 1185
HLP8000LKO4/ND
Effective luminous flux (lm): 8200
System power (W): 64
Color temperature (K): 4000
Length (mm): 1485
HLS2000SKO2/B/ND/PIR
Effective luminous flux (lm): 2000
System power (W): 16
Color temperature (K): 2700
Length (mm): 622
HLS2000SKO3/B/ND
Effective luminous flux (lm): 2000
System power (W): 16
Color temperature (K): 3000
Length (mm): 592
HLS2000SKO4/DALI
Effective luminous flux (lm): 2000
System power (W): 16
Color temperature (K): 4000
Length (mm): 592
HLS2000SKO4/DI/ND
Effective luminous flux (lm): 2000
System power (W): 16
Color temperature (K): 4000
Length (mm): 592
HLS3000XMKO3/CDI/DALI
Effective luminous flux (lm): 2800
System power (W): 25
Color temperature (K): 3000
Length (mm): 860
HLS3000XMKO4/B/ND
Effective luminous flux (lm): 3000
System power (W): 25
Color temperature (K): 4000
Length (mm): 860
HLS3000XMKO4/B/NDNZ
Effective luminous flux (lm): 3000
System power (W): 25
Color temperature (K): 4000
Length (mm): 860
HLS3000XMKO4/BDI/NDOK
Effective luminous flux (lm): 2800
System power (W): 25
Color temperature (K): 4000
Length (mm): 860
HLS3000XMKO4/DI/NDOK
Effective luminous flux (lm): 2800
System power (W): 25
Color temperature (K): 4000
Length (mm): 860
HLS3000XMKO4/ND
Effective luminous flux (lm): 3000
System power (W): 25
Color temperature (K): 4000
Length (mm): 860
HLS4000MKO3/ND
Effective luminous flux (lm): 4200
System power (W): 33
Color temperature (K): 3000
Length (mm): 1185
HLS4000MKO4/DI/ND
Effective luminous flux (lm): 6200
System power (W): 47
Color temperature (K): 4000
Length (mm): 1185
HLS5000LKO4/B/ND
Effective luminous flux (lm): 5400
System power (W): 42
Color temperature (K): 4000
Length (mm): 1485
HLS5000LKO4/BDI/2DALIT
Effective luminous flux (lm): 7900
System power (W): 65
Color temperature (K): 4000
Length (mm): 1485
HLS5000LKO4/BDI/DALI
Effective luminous flux (lm): 7900
System power (W): 65
Color temperature (K): 4000
Length (mm): 1485
HLS5000LKO4/DI/DALI
Effective luminous flux (lm): 7900
System power (W): 65
Color temperature (K): 4000
Length (mm): 1485
HLS5000LKO4/ND
Effective luminous flux (lm): 5400
System power (W): 42
Color temperature (K): 4000
Length (mm): 1485
Show all versions

Projekty realizované se svítidly MODUS:


Autosalon Rolls-Royce (Australia)

MODUS TEL

Detail reference

Office building of HAGER company

MODUS SPMI + MODUS QP

Detail reference

Commercial centrum

MODUS Q SKY

Detail reference

Tennis play-ground Bratislava (SK)

MODUS MEGAL

Detail reference
Zobrazit další reference
 Back to product list

We are here to help

We'll advise you all, we have outstanding support.
Lighting calculations

Lighting calculations

Do you need to calculate the lighting?

LDT files

LDT files

Do you need LDT data for your project?

Product support

Product support

Do not know what kind of lighting is best for you?

Connection diagrams

Connection diagrams

Do not you know how to conect luminaires properly?

Contact
