Product series New
MODUS IKL
Recessed LED fitting
Standard price from:
On request

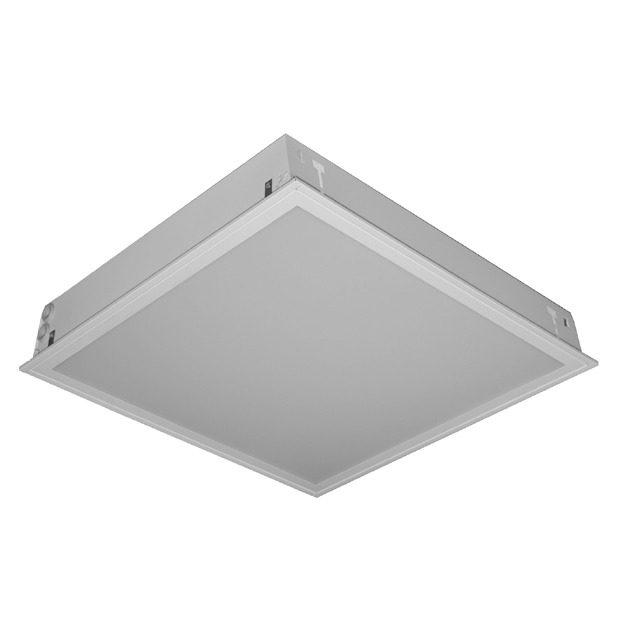

Universal recessed luminaire with opal (KO) or nanoprismatic cover (KN).
Luminaire can be disassembled - it can be installed into a gypsum plasterboard ceiling without additional accessories. Clips are included in the package.
| Size version: | A 600x600 mm or 625x625 mm C 1200x300 mm | Body material: | White painted steel | Mounting method: | Built-in | Protection class: | I | Type of control gear: | LED operating device current-controlled | Color rendering index CRI: | 80-89 | Light source type: | LED | Color temperature controllable (K): | Yes | Light outlet: | Direct | Light sharing: | Symmetric | Nominal voltage (V): | 220...240 | Degree of protection (IP): | IP20, IP40 |
| Color temperature (K): | 4000, 6500, 3000, 2700, 5700, 2700...6500 | Rated lifetime L80/B50 (h): | 80000 | Dimming 1-10 V: | Yes | Dimming DALI: | Yes | Dimming manufacturer's proprietary system: | Yes | Product category: | Recessed mounted ceiling- and wall luminaire | Optical system: | KO opal cover KN nanoprizmatic cover | Made in Czech republic: | Yes | Photobiological safety EN 62 471: | RG 0 | MacAdam binning: | SDCM 3 |
LoadingProduct name
IKL10000D4KO600ND
IKL2000B4KN600ND
IKL2000B4KN625ND
IKL2000B4KO600ND
IKL2000XC4KN600ND
IKL2000XC4KN600ND/S331
IKL3000A4KO600ND
IKL3000A4KO625ND
IKL3000C3KO600ND
IKL4000A3KN600ND
IKL4000A3KN625ND
IKL4000A4KN600DALI
IKL4000A4KN600ND
IKL4000A4KN600NDNZ
IKL4000A4KN600NDNZ3
IKL4000A4KN625ND
IKL4000A4KN625NDNZ
IKL4000A4KO600ND
IKL4000A4KO625ND
IKL4000C3KN600ND
IKL4000C3KO600ND
IKL4000C3KO625ND
IKL4000C4KN600ND
IKL4000C4KN625ND
IKL4000C4KO600ND
IKL4000C4KO625ND
IKL5000A4KN600ND
IKL6000A3KO600DALI/90
IKL6000A3KO625DALI
IKL6000A4KN600ND
IKL6000A4KO600DALI/90
IKL6000A4KO600ND
IKL6000A4KO625ND
IKL6000C4KN600ND
IKL6000C4KO625ND
IKL6000C6KN600DALI/90
IKL6000F4KN600ND
IKL6000F4KN600ND/90
IKL6000F4KN600NDNZ/90
IKL6000F4KN625ND
IKL6000F4KO600ND
IKL8000D4KO600ND
IKL8000F4KN600ND
IKL8000F4KO600ND
IKL8000F4KO625ND
IKL8000F4PCN625ND
Product page - PDF
CE declaration
LDT files
