Product series
MODUS IS MOWI

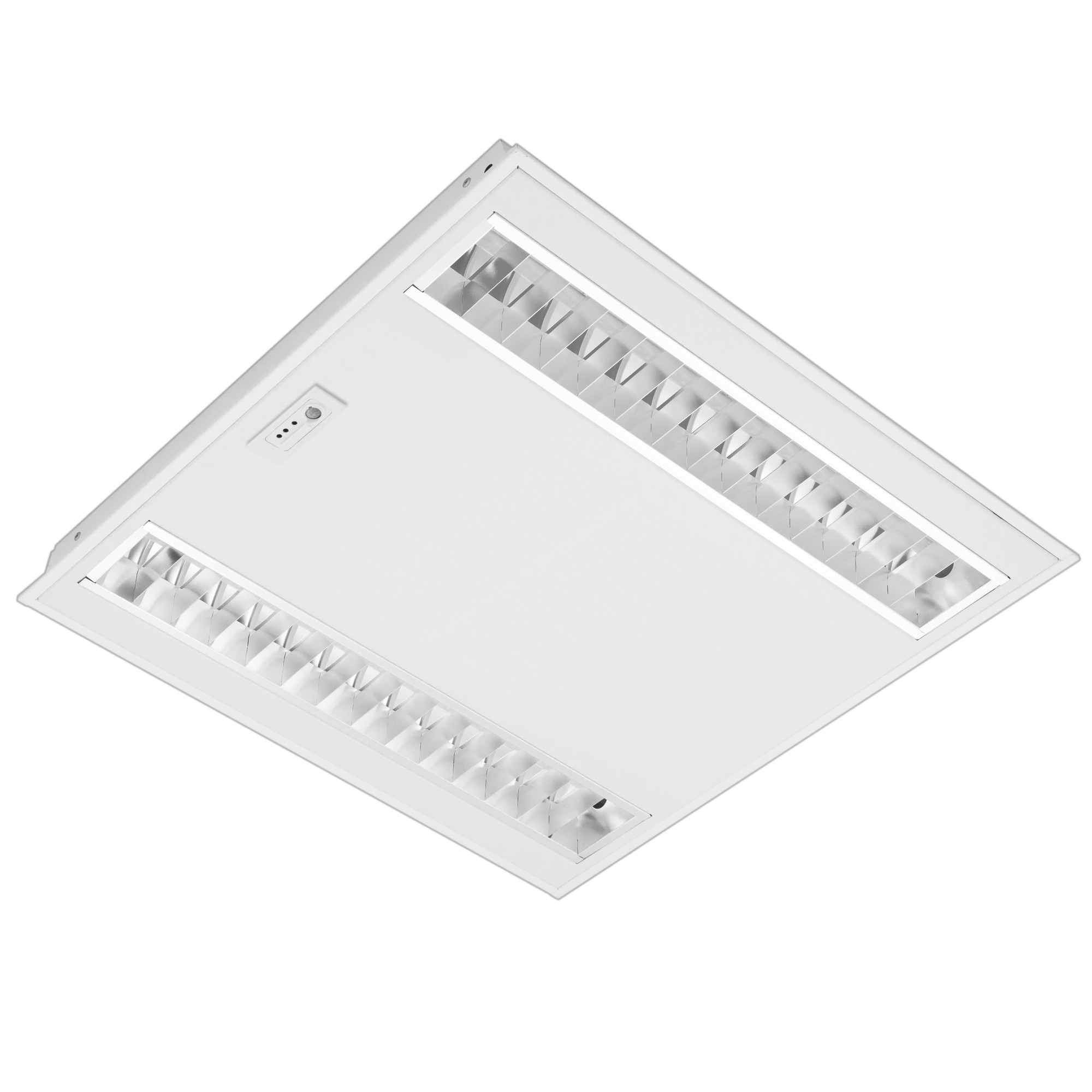

Intelligent louvre luminaire
MODUS ISRAC4
Standard price from:
On request
Luminaire with smart system - "MODUS MOWI"
This system include two different possible smart methods:
- sensor located inside luminaire
- luminaire communicates to each other to select the right lumen level based on actual situation
- setup by IR communication via mobile phone
- wireless comunication by mobile phone application
- possible to setup scenes, timming, groups...
| Size version: | A 600x600 mm or 625x625 mm C 1200x300 mm | Body material: | White painted steel | Mounting method: | Built-in | Protection class: | I | With movement sensor: | Yes | Type of control gear: | LED operating device current-controlled | Color rendering index CRI: | 80-89 | Light source type: | LED | Anti-glare limiting UGR: | 19 | Color temperature controllable (K): | Yes | Degree of protection (IP): | IP20 |
| Fit for monitor workplace: | Yes | Color temperature (K): | 4000, 6500, 3000, 2700, 5700, 2700...6500 | Rated lifetime L80/B50 (h): | 80000 | Dimming DALI: | Yes | Optical system: | KV louvre ALDP KVM louvre matt DP | Made in Czech republic: | Yes | Replaceability: | Removeable light source, replaceable ballast Removeable light source, replaceable ballast | Photobiological safety EN 62 471: | RG 0 | MacAdam binning: | SDCM 3 |
LoadingFilters
Effective luminous flux (lm)
System power (W)
Product name
Effective luminous flux (lm)
System power (W)
Color temperature (K)
Optical system
Length (mm)
Raster (mm)
ISSAC2KVM4V160/SRS700I5
Effective luminous flux (lm): 3400
System power (W): 33
Color temperature (K): 4000
Optical system: KVM
Length (mm): 596
Raster (mm): 600
ISSAC4KV4V162/SRS1400I5
Effective luminous flux (lm): 4700
System power (W): 37
Color temperature (K): 4000
Optical system: KV
Length (mm): 622
Raster (mm): 625
ISSAC4KVV160/MIX1400I3/BTC
Effective luminous flux (lm): 4300
System power (W): 42
Color temperature (K): 3000
Optical system: KV
Length (mm): 596
Raster (mm): 600
Product page - PDF
CE declaration
LDT files

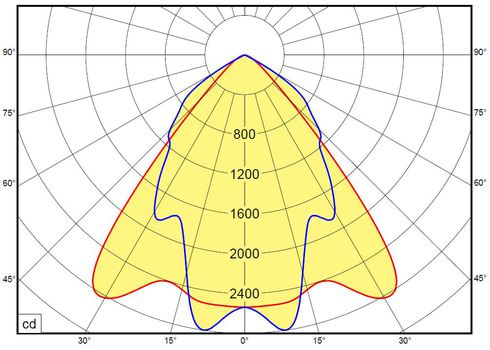

IS_KVM.JPGProjekty realizované se svítidly MODUS:
