MODUS ISRAC4

Product series MODUS IS

MODUS ISRCC2
12 CCT_3000.jpg
11 L80_80000_h.jpg
třída ochrany I.PNG
220-240 v.png

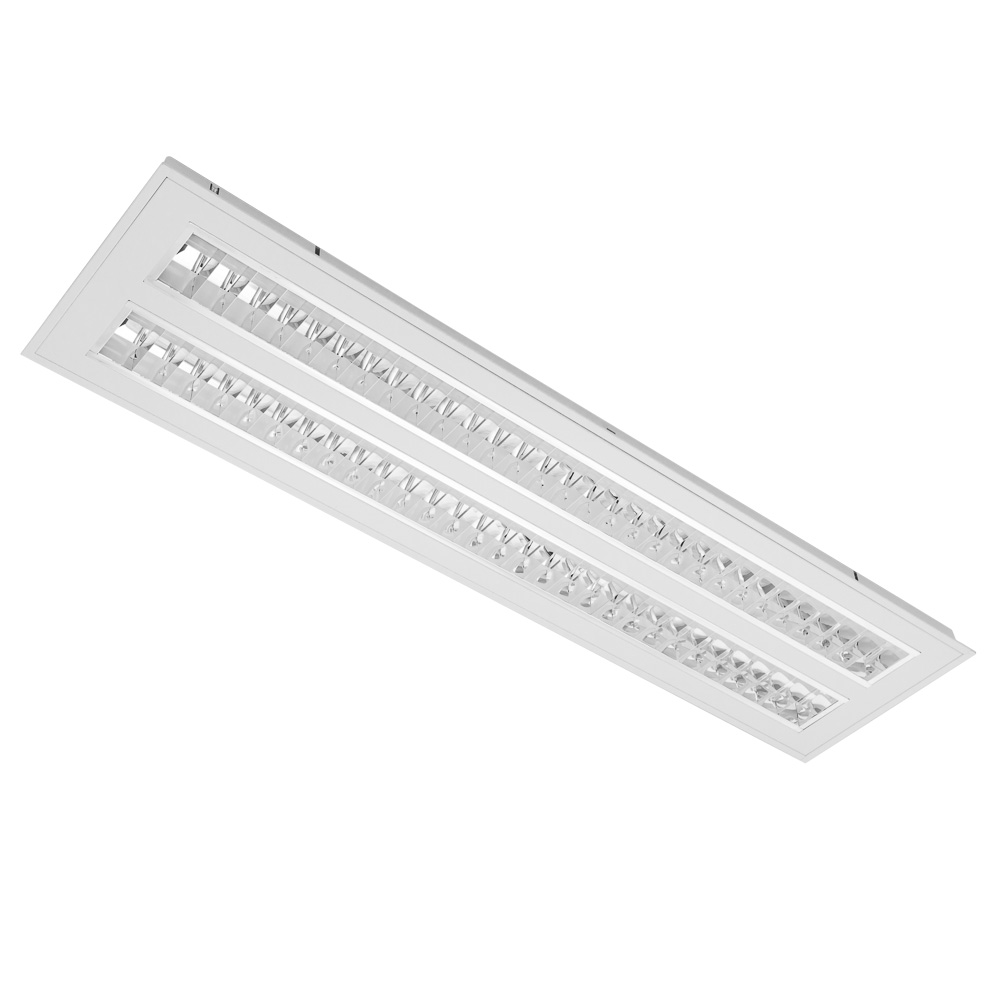

MODUS IS recessed into module 625, rectangle C, bright AL louvre, 2x LED 830, non-dim NONSELV , ISO3

Recessed louvre fitting

Code: ISRCC2KV3V162/ND1400I3
EAN: 8596099006952

This product contains a light source with energy efficiency class D

Distribution network
Contacts

Luminaire properties

Product category:Ceiling / wall luminairesEffective luminous flux (lm):4700
System power (W):37Luminaire efficacy (lm/W):127
Rated lifetime L80/B50 (h):80000Degree of protection (IP):IP20
Color housing:WhiteMaterial housing:Steel
Light source included:Yes
Suitable for built-in mounting:Yes
Made in Czech republic:Yes

Light source

Light source type:LEDColor temperature (K):3000
Color rendering index CRI:80-89Replaceability:Removeable light source, replaceable ballast
Light source type:1990540183007Energy efficiency class:D

Optical system

Optical system:KVLight outlet:Direct
Type of grid:High-glossLight sharing:Symmetric
Material cover:Plastic, opal

Dimensions

Length (mm):1246Width (mm):310
Height/depth (mm):52Built-in length (mm):1226
Built-in width (mm):290Built-in height/depth (mm):52
Raster (mm):625Weight (kg):4,4

Electrical values

Protection class:IConnection type:Pinching contact
Voltage type:ACType of control gear:LED operating device current-controlled
Nominal voltage (V):220...240Control gear included:Yes
No dim function:Yes
LDT files >
LoadingLoading

Filters

Effective luminous flux (lm)

3000
4700

System power (W)

27
53
Product name
ISRAC2KV3V160/ND700I3
Effective luminous flux (lm): 3600
System power (W): 33
Color temperature (K): 3000
Optical system: KV
Length (mm): 596
Raster (mm): 600
ISRAC2KV3V162/ND700I3
Effective luminous flux (lm): 3600
System power (W): 33
Color temperature (K): 3000
Optical system: KV
Length (mm): 622
Raster (mm): 625
ISRAC2KV4V160/ND700I3
Effective luminous flux (lm): 3600
System power (W): 33
Color temperature (K): 4000
Optical system: KV
Length (mm): 596
Raster (mm): 600
ISRAC2KV4V162/ND700I3
Effective luminous flux (lm): 3600
System power (W): 33
Color temperature (K): 4000
Optical system: KV
Length (mm): 622
Raster (mm): 625
ISRAC2KVM3V160/ND700K
Effective luminous flux (lm): 3400
System power (W): 33
Color temperature (K): 3000
Optical system: KVM
Length (mm): 596
Raster (mm): 600
ISRAC2KVM4V160/DALI700I5
Effective luminous flux (lm): 3400
System power (W): 33
Color temperature (K): 4000
Optical system: KVM
Length (mm): 596
Raster (mm): 600
ISRAC2KVM4V160/ND1050I3
Effective luminous flux (lm): 4600
System power (W): 53
Color temperature (K): 4000
Optical system: KVM
Length (mm): 596
Raster (mm): 600
ISRAC2KVM4V160/ND700I3
Effective luminous flux (lm): 3400
System power (W): 33
Color temperature (K): 4000
Optical system: KVM
Length (mm): 596
Raster (mm): 600
ISRAC2KVM4V160/ND700K
Effective luminous flux (lm): 3400
System power (W): 33
Color temperature (K): 4000
Optical system: KVM
Length (mm): 596
Raster (mm): 600
ISRAC4KV3V160/DALI1050I5
Effective luminous flux (lm): 3500
System power (W): 27
Color temperature (K): 3000
Optical system: KV
Length (mm): 596
Raster (mm): 600
ISRAC4KV3V160/DALI1400I5
Effective luminous flux (lm): 4700
System power (W): 37
Color temperature (K): 3000
Optical system: KV
Length (mm): 596
Raster (mm): 600
ISRAC4KV3V160/ND1050F
Effective luminous flux (lm): 3500
System power (W): 27
Color temperature (K): 3000
Optical system: KV
Length (mm): 596
Raster (mm): 600
ISRAC4KV3V160/ND1050I3
Effective luminous flux (lm): 3500
System power (W): 27
Color temperature (K): 3000
Optical system: KV
Length (mm): 596
Raster (mm): 600
ISRAC4KV3V160/ND1050K
Effective luminous flux (lm): 3500
System power (W): 27
Color temperature (K): 3000
Optical system: KV
Length (mm): 596
Raster (mm): 600
ISRAC4KV3V160/ND1400F
Effective luminous flux (lm): 4700
System power (W): 37
Color temperature (K): 3000
Optical system: KV
Length (mm): 596
Raster (mm): 600
ISRAC4KV3V160/ND1400I3
Effective luminous flux (lm): 4700
System power (W): 37
Color temperature (K): 3000
Optical system: KV
Length (mm): 596
Raster (mm): 600
ISRAC4KV3V160/ND1400I5
Effective luminous flux (lm): 4700
System power (W): 37
Color temperature (K): 3000
Optical system: KV
Length (mm): 596
Raster (mm): 600
ISRAC4KV3V160/ND1400K
Effective luminous flux (lm): 4700
System power (W): 37
Color temperature (K): 3000
Optical system: KV
Length (mm): 596
Raster (mm): 600
ISRAC4KV3V162/ND1050I3
Effective luminous flux (lm): 3500
System power (W): 27
Color temperature (K): 3000
Optical system: KV
Length (mm): 622
Raster (mm): 625
ISRAC4KV3V162/ND1400I3
Effective luminous flux (lm): 4700
System power (W): 37
Color temperature (K): 3000
Optical system: KV
Length (mm): 622
Raster (mm): 625
ISRAC4KV4V160/DALI1050I5
Effective luminous flux (lm): 3500
System power (W): 27
Color temperature (K): 4000
Optical system: KV
Length (mm): 596
Raster (mm): 600
ISRAC4KV4V160/DALI1400I5
Effective luminous flux (lm): 4700
System power (W): 37
Color temperature (K): 4000
Optical system: KV
Length (mm): 596
Raster (mm): 600
ISRAC4KV4V160/ND1050I3
Effective luminous flux (lm): 3500
System power (W): 27
Color temperature (K): 4000
Optical system: KV
Length (mm): 596
Raster (mm): 600
ISRAC4KV4V160/ND1050I3/90
Effective luminous flux (lm): 3000
System power (W): 27
Color temperature (K): 4000
Optical system: KV
Length (mm): 596
Raster (mm): 600
ISRAC4KV4V160/ND1400I3
Effective luminous flux (lm): 4700
System power (W): 37
Color temperature (K): 4000
Optical system: KV
Length (mm): 596
Raster (mm): 600
ISRAC4KV4V160/ND1400I3/90
Effective luminous flux (lm): 4000
System power (W): 37
Color temperature (K): 4000
Optical system: KV
Length (mm): 596
Raster (mm): 600
ISRAC4KV4V160/ND1400I5
Effective luminous flux (lm): 4700
System power (W): 37
Color temperature (K): 4000
Optical system: KV
Length (mm): 596
Raster (mm): 600
ISRAC4KV4V160/ND1400K
Effective luminous flux (lm): 4700
System power (W): 37
Color temperature (K): 4000
Optical system: KV
Length (mm): 596
Raster (mm): 600
ISRAC4KV4V162/DALI1400I5
Effective luminous flux (lm): 4700
System power (W): 37
Color temperature (K): 4000
Optical system: KV
Length (mm): 622
Raster (mm): 625
ISRAC4KV4V162/ND1050I3
Effective luminous flux (lm): 3500
System power (W): 27
Color temperature (K): 4000
Optical system: KV
Length (mm): 622
Raster (mm): 625
ISRAC4KV4V162/ND1400I3
Effective luminous flux (lm): 4700
System power (W): 37
Color temperature (K): 4000
Optical system: KV
Length (mm): 622
Raster (mm): 625
ISRAC4KV4V162/ND1400K
Effective luminous flux (lm): 4700
System power (W): 37
Color temperature (K): 4000
Optical system: KV
Length (mm): 622
Raster (mm): 625
ISRAC4KV5V160/DALI1400I5
Effective luminous flux (lm): 4700
System power (W): 37
Color temperature (K): 5700
Optical system: KV
Length (mm): 596
Raster (mm): 600
ISRAC4KV5V160/ND1400I3
Effective luminous flux (lm): 4700
System power (W): 37
Color temperature (K): 5700
Optical system: KV
Length (mm): 596
Raster (mm): 600
ISRAC4KV5V162/ND1400I3
Effective luminous flux (lm): 4700
System power (W): 37
Color temperature (K): 5700
Optical system: KV
Length (mm): 622
Raster (mm): 625
ISRAC4KVM3V160/DALI1050I5
Effective luminous flux (lm): 3300
System power (W): 27
Color temperature (K): 3000
Optical system: KVM
Length (mm): 596
Raster (mm): 600
ISRAC4KVM3V160/DALI1400F5S
Effective luminous flux (lm): 4500
System power (W): 37
Color temperature (K): 3000
Optical system: KVM
Length (mm): 596
Raster (mm): 600
ISRAC4KVM3V160/DALI1400I5
Effective luminous flux (lm): 4500
System power (W): 37
Color temperature (K): 3000
Optical system: KVM
Length (mm): 596
Raster (mm): 600
ISRAC4KVM3V160/ND1050I3
Effective luminous flux (lm): 3300
System power (W): 27
Color temperature (K): 3000
Optical system: KVM
Length (mm): 596
Raster (mm): 600
ISRAC4KVM3V160/ND1400F
Effective luminous flux (lm): 4500
System power (W): 37
Color temperature (K): 3000
Optical system: KVM
Length (mm): 596
Raster (mm): 600
ISRAC4KVM3V160/ND1400FS
Effective luminous flux (lm): 4500
System power (W): 37
Color temperature (K): 3000
Optical system: KVM
Length (mm): 596
Raster (mm): 600
ISRAC4KVM3V160/ND1400I3
Effective luminous flux (lm): 4500
System power (W): 37
Color temperature (K): 3000
Optical system: KVM
Length (mm): 596
Raster (mm): 600
ISRAC4KVM3V160/ND1400K
Effective luminous flux (lm): 4500
System power (W): 37
Color temperature (K): 3000
Optical system: KVM
Length (mm): 596
Raster (mm): 600
ISRAC4KVM3V162/DALI1050I5
Effective luminous flux (lm): 3300
System power (W): 27
Color temperature (K): 3000
Optical system: KVM
Length (mm): 622
Raster (mm): 625
ISRAC4KVM3V162/ND1050I3
Effective luminous flux (lm): 3300
System power (W): 27
Color temperature (K): 3000
Optical system: KVM
Length (mm): 622
Raster (mm): 625
ISRAC4KVM3V162/ND1400I3
Effective luminous flux (lm): 4500
System power (W): 37
Color temperature (K): 3000
Optical system: KVM
Length (mm): 622
Raster (mm): 625
ISRAC4KVM3V162/ND1400K
Effective luminous flux (lm): 4500
System power (W): 37
Color temperature (K): 3000
Optical system: KVM
Length (mm): 622
Raster (mm): 625
ISRAC4KVM4V160/DALI1050I5
Effective luminous flux (lm): 3300
System power (W): 27
Color temperature (K): 4000
Optical system: KVM
Length (mm): 596
Raster (mm): 600
ISRAC4KVM4V160/DALI1400FSI5
Effective luminous flux (lm): 4500
System power (W): 37
Color temperature (K): 4000
Optical system: KVM
Length (mm): 596
Raster (mm): 600
ISRAC4KVM4V160/DALI1400I5
Effective luminous flux (lm): 4500
System power (W): 37
Color temperature (K): 4000
Optical system: KVM
Length (mm): 596
Raster (mm): 600
ISRAC4KVM4V160/DALI1400I5/EU
Effective luminous flux (lm): 4500
System power (W): 37
Color temperature (K): 4000
Optical system: KVM
Length (mm): 596
Raster (mm): 600
ISRAC4KVM4V160/ND1050FS
Effective luminous flux (lm): 3300
System power (W): 27
Color temperature (K): 4000
Optical system: KVM
Length (mm): 596
Raster (mm): 600
ISRAC4KVM4V160/ND1050I3
Effective luminous flux (lm): 3300
System power (W): 27
Color temperature (K): 4000
Optical system: KVM
Length (mm): 596
Raster (mm): 600
ISRAC4KVM4V160/ND1050K
Effective luminous flux (lm): 3300
System power (W): 27
Color temperature (K): 4000
Optical system: KVM
Length (mm): 596
Raster (mm): 600
ISRAC4KVM4V160/ND1400I3
Effective luminous flux (lm): 4500
System power (W): 37
Color temperature (K): 4000
Optical system: KVM
Length (mm): 596
Raster (mm): 600
ISRAC4KVM4V160/ND1400K
Effective luminous flux (lm): 4500
System power (W): 37
Color temperature (K): 4000
Optical system: KVM
Length (mm): 596
Raster (mm): 600
ISRAC4KVM4V162/DALI1400I5
Effective luminous flux (lm): 4500
System power (W): 37
Color temperature (K): 4000
Optical system: KVM
Length (mm): 622
Raster (mm): 625
ISRAC4KVM4V162/ND1050I3
Effective luminous flux (lm): 3300
System power (W): 27
Color temperature (K): 4000
Optical system: KVM
Length (mm): 622
Raster (mm): 625
ISRAC4KVM4V162/ND1400I3
Effective luminous flux (lm): 4500
System power (W): 37
Color temperature (K): 4000
Optical system: KVM
Length (mm): 622
Raster (mm): 625
ISRAC4KVM5V160/ND1400I3
Effective luminous flux (lm): 4500
System power (W): 37
Color temperature (K): 5700
Optical system: KVM
Length (mm): 596
Raster (mm): 600
ISRAC4KVM5V160/ND1400K
Effective luminous flux (lm): 4500
System power (W): 37
Color temperature (K): 5700
Optical system: KVM
Length (mm): 596
Raster (mm): 600
ISRAC4KVM5V160/ND1400K/90
Effective luminous flux (lm): 3850
System power (W): 37
Color temperature (K): 5700
Optical system: KVM
Length (mm): 596
Raster (mm): 600
ISRAC4KVMM3V160/ND1400K
Effective luminous flux (lm): 4500
System power (W): 37
Color temperature (K): 3000
Optical system: KVMM
Length (mm): 596
Raster (mm): 600
ISRAC4KVMM3V160/ND1400K/90
Effective luminous flux (lm): 3850
System power (W): 37
Color temperature (K): 3000
Optical system: KVMM
Length (mm): 596
Raster (mm): 600
ISRAC4KVMM4V160/ND1400K
Effective luminous flux (lm): 4500
System power (W): 37
Color temperature (K): 4000
Optical system: KVMM
Length (mm): 596
Raster (mm): 600
ISRCC2KV3V160/DALI1050I5
Effective luminous flux (lm): 3500
System power (W): 27
Color temperature (K): 3000
Optical system: KV
Length (mm): 1196
Raster (mm): 600
ISRCC2KV3V160/DALI1400I5
Effective luminous flux (lm): 4700
System power (W): 37
Color temperature (K): 3000
Optical system: KV
Length (mm): 1196
Raster (mm): 600
ISRCC2KV3V160/ND1050I3
Effective luminous flux (lm): 3500
System power (W): 27
Color temperature (K): 3000
Optical system: KV
Length (mm): 1196
Raster (mm): 600
ISRCC2KV3V160/ND1050K
Effective luminous flux (lm): 3500
System power (W): 27
Color temperature (K): 3000
Optical system: KV
Length (mm): 1196
Raster (mm): 600
ISRCC2KV3V160/ND1400I3
Effective luminous flux (lm): 4700
System power (W): 37
Color temperature (K): 3000
Optical system: KV
Length (mm): 1196
Raster (mm): 600
ISRCC2KV3V160/ND1400K
Effective luminous flux (lm): 4700
System power (W): 37
Color temperature (K): 3000
Optical system: KV
Length (mm): 1196
Raster (mm): 600
ISRCC2KV3V162/DALI1400I5
Effective luminous flux (lm): 4700
System power (W): 37
Color temperature (K): 3000
Optical system: KV
Length (mm): 1246
Raster (mm): 625
ISRCC2KV3V162/ND1400I3
Effective luminous flux (lm): 4700
System power (W): 37
Color temperature (K): 3000
Optical system: KV
Length (mm): 1246
Raster (mm): 625
ISRCC2KV4V160/DALI1400I5
Effective luminous flux (lm): 4700
System power (W): 37
Color temperature (K): 4000
Optical system: KV
Length (mm): 1196
Raster (mm): 600
ISRCC2KV4V160/ND1050I3
Effective luminous flux (lm): 3500
System power (W): 27
Color temperature (K): 4000
Optical system: KV
Length (mm): 1196
Raster (mm): 600
ISRCC2KV4V160/ND1400F
Effective luminous flux (lm): 4700
System power (W): 37
Color temperature (K): 4000
Optical system: KV
Length (mm): 1196
Raster (mm): 600
ISRCC2KV4V160/ND1400I3
Effective luminous flux (lm): 4700
System power (W): 37
Color temperature (K): 4000
Optical system: KV
Length (mm): 1196
Raster (mm): 600
ISRCC2KV4V160/ND1400K
Effective luminous flux (lm): 4700
System power (W): 37
Color temperature (K): 4000
Optical system: KV
Length (mm): 1196
Raster (mm): 600
ISRCC2KV4V162/DALI1400I5
Effective luminous flux (lm): 4700
System power (W): 37
Color temperature (K): 4000
Optical system: KV
Length (mm): 1246
Raster (mm): 625
ISRCC2KV4V162/ND1400I3
Effective luminous flux (lm): 4700
System power (W): 37
Color temperature (K): 4000
Optical system: KV
Length (mm): 1246
Raster (mm): 625
ISRCC2KV5V162/ND1400I3
Effective luminous flux (lm): 4700
System power (W): 37
Color temperature (K): 5700
Optical system: KV
Length (mm): 1246
Raster (mm): 600
ISRCC2KVM3V160/DALI1400KI3
Effective luminous flux (lm): 4500
System power (W): 37
Color temperature (K): 3000
Optical system: KVM
Length (mm): 1196
Raster (mm): 600
ISRCC2KVM3V160/ND1050K
Effective luminous flux (lm): 3300
System power (W): 27
Color temperature (K): 3000
Optical system: KVM
Length (mm): 1196
Raster (mm): 600
ISRCC2KVM3V160/ND1400I3
Effective luminous flux (lm): 4500
System power (W): 37
Color temperature (K): 3000
Optical system: KVM
Length (mm): 1196
Raster (mm): 600
ISRCC2KVM3V160/ND1400K
Effective luminous flux (lm): 4500
System power (W): 37
Color temperature (K): 3000
Optical system: KVM
Length (mm): 1196
Raster (mm): 600
ISRCC2KVM4V160/DALI1400F5S
Effective luminous flux (lm): 4500
System power (W): 37
Color temperature (K): 4000
Optical system: KVM
Length (mm): 1196
Raster (mm): 600
ISRCC2KVM4V160/DALI1400FSI5
Effective luminous flux (lm): 4500
System power (W): 37
Color temperature (K): 4000
Optical system: KVM
Length (mm): 1196
Raster (mm): 600
ISRCC2KVM4V160/DALI1400I5
Effective luminous flux (lm): 4500
System power (W): 37
Color temperature (K): 4000
Optical system: KVM
Length (mm): 1196
Raster (mm): 600
ISRCC2KVM4V160/ND1050I3
Effective luminous flux (lm): 3300
System power (W): 27
Color temperature (K): 4000
Optical system: KVM
Length (mm): 1196
Raster (mm): 600
ISRCC2KVM4V160/ND1050K
Effective luminous flux (lm): 3300
System power (W): 27
Color temperature (K): 4000
Optical system: KVM
Length (mm): 1196
Raster (mm): 600
ISRCC2KVM4V160/ND1400I3
Effective luminous flux (lm): 4500
System power (W): 37
Color temperature (K): 4000
Optical system: KVM
Length (mm): 1196
Raster (mm): 600
ISRCC2KVM4V160/ND1400K
Effective luminous flux (lm): 4500
System power (W): 37
Color temperature (K): 4000
Optical system: KVM
Length (mm): 1196
Raster (mm): 600
ISRCC2KVM4V162/ND1400I3
Effective luminous flux (lm): 4500
System power (W): 37
Color temperature (K): 4000
Optical system: KVM
Length (mm): 1246
Raster (mm): 625
ISRCC2KVM5V160/ND1400K
Effective luminous flux (lm): 4500
System power (W): 37
Color temperature (K): 5700
Optical system: KVM
Length (mm): 1196
Raster (mm): 600
ISRCC2KVM6V160/ND1400K
Effective luminous flux (lm): 4500
System power (W): 37
Color temperature (K): 6500
Optical system: KVM
Length (mm): 1196
Raster (mm): 600
ISRCC2KVMM3V160/DALI1400FSI5
Effective luminous flux (lm): 4500
System power (W): 37
Color temperature (K): 3000
Optical system: KVMM
Length (mm): 1196
Raster (mm): 600
ISRCC2KVMM3V160/ND1400K
Effective luminous flux (lm): 4500
System power (W): 37
Color temperature (K): 3000
Optical system: KVMM
Length (mm): 1196
Raster (mm): 600
ISRCC2KVMM4V160/DALI1400F5S
Effective luminous flux (lm): 4500
System power (W): 37
Color temperature (K): 4000
Optical system: KVMM
Length (mm): 1196
Raster (mm): 600
ISRCC2KVMM4V160/ND1400F
Effective luminous flux (lm): 4500
System power (W): 37
Color temperature (K): 4000
Optical system: KVMM
Length (mm): 1196
Raster (mm): 600
ISRCC2KVMM4V160/ND1400K
Effective luminous flux (lm): 4500
System power (W): 37
Color temperature (K): 4000
Optical system: KVMM
Length (mm): 1196
Raster (mm): 600
ISSAC2KV4V160/ND700I3
Effective luminous flux (lm): 3600
System power (W): 33
Color temperature (K): 4000
Optical system: KV
Length (mm): 596
Raster (mm): 600
ISSAC2KV4V162/ND700I3
Effective luminous flux (lm): 3600
System power (W): 33
Color temperature (K): 4000
Optical system: KV
Length (mm): 622
Raster (mm): 625
ISSAC2KVM3V160/ND700I3
Effective luminous flux (lm): 3400
System power (W): 33
Color temperature (K): 3000
Optical system: KVM
Length (mm): 596
Raster (mm): 600
ISSAC2KVM4V160/ND700I3
Effective luminous flux (lm): 3400
System power (W): 33
Color temperature (K): 4000
Optical system: KVM
Length (mm): 596
Raster (mm): 600
ISSAC4KV3V160/DALI1400I5
Effective luminous flux (lm): 4700
System power (W): 37
Color temperature (K): 3000
Optical system: KV
Length (mm): 596
Raster (mm): 600
ISSAC4KV3V160/ND1050I3
Effective luminous flux (lm): 3500
System power (W): 27
Color temperature (K): 3000
Optical system: KV
Length (mm): 596
Raster (mm): 600
ISSAC4KV3V160/ND1400I3
Effective luminous flux (lm): 4700
System power (W): 37
Color temperature (K): 3000
Optical system: KV
Length (mm): 596
Raster (mm): 600
ISSAC4KV3V160/ND1400K
Effective luminous flux (lm): 4700
System power (W): 37
Color temperature (K): 3000
Optical system: KV
Length (mm): 596
Raster (mm): 600
ISSAC4KV3V160NZ/ND1400I5
Effective luminous flux (lm): 4700
System power (W): 37
Color temperature (K): 3000
Optical system: KV
Length (mm): 596
Raster (mm): 600
ISSAC4KV3V162/DALI1400I5
Effective luminous flux (lm): 4700
System power (W): 37
Color temperature (K): 3000
Optical system: KV
Length (mm): 622
Raster (mm): 625
ISSAC4KV3V162/ND1050I3
Effective luminous flux (lm): 3500
System power (W): 27
Color temperature (K): 3000
Optical system: KV
Length (mm): 622
Raster (mm): 625
ISSAC4KV3V162/ND1400I3
Effective luminous flux (lm): 4700
System power (W): 37
Color temperature (K): 3000
Optical system: KV
Length (mm): 622
Raster (mm): 625
ISSAC4KV4V160/DALI1050I5
Effective luminous flux (lm): 3500
System power (W): 27
Color temperature (K): 4000
Optical system: KV
Length (mm): 596
Raster (mm): 600
ISSAC4KV4V160/DALI1400I5
Effective luminous flux (lm): 4700
System power (W): 37
Color temperature (K): 4000
Optical system: KV
Length (mm): 596
Raster (mm): 600
ISSAC4KV4V160/ND1050I3
Effective luminous flux (lm): 3500
System power (W): 27
Color temperature (K): 4000
Optical system: KV
Length (mm): 596
Raster (mm): 600
ISSAC4KV4V160/ND1400I3
Effective luminous flux (lm): 4700
System power (W): 37
Color temperature (K): 4000
Optical system: KV
Length (mm): 596
Raster (mm): 600
ISSAC4KV4V160/ND1400I3/90
Effective luminous flux (lm): 4000
System power (W): 37
Color temperature (K): 4000
Optical system: KV
Length (mm): 596
Raster (mm): 600
ISSAC4KV4V160/ND1400K
Effective luminous flux (lm): 4700
System power (W): 37
Color temperature (K): 4000
Optical system: KV
Length (mm): 596
Raster (mm): 600
ISSAC4KV4V160NZ/DALI1050I53
Effective luminous flux (lm): 3500
System power (W): 27
Color temperature (K): 4000
Optical system: KV
Length (mm): 596
Raster (mm): 600
ISSAC4KV4V160NZ/DALI1400I53
Effective luminous flux (lm): 4700
System power (W): 37
Color temperature (K): 4000
Optical system: KV
Length (mm): 596
Raster (mm): 600
ISSAC4KV4V160NZ/ND1050I5
Effective luminous flux (lm): 3500
System power (W): 27
Color temperature (K): 4000
Optical system: KV
Length (mm): 596
Raster (mm): 600
ISSAC4KV4V160NZ/ND1400I5
Effective luminous flux (lm): 4700
System power (W): 37
Color temperature (K): 4000
Optical system: KV
Length (mm): 596
Raster (mm): 600
ISSAC4KV4V160NZ3/DALI1400I53
Effective luminous flux (lm): 4700
System power (W): 37
Color temperature (K): 4000
Optical system: KV
Length (mm): 596
Raster (mm): 600
ISSAC4KV4V160NZ3/ND1400I5
Effective luminous flux (lm): 4700
System power (W): 37
Color temperature (K): 4000
Optical system: KV
Length (mm): 596
Raster (mm): 600
ISSAC4KV4V162/DALI1050I5
Effective luminous flux (lm): 3500
System power (W): 27
Color temperature (K): 4000
Optical system: KV
Length (mm): 622
Raster (mm): 625
ISSAC4KV4V162/DALI1400I5
Effective luminous flux (lm): 4700
System power (W): 37
Color temperature (K): 4000
Optical system: KV
Length (mm): 622
Raster (mm): 625
ISSAC4KV4V162/ND1400I3
Effective luminous flux (lm): 4700
System power (W): 37
Color temperature (K): 4000
Optical system: KV
Length (mm): 622
Raster (mm): 625
ISSAC4KV4V162NZ/ND1400I5
Effective luminous flux (lm): 4700
System power (W): 37
Color temperature (K): 4000
Optical system: KV
Length (mm): 622
Raster (mm): 625
ISSAC4KV5V160/ND1400I3
Effective luminous flux (lm): 4700
System power (W): 37
Color temperature (K): 5700
Optical system: KV
Length (mm): 596
Raster (mm): 600
ISSAC4KV5V162/ND1400I3
Effective luminous flux (lm): 4700
System power (W): 37
Color temperature (K): 5700
Optical system: KV
Length (mm): 622
Raster (mm): 625
ISSAC4KVM3V160/ND1400I3
Effective luminous flux (lm): 4500
System power (W): 37
Color temperature (K): 3000
Optical system: KVM
Length (mm): 596
Raster (mm): 600
ISSAC4KVM3V160/ND1400K
Effective luminous flux (lm): 4500
System power (W): 37
Color temperature (K): 3000
Optical system: KVM
Length (mm): 596
Raster (mm): 600
ISSAC4KVM3V160/ND1400K/9005
Effective luminous flux (lm): 4500
System power (W): 37
Color temperature (K): 3000
Optical system: KVM
Length (mm): 596
Raster (mm): 600
ISSAC4KVM3V160NZ/ND1400KI3
Effective luminous flux (lm): 4500
System power (W): 37
Color temperature (K): 3000
Optical system: KVM
Length (mm): 596
Raster (mm): 600
ISSAC4KVM3V162/ND1400K
Effective luminous flux (lm): 4500
System power (W): 37
Color temperature (K): 3000
Optical system: KVM
Length (mm): 622
Raster (mm): 625
ISSAC4KVM4V160/DALI1050I5
Effective luminous flux (lm): 3300
System power (W): 27
Color temperature (K): 4000
Optical system: KVM
Length (mm): 596
Raster (mm): 600
ISSAC4KVM4V160/DALI1400I5
Effective luminous flux (lm): 4500
System power (W): 37
Color temperature (K): 4000
Optical system: KVM
Length (mm): 596
Raster (mm): 600
ISSAC4KVM4V160/DALIT1400I5
Effective luminous flux (lm): 4500
System power (W): 37
Color temperature (K): 4000
Optical system: KVM
Length (mm): 596
Raster (mm): 600
ISSAC4KVM4V160/ND1050I3
Effective luminous flux (lm): 3300
System power (W): 27
Color temperature (K): 4000
Optical system: KVM
Length (mm): 596
Raster (mm): 600
ISSAC4KVM4V160/ND1050K
Effective luminous flux (lm): 3300
System power (W): 27
Color temperature (K): 4000
Optical system: KVM
Length (mm): 596
Raster (mm): 600
ISSAC4KVM4V160/ND1400I3
Effective luminous flux (lm): 4500
System power (W): 37
Color temperature (K): 4000
Optical system: KVM
Length (mm): 596
Raster (mm): 600
ISSAC4KVM4V160/ND1400I3/90
Effective luminous flux (lm): 3850
System power (W): 37
Color temperature (K): 4000
Optical system: KVM
Length (mm): 596
Raster (mm): 600
ISSAC4KVM4V160/ND1400K
Effective luminous flux (lm): 4500
System power (W): 37
Color temperature (K): 4000
Optical system: KVM
Length (mm): 596
Raster (mm): 600
ISSAC4KVM4V160NZ/ND1050I5
Effective luminous flux (lm): 3300
System power (W): 27
Color temperature (K): 4000
Optical system: KVM
Length (mm): 596
Raster (mm): 600
ISSAC4KVM4V160NZ/ND1400I5
Effective luminous flux (lm): 4500
System power (W): 37
Color temperature (K): 4000
Optical system: KVM
Length (mm): 596
Raster (mm): 600
ISSAC4KVM4V160NZ/ND1400I5/90
Effective luminous flux (lm): 3850
System power (W): 37
Color temperature (K): 4000
Optical system: KVM
Length (mm): 596
Raster (mm): 600
ISSAC4KVM5V160/ND1400I3
Effective luminous flux (lm): 4500
System power (W): 37
Color temperature (K): 5700
Optical system: KVM
Length (mm): 596
Raster (mm): 600
ISSAC4KVM5V160/ND1400K
Effective luminous flux (lm): 4500
System power (W): 37
Color temperature (K): 5700
Optical system: KVM
Length (mm): 596
Raster (mm): 600
ISSAC4KVMV160/MIX1400I5
Effective luminous flux (lm): 4300
System power (W): 42
Color temperature (K): 2700...6500
Optical system: KVM
Length (mm): 596
Raster (mm): 600
ISSAC4KVMV160/MIX1400K3/BTC
Effective luminous flux (lm): 4300
System power (W): 42
Color temperature (K): 2700...6500
Optical system: KVM
Length (mm): 596
Raster (mm): 600
ISSCC2KV3V160/DALI1400I5
Effective luminous flux (lm): 4700
System power (W): 37
Color temperature (K): 3000
Optical system: KV
Length (mm): 1196
Raster (mm): 600
ISSCC2KV3V160/ND1050I3
Effective luminous flux (lm): 3500
System power (W): 27
Color temperature (K): 3000
Optical system: KV
Length (mm): 1196
Raster (mm): 600
ISSCC2KV3V162/DALI1400I5
Effective luminous flux (lm): 4700
System power (W): 37
Color temperature (K): 3000
Optical system: KV
Length (mm): 1246
Raster (mm): 625
ISSCC2KV3V162/ND1400I3
Effective luminous flux (lm): 4700
System power (W): 37
Color temperature (K): 3000
Optical system: KV
Length (mm): 1246
Raster (mm): 625
ISSCC2KV4V160/ND1050I3
Effective luminous flux (lm): 3500
System power (W): 27
Color temperature (K): 4000
Optical system: KV
Length (mm): 1196
Raster (mm): 600
ISSCC2KV4V160/ND1400I3
Effective luminous flux (lm): 4700
System power (W): 37
Color temperature (K): 4000
Optical system: KV
Length (mm): 1196
Raster (mm): 600
ISSCC2KV4V160NZ/ND1400I5
Effective luminous flux (lm): 4700
System power (W): 37
Color temperature (K): 4000
Optical system: KV
Length (mm): 1196
Raster (mm): 600
ISSCC2KV4V162/DALI1400I5
Effective luminous flux (lm): 4700
System power (W): 37
Color temperature (K): 4000
Optical system: KV
Length (mm): 1246
Raster (mm): 625
ISSCC2KV4V162/ND1050I3
Effective luminous flux (lm): 3500
System power (W): 27
Color temperature (K): 4000
Optical system: KV
Length (mm): 1246
Raster (mm): 625
ISSCC2KV4V162/ND1400I3
Effective luminous flux (lm): 4700
System power (W): 37
Color temperature (K): 4000
Optical system: KV
Length (mm): 1246
Raster (mm): 625
ISSCC2KV5V162/ND1400I3
Effective luminous flux (lm): 4700
System power (W): 37
Color temperature (K): 5700
Optical system: KV
Length (mm): 1246
Raster (mm): 625
ISSCC2KVM3V160/ND1050K
Effective luminous flux (lm): 3300
System power (W): 27
Color temperature (K): 3000
Optical system: KVM
Length (mm): 1196
Raster (mm): 600
ISSCC2KVM3V160/ND1400K
Effective luminous flux (lm): 4500
System power (W): 37
Color temperature (K): 3000
Optical system: KVM
Length (mm): 1196
Raster (mm): 600
ISSCC2KVM3V160NZ/ND1400KI3
Effective luminous flux (lm): 4500
System power (W): 37
Color temperature (K): 3000
Optical system: KVM
Length (mm): 1196
Raster (mm): 600
ISSCC2KVM4V160/DALIT1050I5
Effective luminous flux (lm): 3300
System power (W): 27
Color temperature (K): 4000
Optical system: KVM
Length (mm): 1196
Raster (mm): 600
ISSCC2KVM4V160/DALIT1400I5
Effective luminous flux (lm): 4500
System power (W): 37
Color temperature (K): 4000
Optical system: KVM
Length (mm): 1196
Raster (mm): 600
ISSCC2KVM4V160/ND1050I3
Effective luminous flux (lm): 3300
System power (W): 27
Color temperature (K): 4000
Optical system: KVM
Length (mm): 1196
Raster (mm): 600
ISSCC2KVM4V160/ND1050K
Effective luminous flux (lm): 3300
System power (W): 27
Color temperature (K): 4000
Optical system: KVM
Length (mm): 1196
Raster (mm): 600
ISSCC2KVM4V160/ND1400I3
Effective luminous flux (lm): 4500
System power (W): 37
Color temperature (K): 4000
Optical system: KVM
Length (mm): 1196
Raster (mm): 600
ISSCC2KVM4V160/ND1400K
Effective luminous flux (lm): 4500
System power (W): 37
Color temperature (K): 4000
Optical system: KVM
Length (mm): 1196
Raster (mm): 600
ISSCC2KVM5V160/ND1400K
Effective luminous flux (lm): 4500
System power (W): 37
Color temperature (K): 5700
Optical system: KVM
Length (mm): 1196
Raster (mm): 600
ISSCC2KVMM4V162/DALI1400I5
Effective luminous flux (lm): 4500
System power (W): 37
Color temperature (K): 4000
Optical system: KVMM
Length (mm): 1246
Raster (mm): 625
ISSCC2KVMV160/MIX1400I5
Effective luminous flux (lm): 4450
System power (W): 42
Color temperature (K): 2700...6500
Optical system: KVM
Length (mm): 1196
Raster (mm): 600
Show all versions
 Back to serie MODUS IS

We are here to help

We'll advise you all, we have outstanding support.
Lighting calculations

Lighting calculations

Do you need to calculate the lighting?

LDT files

LDT files

Do you need LDT data for your project?

Product support

Product support

Do not know what kind of lighting is best for you?

Connection diagrams

Connection diagrams

Do not you know how to conect luminaires properly?

Contact
