MODUS KSL4000M

Product series MODUS KSL

MODUS KSL4000M
12 CCT_3000.jpg
11 L80_80000_h.jpg
třída ochrany I.PNG
220-240 v.png
1 M10_nasten_celkove_osv.jpg

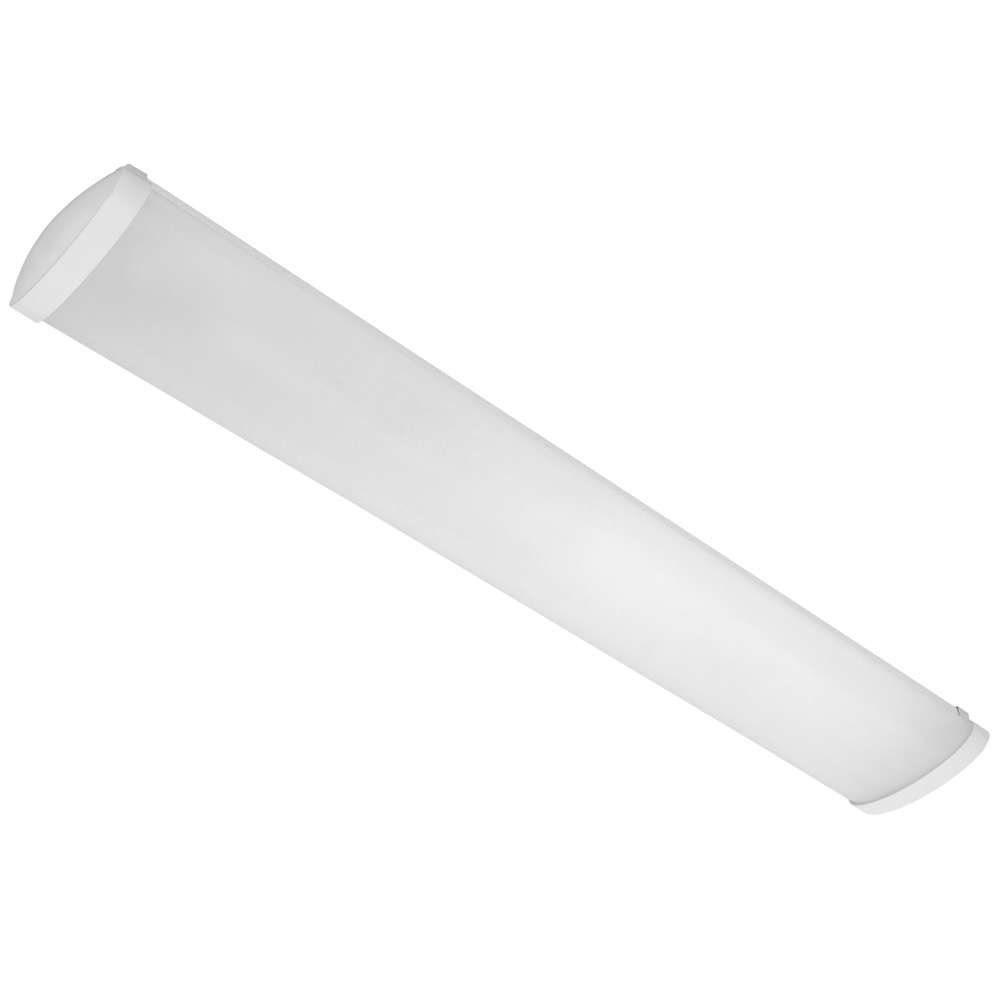

MODUS KSL 6000, 1500mm, 2x LED 830, semiopal cover, surface, 1200mA, DALI dimable

LED fitting with cover

Code: KSL6000L3KS/DALI
EAN: 8596099052331

This product contains a light source with energy efficiency class D

Distribution network
Contacts

Luminaire properties

Product category:Ceiling / wall luminairesEffective luminous flux (lm):7300
System power (W):51Luminaire efficacy (lm/W):143
Rated lifetime L80/B50 (h):80000Degree of protection (IP):IP20
Color housing:WhiteSuitable for suspended mounting:Yes
Material housing:Steel
Light source included:Yes
Suitable for wall mounting:YesSuitable for surface mounting:Yes
Suitable for ceiling mounting:YesMade in Czech republic:Yes

Light source

Light source type:LEDColor temperature (K):3000
Color rendering index CRI:80-89Replaceability:Removeable light source, replaceable ballast
Light source type:1990420183003Energy efficiency class:D

Optical system

Optical system:KSLight outlet:Direct
Light sharing:SymmetricMaterial cover:Plastic, opal

Dimensions

Length (mm):1593Width (mm):208
Height/depth (mm):77Weight (kg):3,1

Electrical values

Protection class:IConnection type:Pinching contact
Voltage type:ACType of control gear:LED operating device current-controlled
Nominal voltage (V):220...240Control gear included:Yes
Dimming DALI:Yes
LoadingLoading

Filters

Effective luminous flux (lm)

2500
9000

System power (W)

20
65
Product name
KSL2000M3KS/ND
Effective luminous flux (lm): 2500
System power (W): 20
Color temperature (K): 3000
Length (mm): 1293
KSL2000M4KS/DALI
Effective luminous flux (lm): 3000
System power (W): 20
Color temperature (K): 4000
Length (mm): 1293
KSL2000M4KS/DALIT
Effective luminous flux (lm): 3000
System power (W): 20
Color temperature (K): 4000
Length (mm): 1293
KSL2000M4KS/ND
Effective luminous flux (lm): 3000
System power (W): 20
Color temperature (K): 4000
Length (mm): 1293
KSL2000M4KS/NDNZ
Effective luminous flux (lm): 3000
System power (W): 20
Color temperature (K): 4000
Length (mm): 1293
KSL2000S4KS/ND
Effective luminous flux (lm): 3000
System power (W): 22
Color temperature (K): 4000
Length (mm): 683
KSL3000L3KS/DALI
Effective luminous flux (lm): 4400
System power (W): 30
Color temperature (K): 3000
Length (mm): 1593
KSL3000L3KS/ND
Effective luminous flux (lm): 4400
System power (W): 30
Color temperature (K): 3000
Length (mm): 1593
KSL3000L3KS/NDNZ
Effective luminous flux (lm): 4400
System power (W): 30
Color temperature (K): 3000
Length (mm): 1593
KSL3000L4KS/DALI
Effective luminous flux (lm): 4700
System power (W): 30
Color temperature (K): 4000
Length (mm): 1593
KSL3000L4KS/ND
Effective luminous flux (lm): 4700
System power (W): 30
Color temperature (K): 4000
Length (mm): 1593
KSL3000L4KS/NDNZ
Effective luminous flux (lm): 4700
System power (W): 30
Color temperature (K): 4000
Length (mm): 1593
KSL3000L5KS/ND
Effective luminous flux (lm): 4400
System power (W): 30
Color temperature (K): 5700
Length (mm): 1593
KSL4000M3KS/ND
Effective luminous flux (lm): 5000
System power (W): 41
Color temperature (K): 3000
Length (mm): 1293
KSL4000M3KS/NDNZ
Effective luminous flux (lm): 5000
System power (W): 41
Color temperature (K): 3000
Length (mm): 1293
KSL4000M4KS/DALI
Effective luminous flux (lm): 5800
System power (W): 41
Color temperature (K): 4000
Length (mm): 1293
KSL4000M4KS/ND
Effective luminous flux (lm): 5800
System power (W): 41
Color temperature (K): 4000
Length (mm): 1293
KSL4000M4KS/NDNZ
Effective luminous flux (lm): 5800
System power (W): 41
Color temperature (K): 4000
Length (mm): 1293
KSL4000M4KS/NDNZ3
Effective luminous flux (lm): 5800
System power (W): 41
Color temperature (K): 4000
Length (mm): 1293
KSL4000M4KS/NDSM
Effective luminous flux (lm): 5800
System power (W): 41
Color temperature (K): 4000
Length (mm): 1293
KSL4000M6KS/ND
Effective luminous flux (lm): 5800
System power (W): 41
Color temperature (K): 6500
Length (mm): 1293
KSL6000L3KS/DALI
Effective luminous flux (lm): 7300
System power (W): 51
Color temperature (K): 3000
Length (mm): 1593
KSL6000L3KS/ND
Effective luminous flux (lm): 7300
System power (W): 51
Color temperature (K): 3000
Length (mm): 1593
KSL6000L3KS/NDSM
Effective luminous flux (lm): 7300
System power (W): 51
Color temperature (K): 3000
Length (mm): 1593
KSL6000L4KS/DALI
Effective luminous flux (lm): 7800
System power (W): 54
Color temperature (K): 4000
Length (mm): 1593
KSL6000L4KS/ND
Effective luminous flux (lm): 7800
System power (W): 54
Color temperature (K): 4000
Length (mm): 1593
KSL6000L4KS/NDNZ
Effective luminous flux (lm): 7800
System power (W): 54
Color temperature (K): 4000
Length (mm): 1593
KSL6000L4KS/NDNZ3
Effective luminous flux (lm): 7800
System power (W): 54
Color temperature (K): 4000
Length (mm): 1593
KSL6000L4KS/NDSM
Effective luminous flux (lm): 7800
System power (W): 54
Color temperature (K): 4000
Length (mm): 1593
KSL8000M3KS/ND
Effective luminous flux (lm): 7500
System power (W): 65
Color temperature (K): 3000
Length (mm): 1293
KSL8000M4KS/ND
Effective luminous flux (lm): 9000
System power (W): 65
Color temperature (K): 4000
Length (mm): 1293
