Product series
MODUS LLLX

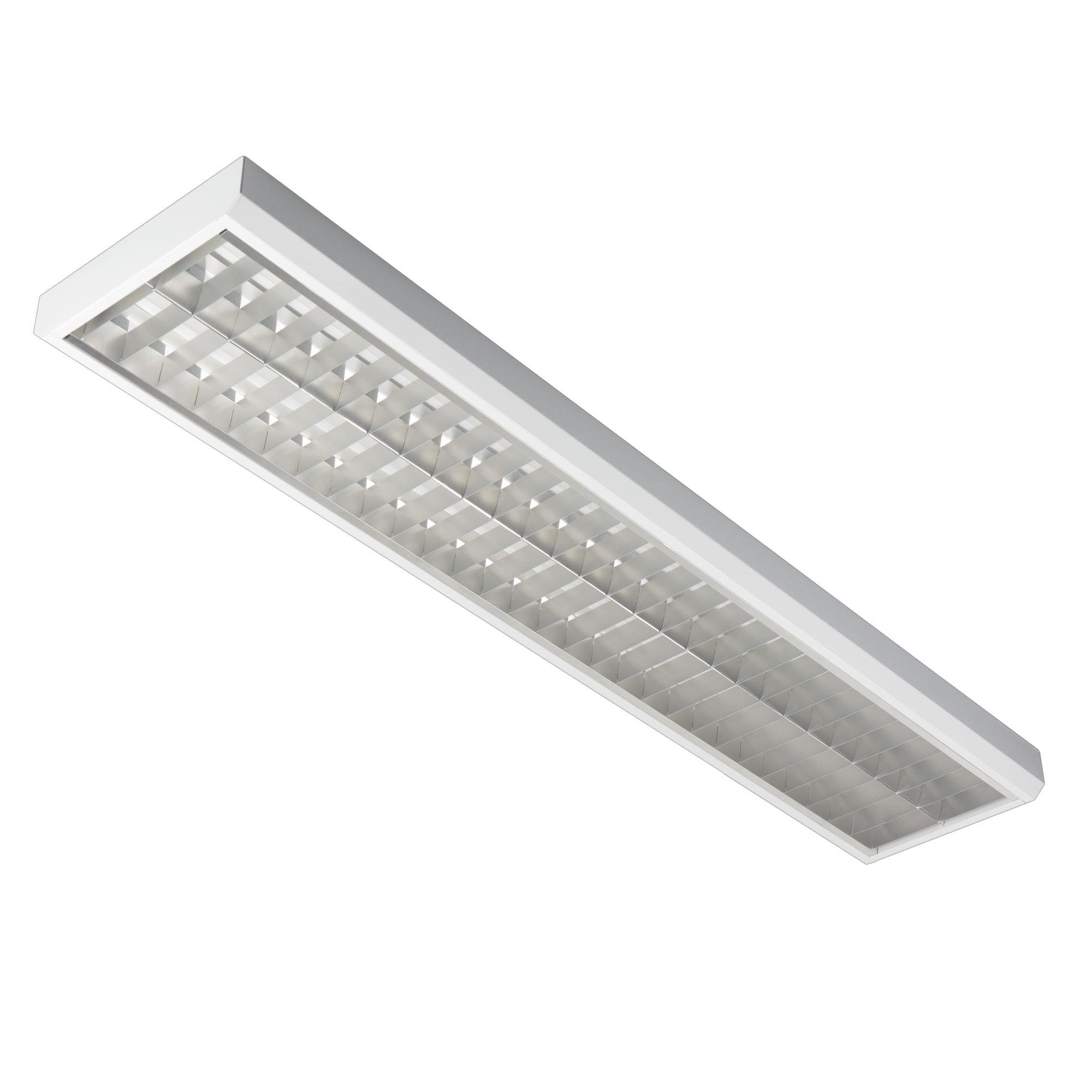

Surface luminaire with single louvre
Standard price from:
On request
Luminaire is alternative to model MODUS LLL. In comparation to LLL luminaiere, this model has matt AL louvre and non-welded body. Due a single louvre these luminaires are ideal for use in school-classes, corridors, etc.
This model is produced in two versions:
LLLX4000RM2MAT - size of body and lumen output is the same as 2x36W T8 version, matt louvre
LLLX6000RL2MAT - size of body and lumen output is the same as 2x58W T8 version, matt louvre
Pendant installation is possible by wire set ZH/UNI4 - 4 wires.
| Size version: | L 1500 mm M 1200 mm | Body material: | White painted steel | Mounting method: | Pendant, Surface mounting | Protection class: | I | With movement sensor: | No | Type of control gear: | LED operating device current-controlled | Color rendering index CRI: | 80-89 | Light source type: | LED | Light outlet: | Direct | Nominal voltage (V): | 220...240 | Degree of protection (IP): | IP20 |
| Color temperature (K): | 4000, 3000 | Rated lifetime L80/B50 (h): | 50000 | Dimming DALI: | Yes | Product category: | Surface mounted ceiling- and wall luminaire | Optical system: | ALMAT mat aluminium parabolic louvre | Made in Czech republic: | Yes | Replaceability: | Removeable light source, replaceable ballast Removeable light source, replaceable ballast | Photobiological safety EN 62 471: | RG 0 | MacAdam binning: | SDCM 3 |
LoadingFilters
Effective luminous flux (lm)
System power (W)
Product name
Effective luminous flux (lm)
System power (W)
Color temperature (K)
Length (mm)
LLLX2000RM1MAT4ND
Effective luminous flux (lm): 2000
System power (W): 19
Color temperature (K): 4000
Length (mm): 1258
LLLX4000RM2MAT3ND
Effective luminous flux (lm): 4000
System power (W): 37
Color temperature (K): 3000
Length (mm): 1258
LLLX4000RM2MAT3NDMULTI
Effective luminous flux (lm): 4000
System power (W): 39
Color temperature (K): 3000
Length (mm): 1258
LLLX4000RM2MAT4ND
Effective luminous flux (lm): 4000
System power (W): 37
Color temperature (K): 4000
Length (mm): 1258
LLLX4000RM2MAT4NDMULTI
Effective luminous flux (lm): 4000
System power (W): 39
Color temperature (K): 4000
Length (mm): 1258
LLLX4000RM2MAT4NDMULTI/S24
Effective luminous flux (lm): 4000
System power (W): 39
Color temperature (K): 4000
Length (mm): 1258
LLLX4000RM2MAT5ND
Effective luminous flux (lm): 4000
System power (W): 37
Color temperature (K): 5700
Length (mm): 1258
LLLX6000RL2MAT3ND
Effective luminous flux (lm): 6200
System power (W): 57
Color temperature (K): 3000
Length (mm): 1558
LLLX6000RL2MAT3NDMULTI
Effective luminous flux (lm): 6400
System power (W): 58
Color temperature (K): 3000
Length (mm): 1558
LLLX6000RL2MAT4DALI
Effective luminous flux (lm): 6200
System power (W): 57
Color temperature (K): 4000
Length (mm): 1558
LLLX6000RL2MAT4ND
Effective luminous flux (lm): 6200
System power (W): 57
Color temperature (K): 4000
Length (mm): 1558
LLLX6000RL2MAT4NDMULTI
Effective luminous flux (lm): 6400
System power (W): 58
Color temperature (K): 3000
Length (mm): 1558
LLLX6000RL2MAT5ND
Effective luminous flux (lm): 6200
System power (W): 57
Color temperature (K): 5700
Length (mm): 1558
Product page - PDF
LDT files

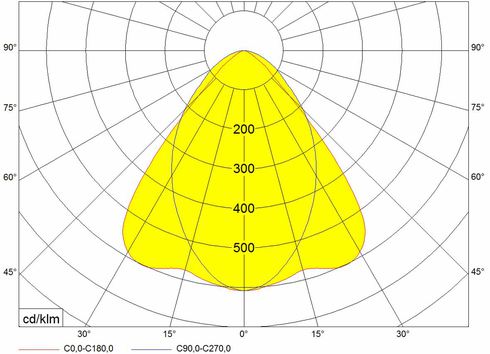

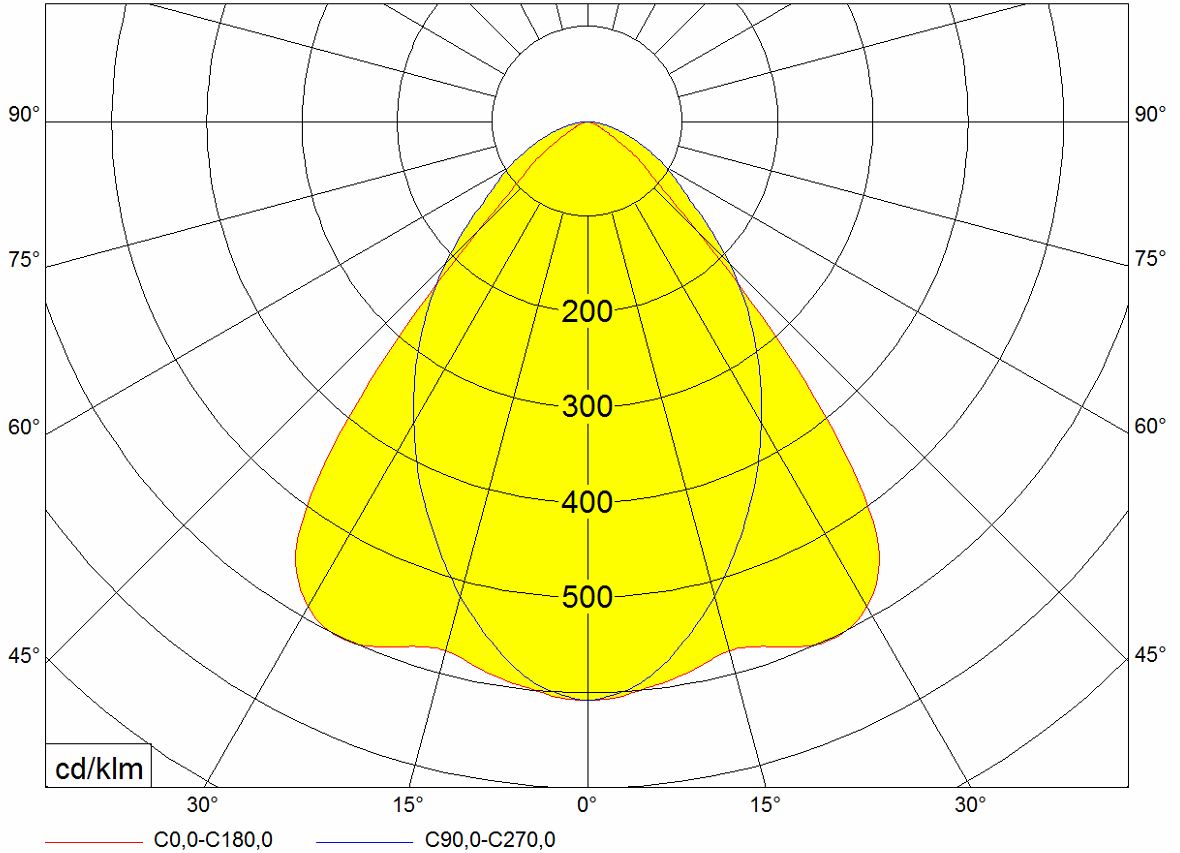

58_1 LLLX MAT.JPGProjekty realizované se svítidly MODUS:
Pendant mounting of luminaires
