Standard price from:
On request

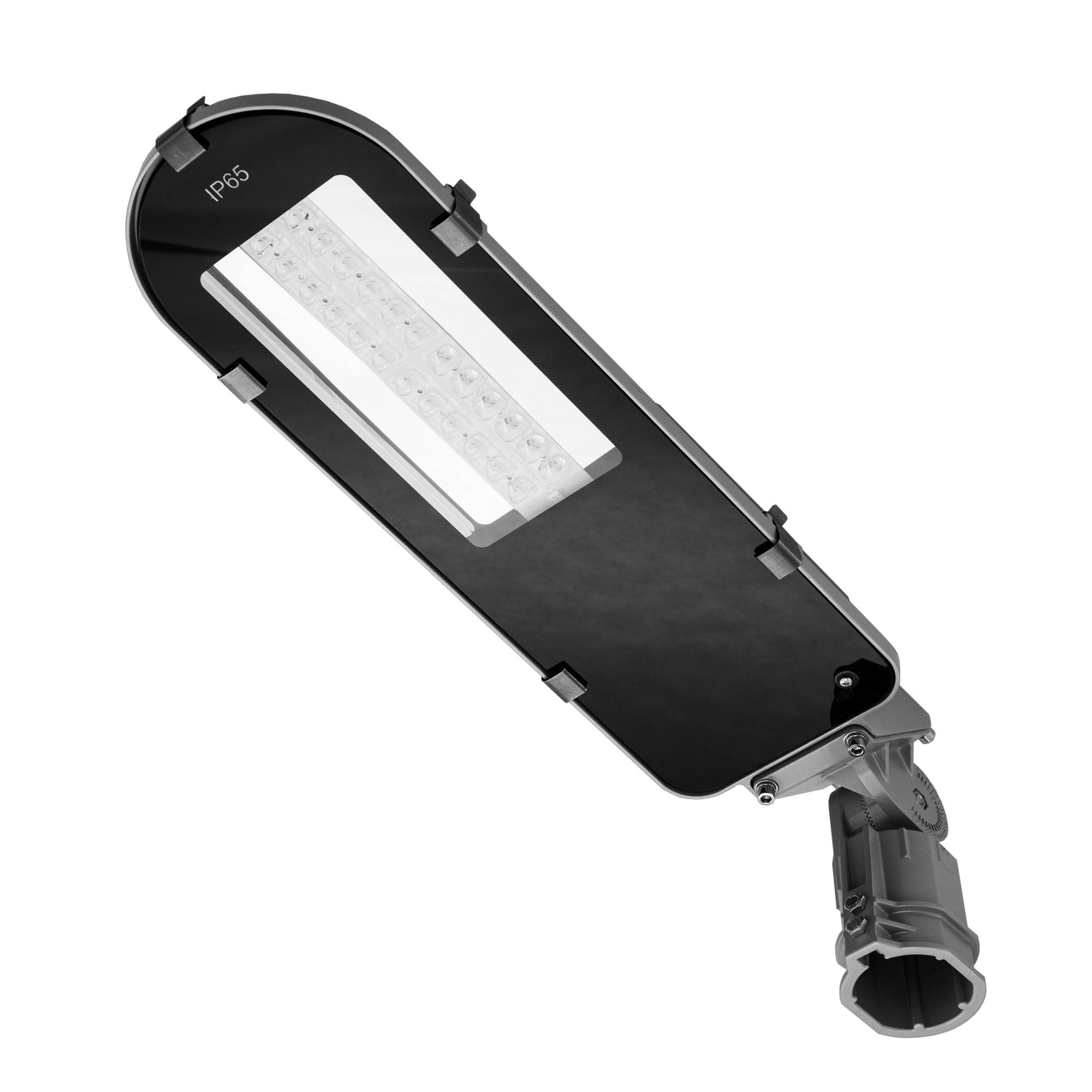

Body:

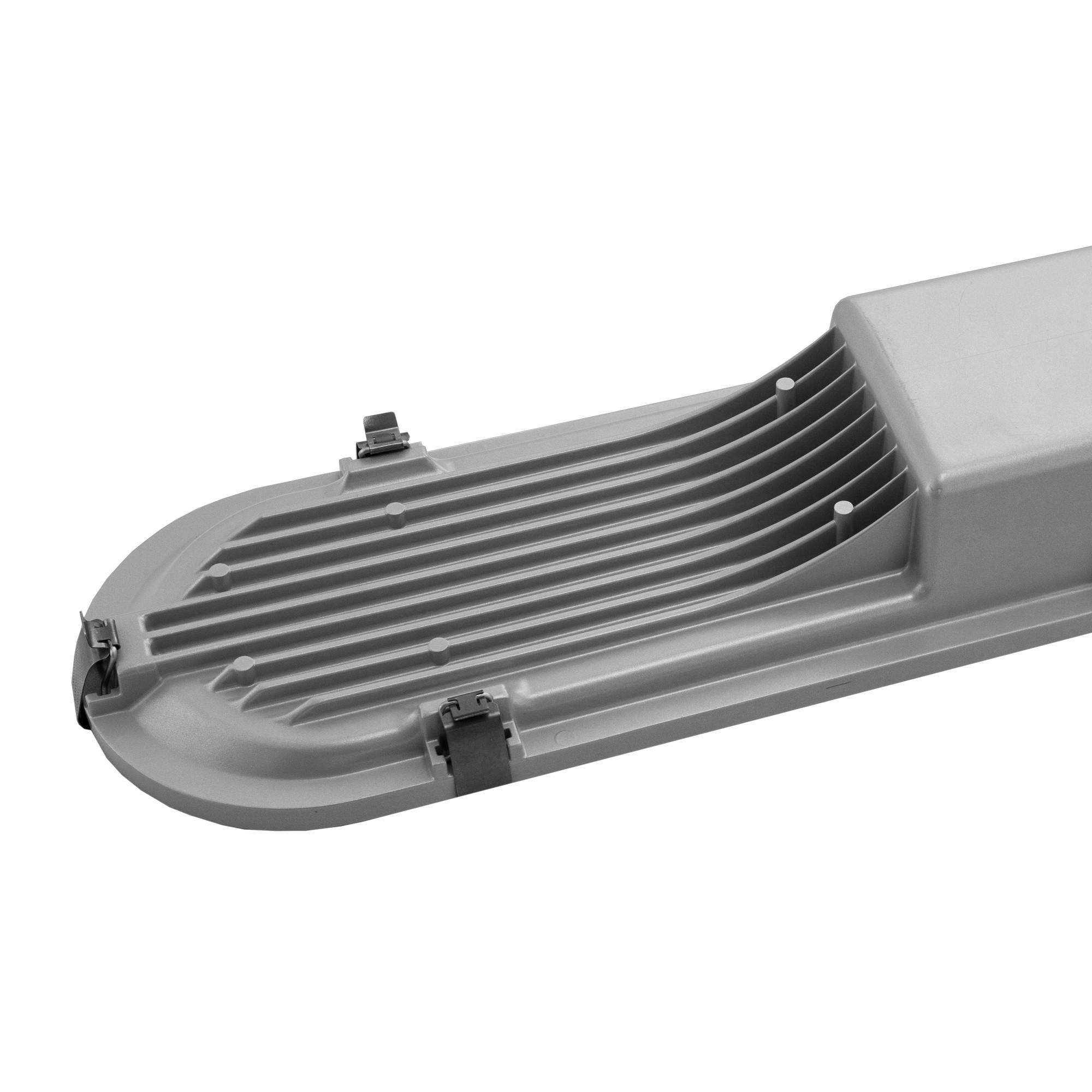

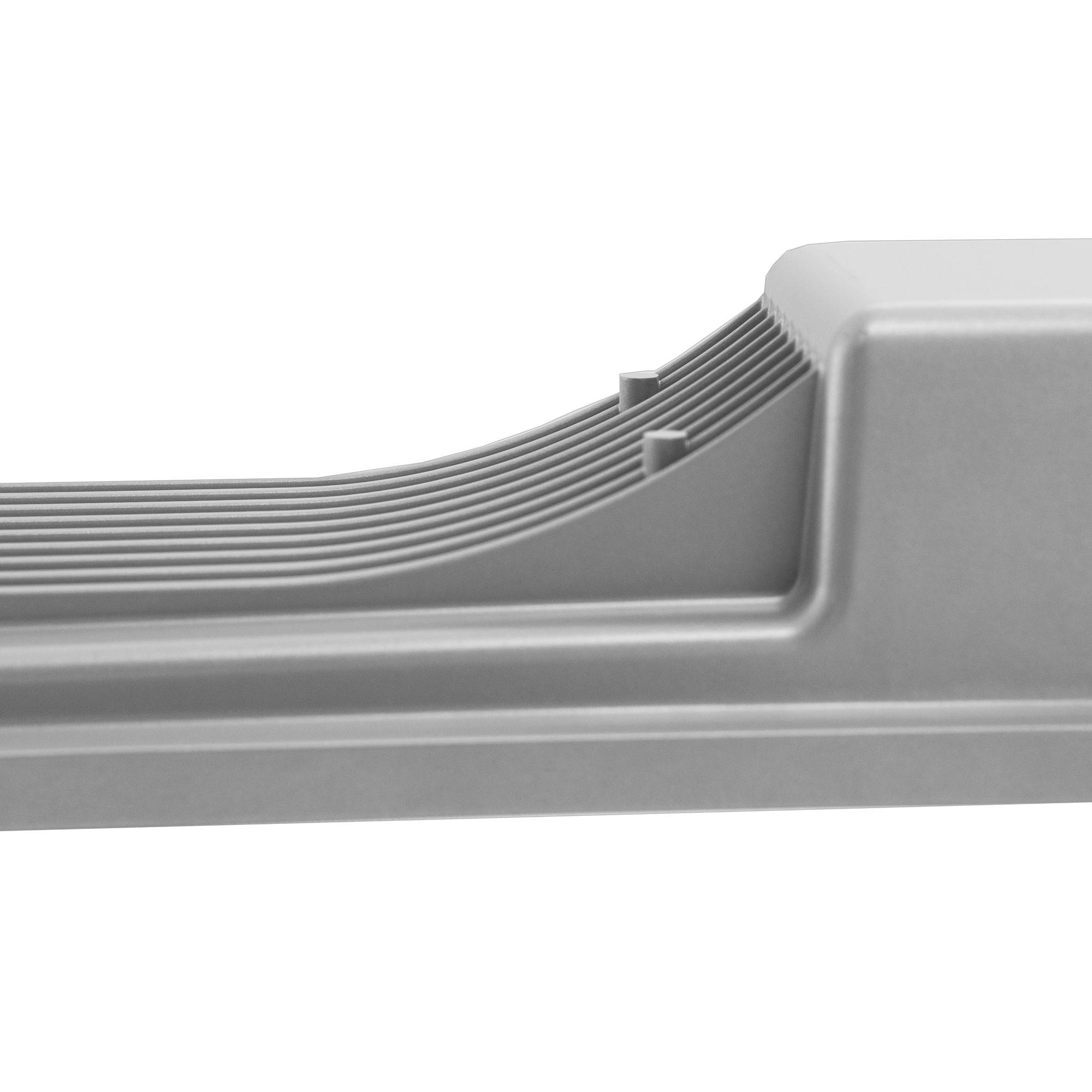

Polyester powder painted non-corressive high-pressure die-cast aluminium

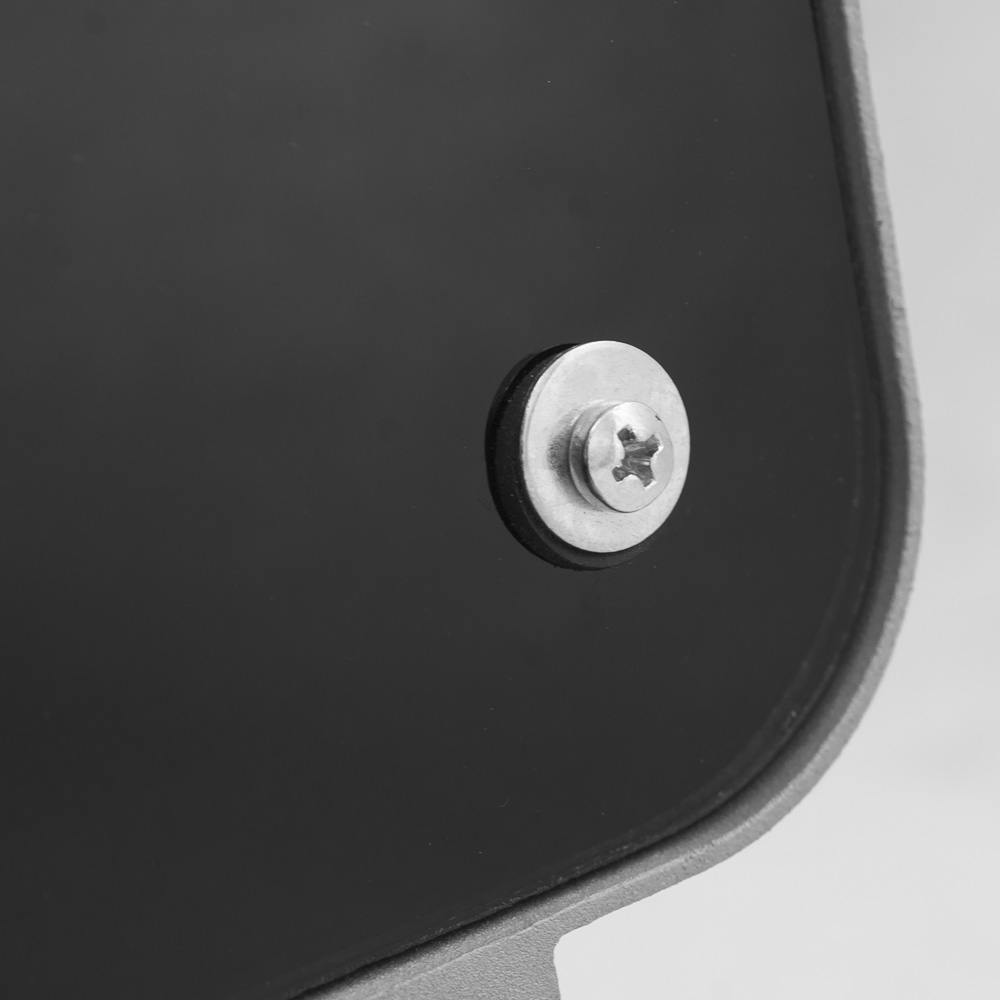

Tempered glass cover
LED:
High Power LED
CRI 70
daylight 5000 K
warm white 3000 K
warm white 2700 K
Wiring:
LED current driver
ND – not dimmable
3DIM – dimmable driver OSRAM 4DIM (possible to active automatical dimming)
More information without about dimmable possibility you can see on special PDF in download section.
Application:

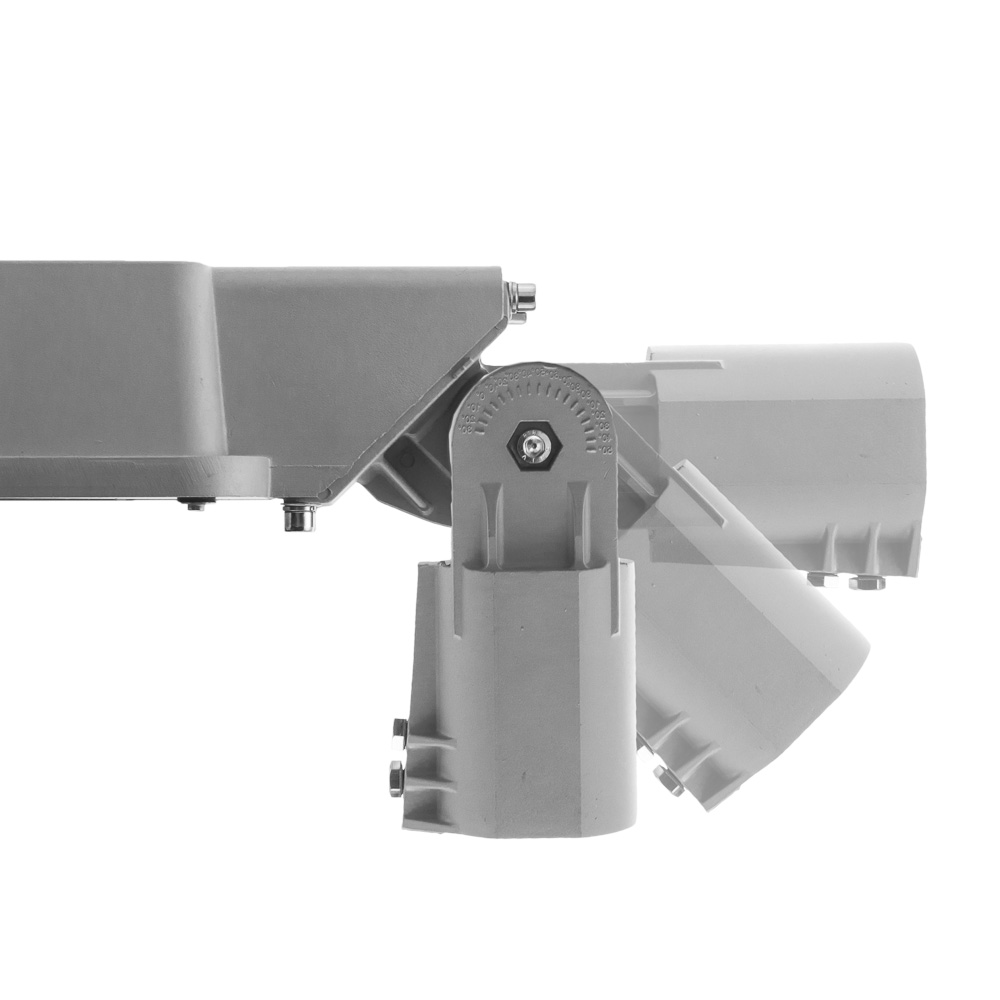

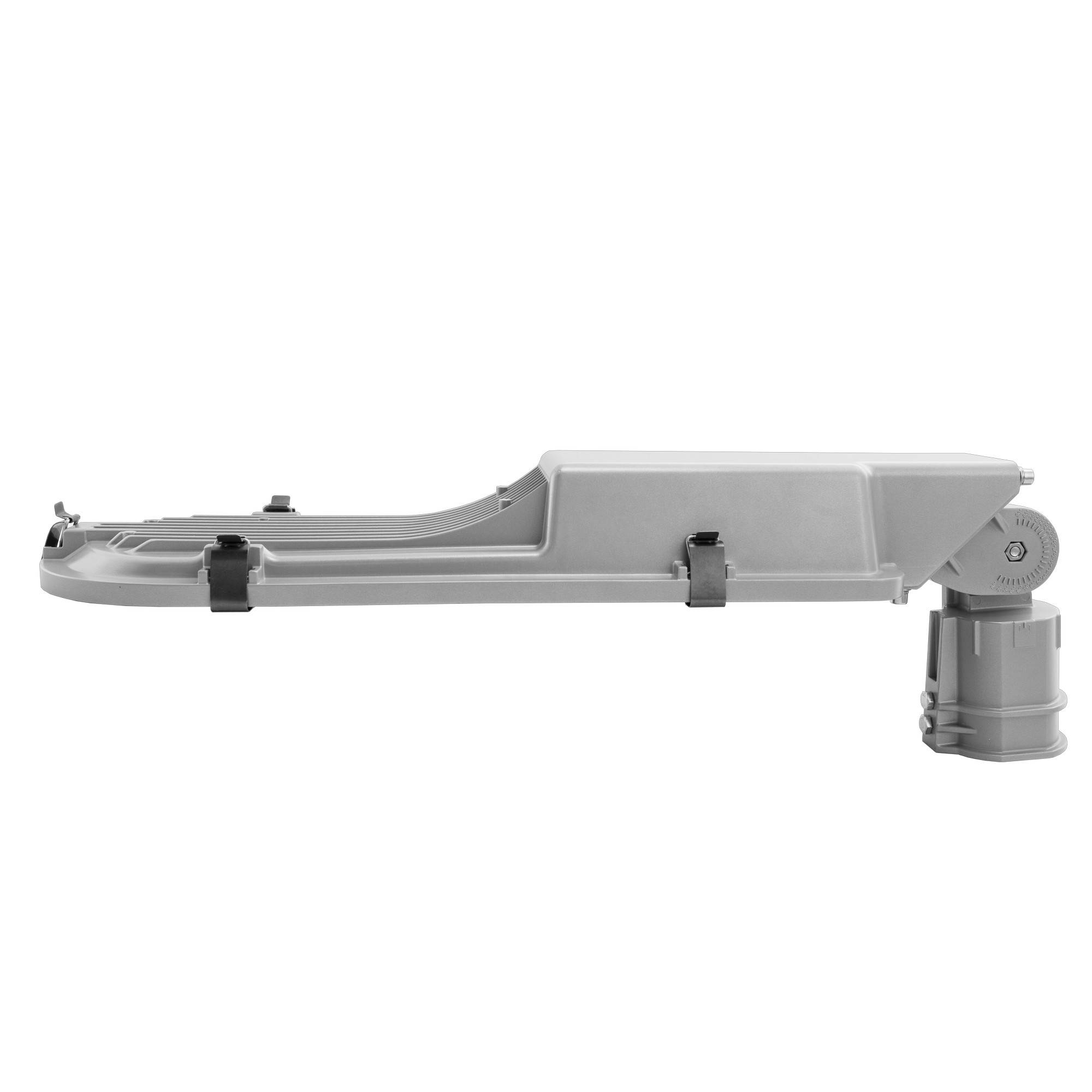

Mounting module is fixed to any post top 60 mm or side entry spigot 60 mm.
Adjusting angle from -30° to +90°.
Recommended height of installation 6-10 m.
| Body material: | Aluminium die-cast | Mounting method: | Side-entry, Post-top | Protection class: | I | Type of control gear: | LED operating device current-controlled | Color rendering index CRI: | 70-79 | Light source type: | LED | Impact strength: | IK08 | Nominal voltage (V): | 220...240 | Degree of protection (IP): | IP65 |

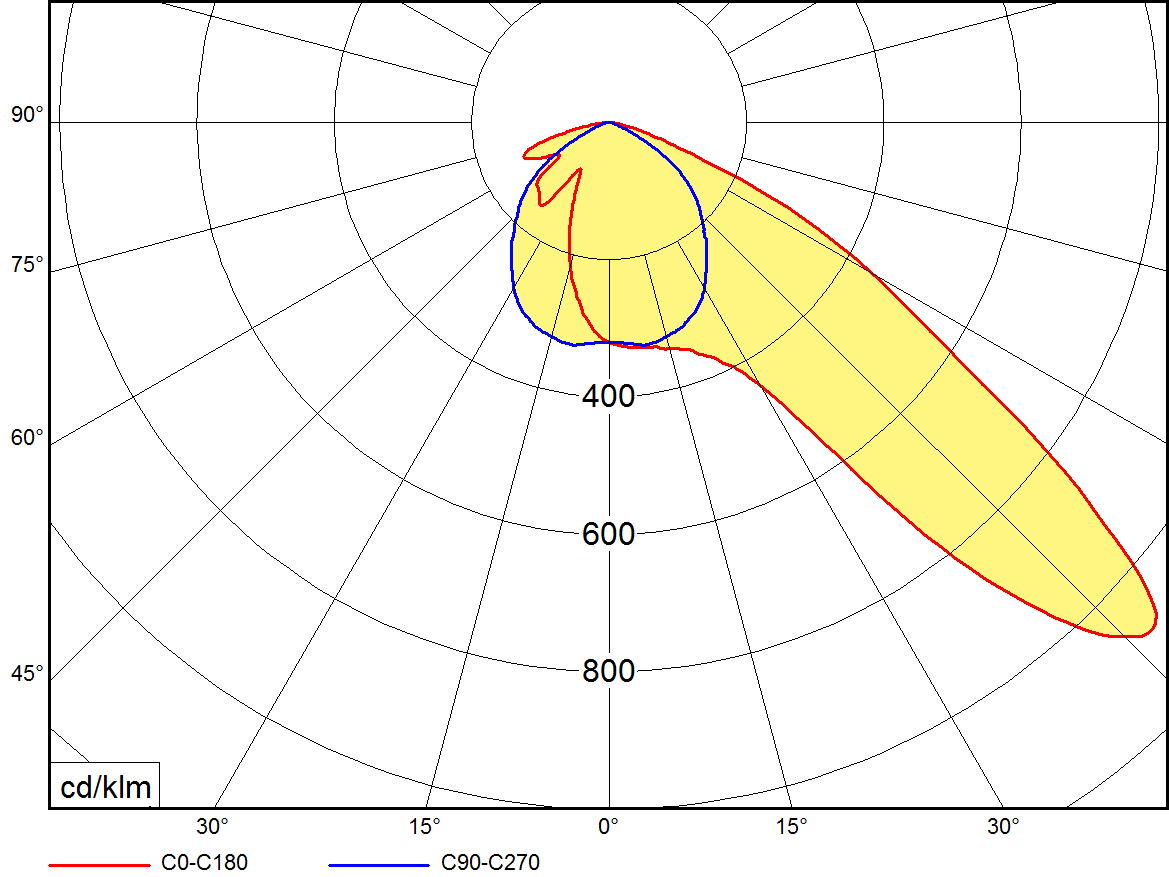

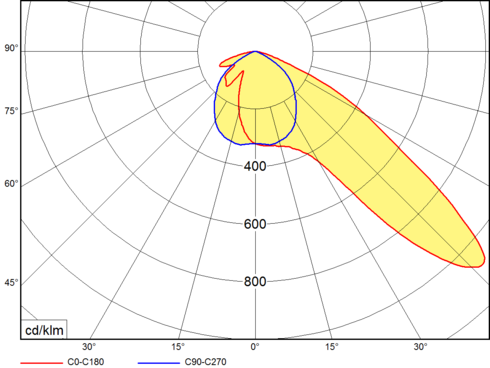

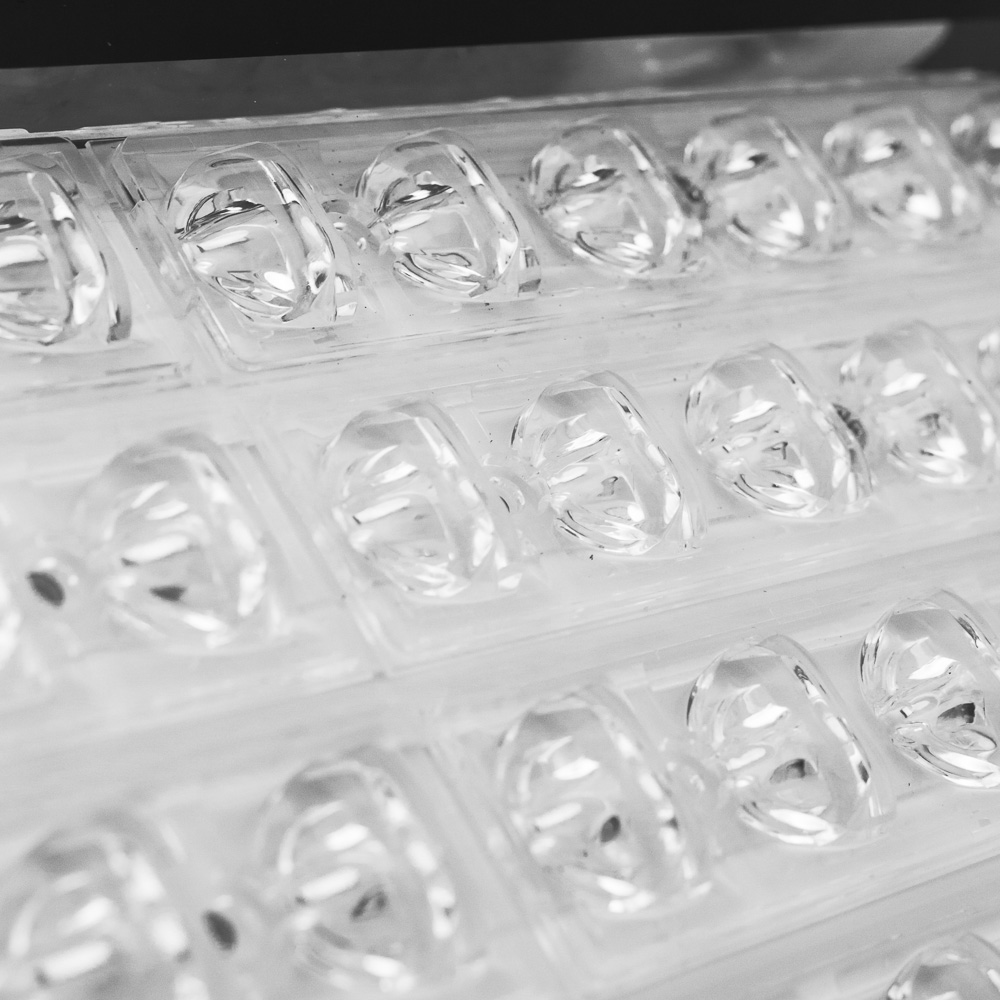

| Color temperature (K): | 4000, 3000, 2700, 5700 | Rated lifetime L70/B50 (h): | 100000 | Dimming DALI: | Yes | Product category: | Luminaire for streets and places | Optical system: | LENS Asymetric PMMA lenses OS AS asymetrické PMMA čočky pro osvětlení přechodů | Made in Czech republic: | Yes | Replaceability: | Removeable light source, replaceable ballast Removeable light source, replaceable ballast | Photobiological safety EN 62 471: | RG 0 |
LoadingFilters
Effective luminous flux (lm)
System power (W)
Product name
Effective luminous flux (lm)
System power (W)
Color temperature (K)
Optical system
Length (mm)
LVLEDOS2000V23/3DIM
Effective luminous flux (lm): 1950
System power (W): 14
Color temperature (K): 3000
Optical system: LENS
Length (mm): 705
LVLEDOS2000V25/3DIM
Effective luminous flux (lm): 2000
System power (W): 14
Color temperature (K): 5000
Optical system: LENS
Length (mm): 705
LVLEDOS2500V22/3DIM
Effective luminous flux (lm): 2500
System power (W): 19
Color temperature (K): 2700
Optical system: LENS
Length (mm): 705
LVLEDOS2500V22/ND
Effective luminous flux (lm): 2500
System power (W): 19
Color temperature (K): 2700
Optical system: LENS
Length (mm): 705
LVLEDOS2500V23/3DIM
Effective luminous flux (lm): 2500
System power (W): 19
Color temperature (K): 3000
Optical system: LENS
Length (mm): 705
LVLEDOS2500V23/ND
Effective luminous flux (lm): 2500
System power (W): 19
Color temperature (K): 3000
Optical system: LENS
Length (mm): 705
LVLEDOS2500V24/3DIM
Effective luminous flux (lm): 2500
System power (W): 19
Color temperature (K): 4000
Optical system: LENS
Length (mm): 705
LVLEDOS3500V21/3DIM
Effective luminous flux (lm): 2700
System power (W): 30
Color temperature (K): 2200
Optical system: LENS
Length (mm): 705
LVLEDOS3500V21/3DIM/700
Effective luminous flux (lm): 2400
System power (W): 28
Color temperature (K): 2200
Optical system: LENS
Length (mm): 705
LVLEDOS3500V22/3DIM
Effective luminous flux (lm): 3740
System power (W): 30
Color temperature (K): 2700
Optical system: LENS
Length (mm): 705
LVLEDOS3500V22/3DIM/700
Effective luminous flux (lm): 3070
System power (W): 28
Color temperature (K): 2700
Optical system: LENS
Length (mm): 705
LVLEDOS3500V22/ND
Effective luminous flux (lm): 3070
System power (W): 28
Color temperature (K): 2700
Optical system: LENS
Length (mm): 705
LVLEDOS3500V23/3DIM
Effective luminous flux (lm): 3780
System power (W): 30
Color temperature (K): 3000
Optical system: LENS
Length (mm): 705
LVLEDOS3500V23/3DIM/700
Effective luminous flux (lm): 3100
System power (W): 28
Color temperature (K): 3000
Optical system: LENS
Length (mm): 705
LVLEDOS3500V23/ND
Effective luminous flux (lm): 3100
System power (W): 28
Color temperature (K): 3000
Optical system: LENS
Length (mm): 705
LVLEDOS3500V24/3DIM
Effective luminous flux (lm): 3860
System power (W): 30
Color temperature (K): 4000
Optical system: LENS
Length (mm): 705
LVLEDOS3500V24/3DIM/700
Effective luminous flux (lm): 3160
System power (W): 28
Color temperature (K): 4000
Optical system: LENS
Length (mm): 705
LVLEDOS3500V24/ND
Effective luminous flux (lm): 3160
System power (W): 28
Color temperature (K): 4000
Optical system: LENS
Length (mm): 705
LVLEDOS3500V25/3DIM
Effective luminous flux (lm): 3900
System power (W): 30
Color temperature (K): 5000
Optical system: LENS
Length (mm): 705
LVLEDOS3500V25/3DIM/700
Effective luminous flux (lm): 3200
System power (W): 28
Color temperature (K): 5000
Optical system: LENS
Length (mm): 705
LVLEDOS3500V25/ND
Effective luminous flux (lm): 3200
System power (W): 28
Color temperature (K): 5000
Optical system: LENS
Length (mm): 705
LVLEDOS5000V1/ND
LVLEDOS5000V21/3DIM
Effective luminous flux (lm): 3900
System power (W): 47
Color temperature (K): 2200
Optical system: LENS
Length (mm): 705
LVLEDOS5000V22/3DIM
Effective luminous flux (lm): 5470
System power (W): 47
Color temperature (K): 2700
Optical system: LENS
Length (mm): 705
LVLEDOS5000V22/ND
Effective luminous flux (lm): 4800
System power (W): 38
Color temperature (K): 2700
Optical system: LENS
Length (mm): 705
LVLEDOS5000V23/3DIM
Effective luminous flux (lm): 5530
System power (W): 47
Color temperature (K): 3000
Optical system: LENS
Length (mm): 705
LVLEDOS5000V23/3DIM/1050
Effective luminous flux (lm): 4850
System power (W): 38
Color temperature (K): 3000
Optical system: LENS
Length (mm): 705
LVLEDOS5000V23/3DIM/ASTRO
Effective luminous flux (lm): 5530
System power (W): 47
Color temperature (K): 3000
Optical system: LENS
Length (mm): 705
LVLEDOS5000V23/ND
Effective luminous flux (lm): 4850
System power (W): 38
Color temperature (K): 3000
Optical system: LENS
Length (mm): 705
LVLEDOS5000V24/3DIM
Effective luminous flux (lm): 5650
System power (W): 47
Color temperature (K): 4000
Optical system: LENS
Length (mm): 705
LVLEDOS5000V24/3DIM/1050
Effective luminous flux (lm): 4950
System power (W): 38
Color temperature (K): 4000
Optical system: LENS
Length (mm): 705
LVLEDOS5000V24/ND
Effective luminous flux (lm): 4950
System power (W): 38
Color temperature (K): 4000
Optical system: LENS
Length (mm): 705
LVLEDOS5000V25/3DIM
Effective luminous flux (lm): 5700
System power (W): 47
Color temperature (K): 5000
Optical system: LENS
Length (mm): 705
LVLEDOS5000V25/3DIM/1050
Effective luminous flux (lm): 5000
System power (W): 38
Color temperature (K): 5000
Optical system: LENS
Length (mm): 705
LVLEDOS5000V25/3DIM/ASTRO
Effective luminous flux (lm): 5530
System power (W): 47
Color temperature (K): 5000
Optical system: LENS
Length (mm): 705
LVLEDOS5000V25/ND
Effective luminous flux (lm): 5000
System power (W): 38
Color temperature (K): 5000
Optical system: LENS
Length (mm): 705
LVLEDOS7500V22/3DIM
Effective luminous flux (lm): 7400
System power (W): 58
Color temperature (K): 2700
Optical system: LENS
Length (mm): 705
LVLEDOS7500V22/ND
Effective luminous flux (lm): 7470
System power (W): 58
Color temperature (K): 2700
Optical system: LENS
Length (mm): 705
LVLEDOS7500V23/3DIM
Effective luminous flux (lm): 7470
System power (W): 58
Color temperature (K): 3000
Optical system: LENS
Length (mm): 705
LVLEDOS7500V23/ND
Effective luminous flux (lm): 7470
System power (W): 58
Color temperature (K): 3000
Optical system: LENS
Length (mm): 705
LVLEDOS7500V24/3DIM
Effective luminous flux (lm): 7600
System power (W): 58
Color temperature (K): 4000
Optical system: LENS
Length (mm): 705
LVLEDOS7500V24/ND
Effective luminous flux (lm): 7600
System power (W): 58
Color temperature (K): 4000
Optical system: LENS
Length (mm): 705
LVLEDOS7500V25/3DIM
Effective luminous flux (lm): 7700
System power (W): 58
Color temperature (K): 5000
Optical system: LENS
Length (mm): 705
LVLEDOS7500V25/ND
Effective luminous flux (lm): 7700
System power (W): 58
Color temperature (K): 5000
Optical system: LENS
Length (mm): 705
LVLEDOS9000V22/ND
Effective luminous flux (lm): 10750
System power (W): 88
Color temperature (K): 2700
Optical system: LENS
Length (mm): 705
LVLEDOS9000V23/3DIM
Effective luminous flux (lm): 10860
System power (W): 88
Color temperature (K): 3000
Optical system: LENS
Length (mm): 705
LVLEDOS9000V23/ND
Effective luminous flux (lm): 11080
System power (W): 88
Color temperature (K): 3000
Optical system: OS AS
Length (mm): 705
LVLEDOS9000V24/3DIM
Effective luminous flux (lm): 11080
System power (W): 88
Color temperature (K): 4000
Optical system: LENS
Length (mm): 705
LVLEDOS9000V24/ND
Effective luminous flux (lm): 11080
System power (W): 88
Color temperature (K): 4000
Optical system: LENS
Length (mm): 705
LVLEDOS9000V25/3DIM
Effective luminous flux (lm): 11200
System power (W): 88
Color temperature (K): 5000
Optical system: LENS
Length (mm): 705
LVLEDOS9000V25/ND
Effective luminous flux (lm): 11200
System power (W): 88
Color temperature (K): 5000
Optical system: LENS
Length (mm): 705
LVLEDOSAS4000V24/4DIM
Effective luminous flux (lm): 4200
System power (W): 32
Color temperature (K): 4000
Optical system: OS AS
Length (mm): 705
LVLEDOSAS5000V24/4DIM
Effective luminous flux (lm): 7100
System power (W): 56
Color temperature (K): 4000
Optical system: OS AS
Length (mm): 705
LVLEDOSAS5000V24/ND
Effective luminous flux (lm): 7100
System power (W): 56
Color temperature (K): 4000
Optical system: OS AS
Length (mm): 705
LVLEDOSAS5000V25/ND
Effective luminous flux (lm): 7100
System power (W): 56
Color temperature (K): 5000
Optical system: OS AS
Length (mm): 705
LVLEDOSAS9000V24/3DIM
Effective luminous flux (lm): 10000
System power (W): 72
Color temperature (K): 4000
Optical system: OS AS
Length (mm): 705
