Product series MODUS MEGAL V4

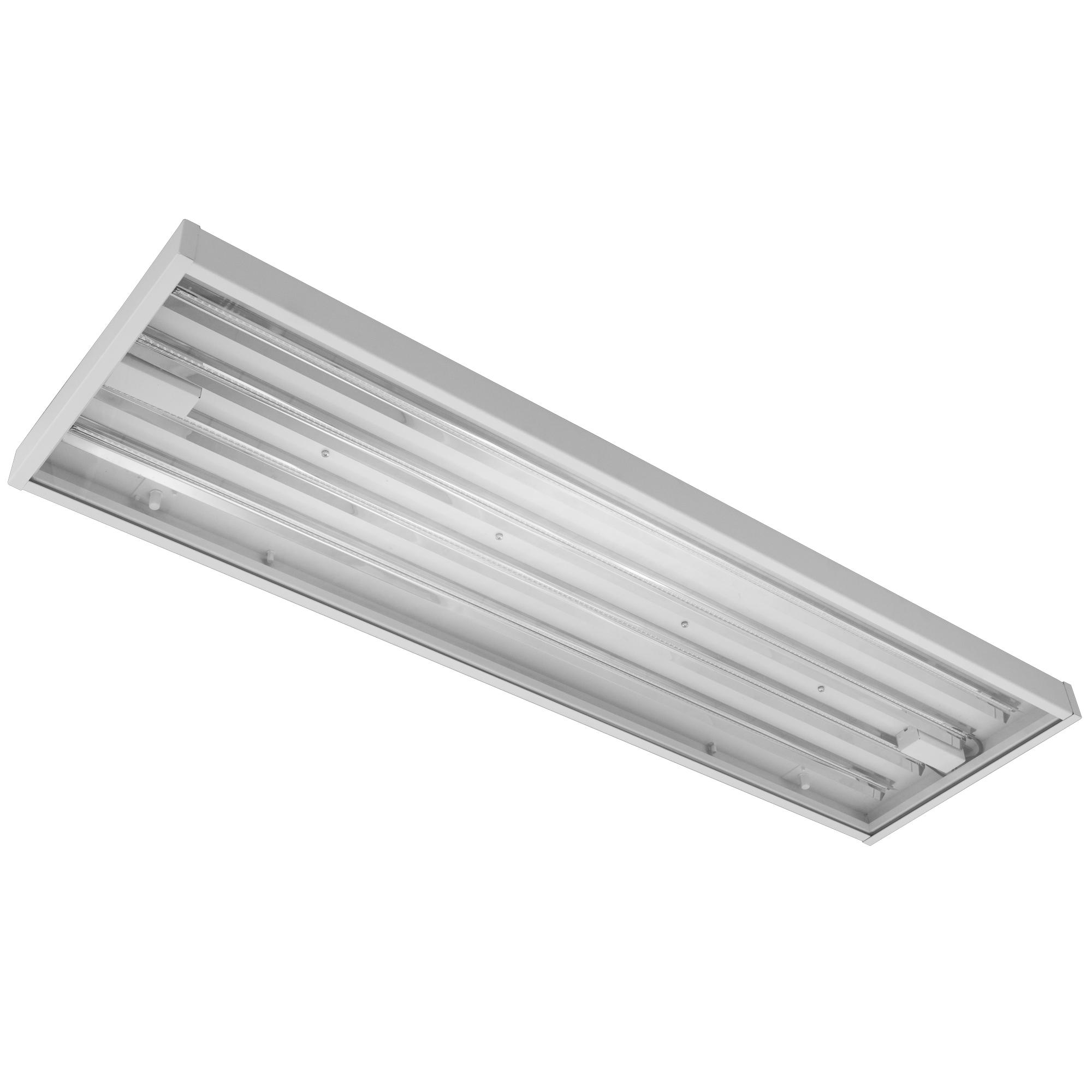

MODUS MEGA LED 1220mm,wide beam, PC cover, 4x LED 840, pendant, 2x600 mA non-dimmable, with gear box
Metal industrial luminaire with IP65 - eco
Code: MEGALW4M4PCV4/1200ND
EAN: 8596099084035
Luminaire properties
Product category: | High bay luminaire | Effective luminous flux (lm): | 26200 |
System power (W): | 173 | Luminaire efficacy (lm/W): | 151 |
Rated lifetime L70/B50 (h): | 100000 | Rated lifetime L80/B50 (h): | 80000 |
Degree of protection (IP): | IP65 | Mounting method: | Pendant |
Color housing: | White | ||
Impact strength: | IK10 | ||
Material housing: | Steel | Light source included: | Yes |
Fire resistance D: | Yes | Rated ambient temperature (°C): | -25...+45 |
Made in Czech republic: | Yes |
Light source
Light source type: | LED | Color temperature (K): | 4000 |
Color rendering index CRI: | 80-89 | Replaceability: | Removeable light source, replaceable ballast |
Optical system
Optical system: | PC | Reflector: | High-gloss |
Light sharing: | Symmetric | Material reflector: | Aluminium |
Dimensions
Length (mm): | 1224 | Width (mm): | 357 |
Height/depth (mm): | 90 | Weight (kg): | 11 |
Electrical values
Protection class: | I | Voltage type: | AC |
Type of control gear: | LED operating device current-controlled | Nominal voltage (V): | 220...240 |
Control gear included: | Yes | No dim function: | Yes |
