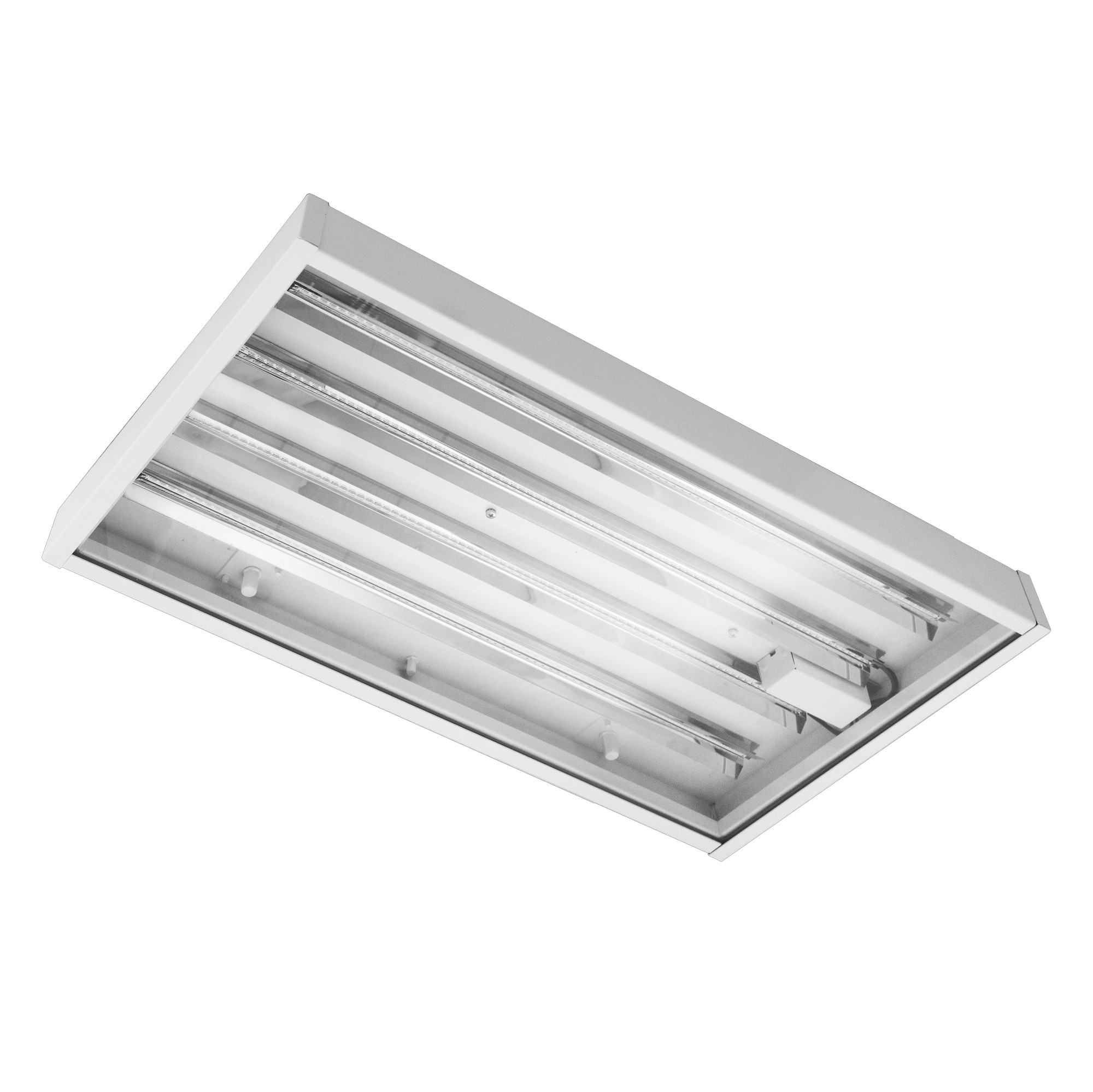

MODUS MEGA LED 650mm,wide beam, 4x LED , 840, PC cover, pendant, IK10, with gear box, 2100mA DALI

Metal industrial luminare with IP65

Code: MEGALW4S4PCV1/2100DALI
EAN: 8595073781571

This product contains a light source with energy efficiency class C

Distribution network
Contacts

Luminaire properties

Product category:High bay luminaireEffective luminous flux (lm):14500
System power (W):92Luminaire efficacy (lm/W):158
Rated lifetime L70/B50 (h):100000Rated lifetime L80/B50 (h):80000
Degree of protection (IP):IP65Mounting method:Pendant
Color housing:White
Impact strength:IK10
Ball-proof:YesMaterial housing:Steel
Light source included:YesFire resistance D:Yes
Rated ambient temperature (°C):-25...+45Made in Czech republic:Yes

Light source

Light source type:LEDColor temperature (K):4000
Color rendering index CRI:80-89Replaceability:Removeable light source, replaceable ballast
Light source type:1990600184010Energy efficiency class:C

Optical system

Optical system:PCReflector:High-gloss
Light sharing:SymmetricMaterial reflector:Aluminium

Dimensions

Length (mm):655Width (mm):357
Height/depth (mm):90Weight (kg):5,4

Electrical values

Protection class:IVoltage type:AC
Type of control gear:LED operating device current-controlledNominal voltage (V):220...240
Control gear included:YesDimming DALI:Yes

Indoor use only:Yes
LoadingLoading

Filters

Effective luminous flux (lm)

5250
45000

System power (W)

125
278

Luminaire efficacy (lm/W)

107
170
Product name
MEGAL2M3PCNV1/2100DALI/S14
Effective luminous flux (lm): 11400
System power (W): 92
Color temperature (K): 3000
Optical system: PCN
Length (mm): 1224
Ball-proof: Yes
MEGAL2M4KNV1/2100DALI
Effective luminous flux (lm): 13500
System power (W): 92
Color temperature (K): 4000
Optical system: KN
Length (mm): 1224
MEGAL2M4KNV1/2100ND
Effective luminous flux (lm): 13500
System power (W): 92
Color temperature (K): 4000
Optical system: KN
Length (mm): 1224
MEGAL2M4KNV1/2100ND/S65
Effective luminous flux (lm): 13500
System power (W): 92
Color temperature (K): 4000
Optical system: KN
Length (mm): 1224
MEGAL2M4PCNV1/1400DALI
Effective luminous flux (lm): 7900
System power (W): 61
Color temperature (K): 4000
Optical system: PCN
Length (mm): 1224
Ball-proof: Yes
MEGAL2M4PCNV1/1400ND
Effective luminous flux (lm): 7900
System power (W): 61
Color temperature (K): 4000
Optical system: PCN
Length (mm): 1224
Ball-proof: Yes
MEGAL2M4PCNV1/2100DALI
Effective luminous flux (lm): 11400
System power (W): 92
Color temperature (K): 4000
Optical system: PCN
Length (mm): 1224
Ball-proof: Yes
MEGAL2M4PCNV1/2100DALI/S14
Effective luminous flux (lm): 11400
System power (W): 92
Color temperature (K): 4000
Optical system: PCN
Length (mm): 1224
Ball-proof: Yes
MEGAL2M4PCNV1/2100ND
Effective luminous flux (lm): 11400
System power (W): 92
Color temperature (K): 4000
Optical system: PCN
Length (mm): 1224
Ball-proof: Yes
MEGAL2M4PCOV1/2100ND
Effective luminous flux (lm): 12000
System power (W): 92
Color temperature (K): 4000
Optical system: PCO
Length (mm): 1224
Ball-proof: Yes
MEGAL2M4PCV1/2100ND
Effective luminous flux (lm): 14000
System power (W): 92
Color temperature (K): 4000
Optical system: PC
Length (mm): 1224
Ball-proof: Yes
MEGAL2M4V1/2100DALI
Effective luminous flux (lm): 14500
System power (W): 92
Color temperature (K): 4000
Optical system: C
Length (mm): 1224
MEGAL2M4V1/2100ND
Effective luminous flux (lm): 14500
System power (W): 92
Color temperature (K): 4000
Optical system: C
Length (mm): 1224
MEGAL2M4V2/2100ND
MEGAL2M5KNV1/2100ND
Effective luminous flux (lm): 13500
System power (W): 92
Color temperature (K): 5700
Optical system: KN
Length (mm): 1224
MEGAL2M5KNV1/2100ND/90
Effective luminous flux (lm): 11500
System power (W): 92
Color temperature (K): 5700
Optical system: KN
Length (mm): 1224
MEGAL2M5PCV1/2100DALI
Effective luminous flux (lm): 14000
System power (W): 92
Color temperature (K): 5700
Optical system: PC
Length (mm): 1224
Ball-proof: Yes
MEGAL2M5V1/2100ND
Effective luminous flux (lm): 14500
System power (W): 92
Color temperature (K): 5700
Optical system: C
Length (mm): 1224
MEGAL2M6V1/2100ND
Effective luminous flux (lm): 14500
System power (W): 92
Color temperature (K): 6500
Optical system: C
Length (mm): 1224
MEGAL2S4PCNV1/1050ND
Effective luminous flux (lm): 5250
System power (W): 49
Color temperature (K): 4000
Optical system: PCN
Length (mm): 655
Ball-proof: Yes
MEGAL2S4V1/1050ND
Effective luminous flux (lm): 7300
System power (W): 49
Color temperature (K): 4000
Optical system: C
Length (mm): 655
MEGAL4M3PCNV1/2800ND
Effective luminous flux (lm): 15600
System power (W): 125
Color temperature (K): 3000
Optical system: PCN
Length (mm): 1224
Ball-proof: Yes
MEGAL4M3PCNV1/4200DALI
Effective luminous flux (lm): 22700
System power (W): 182
Color temperature (K): 3000
Optical system: PCN
Length (mm): 1224
Ball-proof: Yes
MEGAL4M3PCNV1/4200DALI/K5
Effective luminous flux (lm): 22700
System power (W): 182
Color temperature (K): 3000
Optical system: PCN
Length (mm): 1224
Ball-proof: Yes
MEGAL4M3PCNV1/4200ND
Effective luminous flux (lm): 22700
System power (W): 182
Color temperature (K): 3000
Optical system: PCN
Length (mm): 1224
Ball-proof: Yes
MEGAL4M4KNV1/2800ND
Effective luminous flux (lm): 18800
System power (W): 125
Color temperature (K): 4000
Optical system: KN
Length (mm): 1224
MEGAL4M4KNV1/4200DALI
Effective luminous flux (lm): 27600
System power (W): 182
Color temperature (K): 4000
Optical system: KN
Length (mm): 1224
MEGAL4M4KNV1/4200ND
Effective luminous flux (lm): 27600
System power (W): 182
Color temperature (K): 4000
Optical system: KN
Length (mm): 1224
MEGAL4M4PCNV1/2800DALI
Effective luminous flux (lm): 15600
System power (W): 125
Color temperature (K): 4000
Optical system: PCN
Length (mm): 1224
Ball-proof: Yes
MEGAL4M4PCNV1/2800ND
Effective luminous flux (lm): 15600
System power (W): 125
Color temperature (K): 4000
Optical system: PCN
Length (mm): 1224
Ball-proof: Yes
MEGAL4M4PCNV1/4200DALI
Effective luminous flux (lm): 22700
System power (W): 182
Color temperature (K): 4000
Optical system: PCN
Length (mm): 1224
Ball-proof: Yes
MEGAL4M4PCNV1/4200DALI/K5
Effective luminous flux (lm): 22700
System power (W): 182
Color temperature (K): 4000
Optical system: PCN
Length (mm): 1224
Ball-proof: Yes
MEGAL4M4PCNV1/4200ND
Effective luminous flux (lm): 22700
System power (W): 182
Color temperature (K): 4000
Optical system: PCN
Length (mm): 1224
Ball-proof: Yes
MEGAL4M4PCNV1/4200ND/K
Effective luminous flux (lm): 22700
System power (W): 182
Color temperature (K): 4000
Optical system: PCN
Length (mm): 1224
Ball-proof: Yes
MEGAL4M4PCV1/4200DALI
Effective luminous flux (lm): 28800
System power (W): 182
Color temperature (K): 4000
Optical system: PC
Length (mm): 1224
Ball-proof: Yes
MEGAL4M4PCV1/4200ND
Effective luminous flux (lm): 28800
System power (W): 182
Color temperature (K): 4000
Optical system: PC
Length (mm): 1224
Ball-proof: Yes
MEGAL4M4V1/2800ND/90
Effective luminous flux (lm): 17000
System power (W): 125
Color temperature (K): 4000
Optical system: C
Length (mm): 1224
MEGAL4M4V1/4200DALI
Effective luminous flux (lm): 29500
System power (W): 182
Color temperature (K): 4000
Optical system: C
Length (mm): 1224
MEGAL4M4V1/4200ND
Effective luminous flux (lm): 29500
System power (W): 182
Color temperature (K): 4000
Optical system: C
Length (mm): 1224
MEGAL4M6V1/4200DALI
Effective luminous flux (lm): 29500
System power (W): 182
Color temperature (K): 6500
Optical system: C
Length (mm): 1224
MEGAL4M6V1/4200ND
Effective luminous flux (lm): 29500
System power (W): 182
Color temperature (K): 6500
Optical system: C
Length (mm): 1224
MEGAL4S3PCNV1/2100DALI
Effective luminous flux (lm): 11400
System power (W): 92
Color temperature (K): 3000
Optical system: PCN
Length (mm): 655
MEGAL4S4KNV1/2100DALI
Effective luminous flux (lm): 13500
System power (W): 92
Color temperature (K): 4000
Optical system: KN
Length (mm): 655
MEGAL4S4KNV1/2100ND
Effective luminous flux (lm): 13500
System power (W): 92
Color temperature (K): 4000
Optical system: KN
Length (mm): 655
MEGAL4S4PCNV1/2100DALI
Effective luminous flux (lm): 11400
System power (W): 92
Color temperature (K): 4000
Optical system: PCN
Length (mm): 655
Ball-proof: Yes
MEGAL4S4PCNV1/2100ND
Effective luminous flux (lm): 11400
System power (W): 92
Color temperature (K): 4000
Optical system: PCN
Length (mm): 655
Ball-proof: Yes
MEGAL4S4PCV1/2100ND
Effective luminous flux (lm): 14000
System power (W): 92
Color temperature (K): 4000
Optical system: PC
Length (mm): 655
Ball-proof: Yes
MEGAL4S4V1/2100ND
Effective luminous flux (lm): 14500
System power (W): 92
Color temperature (K): 4000
Optical system: C
Length (mm): 655
MEGAL4S5V1/2100ND
Effective luminous flux (lm): 14500
System power (W): 92
Color temperature (K): 5700
Optical system: C
Length (mm): 655
MEGAL4S6V1/2100DALI
Effective luminous flux (lm): 14500
System power (W): 92
Color temperature (K): 6500
Optical system: C
Length (mm): 655
MEGAL6M4V1/2100ND
Effective luminous flux (lm): 45000
System power (W): 278
Color temperature (K): 4000
Optical system: C
Length (mm): 1224
MEGALW2M3PCOV1/1400DALI
Effective luminous flux (lm): 8400
System power (W): 61
Color temperature (K): 3000
Optical system: PCO
Length (mm): 1224
Ball-proof: Yes
MEGALW2M3PCOV1/1400ND
Effective luminous flux (lm): 8400
System power (W): 61
Color temperature (K): 3000
Optical system: PCO
Length (mm): 1224
Ball-proof: Yes
MEGALW2M4PCNV61/1050DALI
Effective luminous flux (lm): 6800
System power (W): 46
Color temperature (K): 4000
Optical system: PCN
Length (mm): 1224
Ball-proof: Yes
MEGALW2M4PCNV61/2100DALI
Effective luminous flux (lm): 11400
System power (W): 92
Color temperature (K): 4000
Optical system: PCN
Length (mm): 1224
Ball-proof: Yes
MEGALW2M4PCNV61/2100ND
Effective luminous flux (lm): 11400
System power (W): 92
Color temperature (K): 4000
Optical system: PCN
Length (mm): 1224
Ball-proof: Yes
MEGALW2M4PCOV1/1400DALI/CLO
Effective luminous flux (lm): 6700
System power (W): 49
Color temperature (K): 4000
Optical system: PCO
Length (mm): 1224
Ball-proof: Yes
MEGALW2M4PCOV1/1400ND
Effective luminous flux (lm): 8400
System power (W): 61
Color temperature (K): 4000
Optical system: PCO
Length (mm): 1224
Ball-proof: Yes
MEGALW2M4PCOV1/1400ND/90
Effective luminous flux (lm): 7200
System power (W): 61
Color temperature (K): 4000
Optical system: PCO
Length (mm): 1224
Ball-proof: Yes
MEGALW2M4PCOV1/2100DALI/CLO
Effective luminous flux (lm): 9600
System power (W): 74
Color temperature (K): 4000
Optical system: PCO
Length (mm): 1224
Ball-proof: Yes
MEGALW2M4PCOV1/2100ND
Effective luminous flux (lm): 12000
System power (W): 92
Color temperature (K): 4000
Optical system: PCO
Length (mm): 1224
Ball-proof: Yes
MEGALW2M4PCOV1/2100ND/90
Effective luminous flux (lm): 10200
System power (W): 92
Color temperature (K): 4000
Optical system: PCO
Length (mm): 1224
MEGALW2M4PCOV3/2100DALIBTC
Effective luminous flux (lm): 12000
System power (W): 92
Color temperature (K): 4000
Optical system: PCO
Length (mm): 1224
Ball-proof: Yes
MEGALW2M4PCV1/1400ND
Effective luminous flux (lm): 10000
System power (W): 61
Color temperature (K): 4000
Optical system: PC
Length (mm): 1224
Ball-proof: Yes
MEGALW2M4PCV1/2100DALI
Effective luminous flux (lm): 14500
System power (W): 92
Color temperature (K): 4000
Optical system: PC
Length (mm): 1224
Ball-proof: Yes
MEGALW2M4PCV1/2100ND
Effective luminous flux (lm): 14500
System power (W): 92
Color temperature (K): 4000
Optical system: PC
Length (mm): 1224
Ball-proof: Yes
MEGALW2M4V1/1400ND
Effective luminous flux (lm): 10400
System power (W): 61
Color temperature (K): 4000
Optical system: C
Length (mm): 1224
MEGALW2M4V1/2100DALI
Effective luminous flux (lm): 15000
System power (W): 92
Color temperature (K): 4000
Optical system: C
Length (mm): 1224
MEGALW2M4V1/2100ND
Effective luminous flux (lm): 15000
System power (W): 92
Color temperature (K): 4000
Optical system: C
Length (mm): 1224
MEGALW2M4V1/2100ND/EU
Effective luminous flux (lm): 15000
System power (W): 92
Color temperature (K): 4000
Optical system: C
Length (mm): 1224
MEGALW2M5PCOV1/2100ND
Effective luminous flux (lm): 12000
System power (W): 92
Color temperature (K): 5700
Optical system: PCO
Length (mm): 1224
Ball-proof: Yes
MEGALW2M5V1/2100DALI
Effective luminous flux (lm): 15000
System power (W): 92
Color temperature (K): 5700
Optical system: C
Length (mm): 1224
MEGALW2M5V1/2100ND
Effective luminous flux (lm): 15000
System power (W): 92
Color temperature (K): 5700
Optical system: C
Length (mm): 1224
MEGALW2M6PCNV61/2100DALI
Effective luminous flux (lm): 11400
System power (W): 92
Color temperature (K): 6500
Optical system: PCN
Length (mm): 1224
Ball-proof: Yes
MEGALW2S3V2/1050ND
MEGALW2S4PCOV1/1050ND
Effective luminous flux (lm): 6000
System power (W): 49
Color temperature (K): 4000
Optical system: PCO
Length (mm): 655
Ball-proof: Yes
MEGALW2S4V1/1050ND
Effective luminous flux (lm): 7400
System power (W): 49
Color temperature (K): 4000
Optical system: C
Length (mm): 655
MEGALW2S6PCNV61/1050DALI
Effective luminous flux (lm): 7400
System power (W): 49
Color temperature (K): 6500
Optical system: PCN
Length (mm): 655
Ball-proof: Yes
MEGALW4M3PCOV1/4200ND
Effective luminous flux (lm): 24000
System power (W): 182
Color temperature (K): 3000
Optical system: PCO
Length (mm): 1224
Ball-proof: Yes
MEGALW4M3V1/2800ND
Effective luminous flux (lm): 20500
System power (W): 125
Color temperature (K): 3000
Optical system: C
Length (mm): 1224
MEGALW4M3V1/4200ND
Effective luminous flux (lm): 30000
System power (W): 182
Color temperature (K): 3000
Optical system: C
Length (mm): 1224
MEGALW4M4PCNV61/2800DALI
Effective luminous flux (lm): 15600
System power (W): 125
Color temperature (K): 4000
Optical system: PCN
Length (mm): 1224
Ball-proof: Yes
MEGALW4M4PCNV61/2800ND
Effective luminous flux (lm): 15600
System power (W): 125
Color temperature (K): 4000
Optical system: PCN
Length (mm): 1224
Ball-proof: Yes
MEGALW4M4PCNV61/4200DALI
Effective luminous flux (lm): 22700
System power (W): 182
Color temperature (K): 4000
Optical system: PCN
Length (mm): 1224
Ball-proof: Yes
MEGALW4M4PCNV61/4200ND
Effective luminous flux (lm): 22700
System power (W): 182
Color temperature (K): 4000
Optical system: PCN
Length (mm): 1224
Ball-proof: Yes
MEGALW4M4PCOV1/2800DALI
Effective luminous flux (lm): 16700
System power (W): 125
Color temperature (K): 4000
Optical system: PCO
Length (mm): 1224
Ball-proof: Yes
MEGALW4M4PCOV1/2800DALI/CLO
Effective luminous flux (lm): 13400
System power (W): 95
Color temperature (K): 4000
Optical system: PCO
Length (mm): 1224
Ball-proof: Yes
MEGALW4M4PCOV1/2800ND
Effective luminous flux (lm): 16700
System power (W): 125
Color temperature (K): 4000
Optical system: PCO
Length (mm): 1224
Ball-proof: Yes
MEGALW4M4PCOV1/4200DALI
Effective luminous flux (lm): 24000
System power (W): 182
Color temperature (K): 4000
Optical system: PCO
Length (mm): 1224
Ball-proof: Yes
MEGALW4M4PCOV1/4200DALI/CLO
Effective luminous flux (lm): 19400
System power (W): 146
Color temperature (K): 4000
Optical system: PCO
Length (mm): 1224
Ball-proof: Yes
MEGALW4M4PCOV1/4200ND
Effective luminous flux (lm): 24000
System power (W): 182
Color temperature (K): 4000
Optical system: PCO
Length (mm): 1224
Ball-proof: Yes
MEGALW4M4PCOV3/4200BTC
Effective luminous flux (lm): 24000
System power (W): 182
Color temperature (K): 4000
Optical system: PCO
Length (mm): 1224
Ball-proof: Yes
MEGALW4M4PCV1/2800ND
Effective luminous flux (lm): 19900
System power (W): 125
Color temperature (K): 4000
Optical system: PC
Length (mm): 1224
Ball-proof: Yes
MEGALW4M4PCV1/4200DALI
Effective luminous flux (lm): 29100
System power (W): 182
Color temperature (K): 4000
Optical system: PC
Length (mm): 1224
Ball-proof: Yes
MEGALW4M4PCV1/4200ND
Effective luminous flux (lm): 29100
System power (W): 182
Color temperature (K): 4000
Optical system: PC
Length (mm): 1224
Ball-proof: Yes
MEGALW4M4V1/2800DALI
Effective luminous flux (lm): 20500
System power (W): 125
Color temperature (K): 4000
Optical system: C
Length (mm): 1224
MEGALW4M4V1/2800ND
Effective luminous flux (lm): 20500
System power (W): 125
Color temperature (K): 4000
Optical system: C
Length (mm): 1224
MEGALW4M4V1/4200DALI
Effective luminous flux (lm): 30000
System power (W): 182
Color temperature (K): 4000
Optical system: C
Length (mm): 1224
MEGALW4M4V1/4200ND
Effective luminous flux (lm): 30000
System power (W): 182
Color temperature (K): 4000
Optical system: C
Length (mm): 1224
MEGALW4M4V1/4200ND/EU
Effective luminous flux (lm): 30000
System power (W): 182
Color temperature (K): 4000
Optical system: C
Length (mm): 1224
MEGALW4M5PCOV1/4200ND
Effective luminous flux (lm): 24000
System power (W): 182
Color temperature (K): 5700
Optical system: PCO
Length (mm): 1224
Ball-proof: Yes
MEGALW4M5V1/2800DALI
Effective luminous flux (lm): 20500
System power (W): 125
Color temperature (K): 5700
Optical system: C
Length (mm): 1224
MEGALW4M5V1/2800ND
Effective luminous flux (lm): 20500
System power (W): 125
Color temperature (K): 5700
Optical system: C
Length (mm): 1224
MEGALW4M5V1/4200DALI
Effective luminous flux (lm): 30000
System power (W): 182
Color temperature (K): 5700
Optical system: C
Length (mm): 1224
MEGALW4M5V1/4200ND
Effective luminous flux (lm): 30000
System power (W): 182
Color temperature (K): 5700
Optical system: C
Length (mm): 1224
MEGALW4M6V1/4200ND
Effective luminous flux (lm): 30000
System power (W): 182
Color temperature (K): 6500
Optical system: C
Length (mm): 1224
MEGALW4S3PCNV61/2100DALI
Effective luminous flux (lm): 11400
System power (W): 92
Color temperature (K): 3000
Optical system: PCN
Length (mm): 655
Ball-proof: Yes
MEGALW4S4PCNV61/2100ND
Effective luminous flux (lm): 11400
System power (W): 92
Color temperature (K): 4000
Optical system: PCN
Length (mm): 655
Ball-proof: Yes
MEGALW4S4PCOV1/1400ND
Effective luminous flux (lm): 8400
System power (W): 61
Color temperature (K): 4000
Optical system: PCO
Length (mm): 655
Ball-proof: Yes
MEGALW4S4PCOV1/2100ND
Effective luminous flux (lm): 12000
System power (W): 92
Color temperature (K): 4000
Optical system: PCO
Length (mm): 655
Ball-proof: Yes
MEGALW4S4PCV1/1400ND
Effective luminous flux (lm): 10000
System power (W): 61
Color temperature (K): 4000
Optical system: PC
Length (mm): 655
Ball-proof: Yes
MEGALW4S4PCV1/2100DALI
Effective luminous flux (lm): 14500
System power (W): 92
Color temperature (K): 4000
Optical system: PC
Length (mm): 655
Ball-proof: Yes
MEGALW4S4PCV1/2100ND
Effective luminous flux (lm): 14500
System power (W): 92
Color temperature (K): 4000
Optical system: PC
Length (mm): 655
Ball-proof: Yes
MEGALW4S4V1/1400ND
Effective luminous flux (lm): 10400
System power (W): 61
Color temperature (K): 4000
Optical system: C
Length (mm): 655
MEGALW4S4V1/2100DALI
Effective luminous flux (lm): 15000
System power (W): 92
Color temperature (K): 4000
Optical system: C
Length (mm): 655
MEGALW4S4V1/2100ND
Effective luminous flux (lm): 15000
System power (W): 92
Color temperature (K): 4000
Optical system: C
Length (mm): 655
MEGALW4S4V1/2100ND/EU
Effective luminous flux (lm): 15000
System power (W): 92
Color temperature (K): 4000
Optical system: C
Length (mm): 655
MEGALW4S5PCOV1/2100ND
Effective luminous flux (lm): 12000
System power (W): 92
Color temperature (K): 5700
Optical system: PCO
Length (mm): 655
Ball-proof: Yes
MEGALW4S5V1/2100ND
Effective luminous flux (lm): 15000
System power (W): 92
Color temperature (K): 5700
Optical system: C
Length (mm): 655
MEGALW6M4V1/2100ND/K
Effective luminous flux (lm): 45000
System power (W): 278
Color temperature (K): 4000
Optical system: C
Length (mm): 1224
Show all versions
 Back to serie MODUS MEGAL

We are here to help

We'll advise you all, we have outstanding support.
Lighting calculations

Lighting calculations

Do you need to calculate the lighting?

LDT files

LDT files

Do you need LDT data for your project?

Product support

Product support

Do not know what kind of lighting is best for you?

Connection diagrams

Connection diagrams

Do not you know how to conect luminaires properly?

Contact
