MODUS NOD

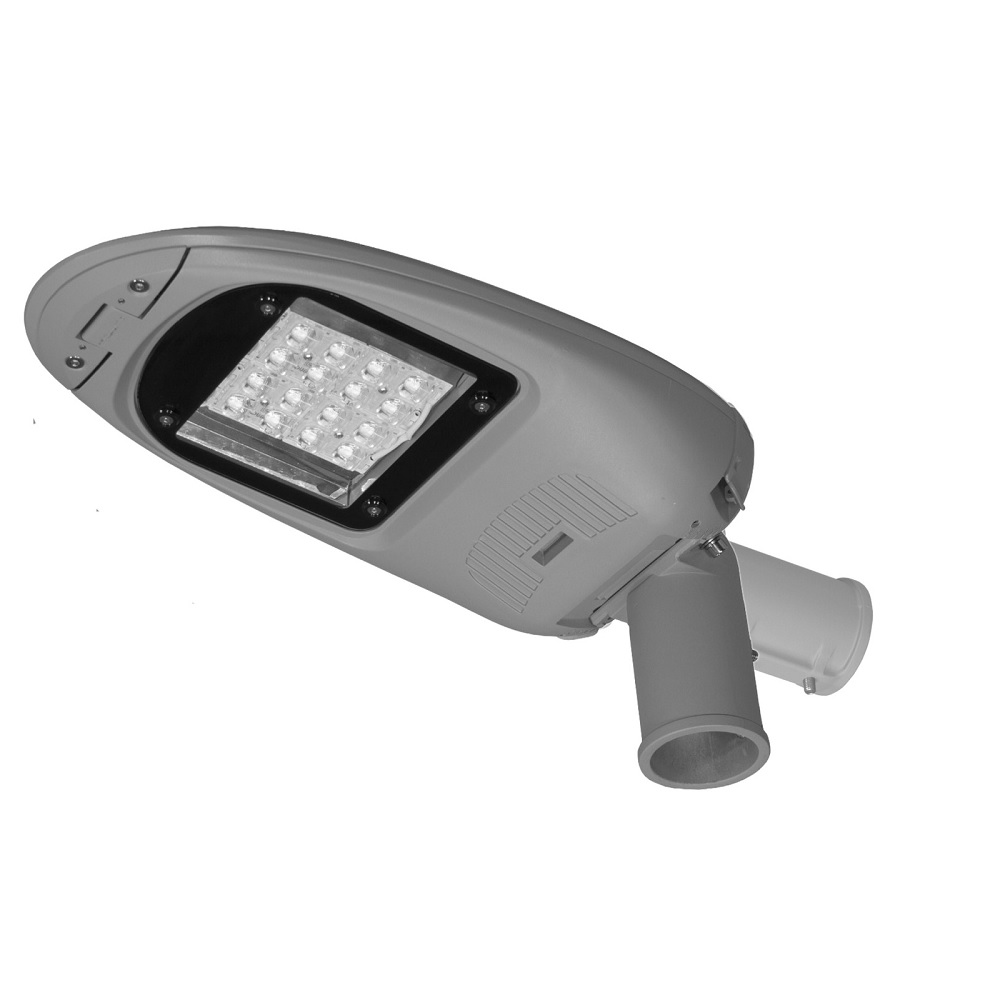

LED street luminaire

MODUS NOD
1 M21_ulicni_sadovka.jpg
220-240 v.png
6 IP66.jpg
11 L80_80000_h.jpg
en 62 471.png

Standard price from:

On request
Distribution network
Contacts

LED luminaire for street lighting with with movable bracket with dia. 60mm.

Independent part for driver part and optical part.

Intregrated clips into luminaires body.

Wide offer of optical systems:

W - wide beam - for streets in M category

EW - extra wide beam - for sidewalks and cyclo-roads

S - symetrical beam - for parking and company areal illumination

Secondary optic can be made from glass (standart) or polycarbonate.

Ideal installation height 4-10 metres (vary on type of application and wattage)

Kelvin range: from 1800k (amber) to 5000k.



Mounting method:Side-entry, Post-topLight source type:LED
Impact strength:IK08Nominal voltage (V):220...240
Degree of protection (IP):IP66Color temperature (K):4000, 2700
Rated lifetime L80/B50 (h):80000
Dimming DALI:Yes
Product category:Luminaire for streets and placesMade in Czech republic:Yes
Photobiological safety EN 62 471:RG 0MacAdam binning:SDCM 3
Show more...
LoadingLoading

Filters

Effective luminous flux (lm)

1700
9500

System power (W)

12
72
Product name
NOD1500KC2EW/ND
Effective luminous flux (lm): 1700
System power (W): 12
Color temperature (K): 2700
Optical system: C
NOD1500KC2W/ND
Effective luminous flux (lm): 1700
System power (W): 12
Color temperature (K): 2700
Optical system: C
NOD2000KC2EW/ND
Effective luminous flux (lm): 2430
System power (W): 18
Color temperature (K): 2700
Optical system: C
NOD2000KC2EW/REG
Effective luminous flux (lm): 2430
System power (W): 18
Color temperature (K): 2700
Optical system: C
MODUS SMART: Astro Dim
NOD2000KC2EW/REG/ASTRO
Effective luminous flux (lm): 2430
System power (W): 18
Color temperature (K): 2700
Optical system: C
MODUS SMART: Astro Dim
NOD2000KC2S/ND
Effective luminous flux (lm): 2330
System power (W): 18
Color temperature (K): 2700
Optical system: C
NOD2000KC2W/ND
Effective luminous flux (lm): 2350
System power (W): 18
Color temperature (K): 2700
Optical system: C
NOD2000KC2W/REG
Effective luminous flux (lm): 2350
System power (W): 18
Color temperature (K): 2700
Optical system: C
MODUS SMART: Astro Dim
NOD2000KC3EW/ND
Effective luminous flux (lm): 2500
System power (W): 18
Color temperature (K): 3000
Optical system: C
NOD2000KC3S/ND
Effective luminous flux (lm): 2400
System power (W): 18
Color temperature (K): 3000
Optical system: C
NOD2000KC3W/ND
Effective luminous flux (lm): 2400
System power (W): 18
Color temperature (K): 3000
Optical system: C
NOD2000KC3W/REG
Effective luminous flux (lm): 2400
System power (W): 18
Color temperature (K): 3000
Optical system: C
MODUS SMART: Astro Dim
NOD2000KC3W/REG/ASTRO
Effective luminous flux (lm): 2400
System power (W): 18
Color temperature (K): 3000
Optical system: C
MODUS SMART: Astro Dim
NOD2000KC4EW/ND
Effective luminous flux (lm): 2550
System power (W): 18
Color temperature (K): 4000
Optical system: C
NOD2000KC4EW/REG
Effective luminous flux (lm): 2430
System power (W): 18
Color temperature (K): 4000
Optical system: C
MODUS SMART: Astro Dim
NOD2000KC4S/ND
Effective luminous flux (lm): 2450
System power (W): 18
Color temperature (K): 4000
Optical system: C
NOD2000KC4S/REG
Effective luminous flux (lm): 2450
System power (W): 18
Color temperature (K): 4000
Optical system: C
MODUS SMART: Astro Dim
NOD2000KC4W/ND
Effective luminous flux (lm): 2500
System power (W): 18
Color temperature (K): 4000
Optical system: C
NOD2000KC4W/REG
Effective luminous flux (lm): 2500
System power (W): 18
Color temperature (K): 4000
Optical system: C
MODUS SMART: Astro Dim
NOD2000KC4W/REG/CLO
Effective luminous flux (lm): 2500
System power (W): 18
Color temperature (K): 4000
Optical system: C
MODUS SMART: Astro Dim
NOD3000KC3W/ND
Effective luminous flux (lm): 3100
System power (W): 25
Color temperature (K): 3000
Optical system: C
NOD3000KC3W/REG
Effective luminous flux (lm): 3100
System power (W): 25
Color temperature (K): 3000
Optical system: C
MODUS SMART: Astro Dim
NOD4000KC2EW/ND
Effective luminous flux (lm): 3860
System power (W): 31
Color temperature (K): 2700
Optical system: C
NOD4000KC2EW/REG
Effective luminous flux (lm): 3860
System power (W): 31
Color temperature (K): 2700
Optical system: C
MODUS SMART: Astro Dim
NOD4000KC2EW/REG/ASTRO
Effective luminous flux (lm): 3860
System power (W): 31
Color temperature (K): 2700
Optical system: C
MODUS SMART: Astro Dim
NOD4000KC2EWA/REG
Effective luminous flux (lm): 3000
System power (W): 31
Color temperature (K): 1900
Optical system: C
MODUS SMART: Astro Dim
NOD4000KC2S/ND
Effective luminous flux (lm): 3720
System power (W): 31
Color temperature (K): 2700
Optical system: C
NOD4000KC2S/REG
Effective luminous flux (lm): 3720
System power (W): 31
Color temperature (K): 2700
Optical system: C
MODUS SMART: Astro Dim
NOD4000KC2W/ND
Effective luminous flux (lm): 3750
System power (W): 31
Color temperature (K): 2700
Optical system: C
NOD4000KC2W/REG
Effective luminous flux (lm): 3750
System power (W): 31
Color temperature (K): 2700
Optical system: C
MODUS SMART: Astro Dim
NOD4000KC2W/REG/ASTRO
Effective luminous flux (lm): 3850
System power (W): 31
Color temperature (K): 2700
Optical system: C
MODUS SMART: Astro Dim
NOD4000KC2WA/REG
Effective luminous flux (lm): 3000
System power (W): 31
Color temperature (K): 1900
Optical system: C
MODUS SMART: Astro Dim
NOD4000KC3EW/ND
Effective luminous flux (lm): 4000
System power (W): 31
Color temperature (K): 3000
Optical system: C
NOD4000KC3S/ND
Effective luminous flux (lm): 3800
System power (W): 31
Color temperature (K): 3000
Optical system: C
NOD4000KC3W/ND
Effective luminous flux (lm): 3850
System power (W): 31
Color temperature (K): 3000
Optical system: C
NOD4000KC3W/REG
Effective luminous flux (lm): 3850
System power (W): 31
Color temperature (K): 3000
Optical system: C
MODUS SMART: Astro Dim
NOD4000KC3W/REG/ASTRO
Effective luminous flux (lm): 3850
System power (W): 31
Color temperature (K): 3000
Optical system: C
MODUS SMART: Astro Dim
NOD4000KC3W/REG/DALI
Effective luminous flux (lm): 3850
System power (W): 31
Color temperature (K): 3000
Optical system: C
MODUS SMART: Astro Dim
NOD4000KC4EW/ND
Effective luminous flux (lm): 4100
System power (W): 31
Color temperature (K): 4000
Optical system: C
NOD4000KC4EW/REG
Effective luminous flux (lm): 4100
System power (W): 31
Color temperature (K): 4000
Optical system: C
MODUS SMART: Astro Dim
NOD4000KC4EWA/REG
Effective luminous flux (lm): 3200
System power (W): 31
Color temperature (K): 2200
Optical system: C
MODUS SMART: Astro Dim
NOD4000KC4S/ND
Effective luminous flux (lm): 3900
System power (W): 31
Color temperature (K): 4000
Optical system: C
NOD4000KC4S/REG
Effective luminous flux (lm): 3900
System power (W): 31
Color temperature (K): 4000
Optical system: C
MODUS SMART: Astro Dim
NOD4000KC4W/ND
Effective luminous flux (lm): 4000
System power (W): 31
Color temperature (K): 4000
Optical system: C
NOD4000KC4W/REG
Effective luminous flux (lm): 4000
System power (W): 31
Color temperature (K): 4000
Optical system: C
MODUS SMART: Astro Dim
NOD4000KC4WA/ND
Effective luminous flux (lm): 3000
System power (W): 31
Color temperature (K): 2200
Optical system: C
NOD4000KC4WA/REG
Effective luminous flux (lm): 3000
System power (W): 31
Color temperature (K): 2300
Optical system: C
MODUS SMART: Astro Dim
NOD4000KC5AS/ND
System power (W): 31
Color temperature (K): 5000
Optical system: C
NOD5000KC2W/ND
Effective luminous flux (lm): 5100
System power (W): 40
Color temperature (K): 2700
Optical system: C
NOD5000KC4S/ND
Effective luminous flux (lm): 5100
System power (W): 40
NOD5000KC4W/ND
Effective luminous flux (lm): 5100
System power (W): 40
Color temperature (K): 4000
Optical system: C
NOD6000KC2S/ND
Effective luminous flux (lm): 6250
System power (W): 50
Color temperature (K): 2700
Optical system: C
NOD6000KC2W/ND
Effective luminous flux (lm): 6200
System power (W): 50
Color temperature (K): 2700
Optical system: C
NOD6000KC2W/REG
Effective luminous flux (lm): 6200
System power (W): 50
Color temperature (K): 2700
Optical system: C
MODUS SMART: Astro Dim
NOD6000KC3EW/ND
Effective luminous flux (lm): 6800
System power (W): 50
NOD6000KC3S/ND
Effective luminous flux (lm): 6400
System power (W): 50
Color temperature (K): 3000
Optical system: C
NOD6000KC3W/ND
Effective luminous flux (lm): 6400
System power (W): 50
Color temperature (K): 3000
Optical system: C
NOD6000KC3W/REG
Effective luminous flux (lm): 6400
System power (W): 50
Color temperature (K): 3000
Optical system: C
MODUS SMART: Astro Dim
NOD6000KC3W/REG/ASTRO
Effective luminous flux (lm): 3000
System power (W): 50
Color temperature (K): 3000
Optical system: C
MODUS SMART: Astro Dim
NOD6000KC4EW/ND
Effective luminous flux (lm): 6800
System power (W): 50
NOD6000KC4S/REG
Effective luminous flux (lm): 6600
System power (W): 50
Color temperature (K): 4000
Optical system: C
MODUS SMART: Astro Dim
NOD6000KC4W/ND
Effective luminous flux (lm): 6600
System power (W): 50
Color temperature (K): 4000
Optical system: C
NOD6000KC4W/REG
Effective luminous flux (lm): 6600
System power (W): 50
Color temperature (K): 4000
Optical system: C
MODUS SMART: Astro Dim
NOD6000KC4WA/REG
Effective luminous flux (lm): 4900
System power (W): 50
Color temperature (K): 2300
Optical system: C
MODUS SMART: Astro Dim
NOD6000KC5AS/ND
Effective luminous flux (lm): 7300
System power (W): 50
Color temperature (K): 5000
Optical system: C
NOD6000KC5W/ND
Effective luminous flux (lm): 6700
System power (W): 50
Color temperature (K): 5000
Optical system: C
NOD6000KC5W/REG
Effective luminous flux (lm): 6700
System power (W): 50
Color temperature (K): 5000
Optical system: C
MODUS SMART: Astro Dim
NOD8000KC2S/ND
Effective luminous flux (lm): 8350
System power (W): 72
Color temperature (K): 2700
Optical system: C
NOD8000KC2S/REG
Effective luminous flux (lm): 8350
System power (W): 72
Color temperature (K): 2700
Optical system: C
MODUS SMART: Astro Dim
NOD8000KC2W/ND
Effective luminous flux (lm): 8000
System power (W): 72
Color temperature (K): 2700
Optical system: C
NOD8000KC2W/REG
Effective luminous flux (lm): 8000
System power (W): 72
Color temperature (K): 2700
Optical system: C
MODUS SMART: Astro Dim
NOD8000KC3EW/REG
Effective luminous flux (lm): 8400
System power (W): 72
Color temperature (K): 3000
Optical system: C
MODUS SMART: Astro Dim
NOD8000KC3S/ND
Effective luminous flux (lm): 8000
System power (W): 72
Color temperature (K): 3000
Optical system: C
NOD8000KC3W/ND
Effective luminous flux (lm): 8200
System power (W): 72
Color temperature (K): 3000
Optical system: C
NOD8000KC3W/REG
Effective luminous flux (lm): 8200
System power (W): 72
Color temperature (K): 3000
Optical system: C
MODUS SMART: Astro Dim
NOD8000KC4AS/ND
Effective luminous flux (lm): 9500
System power (W): 72
Color temperature (K): 4000
Optical system: C
NOD8000KC4EW/REG
Effective luminous flux (lm): 8800
System power (W): 72
Color temperature (K): 4000
Optical system: C
MODUS SMART: Astro Dim
NOD8000KC4S/ND
Effective luminous flux (lm): 8350
System power (W): 72
Color temperature (K): 4000
Optical system: C
NOD8000KC4S/REG
Effective luminous flux (lm): 8350
System power (W): 72
Color temperature (K): 4000
Optical system: C
MODUS SMART: Astro Dim
NOD8000KC4W/ND
Effective luminous flux (lm): 8500
System power (W): 72
Color temperature (K): 4000
Optical system: C
NOD8000KC4W/REG
Effective luminous flux (lm): 8500
System power (W): 72
Color temperature (K): 4000
Optical system: C
MODUS SMART: Astro Dim
NOD8000KC5AS/ND
Effective luminous flux (lm): 9500
System power (W): 72
Color temperature (K): 5000
Optical system: C
NOD8000KC5S/ND
Effective luminous flux (lm): 8350
System power (W): 72
Color temperature (K): 5000
Optical system: C
NOD8000KC5W/REG
Effective luminous flux (lm): 8600
System power (W): 72
Color temperature (K): 5000
Optical system: C
MODUS SMART: Astro Dim
Show all versions
 Back to product list

We are here to help

We'll advise you all, we have outstanding support.
Lighting calculations

Lighting calculations

Do you need to calculate the lighting?

LDT files

LDT files

Do you need LDT data for your project?

Product support

Product support

Do not know what kind of lighting is best for you?

Connection diagrams

Connection diagrams

Do not you know how to conect luminaires properly?

Contact
