Product series New
MODUS ODM

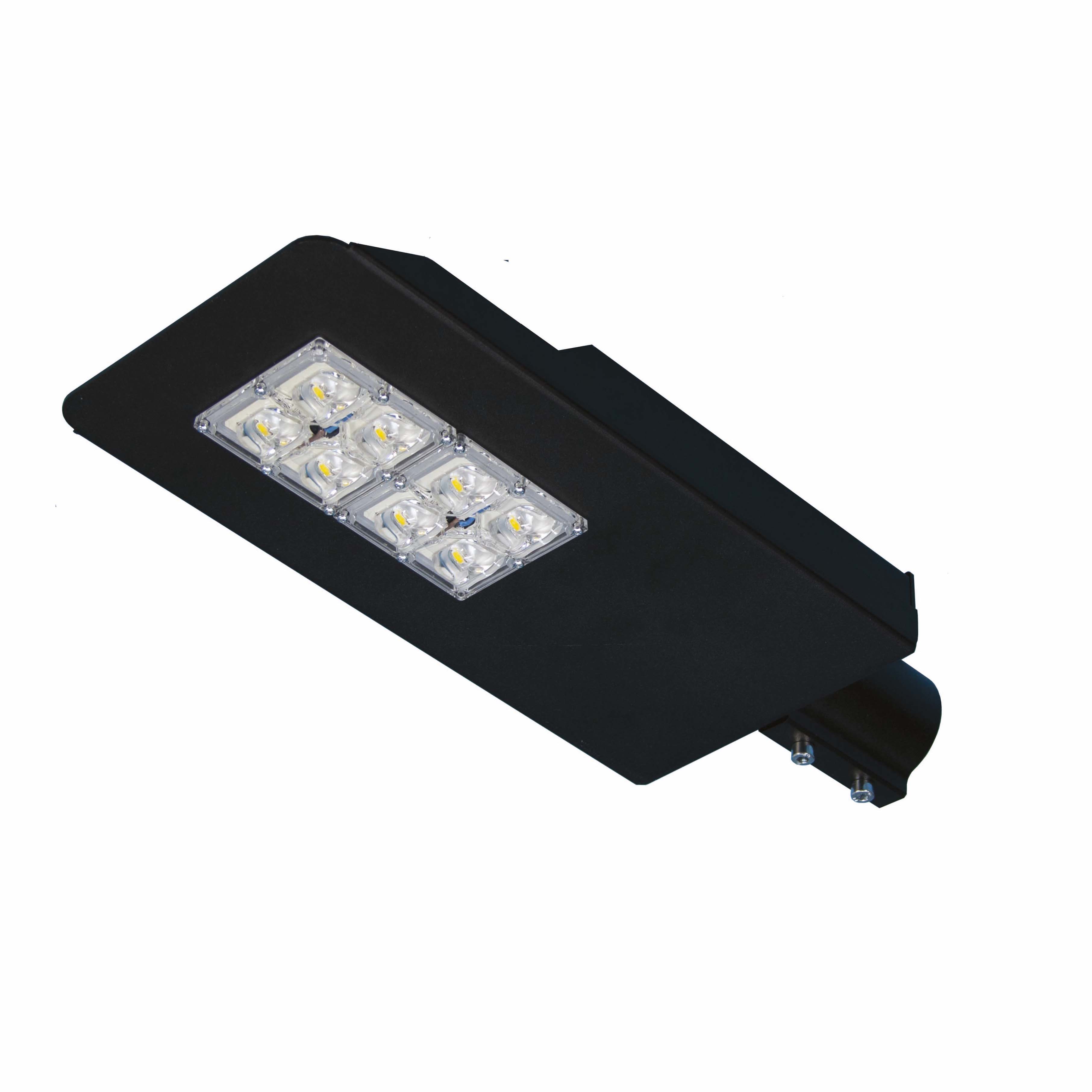

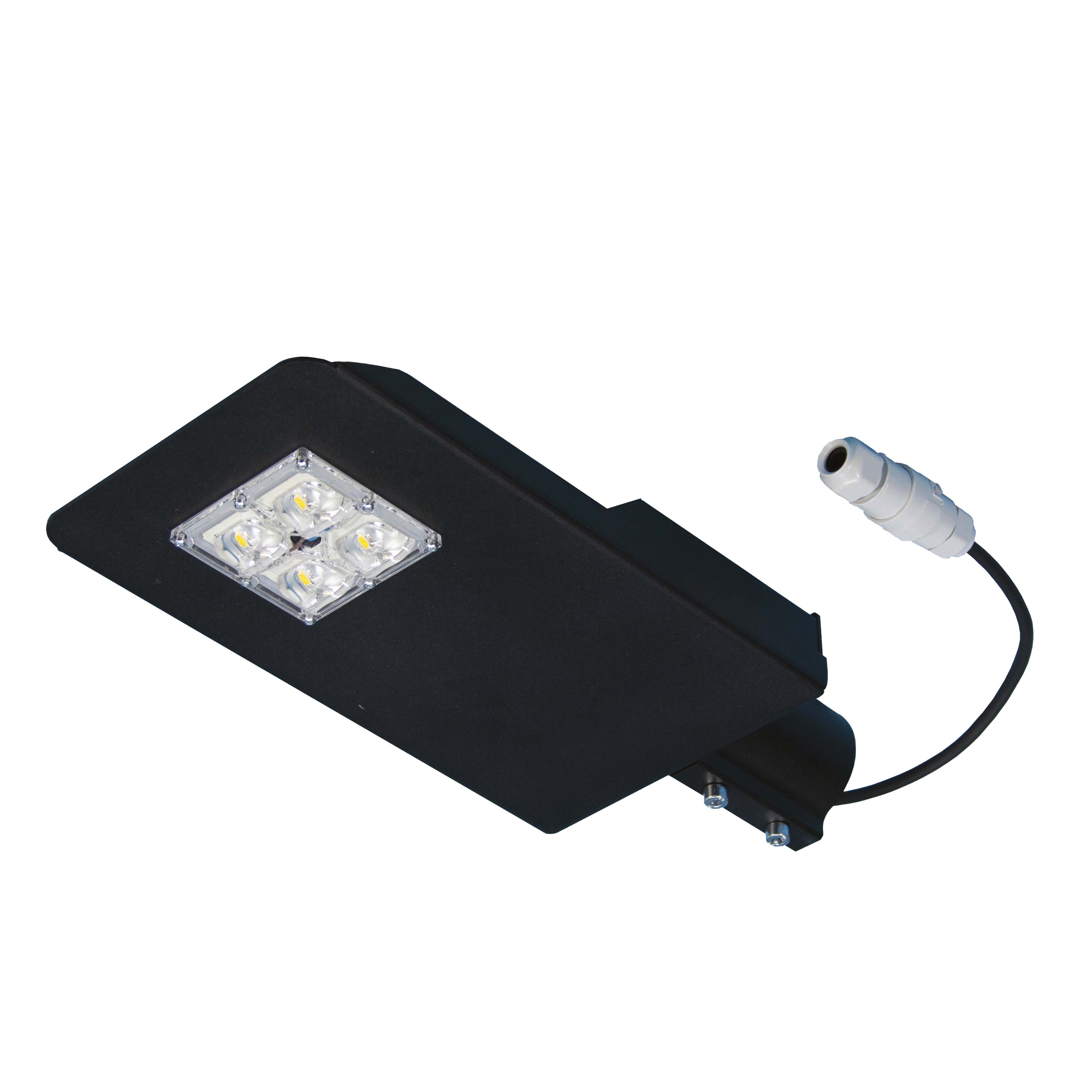

Street luminaire for local illumination
Standard price from:
On request
Luminiare is made from aluminium sheet, standartly in black colour (grey on request).
For the ideal lighting distribution luminaire is made with clear optic with two possibilities:
R - asymetrical optic for street illumination
P - symetrical opric for parking places etc. illumination
Luminaire is produced in two sizes:
ODM S - lenght of luminaire 357 mm (10W and 17W)
ODM M - lenght of luminaire 422 mm (24W and 37W)

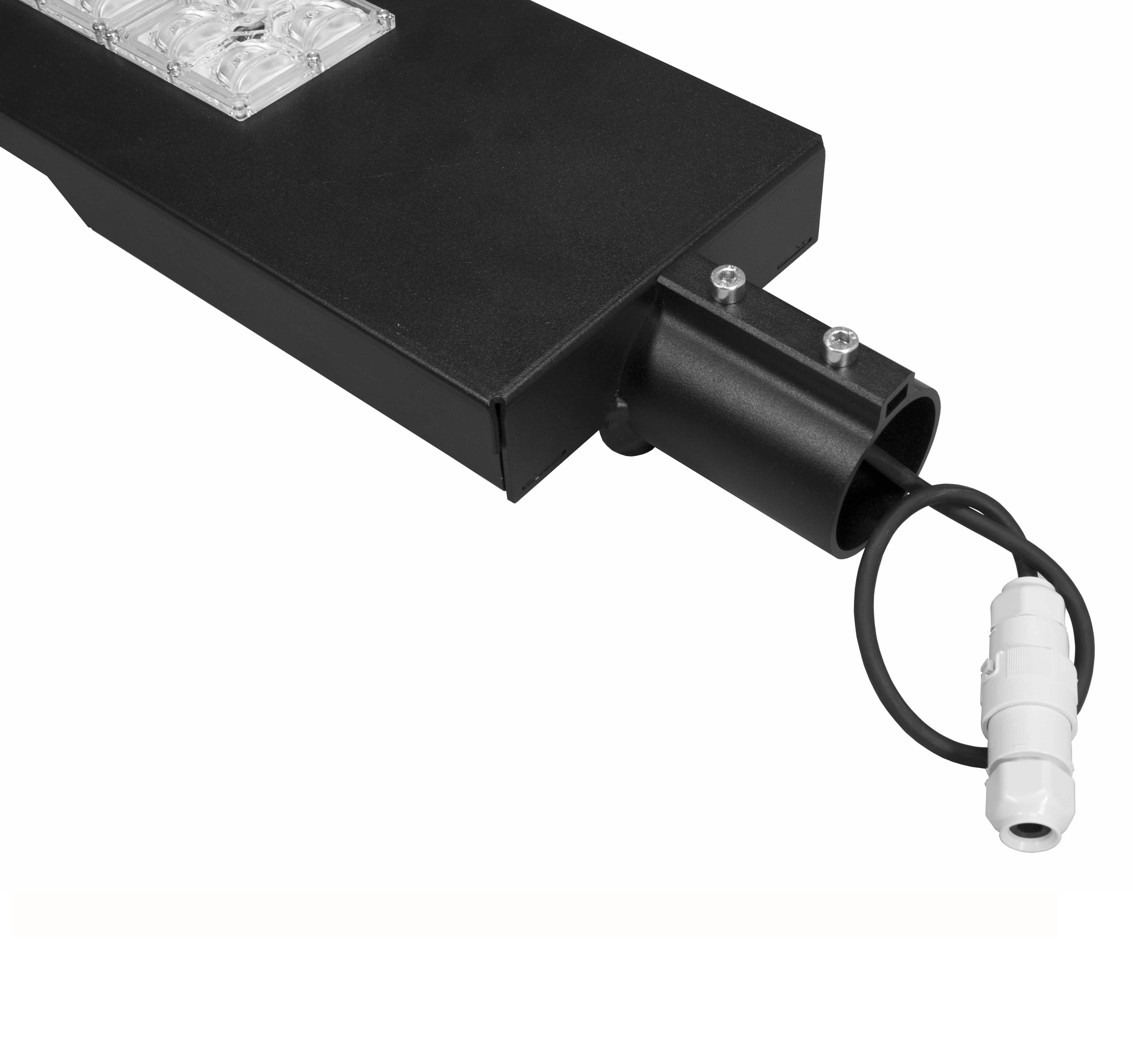

For a quick installation the luminaire is produced with external IP65 connector.
| Mounting method: | Side-entry | Protection class: | I | Color rendering index CRI: | 70-79 | Light source type: | LED | Light outlet: | Direct | Nominal voltage (V): | 220...240 | Degree of protection (IP): | IP65 |
| Color temperature (K): | 4000, 3800, 2700 | Rated lifetime L70/B50 (h): | 100000 | Product category: | Luminaire for streets and places | Made in Czech republic: | Yes | Photobiological safety EN 62 471: | RG 0 |
LoadingFilters
Effective luminous flux (lm)
System power (W)
Product name
Effective luminous flux (lm)
System power (W)
Color temperature (K)
ODM1500S2RC/NDV60
Effective luminous flux (lm): 1350
Color temperature (K): 2700
ODM1500S4RC/NDV60
Effective luminous flux (lm): 1400
Color temperature (K): 4000
ODM2500S2PC/NDV60
Effective luminous flux (lm): 2700
System power (W): 20
Color temperature (K): 2700
ODM2500S2PS/NDV60
Effective luminous flux (lm): 2620
System power (W): 20
Color temperature (K): 2700
ODM2500S2RC/NDS60H
Effective luminous flux (lm): 2480
System power (W): 20
Color temperature (K): 2700
ODM2500S2RC/NDS60U
Effective luminous flux (lm): 2480
System power (W): 20
Color temperature (K): 2700
ODM2500S2RC/NDV60
Effective luminous flux (lm): 2480
System power (W): 20
Color temperature (K): 2700
ODM2500S4PC/NDV60
Effective luminous flux (lm): 2700
System power (W): 20
Color temperature (K): 4000
ODM2500S4RC/NDV60
Effective luminous flux (lm): 2550
System power (W): 20
Color temperature (K): 4000
ODM3500M2PS/NDV60
Effective luminous flux (lm): 3500
System power (W): 24
Color temperature (K): 2700
ODM3500M2RC/NDV60
Effective luminous flux (lm): 3500
System power (W): 24
Color temperature (K): 2700
ODM3500M4RC/NDV60
Effective luminous flux (lm): 3600
System power (W): 24
Color temperature (K): 4000
ODM5000M2RC/NDS60H
Effective luminous flux (lm): 5000
System power (W): 37
Color temperature (K): 2700
ODM5000M2RC/NDS60U
Effective luminous flux (lm): 5000
System power (W): 37
Color temperature (K): 2700
ODM5000M2RC/NDV60
Effective luminous flux (lm): 5000
System power (W): 37
Color temperature (K): 2700
ODM5000M4RC/NDV60
Effective luminous flux (lm): 5000
System power (W): 37
Color temperature (K): 4000
ODM5000M4RC/REGV60
Effective luminous flux (lm): 5150
System power (W): 37
Color temperature (K): 4000
