Product series
MODUS OX
Street lighting with aluminium body
Standard price from:
On request

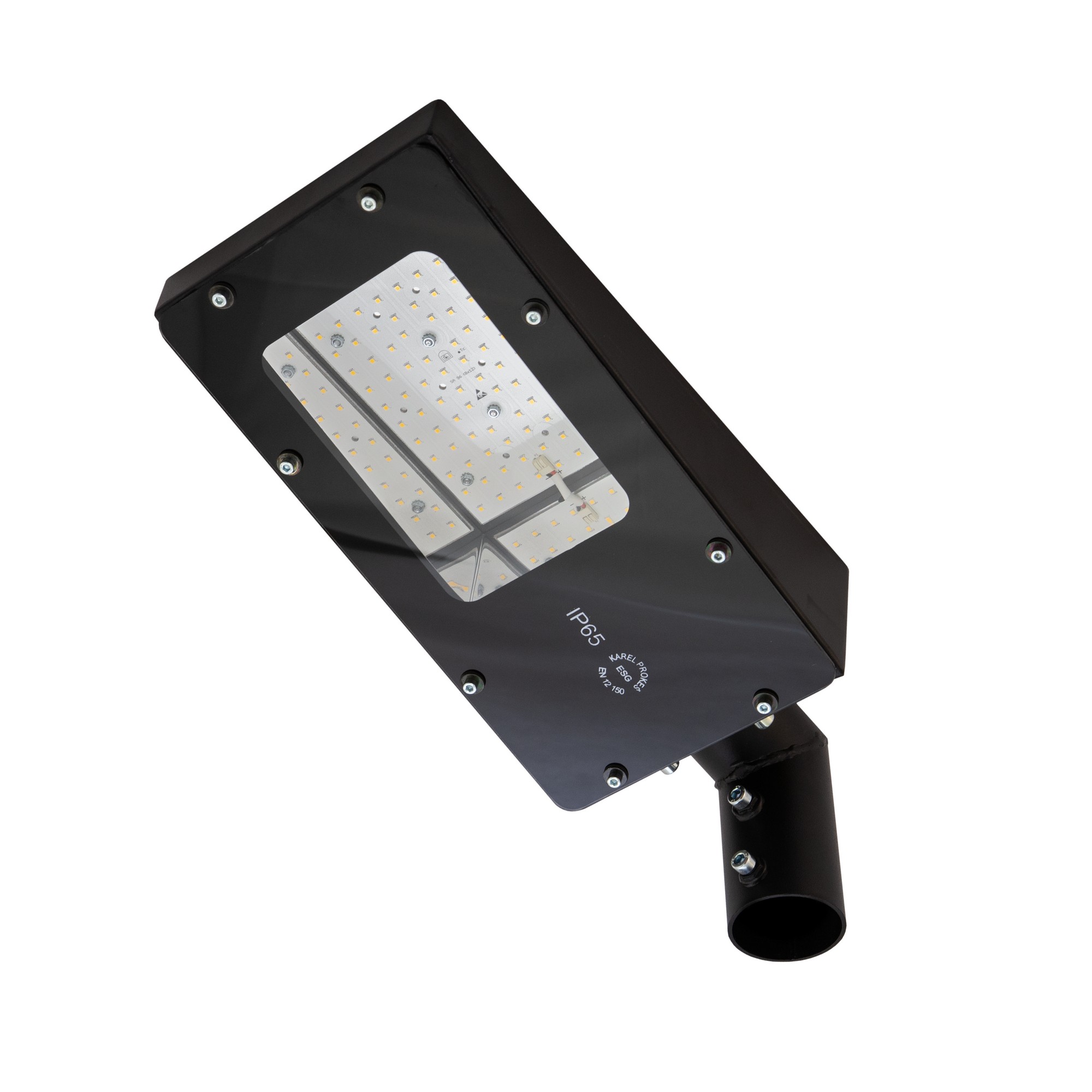

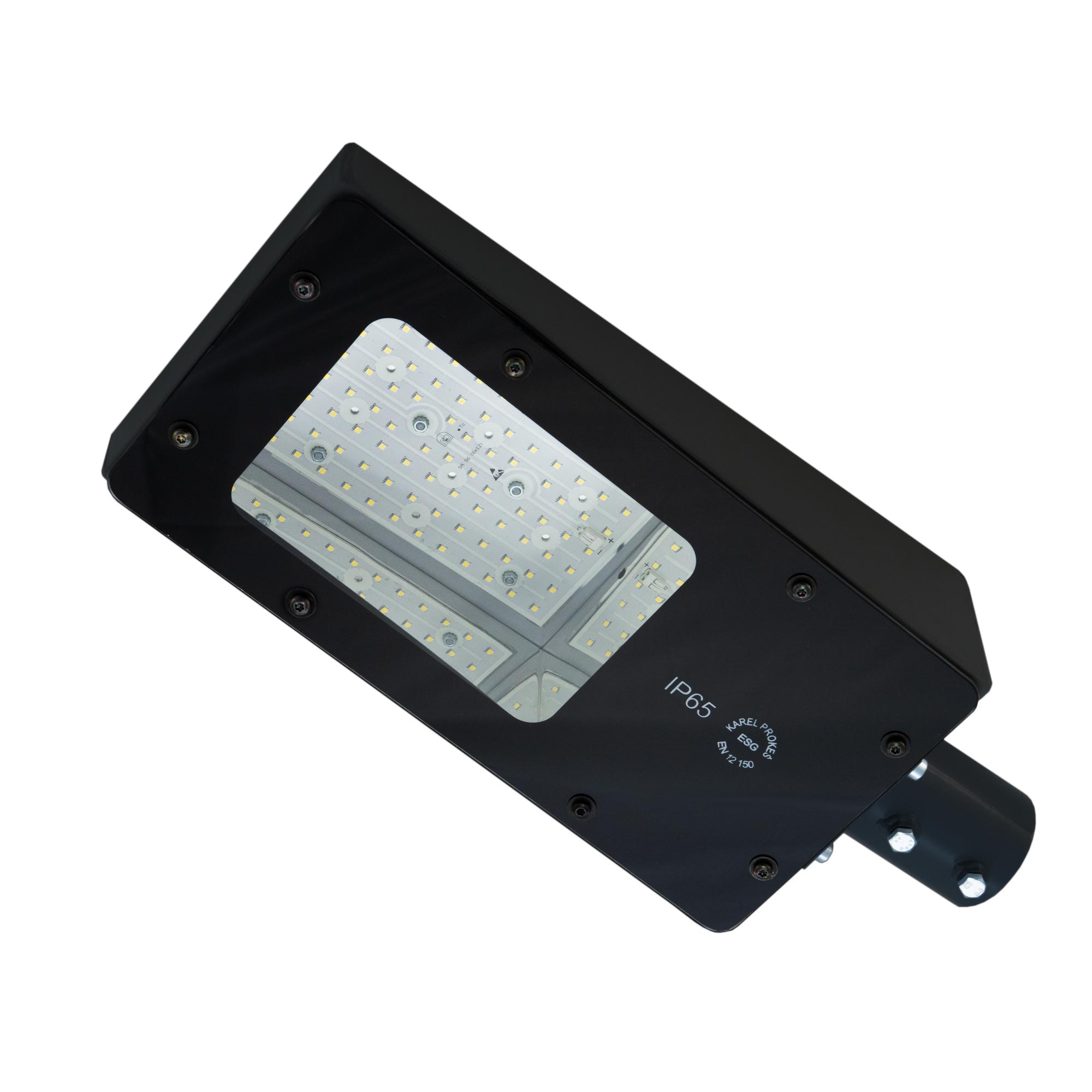

Luminaire with aluminium grey body with high effectivity (up to 141 lm/W). Luminaire is produced with external connector - luminaire is non-openable - quick installation.

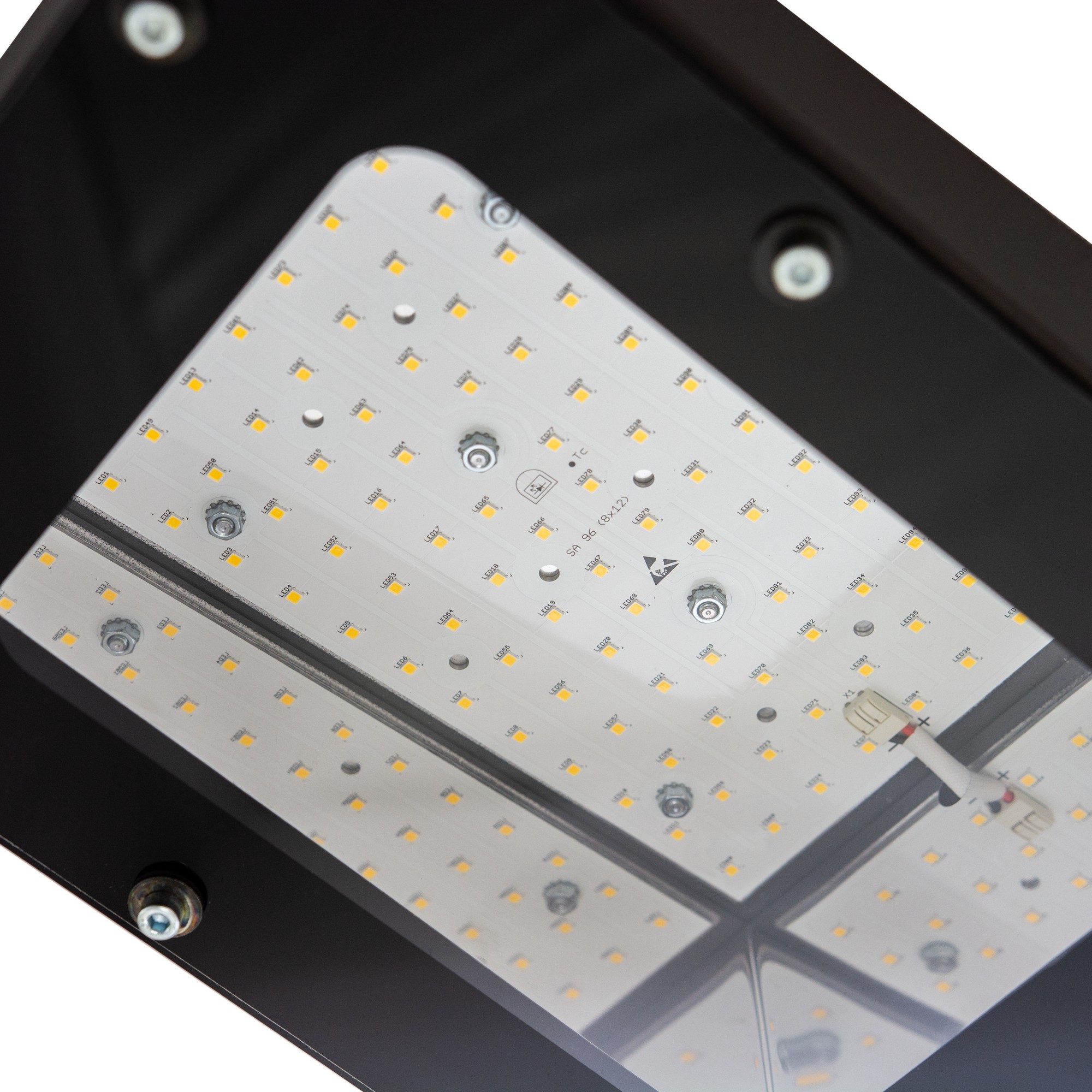

In MODUS OX are used new SAMSUNG chips 301B, which are temperature and chemical resistant.
Two wattage version in offer: 19W- 2500 lm and 39W - 5500 lm.
| Body material: | Welded aluminum | Mounting method: | Side-entry, Post-top | Protection class: | I | Color rendering index CRI: | 80-89 | Light source type: | LED | Light outlet: | Direct | Impact strength: | IK08 | Degree of protection (IP): | IP65 |
| Color temperature (K): | 4000, 3000, 2700, 5700 | Rated lifetime L70/B50 (h): | 40000 | Dimming DALI: | Yes | Optical system: | KC clear cover | Made in Czech republic: | Yes | Replaceability: | Replaceable light source by professional, replaceable ballast Replaceable light source by professional, replaceable ballast |
LoadingFilters
Effective luminous flux (lm)
System power (W)
Product name
Effective luminous flux (lm)
System power (W)
Color temperature (K)
Optical system
Suitable for top end size (mm)

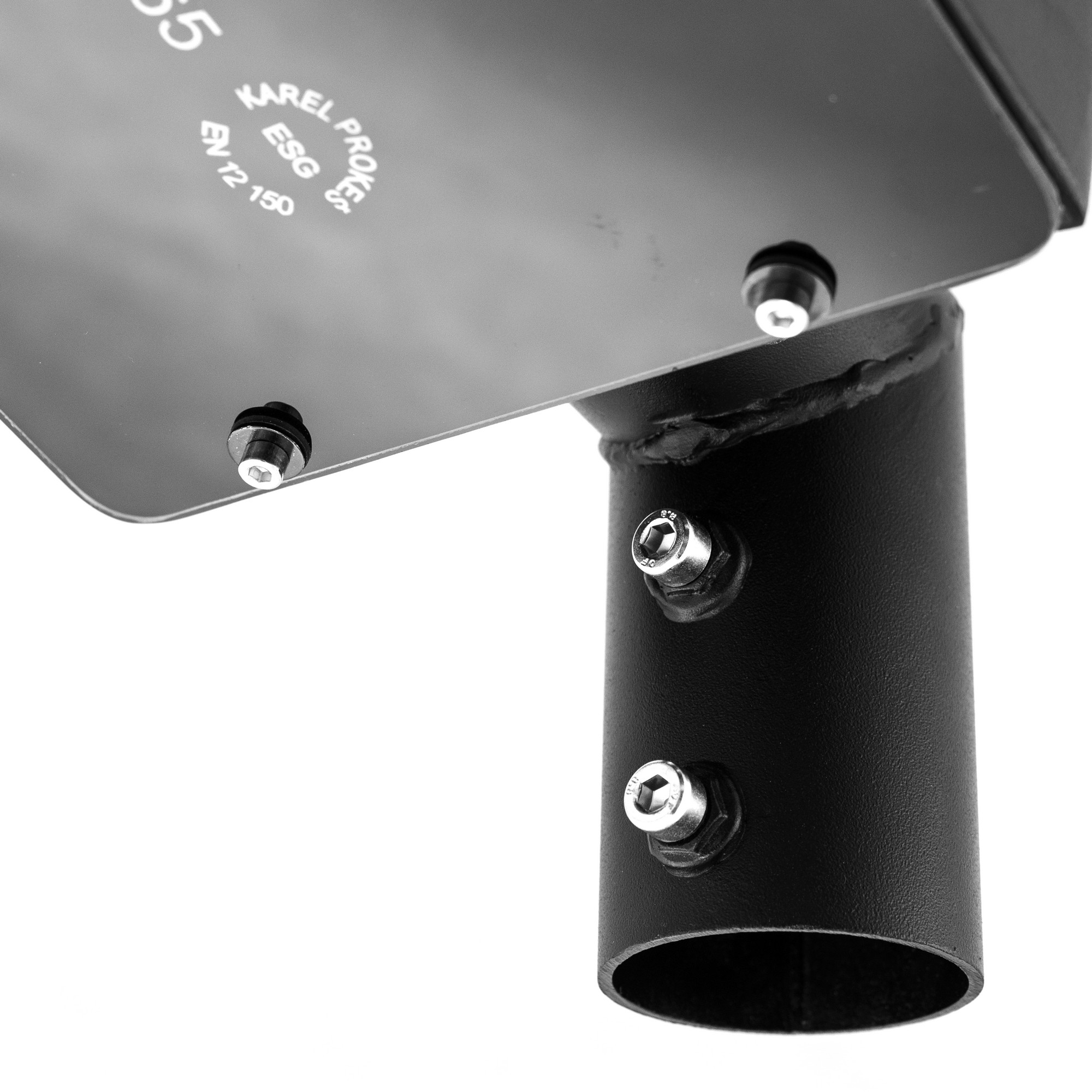

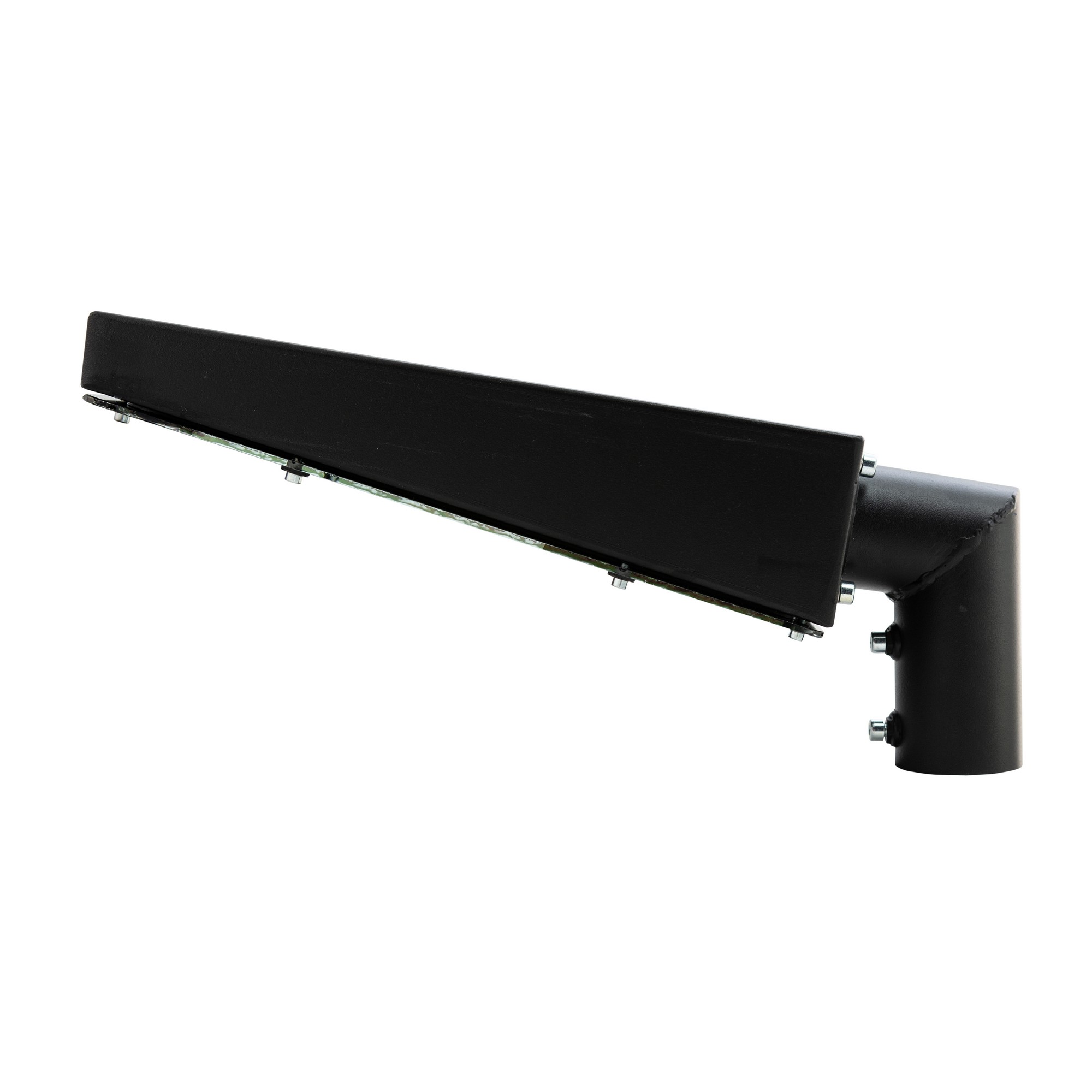

Mounting method
OX3000S4/NDS60
Effective luminous flux (lm): 2500
System power (W): 19
Color temperature (K): 4000
Optical system: KC
Suitable for top end size (mm): 60
Mounting method: Post-top
OX3000S4/NDS76
Effective luminous flux (lm): 2500
System power (W): 19
Color temperature (K): 4000
Optical system: KC
Suitable for top end size (mm): 76
Mounting method: Post-top
OX3000S4/NDV60
Effective luminous flux (lm): 2500
System power (W): 19
Color temperature (K): 4000
Optical system: KC
Suitable for top end size (mm): 60
Mounting method: Side-entry
OX6000S3/NDS60
Effective luminous flux (lm): 5500
System power (W): 39
Color temperature (K): 3000
Optical system: KC
Suitable for top end size (mm): 60
Mounting method: Post-top
OX6000S3/NDV60
Effective luminous flux (lm): 5500
System power (W): 39
Color temperature (K): 3000
Optical system: KC
Suitable for top end size (mm): 60
Mounting method: Side-entry
OX6000S4/4DIMV60
Effective luminous flux (lm): 5500
System power (W): 39
Color temperature (K): 4000
Optical system: KC
Suitable for top end size (mm): 60
Mounting method: Side-entry
OX6000S4/NDS60
Effective luminous flux (lm): 5500
System power (W): 39
Color temperature (K): 4000
Optical system: KC
Suitable for top end size (mm): 60
Mounting method: Post-top
OX6000S4/NDS76
Effective luminous flux (lm): 5500
System power (W): 39
Color temperature (K): 4000
Optical system: KC
Suitable for top end size (mm): 76
Mounting method: Post-top
OX6000S4/NDV42
Effective luminous flux (lm): 5500
System power (W): 39
Color temperature (K): 4000
Optical system: KC
Suitable for top end size (mm): 42
Mounting method: Side-entry
OX6000S4/NDV60
Effective luminous flux (lm): 5500
System power (W): 39
Color temperature (K): 4000
Optical system: KC
Suitable for top end size (mm): 60
Mounting method: Side-entry
OX6000S5/NDV60
Effective luminous flux (lm): 5500
System power (W): 39
Color temperature (K): 5700
Optical system: KC
Suitable for top end size (mm): 60
Mounting method: Side-entry
Product page - PDF
CE declaration
Assembly instruction
LDT files
