Product series New
MODUS P
Industrial luminaire IP66
Standard price from:
On request

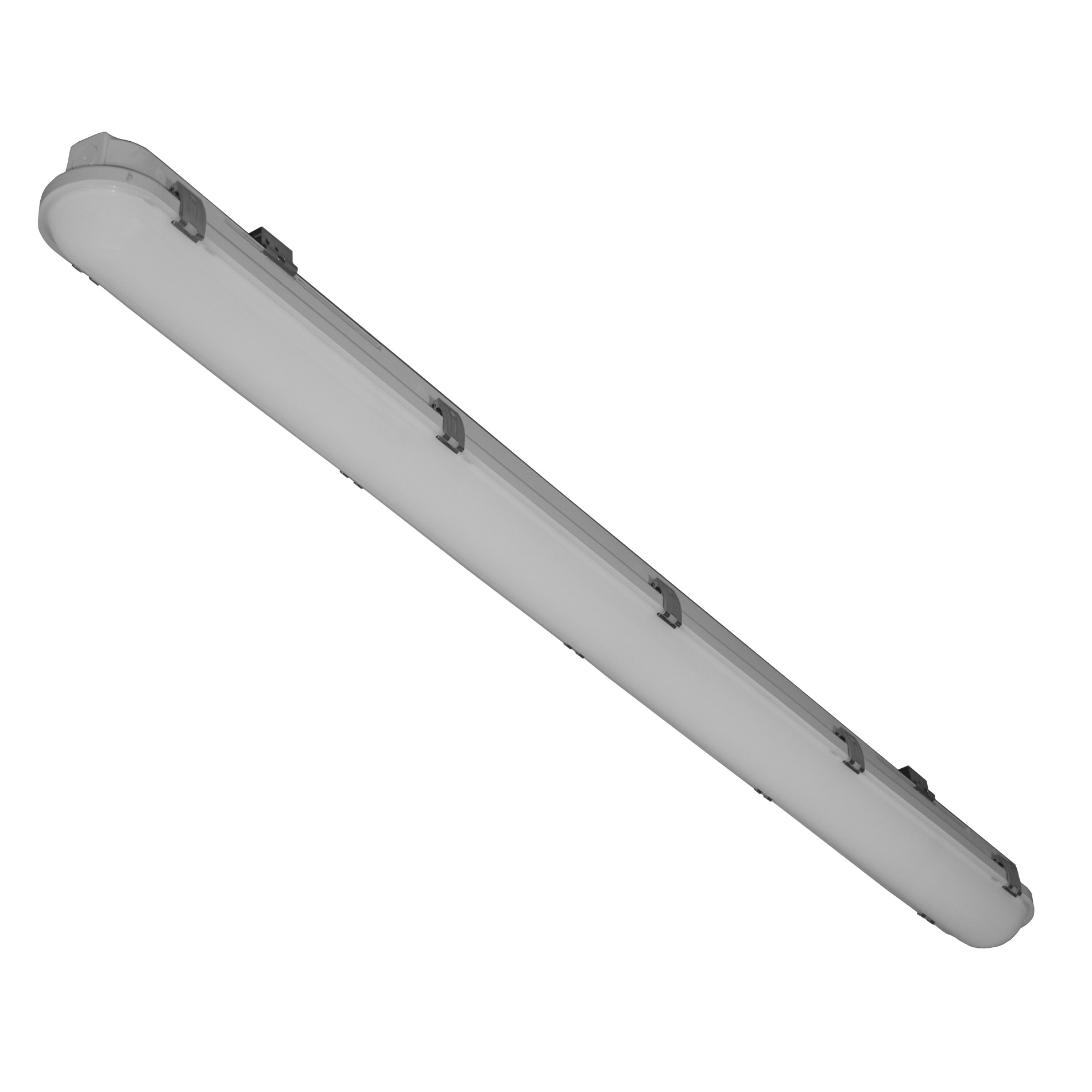

Luminaire in narrow body, with high lumen output. Body is completelly from PC material (body + opal diffusor)
Standarly delivered for universal installation: for solo and/or 1 phase throughtwirring .
The driver of luminaire is a "MULTI" version = allows setup different lumen outputs:
P5000M (lenght 1200 mm) - 3400/4150/5000/5600lm (21/26/32/37W)
P7000L (lenght 1500 mm) - 4600/5600/6600/7600lm (28/35/42/49W)
Luminaires are delivered with 4000K LEDs.

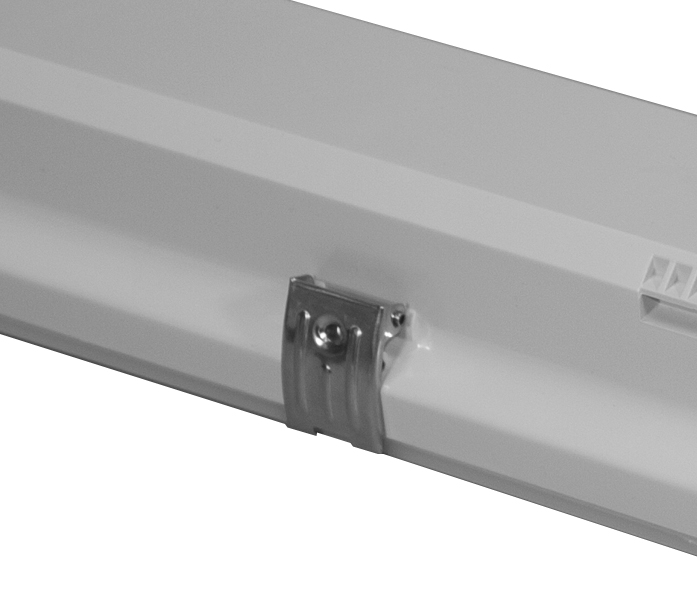

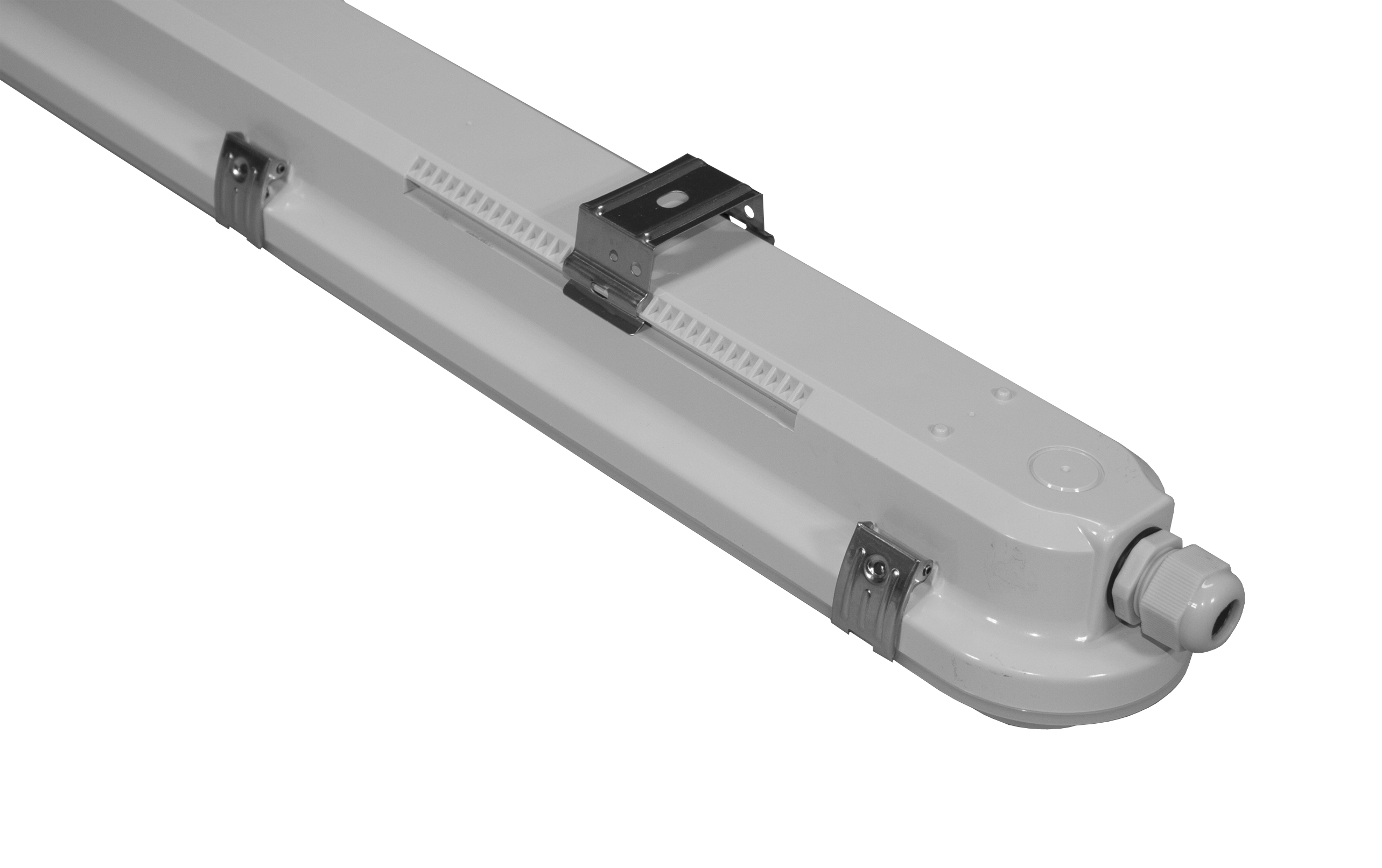

Clips and bracket from INOX material.
| Body material: | PC body | Mounting method: | Pendant, Surface mounting | Protection class: | I | Type of control gear: | LED operating device current-controlled | Color rendering index CRI: | 80-89 | Length (mm): | 1200, 1500 | Light source type: | LED | Light outlet: | Direct | Light sharing: | Symmetric | Impact strength: | IK08 | Nominal voltage (V): | 220...240 |
| Degree of protection (IP): | IP66 | Color temperature (K): | 4000 | Rated lifetime L80/B50 (h): | 80000 | Rated ambient temperature (°C): | -10...+35 | Product category: | Watertight luminaire | Optical system: | PCO polycarbonate opal cover | Replaceability: | Replaceable light source by professional, replaceable ballast Replaceable light source by professional, replaceable ballast | Photobiological safety EN 62 471: | RG 0 | MacAdam binning: | SDCM 3 |
LoadingFilters
Effective luminous flux (lm)
System power (W)
Luminaire efficacy (lm/W)
Product name
Effective luminous flux (lm)
System power (W)
Degree of protection (IP)
Length (mm)
P5000M4DALI/P1
Effective luminous flux (lm): 5600
System power (W): 37
Degree of protection (IP): IP66
Length (mm): 1200
P5000M4NDMULTI/P1
Effective luminous flux (lm): 5600
System power (W): 37
Degree of protection (IP): IP66
Length (mm): 1200
P7000L4DALI/P1
Effective luminous flux (lm): 7600
System power (W): 49
Degree of protection (IP): IP66
Length (mm): 1500
P7000L4NDMULTI/P1
Effective luminous flux (lm): 7600
System power (W): 49
Degree of protection (IP): IP66
Length (mm): 1500
