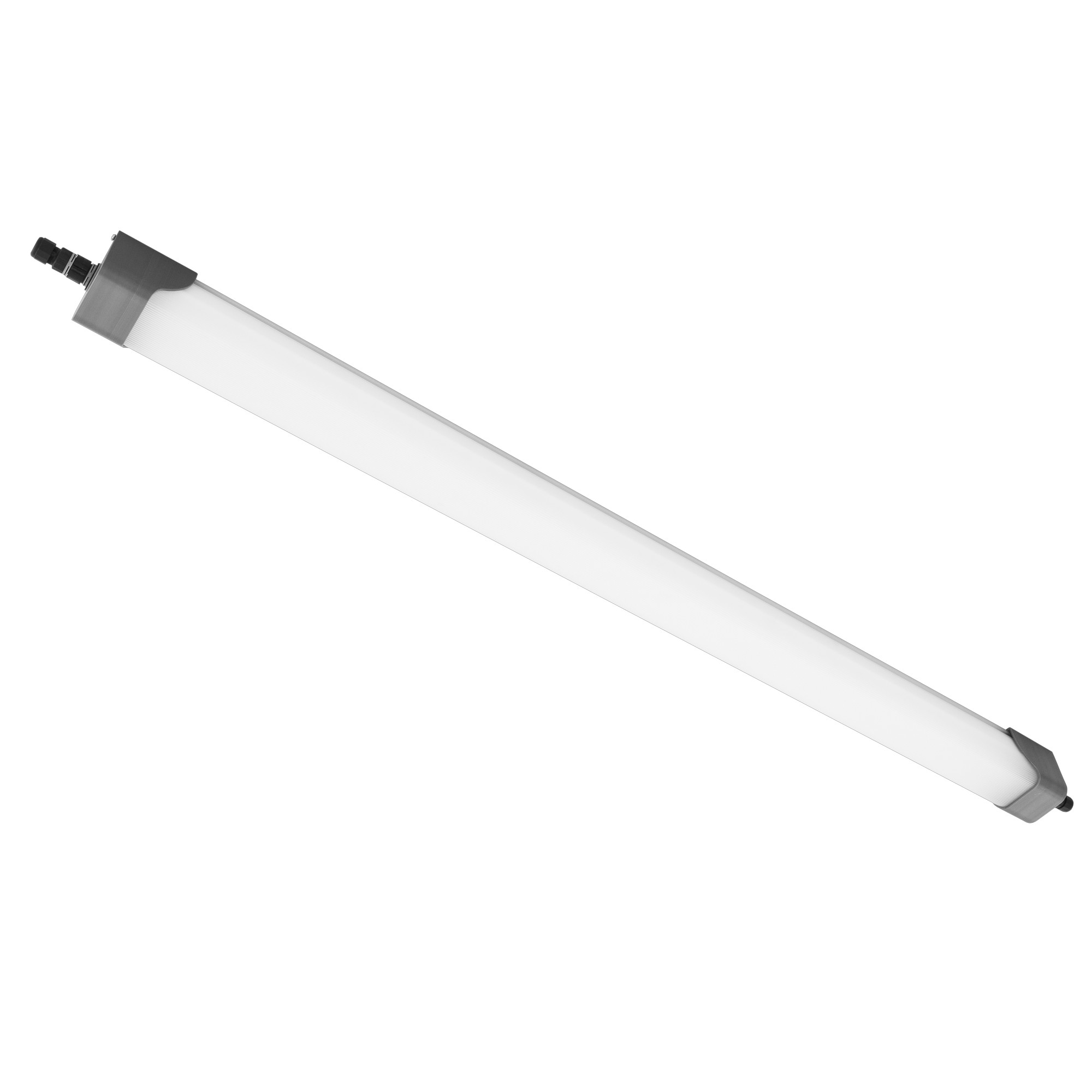

MODUS PHD
Plug & play weatherproof luminaires
Standard price from:
On request

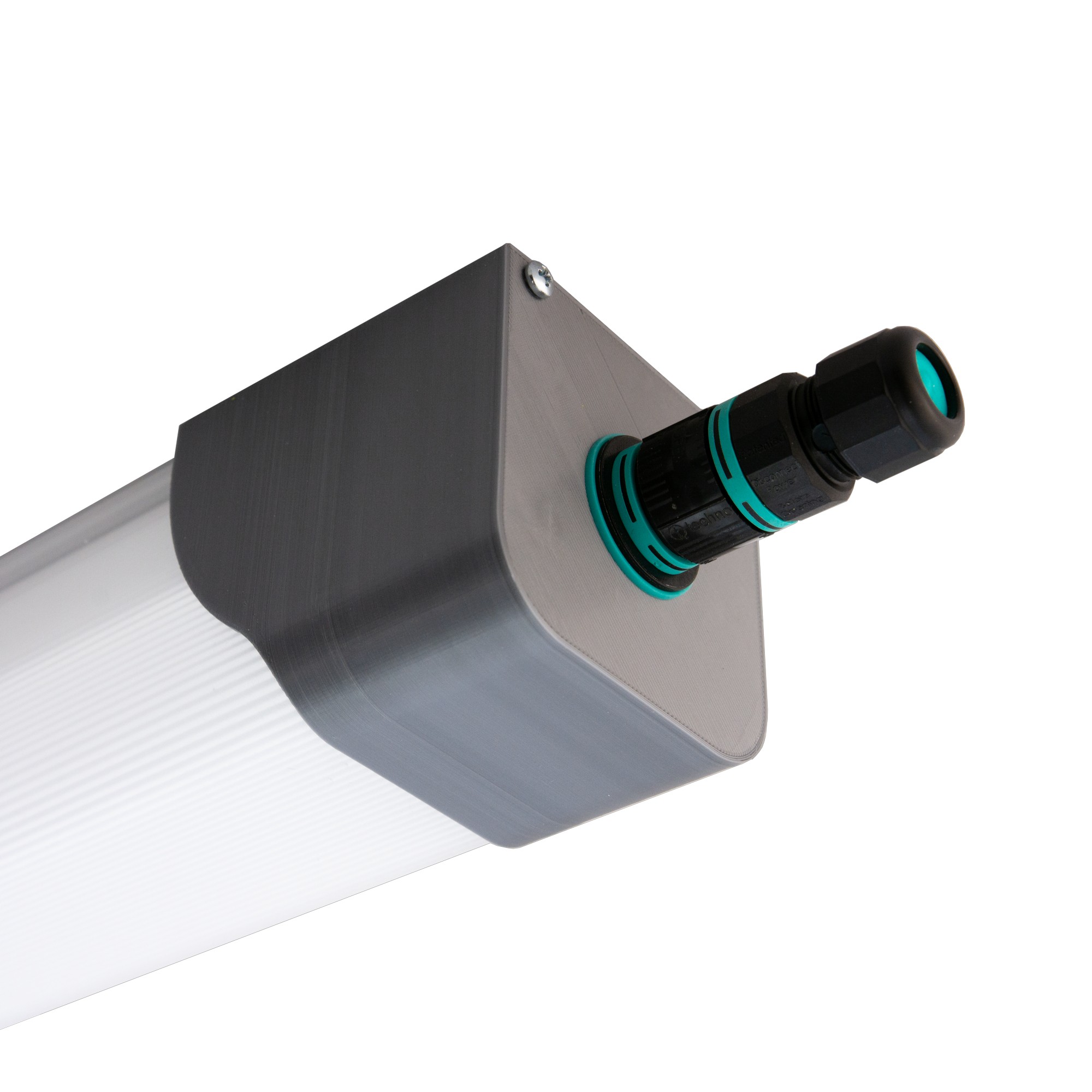

New generation of IP65 industrial luminaire. Luminaires are always produced with external connector - no need to open the luminaire - quicker installation.

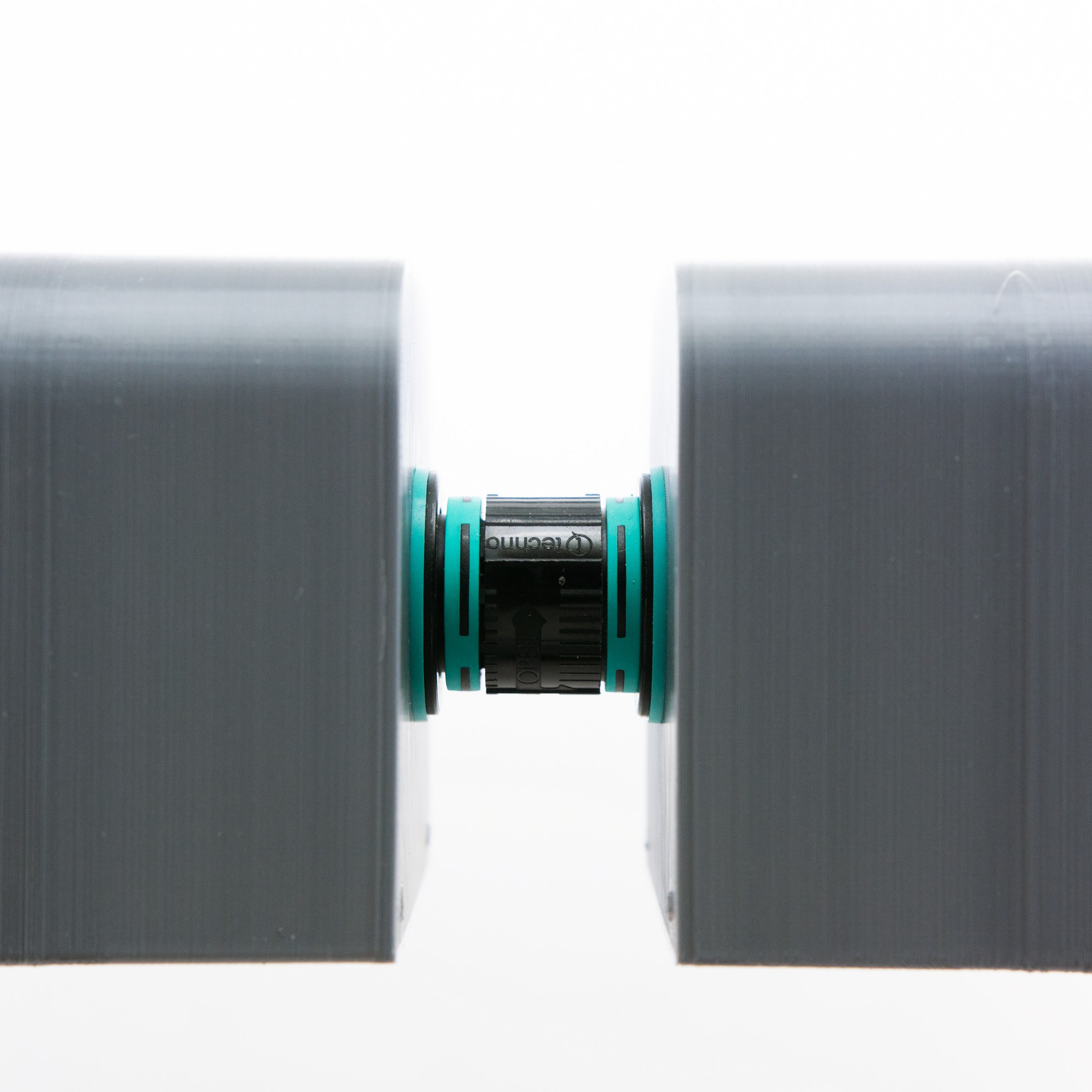

Standartly it is produced with one connector, on request it is possible version for throughtwirring (PH.../P) with connector at both sides.

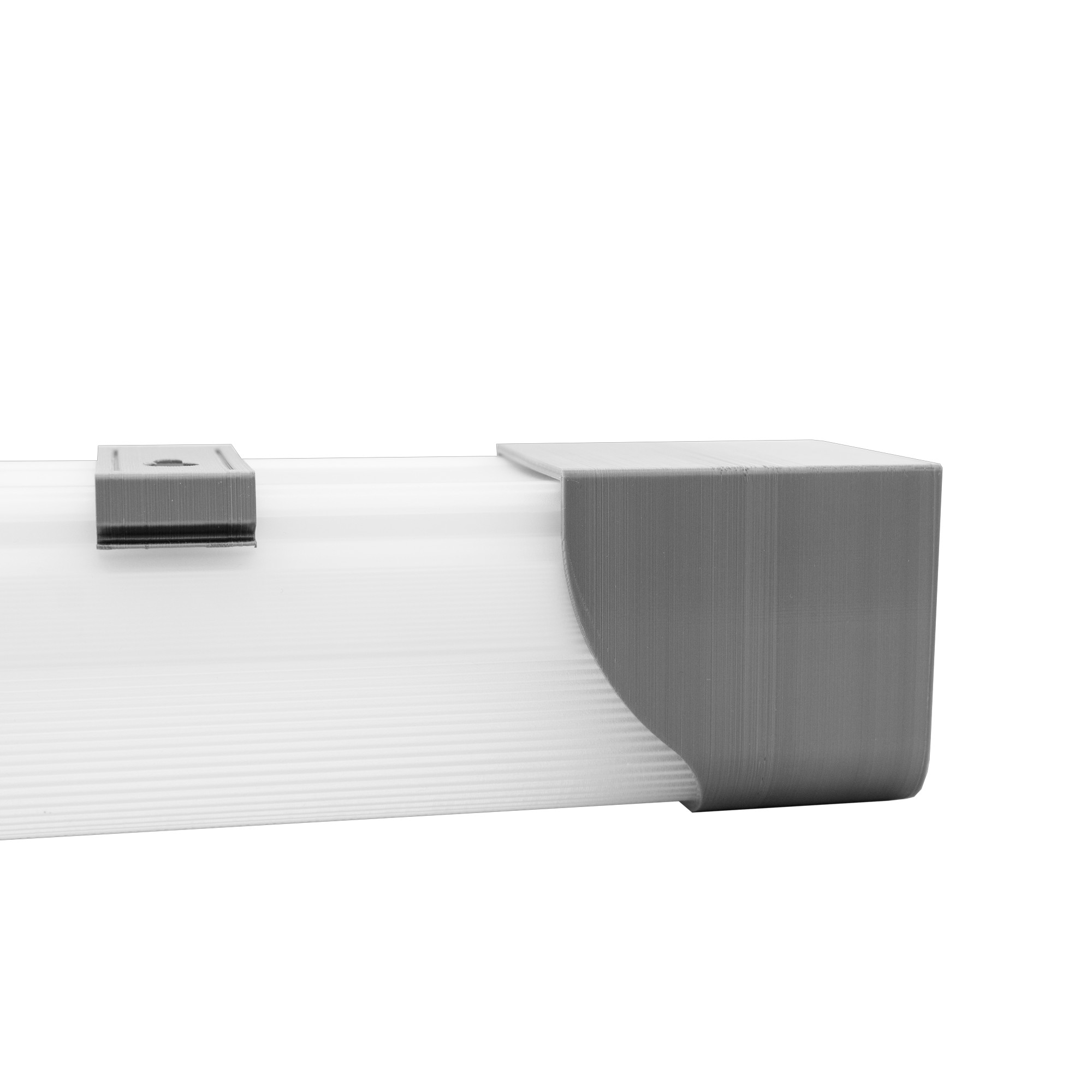

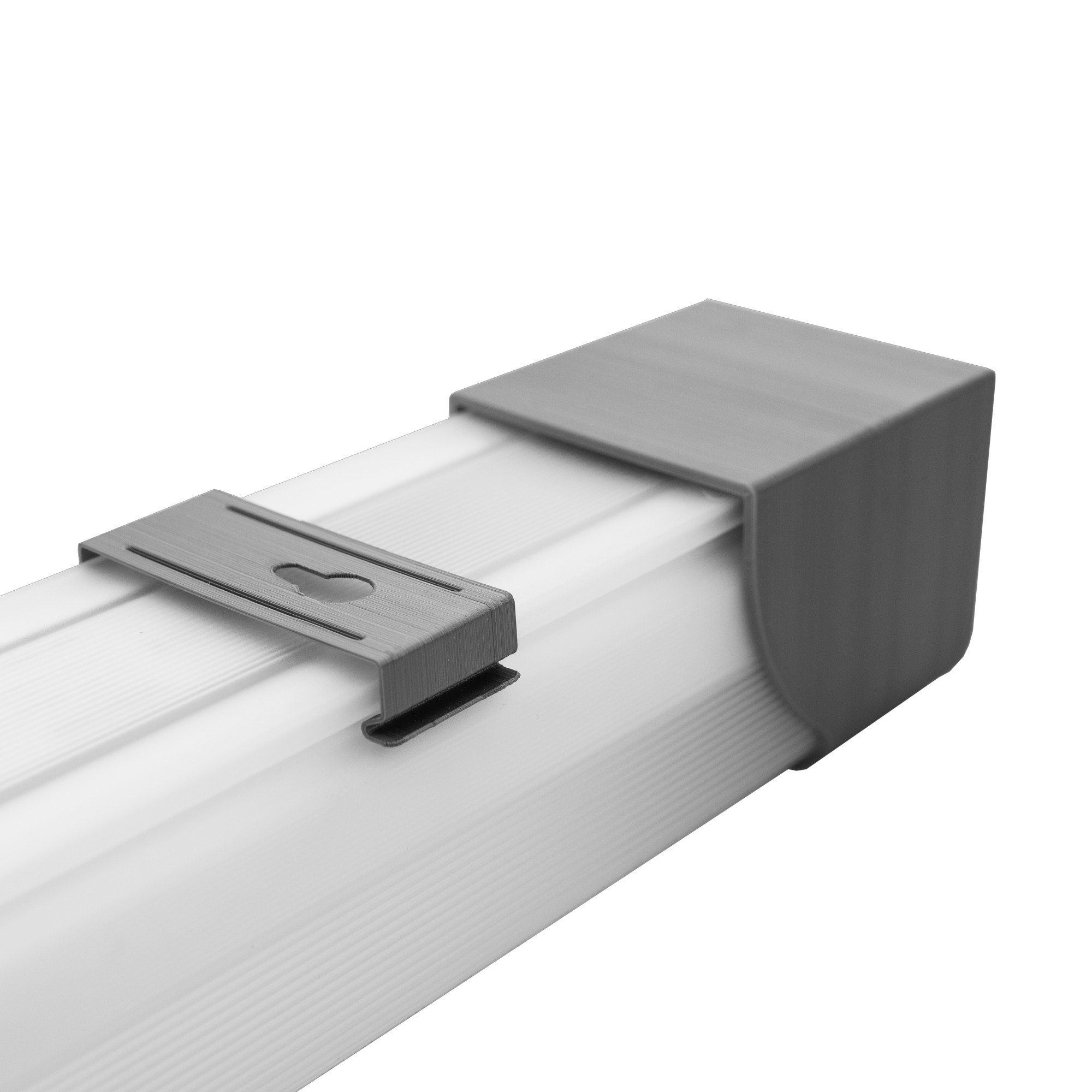

Installation is possible like surface or pendant. Installation clips are movable and allows individual position of these clips (movable at body)
Body:
Polycarbonate or PMMA body
White painted stell base
Polycarbonate or PS endcaps
Optic:
PC - semiopal polycarbonate
PM –semiopal PMMA
Find out more about MODUS luminaires with PMMA cover for agriculture in our Light for self-sufficiency catalogue.
LED :
Mid Power LED
3… 3000K
4….4000K
5….5700K
Wiring :
PHD - LED current driver
ND – not dimmable (standard)
DALI – dimmable DALI
PH – driver-on-board
Luminaire can be supplied with wireless Bluetooth control - more information here.
Application:
Surface mounted or suspended, assembly accssories included
Accessories:
Suspension set - ZH21
Versions:
S – single installation
P1 – throw wiring 1ph
| Size version: | L 1500 mm M 1200 mm S 600 mm | Body material: | PC body, PMMA body | Mounting method: | Pendant, Surface mounting | Protection class: | I | Type of control gear: | LED operating device current-controlled | Color rendering index CRI: | 80-89 | Light source type: | LED | Suitable for light line configuration: | Yes | Impact strength: | IK09 | Nominal voltage (V): | 220...240 |
| Degree of protection (IP): | IP65 | Color temperature (K): | 4000, 6500, 3000, 5700 | Rated lifetime L80/B50 (h): | 80000 | Dimming DALI: | Yes | Optical system: | PCS Polycarbonate semiopal cover | Made in Czech republic: | Yes | Replaceability: | Removeable light source, removeable ballast Removeable light source, removeable ballast | Photobiological safety EN 62 471: | RG 0 | MacAdam binning: | SDCM 3 |
LoadingFilters
Effective luminous flux (lm)
System power (W)
Product name
Effective luminous flux (lm)
System power (W)
Color temperature (K)
Optical system
Length (mm)
PHD2500M4PC/P1/ND
Effective luminous flux (lm): 2500
System power (W): 19
Color temperature (K): 4000
Optical system: PCS
Length (mm): 1310
PHD2500M4PC/S/ND
Effective luminous flux (lm): 2500
System power (W): 19
Color temperature (K): 4000
Optical system: PCS
Length (mm): 1310
PHD3000S3PM/P1/ND
Effective luminous flux (lm): 2600
System power (W): 20
Color temperature (K): 3000
Optical system: PMS
Length (mm): 710
PHD3000S3PM/S/ND
Effective luminous flux (lm): 2600
System power (W): 20
Color temperature (K): 3000
Optical system: PMS
Length (mm): 710
PHD3000S4PC/P1/ND
Effective luminous flux (lm): 2600
System power (W): 20
Color temperature (K): 4000
Optical system: PCS
Length (mm): 720
PHD3000S4PC/S/DALI
Effective luminous flux (lm): 2600
System power (W): 20
Color temperature (K): 4000
Optical system: PCS
Length (mm): 710
PHD3000S4PC/S/ND
Effective luminous flux (lm): 2600
System power (W): 20
Color temperature (K): 4000
Optical system: PCS
Length (mm): 710
PHD3000S4PM/P1/ND
Effective luminous flux (lm): 2600
System power (W): 20
Color temperature (K): 4000
Optical system: PMS
Length (mm): 720
PHD3000S4PM/S/DALI
Effective luminous flux (lm): 2600
System power (W): 20
Color temperature (K): 4000
Optical system: PMS
Length (mm): 710
PHD3000S4PM/S/ND
Effective luminous flux (lm): 2600
System power (W): 20
Color temperature (K): 4000
Optical system: PMS
Length (mm): 710
PHD3000S5PM/S/ND
Effective luminous flux (lm): 2600
System power (W): 20
Color temperature (K): 5700
Optical system: PMS
Length (mm): 710
PHD4000L4PC/P1/ND
Effective luminous flux (lm): 4500
System power (W): 30
Color temperature (K): 4000
Optical system: PCS
Length (mm): 1610
PHD5000M3PC/S/DALI
Effective luminous flux (lm): 5400
System power (W): 37
Color temperature (K): 3000
Optical system: PCS
Length (mm): 1310
PHD5000M3PC/S/ND
Effective luminous flux (lm): 5400
System power (W): 37
Color temperature (K): 3000
Optical system: PCS
Length (mm): 1310
PHD5000M3PM/S/DALI
Effective luminous flux (lm): 5400
System power (W): 37
Color temperature (K): 3000
Optical system: PMS
Length (mm): 1310
PHD5000M3PM/S/ND
Effective luminous flux (lm): 5400
System power (W): 37
Color temperature (K): 3000
Optical system: PMS
Length (mm): 1310
PHD5000M4PC/P1/DALI
Effective luminous flux (lm): 5400
System power (W): 37
Color temperature (K): 4000
Optical system: PCS
Length (mm): 1310
PHD5000M4PC/P1/ND
Effective luminous flux (lm): 5400
System power (W): 37
Color temperature (K): 4000
Optical system: PCS
Length (mm): 1320
PHD5000M4PC/R1/DALI
Effective luminous flux (lm): 5400
System power (W): 37
Color temperature (K): 4000
Optical system: PCS
Length (mm): 1320
PHD5000M4PC/R1/ND
Effective luminous flux (lm): 5400
System power (W): 37
Color temperature (K): 4000
Optical system: PCS
Length (mm): 1320
PHD5000M4PC/S/DALI
Effective luminous flux (lm): 5400
System power (W): 37
Color temperature (K): 4000
Optical system: PCS
Length (mm): 1310
PHD5000M4PC/S/ND
Effective luminous flux (lm): 5400
System power (W): 37
Color temperature (K): 4000
Optical system: PCS
Length (mm): 1310
PHD5000M4PM/P1/DALI
Effective luminous flux (lm): 5400
System power (W): 37
Color temperature (K): 4000
Optical system: PMS
Length (mm): 1320
PHD5000M4PM/P1/ND
Effective luminous flux (lm): 5400
System power (W): 37
Color temperature (K): 4000
Optical system: PMS
Length (mm): 1320
PHD5000M4PM/S/DALI
Effective luminous flux (lm): 5400
System power (W): 37
Color temperature (K): 4000
Optical system: PMS
Length (mm): 1310
PHD5000M4PM/S/ND
Effective luminous flux (lm): 5400
System power (W): 37
Color temperature (K): 4000
Optical system: PMS
Length (mm): 1310
PHD7000L3PC/S/ND
Effective luminous flux (lm): 7800
System power (W): 53
Color temperature (K): 3000
Optical system: PCS
Length (mm): 1610
PHD7000L4PC/P1/DALI
Effective luminous flux (lm): 7800
System power (W): 53
Color temperature (K): 4000
Optical system: PCS
Length (mm): 1620
PHD7000L4PC/P1/ND
Effective luminous flux (lm): 7800
System power (W): 53
Color temperature (K): 4000
Optical system: PCS
Length (mm): 1620
PHD7000L4PC/R1/DALI
Effective luminous flux (lm): 7800
System power (W): 53
Color temperature (K): 4000
Optical system: PCS
Length (mm): 1620
PHD7000L4PC/R1/DALI/90
Effective luminous flux (lm): 6700
System power (W): 53
Color temperature (K): 4000
Optical system: PCS
Length (mm): 1610
PHD7000L4PC/R1/ND
Effective luminous flux (lm): 7800
System power (W): 53
Color temperature (K): 4000
Optical system: PCS
Length (mm): 1620
PHD7000L4PC/S/DALI
Effective luminous flux (lm): 7800
System power (W): 53
Color temperature (K): 4000
Optical system: PCS
Length (mm): 1610
PHD7000L4PC/S/ND
Effective luminous flux (lm): 7800
System power (W): 53
Color temperature (K): 4000
Optical system: PCS
Length (mm): 1610
PHD7000L4PM/P1/DALI
Effective luminous flux (lm): 7800
System power (W): 53
Color temperature (K): 4000
Optical system: PMS
Length (mm): 1610
PHD7000L4PM/P1/ND
Effective luminous flux (lm): 7800
System power (W): 53
Color temperature (K): 4000
Optical system: PMS
Length (mm): 1620
PHD7000L4PM/S/DALI
Effective luminous flux (lm): 7800
System power (W): 53
Color temperature (K): 4000
Optical system: PMS
Length (mm): 1610
PHD7000L4PM/S/ND
Effective luminous flux (lm): 7800
System power (W): 53
Color temperature (K): 4000
Optical system: PMS
Length (mm): 1610
PHD7000L5PC/P1/ND
Effective luminous flux (lm): 7800
System power (W): 53
Color temperature (K): 5700
Optical system: PCS
Length (mm): 1620
PHD7000L5PC/R1/ND
Effective luminous flux (lm): 7800
System power (W): 53
Color temperature (K): 5700
Optical system: PCS
Length (mm): 1620
PHD7000L5PC/S/ND
Effective luminous flux (lm): 7800
System power (W): 53
Color temperature (K): 5700
Optical system: PCS
Length (mm): 1610
PHD7000L6PC/P1/ND
Effective luminous flux (lm): 7800
System power (W): 53
Color temperature (K): 6500
Optical system: PCS
Length (mm): 1610
PHD7000L6PC/P3L1/ND
Effective luminous flux (lm): 7800
System power (W): 53
PHD7000L6PC/S/ND
Effective luminous flux (lm): 7800
System power (W): 53
Color temperature (K): 6500
Optical system: PCS
Length (mm): 1610
CE declaration
LDT files
