Product series New

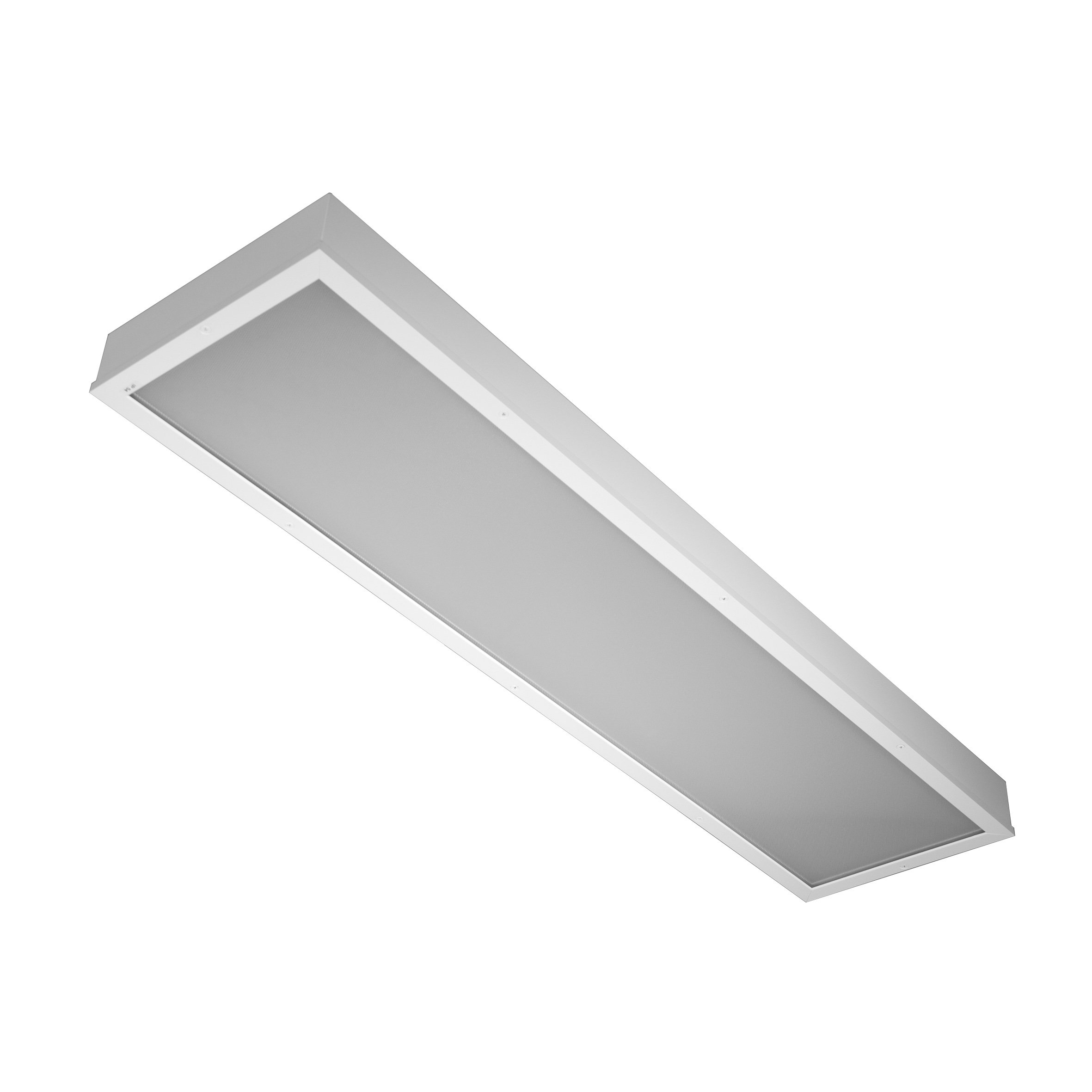

MODUS PKS

Metal industrial luminaire with IP54

MODUS PKS
třída ochrany I.PNG
220-240 v.png
11 L80_80000_h.jpg
en 62 471.png

Standard price from:

On request
Distribution network
Contacts

The metal body is suitable for use in rooms with elevated ambient temperature Ta 46 degrees Celsius.  The luminaire cover can be made of several different materials.

The luminaire can be installed as surface.

The luminaire have an openable cover, the mains connection is via the terminal block inside the luminaire (cable entry is in the back of the luminaire).

Read more about news in industry fitting.

Size version:M
1200 mm
S
600 mm
Body material:White painted steel
Mounting method:Surface mountingProtection class:I
With movement sensor:YesType of control gear:LED operating device current-controlled
Color rendering index CRI:80-89, 90-100Light source type:LED
Color temperature controllable (K):YesLight outlet:Direct
Light sharing:SymmetricImpact strength:IK10
Nominal voltage (V):220...240
Degree of protection (IP):IP54
Color temperature (K):4000, 6500, 3000, 2700, 5700, 2700...6500Rated lifetime L80/B50 (h):80000
Rated ambient temperature (°C):-25...+45Dimming 1-10 V:Yes

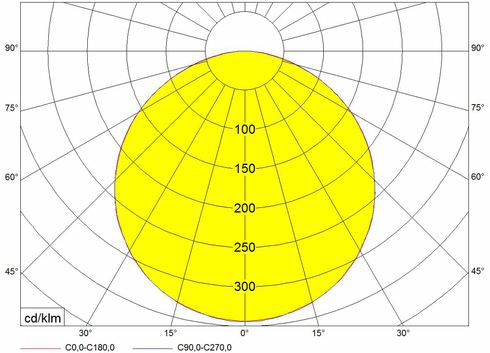

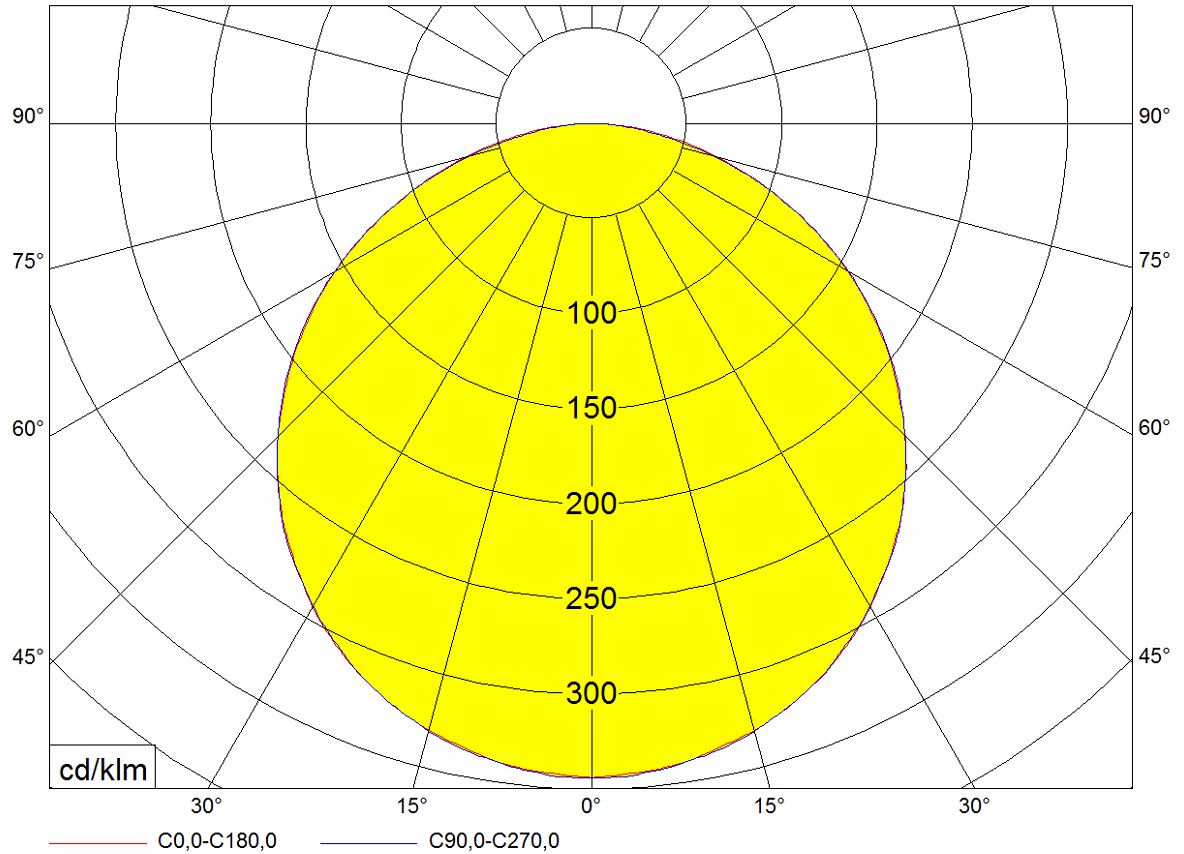

Dimming DALI:YesOptical system:KO
opal cover

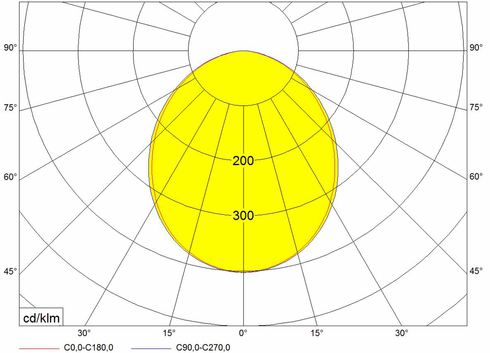

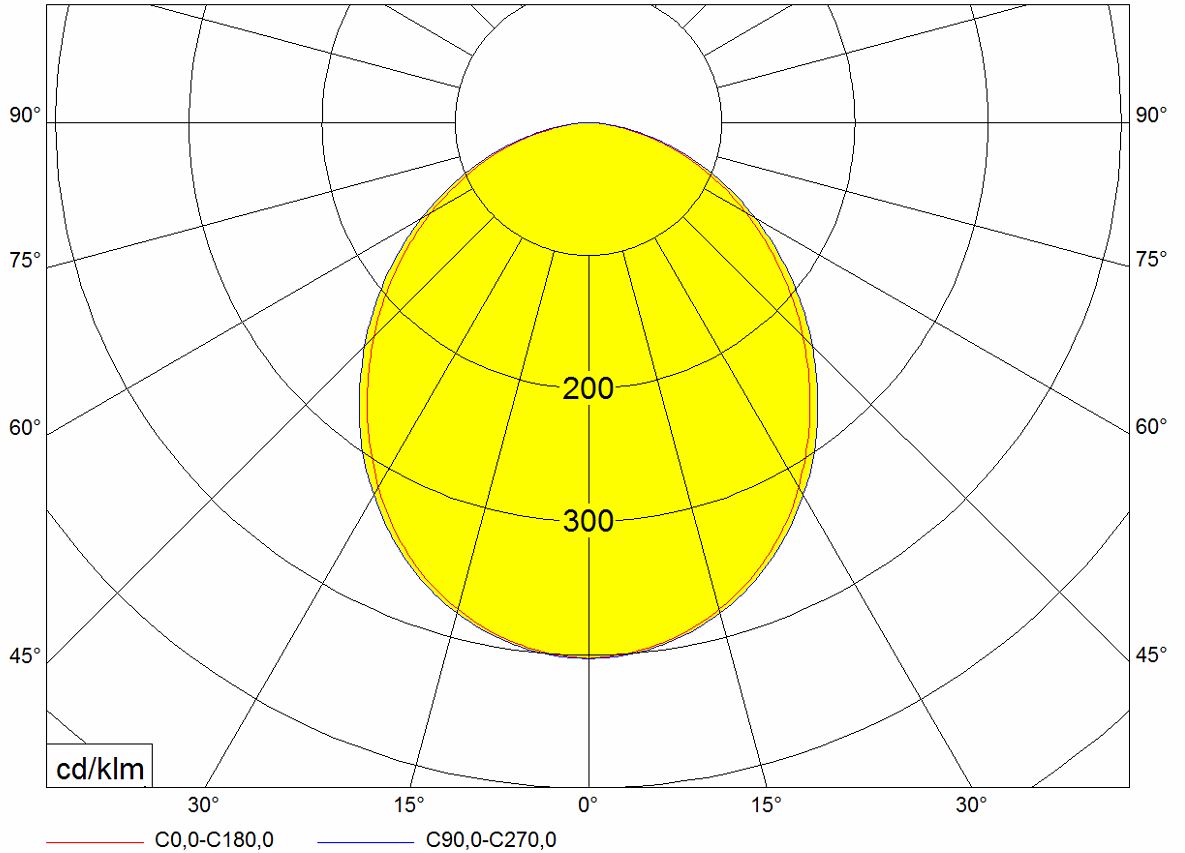

PCO
polycarbonate opal cover

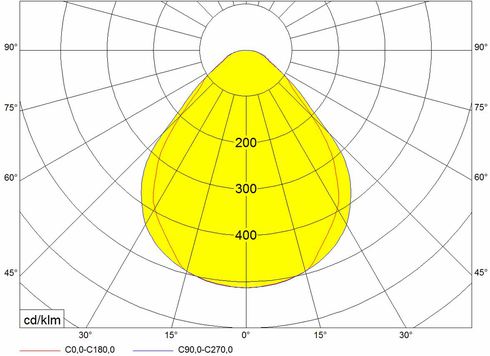

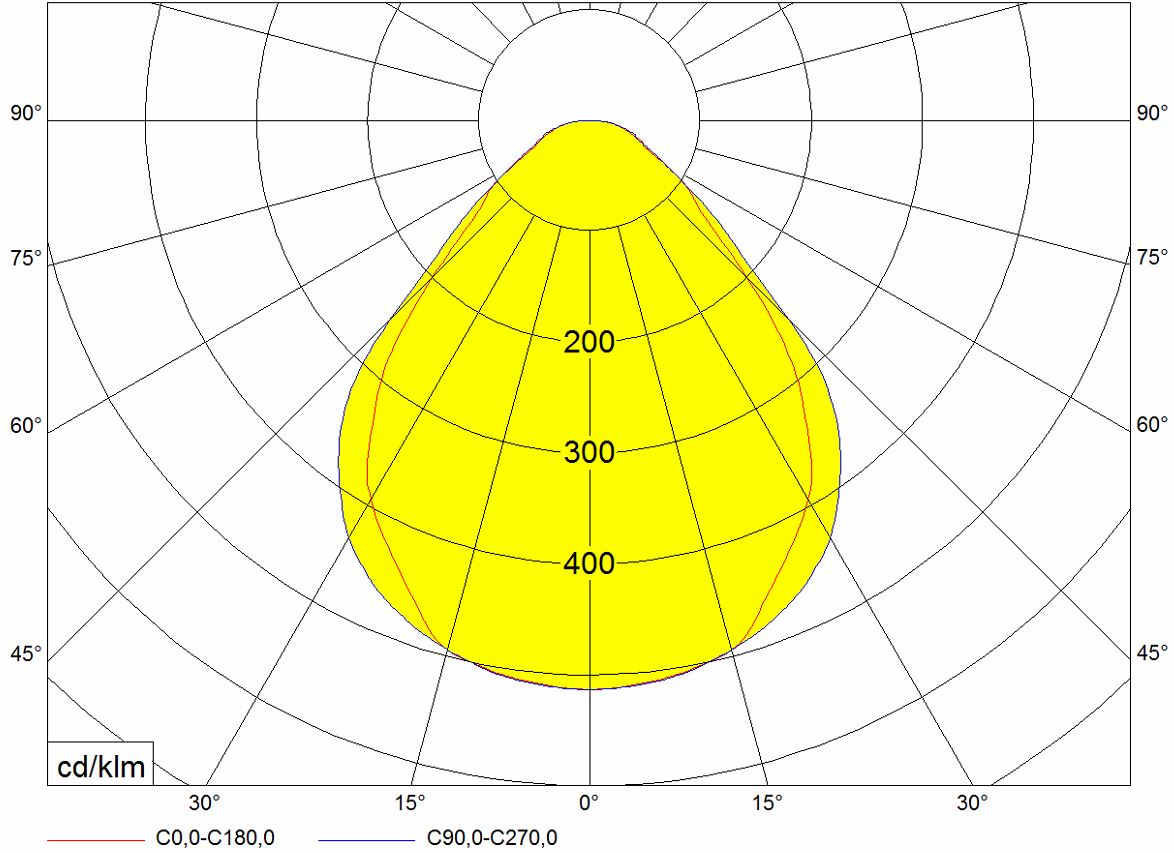

KN
nanoprizmatic cover
PCN
Polycarbonate nanoprismatic cover
Made in Czech republic:Yes Without Chinese components:Ano
Replaceability:Removeable light source, replaceable ballast
Removeable light source, replaceable ballast
Photobiological safety EN 62 471:RG 0
MacAdam binning:SDCM 3
Show more...
LoadingLoading

Filters

Effective luminous flux (lm)

3200
11800

System power (W)

108
80

Luminaire efficacy (lm/W)

100
99
Product name
PKS10000RM2KCN4DALI/90
Effective luminous flux (lm): 7900
System power (W): 80
Color temperature (K): 4000
Optical system: C
Length (mm): 1200
PKS12000RM2PCN4ND
Effective luminous flux (lm): 11800
System power (W): 108
Color temperature (K): 4000
Optical system: PCN
Length (mm): 1200
PKS3000SS4PCO4DALI
Effective luminous flux (lm): 3200
System power (W): 26
Color temperature (K): 4000
Optical system: PCO
PKS3000SS4PCO4ND
Effective luminous flux (lm): 3200
System power (W): 26
Color temperature (K): 4000
Optical system: PCO
PKS4000RM2KCN4ND
Effective luminous flux (lm): 3900
System power (W): 33
Color temperature (K): 4000
Optical system: KCN
Length (mm): 1200
PKS4000RM2KN4ND
Effective luminous flux (lm): 4500
System power (W): 33
Color temperature (K): 4000
Optical system: KN
Length (mm): 1200
PKS4000RM2KN4ND/90
Effective luminous flux (lm): 3600
System power (W): 33
Color temperature (K): 4000
Optical system: KN
Length (mm): 1200
PKS4000RM2KO3DALI
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 3000
Optical system: KO
Length (mm): 1200
PKS4000RM2KO3ND
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 3000
Optical system: KO
Length (mm): 1200
PKS4000RM2KO3NDNZ
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 3000
Optical system: KO
Length (mm): 1200
PKS4000RM2KO4DALI
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 4000
Optical system: KO
Length (mm): 1200
PKS4000RM2KO4ND
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 4000
Optical system: KO
Length (mm): 1200
PKS4000RM2KO4ND/9006
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 4000
Optical system: KO
Length (mm): 1200
PKS4000RM2KO4ND/EU
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 4000
Optical system: KO
Length (mm): 1200
PKS4000RM2KO6ND/90
Effective luminous flux (lm): 3400
System power (W): 33
Color temperature (K): 6500
Optical system: KO
Length (mm): 1200
PKS4000RM2PCN4DALI
Effective luminous flux (lm): 3900
System power (W): 33
Color temperature (K): 4000
Optical system: PCN
Length (mm): 1200
PKS4000RM2PCN4ND
Effective luminous flux (lm): 3900
System power (W): 33
Color temperature (K): 4000
Optical system: PCN
Length (mm): 1200
PKS4000RM2PCO4ND
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 4000
Optical system: PCO
Length (mm): 1200
PKS4000RM2PCO4ND/90
Effective luminous flux (lm): 3500
System power (W): 33
Color temperature (K): 4000
Optical system: PCO
Length (mm): 1200
PKS4000RM2PCO4NDNZ/90
Effective luminous flux (lm): 3500
System power (W): 33
Color temperature (K): 4000
Optical system: PCO
Length (mm): 1200
PKS4000SS4KCN4ND
Effective luminous flux (lm): 3900
System power (W): 33
Color temperature (K): 4000
Optical system: KCN
PKS4000SS4KN4ND
Effective luminous flux (lm): 4500
System power (W): 33
Color temperature (K): 4000
Optical system: KN
PKS4000SS4KO4DALI
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 4000
Optical system: KO
PKS4000SS4KO4ND
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 4000
Optical system: KO
PKS4000SS4KO4NDNZ
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 4000
Optical system: KO
PKS4000SS4PCN4ND
Effective luminous flux (lm): 3900
System power (W): 33
Color temperature (K): 4000
Optical system: PCN
PKS4000SS4PCO4DALI
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 4000
Optical system: PCO
PKS4000SS4PCO4ND
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 4000
Optical system: PCO
PKS4000SS4PCO4ND/HT60
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 4000
Optical system: PCO
PKS6000RM2KCN4ND
Effective luminous flux (lm): 6200
System power (W): 54
Color temperature (K): 4000
Optical system: KCN
Length (mm): 1200
PKS6000RM2KCN4ND/90
Effective luminous flux (lm): 5500
System power (W): 54
Color temperature (K): 4000
Optical system: C
Length (mm): 1200
PKS6000RM2KN4ND
Effective luminous flux (lm): 7350
System power (W): 54
Color temperature (K): 4000
Optical system: KN
Length (mm): 1200
PKS6000RM2KN4ND/90
Effective luminous flux (lm): 5900
System power (W): 54
Color temperature (K): 4000
Optical system: KN
Length (mm): 1200
PKS6000RM2KO2ND
Effective luminous flux (lm): 6500
System power (W): 54
Color temperature (K): 2700
Optical system: KO
Length (mm): 1200
PKS6000RM2KO3ND
Effective luminous flux (lm): 6500
System power (W): 54
Color temperature (K): 3000
Optical system: KO
Length (mm): 1200
PKS6000RM2KO4ND
Effective luminous flux (lm): 6500
System power (W): 54
Color temperature (K): 4000
Optical system: KO
Length (mm): 1200
PKS6000RM2KO4ND/EU
Effective luminous flux (lm): 6500
System power (W): 54
Color temperature (K): 4000
Optical system: KO
Length (mm): 1200
PKS6000RM2KO4ND/P
Effective luminous flux (lm): 6500
System power (W): 54
Color temperature (K): 4000
Optical system: KO
Length (mm): 1200
PKS6000RM2KO4NDNZ
Effective luminous flux (lm): 6500
System power (W): 54
Color temperature (K): 4000
Optical system: KO
Length (mm): 1200
PKS6000RM2PCN3ND
Effective luminous flux (lm): 6200
System power (W): 54
Color temperature (K): 3000
Optical system: PCN
Length (mm): 1200
PKS6000RM2PCN4ND
Effective luminous flux (lm): 6200
System power (W): 54
Color temperature (K): 4000
Optical system: PCN
Length (mm): 1200
PKS6000RM2PCNMIXW
Effective luminous flux (lm): 5900
System power (W): 54
Color temperature (K): 2700...6500
Optical system: PCN
Length (mm): 1200
PKS6000RM2PCO3ND
Effective luminous flux (lm): 6500
System power (W): 54
Color temperature (K): 3000
Optical system: PCO
Length (mm): 1200
PKS6000RM2PCO4DALI
Effective luminous flux (lm): 6500
System power (W): 54
Color temperature (K): 4000
Optical system: PCO
Length (mm): 1200
PKS6000RM2PCO4DALINZ
Effective luminous flux (lm): 6500
System power (W): 54
Color temperature (K): 4000
Optical system: PCO
Length (mm): 1200
PKS6000RM2PCO4ND
Effective luminous flux (lm): 6500
System power (W): 54
Color temperature (K): 4000
Optical system: PCO
Length (mm): 1200
PKS6000RM2PCO4ND/90
Effective luminous flux (lm): 5550
System power (W): 54
Color temperature (K): 4000
Optical system: PCO
Length (mm): 1200
PKS6000RM2PCO4NDNZ/90
Effective luminous flux (lm): 5550
System power (W): 54
Color temperature (K): 4000
Optical system: PCO
Length (mm): 1200
PKS6000SS4KCN4DALI
Effective luminous flux (lm): 6300
System power (W): 54
Color temperature (K): 4000
Optical system: KCN
PKS6000SS4KCN4ND
Effective luminous flux (lm): 6300
System power (W): 54
Color temperature (K): 4000
Optical system: KCN
PKS6000SS4KN4DALI
Effective luminous flux (lm): 6500
System power (W): 54
Color temperature (K): 4000
Optical system: KN
PKS6000SS4KO4ND
Effective luminous flux (lm): 6500
System power (W): 54
PKS6000SS4PCN3ND
Effective luminous flux (lm): 6300
System power (W): 54
Color temperature (K): 3000
Optical system: PCN
PKS6000SS4PCN4DALI
Effective luminous flux (lm): 6300
System power (W): 54
Color temperature (K): 4000
Optical system: PCN
PKS6000SS4PCO4DALI
Effective luminous flux (lm): 6500
System power (W): 54
Color temperature (K): 4000
Optical system: PCO
PKS8000RM2KCN4ND
Effective luminous flux (lm): 7400
System power (W): 64
Color temperature (K): 4000
Optical system: KCN
Length (mm): 1200
PKS8000RM2KCN4ND/90
Effective luminous flux (lm): 6400
System power (W): 64
Color temperature (K): 4000
Optical system: KCN
Length (mm): 1200
PKS8000RM2KN4ND
Effective luminous flux (lm): 8400
System power (W): 64
Color temperature (K): 4000
Optical system: KN
Length (mm): 1200
PKS8000RM2KN4ND/90
Effective luminous flux (lm): 7200
System power (W): 64
Color temperature (K): 4000
Optical system: KN
Length (mm): 1200
PKS8000RM2KN5ND
Effective luminous flux (lm): 8400
System power (W): 64
Color temperature (K): 5700
Optical system: KN
Length (mm): 1200
PKS8000RM2KN6ND
Effective luminous flux (lm): 8400
System power (W): 64
Color temperature (K): 6500
Optical system: KN
Length (mm): 1200
PKS8000RM2KO3DALI
Effective luminous flux (lm): 7500
System power (W): 64
Color temperature (K): 3000
Optical system: KO
Length (mm): 1200
PKS8000RM2KO3ND
Effective luminous flux (lm): 7500
System power (W): 64
Color temperature (K): 3000
Optical system: KO
Length (mm): 1200
PKS8000RM2KO4ND
Effective luminous flux (lm): 7500
System power (W): 64
Color temperature (K): 4000
Optical system: KO
Length (mm): 1200
PKS8000RM2KO5ND
Effective luminous flux (lm): 7500
System power (W): 64
Color temperature (K): 5700
Optical system: KO
Length (mm): 1200
PKS8000RM2PCN4DALI
Effective luminous flux (lm): 7400
System power (W): 64
Color temperature (K): 4000
Optical system: PCN
Length (mm): 1200
PKS8000RM2PCN4ND
Effective luminous flux (lm): 7400
System power (W): 64
Color temperature (K): 4000
Optical system: PCN
Length (mm): 1200
PKS8000RM2PCO4DALI
Effective luminous flux (lm): 7400
System power (W): 64
Color temperature (K): 4000
Optical system: PCO
Length (mm): 1200
PKS8000RM2PCO4ND
Effective luminous flux (lm): 7400
System power (W): 64
Color temperature (K): 4000
Optical system: PCO
Length (mm): 1200
Show all versions

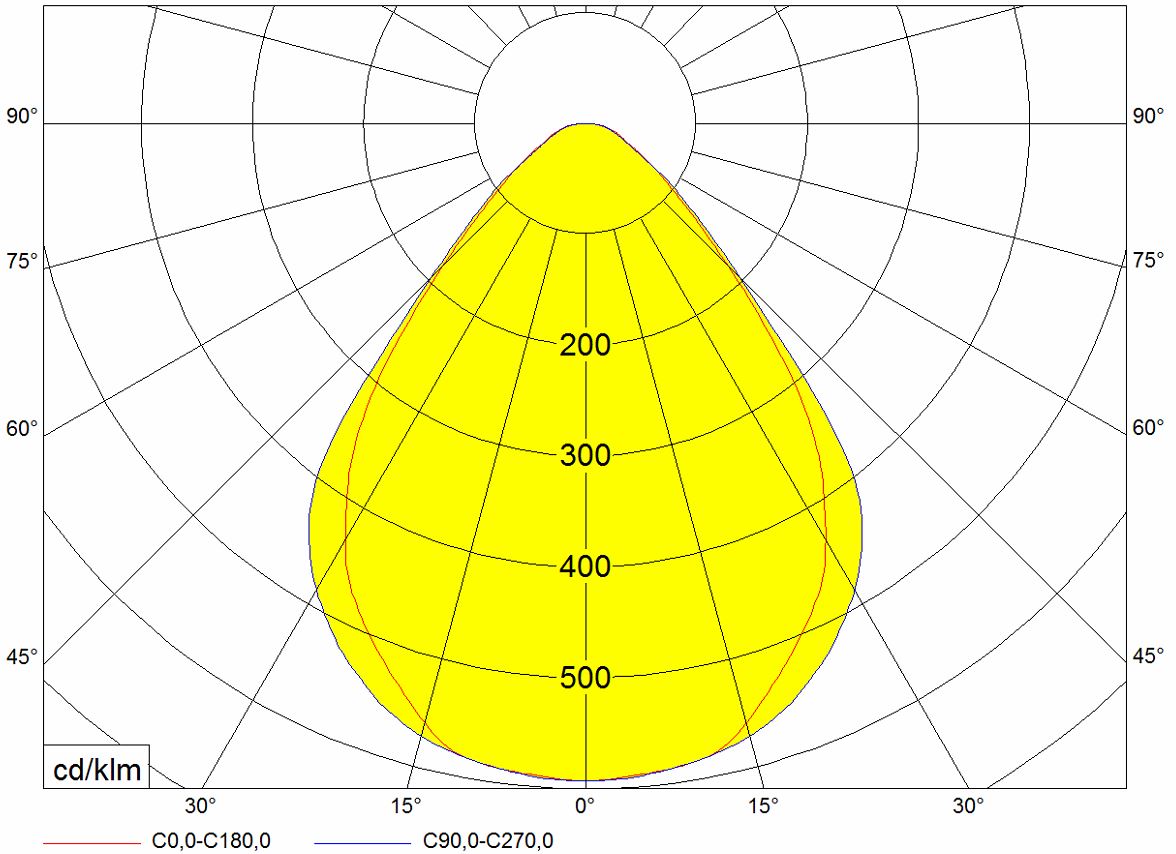

PKS PCN.JPGPKS PCN.JPG
PKS PCO.JPGPKS PCO.JPG
PKS KN.JPGPKS KN.JPG
PKS KO.JPGPKS KO.JPG

Projekty realizované se svítidly MODUS:


Autosalon Rolls-Royce (Australia)

MODUS TEL

Detail reference

Office building of HAGER company

MODUS SPMI + MODUS QP

Detail reference

Commercial centrum

MODUS Q SKY

Detail reference

Tennis play-ground Bratislava (SK)

MODUS MEGAL

Detail reference
Zobrazit další reference
New
MODUS PKK

MODUS PKK

Metal industrial luminaire with IP65

 Back to product list

We are here to help

We'll advise you all, we have outstanding support.
Lighting calculations

Lighting calculations

Do you need to calculate the lighting?

LDT files

LDT files

Do you need LDT data for your project?

Product support

Product support

Do not know what kind of lighting is best for you?

Connection diagrams

Connection diagrams

Do not you know how to conect luminaires properly?

Contact
