MODUS QN DI

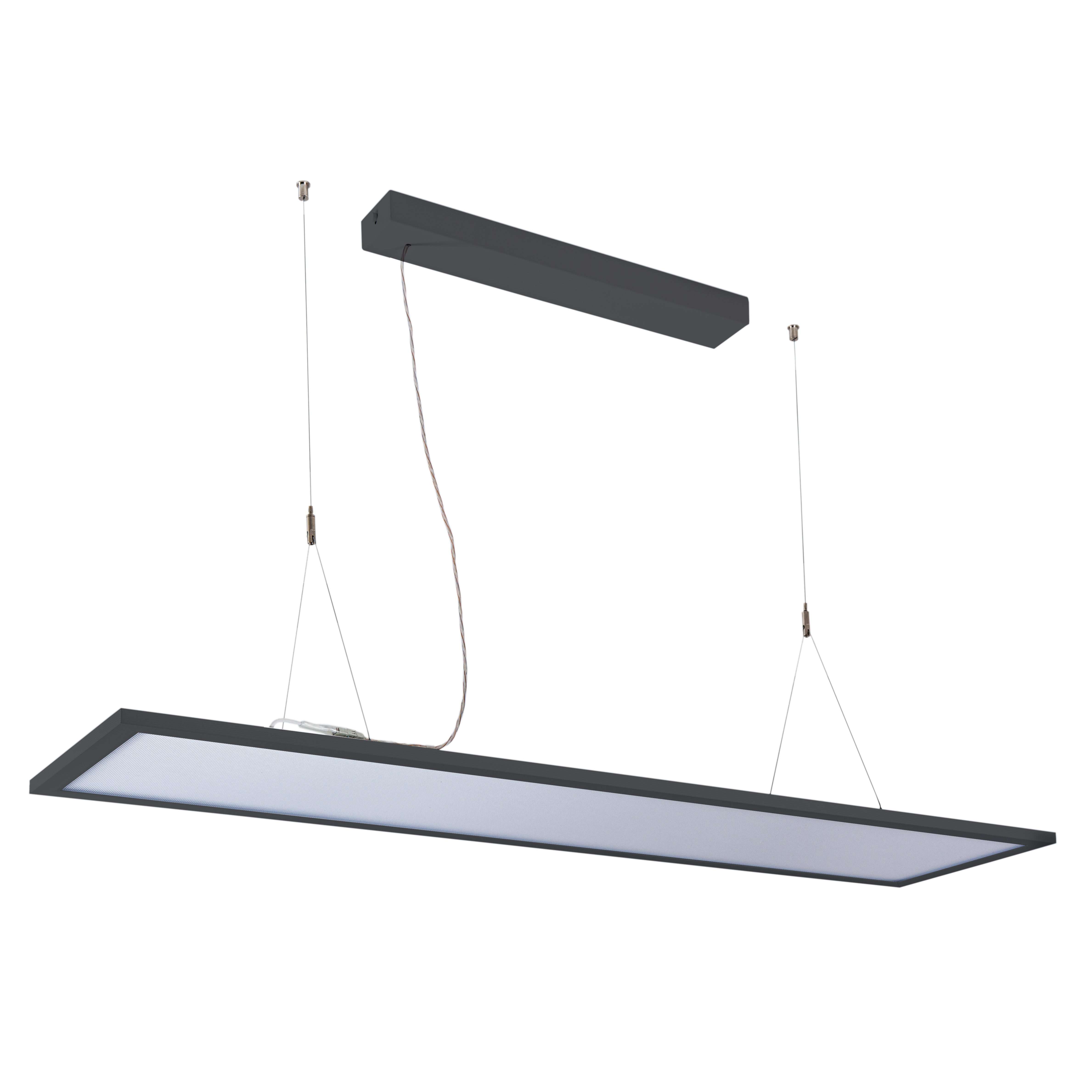

Pendant direct/indirect luminaire

MODUS QN DI

3D

MODUS QN DI
MODUS QN AMODUS QN A
MODUS QN CMODUS QN C
závěesné DI.PNG
třída ochrany I.PNG
220-240 v.png
11 L80_80000_h.jpg
en 62 471.png

Standard price from:

On request
Distribution network
Contacts

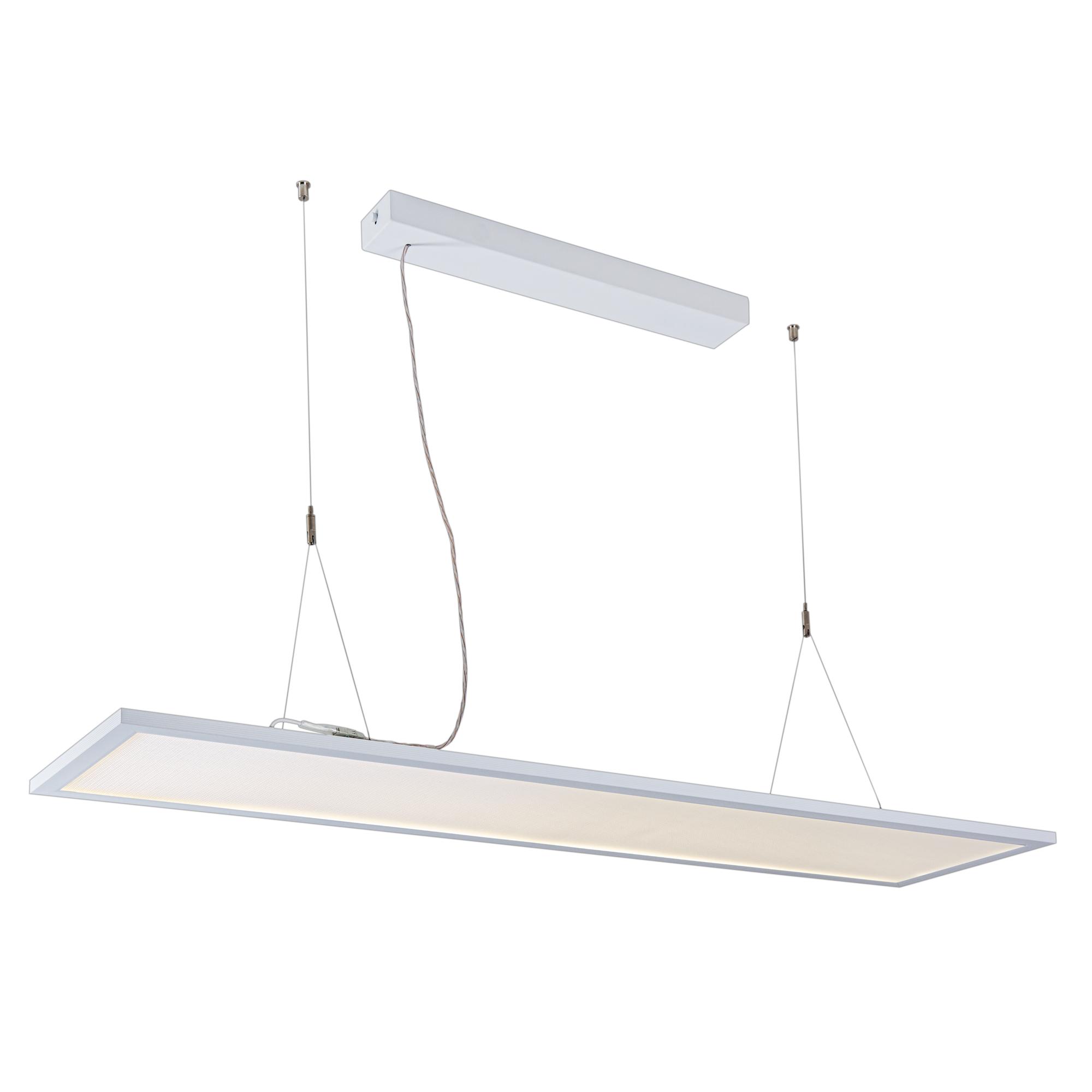

Modern direct/indirect luminaire. Base of luminaire is made from aluminium frame where LED moduls are installed (edge-lit).
Direct lighting part is made from nanoprisma material for UGR limitation.

Luminaire is offered in two sizes:

QN...DI...C - rectangle 120x30 cm

QN...DI...F - rectangle 150x30 cm

Luminaire is delivered with white painted driver box + suspension set (lenght 2 metres).



Body material:White painted aluminium frameMounting method:Pendant DI
Protection class:IColor rendering index CRI:80-89, 90-100
Light source type:LEDAnti-glare limiting UGR:19
Color temperature controllable (K):YesLight outlet:Direct/indirect
Nominal voltage (V):220...240Degree of protection (IP):IP20
Fit for monitor workplace:Yes
Color temperature (K):4000, 6500, 3000, 2700, 5700
Rated lifetime L80/B50 (h):80000Rated ambient temperature (°C):0...+25
Dimming DALI:YesProduct category:Pendant luminaire

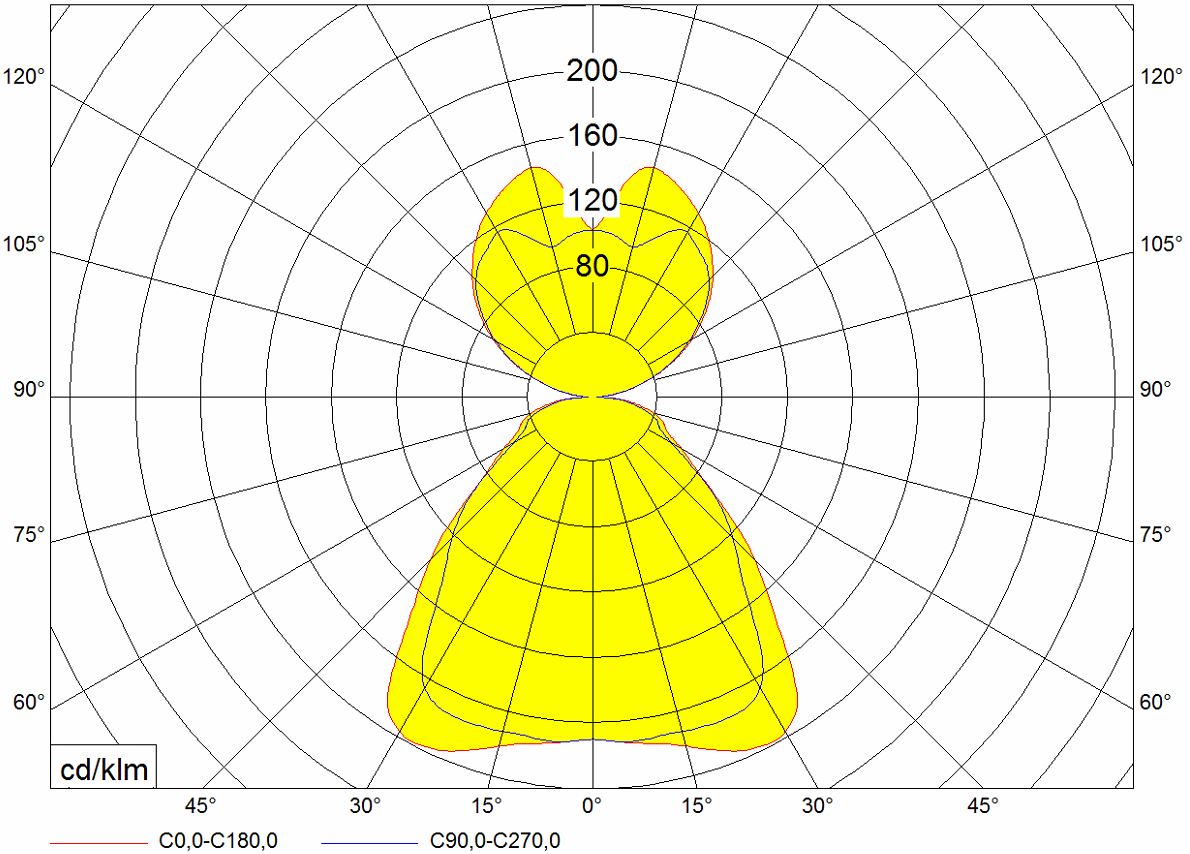

Optical system:KN D/I
Nanoprismatic cover for direct/indirect lighting
Made in Czech republic:Yes
Replaceability:Removeable light source, replaceable ballast
Removeable light source, replaceable ballast
Photobiological safety EN 62 471:RG 0
MacAdam binning:SDCM 3
Show more...
LoadingLoading

Filters

Effective luminous flux (lm)

3500
9100

System power (W)

35
70
Product name
QN2C600/2DI/1050DALI/Z
Effective luminous flux (lm): 6800
System power (W): 50
Color temperature (K): 3000
Length (mm): 1200
QN2C600/2DI/1400DALI/Z
Effective luminous flux (lm): 9100
System power (W): 70
Color temperature (K): 3000
Length (mm): 1200
QN2C600/2DI/1400ND/Z
Effective luminous flux (lm): 9100
System power (W): 70
Color temperature (K): 3000
Length (mm): 1200
QN2C600/2DI/700ND/Z
Effective luminous flux (lm): 4800
System power (W): 35
Color temperature (K): 2700
Length (mm): 1200
QN2C600/2DI/B/1050DALI
Effective luminous flux (lm): 6800
System power (W): 50
QN2C600/2DI/B/1050ND
Effective luminous flux (lm): 6800
System power (W): 50
QN2C600/2DI/B/1400ND
Effective luminous flux (lm): 9100
System power (W): 70
QN2C600/2DI/B/700DALI
Effective luminous flux (lm): 4800
System power (W): 35
QN2C600/DI/1050DALI
Effective luminous flux (lm): 5800
System power (W): 54
Color temperature (K): 2900
Length (mm): 1200
QN2C600/DI/1050ND
Effective luminous flux (lm): 5800
System power (W): 54
Color temperature (K): 3000
Length (mm): 1200
QN2C600/DI/B/700ND/Z
Effective luminous flux (lm): 3500
System power (W): 35
Color temperature (K): 2900
Length (mm): 1200
QN2C600/DI/B700ND
Effective luminous flux (lm): 3500
System power (W): 35
Color temperature (K): 2900
Length (mm): 1200
QN2F600/DI/1400DALI/BTC
Effective luminous flux (lm): 6500
System power (W): 62
Color temperature (K): 3000
Length (mm): 1500
QN2F600/DI/B/1050ND
Effective luminous flux (lm): 5100
System power (W): 47
Color temperature (K): 3000
Length (mm): 1500
QN2F600/DI/C/1050ND
Effective luminous flux (lm): 5100
System power (W): 47
Color temperature (K): 3000
Length (mm): 1500
QN2F600/DI/C/1400ND
Effective luminous flux (lm): 6500
System power (W): 62
Color temperature (K): 3000
Length (mm): 1500
QN3A600/DI/1050DALI
Effective luminous flux (lm): 5800
System power (W): 52
Color temperature (K): 4000
Length (mm): 596
QN3A600/DI/1050ND
Effective luminous flux (lm): 5800
System power (W): 52
Color temperature (K): 4000
Length (mm): 596
QN3C600/2DI/1050DALI
Effective luminous flux (lm): 6800
System power (W): 50
Color temperature (K): 4000
Length (mm): 1200
QN3C600/2DI/1050DALI/Z
Effective luminous flux (lm): 6800
System power (W): 50
Color temperature (K): 4000
Length (mm): 1200
QN3C600/2DI/1050ND/Z
Effective luminous flux (lm): 6800
System power (W): 50
Color temperature (K): 4000
Length (mm): 1200
QN3C600/2DI/1400DALI/Z
Effective luminous flux (lm): 9100
System power (W): 70
Color temperature (K): 4000
Length (mm): 1200
QN3C600/2DI/1400ND
Effective luminous flux (lm): 9100
System power (W): 70
Color temperature (K): 4000
Length (mm): 1200
QN3C600/2DI/1400ND/Z
Effective luminous flux (lm): 9100
System power (W): 70
Color temperature (K): 4000
Length (mm): 1200
QN3C600/2DI/700DALI/Z
Effective luminous flux (lm): 4800
System power (W): 35
Color temperature (K): 4000
Length (mm): 1200
QN3C600/2DI/700DALI/Z/90
Effective luminous flux (lm): 4100
System power (W): 35
Color temperature (K): 4000
Length (mm): 1200
QN3C600/2DI/700ND/Z
Effective luminous flux (lm): 4800
System power (W): 35
Color temperature (K): 4000
Length (mm): 1200
QN3C600/2DI/9010/1050DALI/Z
Effective luminous flux (lm): 6800
System power (W): 50
Color temperature (K): 4000
Length (mm): 1200
QN3C600/2DI/B/1050DALI
Effective luminous flux (lm): 6800
System power (W): 50
Color temperature (K): 4000
Length (mm): 1200
QN3C600/2DI/B/1050ND
Effective luminous flux (lm): 6800
System power (W): 50
Color temperature (K): 4000
Length (mm): 1200
QN3C600/2DI/B/1050ND/Z
Effective luminous flux (lm): 6800
System power (W): 50
Color temperature (K): 4000
Length (mm): 1200
QN3C600/2DI/B/1400ND
Effective luminous flux (lm): 9100
System power (W): 70
Color temperature (K): 4000
Length (mm): 1200
QN3C600/2DI/B/700BT
Effective luminous flux (lm): 4800
System power (W): 35
Color temperature (K): 4000
Length (mm): 1200
QN3C600/2DI/B/700DALI
Effective luminous flux (lm): 4800
System power (W): 35
Color temperature (K): 4000
Length (mm): 1200
QN3C600/2DI/B/700ND
Effective luminous flux (lm): 4800
System power (W): 35
Color temperature (K): 4000
Length (mm): 1200
QN3C600/2DI/B/700ND/Z
Effective luminous flux (lm): 4800
System power (W): 35
Color temperature (K): 4000
Length (mm): 1200
QN3C600/2DI/C/1050DALI/Z
Effective luminous flux (lm): 6800
System power (W): 50
Color temperature (K): 4000
Length (mm): 1200
QN3C600/2DI/C/1400DALI/Z
Effective luminous flux (lm): 9100
System power (W): 70
Color temperature (K): 4000
Length (mm): 1200
QN3C600/DI/1050DALI
Effective luminous flux (lm): 5800
System power (W): 54
Color temperature (K): 4000
Length (mm): 1200
QN3C600/DI/1050DALI/BTC
Effective luminous flux (lm): 5800
System power (W): 54
Color temperature (K): 4000
Length (mm): 1200
QN3C600/DI/1050ND
Effective luminous flux (lm): 5800
System power (W): 54
Color temperature (K): 4000
Length (mm): 1200
QN3C600/DI/1050ND/90
Effective luminous flux (lm): 5000
System power (W): 54
Color temperature (K): 3800
Length (mm): 1200
QN3C600/DI/700ND
Effective luminous flux (lm): 3500
System power (W): 35
Color temperature (K): 4000
Length (mm): 1200
QN3C600/DI/B/700BT
Effective luminous flux (lm): 3500
System power (W): 35
Color temperature (K): 4000
Length (mm): 1200
QN3C600/DI/B1050ND
Effective luminous flux (lm): 5800
System power (W): 54
Color temperature (K): 4000
Length (mm): 1200
QN3C600/DI/B1050ND/90
Effective luminous flux (lm): 5000
System power (W): 54
Color temperature (K): 4000
Length (mm): 1200
QN3C600/DI/B700DALI
Effective luminous flux (lm): 3500
System power (W): 35
Color temperature (K): 4000
Length (mm): 1200
QN3C600/DI/B700ND
Effective luminous flux (lm): 3500
System power (W): 35
Color temperature (K): 4000
Length (mm): 1200
QN3C600/DI/C1050ND
Effective luminous flux (lm): 5800
System power (W): 54
Color temperature (K): 4000
Length (mm): 1200
QN3C600/DI/C700DALI
Effective luminous flux (lm): 3500
System power (W): 35
Color temperature (K): 4000
Length (mm): 1200
QN3C600/DI/C700ND
Effective luminous flux (lm): 3500
System power (W): 35
Color temperature (K): 4000
Length (mm): 1200
QN3F600/DI/1050DALI
Effective luminous flux (lm): 5100
System power (W): 47
Color temperature (K): 4000
Length (mm): 1500
QN3F600/DI/1050DALI/90
Effective luminous flux (lm): 4400
System power (W): 47
Color temperature (K): 4000
Length (mm): 1500
QN3F600/DI/1050ND
Effective luminous flux (lm): 5100
System power (W): 47
Color temperature (K): 4000
Length (mm): 1500
QN3F600/DI/1400DALI
Effective luminous flux (lm): 6500
System power (W): 62
Color temperature (K): 4000
Length (mm): 1500
QN3F600/DI/1400ND
Effective luminous flux (lm): 6500
System power (W): 62
Color temperature (K): 4000
Length (mm): 1500
QN3F600/DI/1400ND/90
Effective luminous flux (lm): 5500
System power (W): 62
Color temperature (K): 4000
Length (mm): 1500
QN3F600/DI/B/1050DALI
Effective luminous flux (lm): 5100
System power (W): 47
Color temperature (K): 4000
Length (mm): 1500
QN3F600/DI/B/1050DALI/BTC
Effective luminous flux (lm): 5100
System power (W): 47
Color temperature (K): 4000
Length (mm): 1500
QN3F600/DI/B/1050ND
Effective luminous flux (lm): 5100
System power (W): 47
Color temperature (K): 4000
Length (mm): 1500
QN3F600/DI/B/1400DALI
Effective luminous flux (lm): 6500
System power (W): 62
Color temperature (K): 4000
Length (mm): 1500
QN3F600/DI/B/1400DALI/Z
Effective luminous flux (lm): 6500
System power (W): 62
Color temperature (K): 4000
Length (mm): 1500
QN3F600/DI/B/1400ND
Effective luminous flux (lm): 6500
System power (W): 62
Color temperature (K): 4000
Length (mm): 1500
QN3F600/DI/B/1400ND/90
Effective luminous flux (lm): 5550
System power (W): 62
Color temperature (K): 4000
Length (mm): 1500
QN3F600/DI/C/1400ND
Effective luminous flux (lm): 6500
System power (W): 62
Color temperature (K): 4000
Length (mm): 1500
QN5C600/2DI/1050DALI/Z
Effective luminous flux (lm): 6800
System power (W): 50
Color temperature (K): 5700
Length (mm): 1200
QN5C600/2DI/700ND/Z
Effective luminous flux (lm): 4800
System power (W): 35
Color temperature (K): 5700
Length (mm): 1200
QN5C600/DI/1050DALI/90
Effective luminous flux (lm): 5200
System power (W): 50
Color temperature (K): 5700
Length (mm): 1200
QN5C600/DI/1050ND
Effective luminous flux (lm): 5800
System power (W): 54
Color temperature (K): 5700
Length (mm): 1200
QN5C600/DI/1050ND/90
Effective luminous flux (lm): 5200
System power (W): 50
Color temperature (K): 5700
Length (mm): 1200
QN5C600/DI/B/1050ND/90
Effective luminous flux (lm): 5200
System power (W): 50
Color temperature (K): 5700
Length (mm): 1200
QN5F600/DI/1400DALI
Effective luminous flux (lm): 6500
System power (W): 62
Color temperature (K): 5700
Length (mm): 1500
QN5F600/DI/1400ND
Effective luminous flux (lm): 6500
System power (W): 62
Color temperature (K): 5700
Length (mm): 1500
QN5F600/DI/B/1050ND
Effective luminous flux (lm): 5100
System power (W): 47
Color temperature (K): 5700
Length (mm): 1500
QN5F600/DI/B/1400DALI
Effective luminous flux (lm): 6500
System power (W): 62
Color temperature (K): 5700
Length (mm): 1500
QN6C600/DI/C/1050DALI
Effective luminous flux (lm): 5800
System power (W): 54
Color temperature (K): 6500
Length (mm): 1200
QN6F600/DI/C/1400DALI
Effective luminous flux (lm): 6500
System power (W): 62
Color temperature (K): 6500
Length (mm): 1500
Show all versions

Projekty realizované se svítidly MODUS:


Autosalon Rolls-Royce (Australia)

MODUS TEL

Detail reference

Office building of HAGER company

MODUS SPMI + MODUS QP

Detail reference

Commercial centrum

MODUS Q SKY

Detail reference

Tennis play-ground Bratislava (SK)

MODUS MEGAL

Detail reference
Zobrazit další reference
 Back to product list

We are here to help

We'll advise you all, we have outstanding support.
Lighting calculations

Lighting calculations

Do you need to calculate the lighting?

LDT files

LDT files

Do you need LDT data for your project?

Product support

Product support

Do not know what kind of lighting is best for you?

Connection diagrams

Connection diagrams

Do not you know how to conect luminaires properly?

Contact
