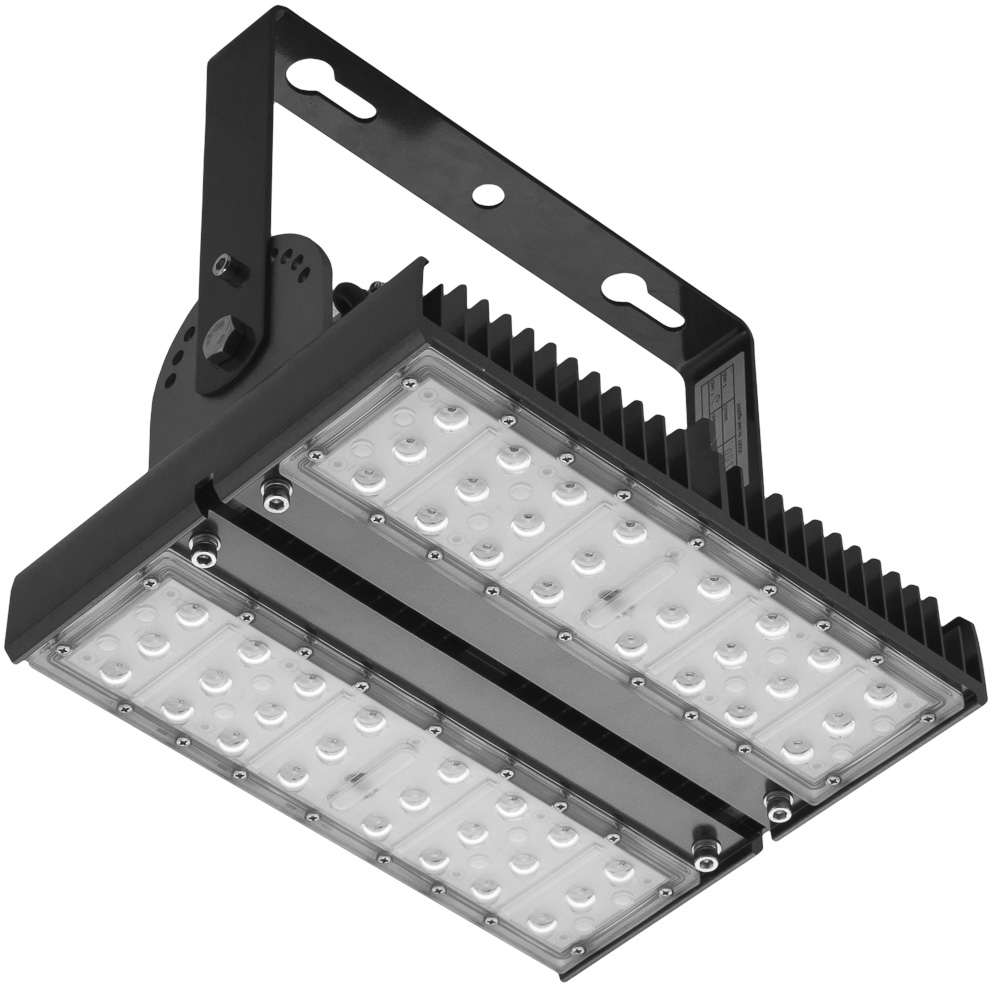

MODUS RX PLANT

Grow supporting LED floodlight

MODUS RX PLANT
1 M10_nasten_celkove_osv.jpg
třída ochrany I.PNG
220-240 v.png
11 L80_80000_h.jpg
en 62 471.png

Standard price from:

On request

Fittings with special requirements for plants: Red (~660mnm) & blue (~450 nm) are the most appropriate wavelengths from a technical point of view - Chlorophyll absorption has maxima at 400- 500 and 600-700 nm Different wavelengths stimulate different plant properties: Blue stimulates flowers to open up („wake-up call“) Red/deep red stimulates growth and flowering (direct absorption in Chlorophyll) IR can trigger growth of long-night plants („prolonged sunset“)

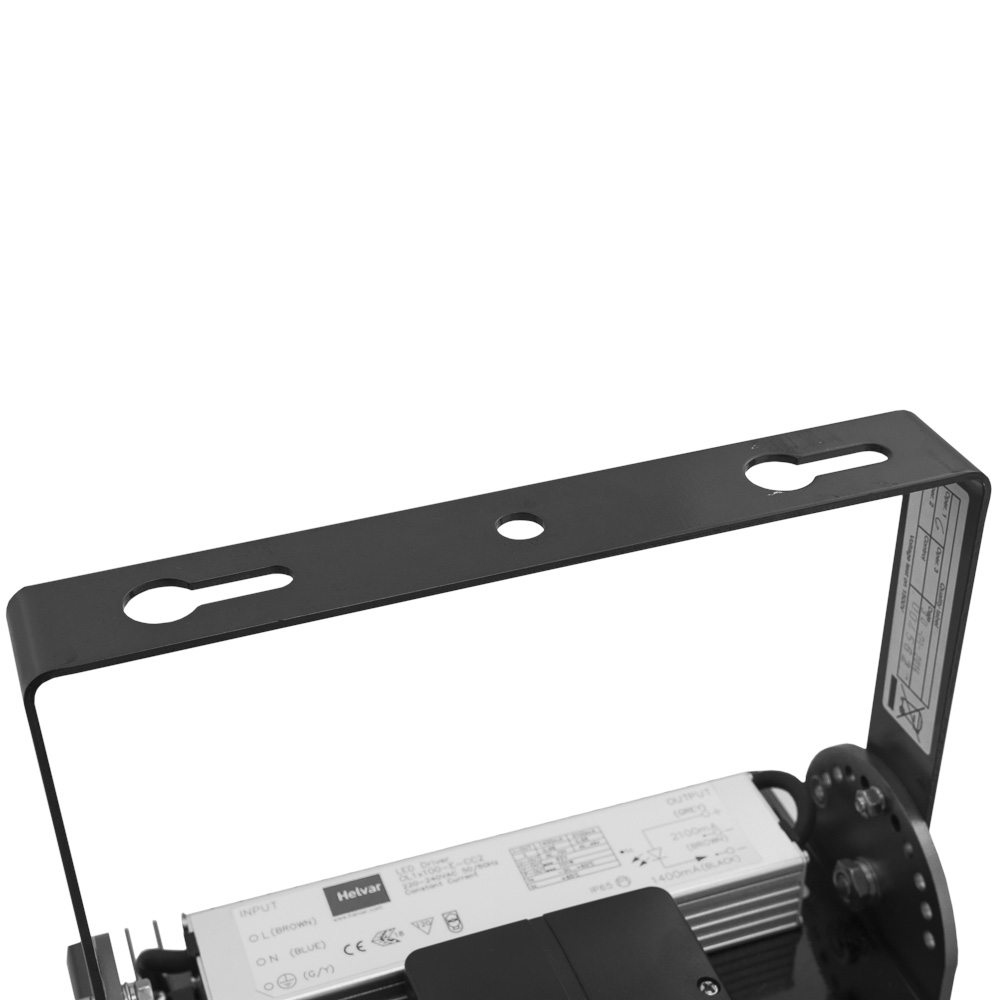

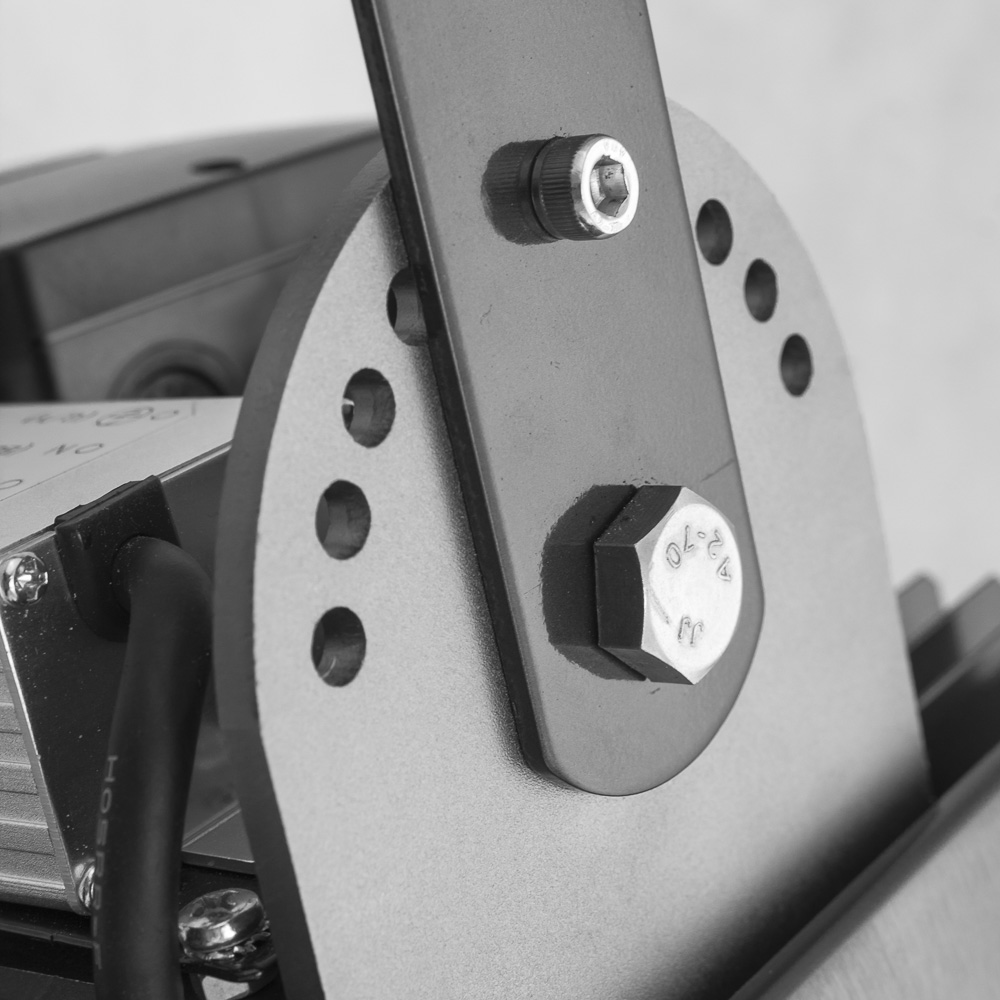

Body material:Aluminium die-castMounting method:Pendant, Wall surface mounted, Surface mounting
Protection class:IType of control gear:LED operating device current-controlled
Light source type:LEDNominal voltage (V):220...240
Degree of protection (IP):IP65
Rated lifetime L80/B50 (h):80000
Optical system:90W

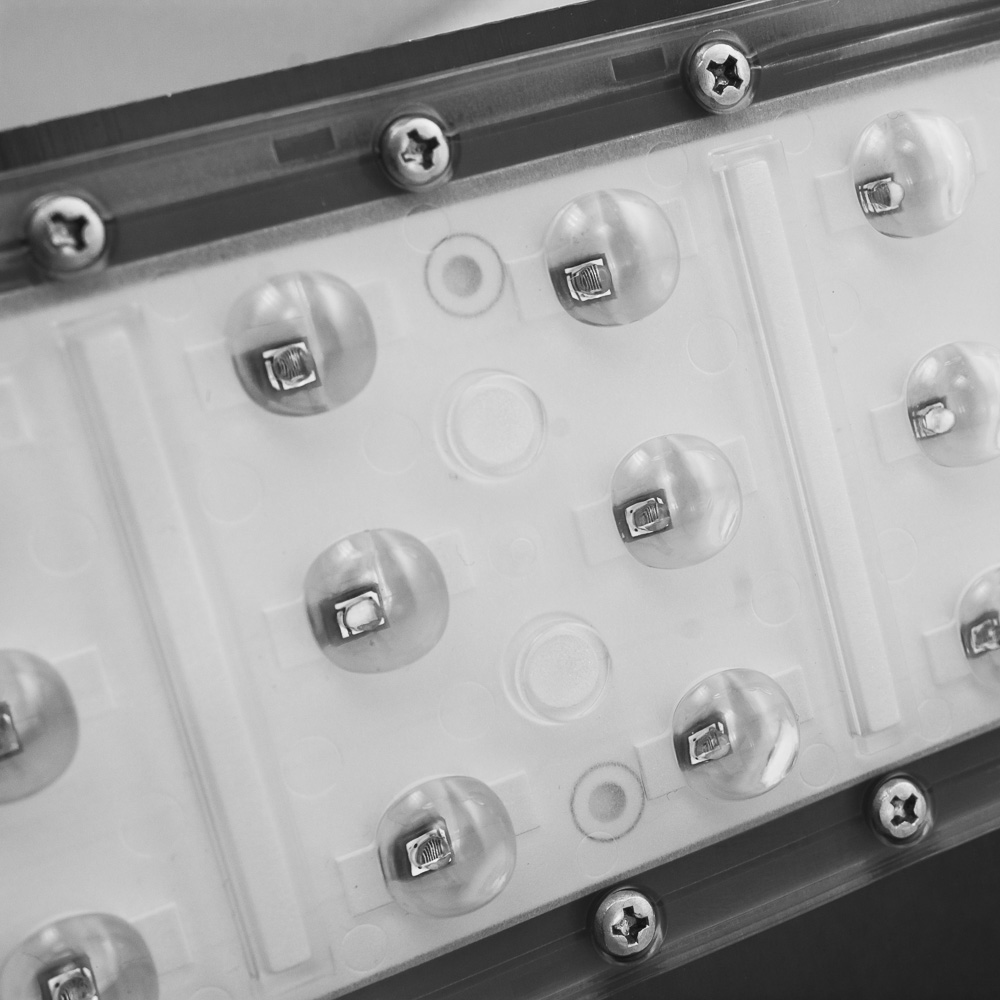

Symetrický PMMA optický systém, širokozářič 90°
Made in Czech republic:Yes
Replaceability:Removeable light source, replaceable ballast
Removeable light source, replaceable ballast
Photobiological safety EN 62 471:RG 0
