Product series New

MODUS SBN

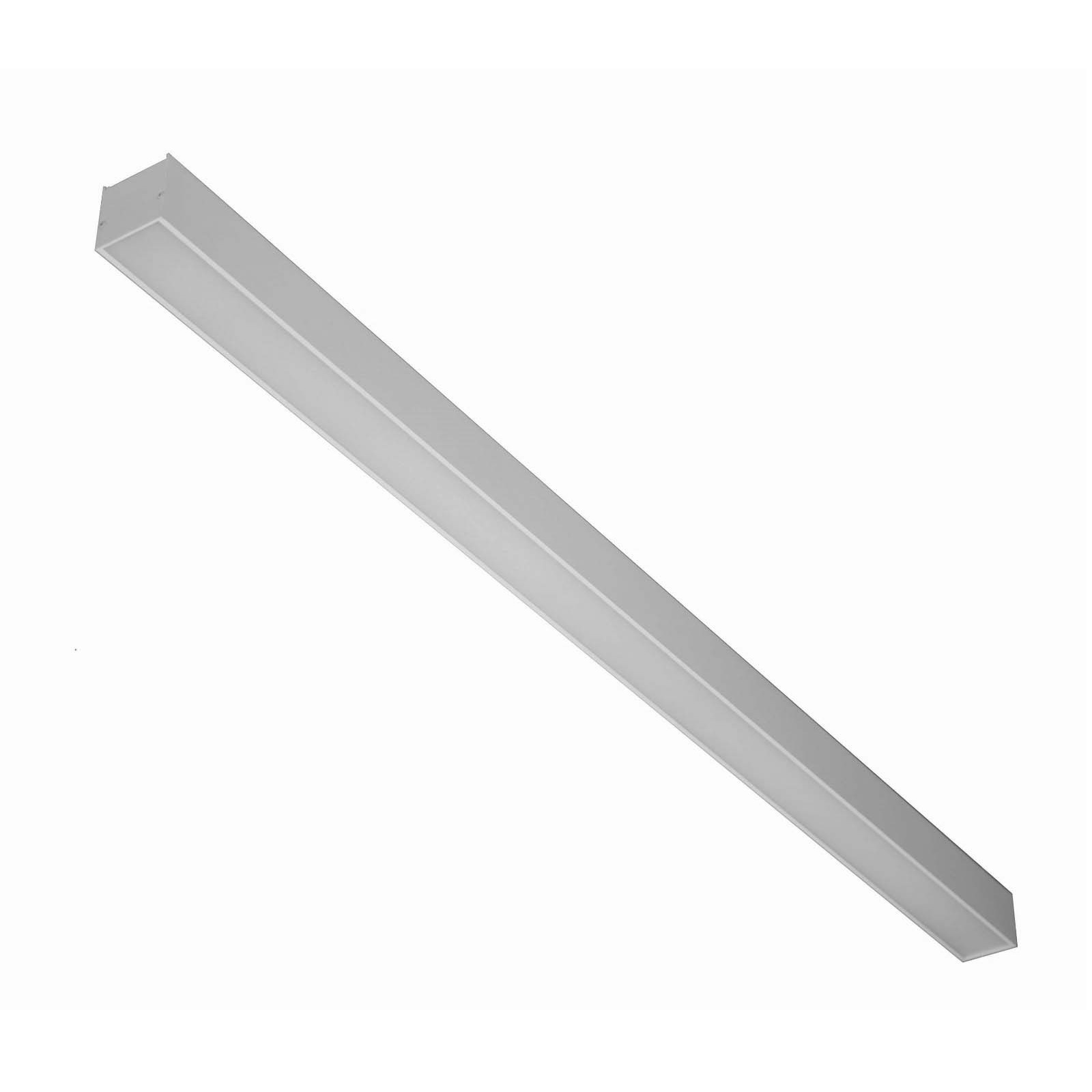

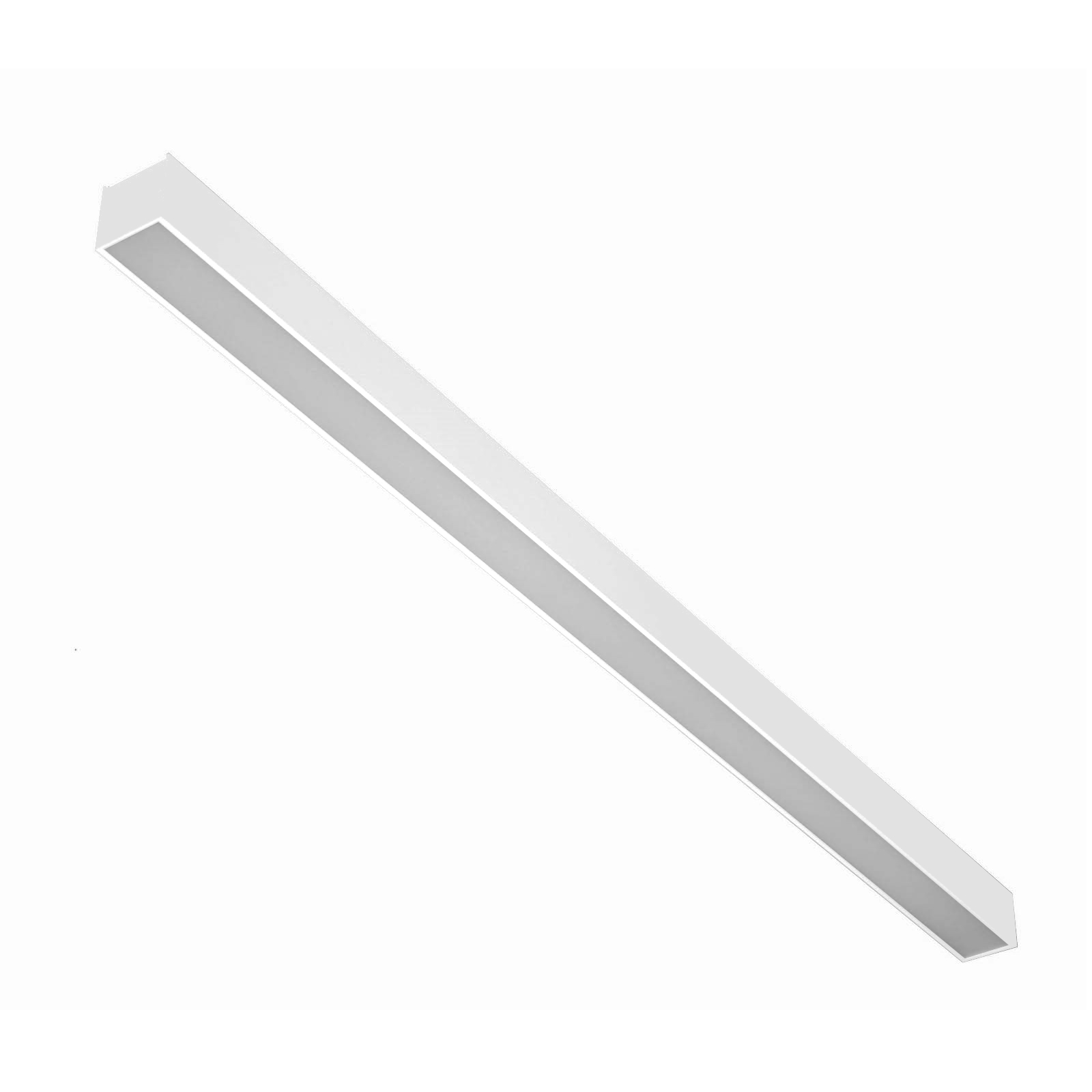

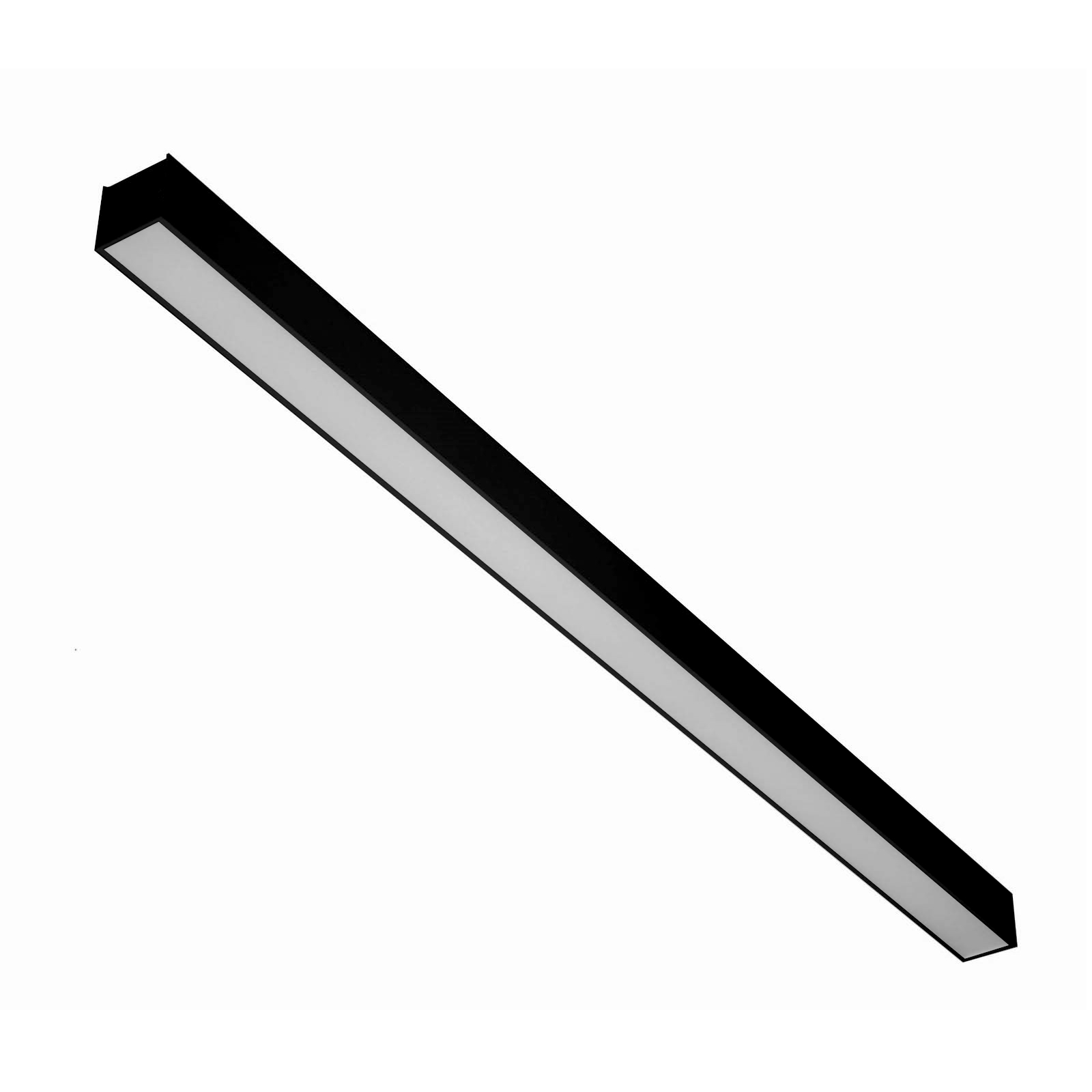

Aluminium linear luminaire for solo or row/object installation

MODUS SBN
1 M10_nasten_celkove_osv.jpg
220-240 v.png
11 L80_80000_h.jpg
en 62 471.png

Standard price from:

On request
Distribution network
Contacts

Luminaires are made surface or pendant installation (in case of pendant installation is needed to order suspension set ZH/UNI4 - one set for two luminaires)

Body is made from aluminium profile (standartly in RAL9007 with soft structure), possible make in white or another colours by request of project.

Optical system can be opal (KO) or nanoprisma (KN).

In case of pendant installation luminaires can be used as solo (SBN) or continous installation (SBN/R), in that case is needed to order accesorie such as:

SBNSPOJP - connection part for row installation

SBNSPOJT - connection part "T" shape

SBNSPOJR - connection part 90 degrees

SBNSPOJK - connection part "X" shape

These connection parts are made with Wieland connectors (except SBNSPOJP) for easy installation (3 poles connectors for nondimm and 5 poles connectors for DALI).

In the case of installation to the row/line or another shapes is important to order correct types of luminaires:

SBN.../RSTART - luminaires with power supply terminal box and one Wieland connector

SBN.../RCONT- luminaires with wieland connectors at both ends

SBN.../REND - luminaires with one wieland connector



Body material:Eloxal aluminium profileMounting method:Pendant, Wall surface mounted, Surface mounting
Protection class:IType of control gear:LED operating device current-controlled
Color rendering index CRI:80-89Light source type:LED
Light outlet:DirectLight sharing:Symmetric
Nominal voltage (V):220...240Degree of protection (IP):IP20
Color temperature (K):4000, 3000, 2700, 5700Rated lifetime L80/B50 (h):80000
Dimming 1-10 V:YesDimming DALI:Yes
Optical system:KO
opal cover
KN
nanoprizmatic cover
Made in Czech republic:Yes
Replaceability:Replaceable light source by professional, replaceable ballast
Replaceable light source by professional, replaceable ballast
Photobiological safety EN 62 471:RG 0
MacAdam binning:SDCM 3
Show more...
LoadingLoading

Filters

Effective luminous flux (lm)

1300
5200

System power (W)

13
42
Product name
SBN1000MKN4/B/ND
Effective luminous flux (lm): 1300
System power (W): 9
Color temperature (K): 4000
Optical system: KN
Length (mm): 1185
SBN1000SKN4/B/ND/REND
Effective luminous flux (lm): 1300
System power (W): 9
SBN1500SKN3/B/ND
Effective luminous flux (lm): 1700
System power (W): 13
Color temperature (K): 3000
Optical system: KN
Length (mm): 605
SBN1500SKN3/B/ND/RCONT
Effective luminous flux (lm): 1700
System power (W): 13
Color temperature (K): 3000
Optical system: KN
Length (mm): 605
SBN1500SKN3/B/ND/REND
Effective luminous flux (lm): 1700
System power (W): 13
Color temperature (K): 3000
Optical system: KN
Length (mm): 605
SBN1500SKN3/B/ND/RSTART
Effective luminous flux (lm): 1700
System power (W): 13
Color temperature (K): 3000
Optical system: KN
Length (mm): 605
SBN1500SKN3/DALI/RSTART
Effective luminous flux (lm): 1700
System power (W): 13
Color temperature (K): 3000
Optical system: KN
Length (mm): 605
SBN1500SKN3/X/DALI
Effective luminous flux (lm): 1700
System power (W): 13
Color temperature (K): 3000
Optical system: KN
Length (mm): 605
SBN1500SKN4/B/ND
Effective luminous flux (lm): 1700
System power (W): 13
Color temperature (K): 4000
Optical system: KN
Length (mm): 605
SBN1500SKN4/B/ND/RCONT
Effective luminous flux (lm): 1700
System power (W): 13
SBN1500SKN4/B/ND/REND
Effective luminous flux (lm): 1700
System power (W): 13
Color temperature (K): 4000
Optical system: KN
Length (mm): 605
SBN1500SKN4/B/ND/RSTART
Effective luminous flux (lm): 1700
System power (W): 13
Color temperature (K): 4000
Optical system: KN
Length (mm): 605
SBN2000LKN3/B/ND/RCONT
Effective luminous flux (lm): 2500
System power (W): 18
Color temperature (K): 3000
Optical system: KN
Length (mm): 1485
SBN2000LKN3/B/ND/REND
Effective luminous flux (lm): 2500
System power (W): 18
Color temperature (K): 3000
Optical system: KN
Length (mm): 1485
SBN2000LKN3/B/ND/RSTART
Effective luminous flux (lm): 2500
System power (W): 18
Color temperature (K): 3000
Optical system: KN
Length (mm): 1485
SBN2000LKN4/B/ND/RCONT
Effective luminous flux (lm): 2500
System power (W): 18
Color temperature (K): 4000
Optical system: KN
Length (mm): 1485
SBN2000LKN4/B/ND/REND
Effective luminous flux (lm): 2500
System power (W): 18
Color temperature (K): 4000
Optical system: KN
Length (mm): 1485
SBN2000LKN4/B/ND/RSTART
Effective luminous flux (lm): 2500
System power (W): 18
Color temperature (K): 4000
Optical system: KN
Length (mm): 1485
SBN2000LKO4/ND/RCONT
Effective luminous flux (lm): 2500
System power (W): 18
Color temperature (K): 4000
Optical system: KO
Length (mm): 1485
SBN2000LKO4/ND/REND
Effective luminous flux (lm): 2500
System power (W): 18
Color temperature (K): 4000
Optical system: KO
Length (mm): 1485
SBN2000LKO4/ND/RSTART
Effective luminous flux (lm): 2500
System power (W): 18
Color temperature (K): 4000
Optical system: KO
Length (mm): 1485
SBN2000MKN3/X/DALI
Effective luminous flux (lm): 2300
System power (W): 16
Color temperature (K): 3000
Optical system: KN
Length (mm): 1185
SBN2000MKN3/X/ND
Effective luminous flux (lm): 2300
System power (W): 16
Color temperature (K): 4000
Optical system: KN
Length (mm): 1185
SBN2000MKN3/XC/ND
Effective luminous flux (lm): 2300
System power (W): 16
Color temperature (K): 3000
Optical system: KN
Length (mm): 1185
SBN2000MKN4/B/ND
Effective luminous flux (lm): 2300
System power (W): 16
Color temperature (K): 4000
Optical system: KN
Length (mm): 1185
SBN2000MKN4/B/ND/RCONT
Effective luminous flux (lm): 2300
System power (W): 16
Color temperature (K): 4000
Optical system: KN
Length (mm): 1185
SBN2000MKN4/B/ND/REND
Effective luminous flux (lm): 2300
System power (W): 16
Color temperature (K): 4000
Optical system: KN
Length (mm): 1185
SBN2000MKN4/B/ND/RSTART
Effective luminous flux (lm): 2300
System power (W): 16
Color temperature (K): 4000
Optical system: KN
Length (mm): 1185
SBN2000MKN4/X/DALI
Effective luminous flux (lm): 2300
System power (W): 16
Color temperature (K): 4000
Optical system: KN
Length (mm): 1185
SBN2000MKN4/X/ND
Effective luminous flux (lm): 2300
System power (W): 16
Color temperature (K): 4000
Optical system: KN
Length (mm): 1185
SBN2000MKO3/XB/DALI
Effective luminous flux (lm): 2300
System power (W): 16
Color temperature (K): 3000
Optical system: KO
Length (mm): 1185
SBN3000LKN4/XB/ND
Effective luminous flux (lm): 3400
System power (W): 24
Color temperature (K): 4000
Optical system: KN
Length (mm): 1485
SBN3000LKO3/XC/DALI
Effective luminous flux (lm): 3300
System power (W): 24
SBN3000MKN3/B/DALI/RCONT
Effective luminous flux (lm): 3250
System power (W): 23
Color temperature (K): 3000
Optical system: KN
Length (mm): 1185
SBN3000MKN3/B/DALI/REND
Effective luminous flux (lm): 3250
System power (W): 23
Color temperature (K): 3000
Optical system: KN
Length (mm): 1185
SBN3000MKN3/B/DALI/RSTART
Effective luminous flux (lm): 3250
System power (W): 23
Color temperature (K): 3000
Optical system: KN
Length (mm): 1185
SBN3000MKN3/B/ND/RCONT
Effective luminous flux (lm): 3250
System power (W): 23
Color temperature (K): 3000
Optical system: KN
Length (mm): 1185
SBN3000MKN3/B/ND/REND
Effective luminous flux (lm): 3250
System power (W): 23
Color temperature (K): 3000
Optical system: KN
Length (mm): 1185
SBN3000MKN3/B/ND/RSTART
Effective luminous flux (lm): 3250
System power (W): 23
Color temperature (K): 3000
Optical system: KN
Length (mm): 1185
SBN3000MKN3/DALI/REND
Effective luminous flux (lm): 3250
System power (W): 23
Color temperature (K): 3000
Optical system: KN
Length (mm): 1185
SBN3000MKN3/DALI/RSTART
Effective luminous flux (lm): 3250
System power (W): 23
Color temperature (K): 3000
Optical system: KN
Length (mm): 1185
SBN3000MKN3/XB/ND
Effective luminous flux (lm): 3250
System power (W): 23
Color temperature (K): 3000
Optical system: KN
Length (mm): 1185
SBN3000MKN4/B/DALI/RCONT
Effective luminous flux (lm): 3250
System power (W): 23
Color temperature (K): 4000
Optical system: KN
Length (mm): 1185
SBN3000MKN4/B/DALI/REND
Effective luminous flux (lm): 3250
System power (W): 23
Color temperature (K): 4000
Optical system: KN
Length (mm): 1185
SBN3000MKN4/B/DALI/RSTART
Effective luminous flux (lm): 3250
System power (W): 23
Color temperature (K): 4000
Optical system: KN
Length (mm): 1185
SBN3000MKN4/B/ND
Effective luminous flux (lm): 3250
System power (W): 23
Color temperature (K): 4000
Optical system: KN
Length (mm): 1185
SBN3000MKN4/B/ND/RCONT
Effective luminous flux (lm): 3250
System power (W): 23
Color temperature (K): 4000
Optical system: KN
Length (mm): 1185
SBN3000MKN4/ND/RCONT
Effective luminous flux (lm): 3250
System power (W): 23
SBN3000MKN4/ND/REND
Effective luminous flux (lm): 3250
System power (W): 23
SBN3000MKN4/ND/RSTART
Effective luminous flux (lm): 3250
System power (W): 23
SBN3000MKO3/B/DALI/RSTART
Effective luminous flux (lm): 3000
System power (W): 23
Color temperature (K): 3000
Optical system: KO
Length (mm): 1185
SBN4000LKN3/B/ND
Effective luminous flux (lm): 4800
System power (W): 35
Color temperature (K): 3000
Optical system: KN
Length (mm): 1485
SBN4000LKN3/DALI/REND
Effective luminous flux (lm): 4800
System power (W): 35
Color temperature (K): 3000
Optical system: KN
Length (mm): 1485
SBN4000LKN3/DALI/RSTART
Effective luminous flux (lm): 4800
System power (W): 35
Color temperature (K): 3000
Optical system: KN
Length (mm): 1485
SBN4000LKN3/XB/ND
Effective luminous flux (lm): 4800
System power (W): 35
Color temperature (K): 3000
Optical system: KN
Length (mm): 1485
SBN4000LKN3/XC/DALI
Effective luminous flux (lm): 4800
System power (W): 35
Color temperature (K): 3000
Optical system: KN
Length (mm): 1485
SBN4000LKN3/XC/ND
Effective luminous flux (lm): 4800
System power (W): 35
Color temperature (K): 3000
Optical system: KN
Length (mm): 1485
SBN4000LKN4/B/ND
Effective luminous flux (lm): 4800
System power (W): 35
Color temperature (K): 4000
Optical system: KN
Length (mm): 1485
SBN4000LKN4/XB/ND
Effective luminous flux (lm): 4800
System power (W): 35
Color temperature (K): 4000
Optical system: KN
Length (mm): 1485
SBN4000LKO3/B/DALI/REND
Effective luminous flux (lm): 4400
System power (W): 35
Color temperature (K): 3000
Optical system: KO
Length (mm): 1485
SBN4000LKO3/ND/RCONT
Effective luminous flux (lm): 4400
System power (W): 35
Color temperature (K): 3000
Optical system: KO
Length (mm): 1485
SBN4000LKO3/ND/REND
Effective luminous flux (lm): 4400
System power (W): 35
Color temperature (K): 3000
Optical system: KO
Length (mm): 1485
SBN4000LKO3/ND/RSTART
Effective luminous flux (lm): 4400
System power (W): 35
Color temperature (K): 3000
Optical system: KO
Length (mm): 1485
SBN4000LKO3/XB/DALI
Effective luminous flux (lm): 4400
System power (W): 35
Color temperature (K): 3000
Optical system: KO
Length (mm): 1485
SBN4000LKO3/XS/ND
Effective luminous flux (lm): 4400
System power (W): 35
Color temperature (K): 3000
Optical system: KO
Length (mm): 1485
SBN4000LKO4/ND
Effective luminous flux (lm): 4400
System power (W): 35
Color temperature (K): 4000
Optical system: KO
Length (mm): 1485
SBN4000LKO4/ND/RCONT
Effective luminous flux (lm): 4400
System power (W): 35
Color temperature (K): 4000
Optical system: KO
Length (mm): 1485
SBN4000LKO4/ND/REND
Effective luminous flux (lm): 4400
System power (W): 35
Color temperature (K): 4000
Optical system: KO
Length (mm): 1485
SBN4000LKO4/ND/RSTART
Effective luminous flux (lm): 4400
System power (W): 35
Color temperature (K): 4000
Optical system: KO
Length (mm): 1485
SBN4000LKO4/XB/ND
Effective luminous flux (lm): 4400
System power (W): 35
Color temperature (K): 4000
Optical system: KO
Length (mm): 1485
SBN4000MKN3/XC/DALI
Effective luminous flux (lm): 4400
System power (W): 33
Color temperature (K): 3000
Optical system: KN
Length (mm): 1185
SBN4000MKN3/XC/ND
Effective luminous flux (lm): 4400
System power (W): 33
Color temperature (K): 3000
Optical system: KN
Length (mm): 1185
SBN4000MKN4/B/ND
Effective luminous flux (lm): 4400
System power (W): 33
Color temperature (K): 4000
Optical system: KN
Length (mm): 1185
SBN4000MKN4/ND/RCONT
Effective luminous flux (lm): 4400
System power (W): 33
Color temperature (K): 4000
Optical system: KN
Length (mm): 1185
SBN4000MKN4/ND/REND
Effective luminous flux (lm): 4400
System power (W): 33
Color temperature (K): 4000
Optical system: KN
Length (mm): 1185
SBN4000MKN4/ND/RSTART
Effective luminous flux (lm): 4400
System power (W): 33
Color temperature (K): 4000
Optical system: KN
Length (mm): 1185
SBN4000MKN4/XC/ND
Effective luminous flux (lm): 4400
System power (W): 33
Color temperature (K): 4000
Optical system: KN
Length (mm): 1185
SBN4000MKO3/XB/DALI
Effective luminous flux (lm): 4150
System power (W): 33
Color temperature (K): 3000
Optical system: KO
Length (mm): 1185
SBN5000MKO3/XB/ND
Effective luminous flux (lm): 5200
System power (W): 42
Color temperature (K): 3000
Optical system: KO
Length (mm): 1185
Show all versions

Projekty realizované se svítidly MODUS:


Autosalon Rolls-Royce (Australia)

MODUS TEL

Detail reference

Office building of HAGER company

MODUS SPMI + MODUS QP

Detail reference

Commercial centrum

MODUS Q SKY

Detail reference

Tennis play-ground Bratislava (SK)

MODUS MEGAL

Detail reference
Zobrazit další reference
 Back to product list

We are here to help

We'll advise you all, we have outstanding support.
Lighting calculations

Lighting calculations

Do you need to calculate the lighting?

LDT files

LDT files

Do you need LDT data for your project?

Product support

Product support

Do not know what kind of lighting is best for you?

Connection diagrams

Connection diagrams

Do not you know how to conect luminaires properly?

Contact
