Product series

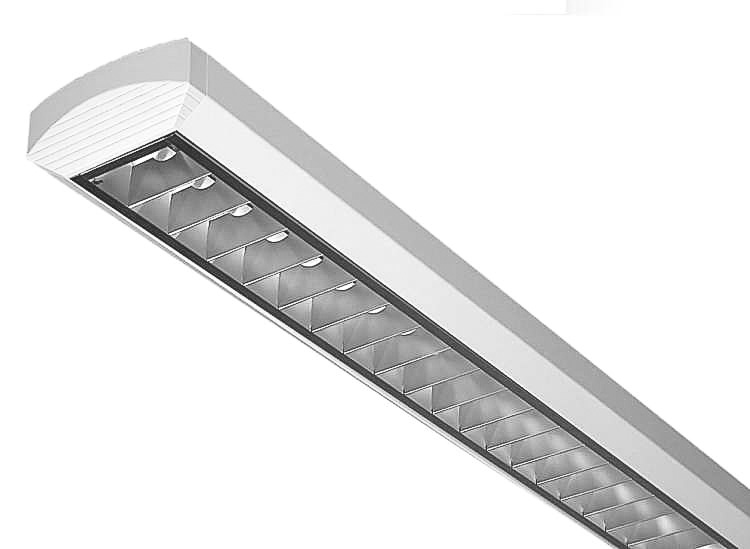

MODUS SLIM
Surfaced and suspended louvre fitting
Standard price from:
On request
Body:
White painted (RAL 9003) metal sheet
White plastic endcaps
Optic:
ALDP double parabolic louvre category C2 of highly polished aluminium
MATDP double parabolic louvre category C2 of mat aluminium
AS highly polished asymetric aluminium reflector
Wiring:
EP high frequention ballast HFB (standard for T5 lamps)
EPSA HFB analogue dimmabe (1-10 V)
EPSD HFB digital dimmable TRIDONIC ECO
EPSDD HFB digital dimmable DALI
MULTIWATT - universal HFB for T5 lamps
Application:
These light fittings can be used as surface mounted or suspended.
Accessories:
ZH22 - cord suspension set with plastic cover
ZHX22 - lcord suspension set with metal cover
4333011 - endcaps for SLIM 1x tube
4333012 - endcaps for SLIM 2x tubes
1331004007 - connection part for SLIM/R 1x tube
1332004007 - connection part for SLIM/R 2x tube
Versions:
/R - version for continous assembly, fittings has terminal boxes at both end and are delivered without endcaps. Endcaps needs to be delivered separately also connection part is needed (see Accessories).
/Z - version for pendant installation with holes at back part of fitting for indirect illumination
Note:
Recomended style of installation is as surface mounted. When light fittings are suspended, they should be hung by 4 cords or tubes.
