Product series

MODUS SPMI

LED downlight with opal cover

MODUS SPMI1000
MODUS SPMI1000MODUS SPMI1000
MODUS SPMI3000MODUS SPMI3000
MODUS SPMI700MODUS SPMI700
220-240 v.png
11 L80_80000_h.jpg
en 62 471.png

Standard price from:

On request
Distribution network
Contacts

Body:

White painted aluminium body





LED:

LED COB CITIZEN

CRI 80

3...warm white 3000K

4...cold white 4000K



Wiring:

LED driver (constant current)

ND – not dimmable (standard)

DALI – digital dimmable DALI

DIM - analogue dimmable 1-10V



Application:

Recessed installation into gypsum or raster ceiling



Versions:

B - reflector diameter 130 mm

C - reflector diameter 190 mm

D - reflector diameter 240 mm

Body material:Aluminium die-castMounting method:Built-in
Protection class:IIType of control gear:LED operating device current-controlled
Color rendering index CRI:80-89, 90-100Light source type:LED
Nominal voltage (V):220...240Degree of protection (IP):IP43
Color temperature (K):4000, 3000, 2700, 5000
Rated lifetime L80/B50 (h):80000
Dimming 1-10 V:YesDimming DALI:Yes

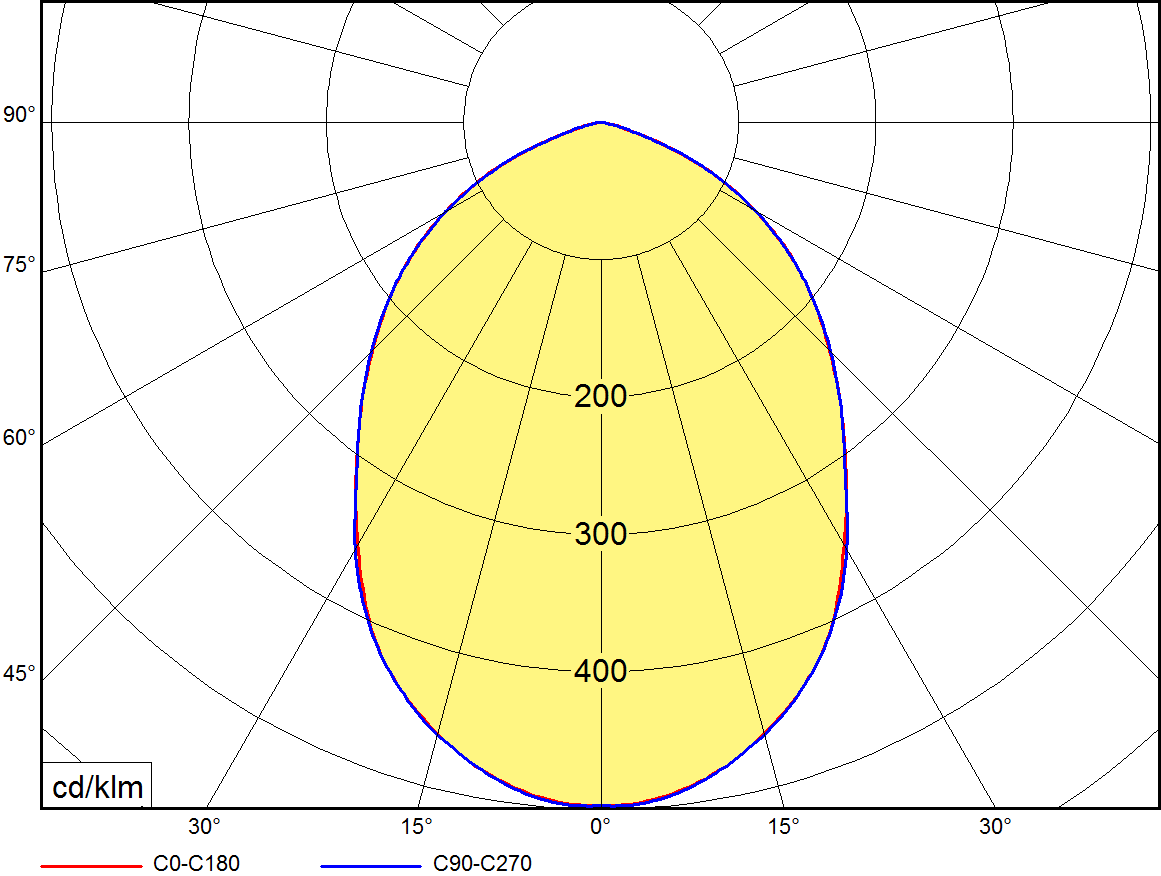

Optical system:SPMI
reflektor z leštěného hliníku + opálové sklo
Made in Czech republic:Yes
Replaceability:Removeable light source, replaceable ballast
Removeable light source, replaceable ballast
Photobiological safety EN 62 471:RG 0
MacAdam binning:SDCM 3
Show more...
LoadingLoading

Filters

Effective luminous flux (lm)

750
3350

System power (W)

8
28
Product name
SPMI1000KO3V2BB/ND
Effective luminous flux (lm): 1100
Color temperature (K): 3000
Outer diameter (mm): 130
SPMI1000KO3V2CB/DALI
Effective luminous flux (lm): 1100
Color temperature (K): 3000
Outer diameter (mm): 190
SPMI1000KO3V2CB/ND
Effective luminous flux (lm): 1100
Color temperature (K): 3000
Outer diameter (mm): 190
SPMI1000KO4V2CB/DALI
Effective luminous flux (lm): 1100
Color temperature (K): 4000
Outer diameter (mm): 190
SPMI1000KO4V2CB/ND
Effective luminous flux (lm): 1100
Color temperature (K): 4000
Outer diameter (mm): 190
SPMI1000KO4V2DB/ND
Effective luminous flux (lm): 1100
Color temperature (K): 4000
Outer diameter (mm): 240
SPMI1500KO2V2BB/ND/90
Effective luminous flux (lm): 1050
System power (W): 15
Color temperature (K): 2700
Outer diameter (mm): 130
SPMI1500KO3V2CB/DALI
Effective luminous flux (lm): 1500
System power (W): 15
SPMI1500KO3V2CB/ND
Effective luminous flux (lm): 1500
System power (W): 15
Color temperature (K): 3000
Outer diameter (mm): 190
SPMI1500KO3V2DB/DALI
Effective luminous flux (lm): 1650
System power (W): 15
Color temperature (K): 3000
Outer diameter (mm): 240
SPMI1500KO3V2DB/DALIT
Effective luminous flux (lm): 1650
System power (W): 15
Color temperature (K): 3000
Outer diameter (mm): 240
SPMI1500KO3V2DB/ND
Effective luminous flux (lm): 1650
System power (W): 15
Color temperature (K): 3000
Outer diameter (mm): 240
SPMI1500KO4V2CB/DALI
Effective luminous flux (lm): 1500
System power (W): 15
Color temperature (K): 4000
Outer diameter (mm): 190
SPMI1500KO4V2CB/ND
Effective luminous flux (lm): 1500
System power (W): 15
Color temperature (K): 4000
Outer diameter (mm): 190
SPMI1500KO4V2DB/DALI
Effective luminous flux (lm): 1650
System power (W): 15
Color temperature (K): 4000
Outer diameter (mm): 240
SPMI1500KO4V2DB/ND
Effective luminous flux (lm): 1650
System power (W): 15
Color temperature (K): 4000
Outer diameter (mm): 240
SPMI2000KO3V2CB/ND
Effective luminous flux (lm): 2400
System power (W): 20
Color temperature (K): 3000
Outer diameter (mm): 190
SPMI2000KO3V2DB/DALI
Effective luminous flux (lm): 2400
System power (W): 20
Color temperature (K): 3000
Outer diameter (mm): 240
SPMI2000KO3V2DB/DALI/S129
Effective luminous flux (lm): 2400
System power (W): 20
Color temperature (K): 4000
Outer diameter (mm): 240
SPMI2000KO3V2DB/ND
Effective luminous flux (lm): 2400
System power (W): 20
Color temperature (K): 3000
Outer diameter (mm): 240
SPMI2000KO4V2CB/ND
Effective luminous flux (lm): 2400
System power (W): 20
Color temperature (K): 4000
Outer diameter (mm): 190
SPMI2000KO4V2DB/DALI
Effective luminous flux (lm): 2400
System power (W): 20
Color temperature (K): 4000
Outer diameter (mm): 240
SPMI2000KO4V2DB/DALI/S129
Effective luminous flux (lm): 2400
System power (W): 20
Color temperature (K): 4000
Outer diameter (mm): 240
SPMI2000KO4V2DB/ND
Effective luminous flux (lm): 2400
System power (W): 20
Color temperature (K): 4000
Outer diameter (mm): 240
SPMI2000KO5V2DB/ND
Effective luminous flux (lm): 2400
System power (W): 20
Color temperature (K): 5000
Outer diameter (mm): 240
SPMI3000KO3V2CB/ND
Effective luminous flux (lm): 3000
System power (W): 28
Color temperature (K): 3000
Outer diameter (mm): 190
SPMI3000KO3V2DB/DALI
Effective luminous flux (lm): 3350
System power (W): 28
Color temperature (K): 3000
Outer diameter (mm): 240
SPMI3000KO3V2DB/DALI/9005
Effective luminous flux (lm): 3350
System power (W): 28
Color temperature (K): 3000
Outer diameter (mm): 240
SPMI3000KO3V2DB/ND
Effective luminous flux (lm): 3350
System power (W): 28
Color temperature (K): 3000
Outer diameter (mm): 240
SPMI3000KO4V2CB/DALI
Effective luminous flux (lm): 3000
System power (W): 28
Color temperature (K): 4000
Outer diameter (mm): 190
SPMI3000KO4V2CB/ND
Effective luminous flux (lm): 3000
System power (W): 28
Color temperature (K): 4000
Outer diameter (mm): 190
SPMI3000KO4V2DB/BT
Effective luminous flux (lm): 3350
System power (W): 28
Color temperature (K): 4000
Outer diameter (mm): 240
SPMI3000KO4V2DB/DALI
Effective luminous flux (lm): 3350
System power (W): 28
Color temperature (K): 4000
Outer diameter (mm): 240
SPMI3000KO4V2DB/ND
Effective luminous flux (lm): 3350
System power (W): 28
Color temperature (K): 4000
Outer diameter (mm): 240
SPMI700KO3V2BB/DALI
Effective luminous flux (lm): 750
System power (W): 8
Color temperature (K): 3000
Outer diameter (mm): 130
SPMI700KO3V2BB/DALIT
Effective luminous flux (lm): 750
System power (W): 8
Color temperature (K): 3000
Outer diameter (mm): 130
SPMI700KO3V2BB/ND
Effective luminous flux (lm): 750
System power (W): 8
Color temperature (K): 3000
Outer diameter (mm): 130
SPMI700KO3V2BB/ND/9005
Effective luminous flux (lm): 750
System power (W): 8
Color temperature (K): 3000
Outer diameter (mm): 130
SPMI700KO4V2BB/DALI
Effective luminous flux (lm): 750
System power (W): 8
Color temperature (K): 4000
Outer diameter (mm): 130
SPMI700KO4V2BB/ND
Effective luminous flux (lm): 750
System power (W): 8
Color temperature (K): 4000
Outer diameter (mm): 130
SPMI700KO4V2BB/ND/9006
Effective luminous flux (lm): 750
System power (W): 8
Color temperature (K): 4000
Outer diameter (mm): 130
Show all versions
