Product series

MODUS SPMN

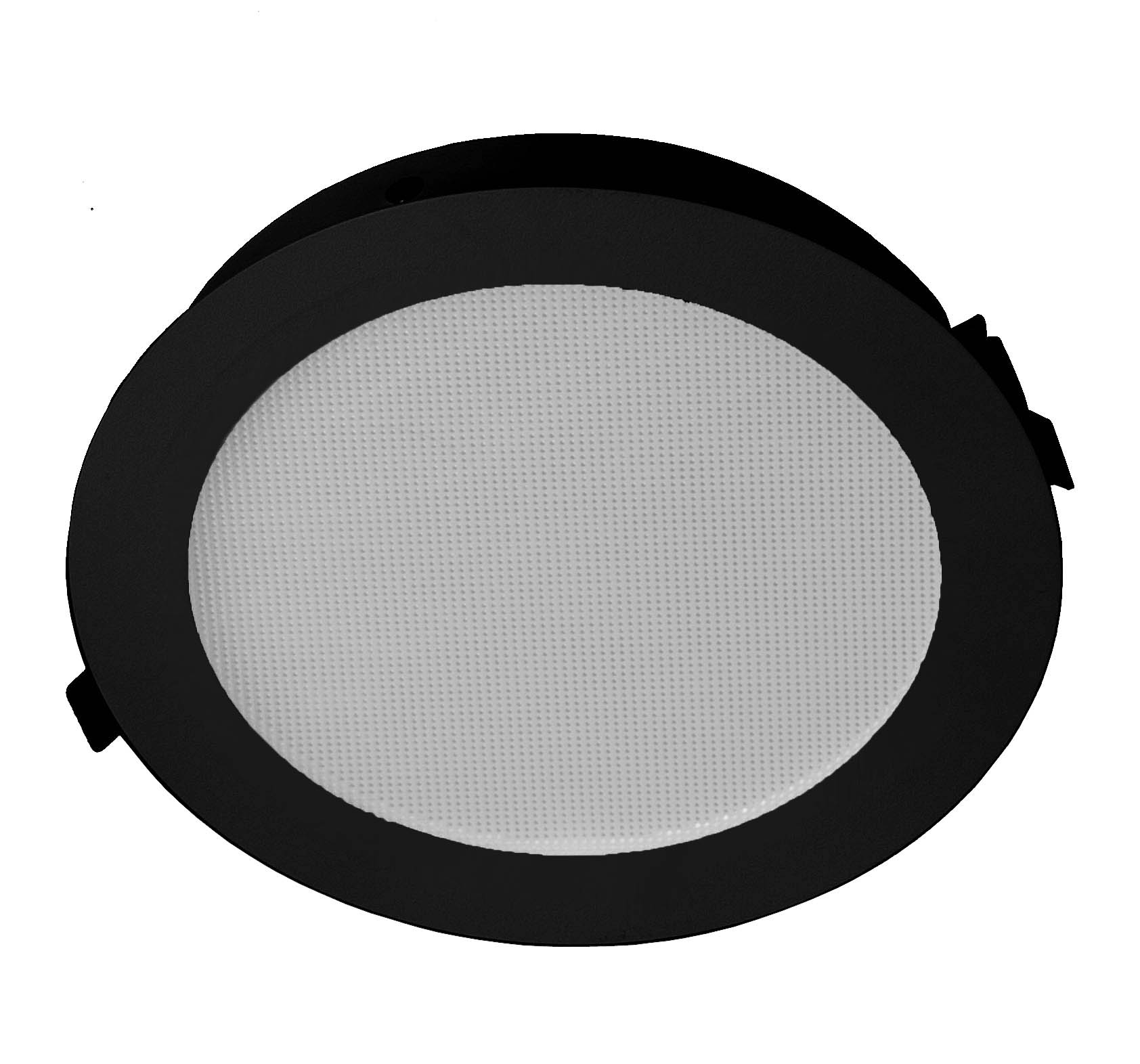

Recessed round LED fitting

MODUS SPMN

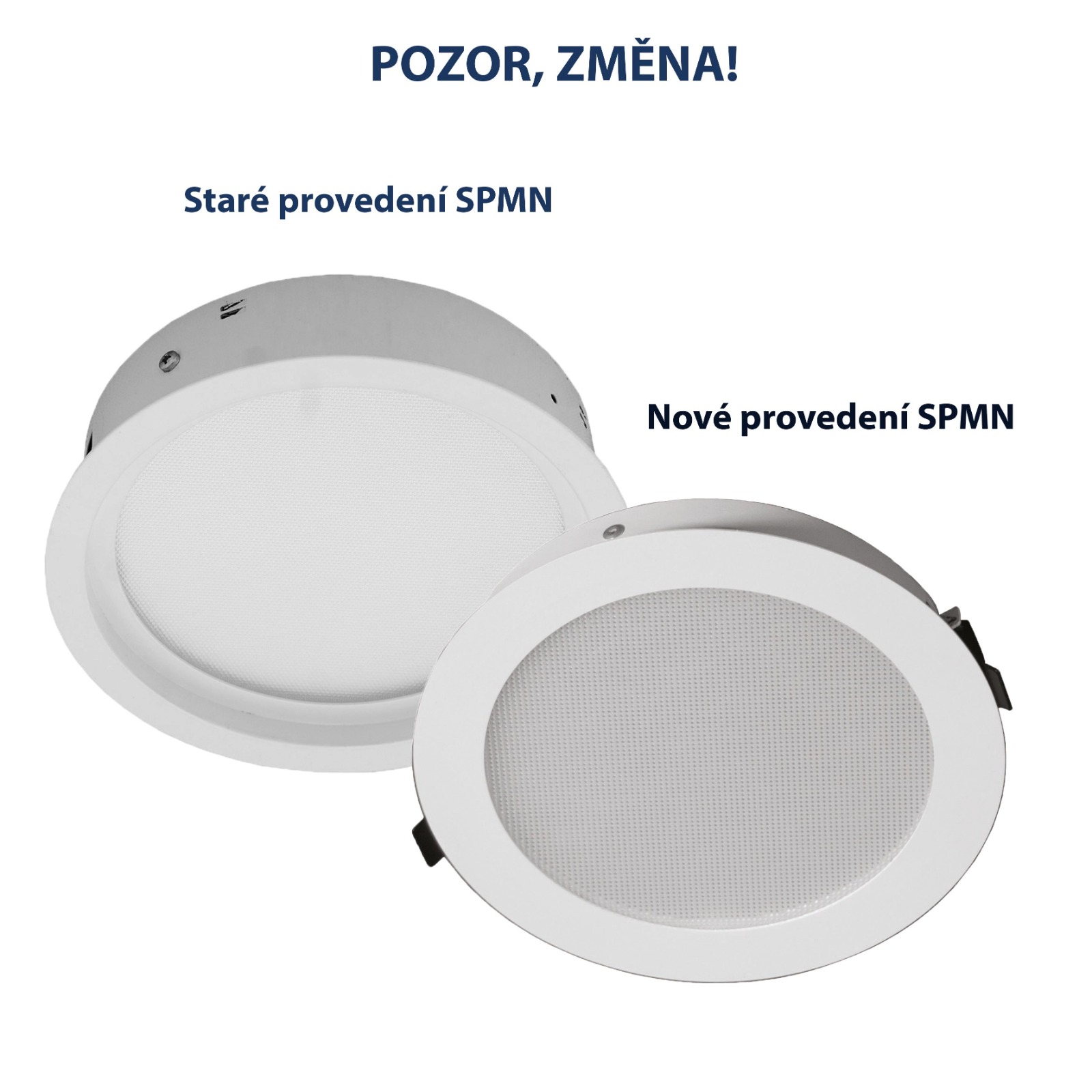

SPMN nove vs stare.jpg
220-240 v.png
11 L80_80000_h.jpg
en 62 471.png

Standard price from:

On request
Distribution network
Contacts

Body:

White painted (RAL 9003) metal sheet



LED:

Mid Power LED

CRI 80 (CRI 90 on request)

3...warm white 3000K

4...cold white 4000K



Optical system:

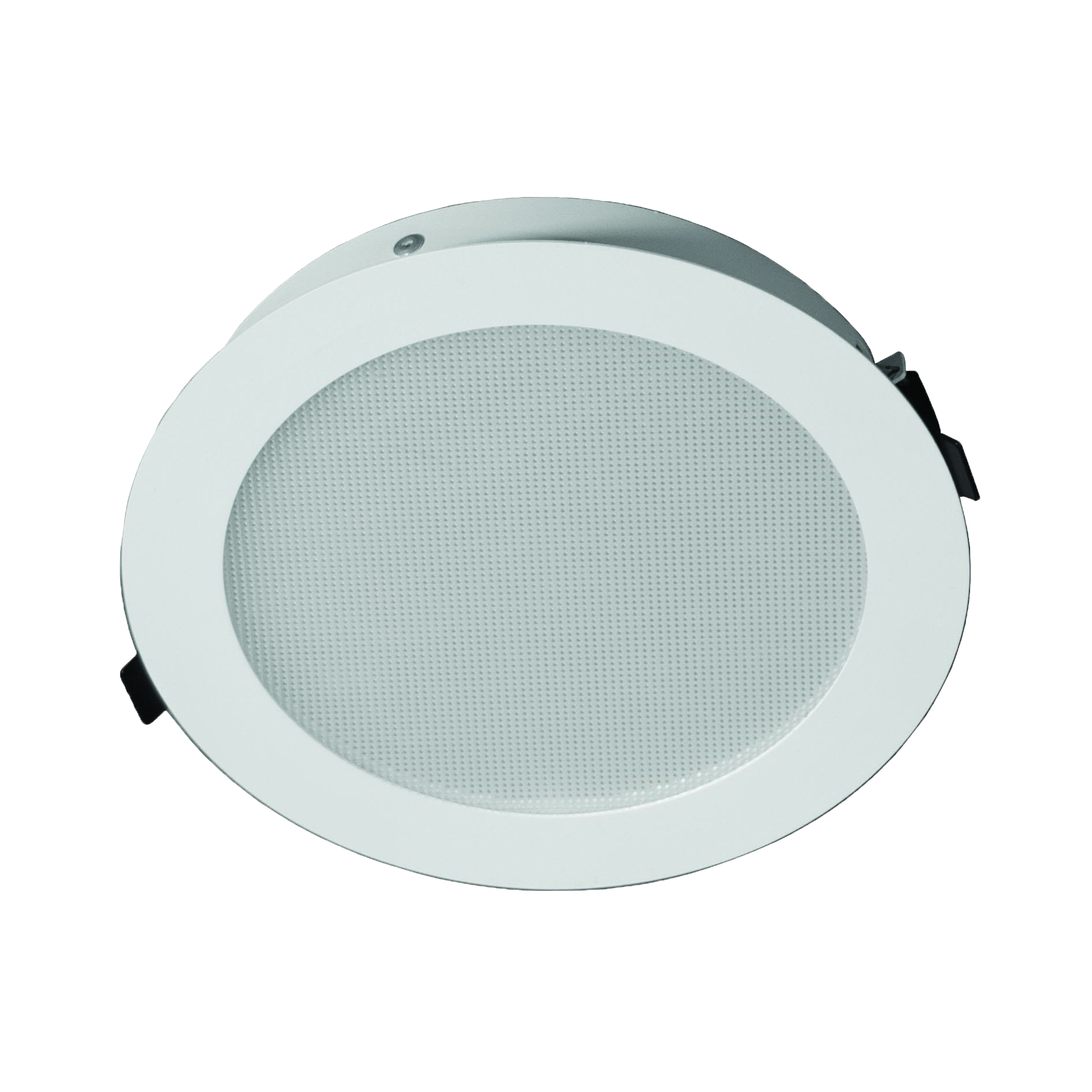

KN - nanoprisma cover

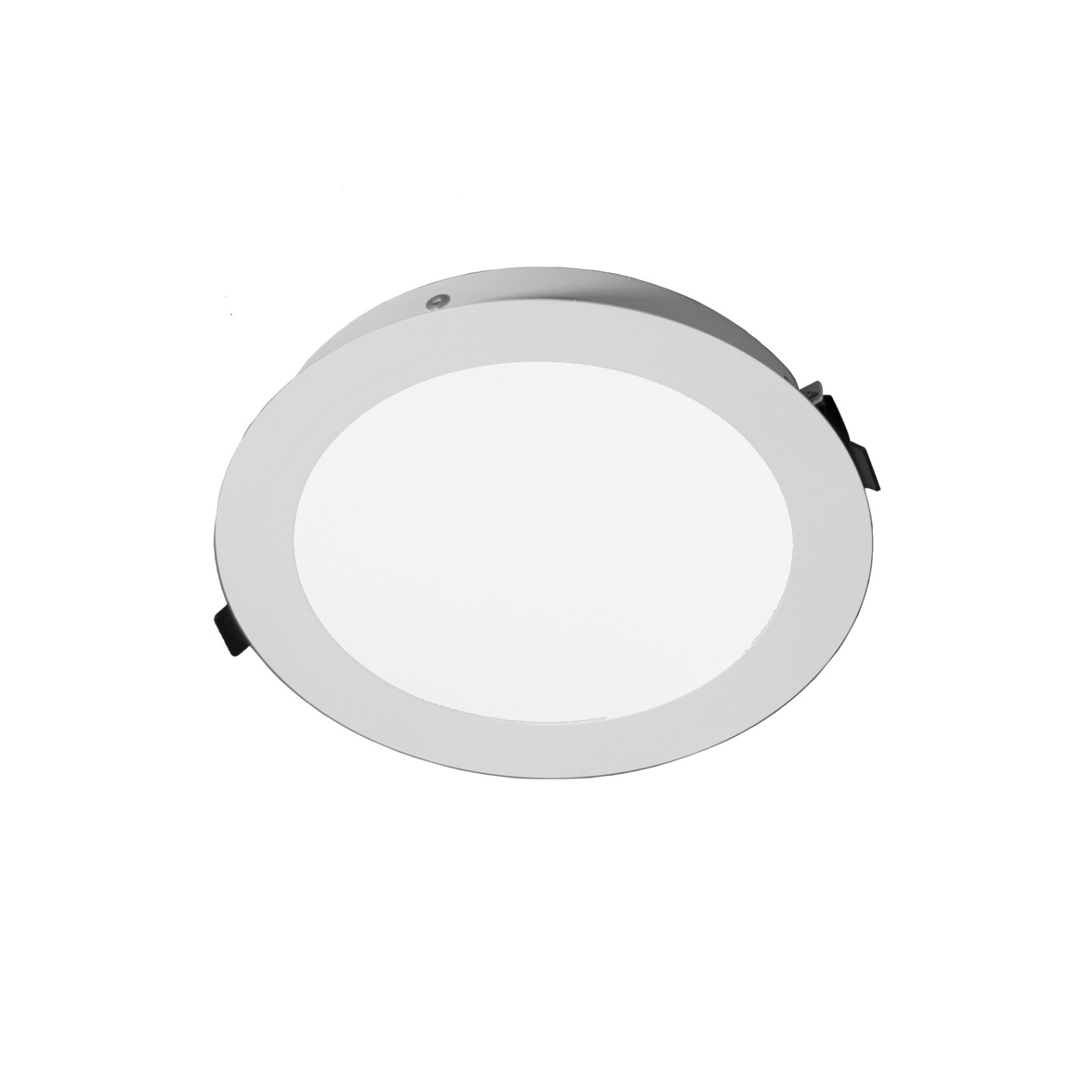

KO - opal cover



Wiring:

LED driver (constant current)

ND – not dimmable (standard)

DALI – digital dimmable DALI

DIM - analogue dimmable 1-10V

Luminaire can be supplied with wireless Bluetooth control - more information here.



Application:

Recessed installation into gypsum or raster ceiling

Body material:White painted steelMounting method:Built-in
Protection class:IIType of control gear:LED operating device current-controlled
Color rendering index CRI:80-89, 90-100Light source type:LED
Nominal voltage (V):220...240Degree of protection (IP):IP54
Color temperature (K):4000, 3000, 2700, 5700Rated lifetime L80/B50 (h):80000
Dimming 1-10 V:YesDimming DALI:Yes
Optical system:KO
opal cover
KN
nanoprizmatic cover
Made in Czech republic:Yes
Without Chinese components:AnoReplaceability:Removeable light source, replaceable ballast
Removeable light source, replaceable ballast
Photobiological safety EN 62 471:RG 0MacAdam binning:SDCM 3
Show more...
LoadingLoading

Filters

Effective luminous flux (lm)

1050
4500

System power (W)

12
40
Product name
SPMN1000KN2/E190/ND/90
Effective luminous flux (lm): 900
System power (W): 12
Color temperature (K): 2700
Outer diameter (mm): 210
SPMN1000KN3/E190/DALI
Effective luminous flux (lm): 1050
System power (W): 9
Color temperature (K): 3000
Outer diameter (mm): 210
SPMN1000KN3/E190/ND
Effective luminous flux (lm): 1050
System power (W): 9
Color temperature (K): 3000
Outer diameter (mm): 210
SPMN1000KN4/E190/DALI
Effective luminous flux (lm): 1050
System power (W): 9
Color temperature (K): 4000
Outer diameter (mm): 210
SPMN1000KN4/E190/ND
Effective luminous flux (lm): 1050
System power (W): 9
Color temperature (K): 4000
Outer diameter (mm): 210
SPMN1000KN5/E190/ND
Effective luminous flux (lm): 1050
System power (W): 9
Color temperature (K): 5700
Outer diameter (mm): 210
SPMN1000KO3/E190/DALI
Effective luminous flux (lm): 970
System power (W): 9
Color temperature (K): 3000
Outer diameter (mm): 210
SPMN1000KO3/E190/ND
Effective luminous flux (lm): 970
System power (W): 9
Color temperature (K): 3000
Outer diameter (mm): 210
SPMN1000KO4/E190/DALI
Effective luminous flux (lm): 970
System power (W): 9
Color temperature (K): 4000
Outer diameter (mm): 210
SPMN1000KO4/E190/ND
Effective luminous flux (lm): 970
System power (W): 9
Color temperature (K): 4000
Outer diameter (mm): 210
SPMN1500KN2/E190/DALI
Effective luminous flux (lm): 1460
System power (W): 13
Color temperature (K): 2700
Outer diameter (mm): 210
SPMN1500KN2/E190/ND
Effective luminous flux (lm): 1450
System power (W): 13
Color temperature (K): 2700
Outer diameter (mm): 210
SPMN1500KN2/E190/ND/90
Effective luminous flux (lm): 1300
System power (W): 18
Color temperature (K): 2700
Outer diameter (mm): 210
SPMN1500KN3/E190/DALI
Effective luminous flux (lm): 1450
System power (W): 13
Color temperature (K): 3000
Outer diameter (mm): 210
SPMN1500KN3/E190/ND
Effective luminous flux (lm): 1450
System power (W): 13
Color temperature (K): 3000
Outer diameter (mm): 210
SPMN1500KN3/E190/ND/9005
Effective luminous flux (lm): 1450
System power (W): 13
Color temperature (K): 3000
Outer diameter (mm): 210
SPMN1500KN4/E190/DALI
Effective luminous flux (lm): 1450
System power (W): 13
Color temperature (K): 4000
Outer diameter (mm): 210
SPMN1500KN4/E190/ND
Effective luminous flux (lm): 1450
System power (W): 13
Color temperature (K): 4000
Outer diameter (mm): 210
SPMN1500KN4/E190/ND/90
Effective luminous flux (lm): 1300
System power (W): 18
Color temperature (K): 4000
Outer diameter (mm): 210
SPMN1500KN4/E190/ND/9006
Effective luminous flux (lm): 1450
System power (W): 13
Color temperature (K): 4000
Outer diameter (mm): 210
SPMN1500KN4/E190/ND/EU
Effective luminous flux (lm): 1450
System power (W): 13
Color temperature (K): 4000
Outer diameter (mm): 210
SPMN1500KN4/E190/ND/PIR
Effective luminous flux (lm): 1450
System power (W): 13
Color temperature (K): 4000
Outer diameter (mm): 210
SPMN1500KN4/E210/ND
Effective luminous flux (lm): 1450
System power (W): 13
Color temperature (K): 4000
SPMN1500KO2/E190/ND
Effective luminous flux (lm): 1350
System power (W): 13
Color temperature (K): 2700
Outer diameter (mm): 210
SPMN1500KO3/E190/ND
Effective luminous flux (lm): 1350
System power (W): 13
Color temperature (K): 3000
Outer diameter (mm): 210
SPMN1500KO4/E190/DALI
Effective luminous flux (lm): 1350
System power (W): 13
Color temperature (K): 4000
Outer diameter (mm): 210
SPMN1500KO4/E190/ND
Effective luminous flux (lm): 1350
System power (W): 13
Color temperature (K): 4000
Outer diameter (mm): 210
SPMN1500KO4/E190/ND/9005
Effective luminous flux (lm): 1350
System power (W): 13
Color temperature (K): 4000
Outer diameter (mm): 210
SPMN1500KO4/E190/ND/PIR
Effective luminous flux (lm): 1450
System power (W): 13
Color temperature (K): 4000
Outer diameter (mm): 210
SPMN1500KO6/E190/ND
Effective luminous flux (lm): 1450
System power (W): 13
Color temperature (K): 6500
Outer diameter (mm): 210
SPMN2000KN2/E190/ND
Effective luminous flux (lm): 1900
System power (W): 19
Color temperature (K): 2700
Outer diameter (mm): 210
SPMN2000KN3/E190-230/DALI
Effective luminous flux (lm): 1950
System power (W): 19
SPMN2000KN3/E190-230/ND
Effective luminous flux (lm): 1950
System power (W): 19
SPMN2000KN3/E190/DALI
Effective luminous flux (lm): 1950
System power (W): 19
Color temperature (K): 3000
Outer diameter (mm): 210
SPMN2000KN3/E190/ND
Effective luminous flux (lm): 1950
System power (W): 19
Color temperature (K): 3000
Outer diameter (mm): 210
SPMN2000KN3/E190/NDMULTI
Effective luminous flux (lm): 1950
System power (W): 19
Color temperature (K): 3000
Outer diameter (mm): 210
SPMN2000KN4/E190-230/DALI
Effective luminous flux (lm): 1950
System power (W): 19
SPMN2000KN4/E190/DALI
Effective luminous flux (lm): 1950
System power (W): 19
Color temperature (K): 4000
Outer diameter (mm): 210
SPMN2000KN4/E190/ND
Effective luminous flux (lm): 1950
System power (W): 19
Color temperature (K): 4000
Outer diameter (mm): 210
SPMN2000KN4/E190/ND/90
Effective luminous flux (lm): 1550
System power (W): 19
Color temperature (K): 4000
Outer diameter (mm): 210
SPMN2000KN4/E190/ND/9006
Effective luminous flux (lm): 1950
System power (W): 19
Color temperature (K): 4000
Outer diameter (mm): 210
SPMN2000KN4/E190/ND/IP6520
Effective luminous flux (lm): 1950
System power (W): 19
Color temperature (K): 4000
Outer diameter (mm): 210
SPMN2000KN4/E190/NDMULTI
Effective luminous flux (lm): 1950
System power (W): 19
Color temperature (K): 4000
Outer diameter (mm): 210
SPMN2000KNMIXW/E190
Effective luminous flux (lm): 1860
System power (W): 18
Color temperature (K): 2700...6500
Outer diameter (mm): 210
SPMN2000KO3/E190/ND
Effective luminous flux (lm): 1800
System power (W): 19
Color temperature (K): 3000
Outer diameter (mm): 210
SPMN2000KO3/E190/ND/9005
Effective luminous flux (lm): 1800
System power (W): 19
Color temperature (K): 3000
Outer diameter (mm): 210
SPMN2000KO3/E190/ND/9006
Effective luminous flux (lm): 1800
System power (W): 19
Color temperature (K): 3000
Outer diameter (mm): 210
SPMN2000KO4/E190/DALI
Effective luminous flux (lm): 1800
System power (W): 19
Color temperature (K): 4000
Outer diameter (mm): 210
SPMN2000KO4/E190/ND
Effective luminous flux (lm): 1800
System power (W): 19
Color temperature (K): 4000
Outer diameter (mm): 210
SPMN2000KO4/E190/ND/9005
Effective luminous flux (lm): 1800
System power (W): 19
Color temperature (K): 4000
Outer diameter (mm): 210
SPMN3000KN3/E370/DALI
Effective luminous flux (lm): 3000
System power (W): 26
Color temperature (K): 3000
Outer diameter (mm): 390
SPMN3000KN3/E370/ND
Effective luminous flux (lm): 3000
System power (W): 26
Color temperature (K): 3000
Outer diameter (mm): 390
SPMN3000KN3/E370/ND/9005
Effective luminous flux (lm): 3000
System power (W): 26
Color temperature (K): 3000
Outer diameter (mm): 390
SPMN3000KN4/E370/DALI
Effective luminous flux (lm): 3000
System power (W): 26
Color temperature (K): 4000
Outer diameter (mm): 390
SPMN3000KN4/E370/DALI/90
Effective luminous flux (lm): 2550
System power (W): 26
Color temperature (K): 4000
Outer diameter (mm): 390
SPMN3000KN4/E370/ND
Effective luminous flux (lm): 3000
System power (W): 26
Color temperature (K): 4000
Outer diameter (mm): 390
SPMN3000KN4/E370/ND/90
Effective luminous flux (lm): 2550
System power (W): 26
Color temperature (K): 4000
Outer diameter (mm): 390
SPMN3000KN4/E370/ND/9005
Effective luminous flux (lm): 3000
System power (W): 26
Color temperature (K): 4000
Outer diameter (mm): 390
SPMN3000KN4/E370/ND/EU
Effective luminous flux (lm): 3000
System power (W): 26
Color temperature (K): 4000
Outer diameter (mm): 390
SPMN3000KN4/E370/NDMULTI
Effective luminous flux (lm): 3000
System power (W): 28
Color temperature (K): 4000
Outer diameter (mm): 390
SPMN3000KN5/E370/ND
Effective luminous flux (lm): 3000
System power (W): 26
Color temperature (K): 5700
Outer diameter (mm): 390
SPMN3000KO3/E370/DALI
Effective luminous flux (lm): 2800
System power (W): 26
Color temperature (K): 3000
Outer diameter (mm): 390
SPMN3000KO3/E370/ND
Effective luminous flux (lm): 2800
System power (W): 26
Color temperature (K): 3000
Outer diameter (mm): 390
SPMN3000KO4/E370/DALI
Effective luminous flux (lm): 2800
System power (W): 26
Color temperature (K): 4000
Outer diameter (mm): 390
SPMN3000KO4/E370/ND/90
Effective luminous flux (lm): 2350
System power (W): 26
Color temperature (K): 4000
Outer diameter (mm): 390
SPMN3000KO6/E370/ND
Effective luminous flux (lm): 2800
System power (W): 26
Color temperature (K): 6500
Outer diameter (mm): 390
SPMN4000KN3/E370/DALI
Effective luminous flux (lm): 3800
System power (W): 34
Color temperature (K): 3000
Outer diameter (mm): 390
SPMN4000KN3/E370/ND
Effective luminous flux (lm): 3800
System power (W): 34
Color temperature (K): 3000
Outer diameter (mm): 390
SPMN4000KN3/E550/DALI
Effective luminous flux (lm): 3800
System power (W): 34
Color temperature (K): 3000
Outer diameter (mm): 570
SPMN4000KN3/E550/ND
Effective luminous flux (lm): 3800
System power (W): 34
Color temperature (K): 3000
Outer diameter (mm): 570
SPMN4000KN4/E370/DALI
Effective luminous flux (lm): 3800
System power (W): 34
Color temperature (K): 4000
Outer diameter (mm): 390
SPMN4000KN4/E370/ND
Effective luminous flux (lm): 3800
System power (W): 34
Color temperature (K): 4000
Outer diameter (mm): 390
SPMN4000KN4/E370/ND/90
Effective luminous flux (lm): 3200
System power (W): 34
Color temperature (K): 4000
Outer diameter (mm): 390
SPMN4000KN4/E370/ND/9005
Effective luminous flux (lm): 3800
System power (W): 34
Color temperature (K): 4000
Outer diameter (mm): 390
SPMN4000KN4/E550/DALI
Effective luminous flux (lm): 3800
System power (W): 34
Color temperature (K): 4000
Outer diameter (mm): 570
SPMN4000KN4/E550/ND
Effective luminous flux (lm): 3800
System power (W): 34
Color temperature (K): 4000
Outer diameter (mm): 570
SPMN4000KN5/E370/DALIT/90
Effective luminous flux (lm): 3200
System power (W): 34
Color temperature (K): 5700
Outer diameter (mm): 390
SPMN4000KN5/E370/ND
Effective luminous flux (lm): 3800
System power (W): 34
Color temperature (K): 5700
Outer diameter (mm): 390
SPMN4000KO3/E370/DALI
Effective luminous flux (lm): 3550
System power (W): 34
Color temperature (K): 3000
Outer diameter (mm): 390
SPMN4000KO3/E370/ND
Effective luminous flux (lm): 3550
System power (W): 34
Color temperature (K): 3000
Outer diameter (mm): 390
SPMN4000KO4/E370/DALI/90
Effective luminous flux (lm): 3000
System power (W): 34
Color temperature (K): 4000
Outer diameter (mm): 390
SPMN4000KO4/E370/ND
Effective luminous flux (lm): 3550
System power (W): 34
Color temperature (K): 4000
Outer diameter (mm): 390
SPMN4KN370V2/700ND
SPMN5000KN4/E550/ND
Effective luminous flux (lm): 4500
System power (W): 40
SPMN5000KN4/E550/ND/90
Effective luminous flux (lm): 3600
System power (W): 40
Color temperature (K): 4000
Outer diameter (mm): 570
SPMN5000KO4/E550/ND
Effective luminous flux (lm): 4300
System power (W): 40
Color temperature (K): 4000
Outer diameter (mm): 570
Show all versions

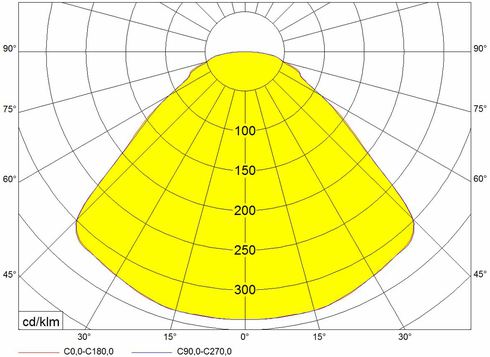

80_1 SPMN.JPG80_1 SPMN.JPG

Projekty realizované se svítidly MODUS:


Autosalon Rolls-Royce (Australia)

MODUS TEL

Detail reference

Office building of HAGER company

MODUS SPMI + MODUS QP

Detail reference

Commercial centrum

MODUS Q SKY

Detail reference

Tennis play-ground Bratislava (SK)

MODUS MEGAL

Detail reference
Zobrazit další reference
 Back to product list

We are here to help

We'll advise you all, we have outstanding support.
Lighting calculations

Lighting calculations

Do you need to calculate the lighting?

LDT files

LDT files

Do you need LDT data for your project?

Product support

Product support

Do not know what kind of lighting is best for you?

Connection diagrams

Connection diagrams

Do not you know how to conect luminaires properly?

Contact
